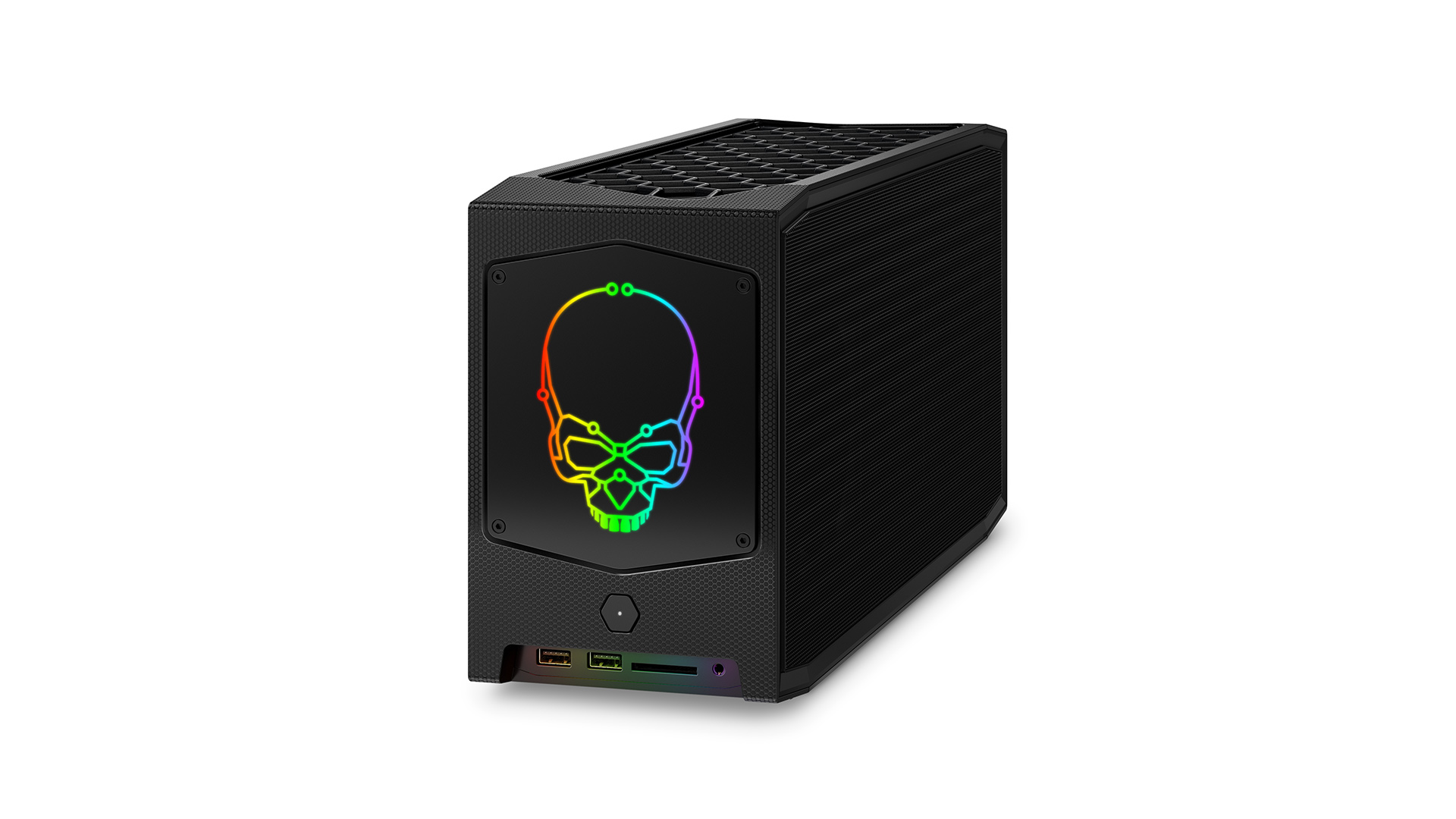

Intel NUC RNUC11BTMI90000 PC/workstation barebone 8L sized PC Black i9-11900KB 3.3 GHz
Roll over image to zoom inClick to Open expanded view
Print
Model: RNUC11BTMI90000
EAN: 5032037210010

Intel NUC RNUC11BTMI90000 PC/workstation barebone 8L sized PC Black i9-11900KB 3.3 GHz

Manufacturer:
Intel
Intel NUC RNUC11BTMI90000, 8L sized PC, PC barebone, DDR4-SDRAM, Ethernet LAN, Wi-Fi 6E (802.11ax), 650 W
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

Intel NUC RNUC11BTMI90000. Chassis type: 8L sized PC, Product type: PC barebone. Supported memory types: DDR4-SDRAM, Number of memory slots: 2, Maximum internal memory: 64 GB. Supported storage drive types: SSD, RAID levels: 0, 1. Ethernet LAN (RJ-45) ports: 1. Wi-Fi standards: Wi-Fi 6E (802.11ax), Bluetooth version: 5.2. Cooling type: Active. Power supply: 650 W

Product Properties

  • Model
  • RNUC11BTMI90000
  • EAN
  • 5032037210010
  • Audio
  • Built-in speaker(s)
  • No
  • Design
  • ARK ID
  • 208222
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • Chassis type
  • 8L sized PC
  • Cooling type
  • Active
  • Housing material
  • Metal, Plastic
  • Product colour
  • Black
  • Product type
  • PC barebone
  • Safety
  • IEC/EN/UL 60950-1, IEC/EN/UL 62368-1
  • Status
  • Launched
  • Expansion slots
  • PCI Express slots version
  • 4.0
  • Graphics
  • Discrete graphics card model
  • Not available
  • Graphics card family
  • Intel
  • Number of displays supported
  • 3
  • On-board graphics card
  • Yes
  • On-board graphics card model
  • Intel® UHD Graphics
  • Logistics data
  • Harmonized System (HS) code
  • 84713000
  • Memory
  • ECC
  • No
  • Memory bandwidth (max)
  • 51.2 GB/s
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 64 GB
  • Memory slots type
  • SO-DIMM
  • Memory voltage
  • 1.2,1.35 V
  • Number of DIMM slots
  • 2
  • Number of memory slots
  • 2
  • Removable memory card slot
  • SDXC with UHS-II support
  • Supported memory clock speeds
  • 3200 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Network
  • Bluetooth
  • Yes
  • Bluetooth version
  • 5.2
  • Ethernet LAN
  • Yes
  • LAN controller
  • Intel I225-LM
  • Top Wi-Fi standard
  • Wi-Fi 6E (802.11ax)
  • Wi-Fi
  • Yes
  • Wi-Fi standards
  • Wi-Fi 6E (802.11ax)
  • WLAN controller model
  • Intel Wi-Fi 6E AX210
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 35 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Other features
  • Additional headers
  • 2x USB2.0, FRONT_PANEL
  • Launch date
  • Q3'21
  • Number of SATA connectors
  • 2
  • Packaging content
  • Power cord included
  • No
  • Performance
  • ACPI version
  • 5.0b
  • Audio output channels
  • 7.1 channels
  • Commodity Classification Automated Tracking System (CCATS)
  • G157815L2
  • Compatible operating systems
  • Windows 11 (64-bit), Windows 10 (64-bit)
  • Export Control Classification Number (ECCN)
  • 5A992C
  • Windows operating systems supported
  • Windows 10 x64
  • Ports & interfaces
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports
  • 1
  • HDMI version
  • 2.0b
  • Headphone outputs
  • 1
  • M.2 card slot (storage)
  • 2 via PCH + 2 via CPU (NVMe)
  • M.2 card slot (wireless)
  • Intel® Wi-Fi 6E AX210
  • SATA Ports
  • 2
  • Thunderbolt 4 ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 8
  • USB ports quantity
  • 11
  • USB version
  • 2.0/3.2 Gen 2 (3.1 Gen 2)
  • Power
  • Power supply
  • 650 W
  • Power supply type
  • Internal power supply unit
  • Processor
  • Built-in processor
  • Yes
  • Memory bandwidth supported by processor (max)
  • 51.2 GB/s
  • Number of Cores
  • 8
  • Processor
  • i9-11900KB
  • Processor boost frequency
  • 4.9 GHz
  • Processor cache
  • 24 MB
  • Processor family
  • Intel® Core™ i9
  • Processor frequency
  • 3.3 GHz
  • Processor generation
  • 11th gen Intel® Core™ i9
  • Processor lithography
  • 10 nm
  • Processor manufacturer
  • Intel
  • Processor threads
  • 16
  • Thermal Design Power (TDP)
  • 65 W
  • Processor special features
  • Embedded options available
  • No
  • Intel Rapid Storage Technology
  • Yes
  • Intel Virtualization Technology (VT-x)
  • Yes
  • Intel Virtualization Technology for Directed I/O (VT-d)
  • Yes
  • Intel® AES New Instructions (Intel® AES-NI)
  • Yes
  • Intel® Optane™ Memory Ready
  • Yes
  • Intel® Platform Trust Technology (Intel® PTT)
  • Yes
  • Intel® vPro™ Platform Eligibility
  • No
  • Storage
  • Card reader integrated
  • Yes
  • Compatible memory cards
  • SDXC
  • Number of storage drives supported
  • 4
  • RAID levels
  • 0, 1
  • SSD form factor
  • M.2
  • Storage drive sizes supported
  • M.2
  • Supported storage drive types
  • SSD
  • Technical details
  • Sustainability certificates
  • REACH, RoHS
  • Weight & dimensions
  • Depth
  • 189 mm
  • Height
  • 120 mm
  • Width
  • 357 mm
