Description

Kensington SD5600T TBT3/USB-C Dual 4K Docking Station. Docking connector type: USB Type-C. Weight: 835 g. Product colour: Grey

Best for: Thunderbolt 3 and USB-C laptops and monitors that support up to dual 4K
Connection technology: Thunderbolt 3 and USB-C (cross platform compatibility)
Power Delivery: Supports USB-C PD 3.0 up to 100W (96W certified)
Compatibility: Windows 10 or above, macOS 10.14 or above
No. of monitors supported: 2 (M1/M2 Base Chipset MacBook supports only a single external display.)
Video ports: 2 x HDMI v2.0 and 2 x DisplayPort 1.2
Maximum resolution supported: Thunderbolt 3 – single or dual monitors: 4K (3840 x 2160 @ 60Hz) // USB-C Alt Mode HBR3 – single monitor: 4K @ 60Hz or dual monitors: 1440p @ 60Hz // USB-C Alt Mode HBR2 – single monitor: 4K @ 30Hz or dual monitors: 1080p @ 60Hz. M1/M2 Base Chipset MacBook supports only a single external display.
Plug & play: Plug & play installation, though installation of Kensington DockWorks™ software is recommended for the best connection, performance and security from your Kensington universal docking station
System requirements: Compatible with laptops equipped with Thunderbolt 3 and USB-C ports supporting Alt Mode. Supports up to 40Gbps total bandwidth for Thunderbolt 3 laptops, and up to 10Gbps for USB-C laptops.
Warranty: 3 Years
Original Apple M1 - While this docking station will work with the original M1 MacBook, only a single video output is supported. For multi-monitor support on your original M1 MacBook, see our Hybrid USB-C DisplayLink docking stations (ex: SD4700P, SD4750P, SD4780P, SD4900P, etc.) or USB-A DisplayLink adapters (DisplayPort K33989, HDMI K33988, DVI-I K33974). NOTE: Newer Apple devices (M1 Max and M1 Pro, etc.) are not impacted and support multiple monitors without any issues on Thunderbolt docking stations.
Optimised for your Windows 11 docking station needs, including support for Snap Layouts and Snap Groups.
*This dock supports the Gigabit Ethernet standard which provides a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches and the hardware and firmware performance of the host computer.

Universal compatibility

Perfect for hot-desking and mixed deployment environments, the SD5600T works with Thunderbolt 3 and USB-C laptops running Windows or macOS.

Thunderbolt 3 technology

Allows you to transfer up to 40Gbps of data, video and audio (10Gbps for USB-C Gen2 laptops, 5Gbps for USB-C Gen1 laptops) using the included Thunderbolt 3 cable, for a quick and powerful plug and play experience.

Single 4K or Dual 4K video output for Thunderbolt 3 enabled devices

Extend visual productivity with the crisp resolution, contrast and colour depth of Ultra HD (Single or Dual 4K @ 60Hz) via two DisplayPort ports. USB-C laptops must support Alt Mode. For USB-C Alt Mode devices, a maximum resolution of Single 4K 60Hz or Dual 1440p @ 30Hz is supported for HBR3 laptops or Single 4K 60Hz or Dual 1080p @ 60Hz is supported for HBR2 laptops (dual monitors are for devices that support MST). M1/M2 Base Chipset MacBook supports only a single external display.

Supports USB-C PD 3.0 up to 100W (96W certified)

Quickly and simply charge any Thunderbolt 3 or USB-C enabled laptop. USB-C laptops must support Power Delivery. Ideal for devices that require higher power, such as the newer MacBook Pro. Power delivery rates vary based on host device.

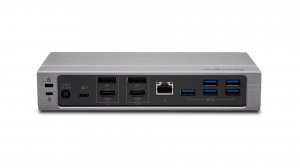

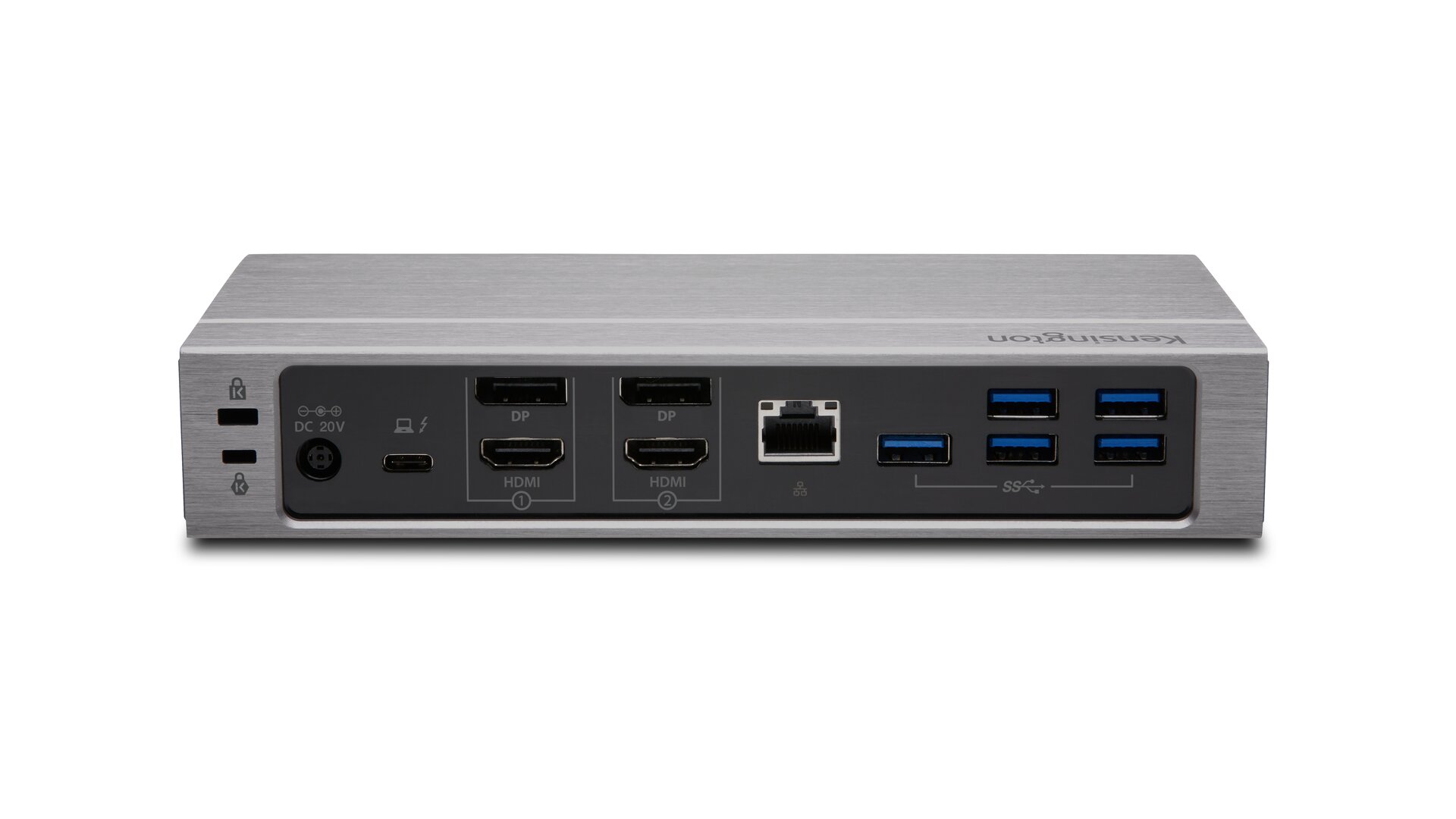

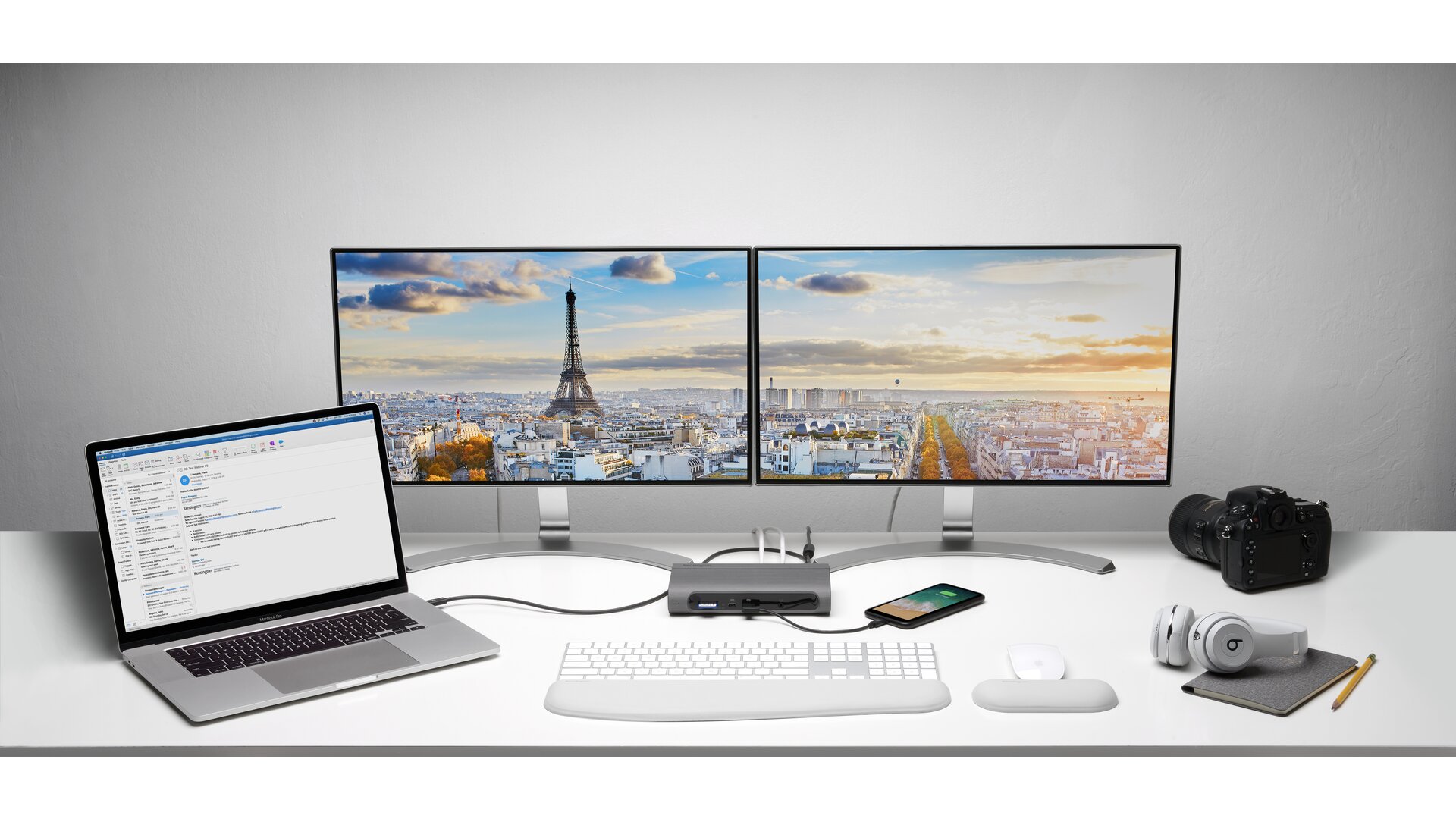

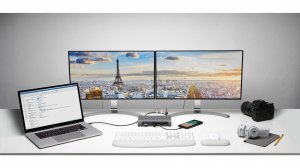

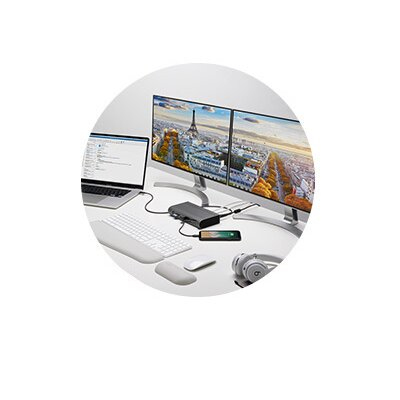

Productive desktop setup

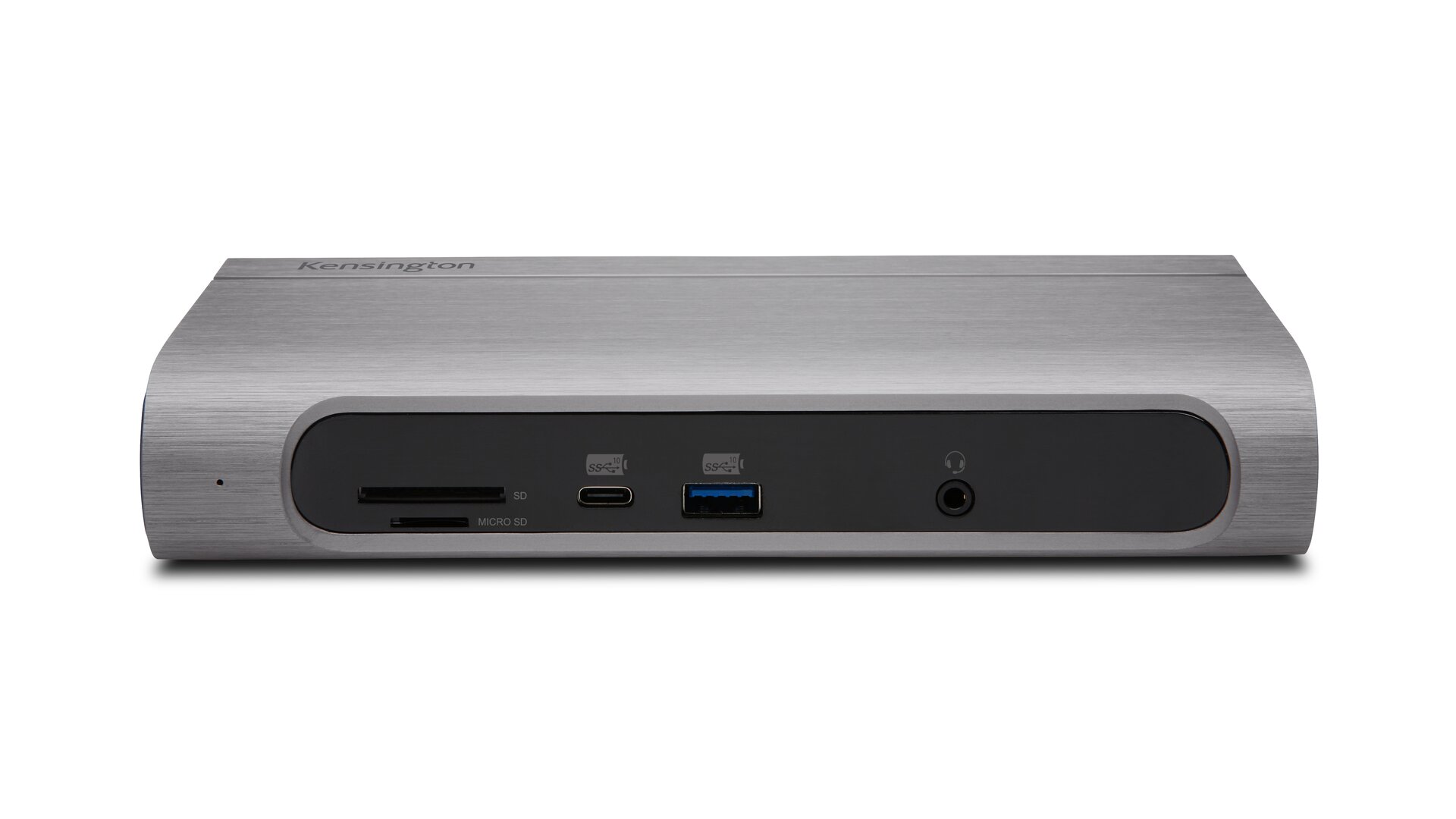

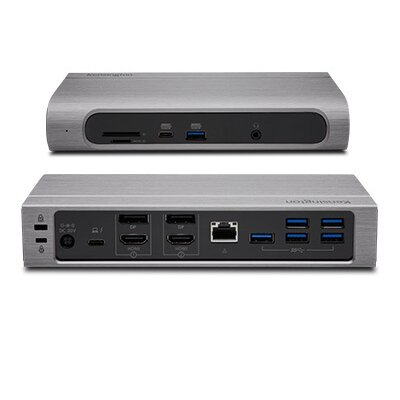

This 15-port universal docking station provides plenty of ports for all your needs: One front USB-C Gen2 port (up to 10Gbps with 5V/1.5A charging), six USB-A ports (1 front Gen2@10Gbps front with 5V/1.5A charging, 5 rear Gen1@5Gbps, 5V/0.9A), one Gigabit Ethernet port, and one audio combo jack.

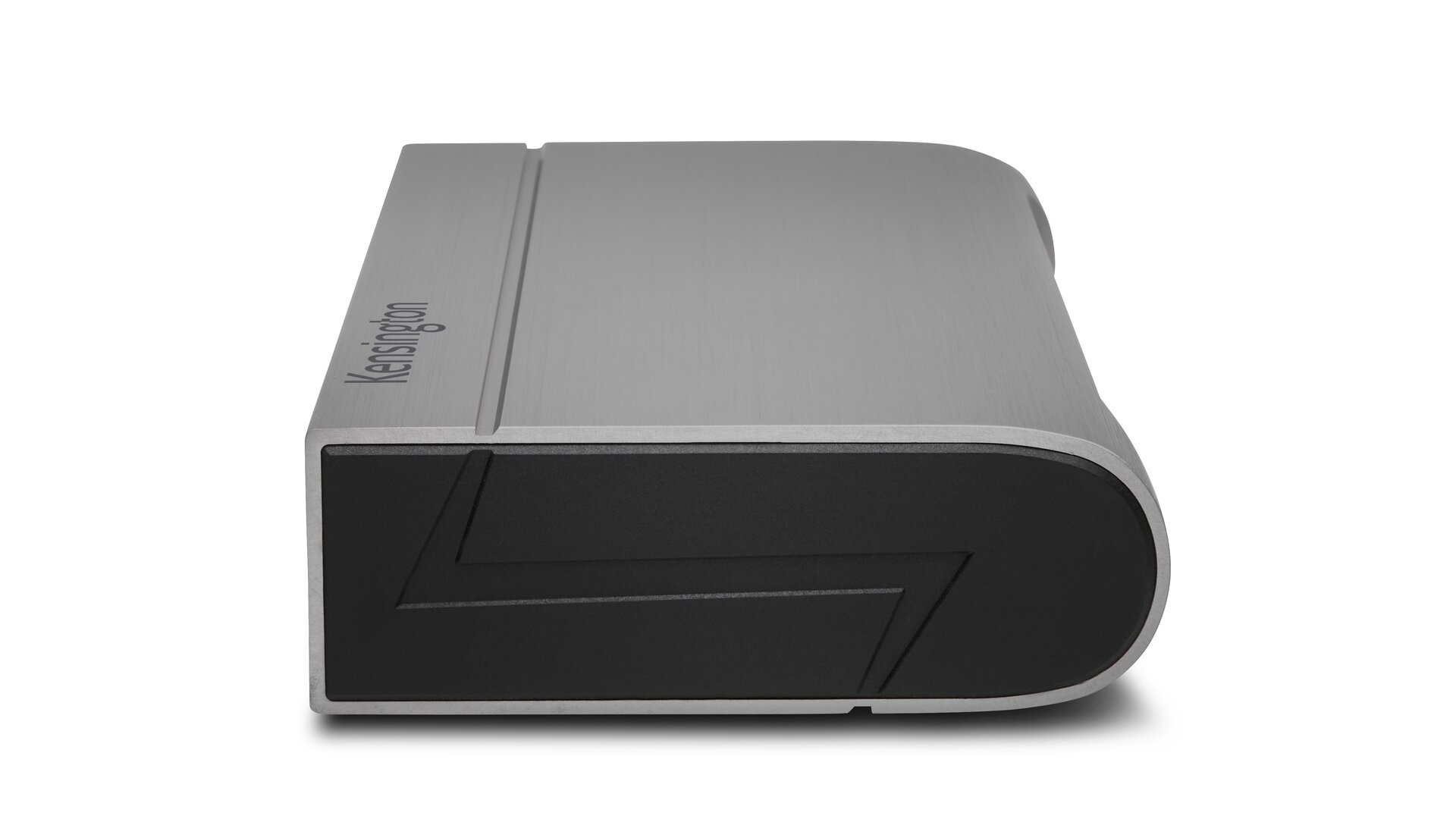

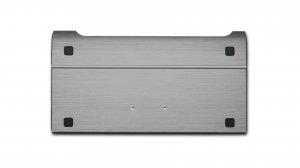

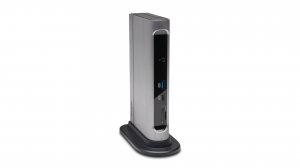

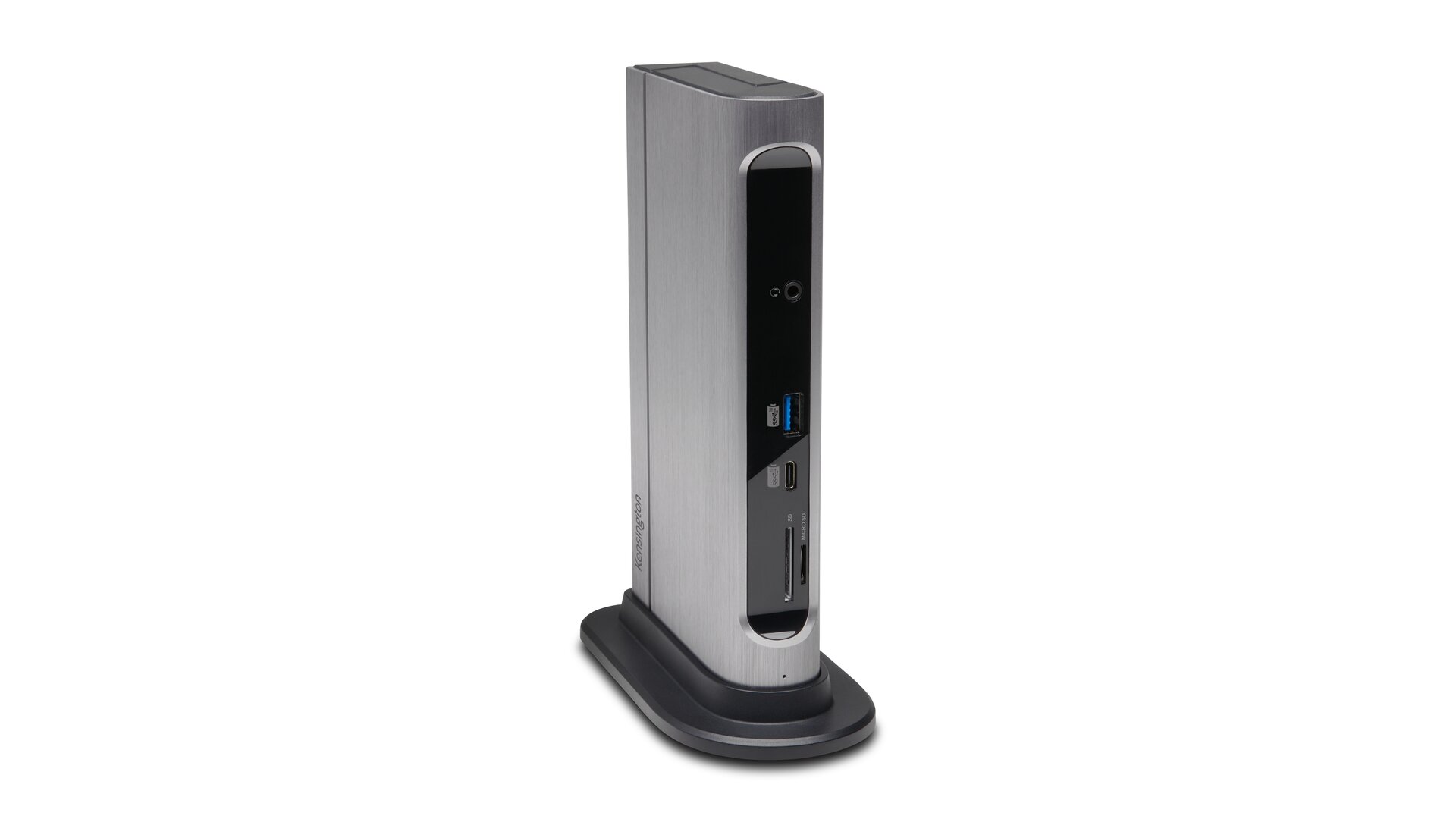

Flexible mounting options

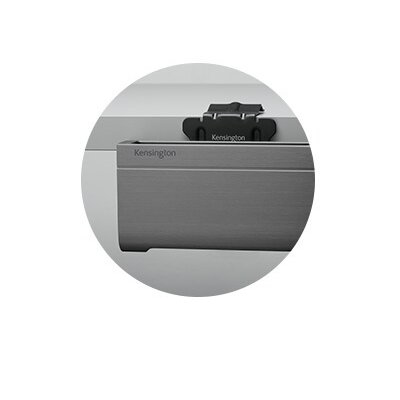

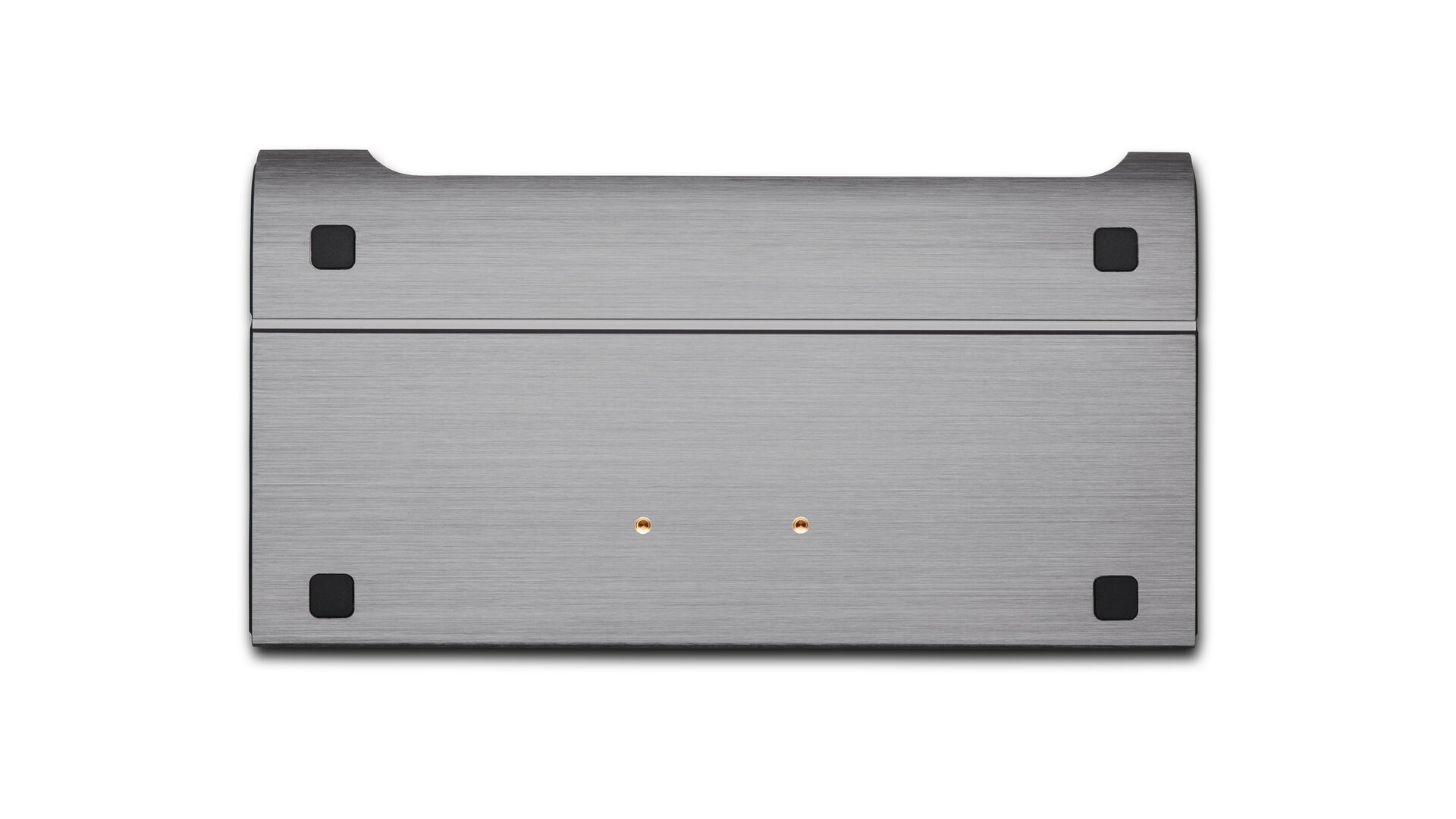

Choose a horizontal or vertical placement on the desktop, alternatively try our optional zero footprint mounting solution (K34050WW).

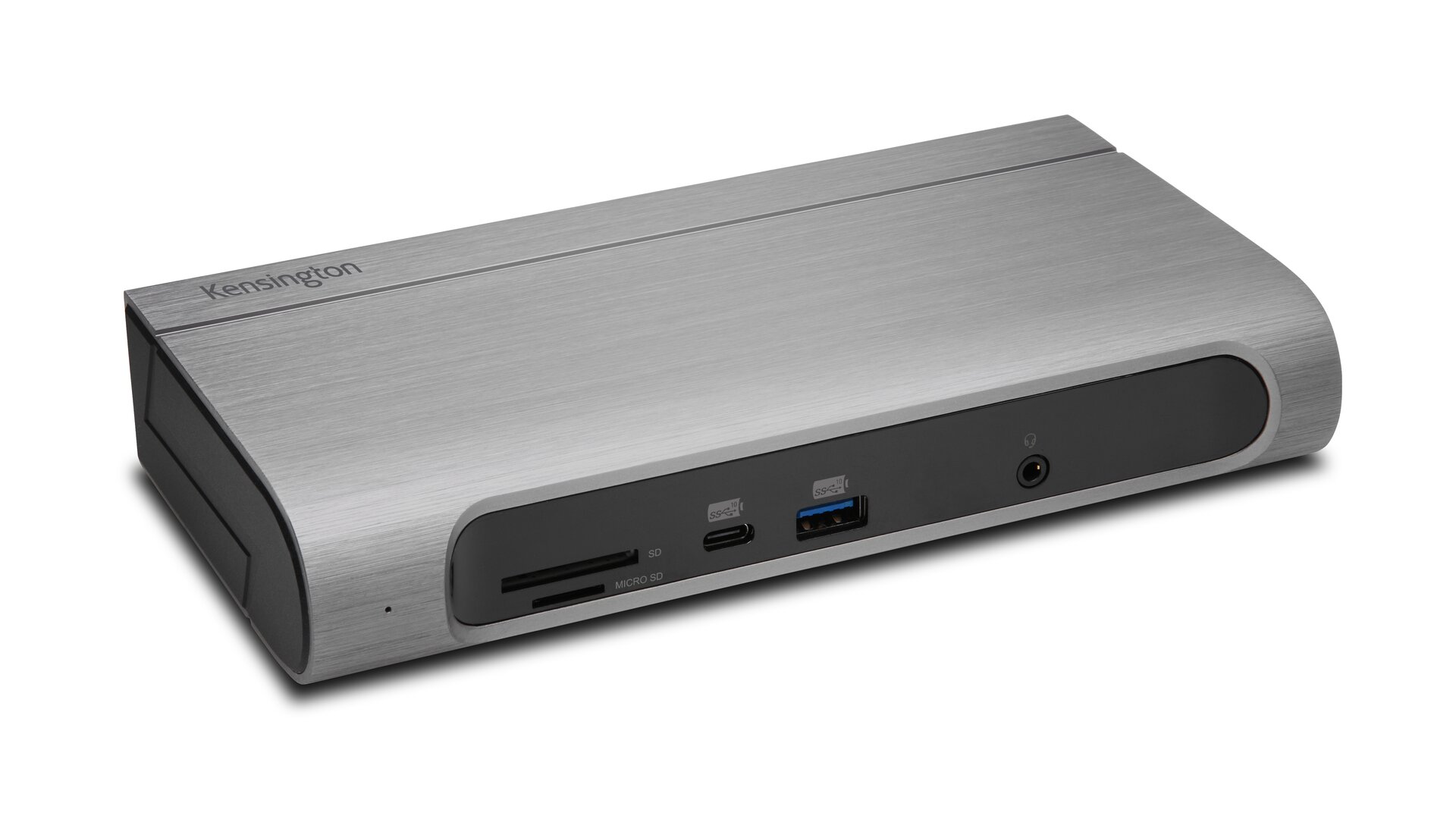

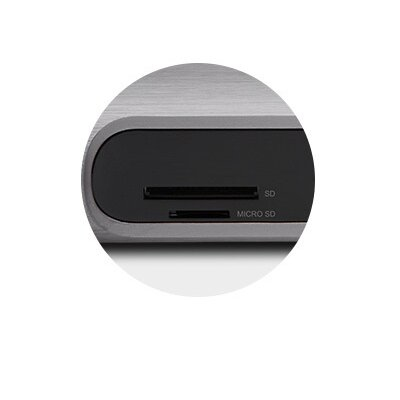

Built-in SD and Micro SD card readers

UHS II SD 4.0 card readers enable ultra-fast file transfer.

Free Kensington DockWorks™ software and three-year warranty

For the best connection, performance and security from your Kensington dock, and the peace of mind knowing you’re covered by Kensington.

Product Properties

Manufacturer
Kensington

Model
K34009EU

EAN
5028252618083

Bullet points

Point
Best For: Thunderbolt 3 and USB-C Laptops and Monitors that support up to Dual 4K

Compatibility: Windows 10 or above, macOS 10.14 or above

Connection Technology: Thunderbolt 3 and USB-C (cross platform compatibility)

Maximum resolution supported

No. of monitors supported: 2 (M1/M2 Base Chipset MacBook supports only a single external display.)

Original Apple M1 - While this docking station will work with the original M1 MacBook, only a single video output is supported. For multi-monitor support on your original M1 MacBook, see our Hybrid USB-C DisplayLink docking stations (ex

Plug & play

Power Delivery: Supports USB-C PD 3.0 up to 100W (96W certified)

System requirements

Video Ports: 2 x HDMI v2.0 and 2 x DisplayPort 1.2

Warranty: 3 Years

Logistics data

Harmonized System (HS) code
84719000

Network

Bluetooth
No

Ethernet LAN data rates
1000,10,100 Mbit/s

Packaging data

Quantity
1

Performance

Card reader integrated
Yes

Compatible memory cards
MicroSD (TransFlash), SD

Data transfer rate
40 Gbit/s

HD type
4K Ultra HD

Plug and Play
Yes

Product colour
Grey

Windows operating systems supported
Yes

Ports & interfaces

Audio output
3.5 mm

Combo headphone/mic port
Yes

DisplayPorts quantity
1

Docking connector type
USB Type-C

HDMI
Yes

HDMI connector type
Full-size

HDMI ports
1

HDMI version
2.0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6

USB Power Delivery
Yes

USB Power Delivery revision
3.0

USB Power Delivery up to
96 W

USB Type-C ports quantity
1

Power

DC input voltage
5 V

DC output current
1.5 A

Power source type
DC

Weight & dimensions

Weight
835 g
