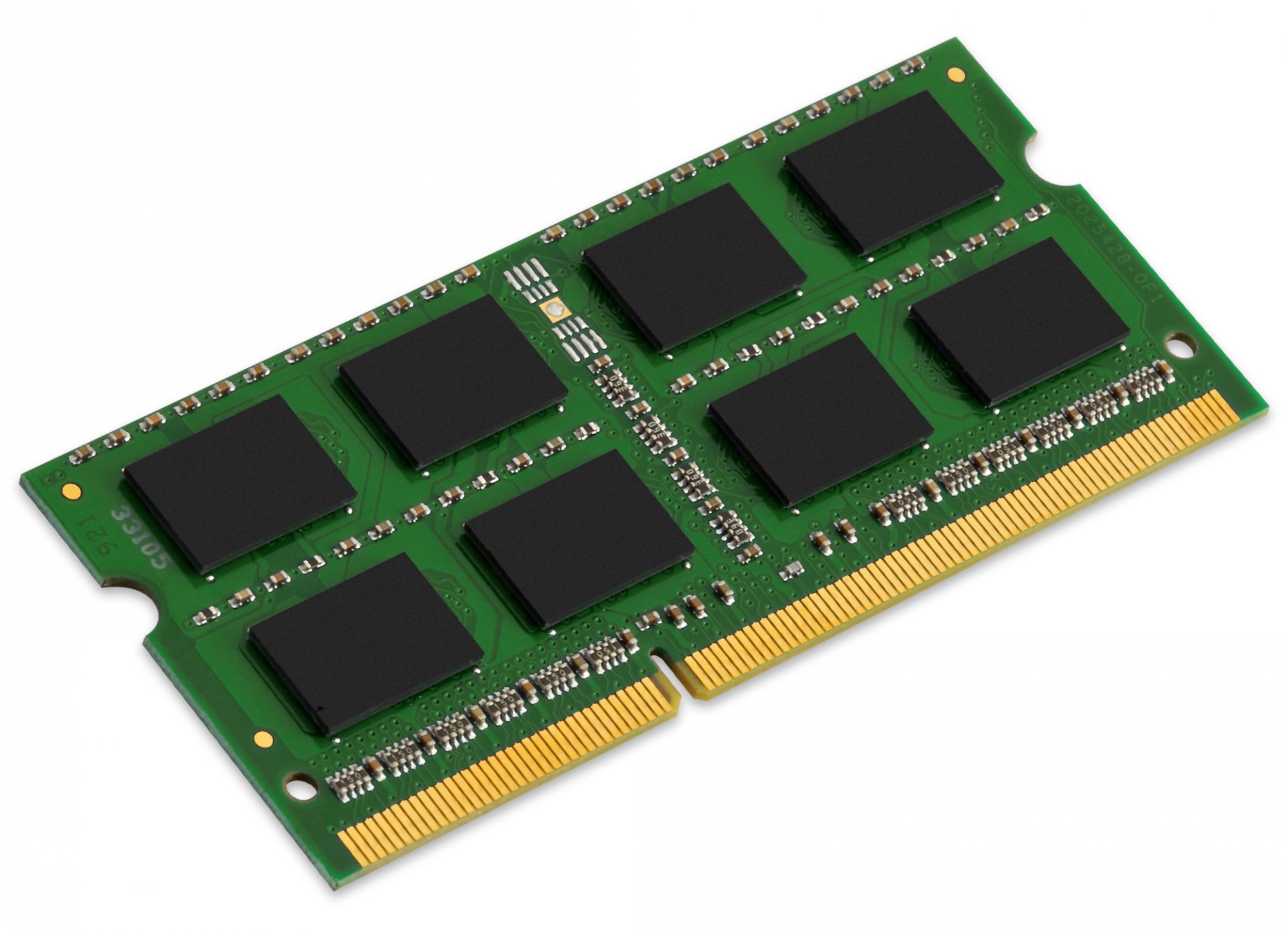

8 independent internal banks
8-bit pre-fetch
800MHz fCK for 1600Mb/sec/pin
Asynchronous Reset
Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°Cº
Bi-directional Differential Data Strobe
Burst Length
Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm ± 1%)
JEDEC 1.5V Power Supply
On Die Termination using ODT pin
PCB: Height 1.180” (30.00mm), double sided component
Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
Programmable CAS latency: 11, 10, 9, 8, 7, 6, 5
VDDQ = 1.5V
