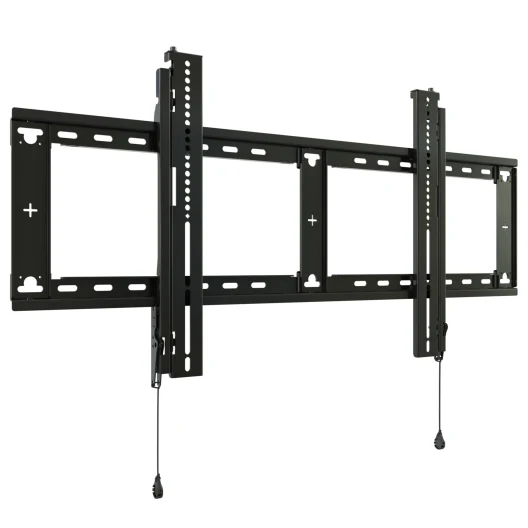

Large Fit Fixed Display Wall Mount (43" to 86" typical)
Roll over image to zoom inClick to Open expanded view
Model: RLF3
EAN: 841872176635

Large Fit Fixed Display Wall Mount (43" to 86" typical)

Manufacturer:
Chief
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description



The Fit series RLF3 is a large fixed display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 1” (25 mm) low-profile depth, and UL and TUV safety standard approvals.



  • Low profile 1” (25 mm) depth facilitates ADA compliance for typical AV design requirements

  • Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included

  • Open wall plate allows for flexible positioning around power and data wall boxes

  • Supports display mounting patterns up to 960 x 450 mm

  • Re-designed rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience

  • Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen

  • Easy access magnetic quick-store release pullcords

  • Kickstand for easy access to power and signal connections

  • Theft deterrent security options (not included)

  • UL and TUV safety standards compliant



Product Properties

  • Model
  • RLF3
  • EAN
  • 841872176635
