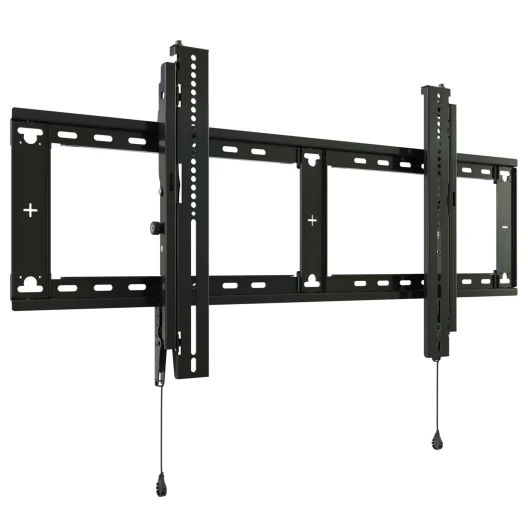

Large Fit Tilt Display Wall Mount (43" to 86" typical)

The Fit series RLT3 is a large tilt display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 915 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 2” (51 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standard approvals.

• Low-profile 2” (51 mm) depth facilitates ADA compliance for typical AV design requirements

• Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included

• Display can be tilted up to 12° to set the optimal viewing angle

• Open wall plate allows for flexible positioning around power and data wall boxes

• Supports display mounting patterns up to 915 x 450 mm

• Rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience

• Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen

• Easy access magnetic quick-store release pullcords

• Kickstand for easy access to power and signal connections

• Theft deterrent security options (not included)

• UL and TUV safety standards approved
