Description

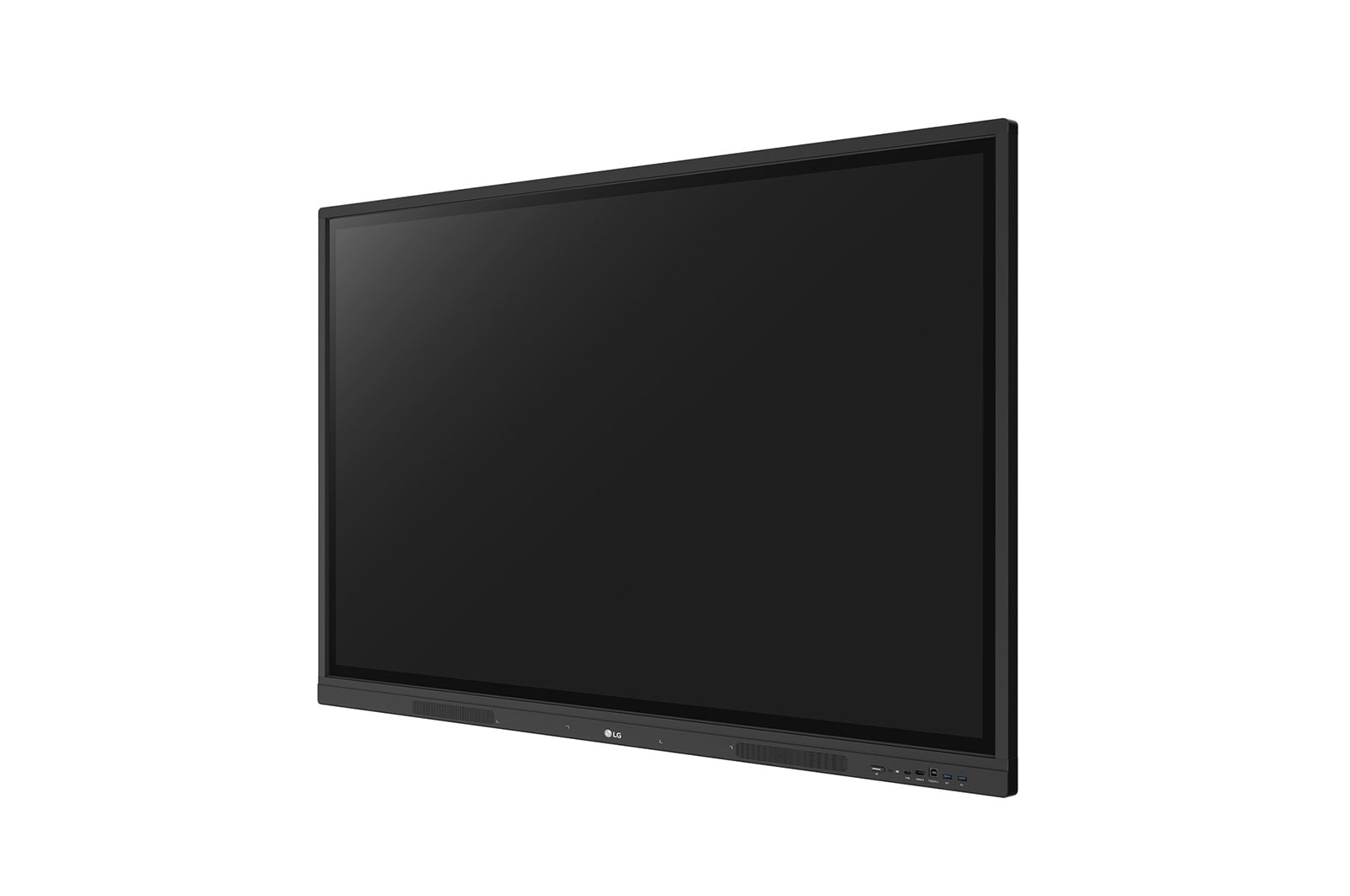

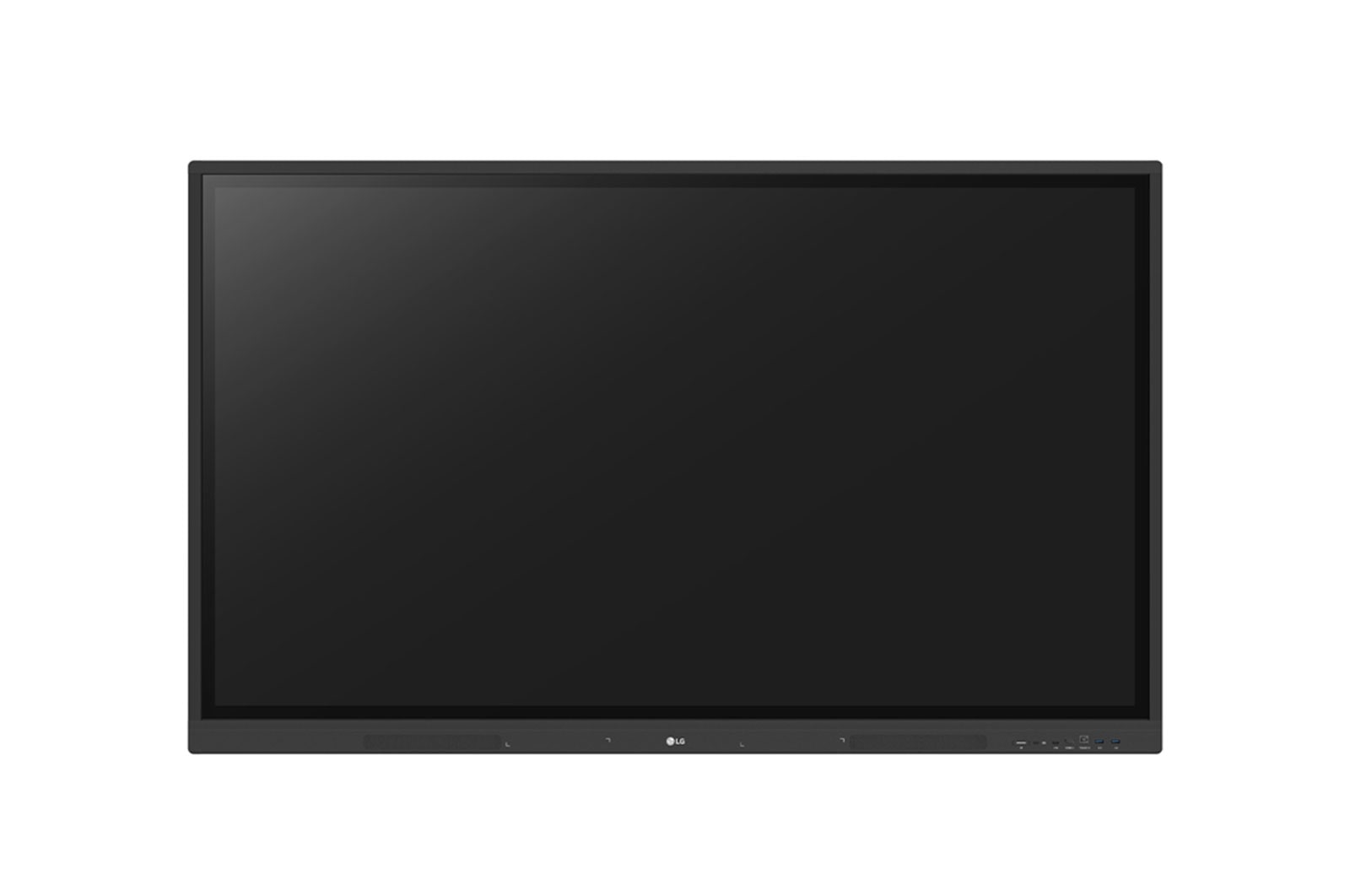

LG 65” IPS UHD Multi Touch CreateBoard™ with Android 11 OS, Wireless & Bluetooth, Built-in whiteboarding software. Display diagonal: 165.1 cm (65"), Display brightness: 390 cd/m², Display resolution: 3840 x 2160 pixels. Operating system installed: Android 11, Processor architecture: ARM Cortex-A55, Maximum internal memory: 32 GB. Speaker power: 15 W. Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Ethernet LAN data rates: 10,100,1000 Mbit/s. USB connector type: USB Type-A, USB Type-B, USB Type-C

Built-in Collaboration Software
40 Point IR Multi Touch Display
Wireless and Bluetooth Connectivity for easy use
Integrated OPS slot (PC not included)
Great for Classroom use, it lasts up to 30,000 hours

Product Properties

Manufacturer
LG

Model
65TR3DK-B.AUEQ

EAN
8806091832931

Audio

Built-in speaker(s)
Yes

Number of built-in speakers
2

Speaker power
15 W

Bullet points

Point
40 Point IR Multi Touch Display

Built-in Collaboration Software

Great for Classroom use, it lasts up to 30,000 hours

Integrated OPS slot (PC not included)

Wireless and Bluetooth Connectivity for easy use

Computer system

Built-in processor
Yes

Graphics card
Mali-G52 MP2

Maximum internal memory
32 GB

Operating System
Android 11

Processor architecture
ARM Cortex-A55

Processor cores
4

RAM capacity
4 GB

Display

Colour gamut
72%

Contrast ratio (dynamic)
50000:1

Contrast ratio (typical)
1200:1

Display brightness
390 cd/m²

HD type
4K Ultra HD

Max Refresh Rate
60 Hz

Native aspect ratio
16:9

Number of simultaneous touchpoints
40

Panel type
IPS

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
165.1 cm (65")

Touch technology
Multi-touch

Touchscreen
Yes

Touchscreen type
Infrared

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Panel mounting interface
600 x 400 mm

Product colour
Black

Product type
Interactive whiteboard

VESA mounting
Yes

Network

Bluetooth
Yes

Bluetooth version
5.0

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Top Wi-Fi standard
Wi-Fi 6 (802.11ax)

Wi-Fi
Yes

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Packaging data

Package depth
208 mm

Package height
1005 mm

Package weight
44.7 kg

Package width
1628 mm

Quantity per pack
1 pc(s)

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

HDCP
Yes

HDCP version
2.2

HDMI output ports quantity
1

HDMI ports
4

Line-in
Yes

Line-out
Yes

OPS slot
1

RS-232 ports
1

S/PDIF out port
Yes

USB 2.0 ports quantity
1

USB 2.0 Type-B Touch ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

USB connector type
USB Type-A, USB Type-B, USB Type-C

USB Power Delivery
Yes

USB Type-C ports quantity
1

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
420 W

Power consumption (standby)
0.5 W

Power consumption (typical)
220 W

Projector

Built-in projector
No

Sustainability

Sustainability certificates
ENERGY STAR

Sustainability compliance
Yes

Weight & dimensions

Depth
88 mm

Height
897 mm

Weight
35 kg

Width
1489 mm
