Description

#LG-UL3-SERIES-MID-RANGE-350NIT-16/7

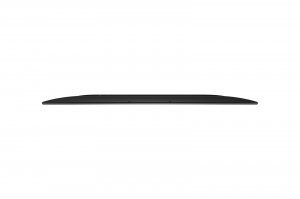

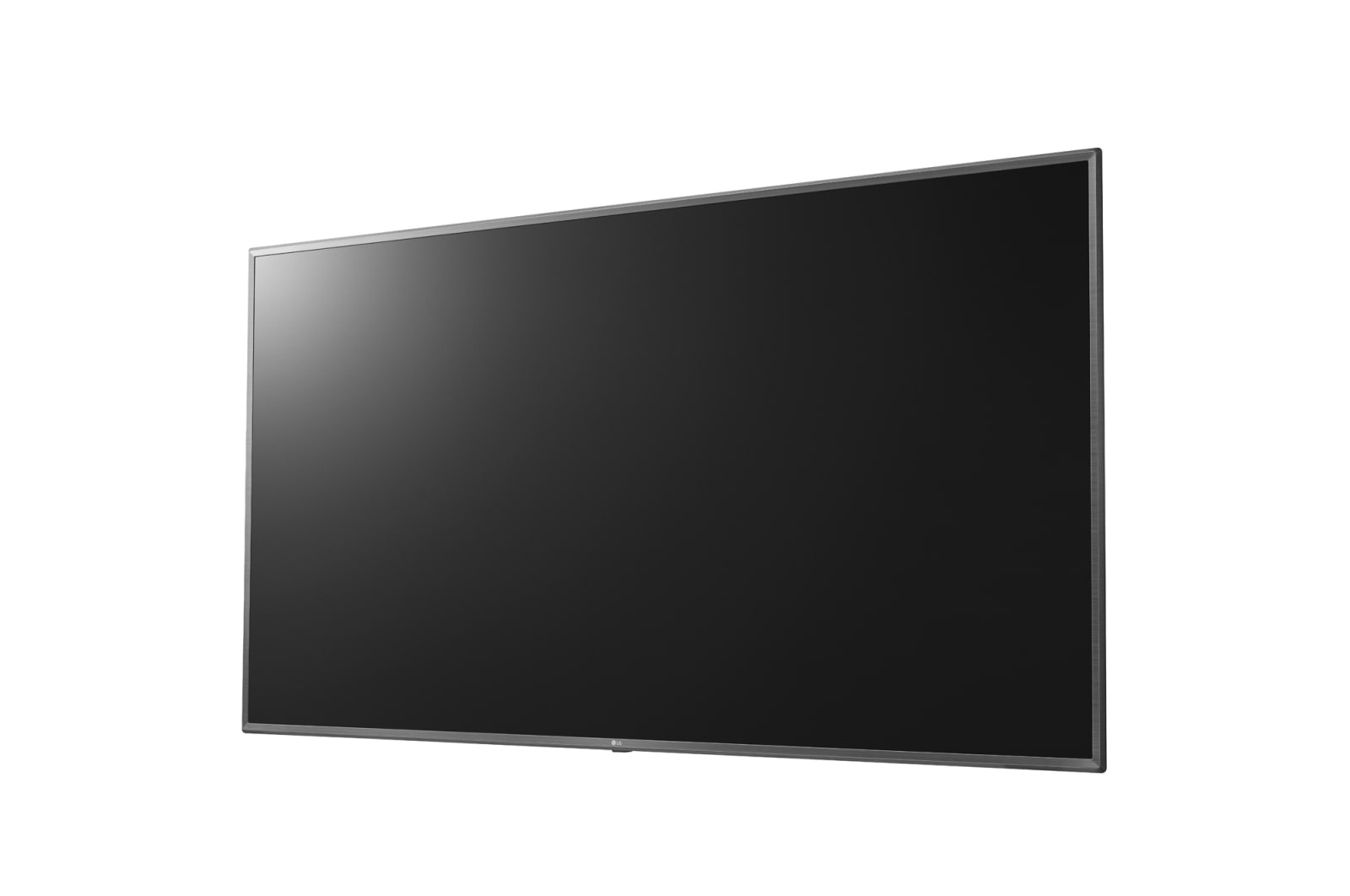

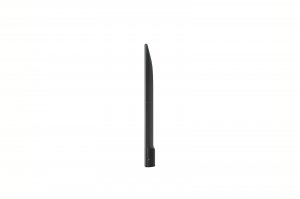

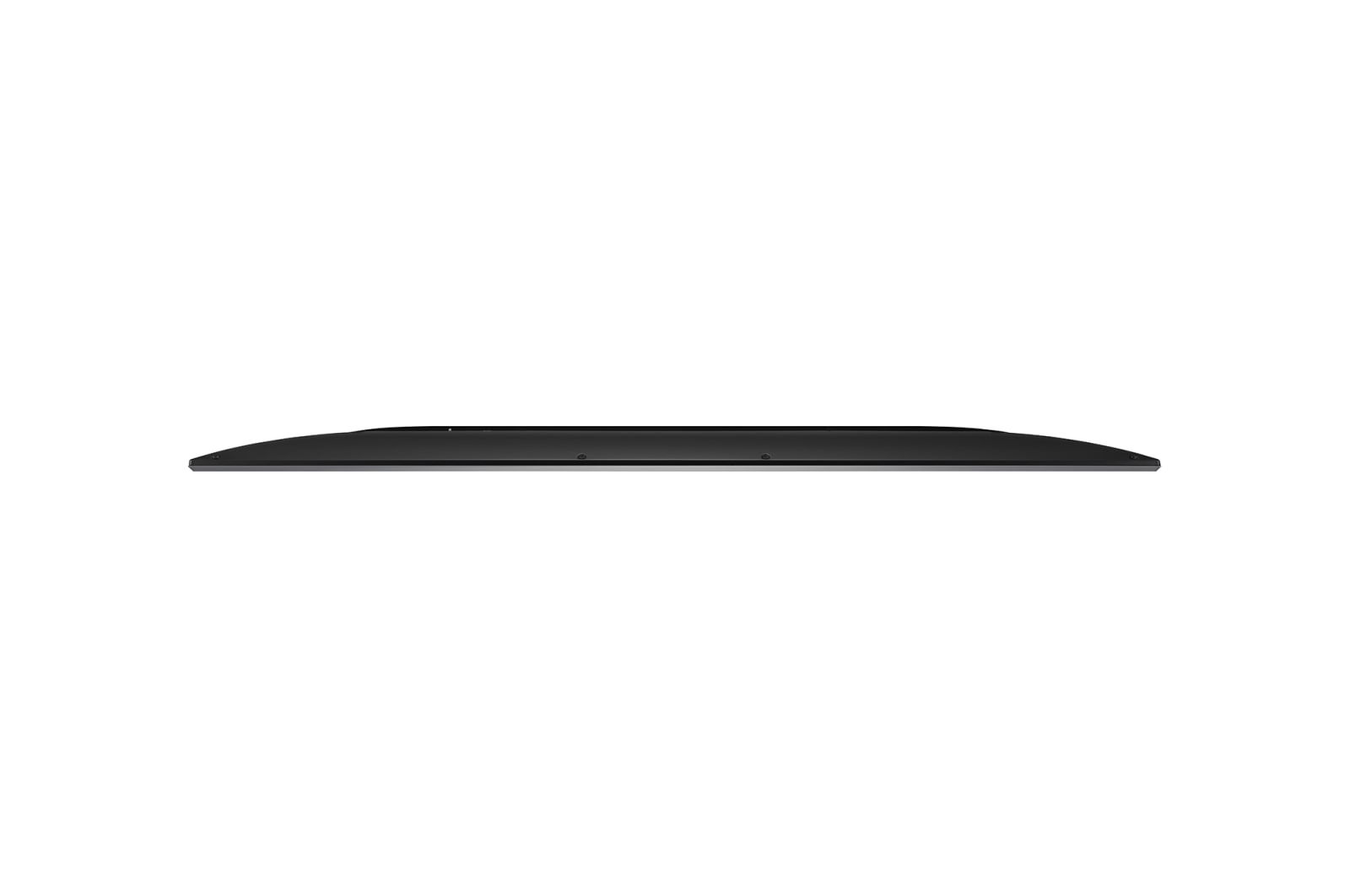

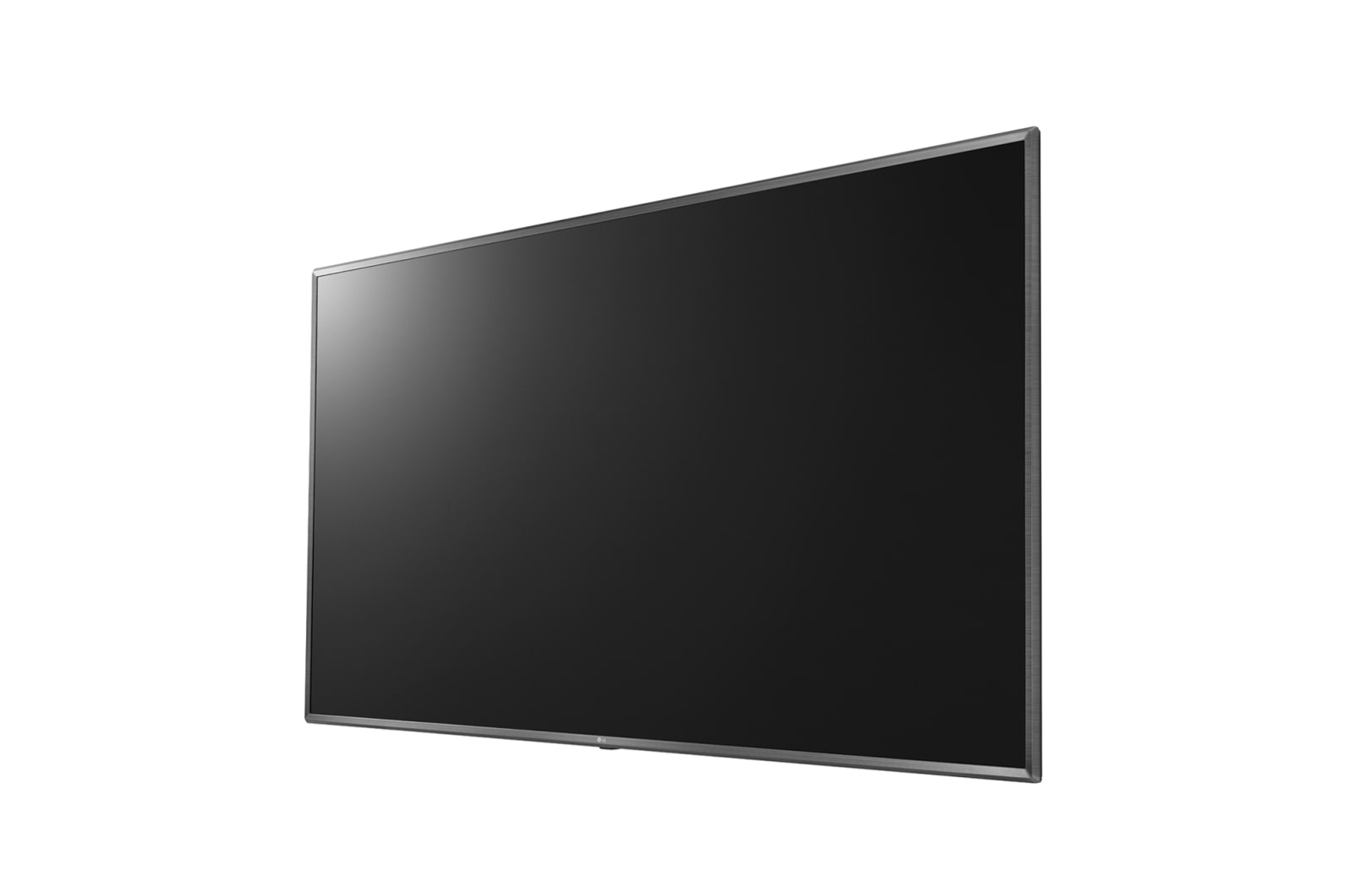

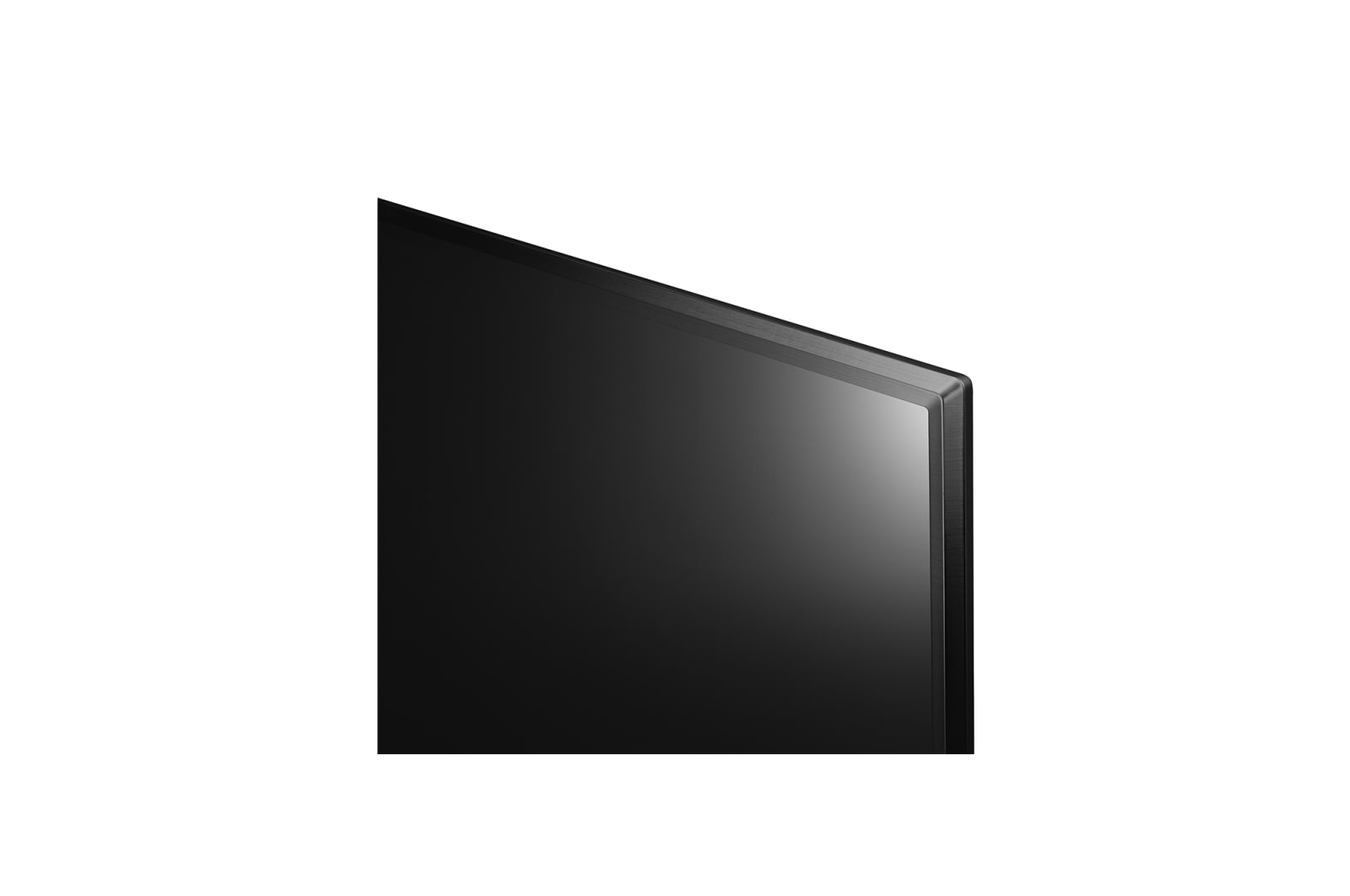

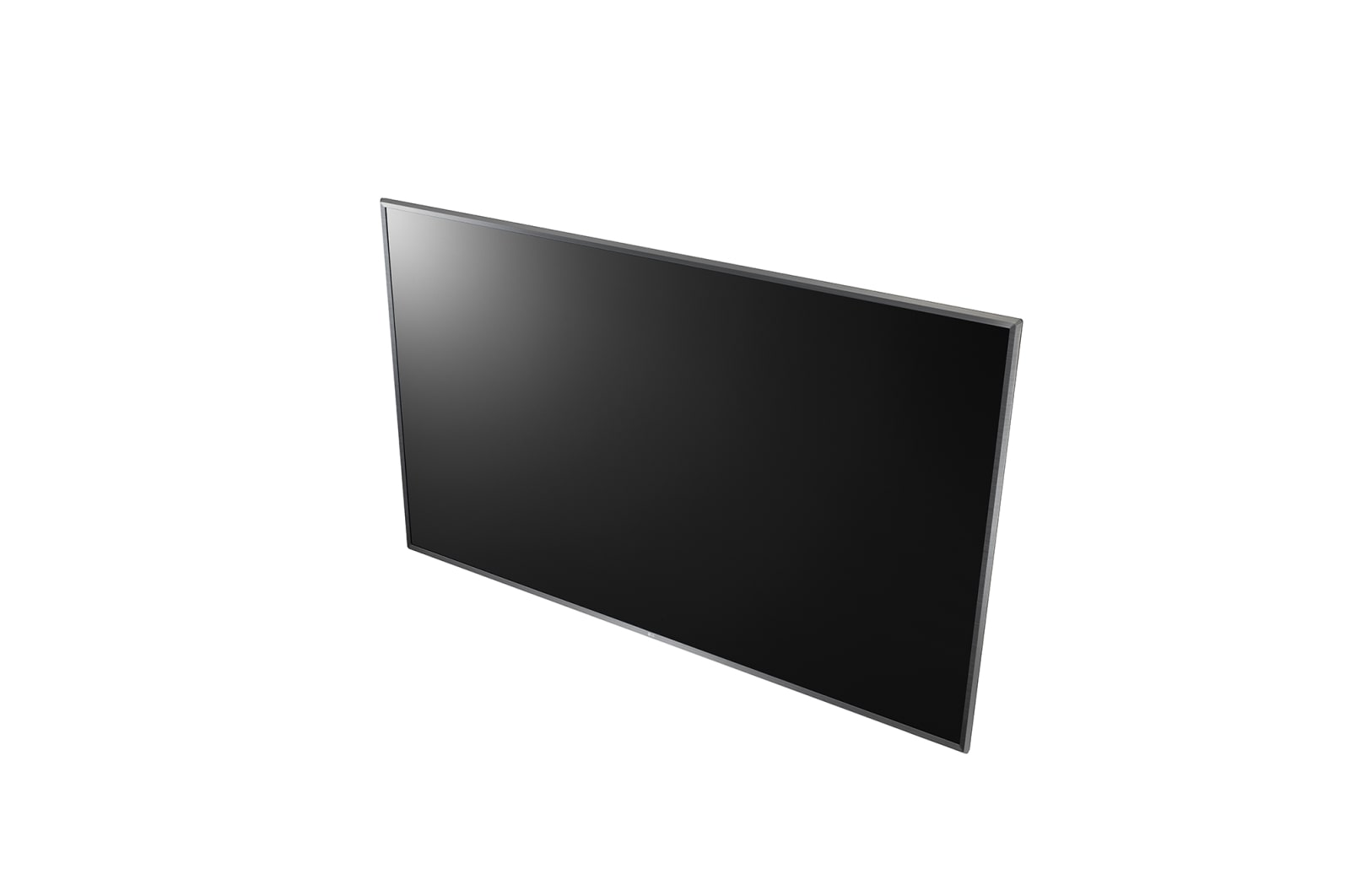

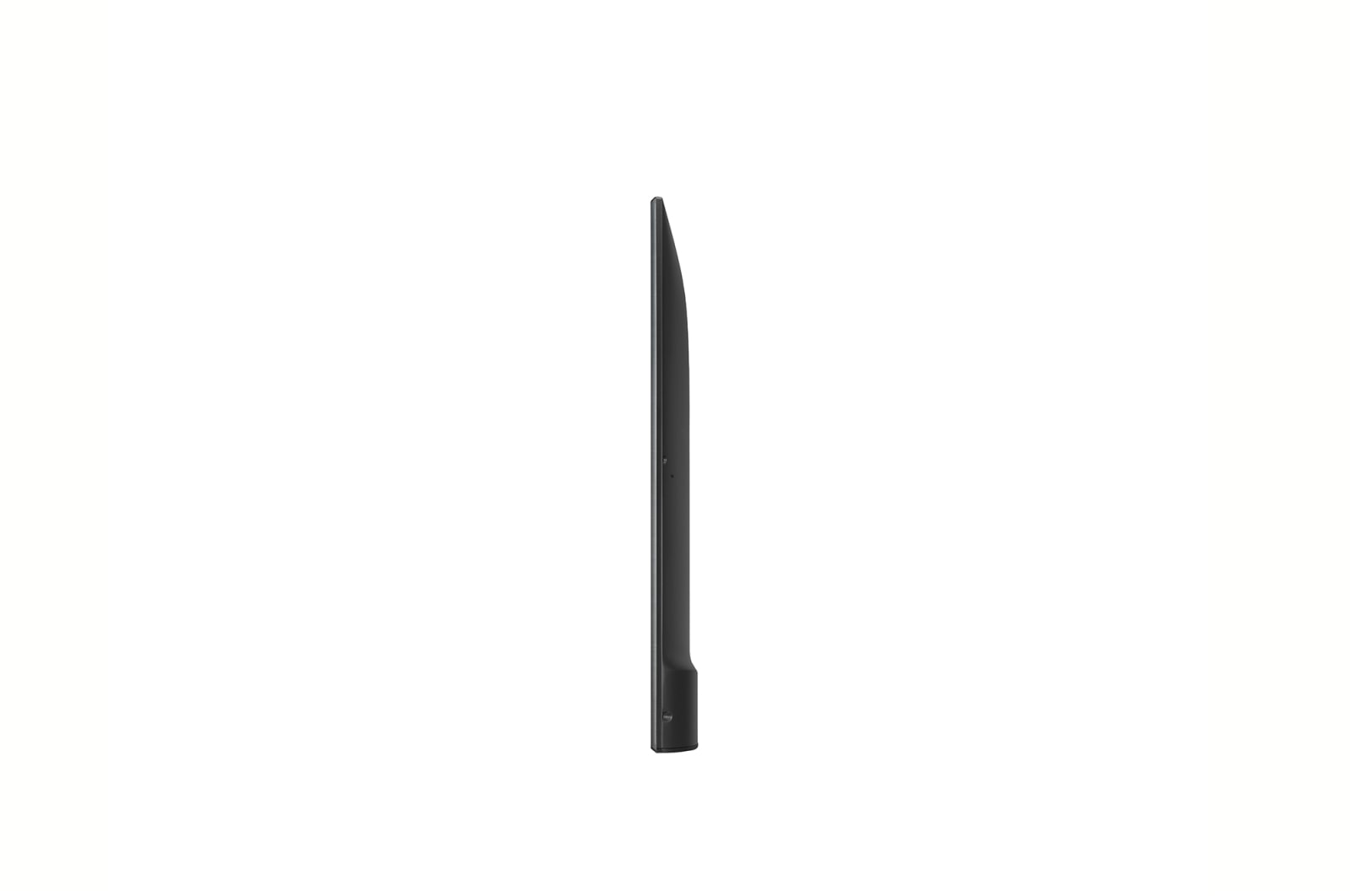

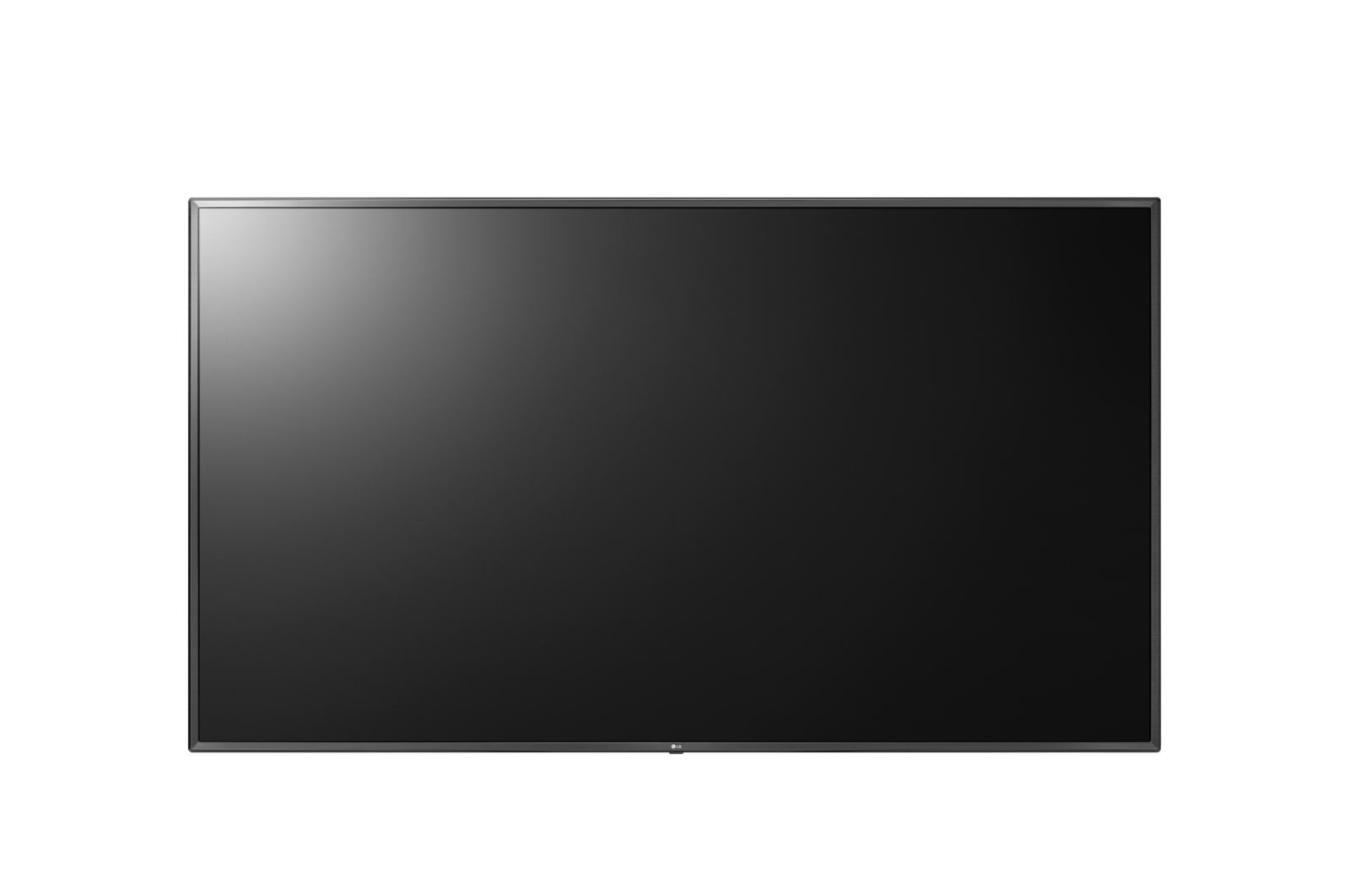

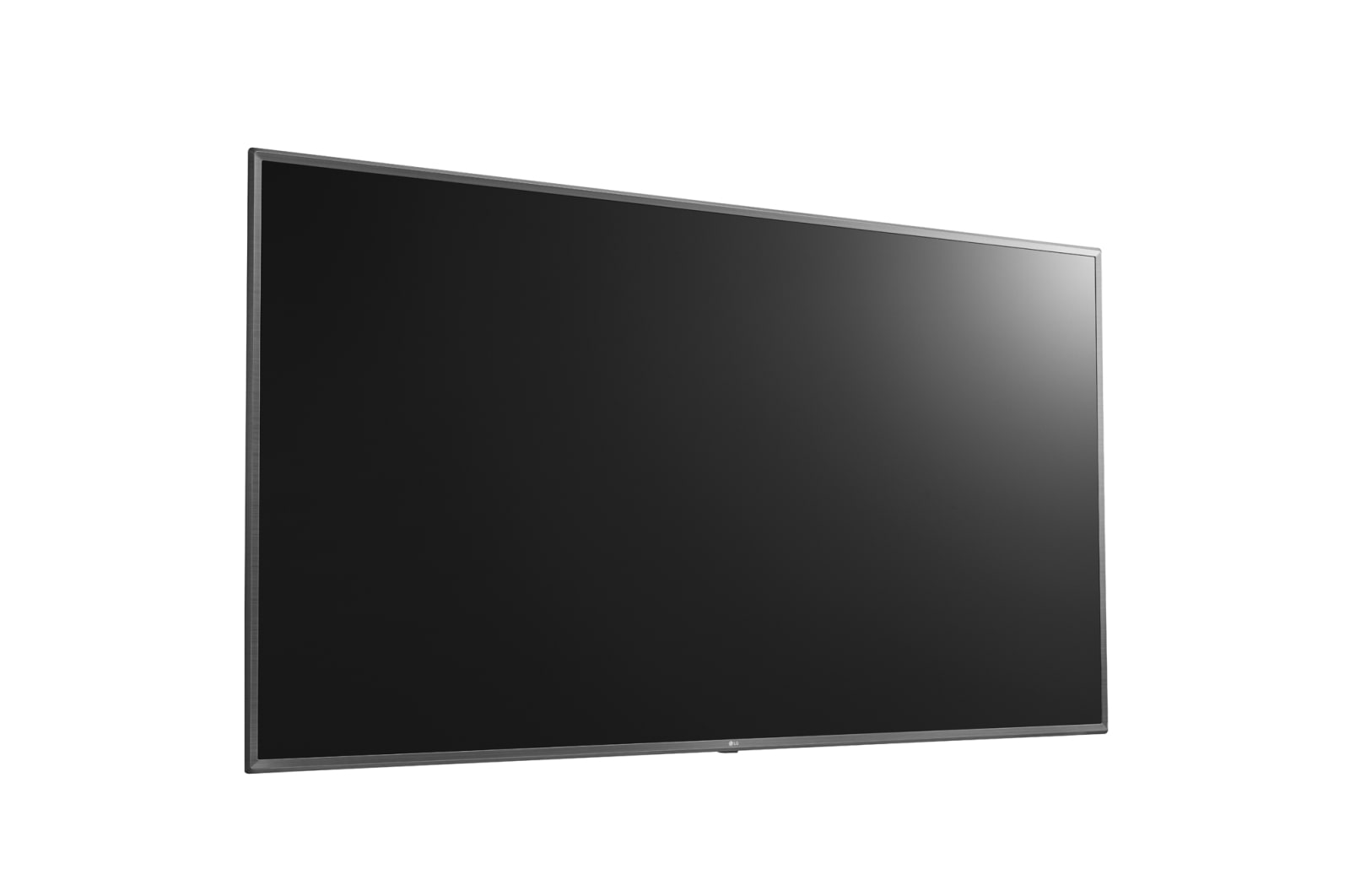

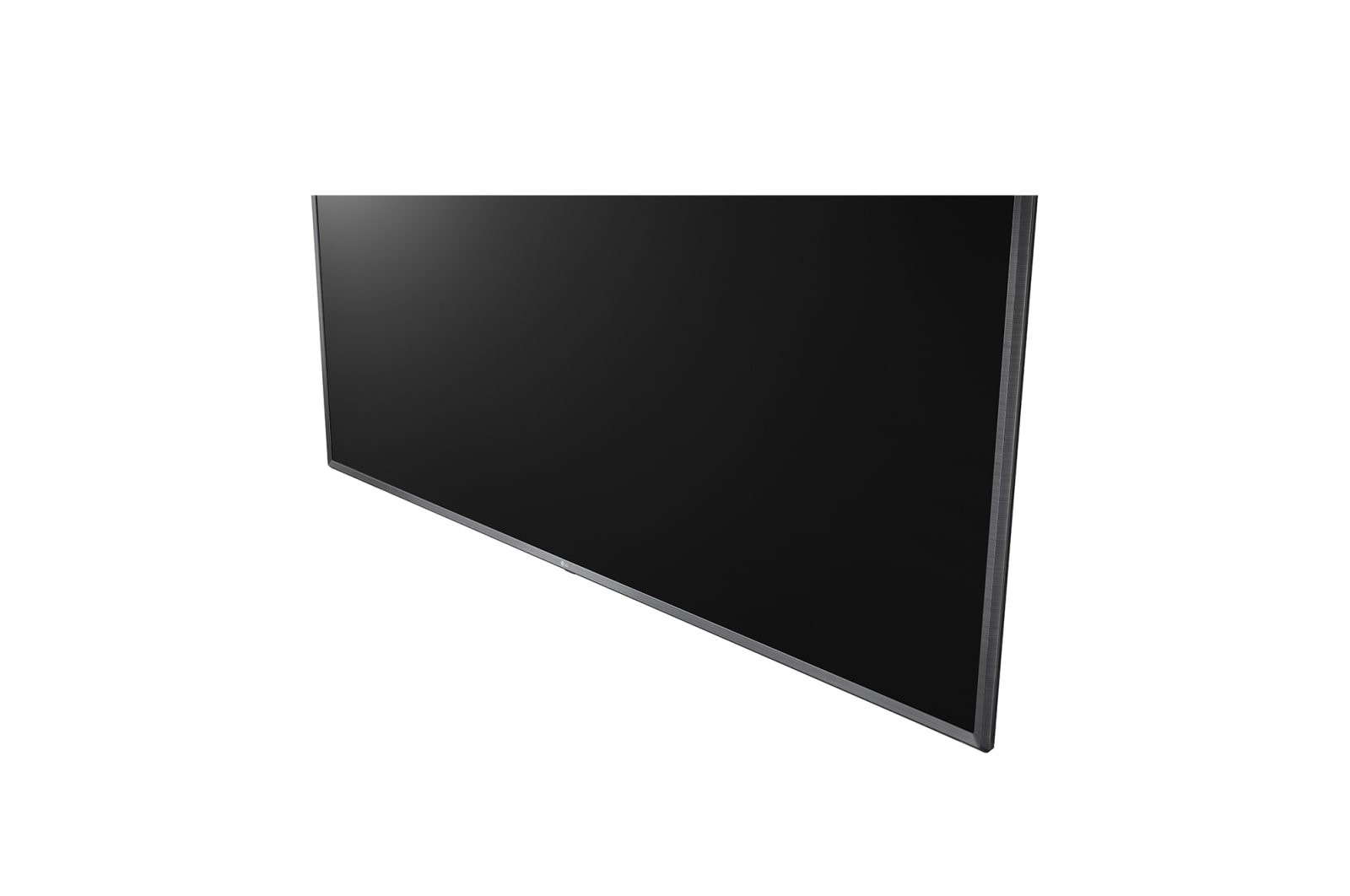

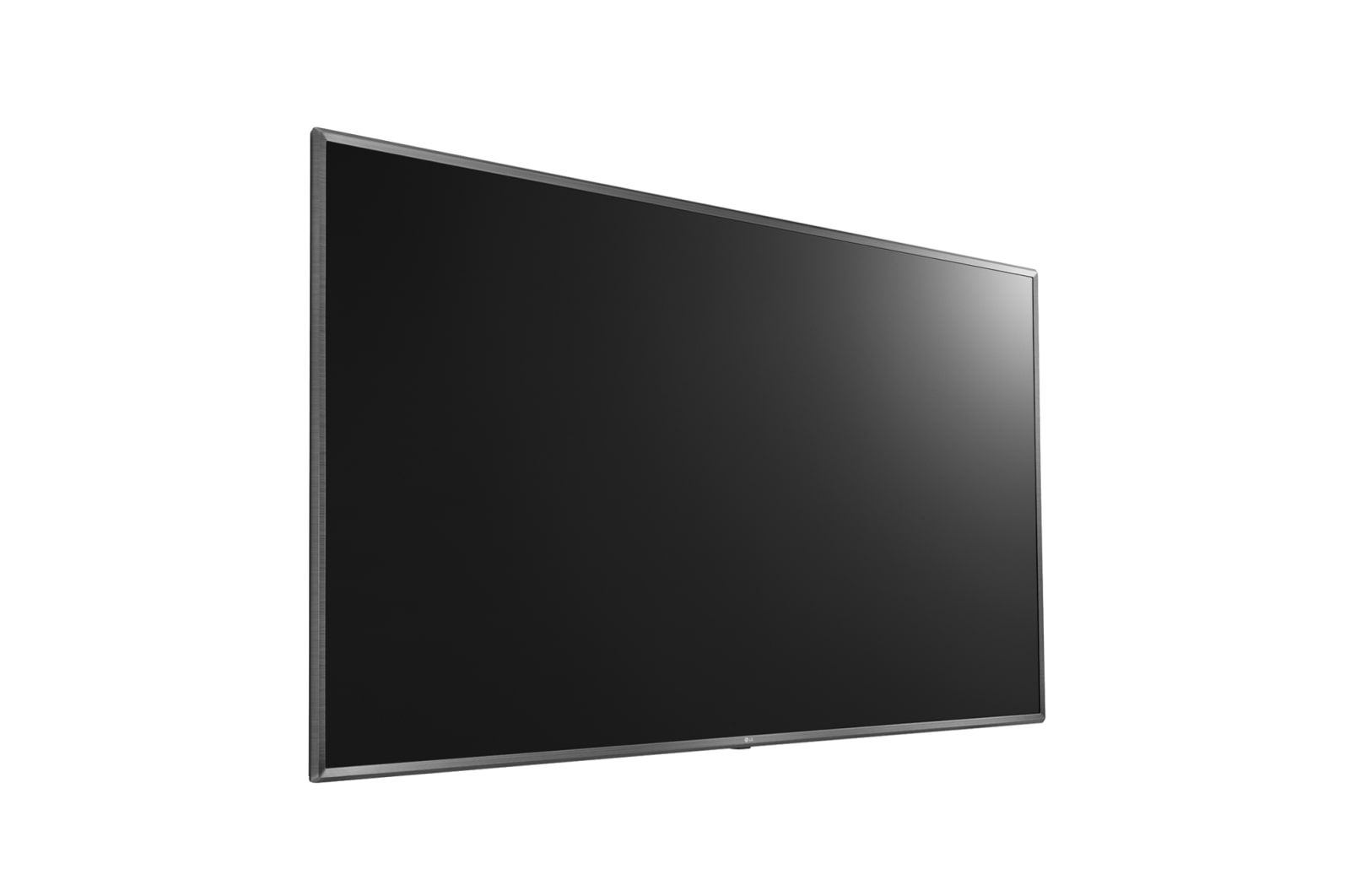

LG 75UL3G-M. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display resolution: 3840 x 2160 pixels, Display brightness: 350 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Web OS. Product colour: Black

Brightness(Typ.) : 350 cd/m²
Bezel : 20.2 mm (R/L/T), 21.5 mm (B)
Depth : 88.8 mm
Interface : HDMI(3), USB 2.0(2), RS232C In/Out, RJ45 In, Audio Out
Built-in Speaker

Product Properties

Manufacturer
LG

Model
75UL3G-M

EAN
8806091424075

Audio

Built-in speaker(s)
Y

Bullet points

Point
Bezel : 20.2 mm (R/L/T), 21.5 mm (B)

Brightness(Typ.) : 350 cd/m²

Built-in Speaker

Depth : 88.8 mm

Interface : HDMI(3), USB 2.0(2), RS232C In/Out, RJ45 In, Audio Out

Computer system

Internal memory
8 GB

Operating System
Web OS

Video formats supported
HEVC

Design

Bezel width (bottom)
2.15 cm

Bezel width (side)
2.02 cm

Bezel width (top)
2.02 cm

Mounting type
Wall

Orientation
Horizontal/Vertical

Panel mounting interface
600 x 400 mm

Placement supported
Indoor

Product colour
Black

Product design
Digital signage flat panel

VESA mounting
Y

Display

Contrast ratio (dynamic)
1000000:1

Contrast ratio (typical)
1200:1

Display brightness
350 cd/m²

Display number of colours
1.07 billion colours

Haze rate
1%

HD type
4K Ultra HD

LED backlighting type
Direct-LED

Native aspect ratio
16:9

Native refresh rate
60 Hz

Panel type
IPS

Rated lifetime
30000 h

Response time
8 ms

Screen Resolution
3840 x 2160 pixels

Screen Size
190.5 cm (75")

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Features

Heat dissipation (max)
819 BTU/h

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Packaging content

Batteries included
Y

Cables included
AC

Remote control included
Y

Packaging data

Package depth
231 mm

Package height
1116 mm

Package weight
45.7 kg

Package width
1823 mm

Performance

Miracast
Y

Multi-display supported
Y

Number of OSD languages
21

On Screen Display (OSD)
Y

On Screen Display (OSD) languages
Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Portuguese, Russian, Swedish, Turkish

Operating hours (hours/days)
16/7

Ports & interfaces

Audio (L/R) out
1

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

HDMI input ports quantity
3

HDMI ports
3

HDMI version
2.2/1.4

RS-232 interface
Y

RS-232C
Y

USB port
Y

USB ports quantity
2

USB version
2.0

Wi-Fi
Y

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Heat dissipation
529 BTU/h

Power consumption (off)
0.5 W

Power consumption (typical)
155 W

Technical details

Sustainability certificates
ErP

Weight & dimensions

Depth (with stand)
345 mm

Display depth
73.4 mm

Display height
978 mm

Display weight
34.6 kg

Display width
1693 mm

Height (with stand)
1048 mm

Weight (with stand)
35.4 kg

Width (with stand)
1693 mm

LG 75UL3G-M Signage Display Digital signage flat panel 190.5 cm (75") Wi-Fi 350 cd/m² 4K Ultra HD Black Web OS 16/7
