Description

Logitech Swytch. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Frame rate: 30 fps. Connectivity technology: Wired, USB version: 3.2 Gen 1 (3.1 Gen 1), USB connector type: Micro-USB B, USB Type-A, USB Type-C. Power source type: AC, USB Power Delivery up to: 60 W. Receiver dimensions (WxDxH): 164 x 90 x 27.4 mm, Transmitter dimensions (WxDxH): 120 x 120 x 27.4 mm. Package width: 243 mm, Package depth: 266 mm, Package height: 115 mm

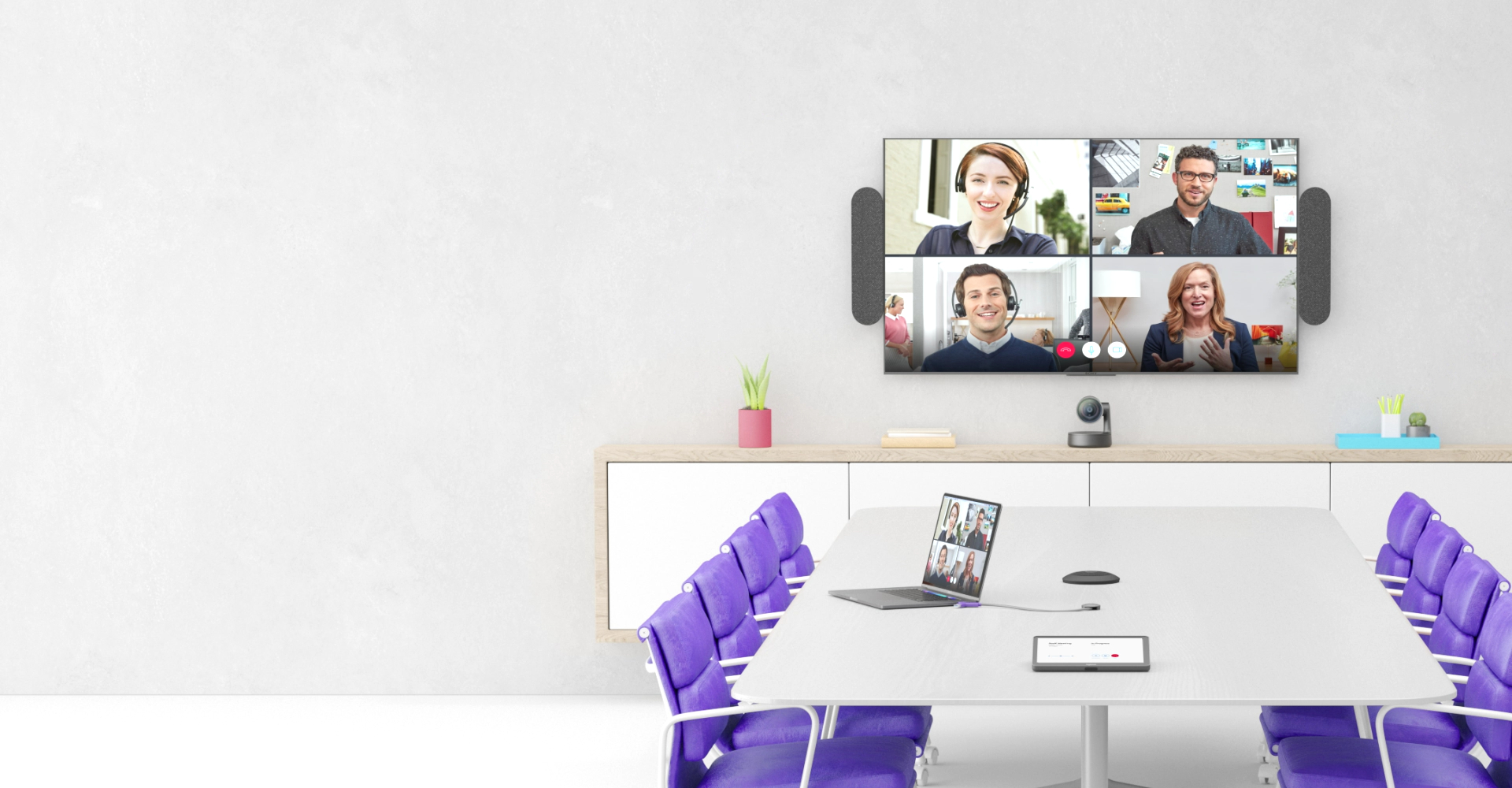

Join any meeting from every room – With a single connection, Logitech Swytch links a laptop to the room’s display and conference camera for use with any video conferencing, streaming or webinar software. For rooms with or without a dedicated meeting room computer.

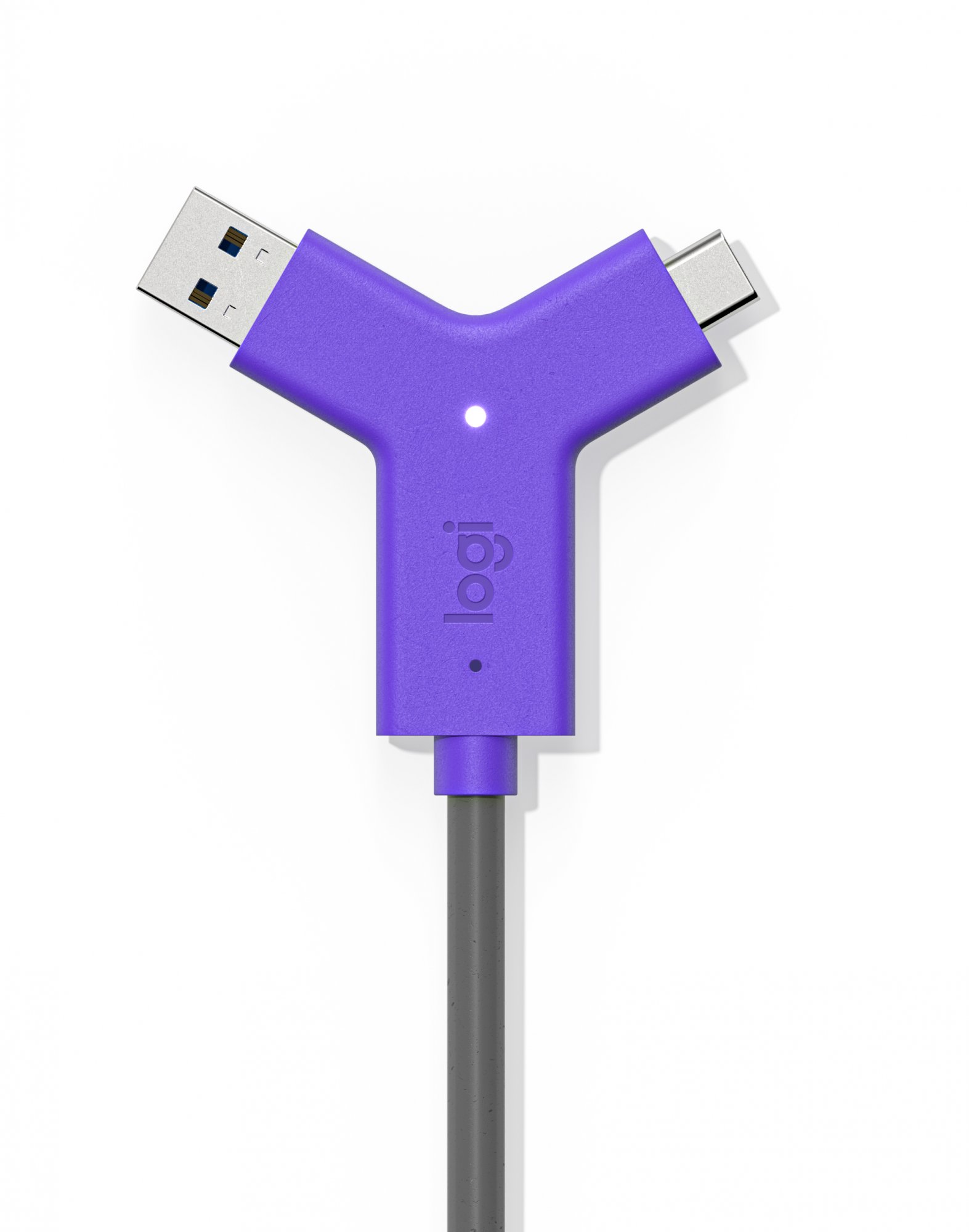

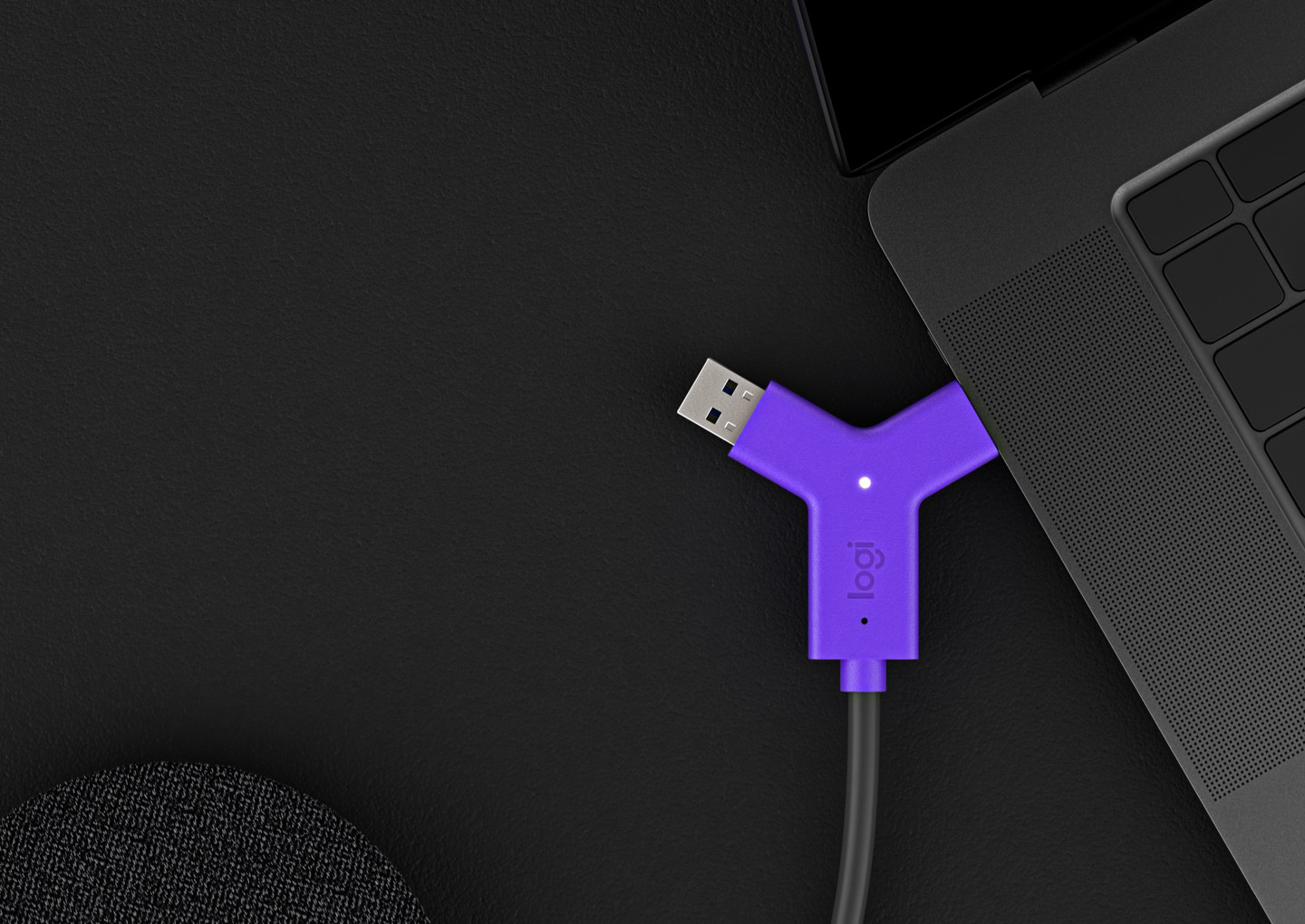

Single-cable link – Universal USB type A+C connection to most Windows laptops, MacBooks and Chromebooks, with no dongle or adapter required (requires USB 3.0 type A or C port and DisplayLink drivers).

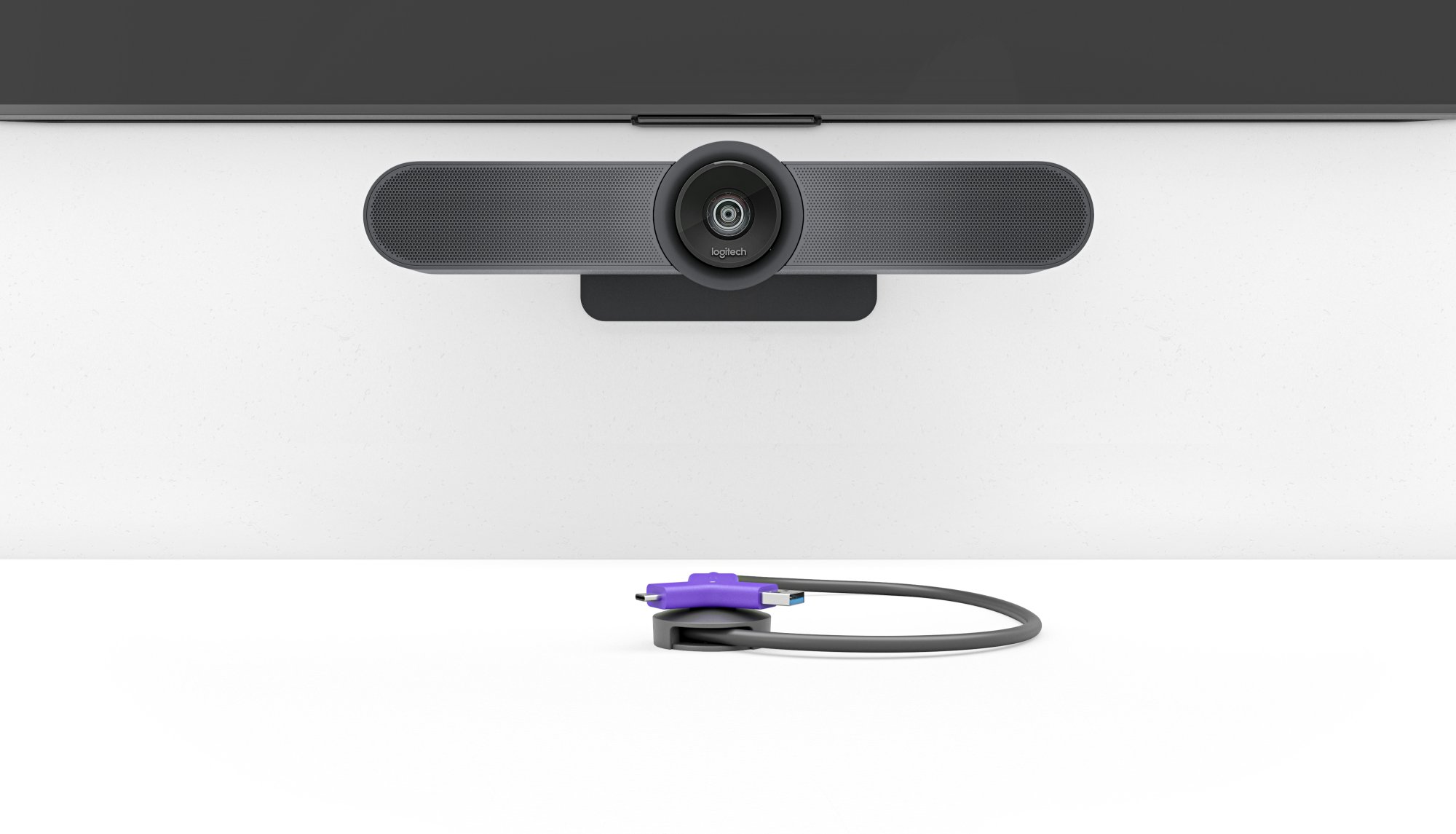

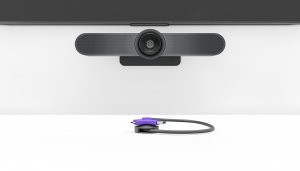

Compatible with Microsoft Teams Rooms, Zoom Rooms and other software-based video-conferencing room solutions – Allows people to use the room solution's conference camera and display for external meetings, webinars and video broadcasts.
Auto-sensing hub – Automatically switches the room’s display and conference camera between the meeting room computer (if equipped) and a connected laptop, so rooms stay ready for every meeting.

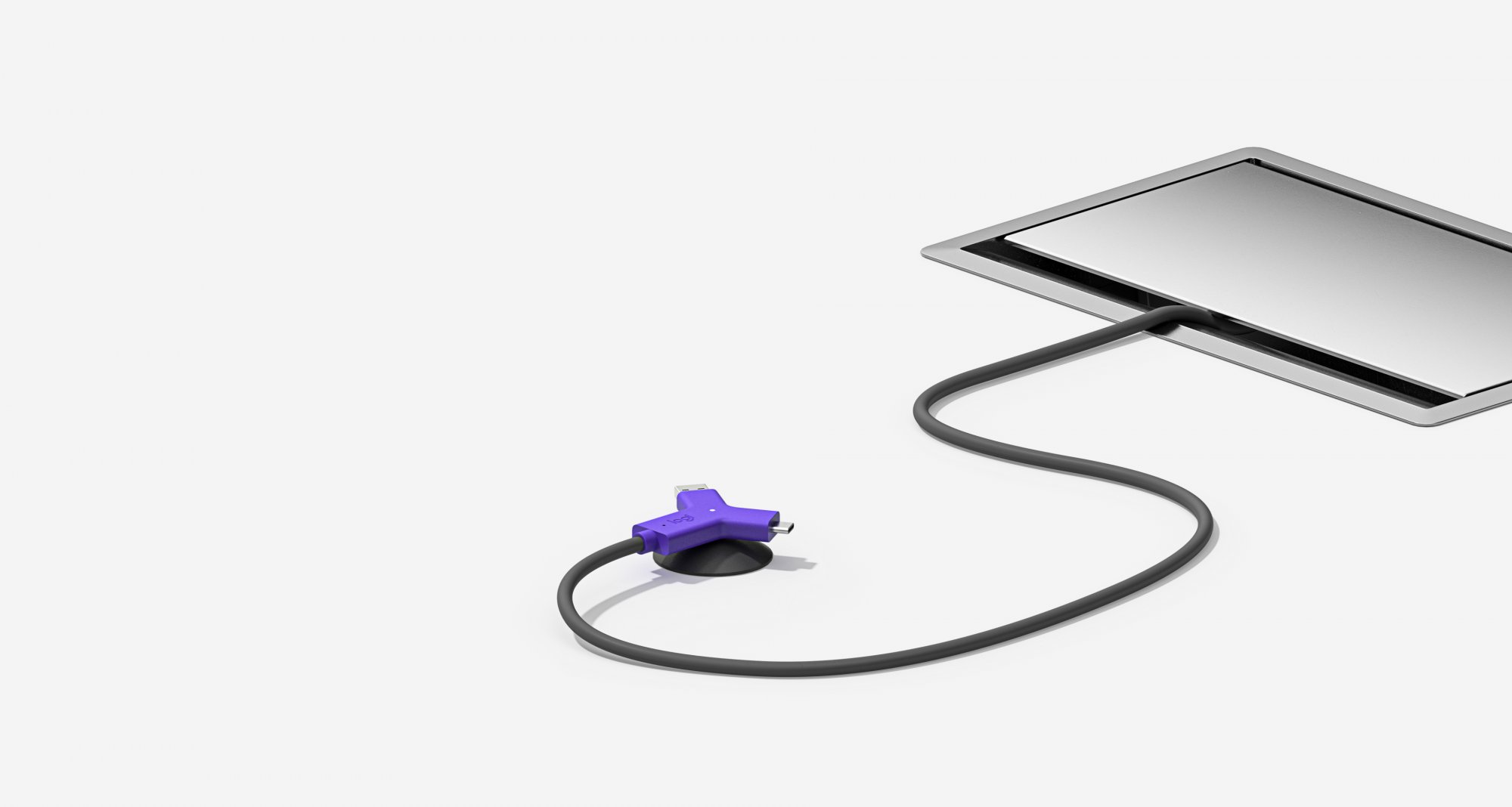

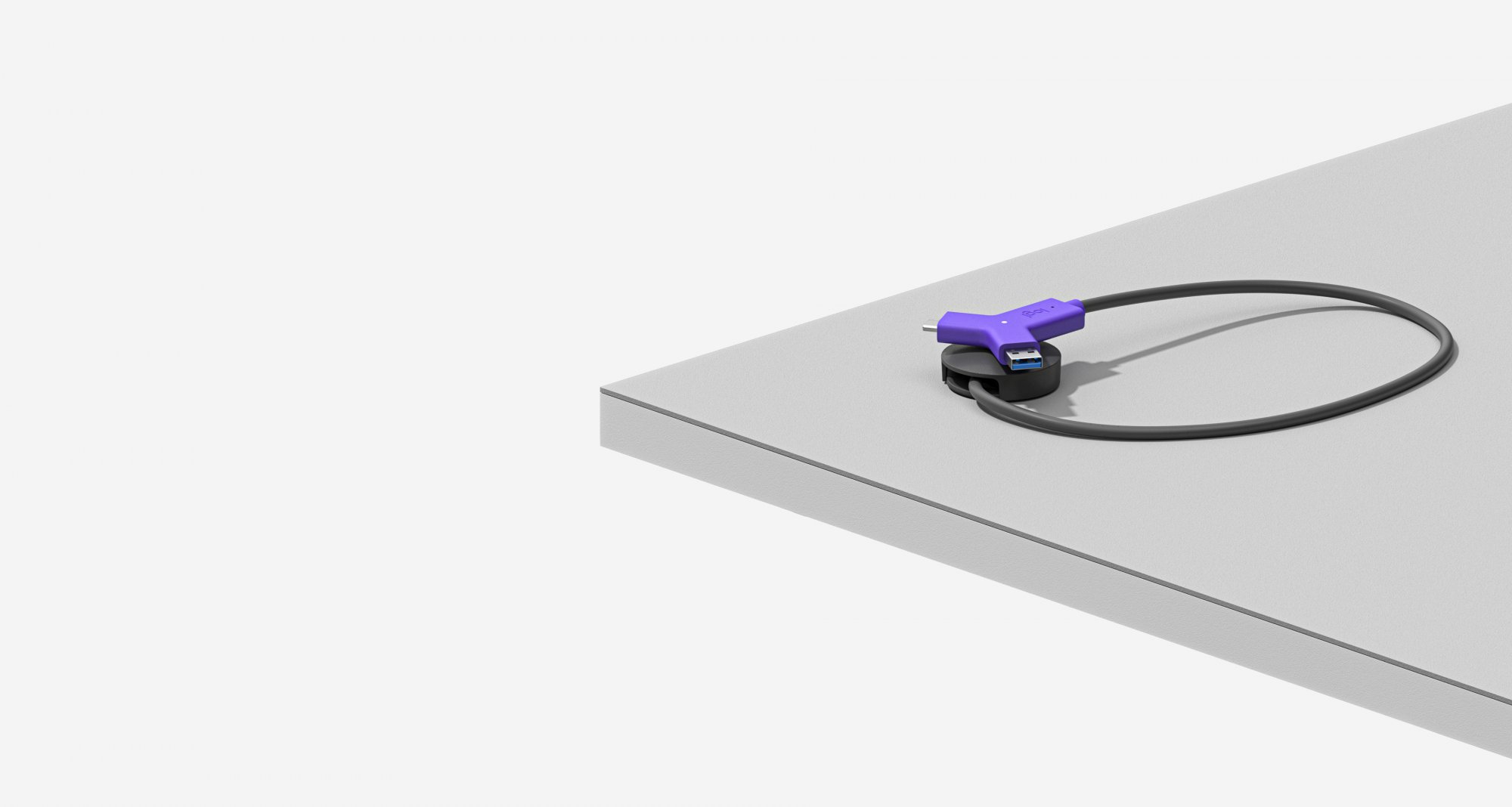

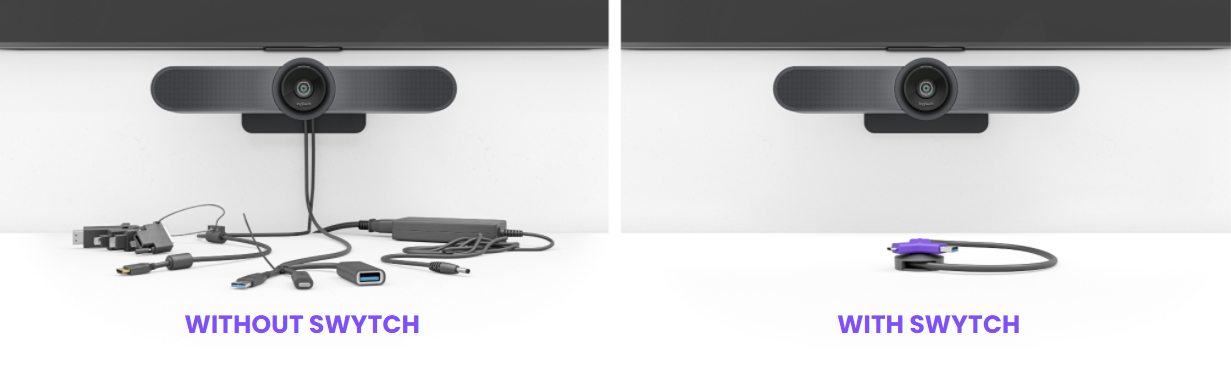

Clean tabletop – Universal USB type A + C connector with USB Power Delivery is compatible with most laptops. It eliminates the adapters that clutter the conference room and prevents a drained battery from cutting conversations short.
Up to 4K video – Swytch supports video and content sharing resolutions all the way to 4K for broadcast-quality meetings, live streams and virtual events.

Product Properties

Manufacturer
Logitech

Model
952-000010

EAN
5099206092181

Features

Compatible products
Logitech Rally, MeetUp, GROUP, Microsoft Teams Rooms, Zoom Rooms

Frame rate
30 fps

LED indicators
Y

Mac operating systems supported
Mac OS X 10.15 Catalina

Maximum resolution
3840 x 2160 pixels

Plug and Play
Y

Product colour
Black, Violet

Type
AV transmitter & receiver

Windows operating systems supported
Windows 10

Logistics data

Master (outer) case gross weight
5.23 kg

Master (outer) case height
265 mm

Master (outer) case length
278 mm

Master (outer) case width
241 mm

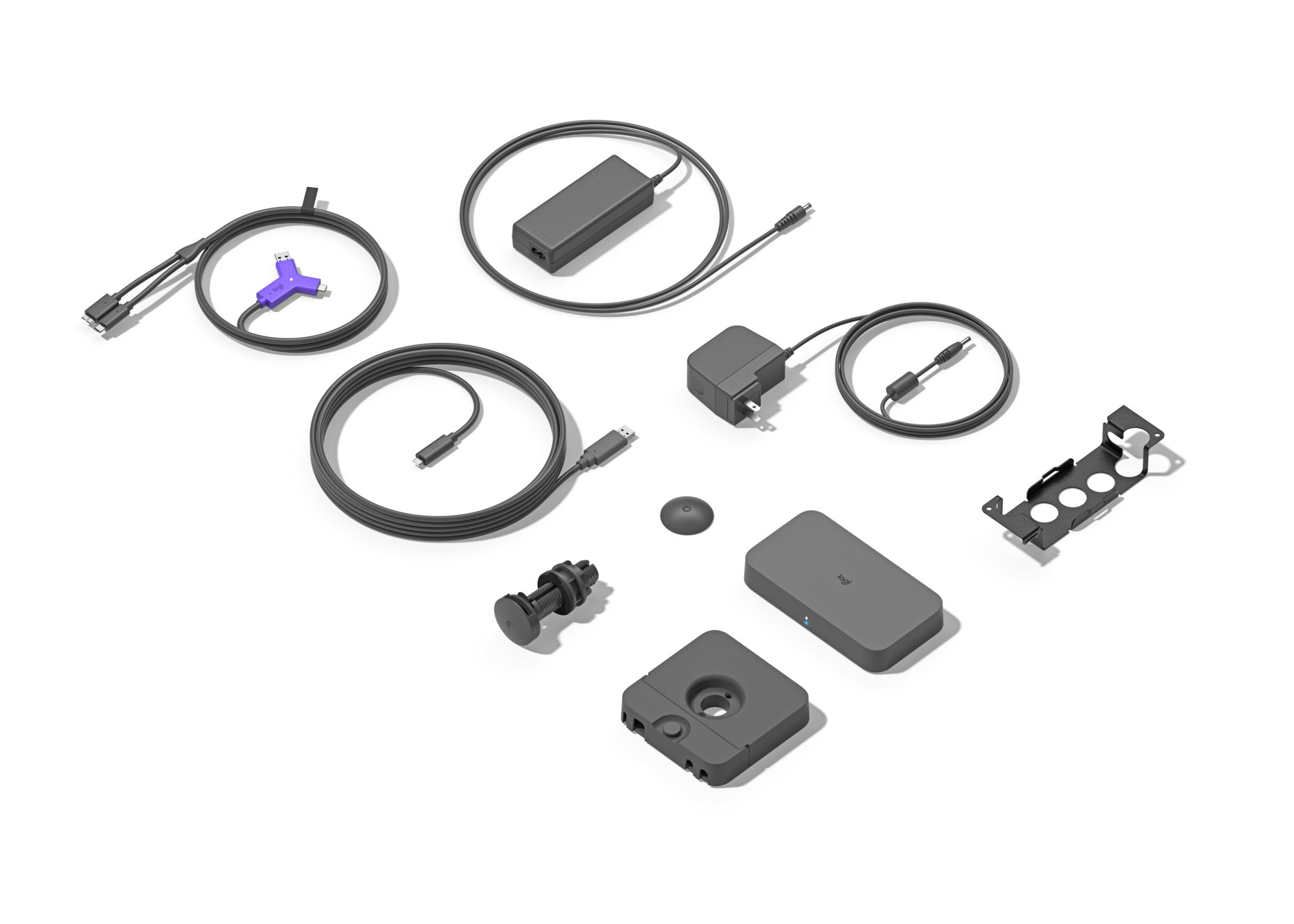

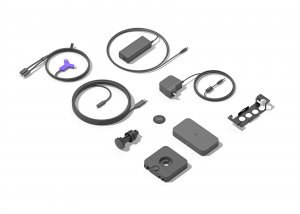

Packaging content

AC adapter included
Y

Cables included
HDMI, USB

Included power plug types
EU

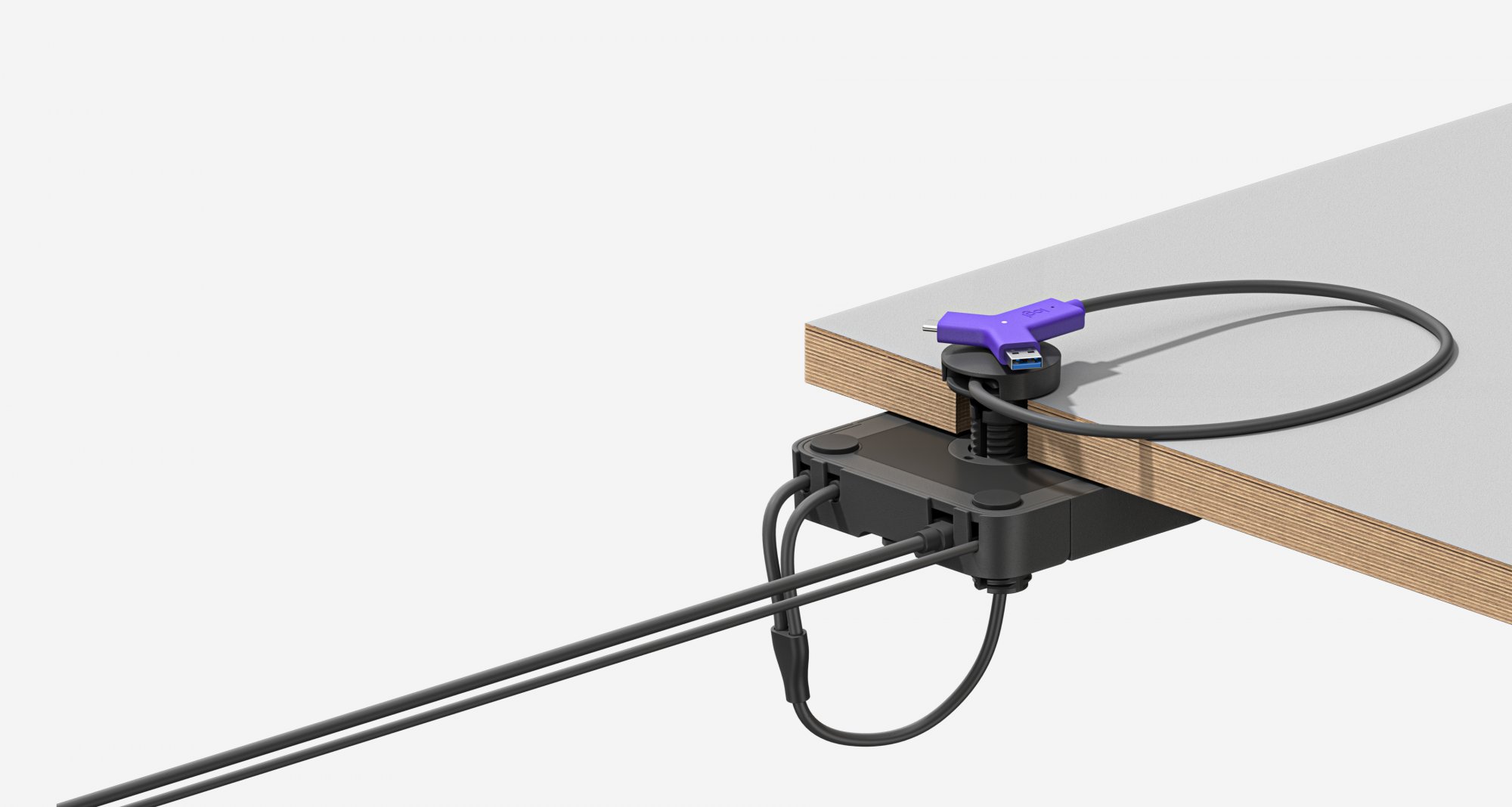

Mounting kit
Y

Packaging data

Package depth
266 mm

Package height
115 mm

Package weight
2.6 kg

Package width
243 mm

Ports & interfaces

Connectivity technology
Wired

DC-in jack
Y

HDMI in
1

HDMI version
2.0

Number of HDMI outputs
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2

USB connector type
Micro-USB B, USB Type-A, USB Type-C

USB ports quantity
6

USB version
3.2 Gen 1 (3.1 Gen 1)

Power

Power source type
AC

USB Power Delivery
Y

USB Power Delivery up to
60 W

Weight & dimensions

Receiver dimensions (WxDxH)
164 x 90 x 27.4 mm

Transmitter dimensions (WxDxH)
120 x 120 x 27.4 mm

Logitech Swytch AV transmitter & receiver Black, Violet
