Description

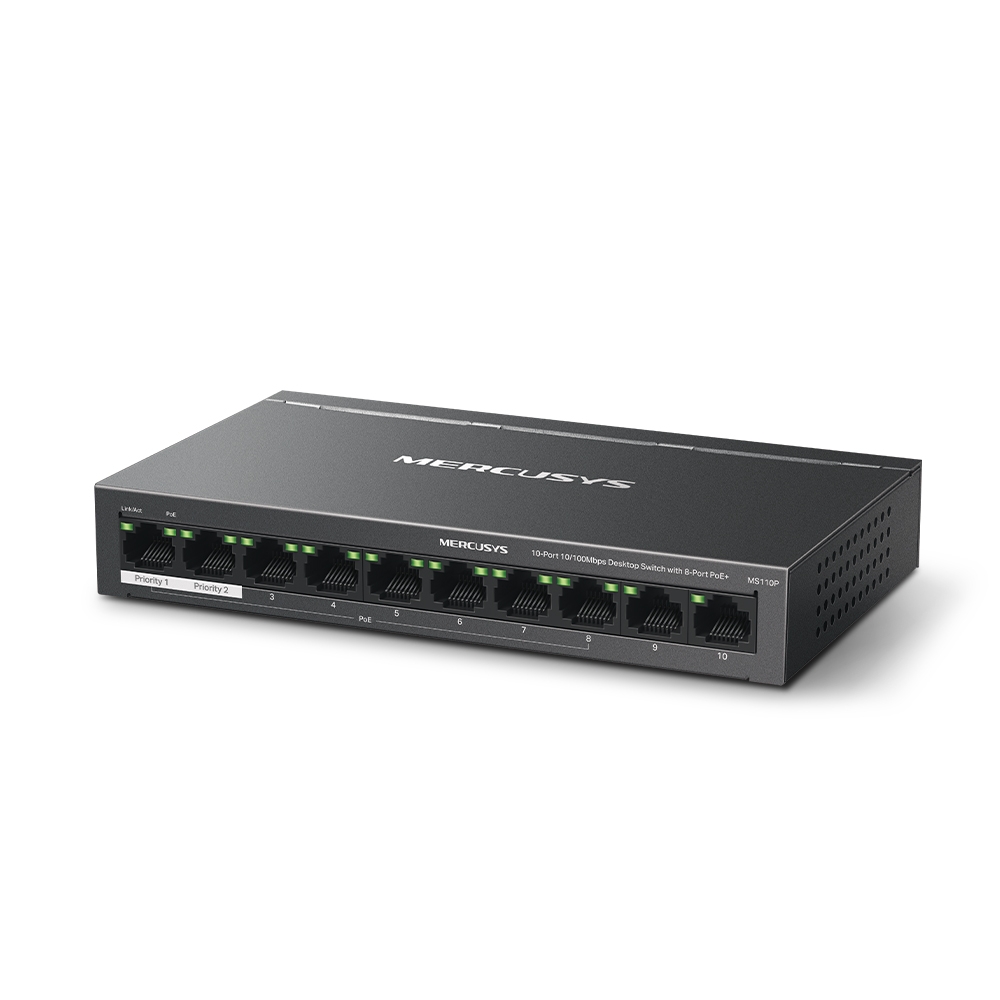

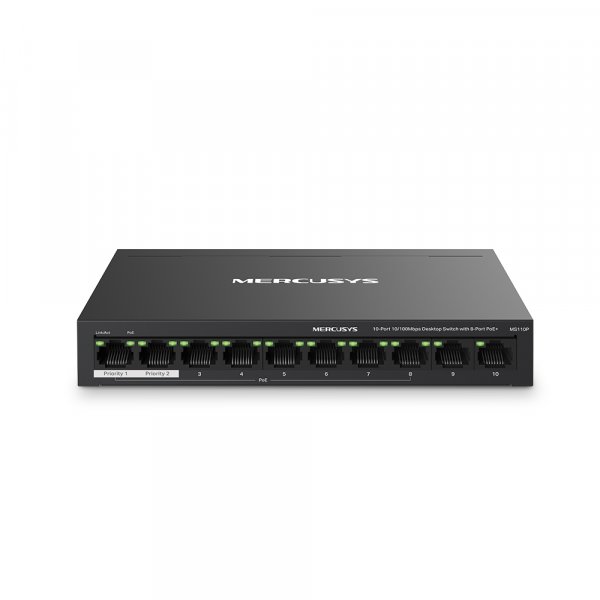

Mercusys 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 2000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

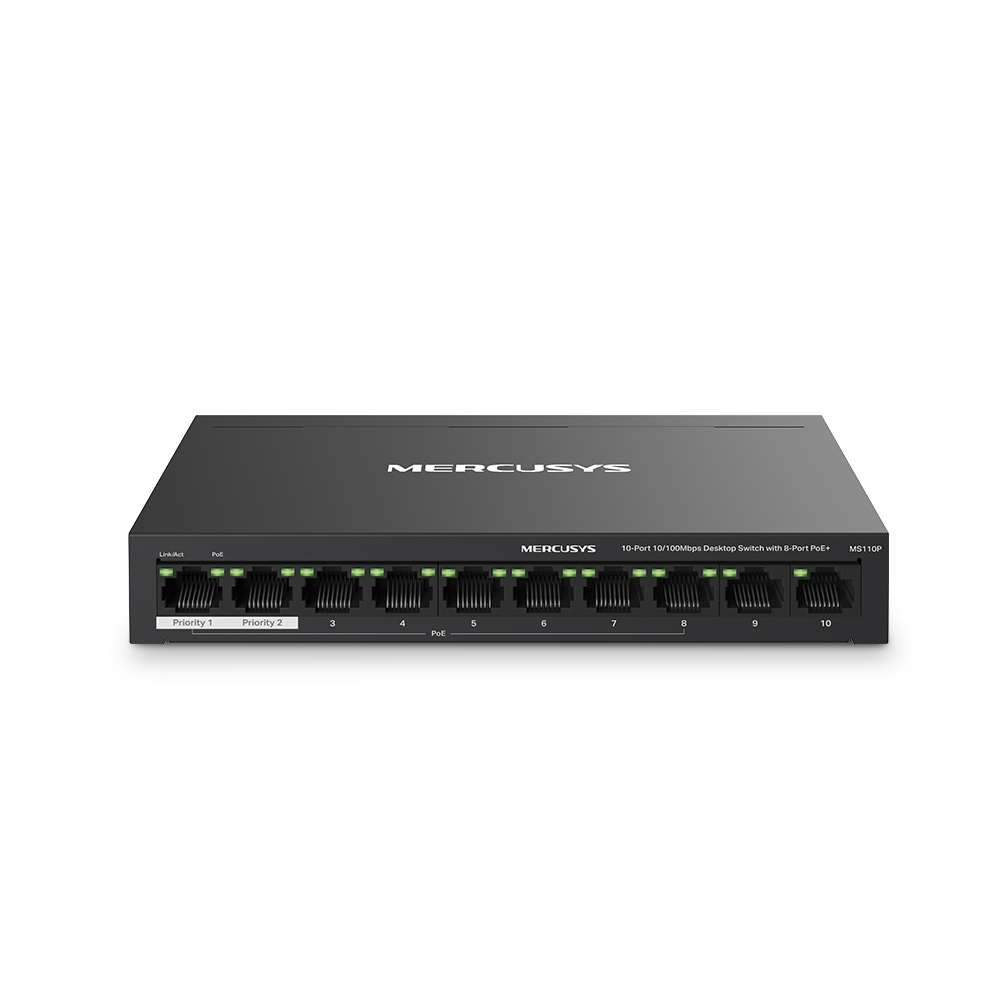

10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

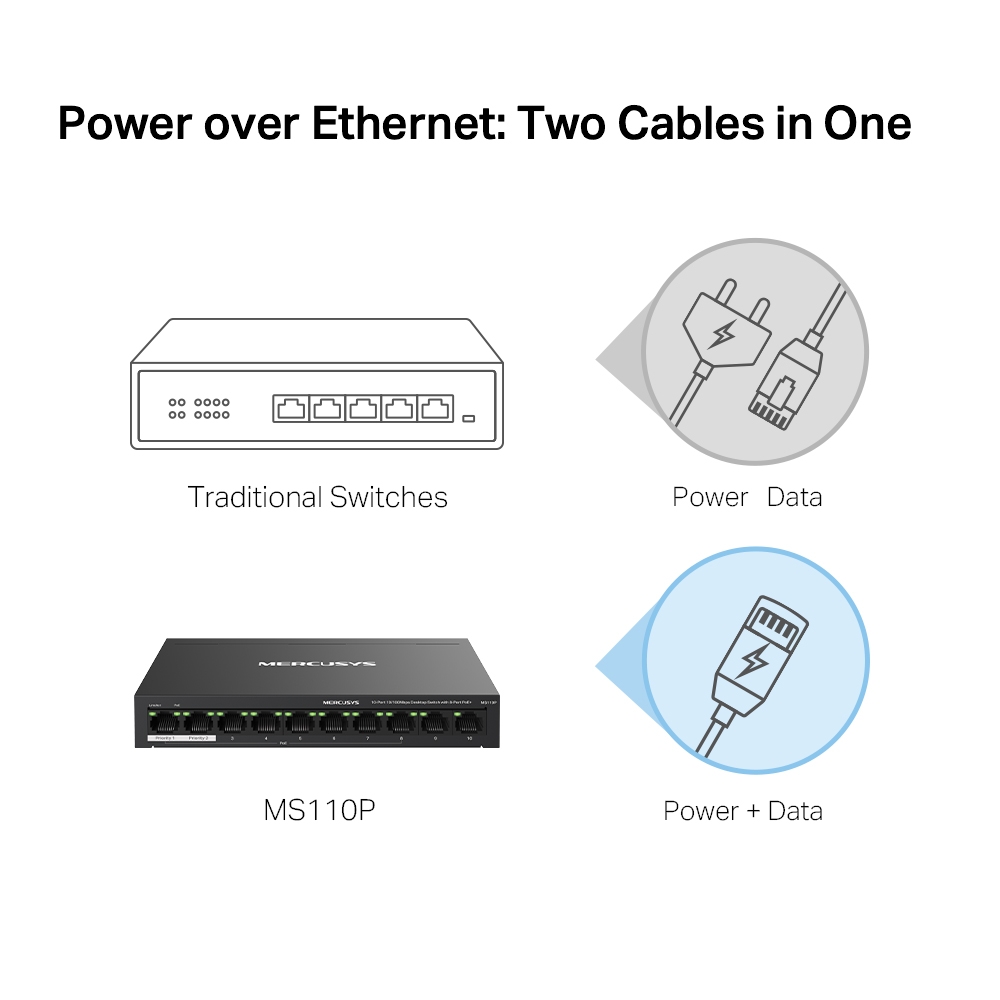

Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable

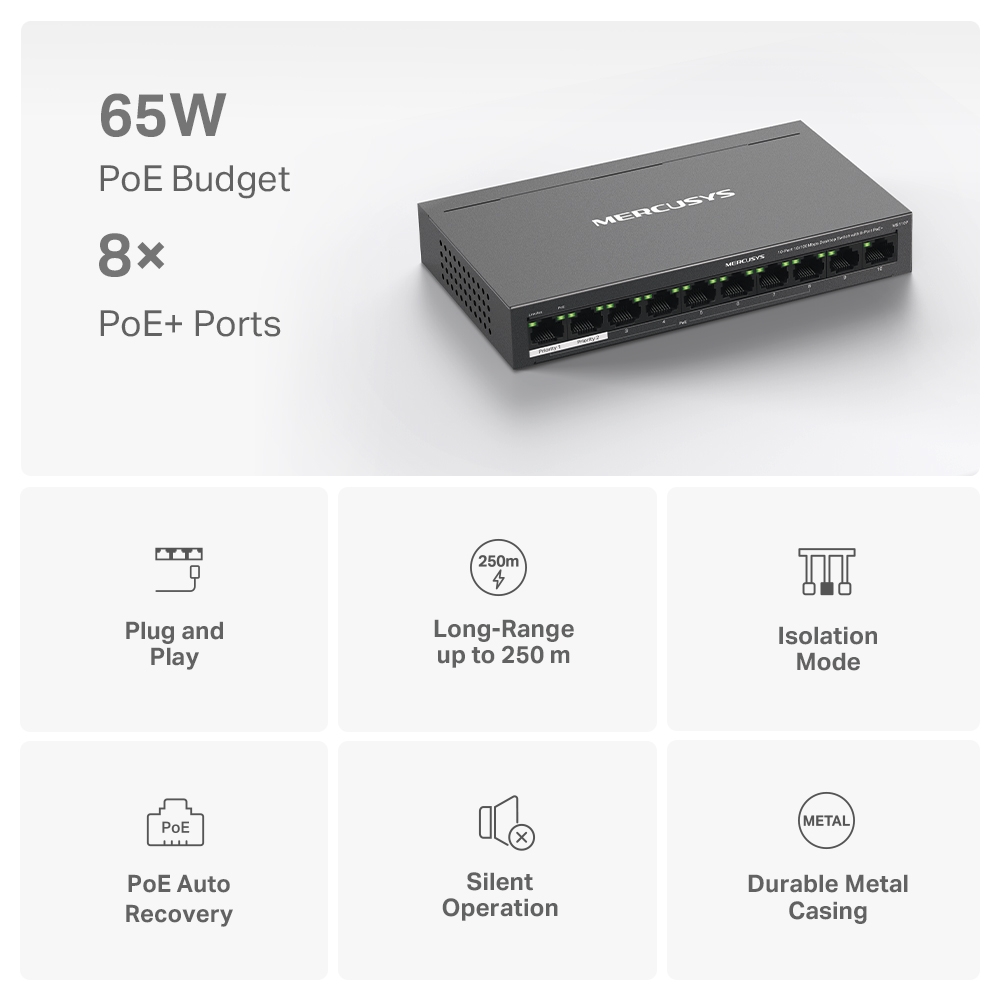

High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR
Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

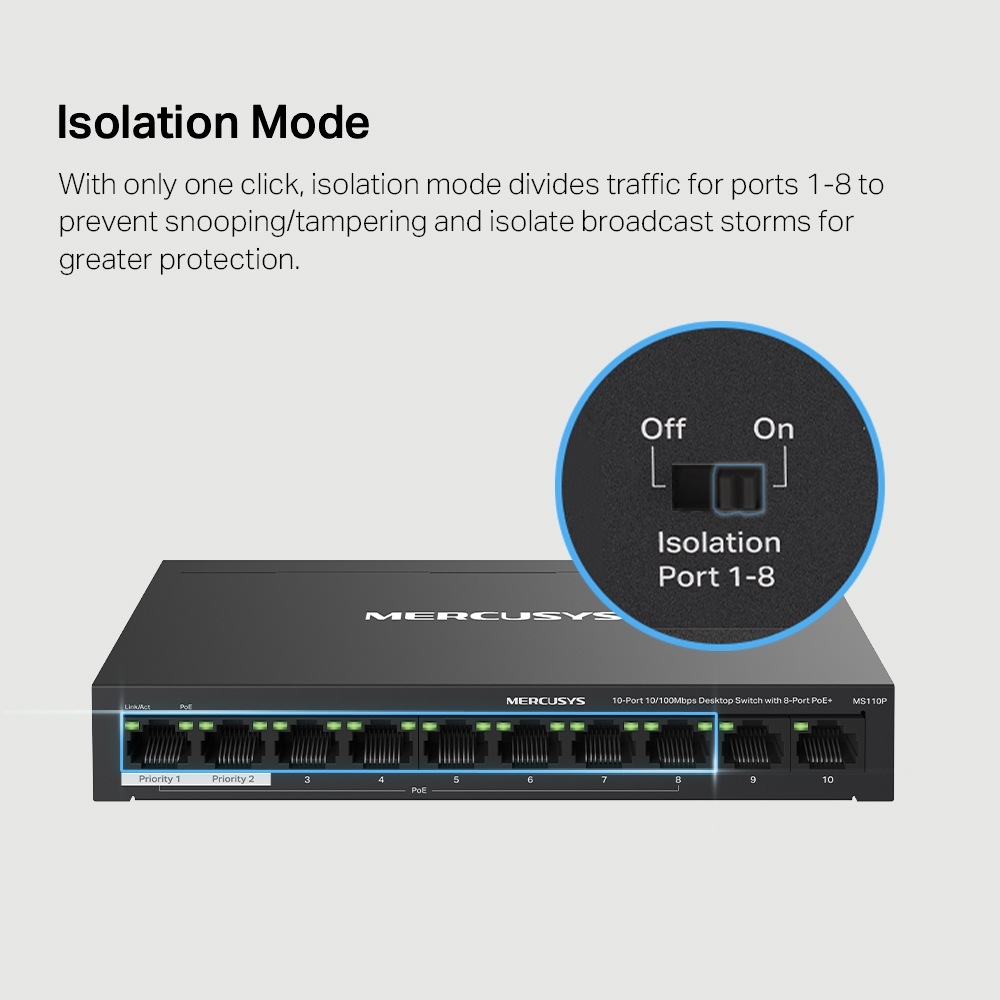

Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

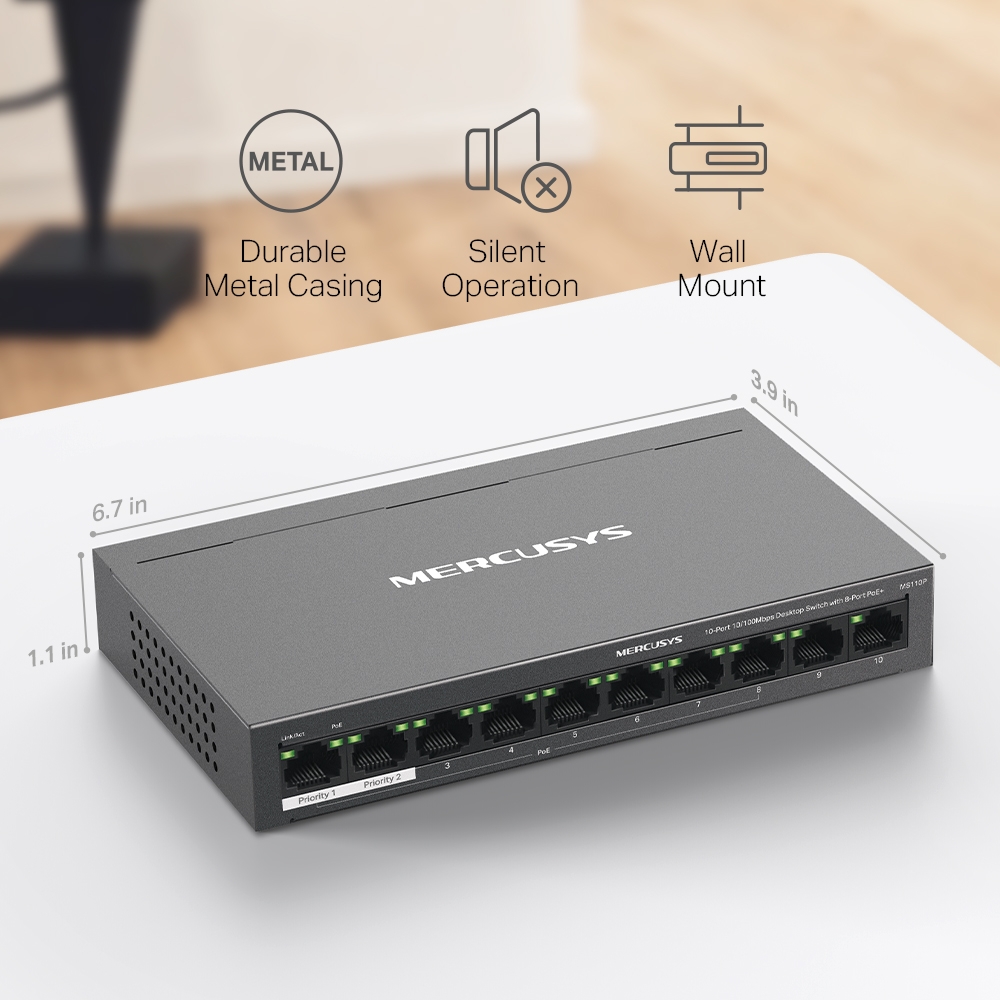

Durable Metal Casing: Allows for efficient heat dissipation and long network life

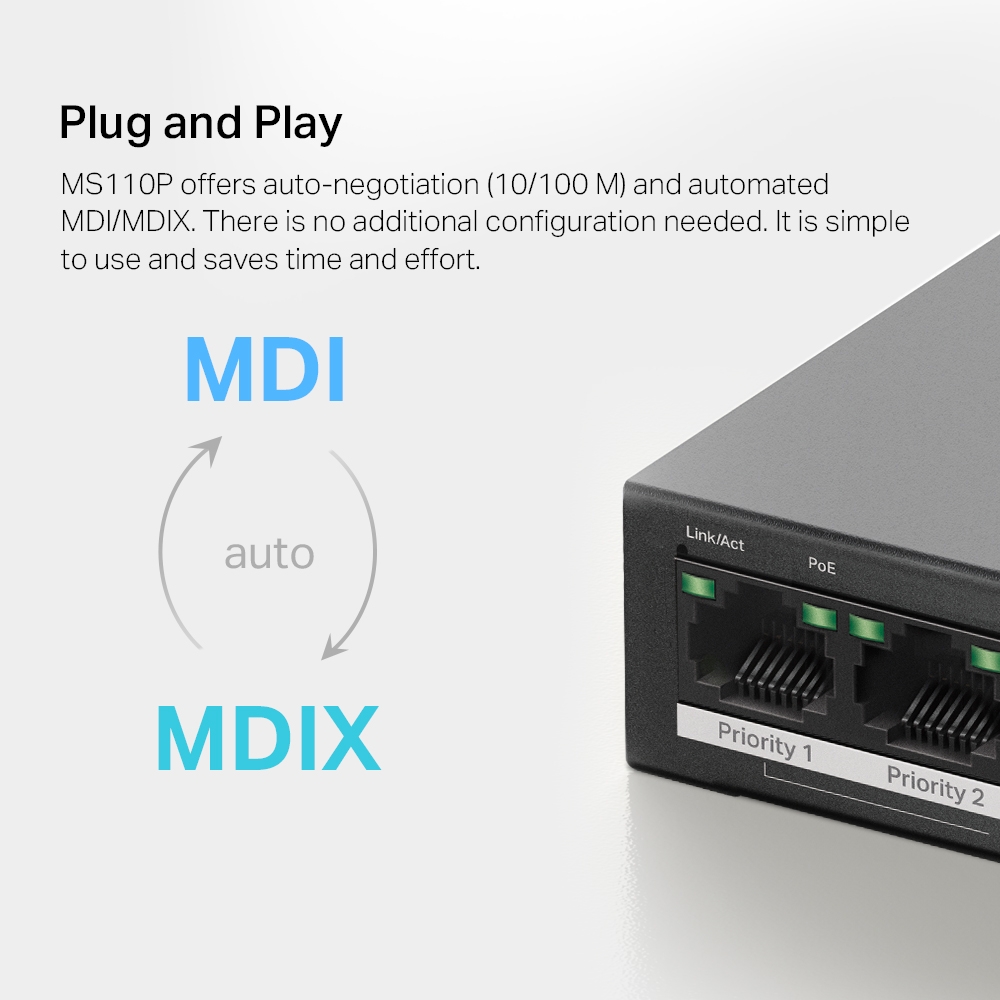

Plug and Play: Simple to use and saves time and effort
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Product Properties

Manufacturer
Mercusys

Model
MS110P

EAN
6957939001179

Bullet points

Point
10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports

2× Uplink Ports

Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing: Allows for efficient heat dissipation and long network life

High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*

Isolation Mode: One click to divide traffic for specific ports for stability and security

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

Plug and Play: Simple to use and saves time and effort

PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable

Data transmission

MAC address table
2000 entries

Design

Product colour
Black

Rack mounting
No

Stackable
No

Wall mountable
Yes

Management features

Switch type
Managed

Web-based management
Yes

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Ethernet LAN data rates
10,100 Mbit/s

Flow control support
Yes

Full duplex
Yes

Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

Policy-based routing
Yes

Operational conditions

Heat dissipation
263.568 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
AC

Quick start guide
No

Ports & interfaces

Switch Number of Ports
10

Switch Port Speed
Fast Ethernet (10/100)

Power

AC input frequency
50 Hz

AC input voltage
220 V

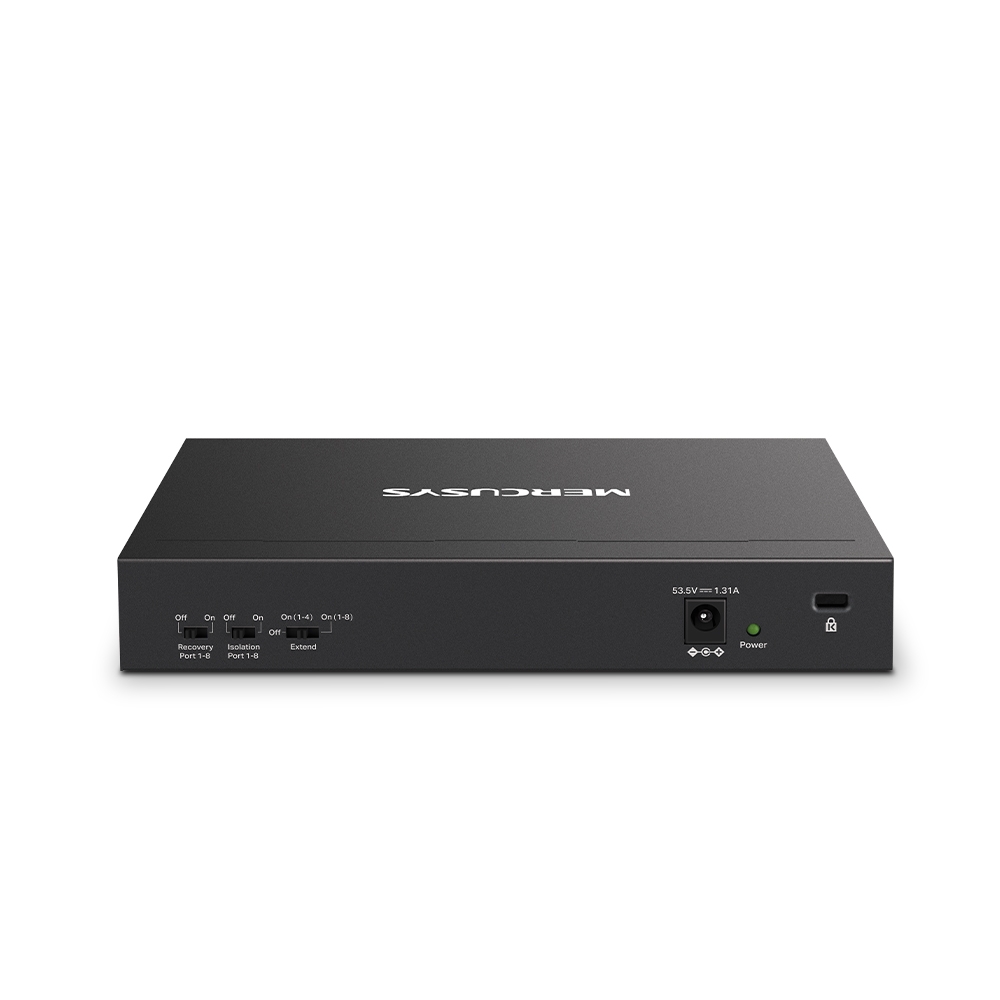

DC input voltage
53.5 V

Input current
1.31 A

Power consumption (max)
77.52 W

Power consumption (typical)
2.96 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
8

Power over Ethernet (PoE) power per port
65 W

Power over Ethernet plus (PoE+) ports quantity
2

Weight & dimensions

Depth
98 mm

Height
27 mm

Width
171 mm
