Description

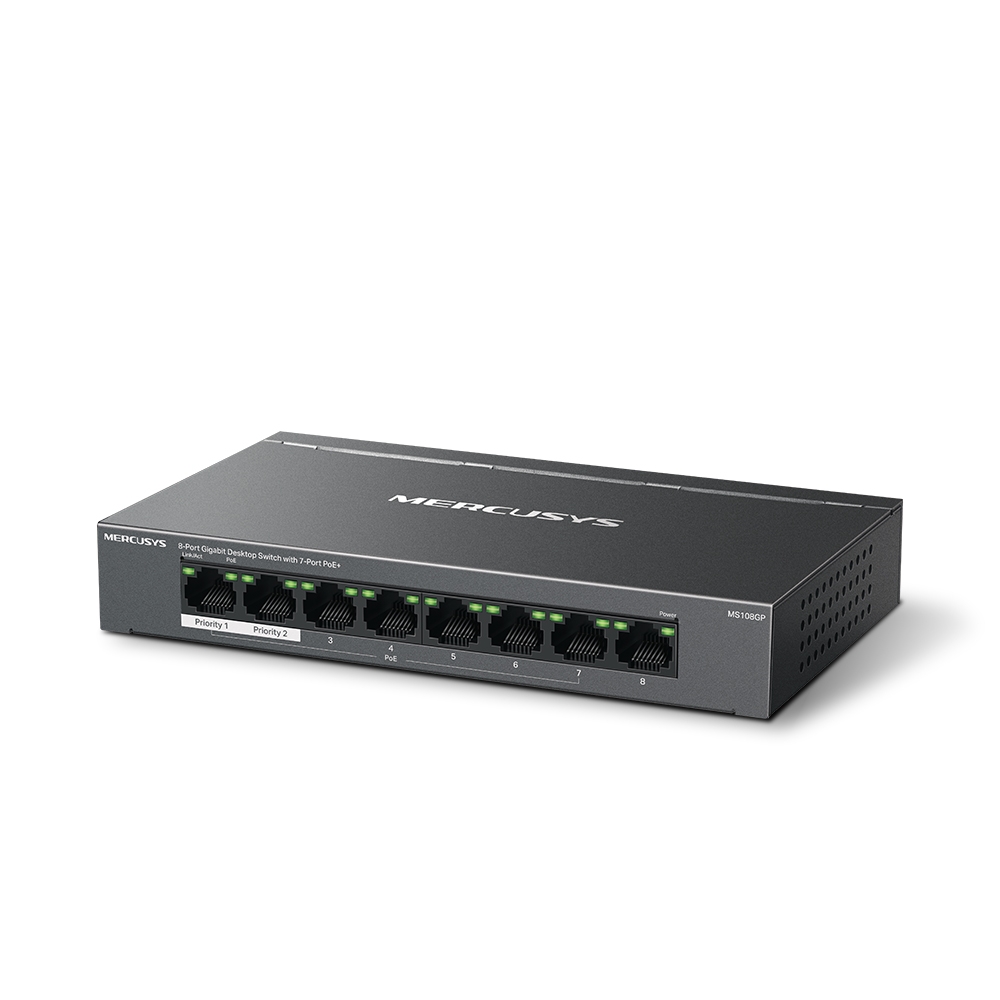

Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable

Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports

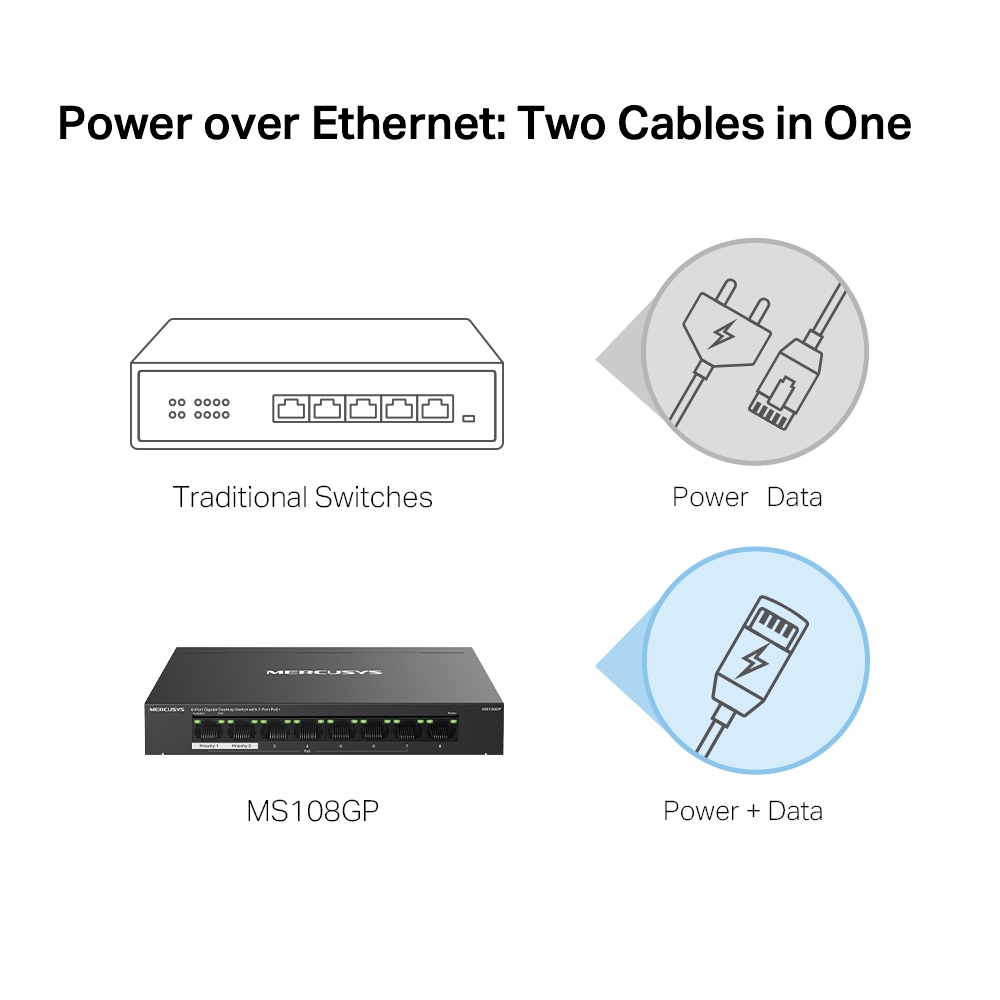

Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable

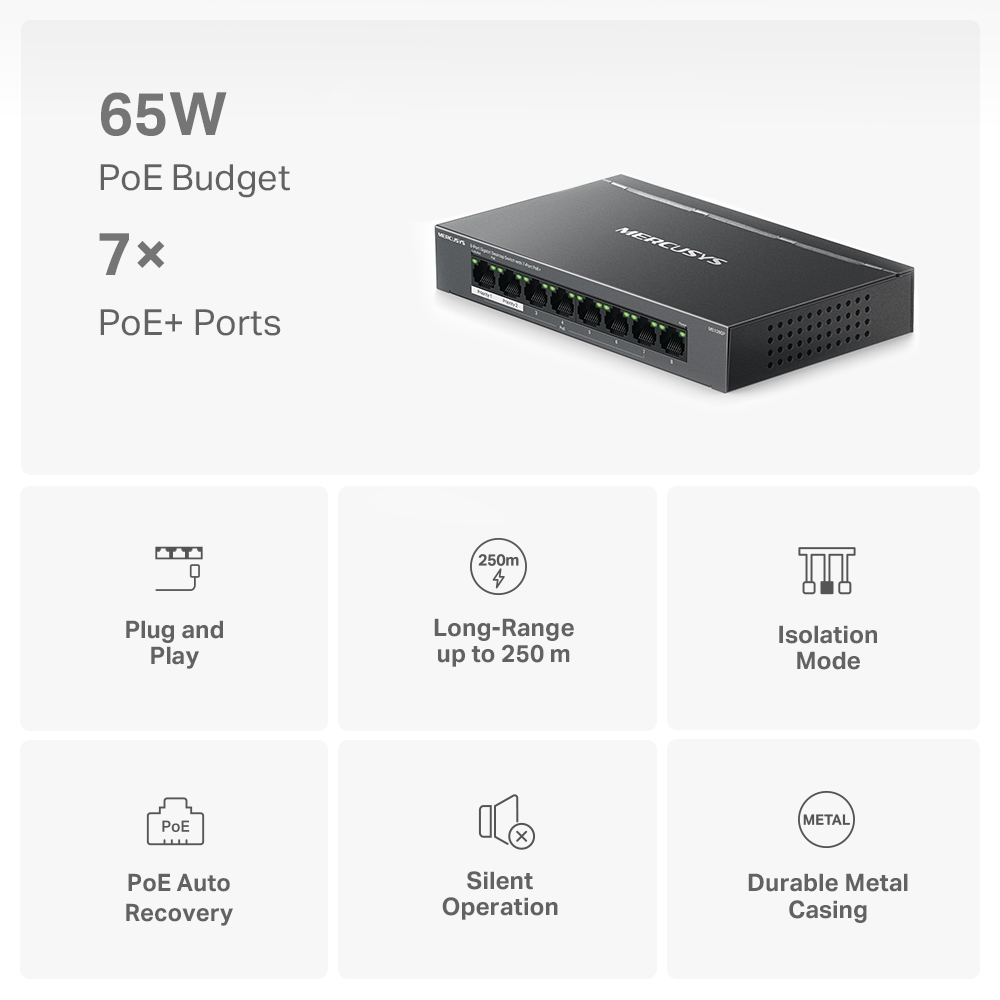

High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*

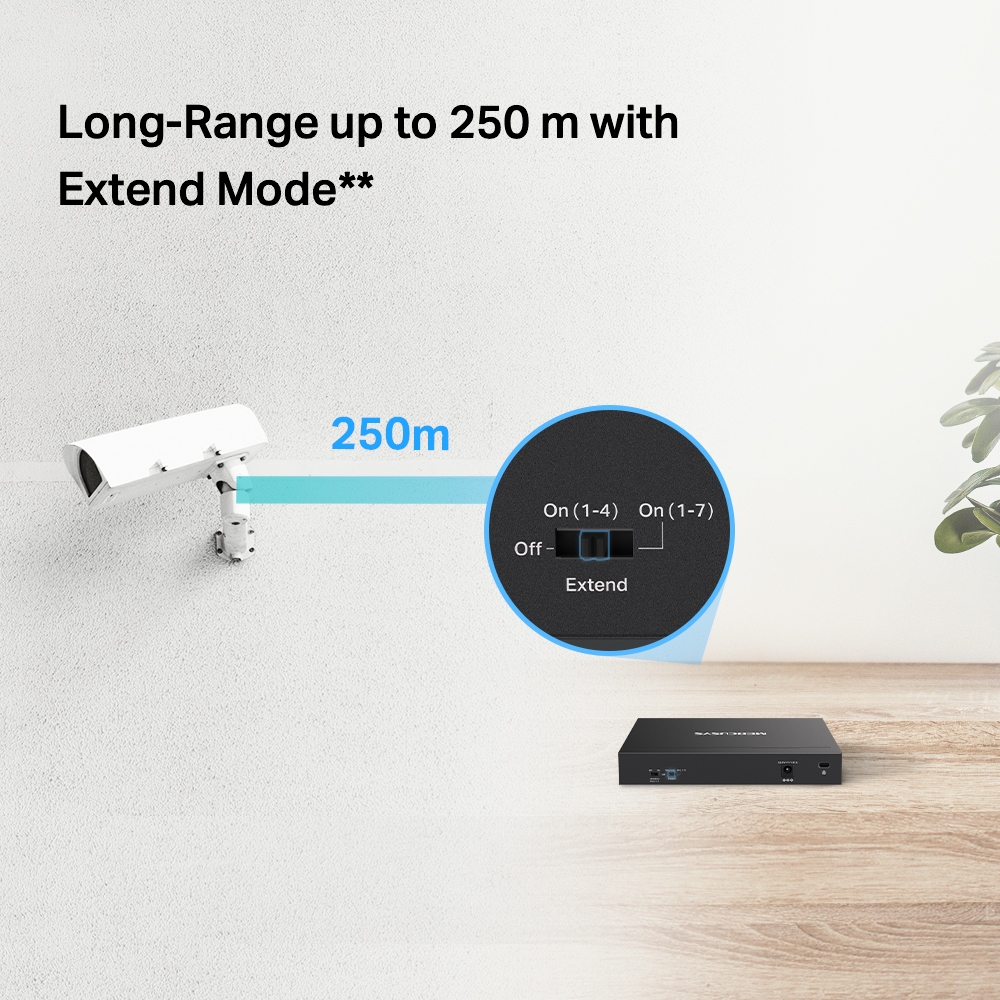

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

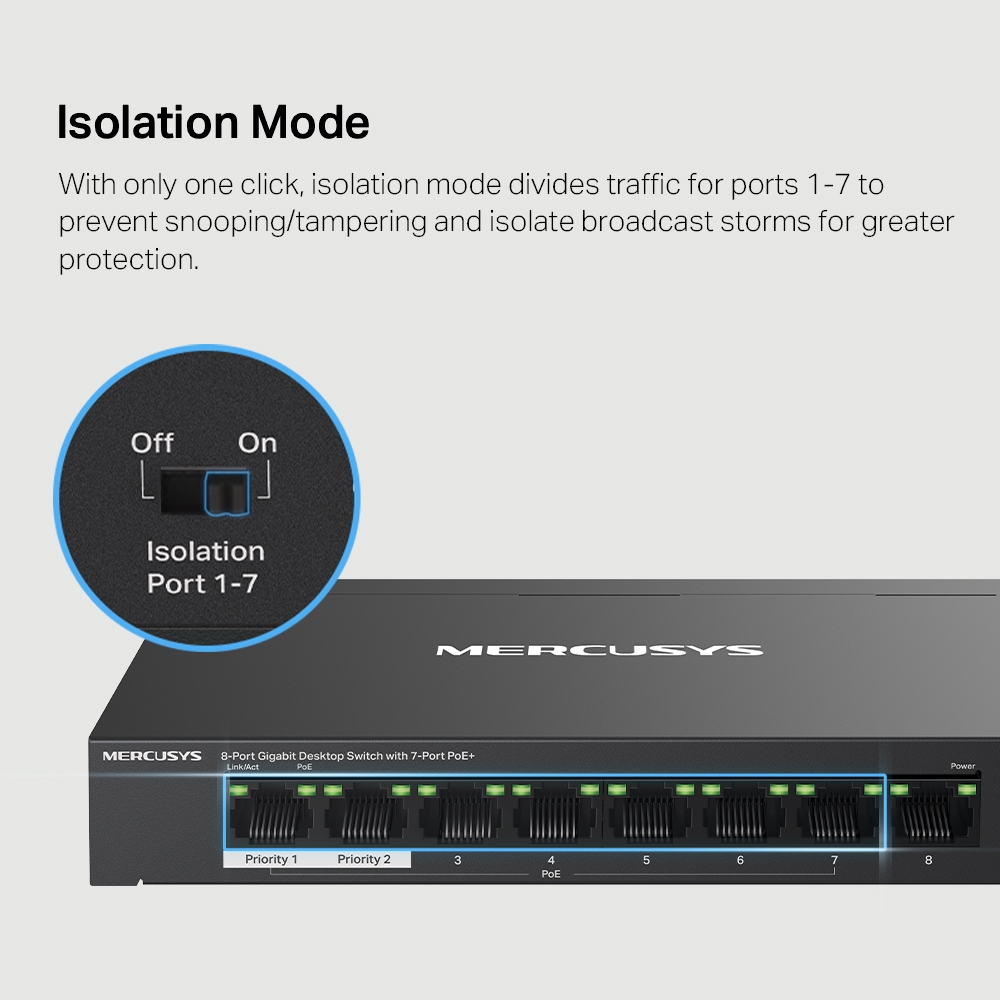

Isolation Mode: One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing: Allows for efficient heat dissipation and long network life

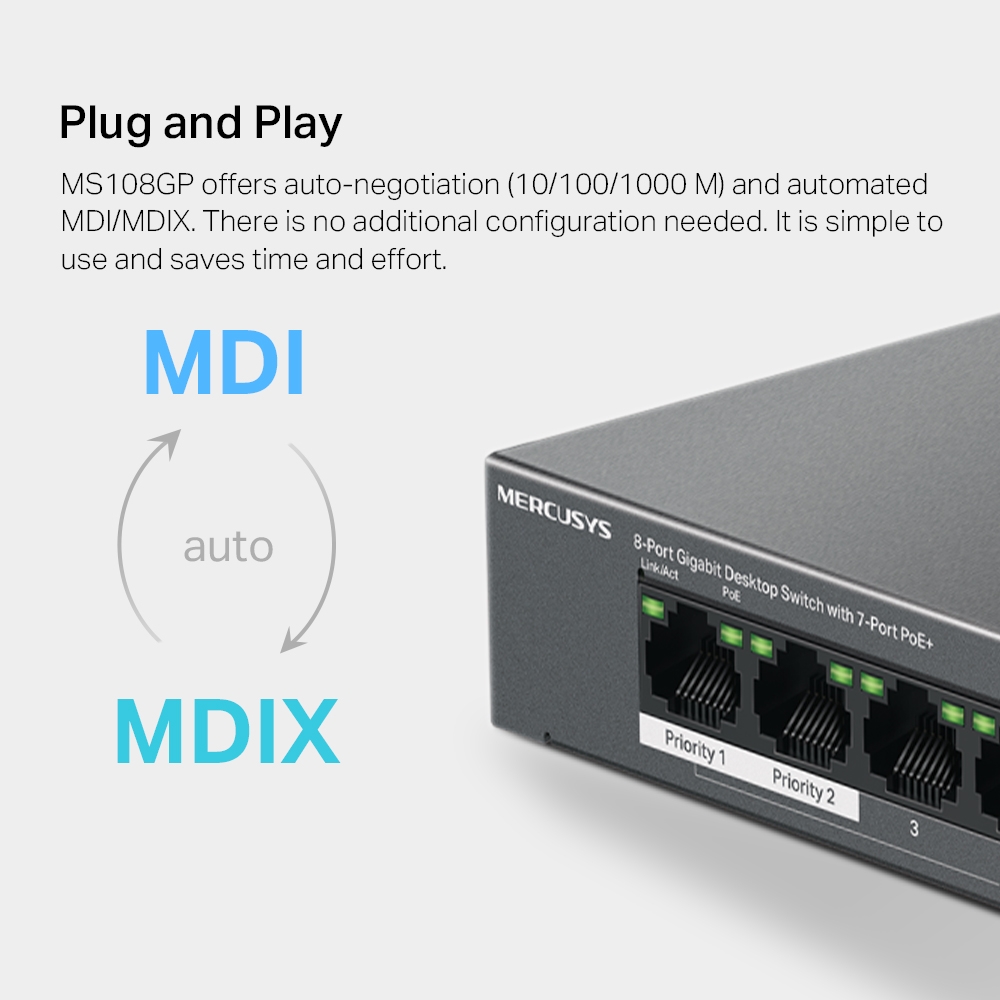

Plug and Play: Simple to use and saves time and effort

Product Properties

Manufacturer
Mercusys

Model
MS108GP

EAN
6957939001216

Bullet points

Point
Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs

Durable Metal Casing: Allows for efficient heat dissipation and long network life

Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 ports

High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*

Isolation Mode: One click to divide traffic for specific ports for stability and security

Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*

Plug and Play: Simple to use and saves time and effort

Two Cables in One: With 7 PoE+ ports, transfers data and power on one single cable

Data transmission

MAC address table
8000 entries

Store-and-forward
Yes

Design

Housing material
Metal

Product colour
Black

Rack mounting
No

Stackable
No

Wall mountable
Yes

Management features

Switch type
Managed

Traffic classification
Yes

Web-based management
Yes

Network

10G support
No

Auto MDI/MDI-X
Yes

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

Policy-based routing
Yes

Operational conditions

Heat dissipation
262.922 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
AC

Quick start guide
Yes

Ports & interfaces

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 Hz

AC input voltage
220 V

Input current
1.31 A

Input voltage
53.5 V

Power consumption (max)
77.33 W

Power consumption (typical)
5.07 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) ports quantity
7

Power over Ethernet (PoE) power per port
65 W

Power over Ethernet plus (PoE+) ports quantity
1

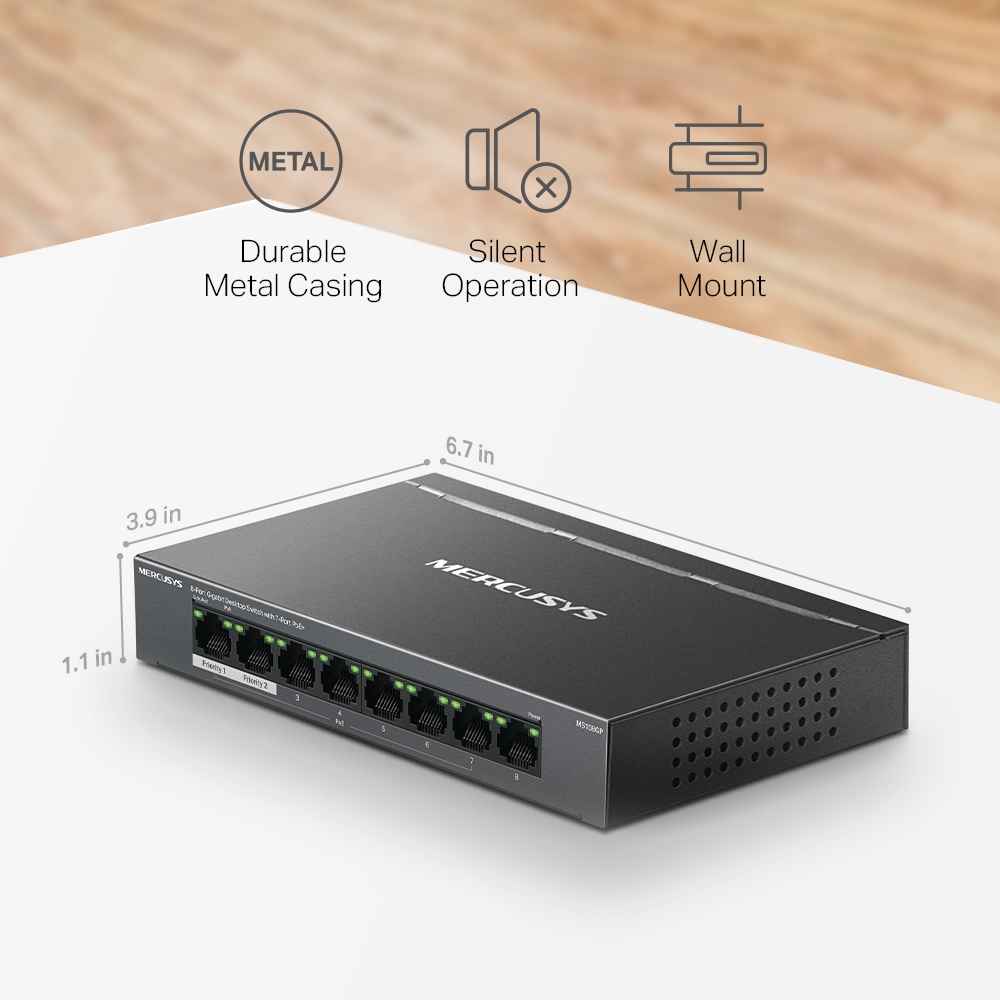

Weight & dimensions

Depth
98 mm

Height
27 mm

Width
171 mm
