Description

MSI B560-A PRO. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. HDMI version: 2.0b, USB connector type: USB Type-A

Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5200(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability
Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost : Reward your ears with studio grade sound quality
Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength

Product Properties

Manufacturer
MSI

Model
B560-A PRO

EAN
4719072864316

BIOS

BIOS type
UEFI AMI

Clear CMOS jumper
Yes

System Management BIOS (SMBIOS) version
3.0

Bullet points

Point
2.5G LAN

Audio Boost : Reward your ears with studio grade sound quality

Core Boost

DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability

Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

Steel Armor

Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket

Supports DDR4 Memory, up to 5200(OC) MHz

Expansion slots

Number of M.2 (M) slots
1

PCI Express x1 (Gen 3.x) slots
2

PCI Express x16 slots
1

Features

Audio chip
Realtek ALC897

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B560

Motherboard form factor
ATX

Number of mounting holes
6

Power source type
ATX

Windows operating systems supported
Windows 10 x64

Graphics

DirectX version
12.0

Maximum resolution
4096 x 2304 pixels

Number of displays supported
2

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

Chassis intrusion connector
Yes

CPU fan connector
Yes

EPS power connector (8-pin)
Yes

Front panel audio connector
Yes

Number of EATX power connectors
1

Number of SATA III connectors
6

Serial port headers
1

Total number of SATA connectors
6

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

Logistics data

Harmonized System (HS) code
84733020

Memory

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
4

Supported memory clock speeds
2133,2666,2933,3200 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Yes

Network

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

LAN controller
Realtek RTL8125B

Wi-Fi
No

Other features

Weight
776 g

Packaging content

Cables included
SATA

Drivers included
Yes

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1200 (Socket H5)

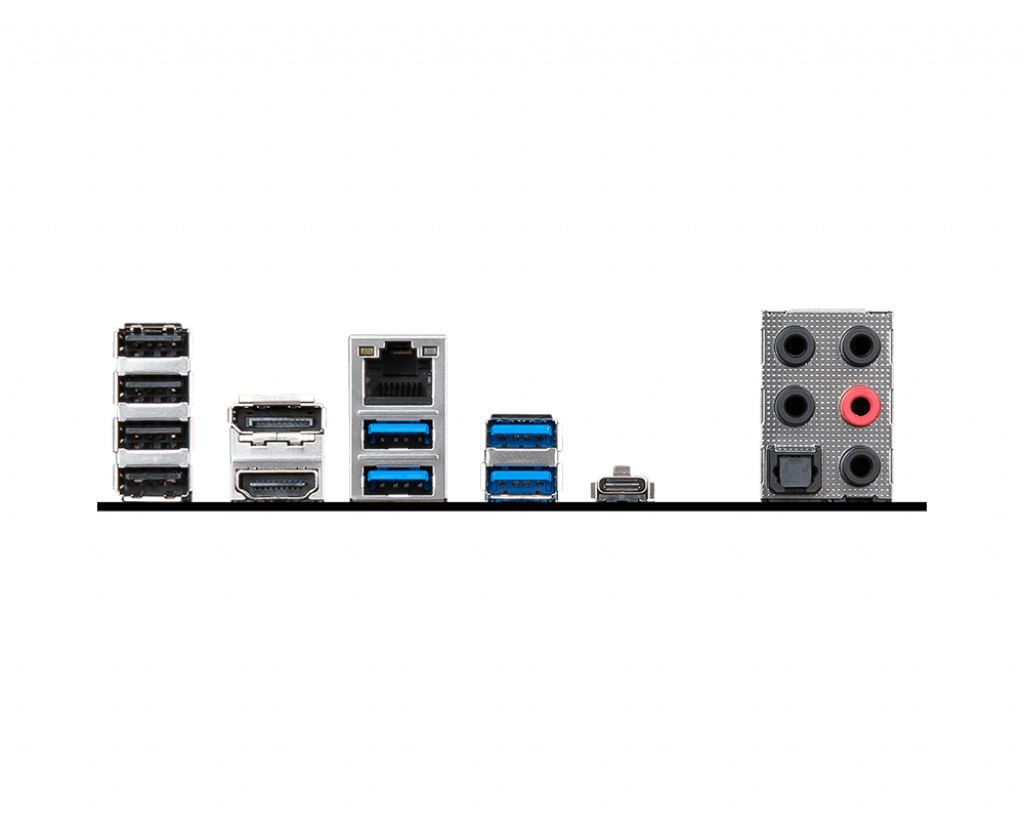

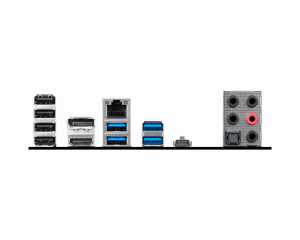

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.0b

Microphone in
Yes

PS/2 ports quantity
1

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB connector type
USB Type-A

VGA (D-Sub) ports quantity
1

Storage controllers

RAID levels
0, 1, 5, 10

Supported storage drive interfaces
M.2, SATA

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
60 mm

Width
305 mm

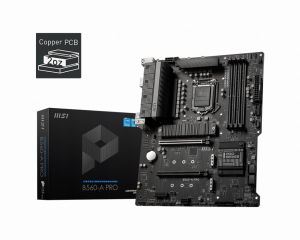

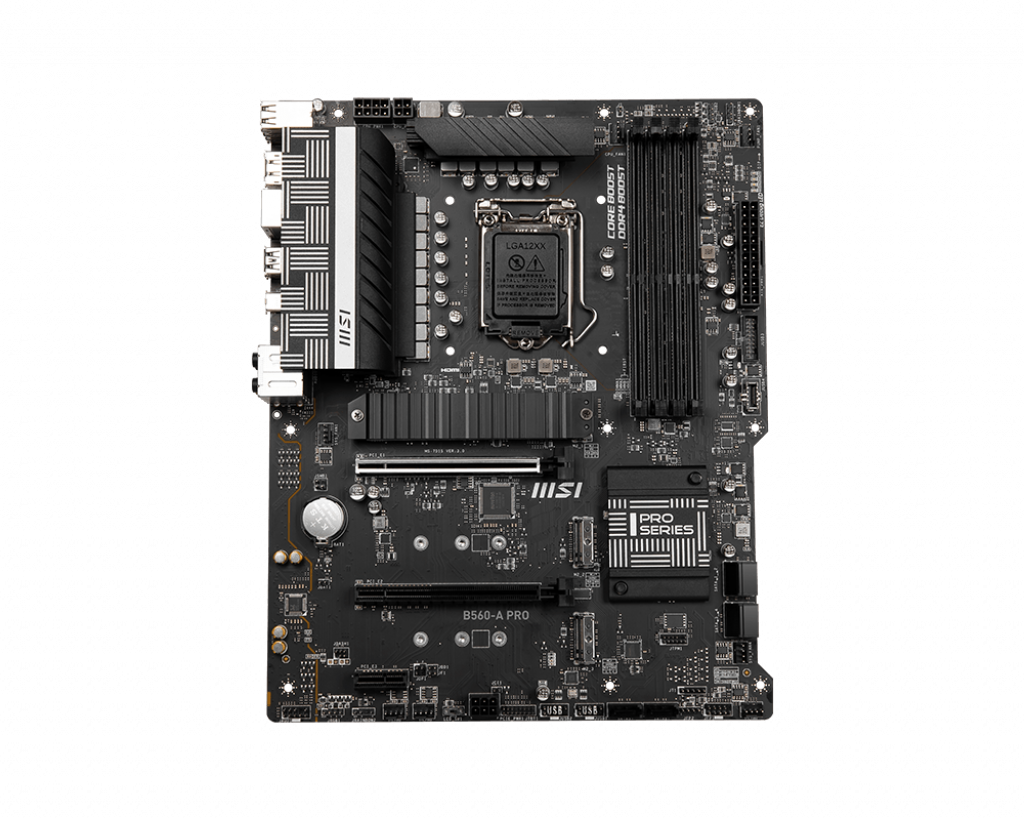

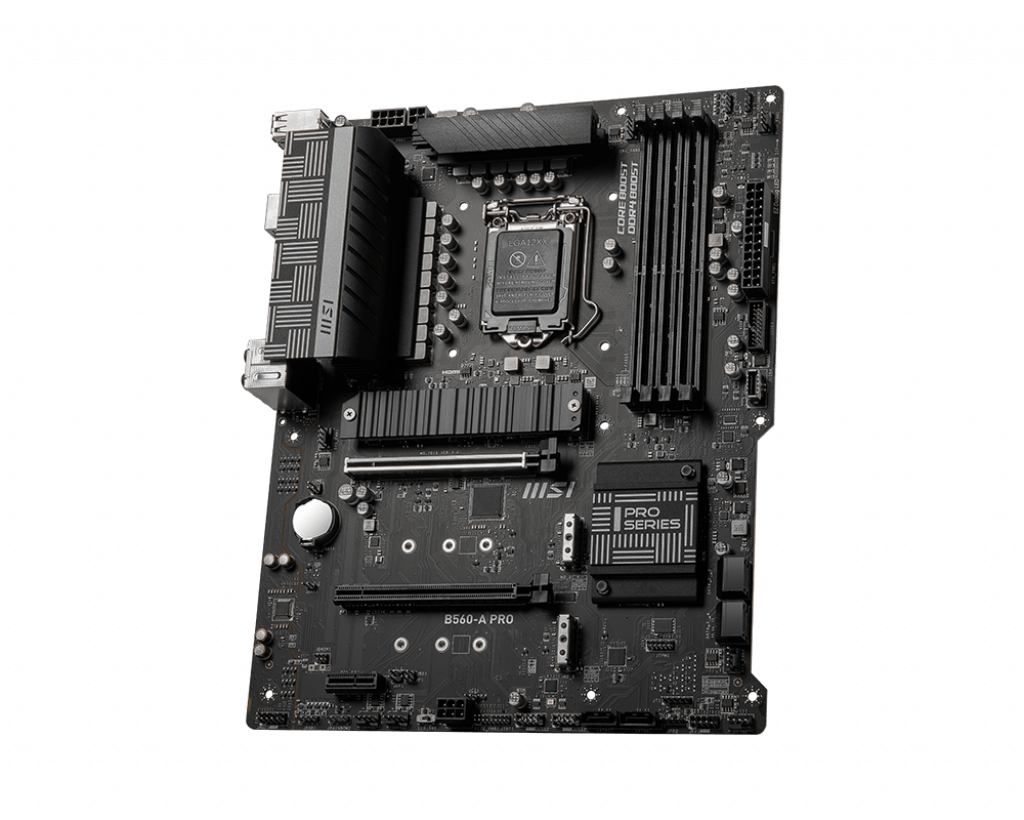

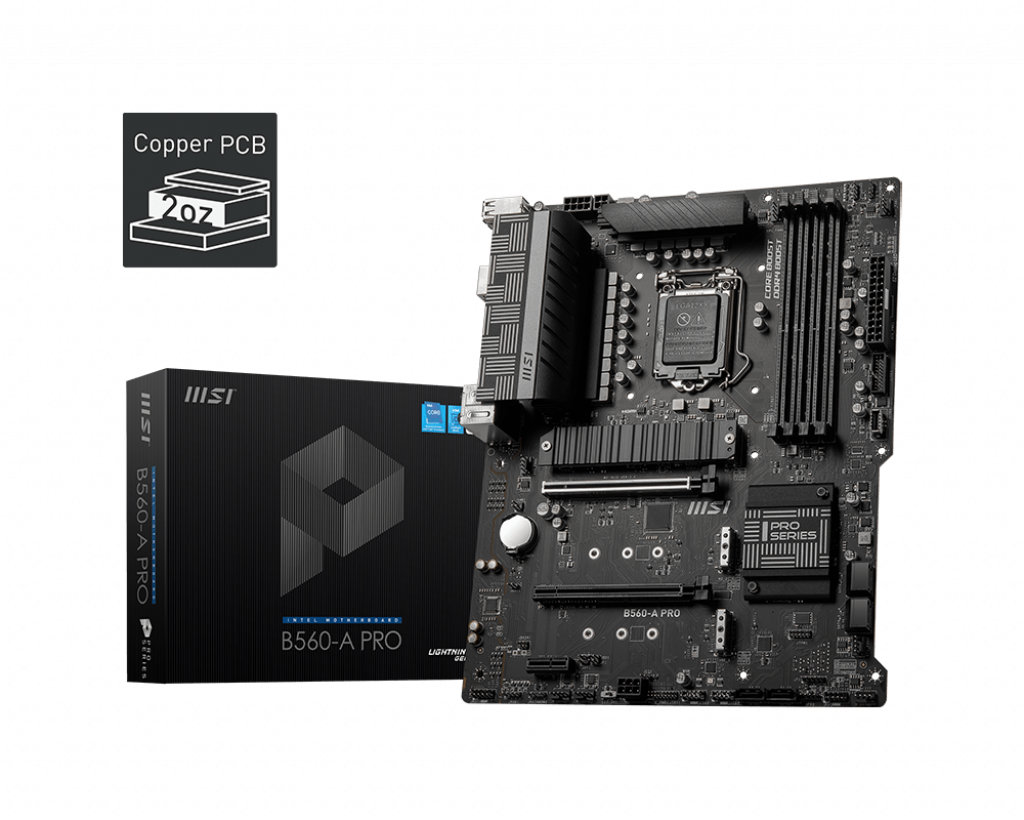

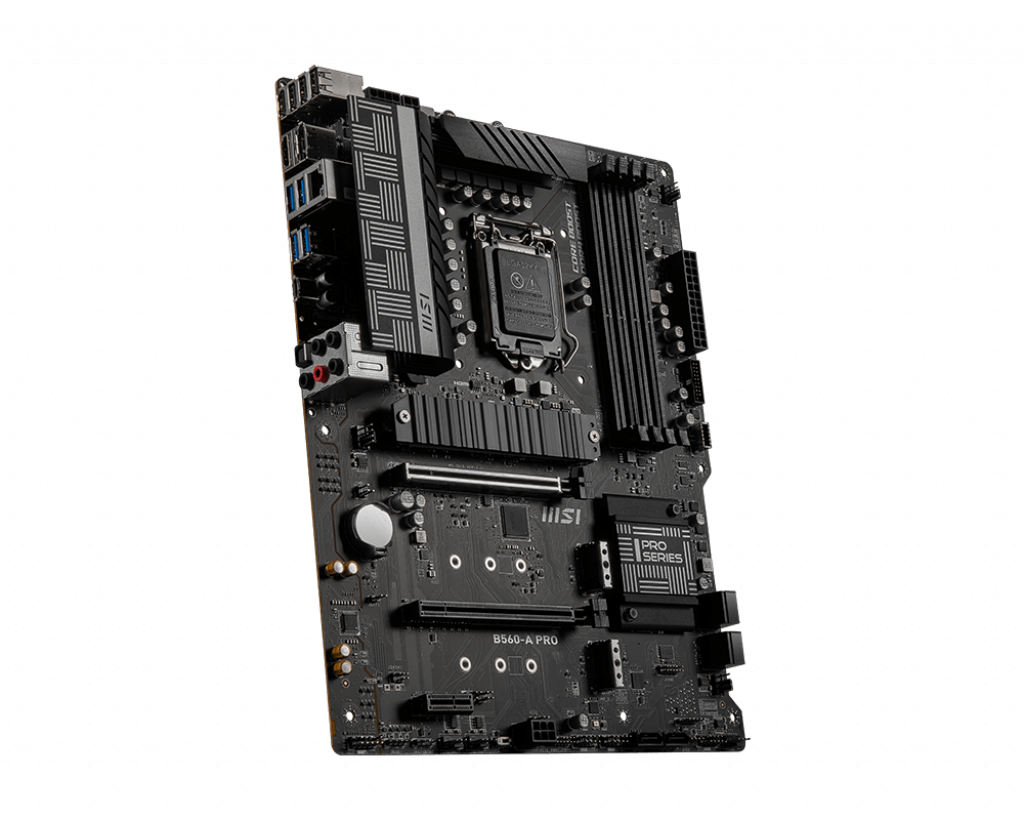

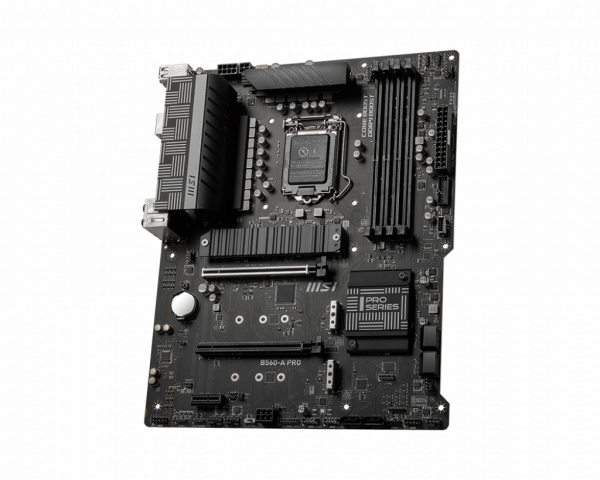

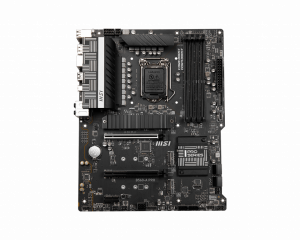

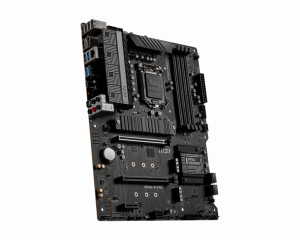

MSI B560-A PRO motherboard Intel B560 LGA 1200 (Socket H5) ATX
