Description

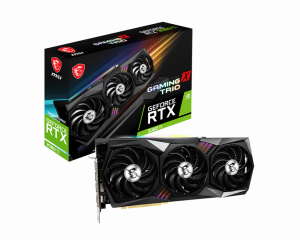

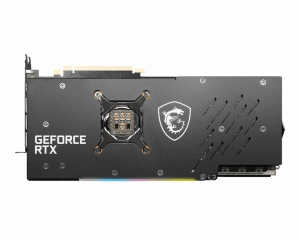

MSI GAMING GeForce RTX 3080 Ti X TRIO 12G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3080 Ti. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 384 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 1‎2 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi

1770 MHz / 19 Gbps
12GB GDDR6X

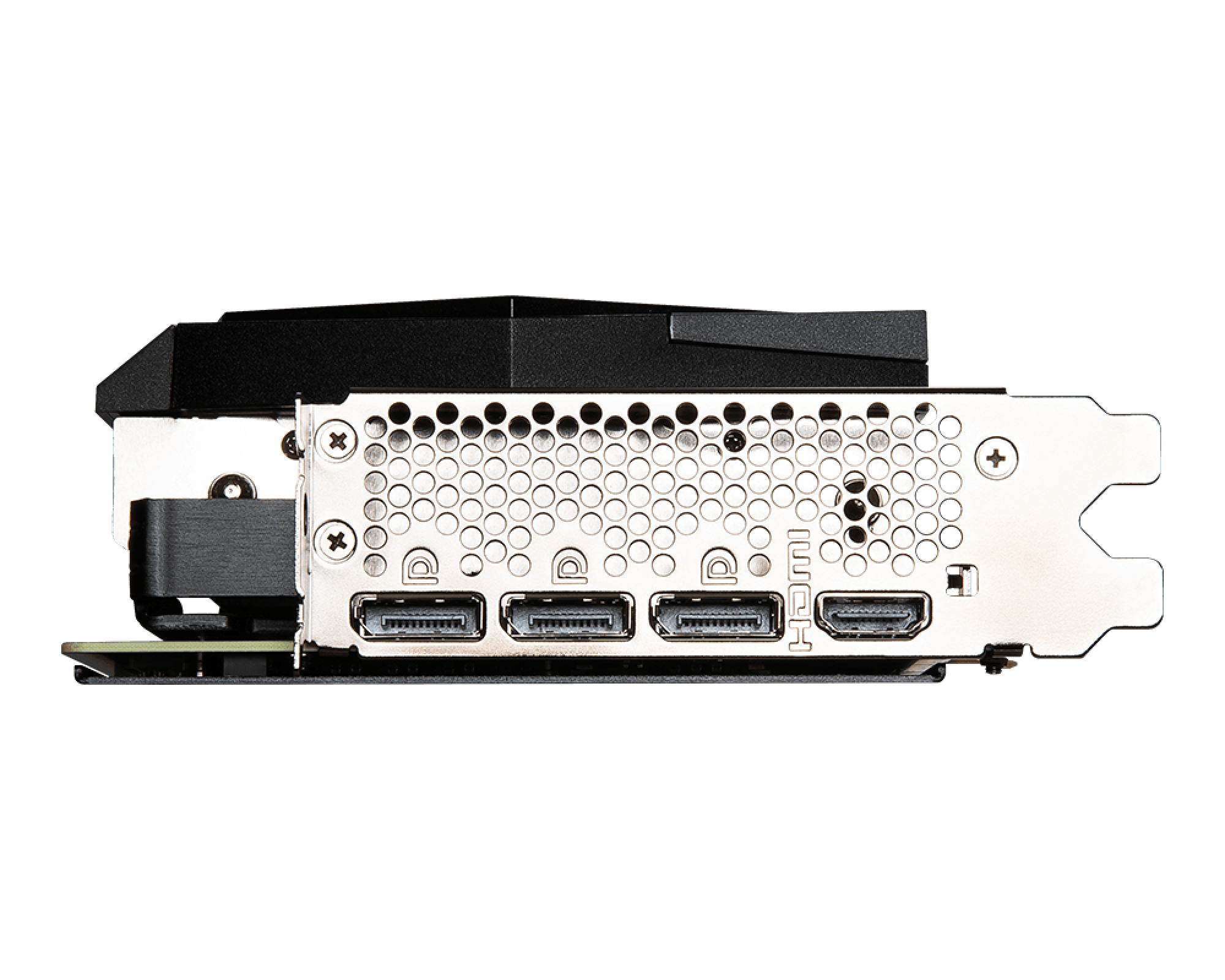

DisplayPort x 3 (v1.4a), HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

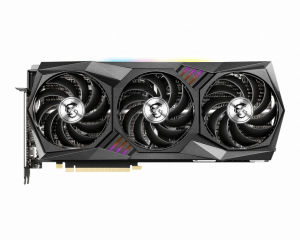

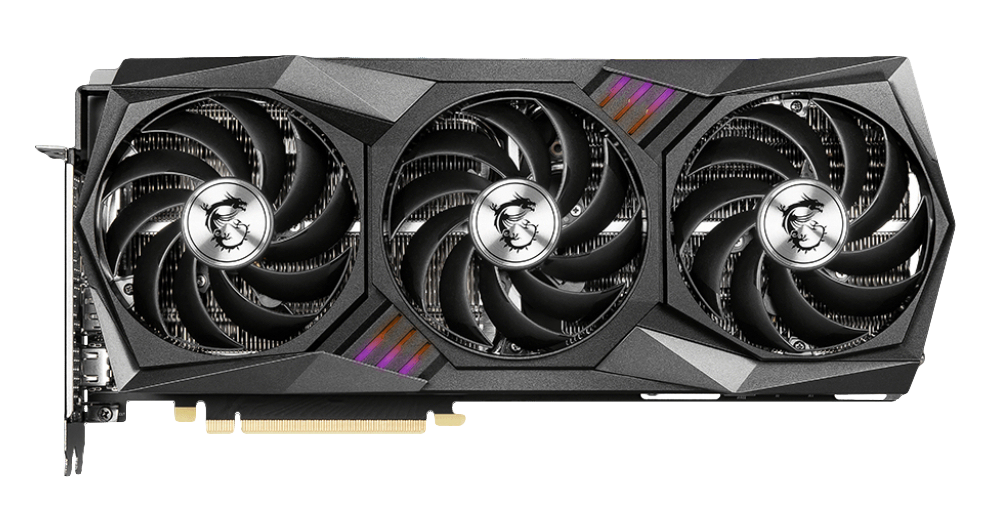

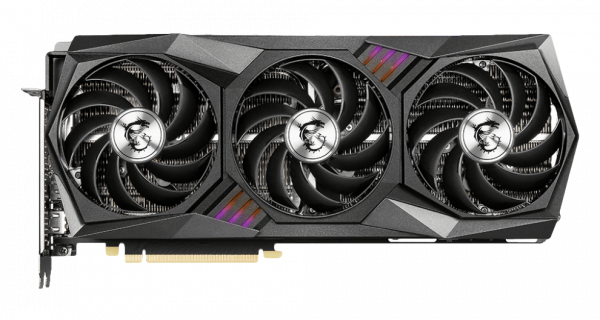

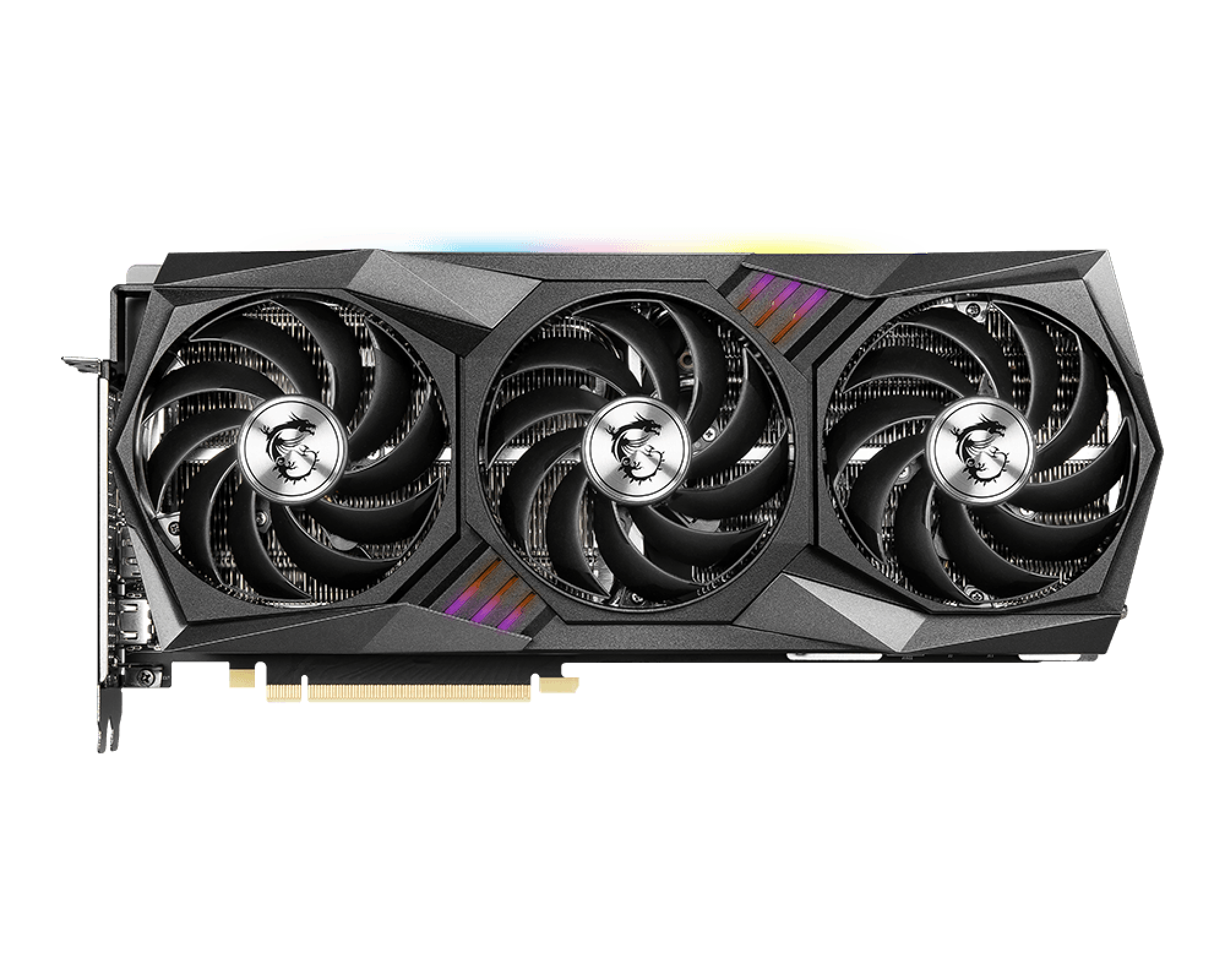

TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink
Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling
Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products
MSI's exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time

Product Properties

Manufacturer
MSI

Model
RTX 3080TI GAM X T

EAN
4719072824969

Bullet points

Point
12GB GDDR6X

1770 MHz / 19 Gbps

Airflow Control

Core Pipe

DisplayPort x 3 (v1.4a), HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

MSI's exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time

TORX Fan 4.0

Design

Bracket height
Full-Height (FH)

Cooling technology
MSI TORX Fan 4.0

Cooling type
Active

Form factor
Full-Height/Full-Length (FH/FL)

Illumination
Yes

Illumination colour
Multi

Number of fans
3 fan(s)

Product colour
Black

Logistics data

Harmonized System (HS) code
84733020

Memory

Data transfer rate
19 Gbit/s

Discrete graphics card memory
12 GB

Graphics card memory type
GDDR6X

Memory bus
384 bit

Packaging data

Manual
Yes

Package type
Box

Performance

DirectX version
1‎2 Ultimate

Dual Link DVI
No

HDCP
Yes

NVIDIA G-SYNC
Yes

OpenGL version
4.6

TV tuner integrated
No

Virtual Reality (VR) ready
Yes

Ports & interfaces

DisplayPort version
1.4

DisplayPorts quantity
3

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Power

Minimum system power supply
750 W

Power consumption (typical)
350 W

Supplementary power connectors
3x 8-pin

Processor

CUDA
Yes

CUDA cores
10240

FireStream
No

Graphics processor
GeForce RTX 3080 Ti

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
1770 MHz

Weight & dimensions

Depth
324 mm

Height
140 mm

Weight
1.57 kg

Width
56 mm

MSI GAMING GeForce RTX 3080 Ti X TRIO 12G NVIDIA 12 GB GDDR6X
