Description

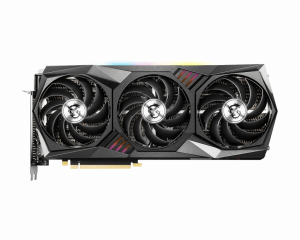

MSI GAMING RTX 3080 Z TRIO 10G LHR. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3080. Discrete graphics card memory: 10 GB, Graphics card memory type: GDDR6X, Memory bus: 320 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi

This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.)
1830 MHz / 19 Gbps
10GB GDDR6X

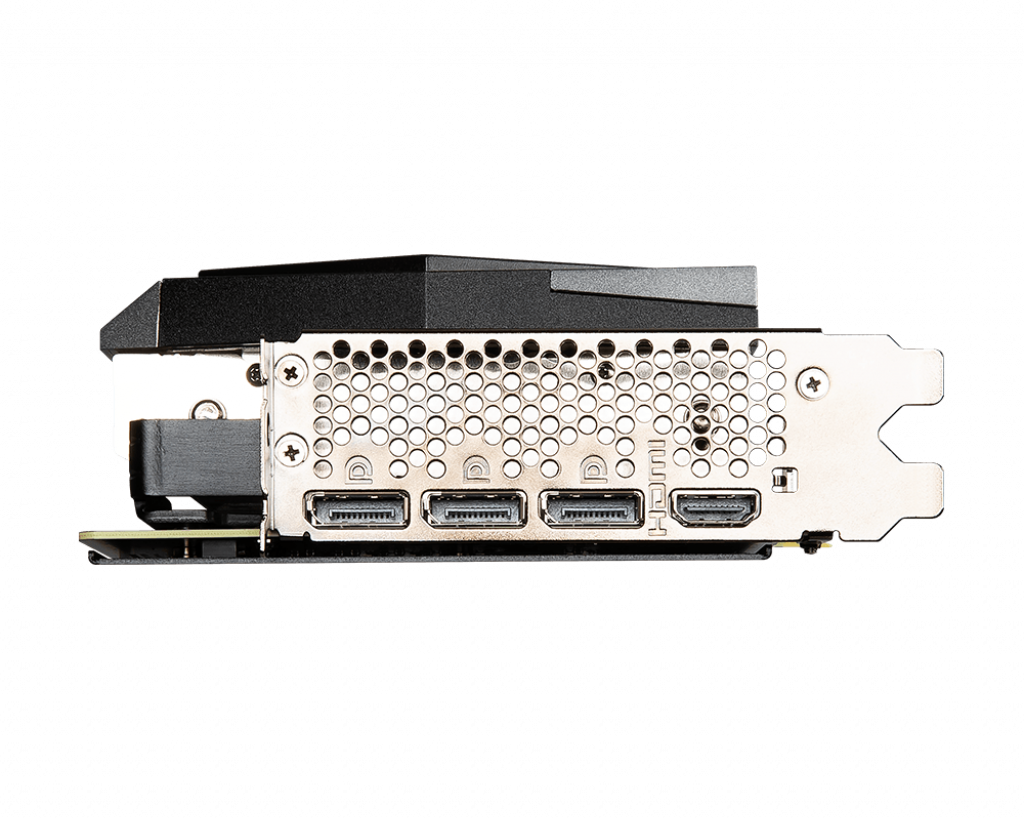

DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

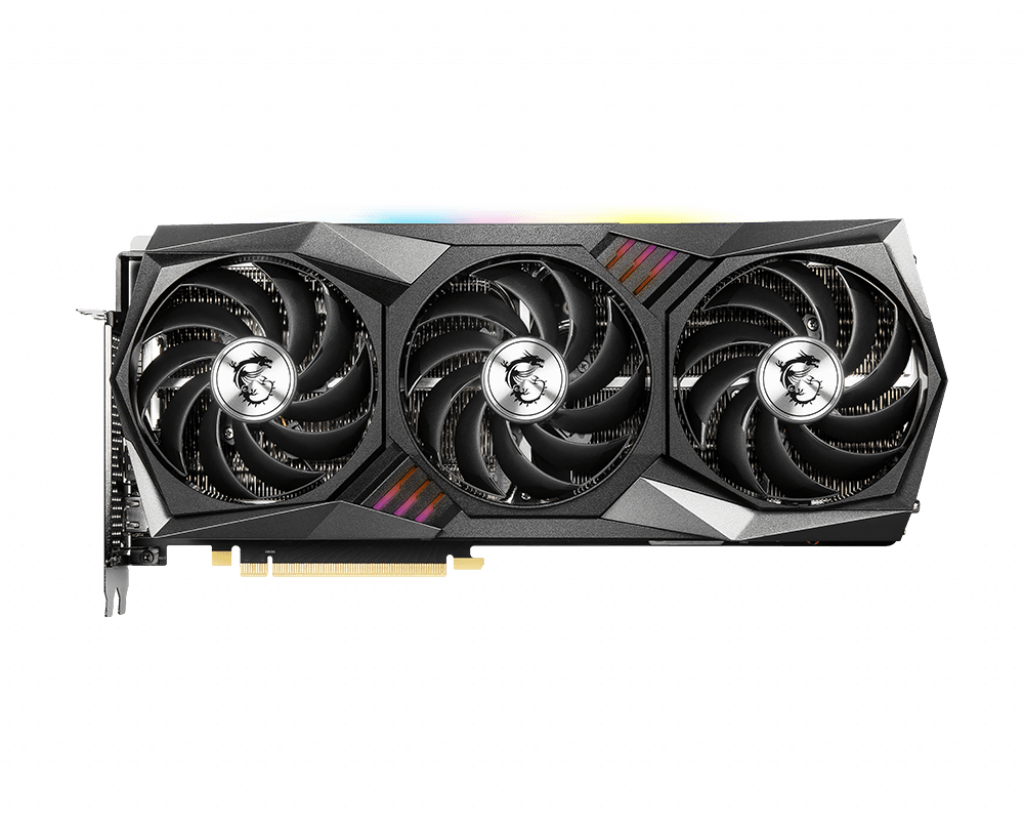

TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure
Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink
Airflow Control: Don't sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling
Mystic Light gives you complete control of the RGB lighting for MSI devices and compatible RGB products
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time

Product Properties

Manufacturer
MSI

Model
RTX 3080 GAM ZTRIO

EAN
4719072852160

Bullet points

Point
10GB GDDR6X

1830 MHz / 19 Gbps

Airflow Control

Core Pipe

DisplayPort x 3 (v1.4a)

HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time

This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.)

TORX Fan 4.0

Design

Bracket height
Full-Height (FH)

Cooling technology
MSI TORX Fan 4.0

Cooling type
Active

Form factor
Full-Height/Full-Length (FH/FL)

Illumination
Yes

Illumination colour
Multi

Number of fans
3 fan(s)

Number of slots
2

Product colour
Grey

Logistics data

Harmonized System (HS) code
84733020

Memory

Data transfer rate
19 Gbit/s

Discrete graphics card memory
10 GB

Graphics card memory type
GDDR6X

Memory bus
320 bit

Packaging data

Package type
Box

Package weight
2.34 kg

Performance

DirectX version
12.0

Dual Link DVI
No

HDCP
Yes

OpenGL version
4.6

TV tuner integrated
No

Virtual Reality (VR) ready
Yes

Ports & interfaces

DisplayPort version
1.4a

DisplayPorts quantity
3

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Power

Minimum system power supply
750 W

Power consumption (typical)
370 W

Supplementary power connectors
3x 8-pin

Processor

CUDA
Yes

CUDA cores
8704

Graphics processor
GeForce RTX 3080

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
1830 MHz

Weight & dimensions

Depth
56 mm

Height
140 mm

Weight
1.54 kg

Width
323 mm

MSI GAMING RTX 3080 Z TRIO 10G LHR graphics card NVIDIA GeForce RTX 3080 10 GB GDDR6X
