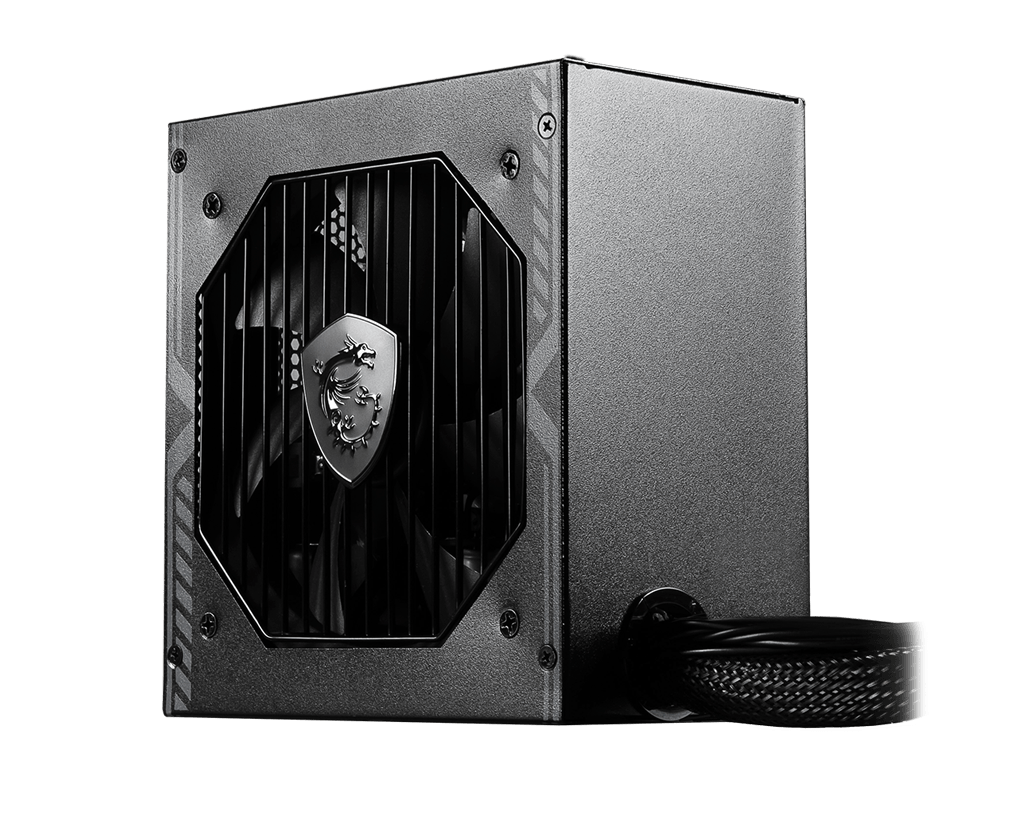

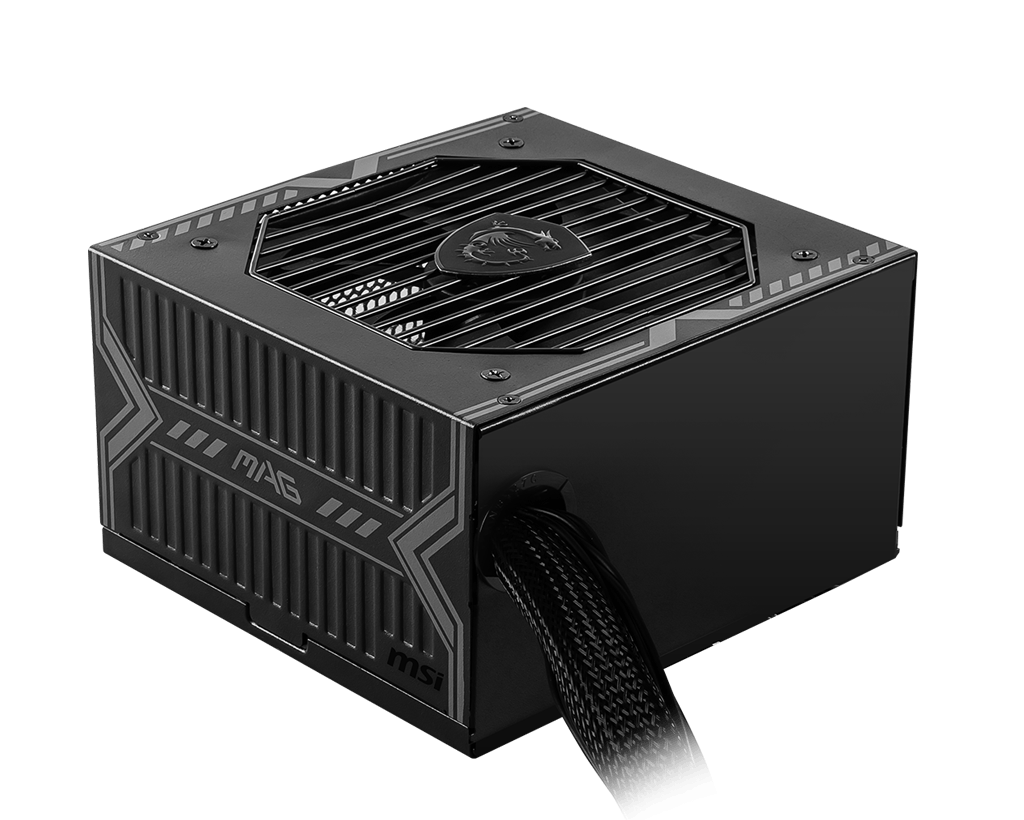

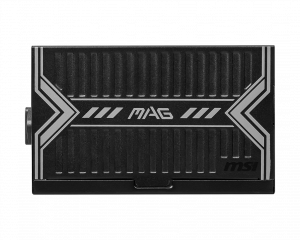

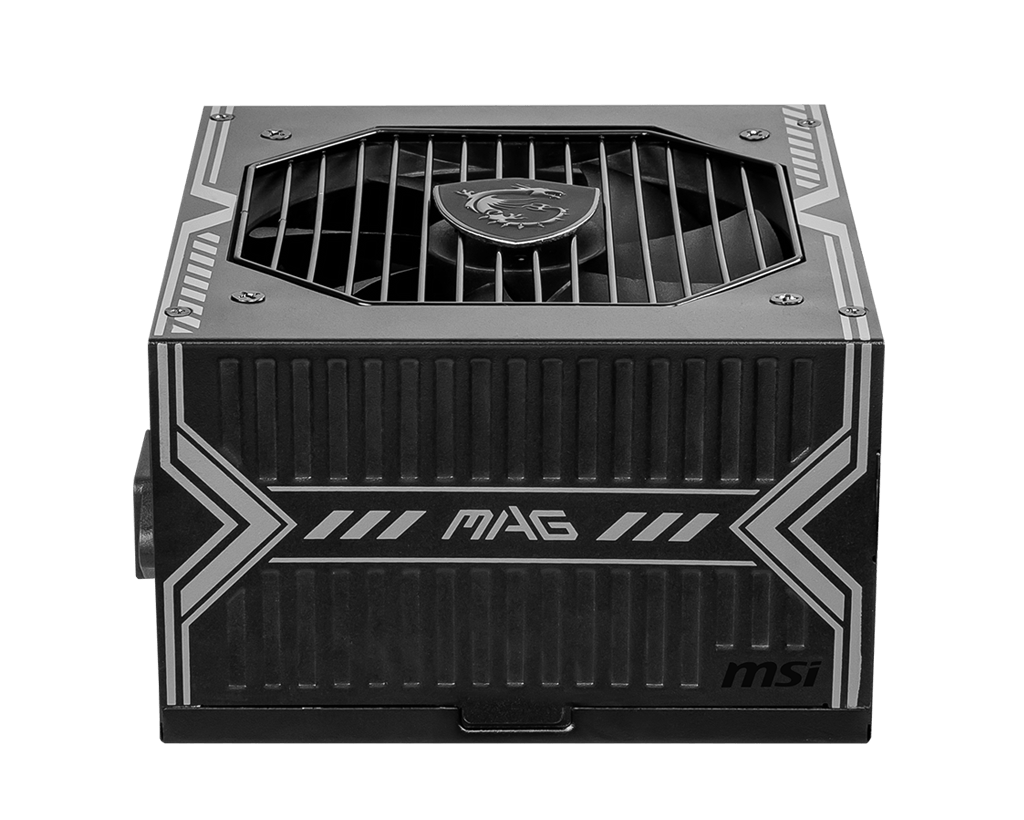

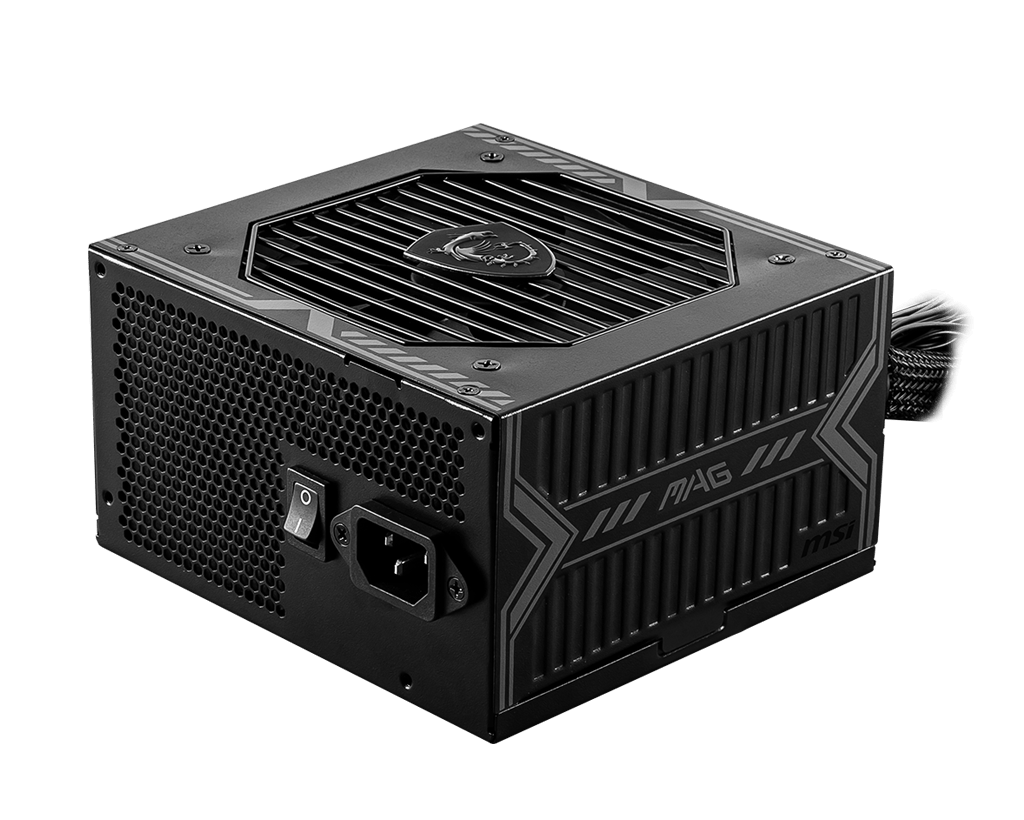

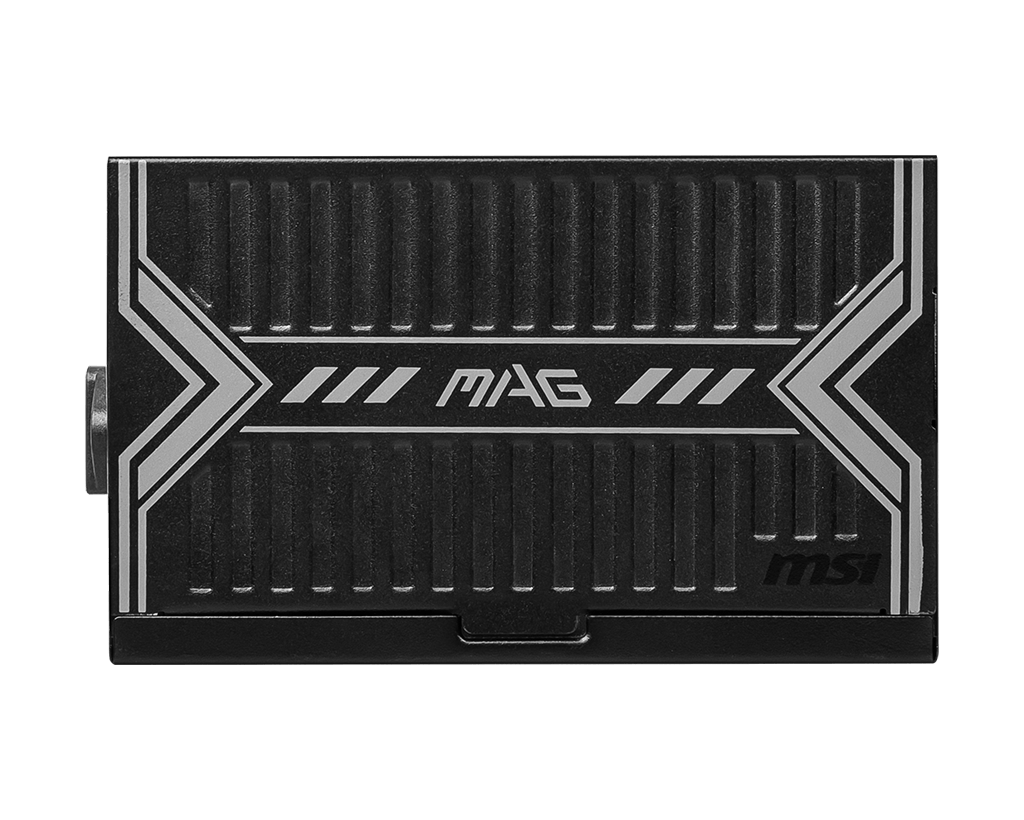

MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
Roll over image to zoom inClick to Open expanded view
MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
Print
Model: 306-7ZP2B18-CE0
EAN: 4719072870478

MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'

Manufacturer:
MSI
MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black', 650 W, 100 - 240 V, 50 - 60 Hz, 10 A, 5 A, Active
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
  • 80 Plus Bronze certified for high efficiency
  • 120mm Low Noise Fan
  • Industrial level protection with OVP,OCP,OPP,OTP, SCP
  • DC-DC Circuit Design
  • Active PFC design

Product Properties

  • Manufacturer
  • MSI
  • Model
  • 306-7ZP2B18-CE0
  • EAN
  • 4719072870478
  • Bullet points
  • Point
  • 120mm Low Noise Fan
    80 Plus Bronze certified for high efficiency
    Active PFC design
    DC-DC Circuit Design
    Industrial level protection with OVP,OCP,OPP,OTP, SCP
  • Design
  • Cooling type
  • Active
  • Fan diameter
  • 12 cm
  • Number of fans
  • 1 fan(s)
  • On/off switch
  • Yes
  • Product colour
  • Black
  • Logistics data
  • Harmonized System (HS) code
  • 84733020
  • Performance
  • 80 PLUS certification
  • 80 PLUS Bronze
  • Power supply unit (PSU) form factor
  • ATX
  • Purpose
  • PC
  • Ports & interfaces
  • ATX power connector (20+4 pin)
  • Yes
  • ATX Power connector (24-pin)
  • No
  • Cabling type
  • Modular
  • CPU power connector (4+4 pin)
  • Yes
  • EPS power connector (4+4 pin)
  • Yes
  • Floppy disk drive connector
  • No
  • Motherboard power cable length
  • 60 cm
  • Motherboard power connector
  • 20+4 pin ATX
  • Number of SATA power connectors
  • 5
  • PCI Express power connectors (6+2 pin)
  • 2
  • Peripheral (Molex) power connectors (4-pin)
  • 2
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Combined power (+12V)
  • 648 W
  • Combined power (+3.3V)
  • 110 W
  • Combined power (+5V)
  • 110 W
  • Combined power (+5Vsb)
  • 12.5 W
  • Combined power (-12V)
  • 3.6 W
  • Efficiency
  • 85%
  • Max output current (+12V)
  • 54 A
  • Max output current (+3.3V)
  • 20 A
  • Max output current (+5V)
  • 20 A
  • Max output current (+5Vsb)
  • 20 A
  • Max output current (-12V)
  • 0.3 A
  • Maximum input current (@110V)
  • 10 A
  • Maximum input current (@220V)
  • 5 A
  • Power Factor Correction (PFC) type
  • Active
  • Power protection features
  • Over current, Over power, Over voltage, Short circuit
  • Total power
  • 650 W
  • Weight & dimensions
  • Depth
  • 140 mm
  • Height
  • 86 mm
  • Width
  • 150 mm
