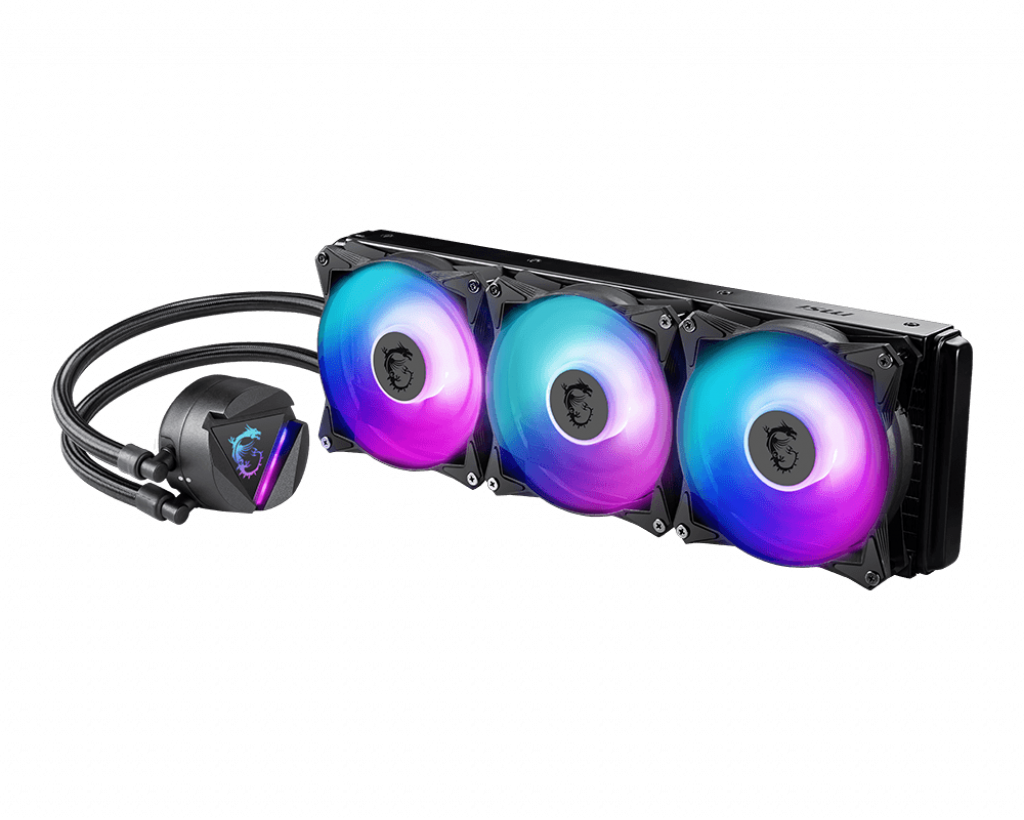

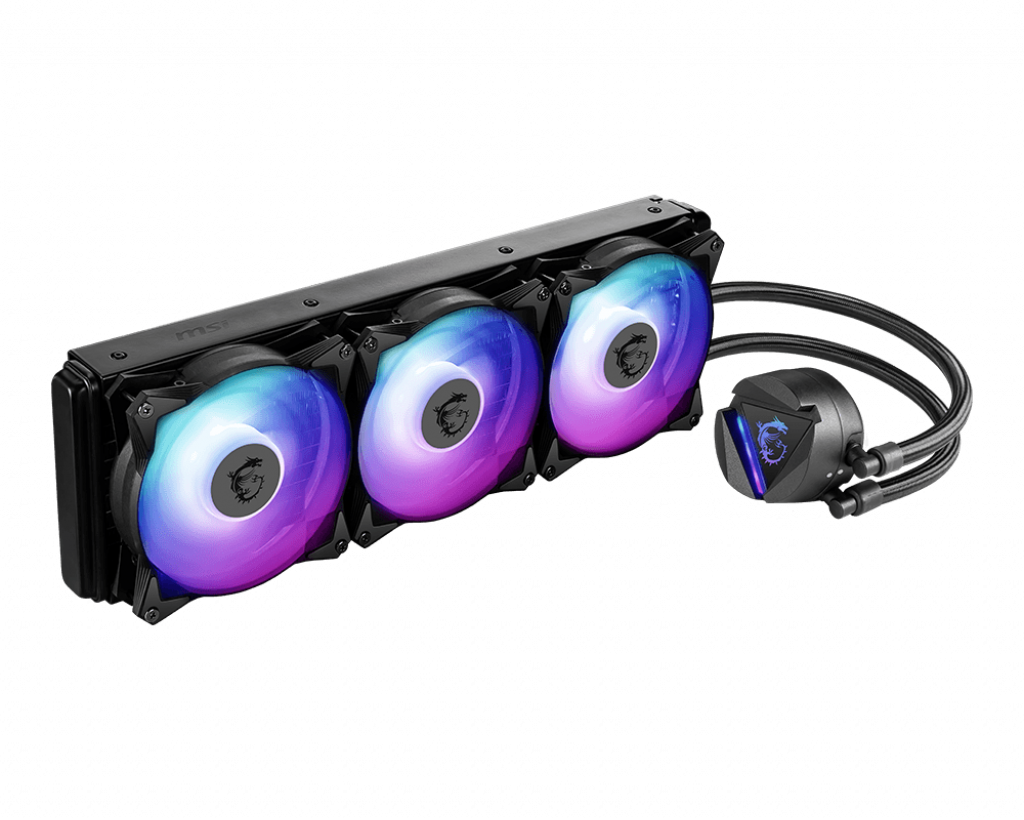

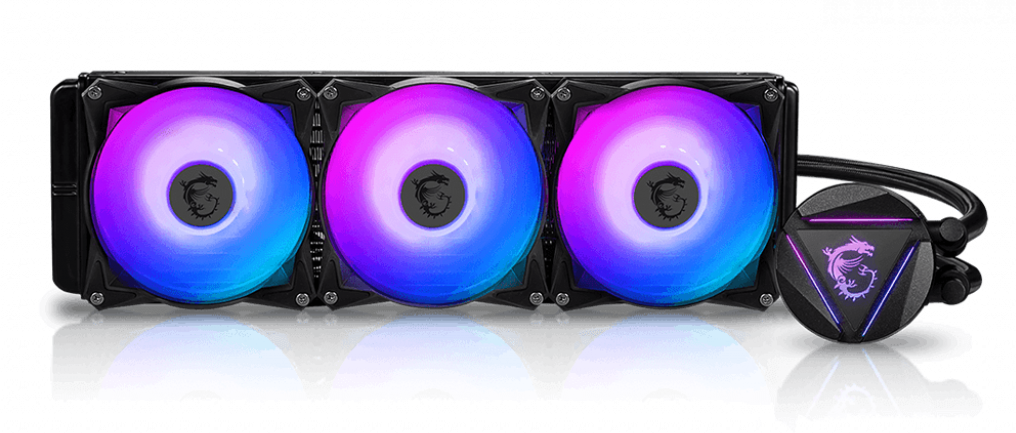

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'

Roll over image to zoom inClick to Open expanded view

Select to compare

Model: 306-7ZW1C41-813

EAN: 4719072864088

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'

Manufacturer:

Please log in to see your price

Included in the cost of this product is the WEEE recycling charge.

Click here for details

Description

MSI MAG CORELIQUID 360R V2 Liquid CPU Cooler '360mm Radiator, 3x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'. Type: Liquid cooling kit, Fan diameter: 12 cm, Maximum airflow: 78.73 cfm, Minimum air pressure: 0.23 mmH2O, Maximum air pressure: 2.39 mmH2O. Product colour: Black

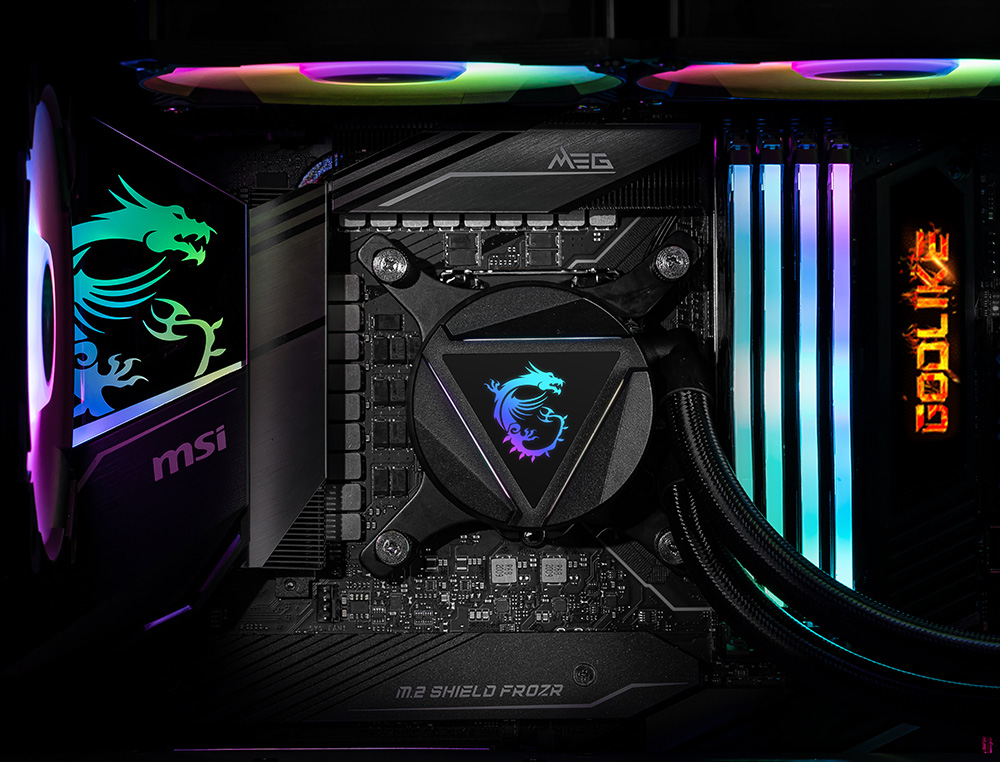

Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
The pump has been integrated into the radiator for sound dampening and noise reduction
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200,1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2, SocketTR4, sTRX4, SP3

Product Properties

Manufacturer
MSI

Model
306-7ZW1C41-813

EAN
4719072864088

Bullet points

Point
Compatible Sockets & CPU

Constructed with three layers of netted plastic tubing and a reinforced mesh exterior

Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees

The pump has been integrated into the radiator for sound dampening and noise reduction

Design

Fan connector
4-pin

Illumination LED
Yes

Number of fans
3 fan(s)

Product colour
Black

Radiator material
Aluminum

Logistics data

Harmonized System (HS) code
84733080

Performance

Compatible processor series
AMD Ryzen 7 5th Gen, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, 3rd Gen AMD Ryzen™ Threadripper™, Intel® Core™ i7, Intel® Core™ i9

Fan bearing technology
Ball bearing

Fan diameter
12 cm

Fan diameter 2
12 cm

Fan noise level (max)
34.3 dB

Fan noise level (min)
14.3 dB

Fan speed (max)
2000 RPM

Fan speed (min)
500 RPM

Maximum air pressure
2.39 mmH2O

Maximum airflow
78.73 cfm

Minimum air pressure
0.23 mmH2O

Minimum airflow (imperial)
21.63 cfm

Pulse-width modulation (PWM) support
Yes

Pump bearing technology
Ceramic bearing

Pump connector
3-pin

Pump motor speed
4200 RPM

Pump noise level
18 dB

Suitable location
Motherboard, Processor

Supported processor sockets
LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4

Type
Liquid cooling kit

Power

Fan current
0.15 A

Fan power consumption
1.8 W

Fan voltage
12 V

Pump current
340 mA

Pump power consumption
4.08 W

Pump voltage
12 V

Weight & dimensions

Fan dimensions (W x D x H)
120 x 120 x 25 mm

Radiator depth
12 cm

Radiator height
2.7 cm

Radiator width
39.4 cm

Tube length
40 cm

Waterblock depth
6.68 cm

Waterblock height
4.86 cm

Waterblock width
8.06 cm
