Description

MSI MAG X570S TORPEDO MAX. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd.... Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111H

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, up to 5100(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Product Properties

Manufacturer
MSI

Model
MAG X570S TORPEDO

EAN
4719072868772

BIOS

BIOS type
UEFI AMI

Bullet points

Point
AUDIO BOOST 5

Latest Network Solution

Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs

Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™

Premium Thermal Solution

Supports DDR4 Memory, up to 5100(OC) MHz

Expansion slots

PCI Express x1 slots
2

Features

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Harmonized System (HS) code
84733020

Motherboard chipset
AMD X570

Motherboard form factor
ATX

PC health monitoring
CPU

Windows operating systems supported
Windows 10 x64

Graphics

Parallel processing technology support
Crossfire

Internal I/O

12V power connector
Y

ATX Power connector (24-pin)
Y

Chassis intrusion connector
Y

CPU fan connector
Y

Front panel audio connector
Y

Front panel connector
Y

Number of SATA III connectors
6

Power fan connector
Y

RGB
Y

Serial port headers
1

TPM connector
Y

USB 2.0 connectors
4

USB 3.2 Gen 1 (3.1 Gen 1) connectors
4

Memory

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Y

Number of memory slots
4

Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Y

Network

Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet

Ethernet LAN
Y

LAN controller
Realtek RTL8111H

Wi-Fi
N

Other features

Weight
1 kg

Packaging content

Cables included
SATA

Drivers included
Y

Processor

Compatible processor series
2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9

Processor manufacturer
AMD

Processor socket
Socket AM4

Supported processor sockets
Socket AM4

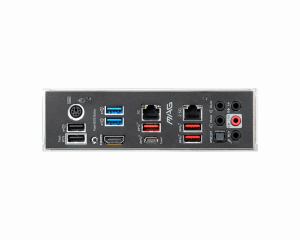

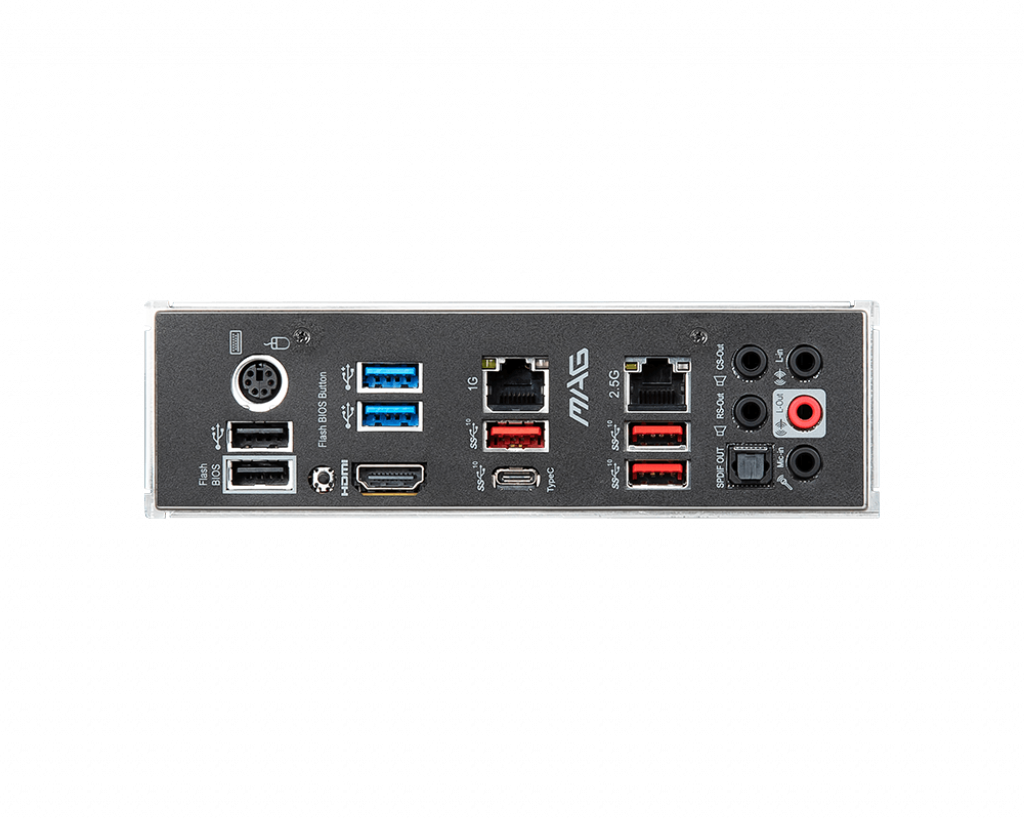

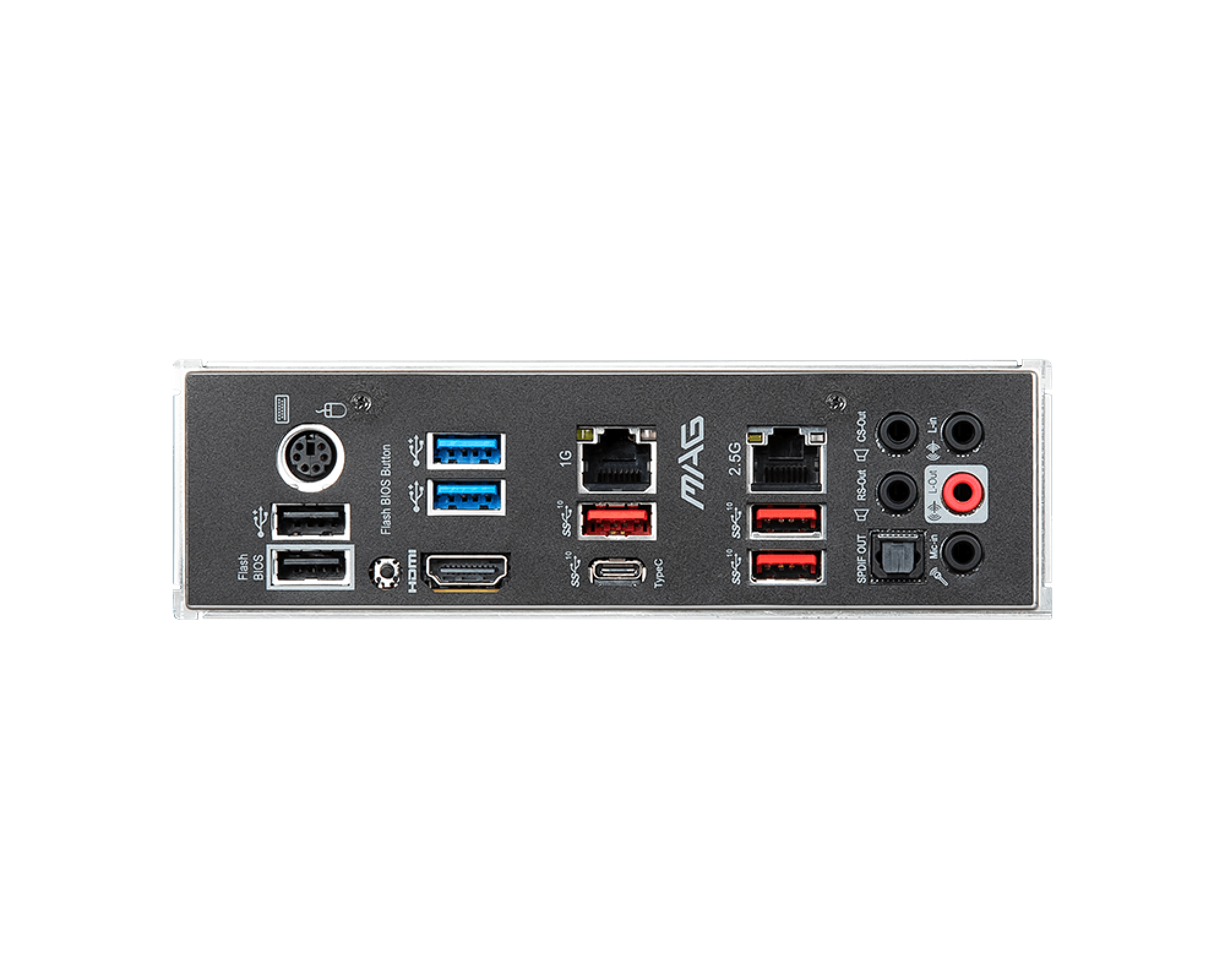

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

Microphone in
Y

PS/2 ports quantity
1

S/PDIF out port
Y

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

Storage controllers

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
305 mm

Height
268 mm

Width
244 mm

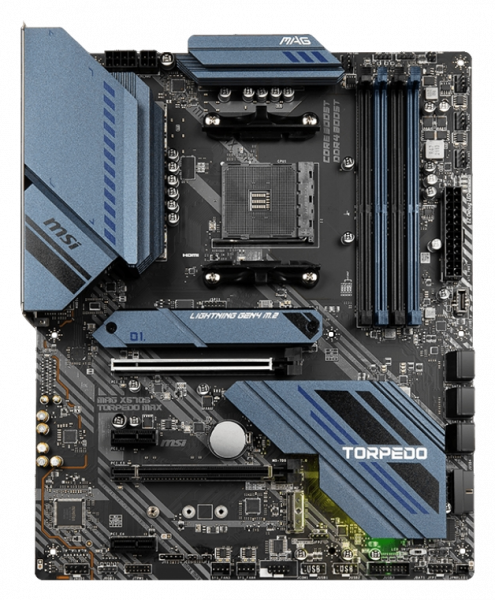

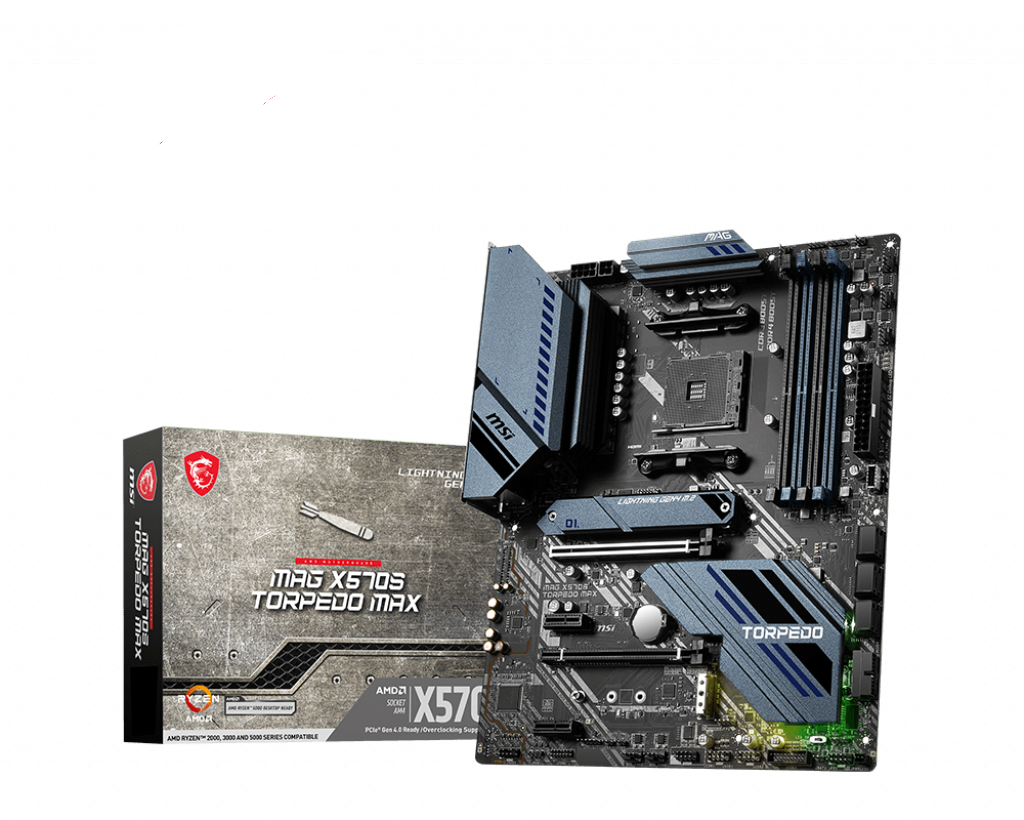

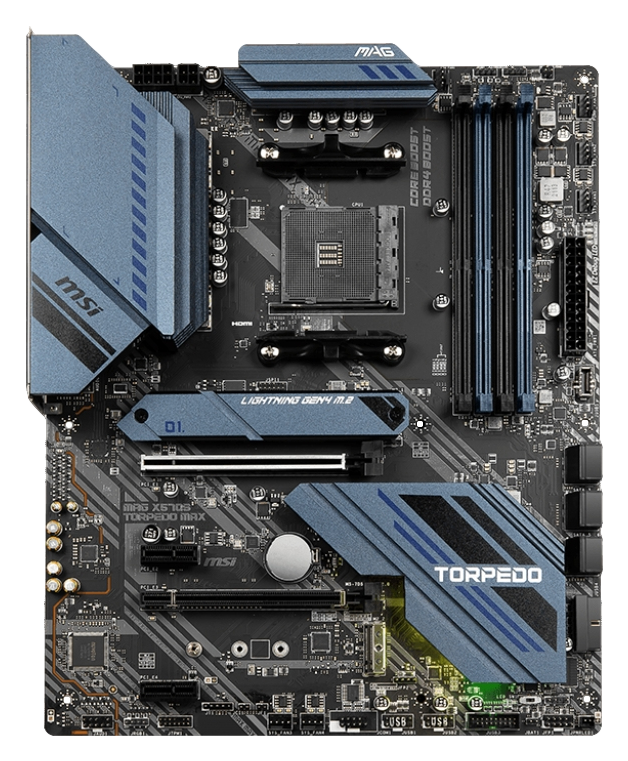

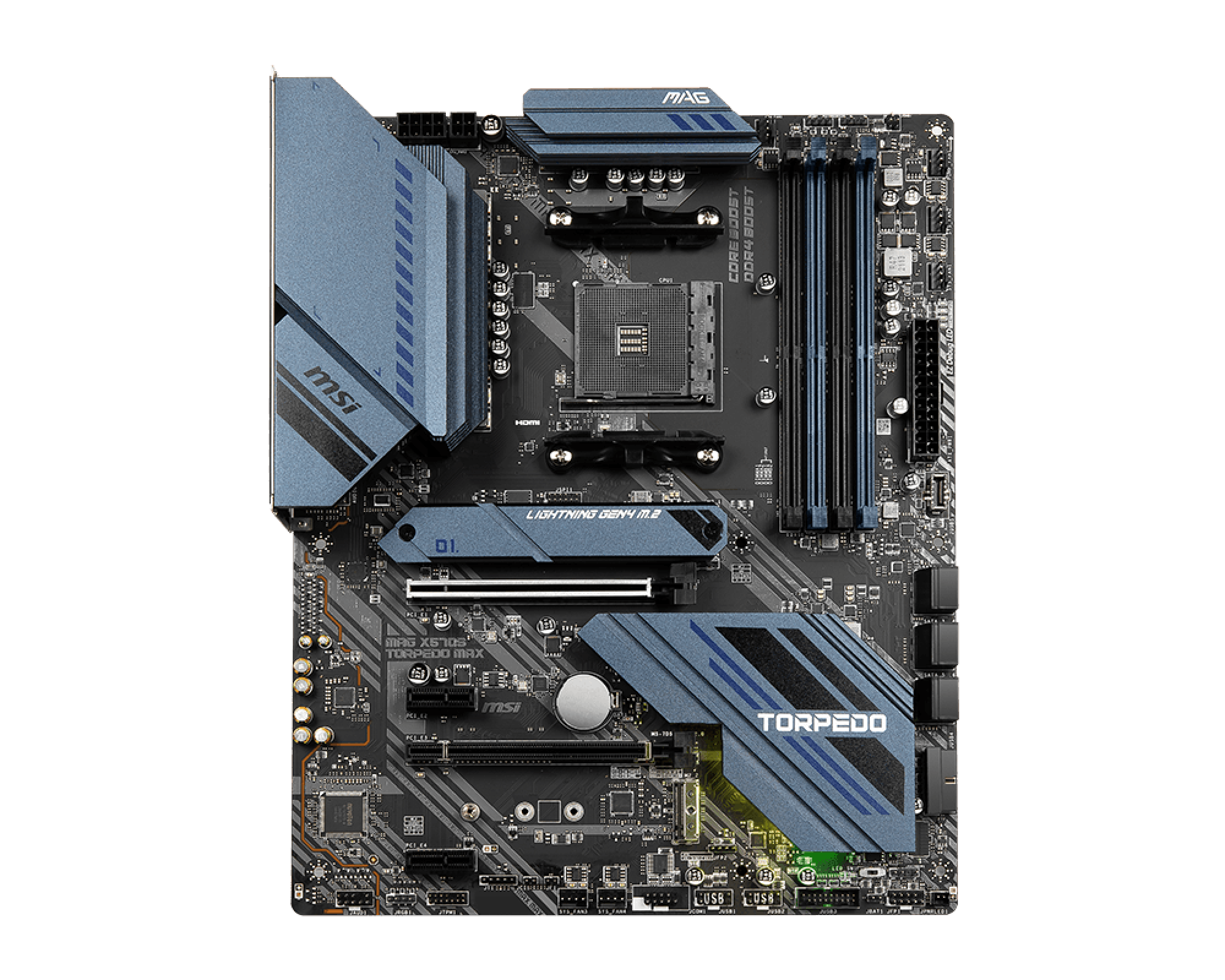

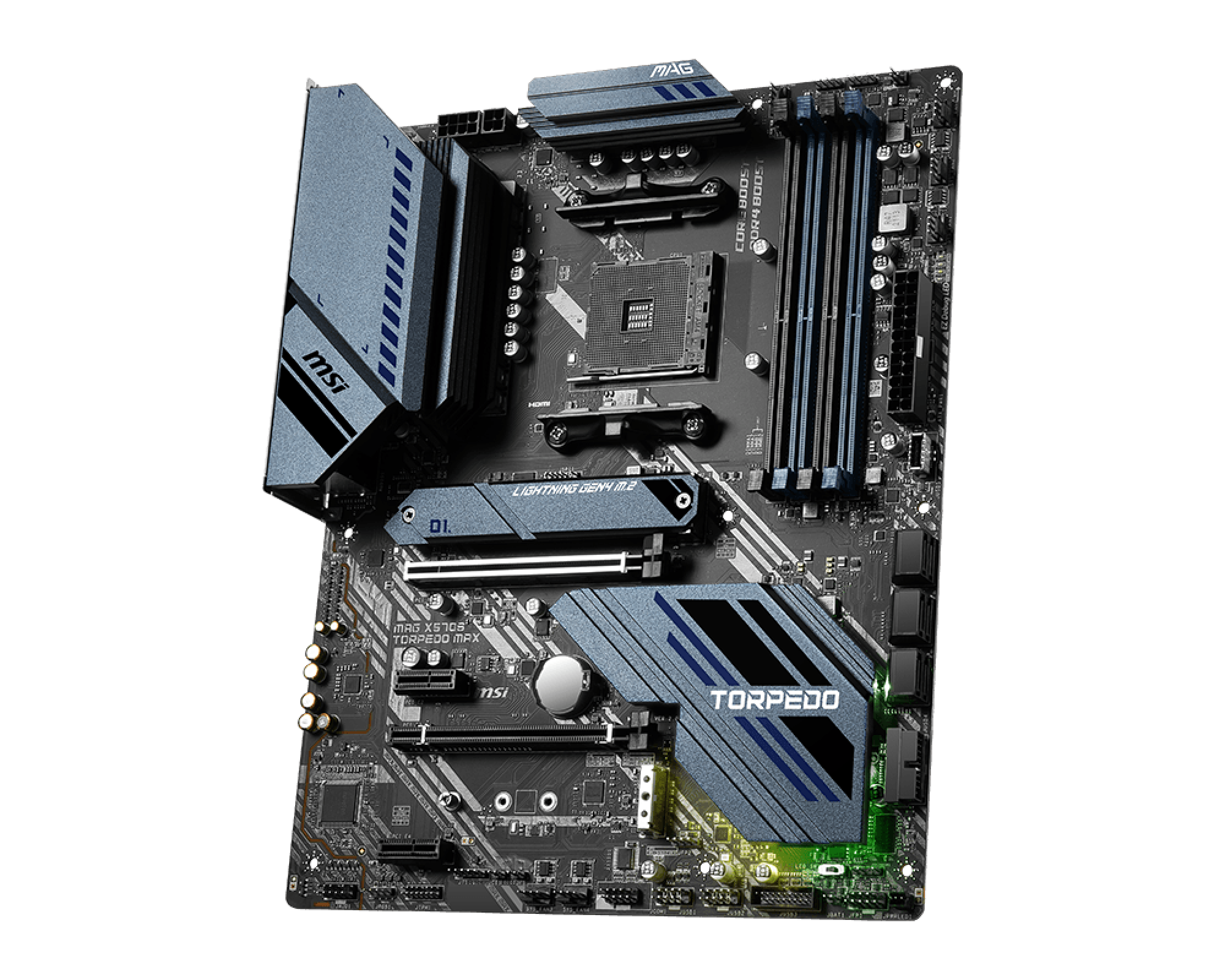

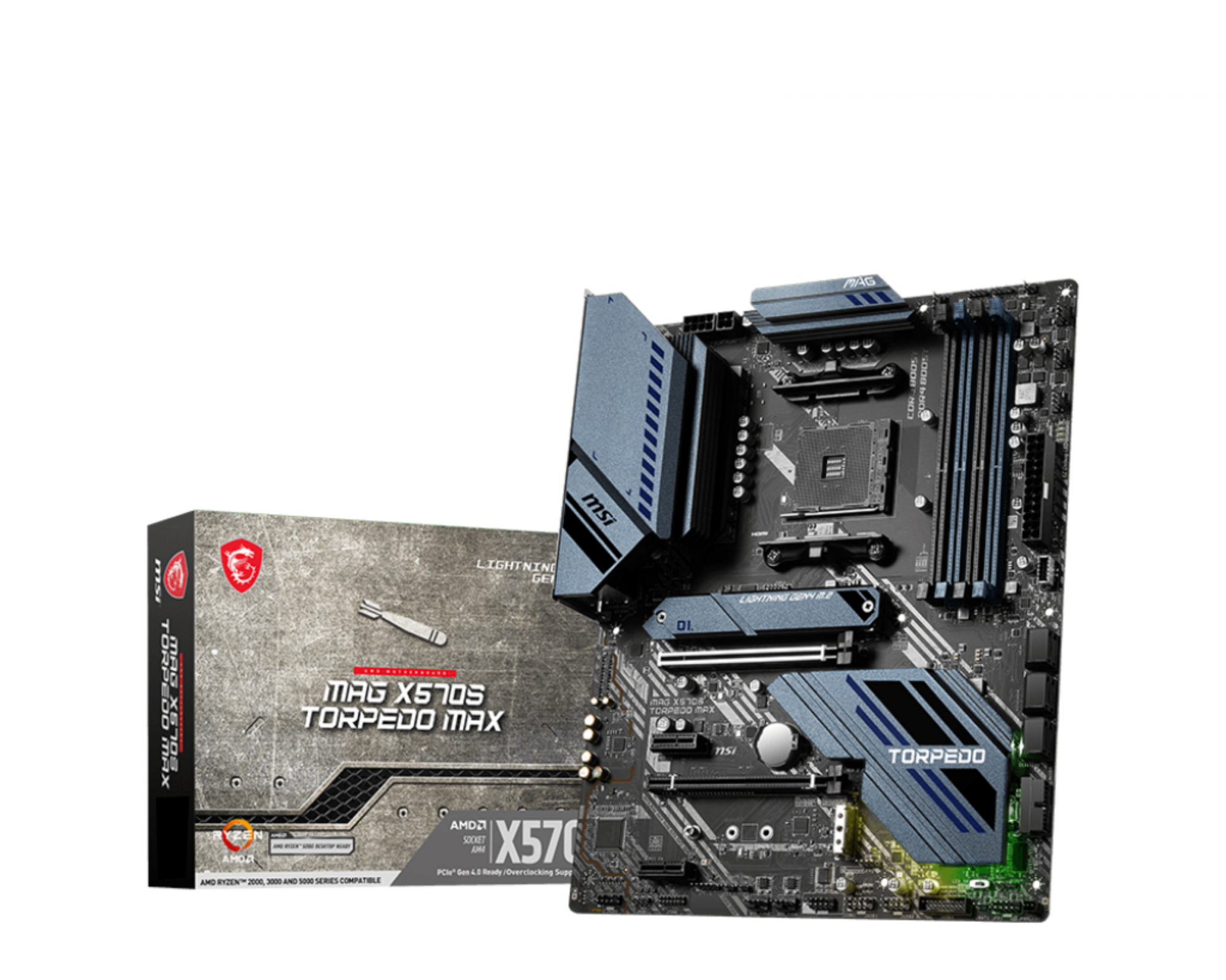

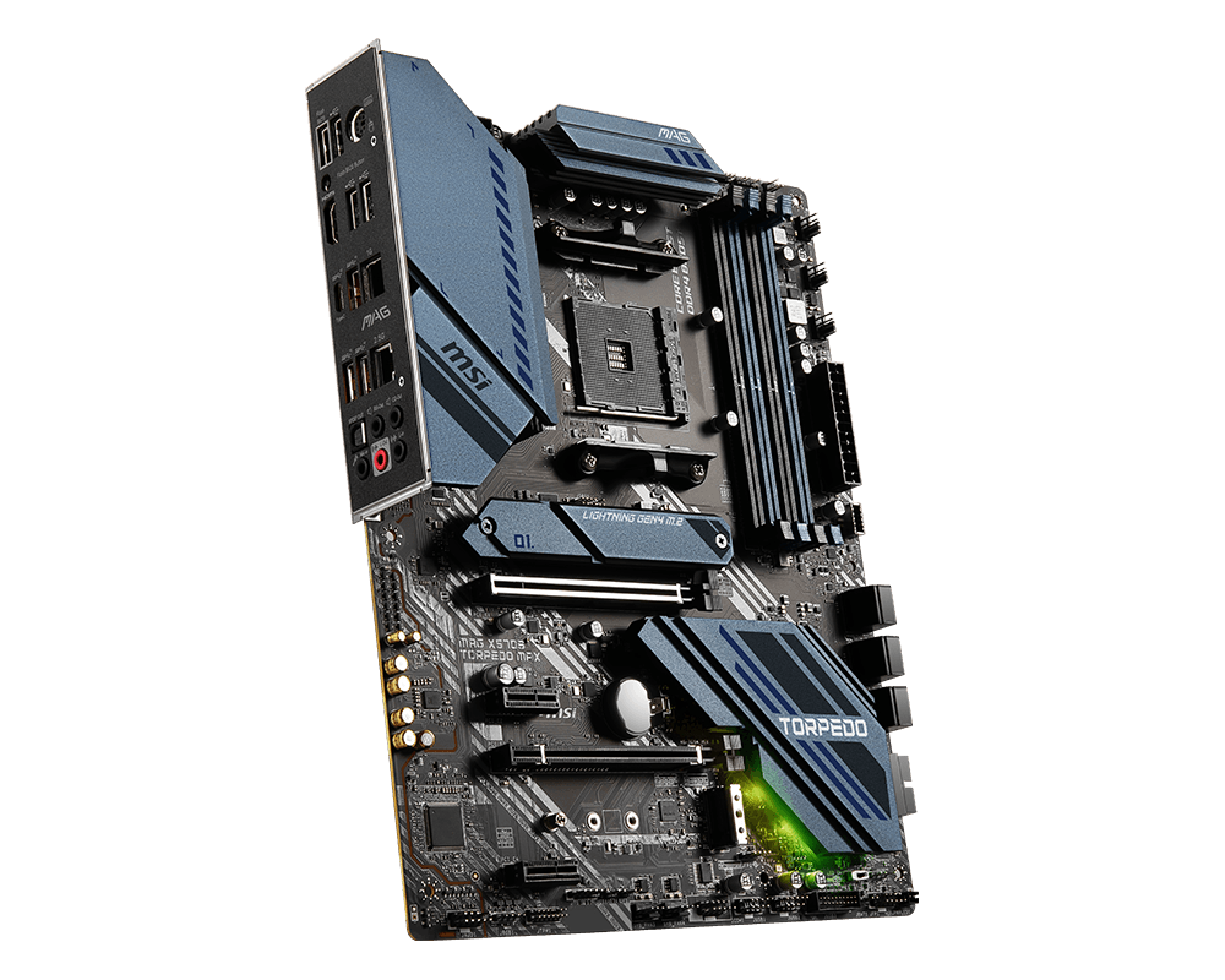

MSI MAG X570S TORPEDO MAX motherboard AMD X570 Socket AM4 ATX
