Description

MSI MAG Z690 TOMAHAWK WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
Supports DDR5 Memory, up to 6400(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire

Core Boost Technology

With premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

16+1+1 Duet Rail Power System

An aggressive digital VRM power design with digital PWM IC and 16 Duet Rail Power System with 70A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.

Product Properties

Manufacturer
MSI

Model
MAG Z690 TOMAHAWK

EAN
4719072896683

BIOS

BIOS type
UEFI AMI

Clear CMOS jumper
Y

Bullet points

Point
2.5G LAN and Intel Wi-Fi Solution

AUDIO BOOST 5

Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs

Lightning USB 20G

Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire

Premium Thermal Solution

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

Supports DDR5 Memory, up to 6400(OC) MHz

Expansion slots

Number of M.2 (M) slots
4

PCI Express x1 (Gen 3.x) slots
1

PCI Express x16 slots
3

Features

Audio chip
Realtek ALC4080

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Harmonized System (HS) code
84733020

Motherboard chipset
Intel Z690

Motherboard form factor
ATX

Graphics

Parallel processing technology support
Crossfire

Internal I/O

12V power connector
Y

ATX Power connector (24-pin)
Y

Chassis intrusion connector
Y

CPU fan connector
Y

Front panel audio connector
Y

Number of chassis fan connectors
6

Number of SATA III connectors
6

TPM connector
Y

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

Memory

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Y

Number of memory slots
4

Supported memory clock speeds
4000,5400,6400 MHz

Supported memory types
DDR5-SDRAM

Unbuffered memory
Y

Network

Bluetooth
Y

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Y

LAN controller
Intel I225-V

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Y

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

Weight
1 kg

Packaging content

Cables included
SATA

Drivers included
Y

Processor

Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

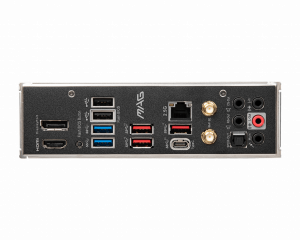

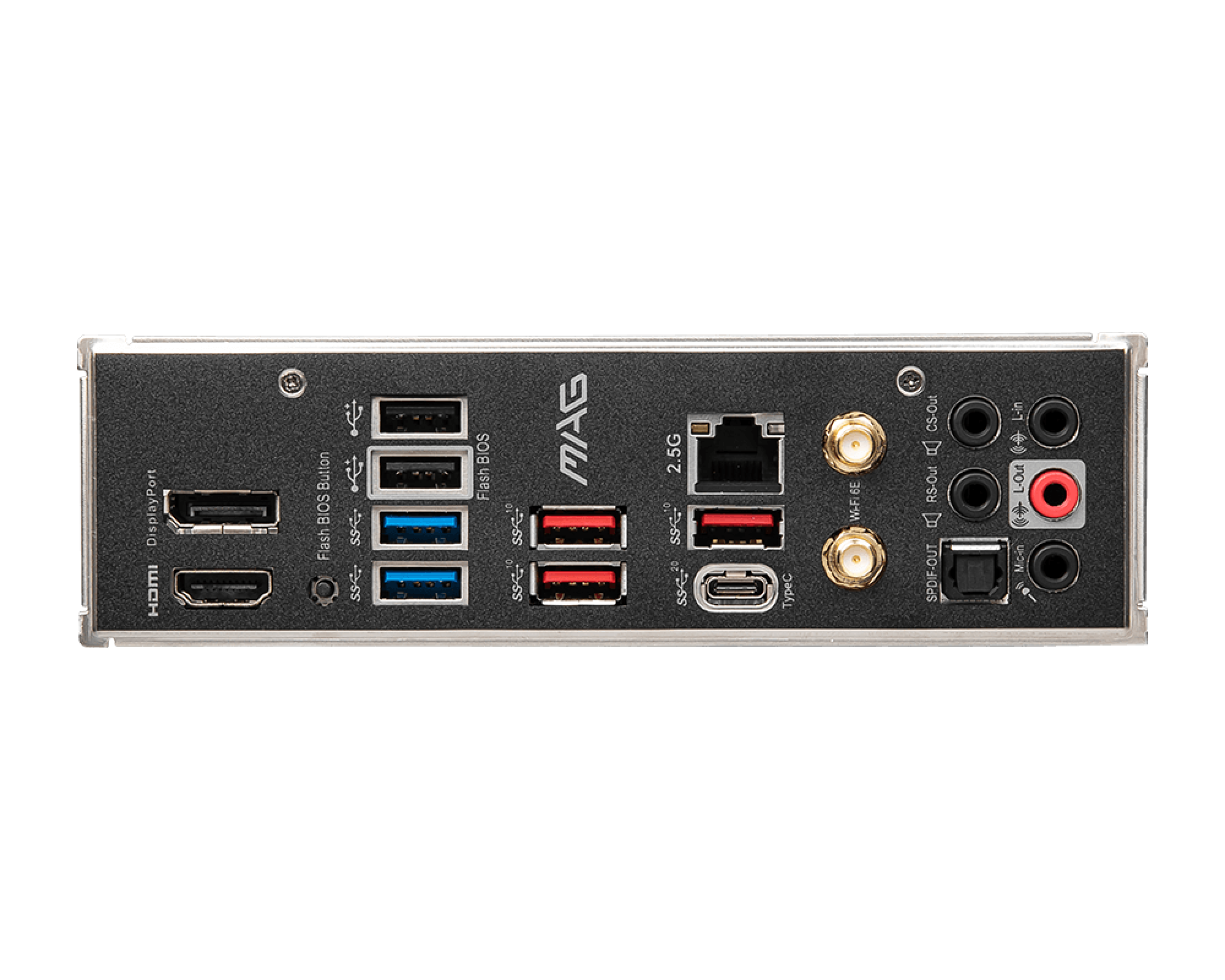

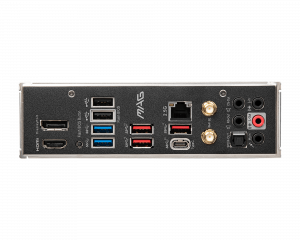

Rear panel I/O ports

Digital audio optical out
1

DisplayPort version
1.4

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

S/PDIF out port
Y

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3

USB 3.2 Gen 2x2 Type-C ports quantity
1

WiFi-AP antenna jack
2

Storage controllers

RAID levels
0, 1, 5, 10

RAID support
Y

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
65 mm

Width
305 mm

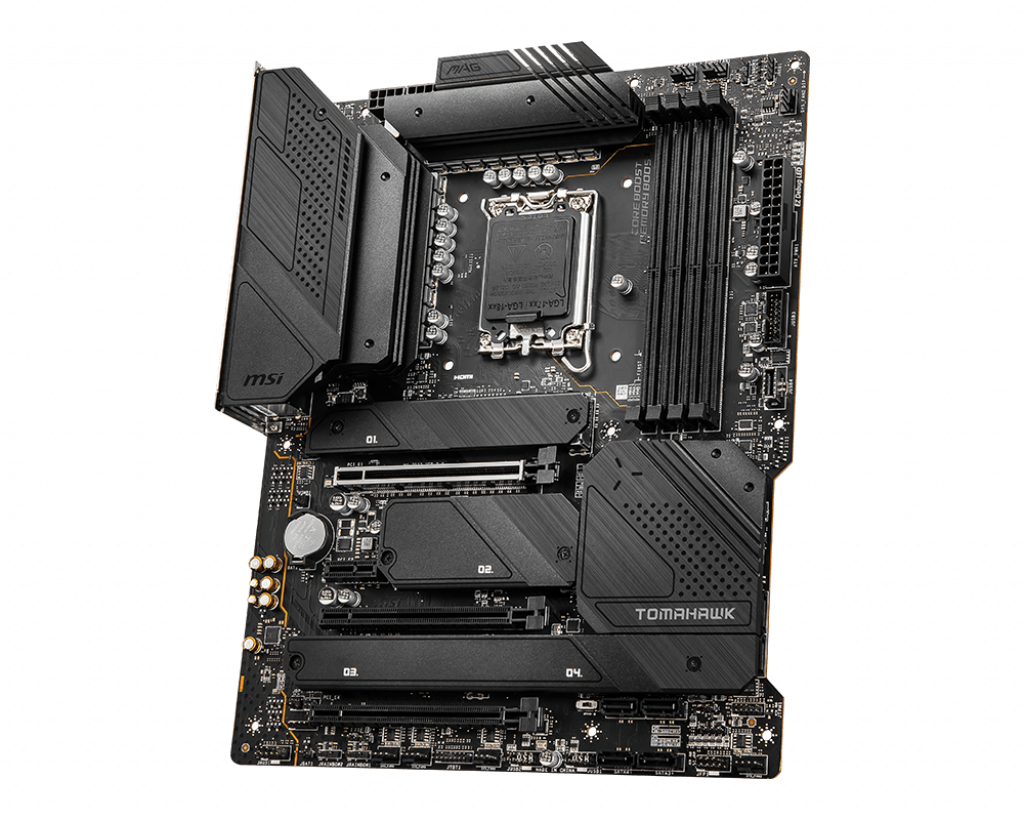

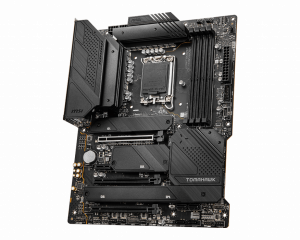

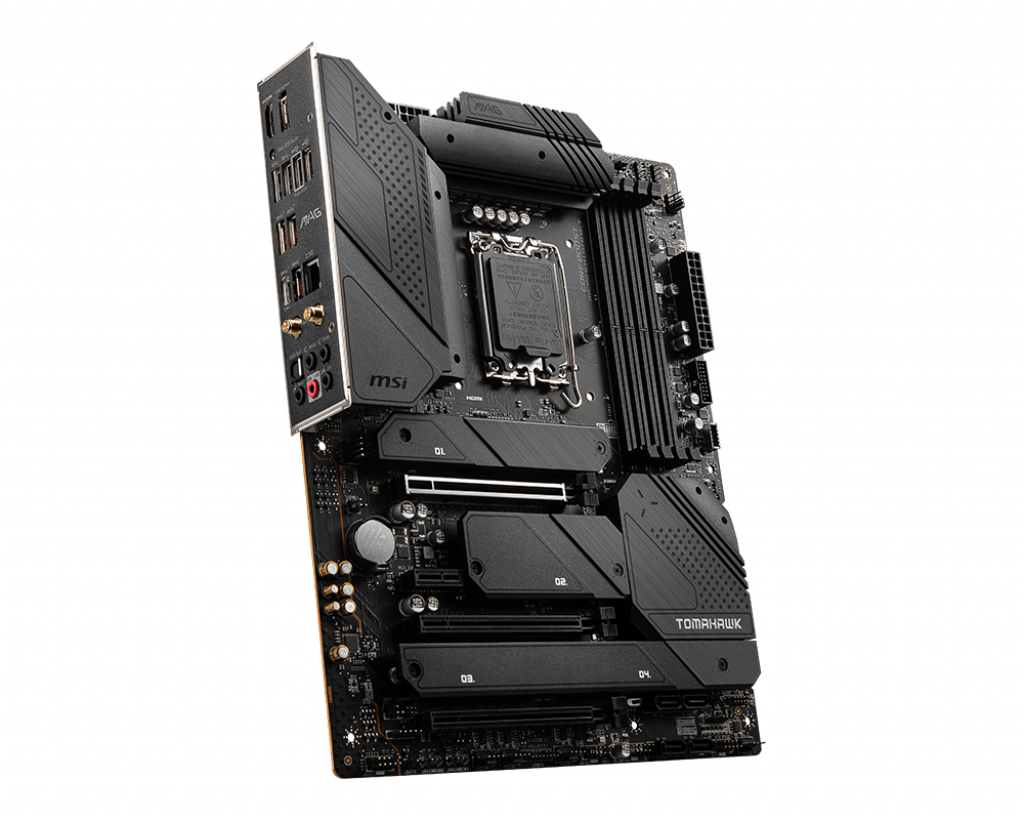

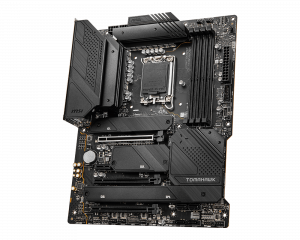

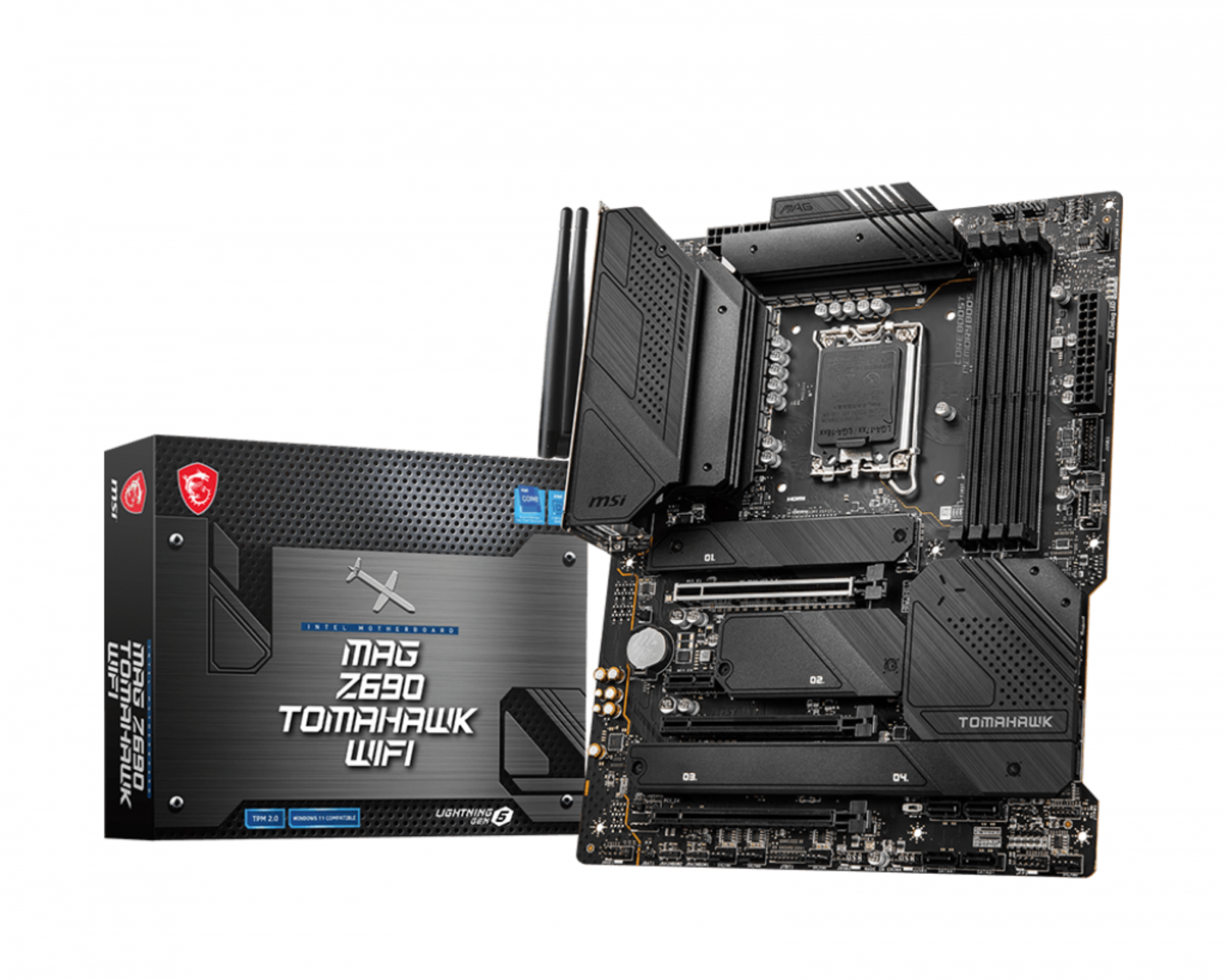

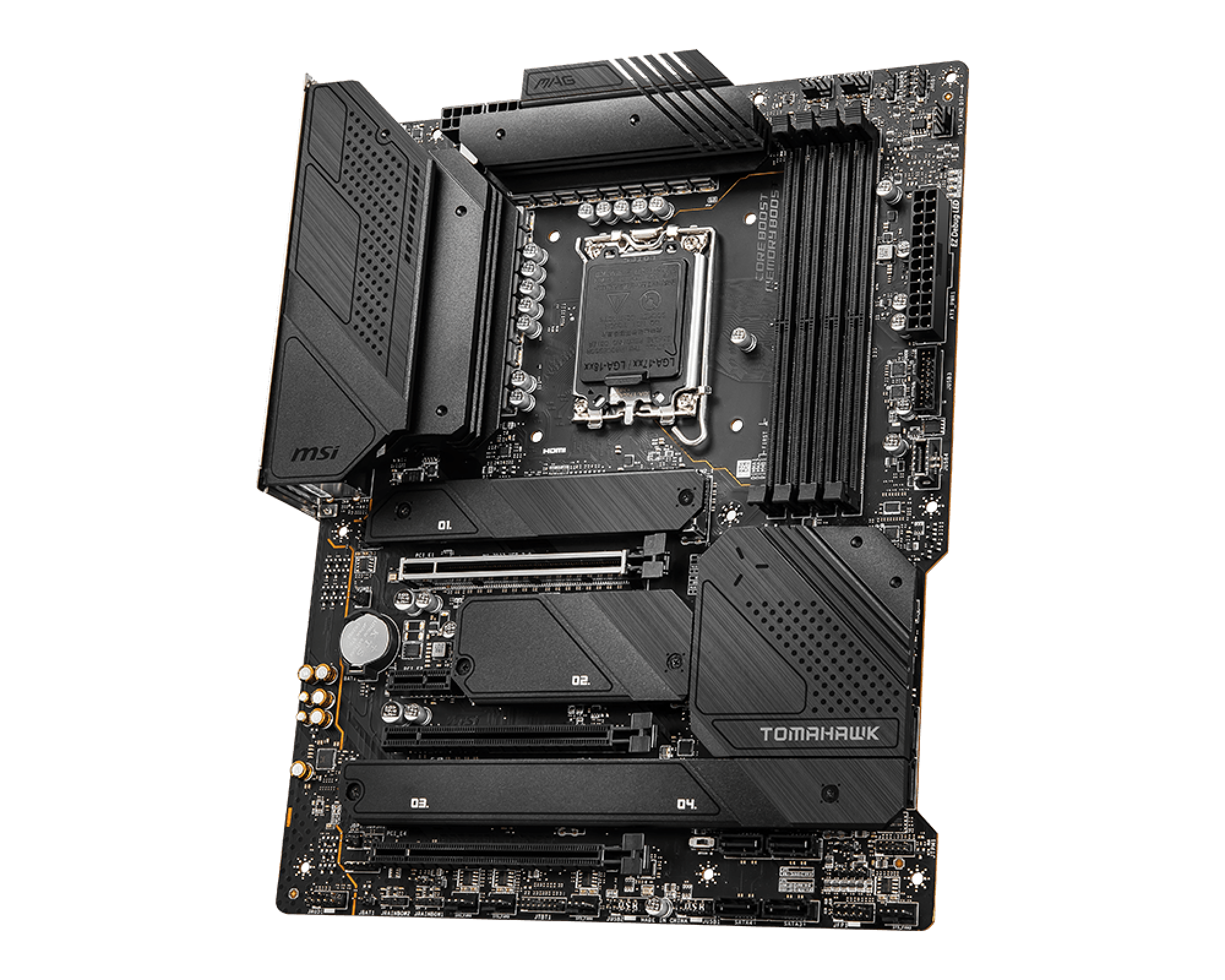

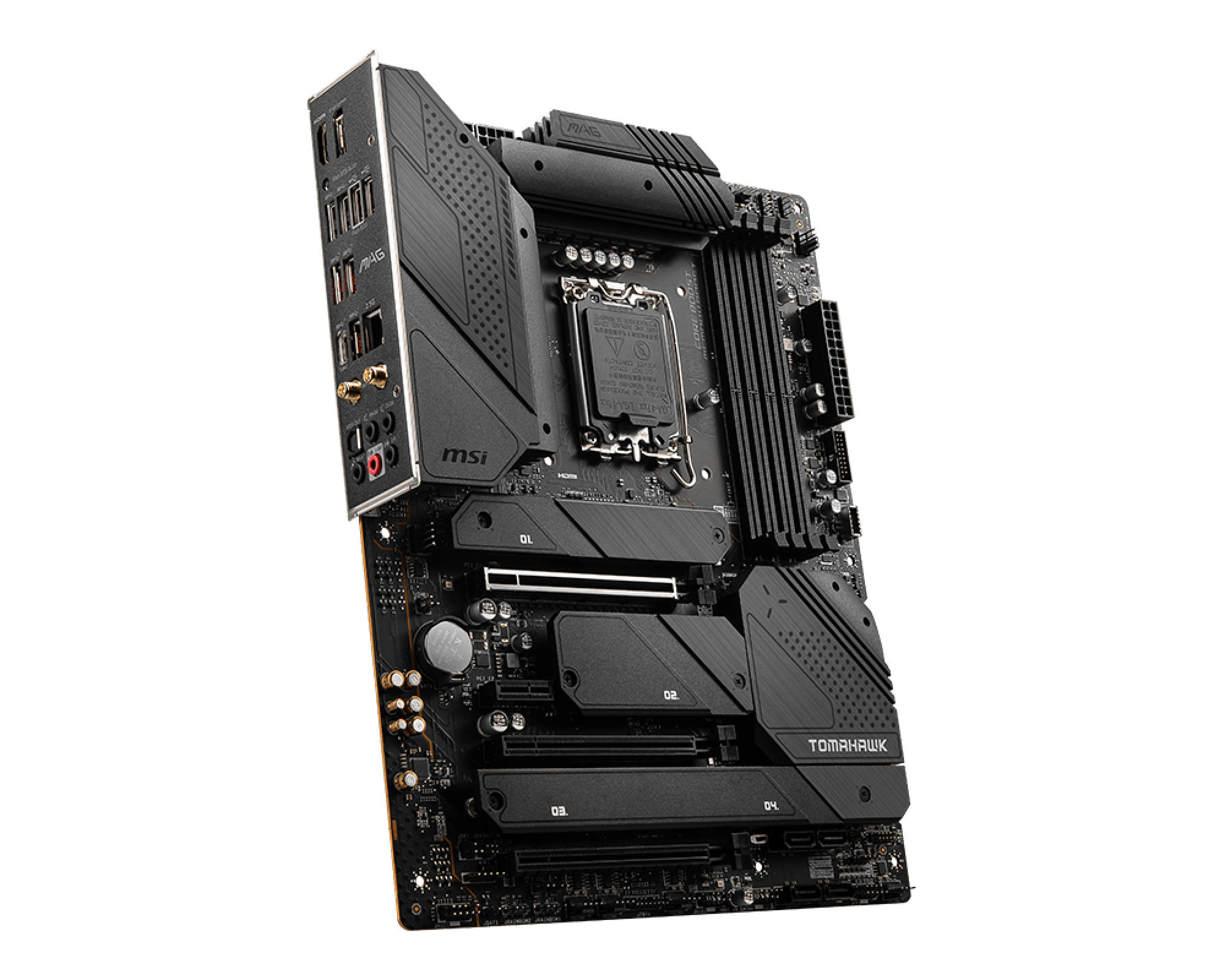

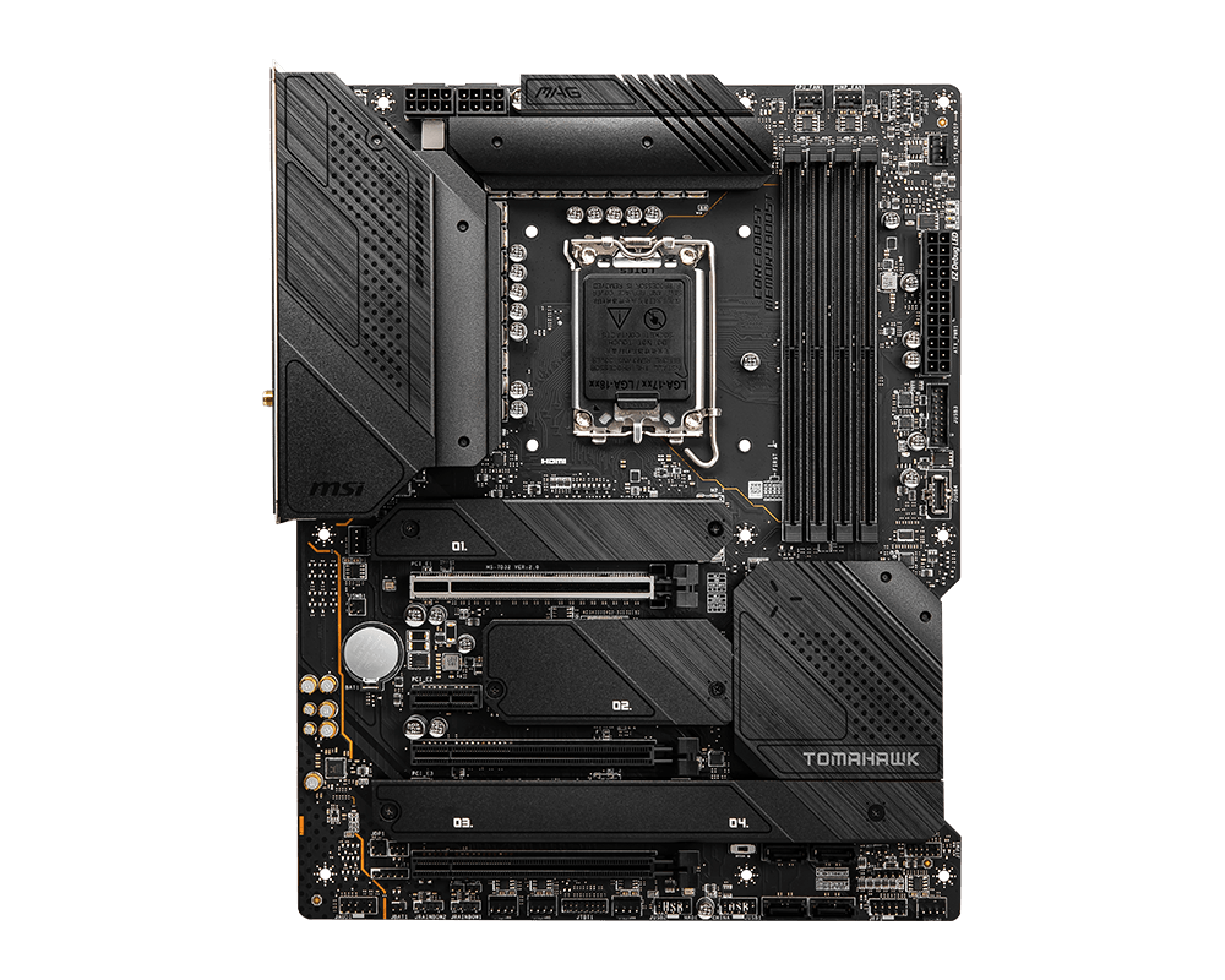

MSI MAG Z690 TOMAHAWK WIFI motherboard Intel Z690 LGA 1700 ATX
