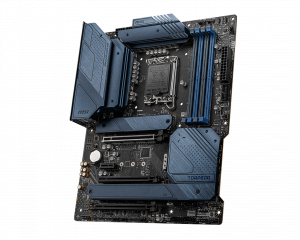

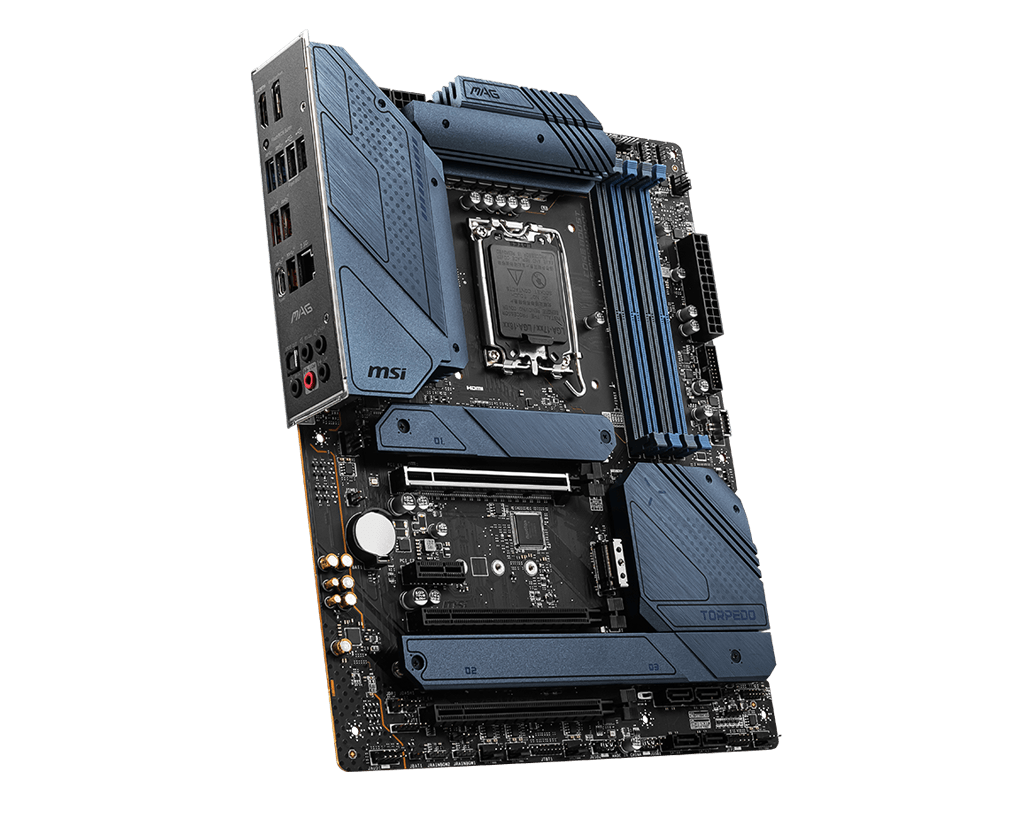

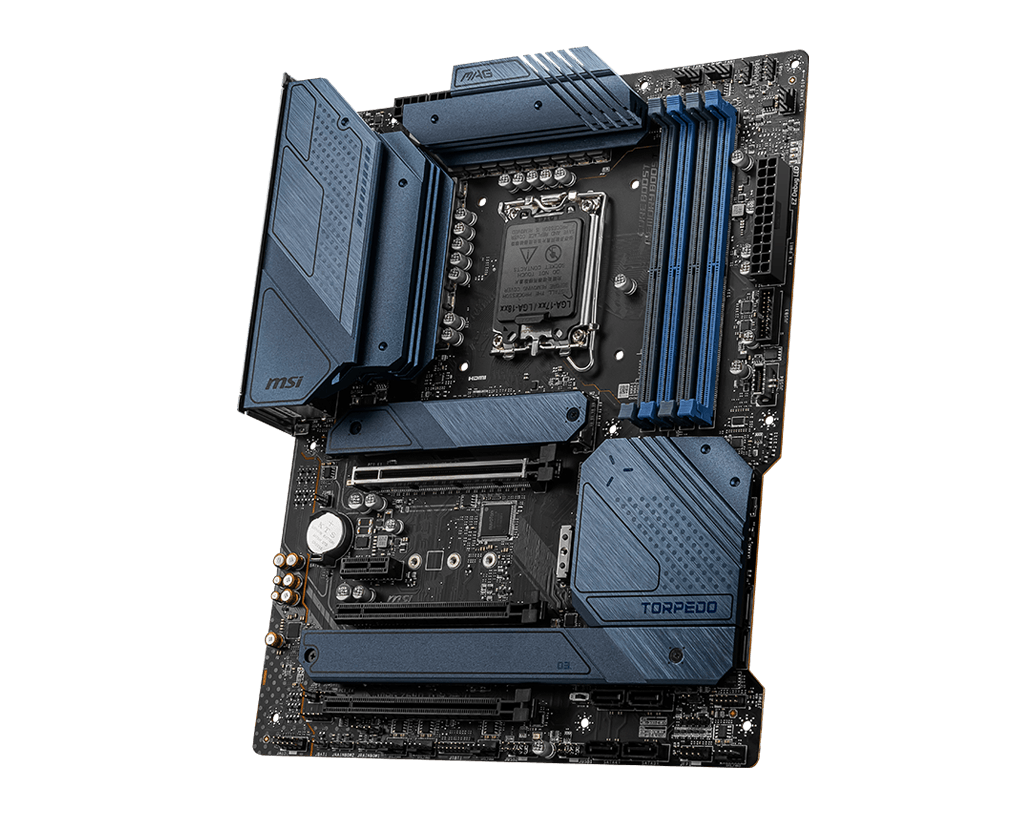

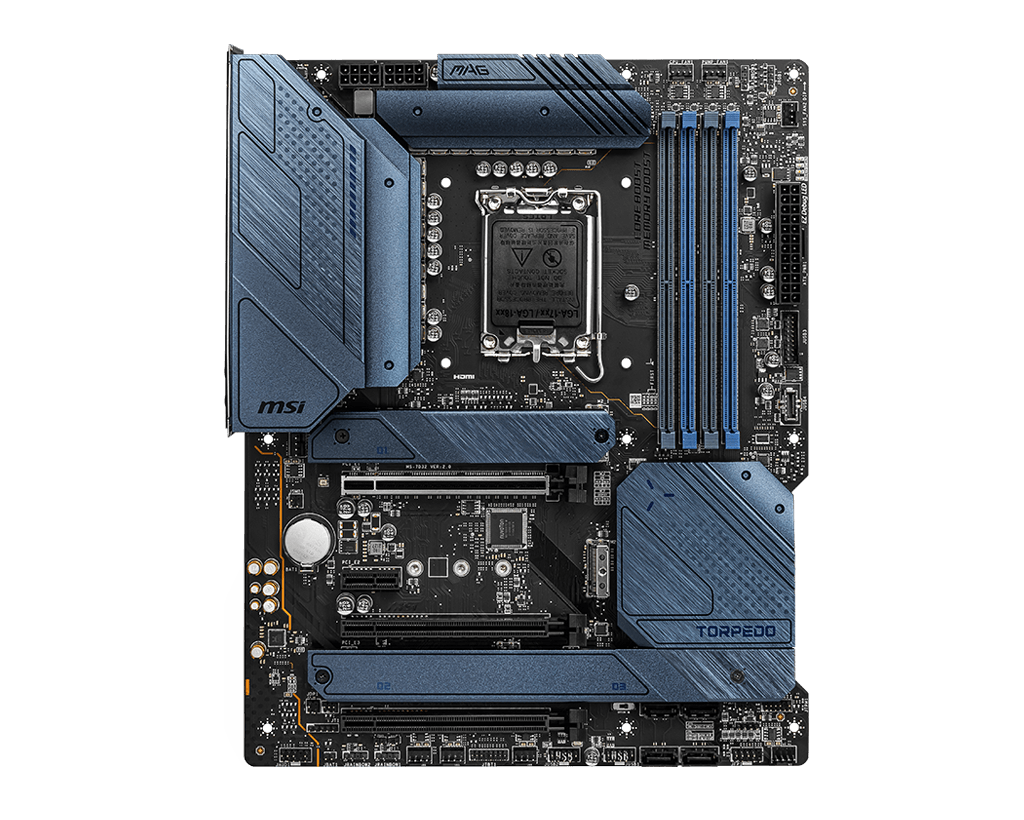

MSI MAG Z690 TORPEDO motherboard Intel Z690 LGA 1700 ATX
Roll over image to zoom inClick to Open expanded view
MSI MAG Z690 TORPEDO motherboard Intel Z690 LGA 1700 ATX
MSI MAG Z690 TORPEDO motherboard Intel Z690 LGA 1700 ATX
MSI MAG Z690 TORPEDO motherboard Intel Z690 LGA 1700 ATX
MSI MAG Z690 TORPEDO motherboard Intel Z690 LGA 1700 ATX
Print
Model: MAG Z690 TORPEDO
EAN: 4719072886578

MSI MAG Z690 TORPEDO motherboard Intel Z690 LGA 1700 ATX

Manufacturer:
MSI
MSI MAG Z690 TORPEDO, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, DDR5-SDRAM, 128 GB, DIMM
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

MSI MAG Z690 TORPEDO. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V
  • Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire
Core Boost Technology
With premium layout design, that is ready for unleashing the maximum performance.
6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
16+1+1 Duet Rail Power System
An aggressive digital VRM power design with digital PWM IC and 16 Duet Rail Power System with 70A Smart Power Stage, make sure your system runs smoothly under the most extreme conditions.

Product Properties

  • Manufacturer
  • MSI
  • Model
  • MAG Z690 TORPEDO
  • EAN
  • 4719072886578
  • BIOS
  • BIOS type
  • UEFI AMI
  • Clear CMOS jumper
  • Y
  • Bullet points
  • Point
  • 2.5G LAN and Intel Wi-Fi Solution
    AUDIO BOOST 5
    Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
    Lightning USB 20G
    Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire
    Premium Thermal Solution
    Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
    Supports DDR5 Memory, up to 6400(OC) MHz
  • Expansion slots
  • Number of M.2 (M) slots
  • 4
  • PCI Express x1 (Gen 3.x) slots
  • 1
  • PCI Express x16 slots
  • 3
  • Features
  • Audio chip
  • Realtek ALC4080
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Harmonized System (HS) code
  • 84733020
  • Motherboard chipset
  • Intel Z690
  • Motherboard form factor
  • ATX
  • Graphics
  • Parallel processing technology support
  • Crossfire
  • Internal I/O
  • 12V power connector
  • Y
  • ATX Power connector (24-pin)
  • Y
  • Chassis intrusion connector
  • Y
  • CPU fan connector
  • Y
  • Front panel audio connector
  • Y
  • Number of chassis fan connectors
  • 6
  • Number of SATA III connectors
  • 6
  • TPM connector
  • Y
  • USB 2.0 connectors
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 1
  • Memory
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Non-ECC
  • Y
  • Number of memory slots
  • 4
  • Supported memory clock speeds
  • 4000,5400,6400 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Unbuffered memory
  • Y
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Y
  • LAN controller
  • Intel I225-V
  • Wi-Fi
  • N
  • Other features
  • Weight
  • 1 kg
  • Packaging content
  • Cables included
  • SATA
  • Drivers included
  • Y
  • Processor
  • Compatible processor series
  • Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
  • Maximum number of SMP processors
  • 1
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700

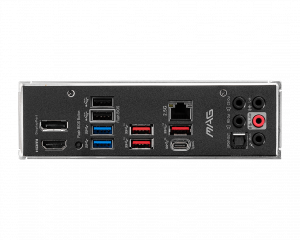

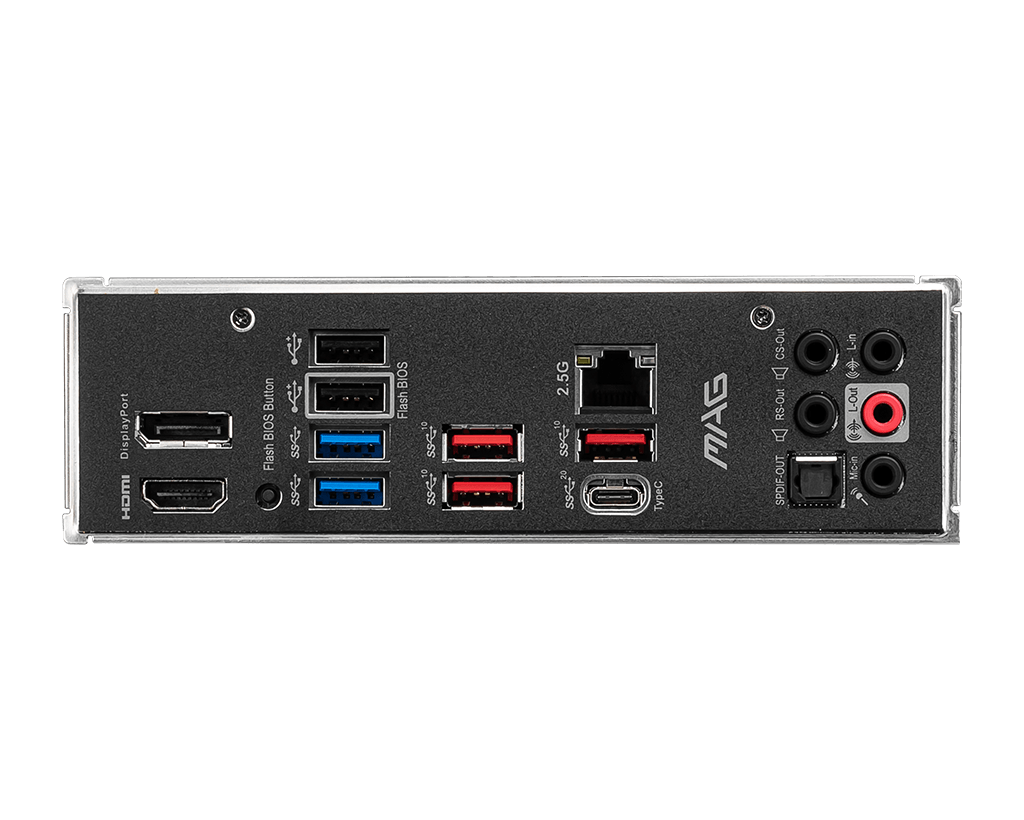

  • Rear panel I/O ports
  • Digital audio optical out
  • 1
  • DisplayPort version
  • 1.4
  • DisplayPorts quantity
  • 1
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • HDMI version
  • 2.1
  • S/PDIF out port
  • Y
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • Storage controllers
  • RAID levels
  • 0, 1, 5, 10
  • RAID support
  • Y
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 65 mm
  • Width
  • 305 mm
