Description

MSI MB PRO B660M-E DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Core Boost

With premium layout and digital power design to support more cores and provide better performance.

Audio Boost

Reward your ears with studio grade sound quality for the most immersive gaming experience.

Memory Boost

The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.

Product Properties

Manufacturer
MSI

Model
PRO B660M-E DDR4

EAN
4719072924935

BIOS

BIOS memory size
256 Mbit

BIOS type
EFI AMI

System Management BIOS (SMBIOS) version
3.4

Bullet points

Point
Audio Boost: Reward your ears with studio grade sound quality

Core Boost

Lightning Fast Experience: PCIe 4.0

Memory Boost

Steel Armor

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, up to 4600+(OC) MHz

Features

Audio chip
Realtek ALC897

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B660

Motherboard form factor
micro ATX

Graphics

Parallel processing technology support
Not supported

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

Front panel audio connector
Yes

Number of SATA III connectors
4

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

Logistics data

Harmonized System (HS) code
84733020

Memory

Memory channels
Dual-channel

Memory Slot Support
64 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
2

Supported memory clock speeds
2133,2666,2933,3200,4000,4600 MHz

Supported memory types
DDR4-SDRAM

Network

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

Wi-Fi
No

Other features

Weight
764 g

Packaging content

Cables included
SATA

Drivers included
Yes

Processor

Compatible processor series
Intel® Core™ i9

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

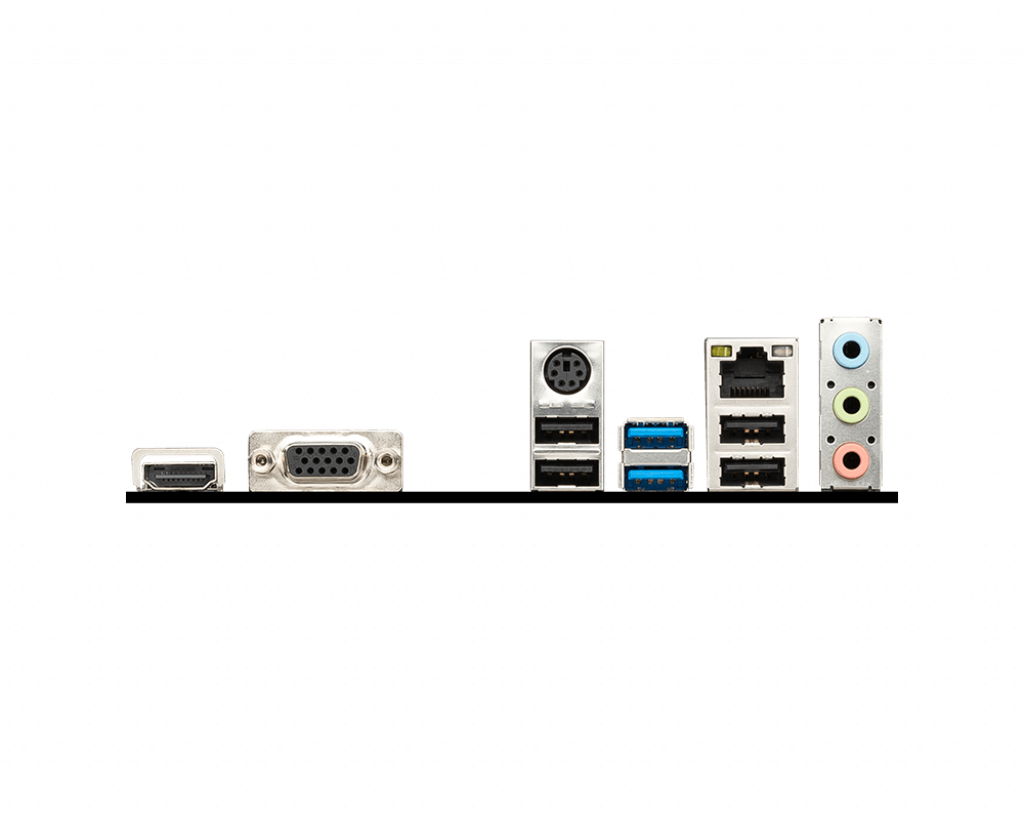

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

USB 2.0 ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

VGA (D-Sub) ports quantity
1

Storage controllers

RAID levels
0, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
211 mm

Height
65 mm

Width
244 mm

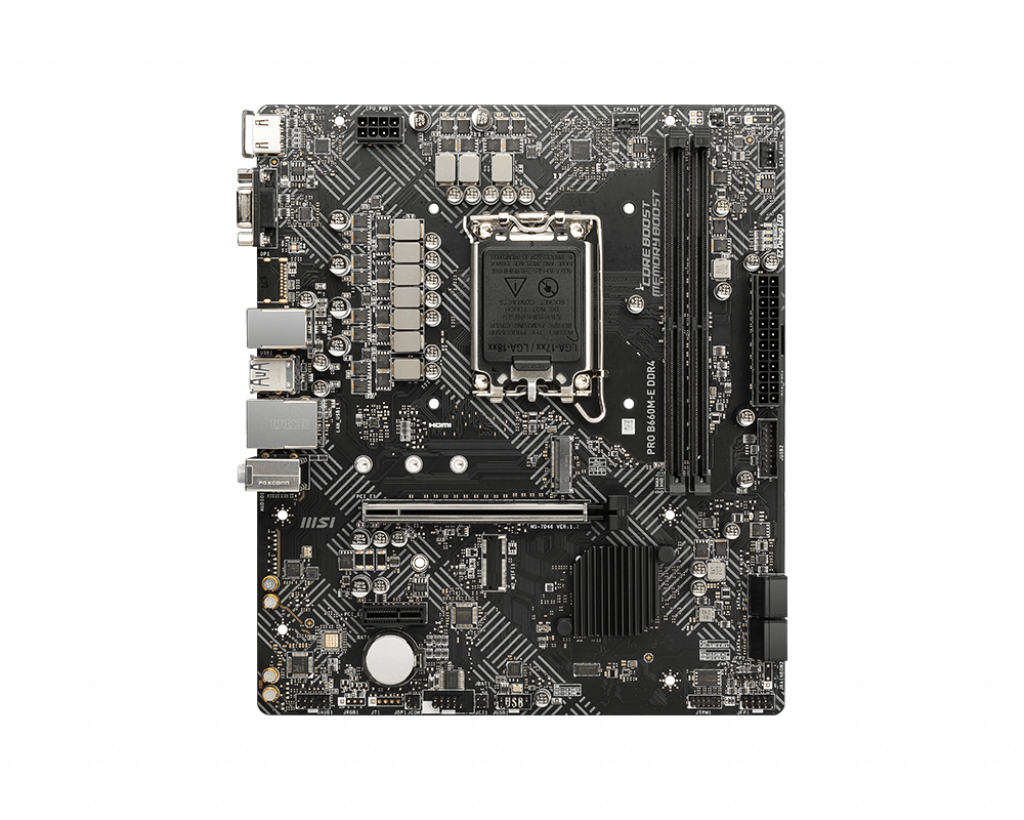

MSI MB PRO B660M-E DDR4 Intel B660 LGA 1700 micro ATX
