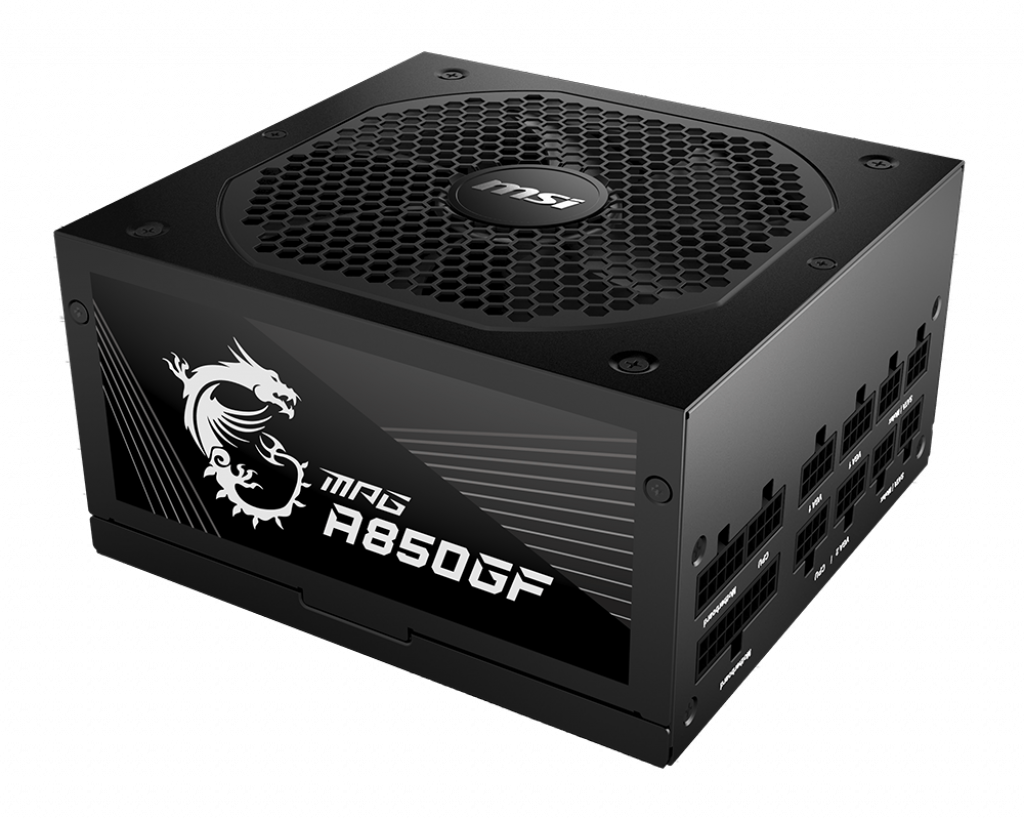

MSI MPG A850GF UK PSU '850W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
Roll over image to zoom inClick to Open expanded view
MSI MPG A850GF UK PSU '850W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
MSI MPG A850GF UK PSU '850W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
MSI MPG A850GF UK PSU '850W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
MSI MPG A850GF UK PSU '850W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
MSI MPG A850GF UK PSU '850W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'
Print
Model: 306-7ZP0C18-CE0
EAN: 4719072771119

MSI MPG A850GF UK PSU '850W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'

Manufacturer:
MSI
MSI MPG A850GF UK PSU '850W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU', 850 W, 100 - 240 V, 47 - 63 Hz, 10 A, 5 A, Active
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

MSI MPG A850GF UK PSU '850W, 80 Plus Gold certified, Fully Modular, 100% Japanese Capacitor, Flat Cables, ATX Power Supply Unit, UK Powercord, Black, Support Latest GPU'. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 160 mm, Height: 86 mm
  • Supports the NVIDIA GeForce RTX™ 30 Series GPUs

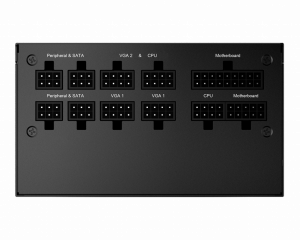

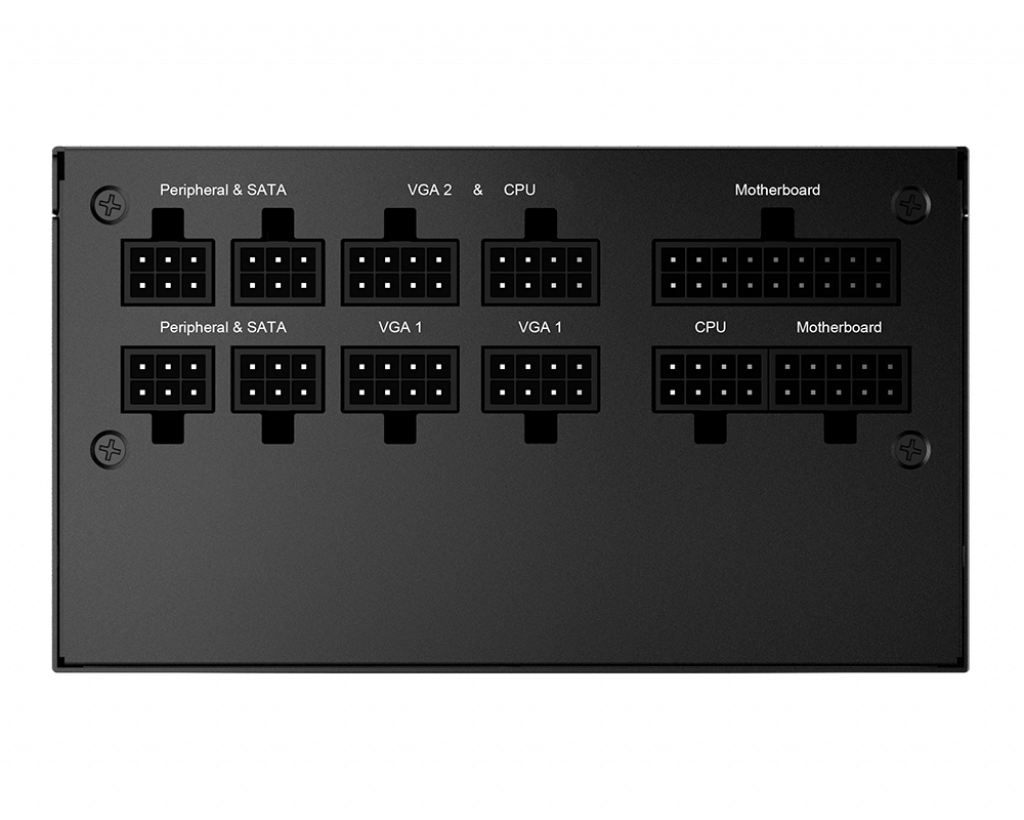

  • Full modular cable design
  • Flat cable equipment
  • 10-year warranty
  • 80 Plus Gold certified for high efficiency
  • 100% all Japanese 105oC capacitor
  • Active PFC design
  • Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • LLC Half Bridge Topology with DC-DC module design

Product Properties

  • Manufacturer
  • MSI
  • Model
  • 306-7ZP0C18-CE0
  • EAN
  • 4719072771119
  • Bullet points
  • Point
  • 10-year warranty
    100% all Japanese 105oC capacitor
    80 Plus Gold certified for high efficiency
    Active PFC design
    Flat cable equipment
    Full modular cable design
    Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
    LLC Half Bridge Topology with DC-DC module design
    Supports the NVIDIA GeForce RTX™ 30 Series GPUs
  • Design
  • Cooling type
  • Active

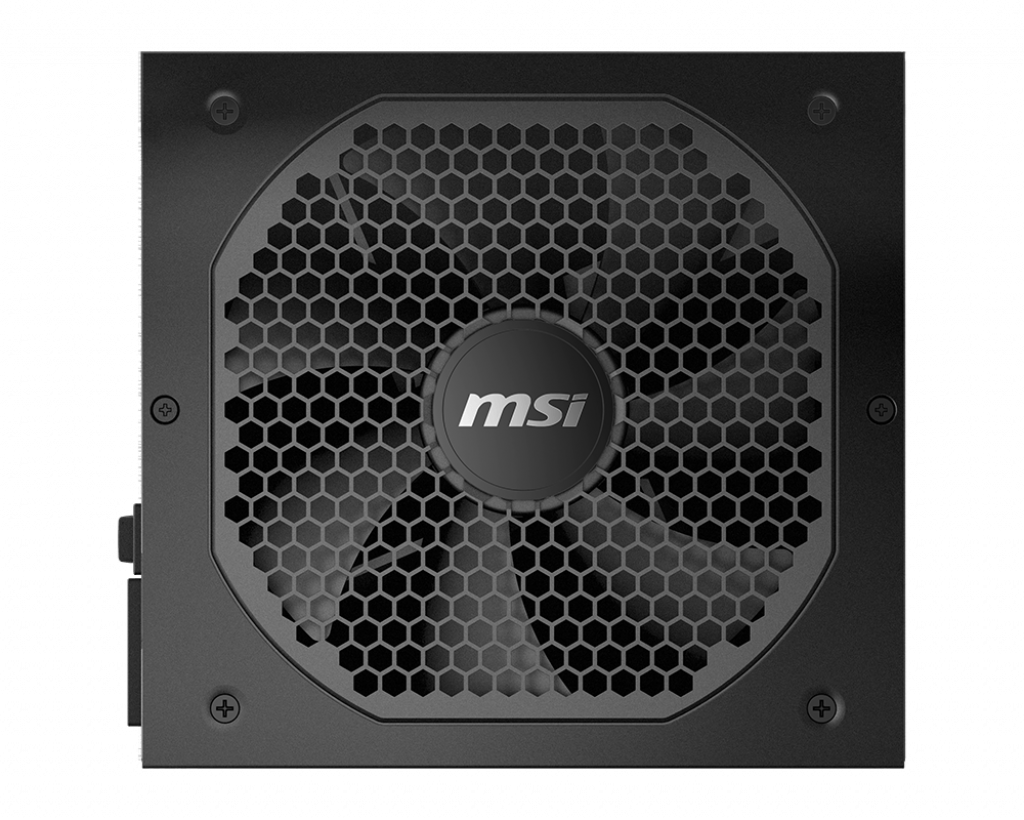

  • Fan diameter
  • 14 cm
  • Number of fans
  • 1 fan(s)
  • On/off switch
  • Yes
  • Product colour
  • Black
  • Logistics data
  • Harmonized System (HS) code
  • 84733020
  • Performance
  • 80 PLUS certification
  • 80 PLUS Gold
  • Power supply unit (PSU) form factor
  • ATX
  • Purpose
  • PC
  • Ports & interfaces
  • ATX Power connector (24-pin)
  • Yes
  • Cabling type
  • Modular
  • CPU power connector (4+4 pin)
  • Yes
  • EPS power connector (4+4 pin)
  • Yes
  • Floppy disk drive cable length
  • 110 cm
  • Floppy disk drive connector
  • Yes
  • Motherboard power cable length
  • 60 cm
  • Motherboard power connector
  • 24-pin ATX
  • Number of SATA power connectors
  • 8
  • PCI Express connector
  • Yes
  • PCI Express power cable length
  • 50 cm
  • PCI Express power connectors (6+2 pin)
  • 6
  • Peripheral (Molex) power connectors (4-pin)
  • 5
  • SATA power cable length
  • 950 mm
  • Power
  • AC input frequency
  • 47 - 63 Hz
  • AC input voltage
  • 100 - 240 V
  • Combined power (+12V)
  • 850 W
  • Combined power (+3.3V)
  • 120 W
  • Combined power (+5V)
  • 120 W
  • Efficiency
  • 90%
  • Max output current (+12V)
  • 25 A
  • Max output current (+12V1)
  • 40 A
  • Max output current (+12V2)
  • 40 A
  • Max output current (+3.3V)
  • 22 A
  • Max output current (+5V)
  • 22 A
  • Max output current (+5Vsb)
  • 2.5 A
  • Max output current (-12V)
  • 0.3 A
  • Maximum input current (@110V)
  • 10 A
  • Maximum input current (@220V)
  • 5 A
  • Power Factor Correction (PFC) type
  • Active
  • Power protection features
  • Over current, Over power, Over voltage, Short circuit, Under voltage
  • Total power
  • 850 W
  • Weight & dimensions
  • Depth
  • 160 mm
  • Height
  • 86 mm
  • Width
  • 150 mm
