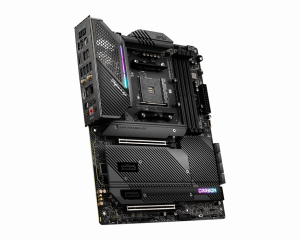

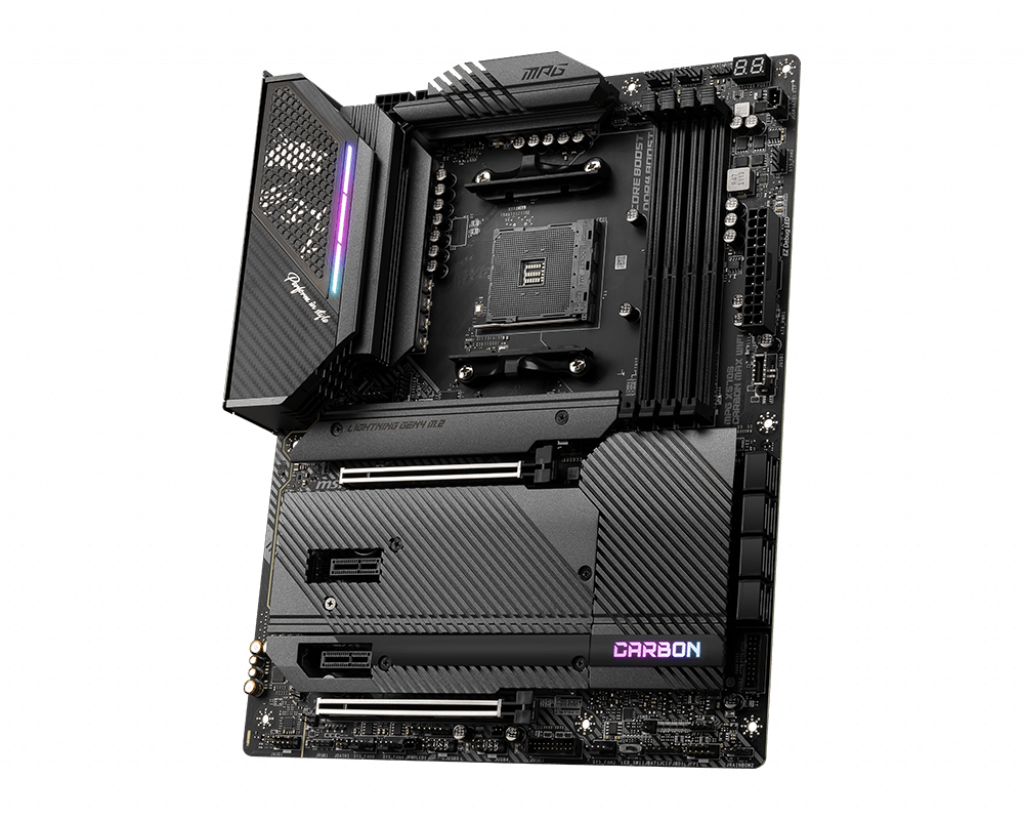

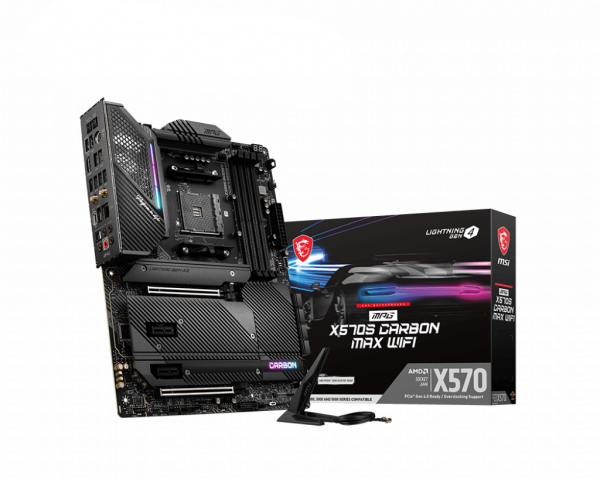

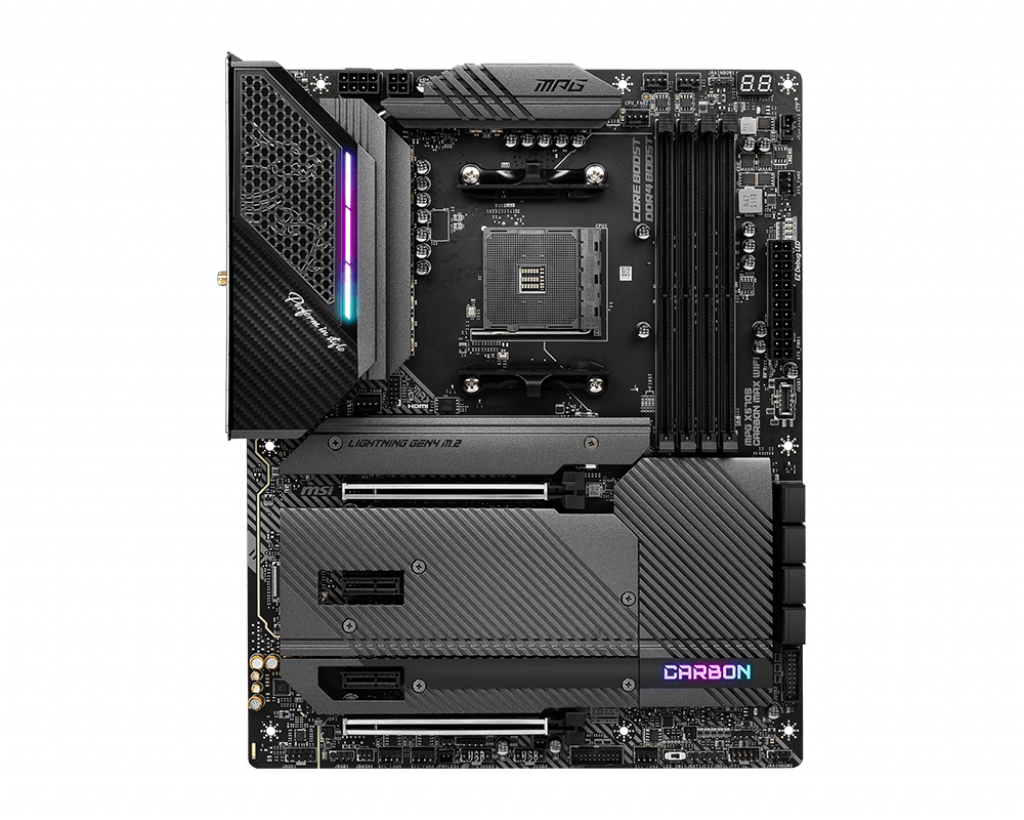

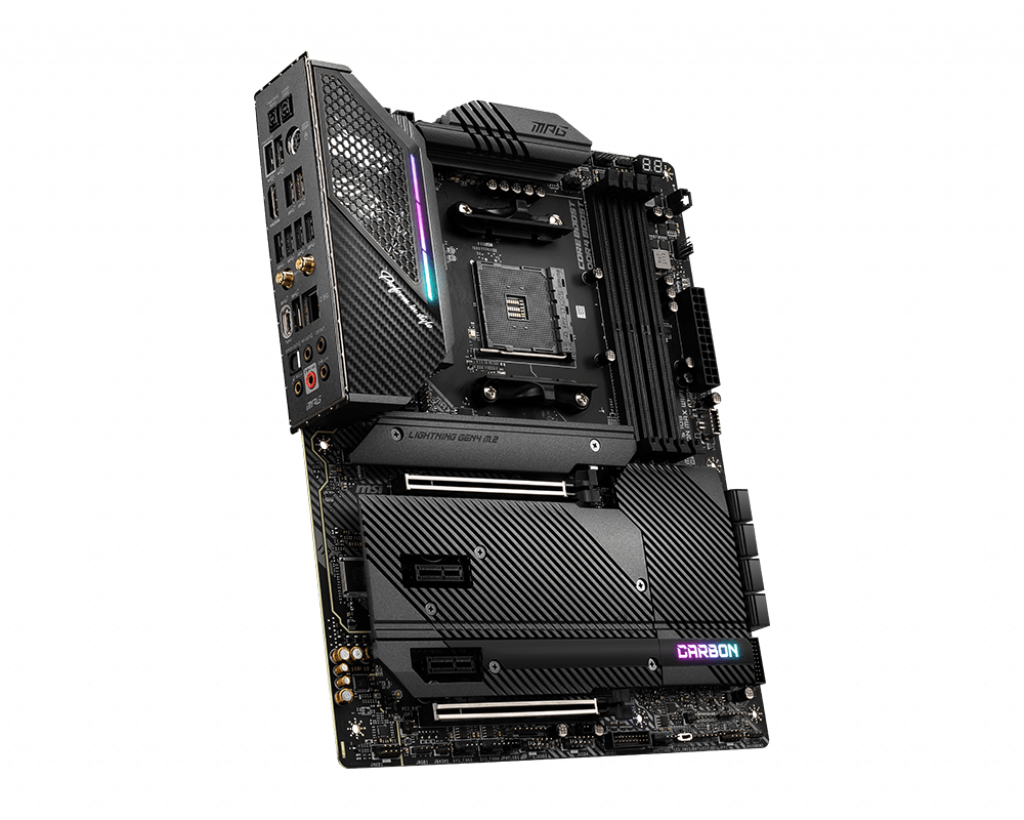

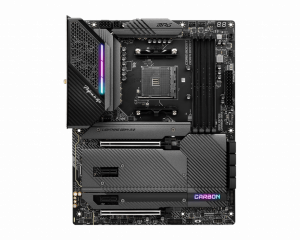

MSI MPG X570S CARBON MAX WIFI motherboard AMD X570 Socket AM4 ATX
Roll over image to zoom inClick to Open expanded view
MSI MPG X570S CARBON MAX WIFI motherboard AMD X570 Socket AM4 ATX
MSI MPG X570S CARBON MAX WIFI motherboard AMD X570 Socket AM4 ATX
MSI MPG X570S CARBON MAX WIFI motherboard AMD X570 Socket AM4 ATX
MSI MPG X570S CARBON MAX WIFI motherboard AMD X570 Socket AM4 ATX
MSI MPG X570S CARBON MAX WIFI motherboard AMD X570 Socket AM4 ATX
Print
Model: MPG X570S CARBON M
EAN: 4719072874988

MSI MPG X570S CARBON MAX WIFI motherboard AMD X570 Socket AM4 ATX

Manufacturer:
MSI
MSI MPG X570S CARBON MAX WIFI, AMD, Socket AM4, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, DDR4-SDRAM, 128 GB, DIMM
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

MSI MPG X570S CARBON MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
  • Supports DDR4 Memory, up to 5300+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
  • Enhanced Power Design: 14+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
  • Premium Thermal Solution: Aluminum cover, heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Product Properties

  • Manufacturer
  • MSI
  • Model
  • MPG X570S CARBON M
  • EAN
  • 4719072874988
  • BIOS
  • BIOS type
  • UEFI AMI
  • Clear CMOS button
  • Y
  • Clear CMOS jumper
  • Y
  • Bullet points
  • Point
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution
    AUDIO BOOST 5
    Enhanced Power Design
    High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
    Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
    Mystic Light
    Pre-installed I/O Shield: Better EMI protection and more convenience for installation
    Premium Thermal Solution
    Supports DDR4 Memory, up to 5300+(OC) MHz
  • Expansion slots
  • Number of M.2 (M) slots
  • 4
  • Features
  • Audio chip
  • Realtek ALC4080
  • Audio output channels
  • 7.1 channels
  • Chip Set
  • AMD
  • Component for
  • PC
  • Harmonized System (HS) code
  • 84733020
  • Motherboard chipset
  • AMD X570
  • Motherboard form factor
  • ATX
  • Number of mounting holes
  • 9
  • Windows operating systems supported
  • Windows 10 x64
  • Graphics
  • Parallel processing technology support
  • Crossfire
  • Internal I/O
  • 12V power connector
  • Y
  • ATX Power connector (24-pin)
  • Y
  • Chassis intrusion connector
  • Y
  • CPU fan connector
  • Y
  • Front panel audio connector
  • Y
  • Number of chassis fan connectors
  • 6
  • Number of SATA III connectors
  • 8
  • RGB
  • Y
  • TPM connector
  • Y
  • USB 2.0 connectors
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 1
  • Memory
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Non-ECC
  • Y
  • Number of memory slots
  • 4
  • Supported memory clock speeds
  • 1866,2133,2400,2667,2800,2933,3000,3066,3200,3600,4000,4266,4400,5100,5300 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Unbuffered memory
  • Y
  • Network
  • Bluetooth
  • Y
  • Bluetooth version
  • 5.2
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Y
  • LAN controller
  • Realtek RTL8125B
  • Top Wi-Fi standard
  • Wi-Fi 6 (802.11ax)
  • Wi-Fi
  • Y
  • Wi-Fi standards
  • 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
  • WLAN controller model
  • Intel Wi-Fi 6E AX210
  • Other features
  • Weight
  • 1 kg
  • Packaging content
  • Cables included
  • SATA
  • Drivers included
  • Y
  • Processor
  • Compatible processor series
  • AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen
  • Maximum number of SMP processors
  • 1
  • Processor manufacturer
  • AMD
  • Processor socket
  • Socket AM4

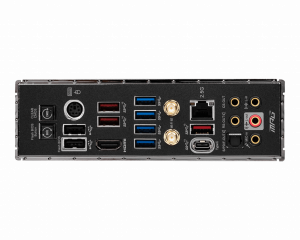

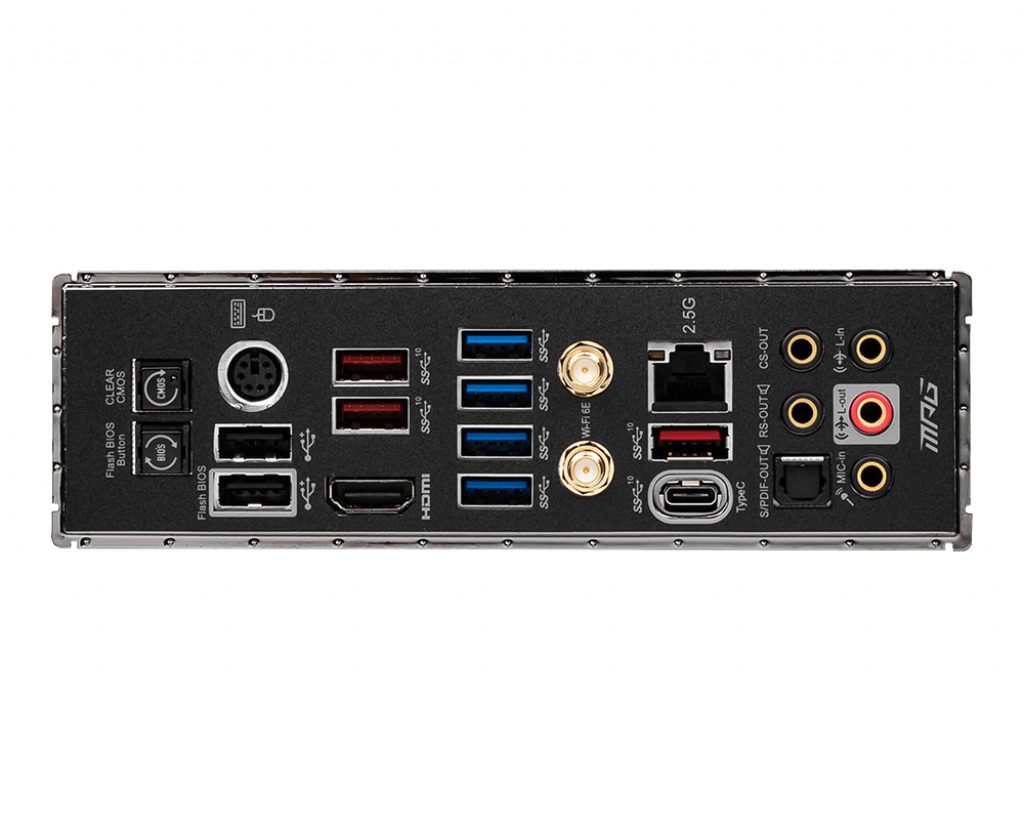

  • Rear panel I/O ports
  • Digital audio optical out
  • 1
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • PS/2 ports quantity
  • 1
  • S/PDIF out port
  • Y
  • USB 2.0 ports quantity
  • 2
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 4
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 3
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • Storage controllers
  • RAID levels
  • 0, 1, 10
  • Supported storage drive interfaces
  • M.2, SATA III
  • Supported storage drive types
  • HDD & SSD
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 268 mm
  • Width
  • 305 mm
