Description

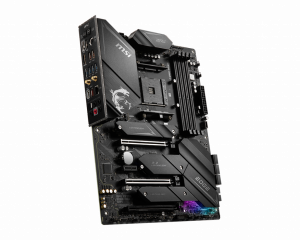

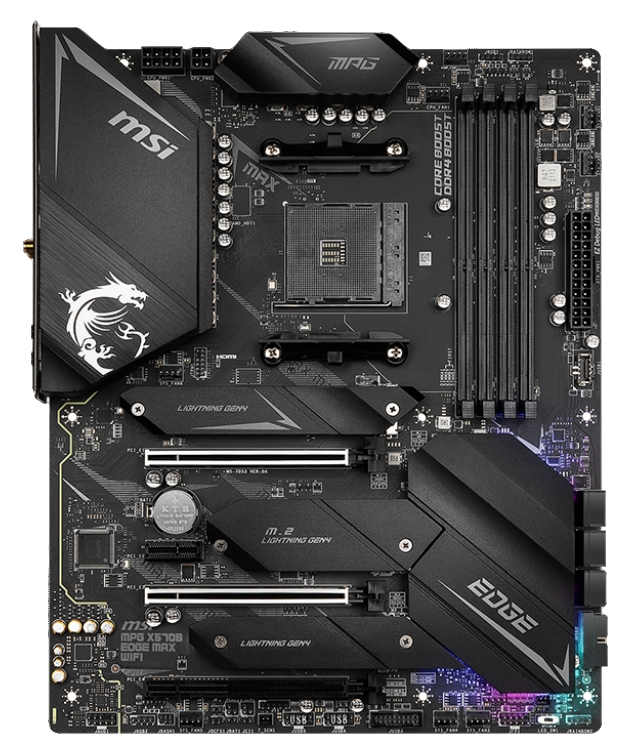

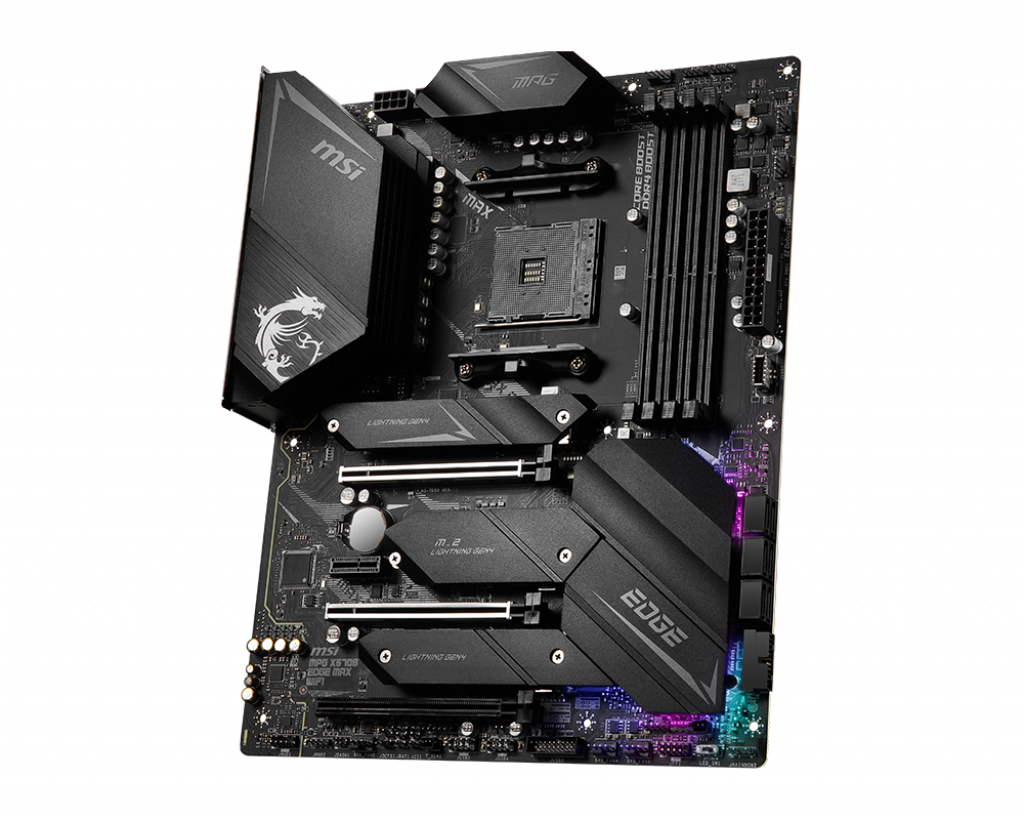

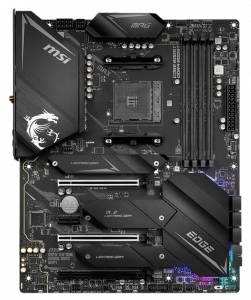

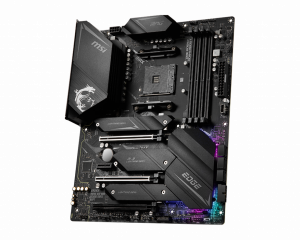

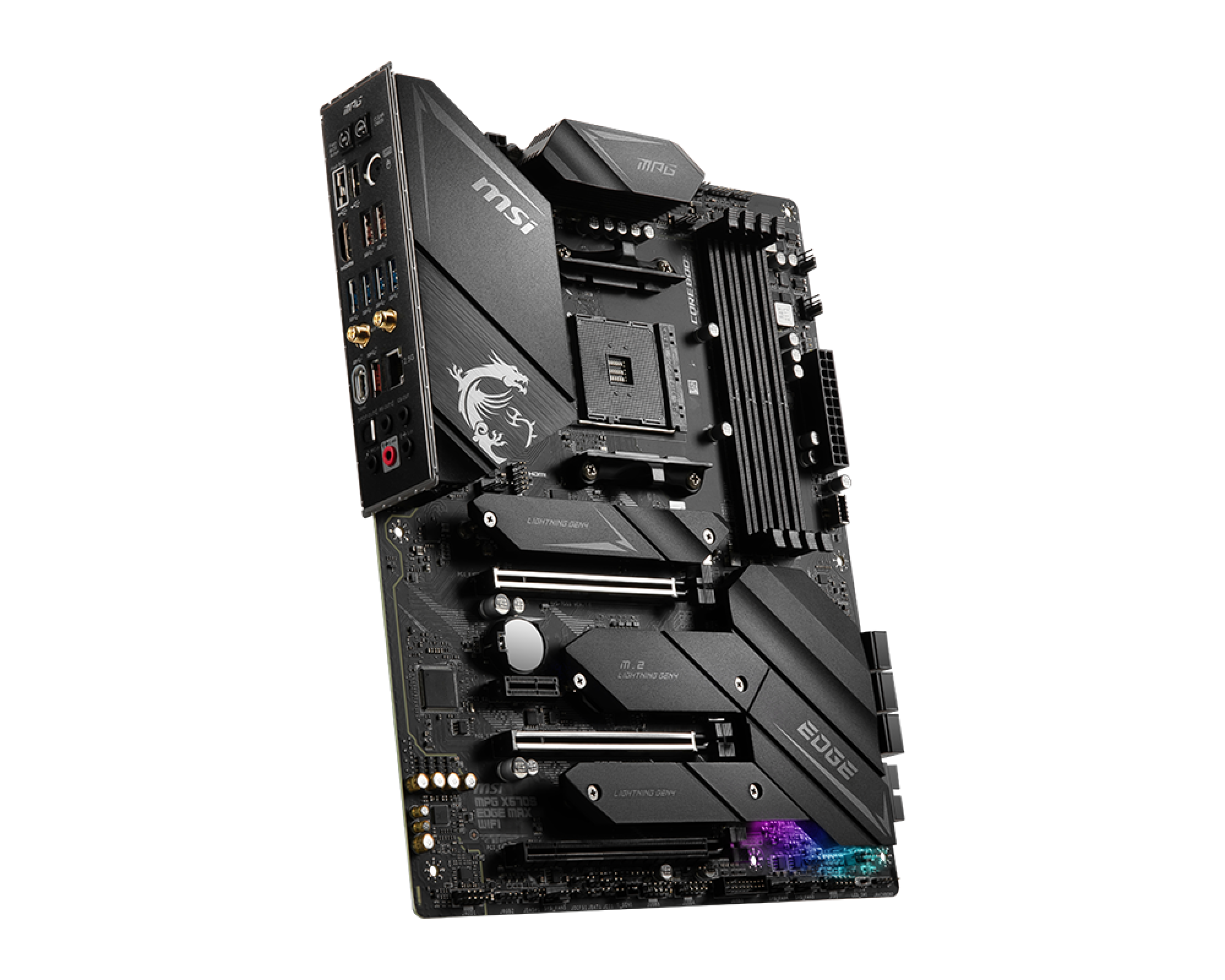

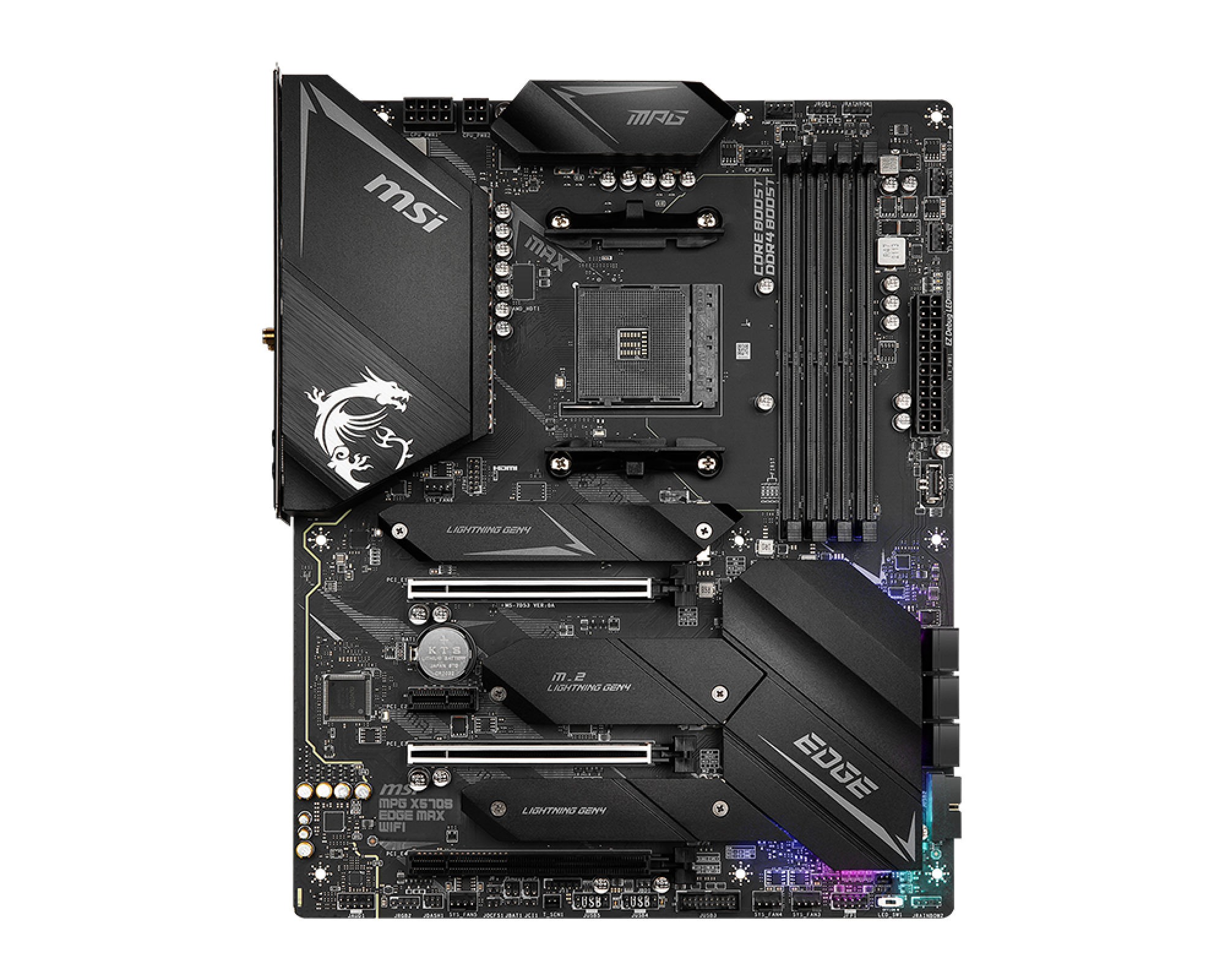

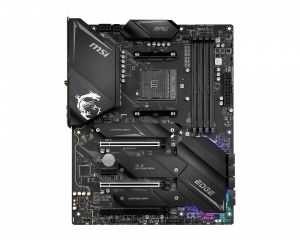

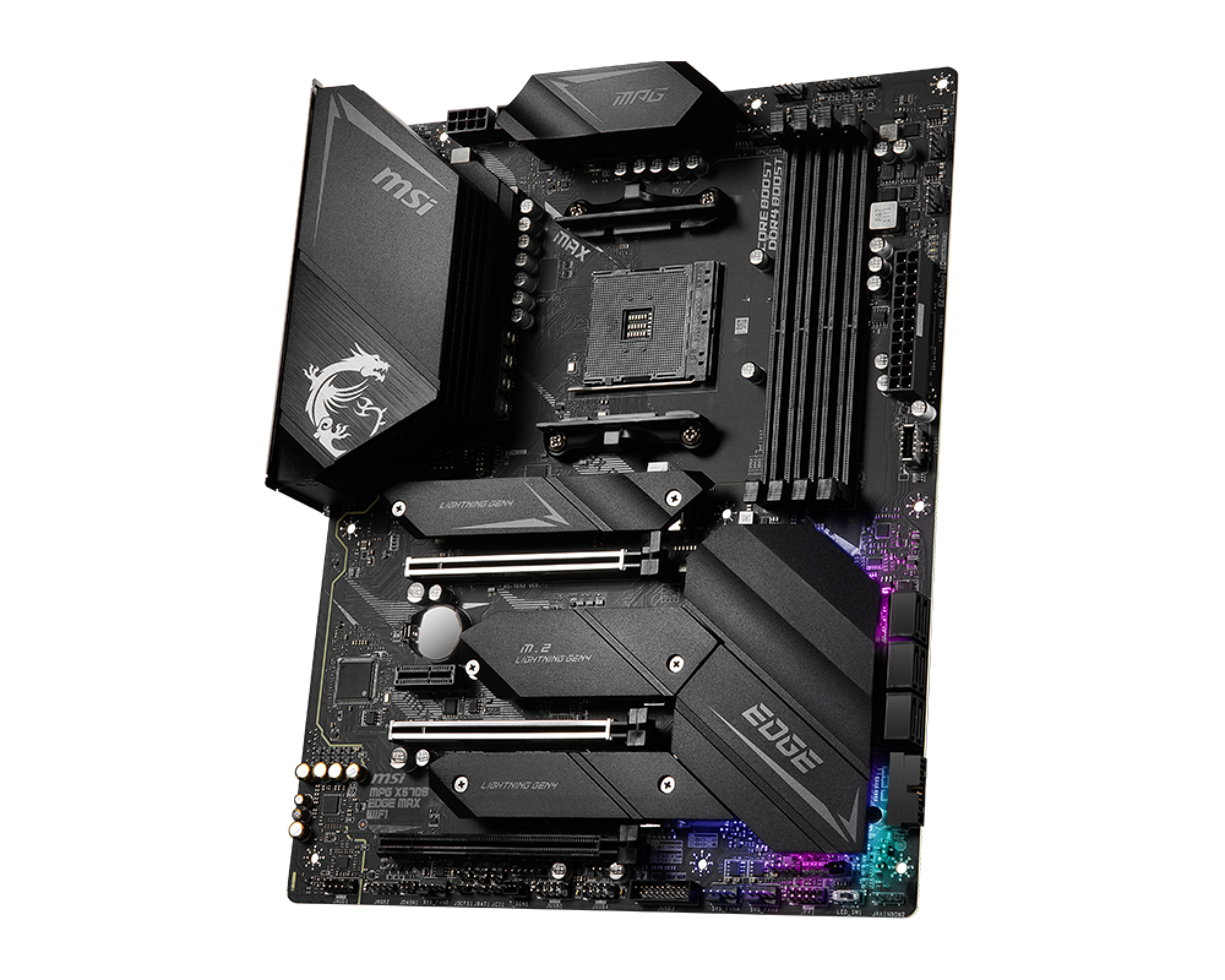

MSI MPG X570S EDGE MAX WIFI. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: CrossFire. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125B, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)

Supports AMD Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series and 2000 G-series desktop processors
Supports DDR4 Memory, up to 5300+(OC) MHz
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
Enhanced Power Design: 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
Premium Thermal Solution: Aluminum cover, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Core Boost Technology

Combining 8+4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Audio Boost 5

Isolated audio with high quality audio processor & amp for the most immersive gaming experience.

Product Properties

Manufacturer
MSI

Model
MPG X570S EDGE MAX

EAN
4719072872182

BIOS

Clear CMOS button
Y

Bullet points

Point
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution

AUDIO BOOST 5

Enhanced Power Design

High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2

Mystic Light

Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Premium Thermal Solution

Supports DDR4 Memory, up to 5300+(OC) MHz

Expansion slots

Number of M.2 (M) slots
3

PCI Express x1 (Gen 3.x) slots
1

PCI Express x16 slots
3

Features

Audio chip
Realtek ALC4080

Audio output channels
7.1 channels

Chip Set
AMD

Component for
PC

Harmonized System (HS) code
84733020

Motherboard chipset
AMD X570

Motherboard form factor
ATX

Number of mounting holes
9

Windows operating systems supported
Windows 10 x64

Graphics

Parallel processing technology support
Crossfire

Internal I/O

12V power connector
Y

ATX Power connector (24-pin)
Y

Chassis intrusion connector
Y

CPU fan connector
Y

EPS power connector (8-pin)
Y

Front panel audio connector
Y

Front panel connector
Y

Number of chassis fan connectors
6

Number of SATA III connectors
6

RGB
Y

TPM connector
Y

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

USB 3.2 Gen 2 (3.1 Gen 2) connectors
1

Memory

Memory channels
Dual-channel

Memory Slot Support
128 GB

Memory slots type
DIMM

Non-ECC
Y

Number of memory slots
4

Supported memory clock speeds
3600,4000,4266,4400,5100,5300 MHz

Supported memory types
DDR4-SDRAM

Unbuffered memory
Y

Network

Bluetooth
Y

Bluetooth version
5.2

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Y

LAN controller
Realtek RTL8125B

Top Wi-Fi standard
Wi-Fi 6E (802.11ax)

Wi-Fi
Y

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Other features

Weight
1 kg

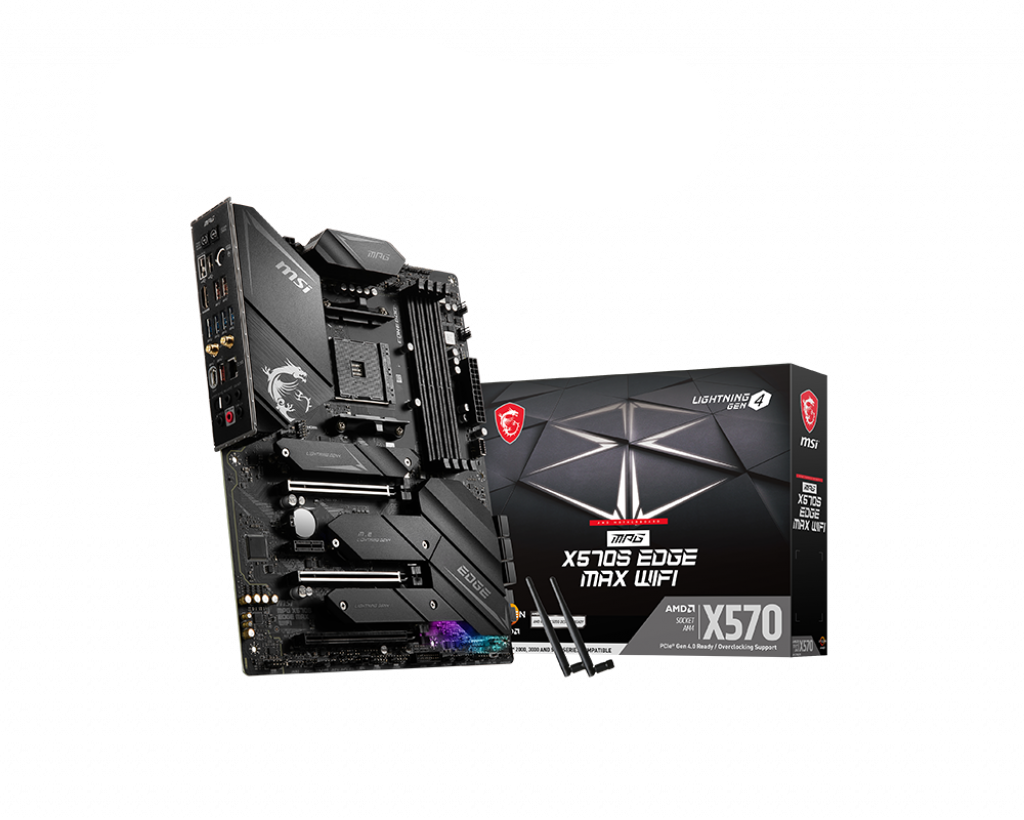

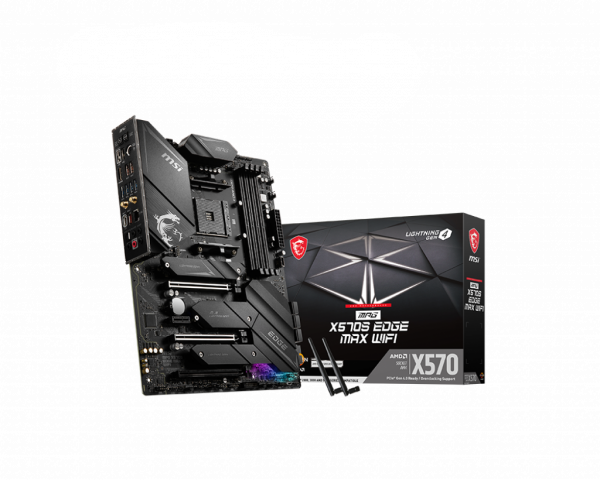

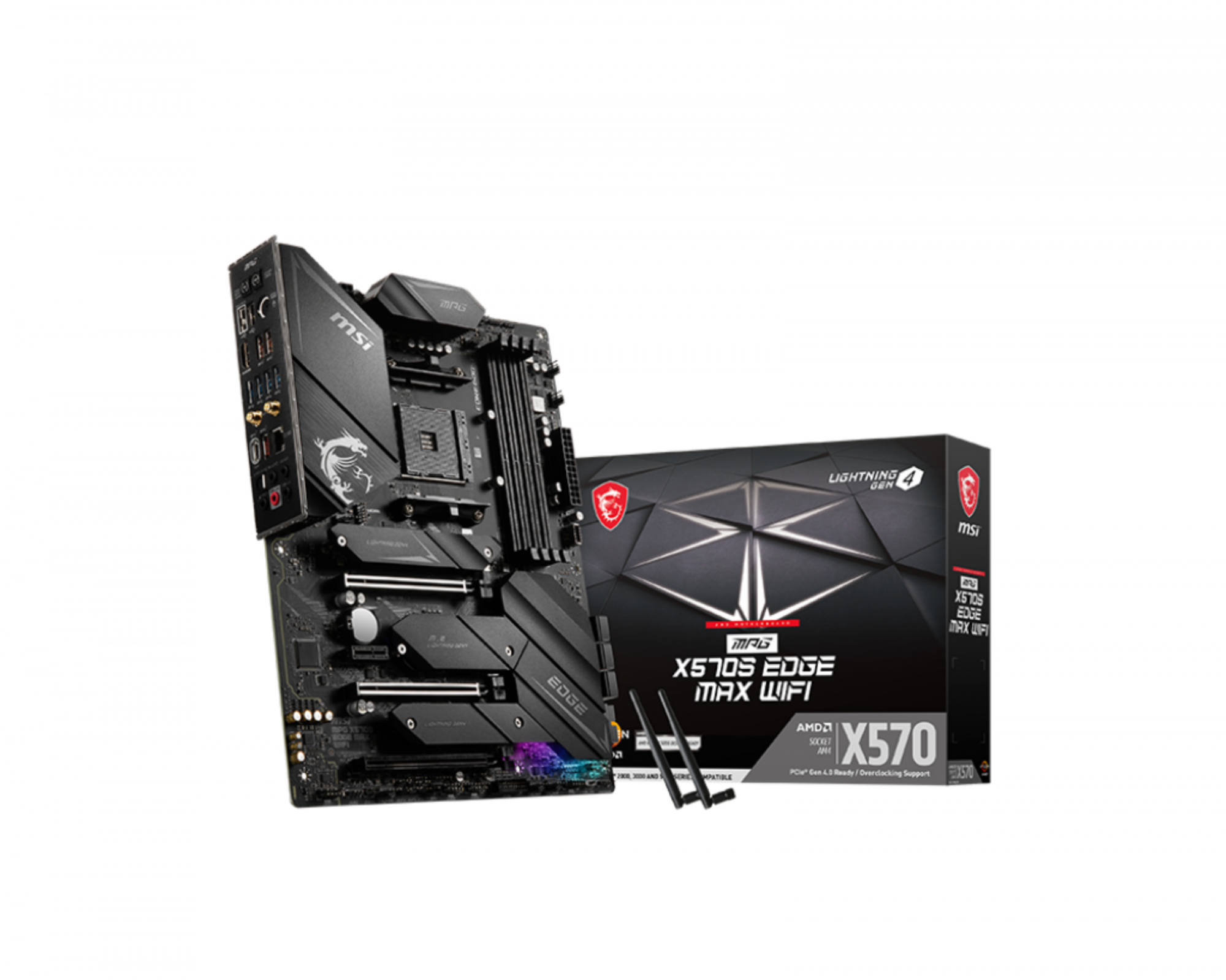

Packaging content

Cables included
SATA

Processor

Compatible processor series
AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen

Maximum number of SMP processors
1

Processor manufacturer
AMD

Processor socket
Socket AM4

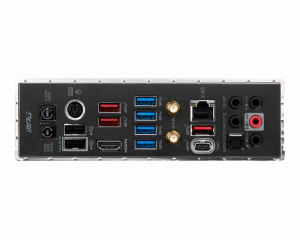

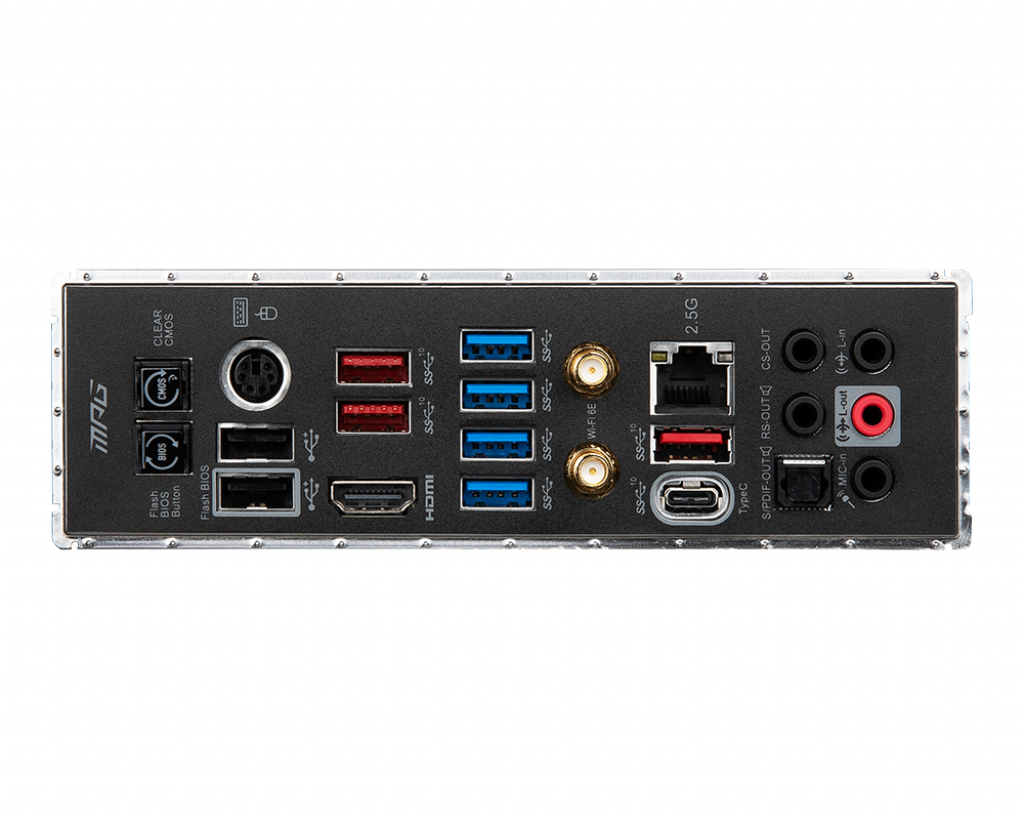

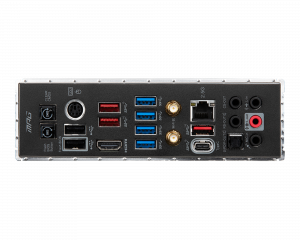

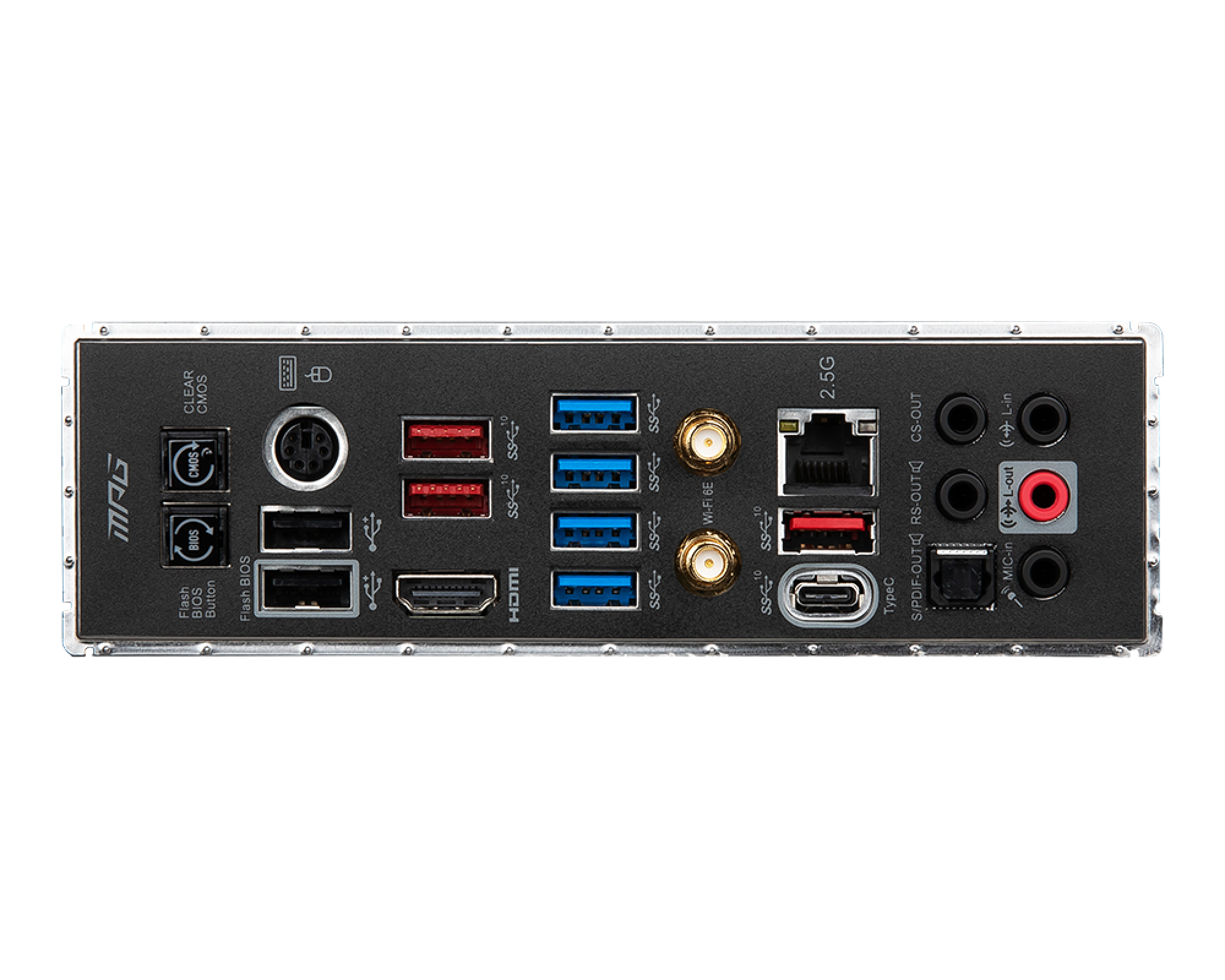

Rear panel I/O ports

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

PS/2 ports quantity
1

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

Storage controllers

RAID levels
0, 1, 10

RAID support
Y

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
HDD & SSD

Weight & dimensions

Depth
244 mm

Height
78 mm

Width
305 mm

MSI MPG X570S EDGE MAX WIFI motherboard AMD X570 Socket AM4 ATX
