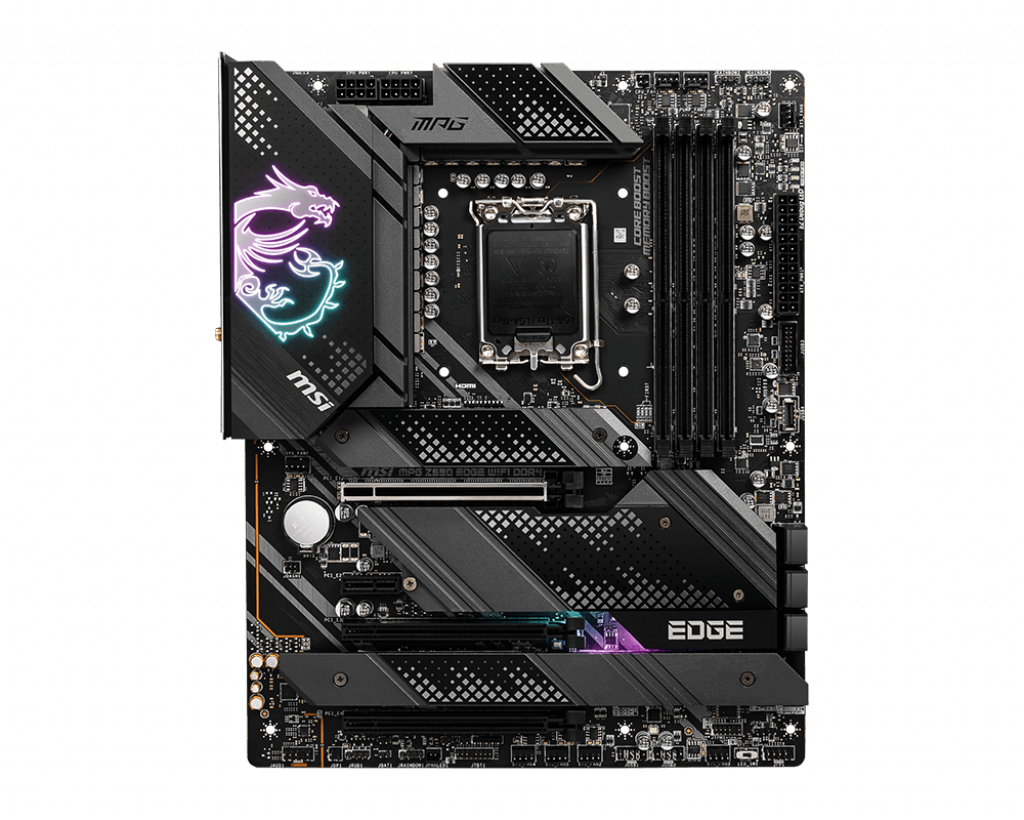

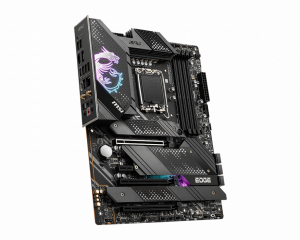

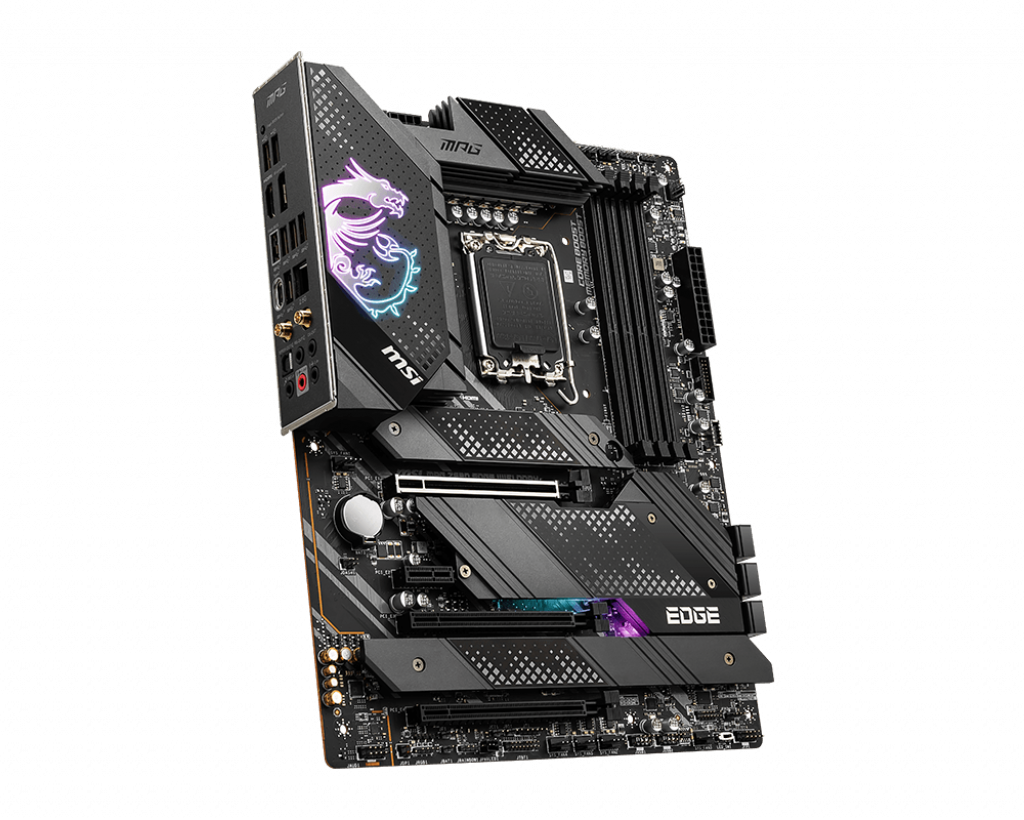

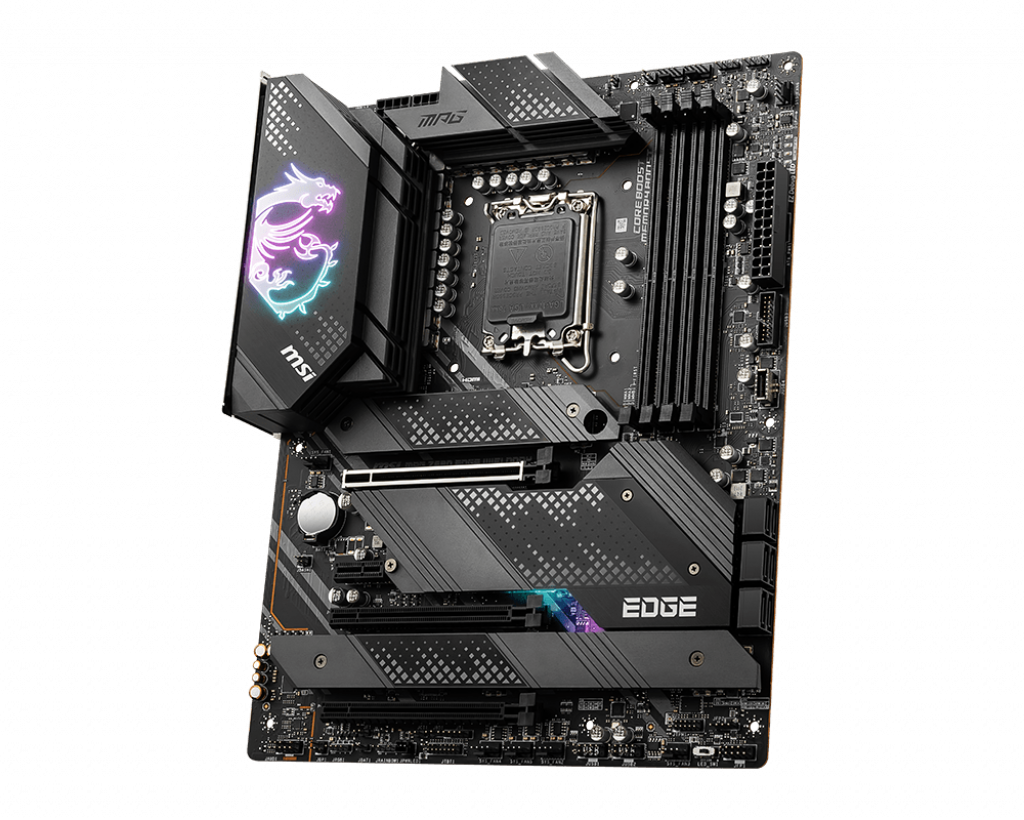

MSI MPG Z690 EDGE WIFI motherboard Intel Z690 LGA 1700 ATX
Roll over image to zoom inClick to Open expanded view
MSI MPG Z690 EDGE WIFI motherboard Intel Z690 LGA 1700 ATX
MSI MPG Z690 EDGE WIFI motherboard Intel Z690 LGA 1700 ATX
MSI MPG Z690 EDGE WIFI motherboard Intel Z690 LGA 1700 ATX
MSI MPG Z690 EDGE WIFI motherboard Intel Z690 LGA 1700 ATX
Print
Model: MPG Z690 EDGE WIFI
EAN: 4719072886561

MSI MPG Z690 EDGE WIFI motherboard Intel Z690 LGA 1700 ATX

Manufacturer:
MSI
MSI MPG Z690 EDGE WIFI, Intel, LGA 1700, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, DDR4-SDRAM, 128 GB, DIMM
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

MSI MPG Z690 EDGE WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
  • Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 5200+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB and RAINBOW(ARGB) LED strips and Ambient devices
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Core Boost Technology
Combining 2x 8-pin power connectors and premium layout design, that is ready for unleashing the maximum performance
Premium PCB Material
6 layer PCB with the use of server grade material and 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5
Isolated audio with high quality audio processor & amp for the most immersive gaming experience.

Product Properties

  • Manufacturer
  • MSI
  • Model
  • MPG Z690 EDGE WIFI
  • EAN
  • 4719072886561
  • Bullet points
  • Point
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution
    AUDIO BOOST 5
    Enhanced Power Design
    High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
    Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
    Mystic Light
    Pre-installed I/O Shield: Better EMI protection and more convenience for installation
    Premium Thermal Solution
    Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
    Supports DDR4 Memory, up to 5200+(OC) MHz
  • Expansion slots
  • Number of M.2 (M) slots
  • 4
  • PCI Express x1 slots
  • 1
  • PCI Express x16 slots
  • 3
  • Features
  • Audio output channels
  • 5.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Harmonized System (HS) code
  • 84733020
  • Motherboard chipset
  • Intel Z690
  • Motherboard form factor
  • ATX
  • Windows operating systems supported
  • Windows 10, Windows 11
  • Graphics
  • Parallel processing technology support
  • Crossfire
  • Internal I/O
  • Number of SATA III connectors
  • 6
  • TPM connector
  • Y
  • USB 2.0 connectors
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 4
  • USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 2
  • Memory
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speeds
  • 2133,2400,2666,2933,3300,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200 MHz
  • Supported memory types
  • DDR4-SDRAM
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Y
  • LAN controller
  • Intel I225-V
  • Top Wi-Fi standard
  • Wi-Fi 6E (802.11ax)
  • Wi-Fi
  • Y
  • Wi-Fi standards
  • 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Other features
  • Weight
  • 1 kg
  • Processor
  • Compatible processor series
  • Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700

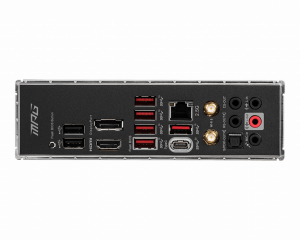

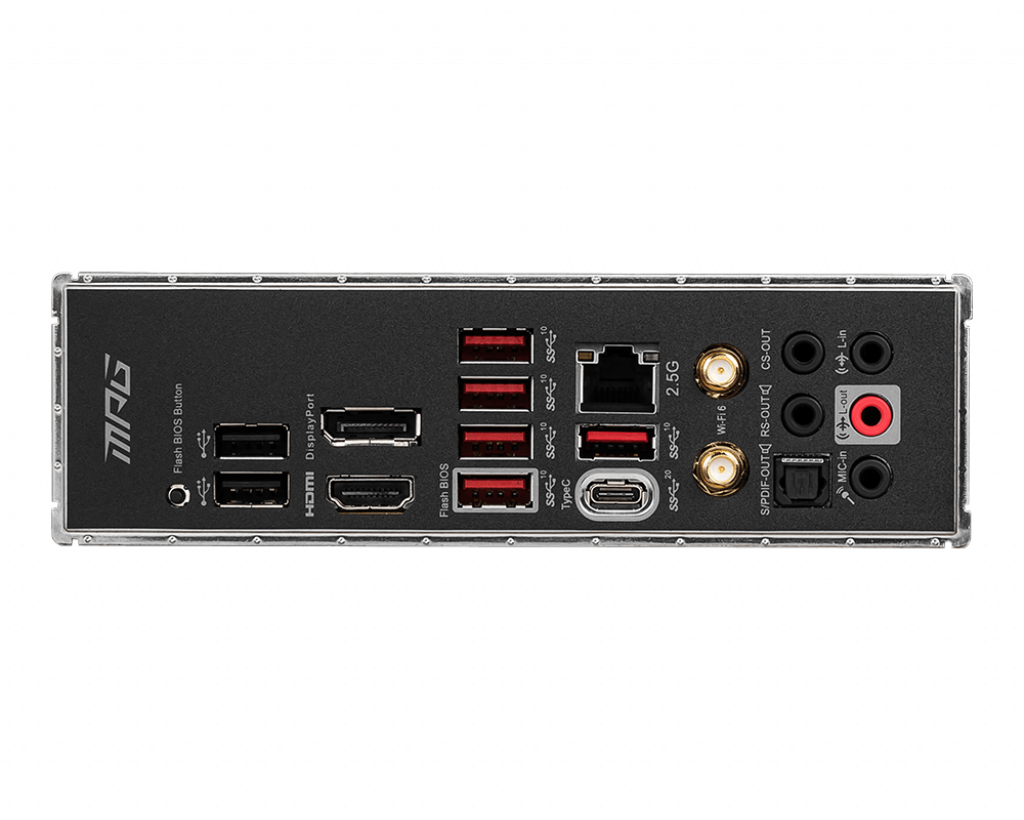

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • USB 2.0 ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 2
  • Storage controllers
  • Supported storage drive interfaces
  • M.2, SATA
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 65 mm
  • Width
  • 305 mm
