Description

MSI PRO B660-A DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Supported memory clock speeds: 2133,2666,3200,3600,4800 MHz. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Lightning Fast Experience: PCIe 4.0 slots, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Turbo USB 3.2 Gen 2: Powered by USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
High Quality PCB: 6-layer PCB made by 2oz thickened copper level material
Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
Audio Boost: Reward your ears with studio grade sound quality

Core Boost Technology

Combining 1 x 8 + 1 x 4 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

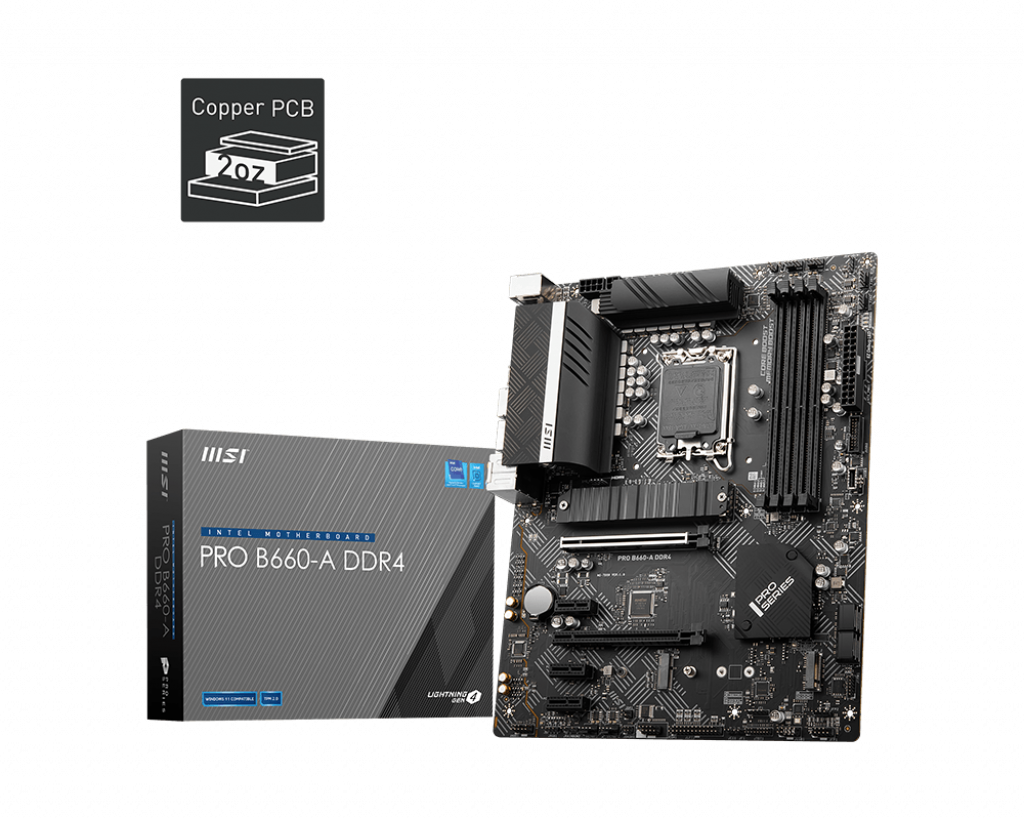

6 layer PCB with 2oz Thickened Copper

6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Digital PWM

12 Duet Rail CPU Power System with high quality digital power IC design for multi-core CPU.

Product Properties

Manufacturer
MSI

Model
PRO B660-A DDR4

EAN
4719072912451

BIOS

BIOS type
UEFI AMI

Clear CMOS jumper
Yes

Bullet points

Point
2.5G LAN

Audio Boost: Reward your ears with studio grade sound quality

High Quality PCB: 6-layer PCB made by 2oz thickened copper level material

Lightning Fast Experience: PCIe 4.0 slots, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™

Premium Thermal Solution

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, up to 4800+(OC) MHz

Turbo USB 3.2 Gen 2

Expansion slots

PCI Express x1 (Gen 3.x) slots
1

Features

Audio chip
Realtek ALC897

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B660

Motherboard form factor
ATX

Graphics

Parallel processing technology support
Crossfire

Internal I/O

12V power connector
Yes

ATX Power connector (24-pin)
Yes

CPU fan connector
Yes

Front panel connector
Yes

Number of SATA III connectors
4

TPM connector
Yes

USB 2.0 connectors
1

USB 3.2 Gen 1 (3.1 Gen 1) connectors
2

Logistics data

Harmonized System (HS) code
84733020

Memory

Memory Slot Support
128 GB

Non-ECC
No

Number of memory slots
4

Supported memory clock speeds
2133,2666,3200,3600,4800 MHz

Supported memory types
DDR4-SDRAM

Network

Bluetooth
No

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Wi-Fi
No

Other features

Weight
1 kg

Packaging content

Cables included
SATA

Drivers included
Yes

Processor

Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold

Processor manufacturer
Intel

Processor socket
LGA 1700

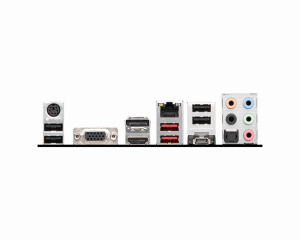

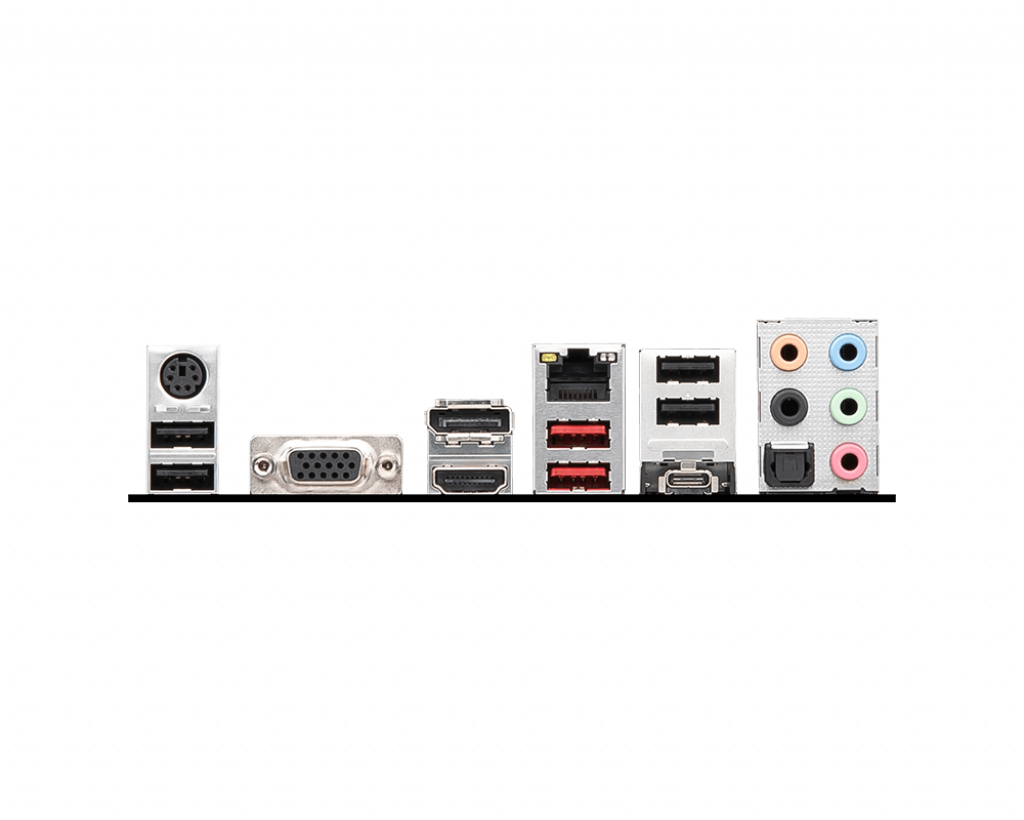

Rear panel I/O ports

DisplayPort version
1.4

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
1.2

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1

VGA (D-Sub) ports quantity
2

Storage controllers

RAID levels
0, 1, 5, 10

RAID support
Yes

Supported storage drive interfaces
M.2, SATA III

Supported storage drive types
SSD

Weight & dimensions

Depth
244 mm

Height
73 mm

Width
305 mm

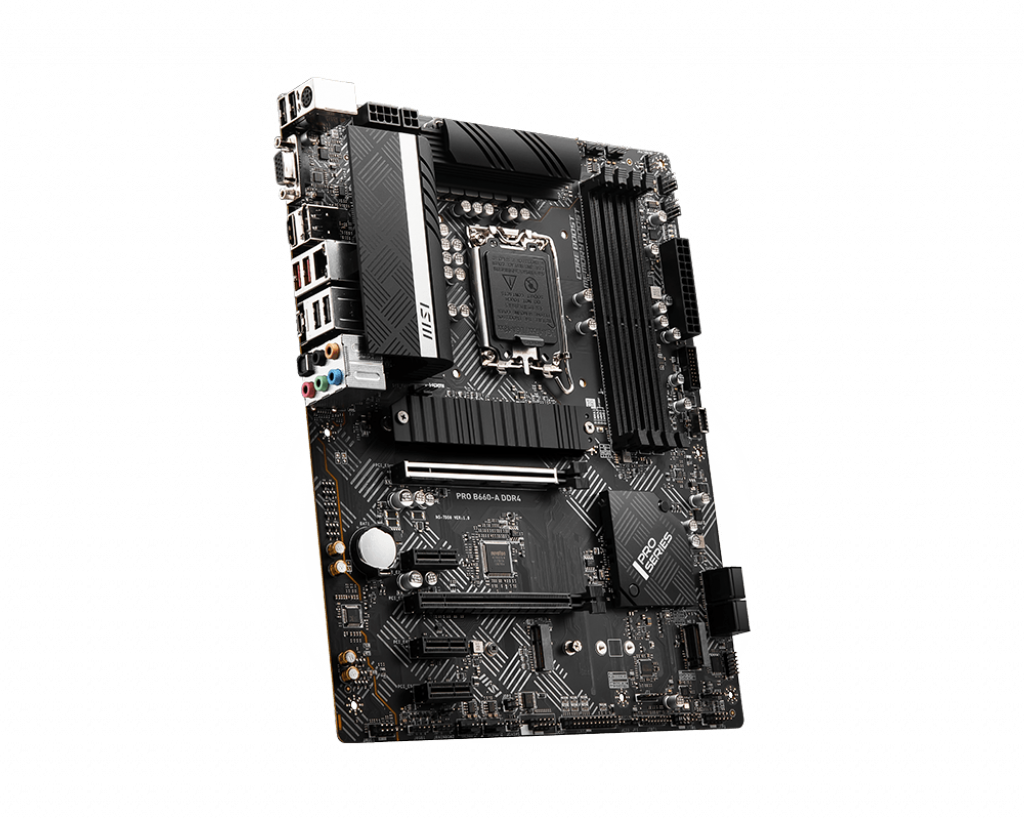

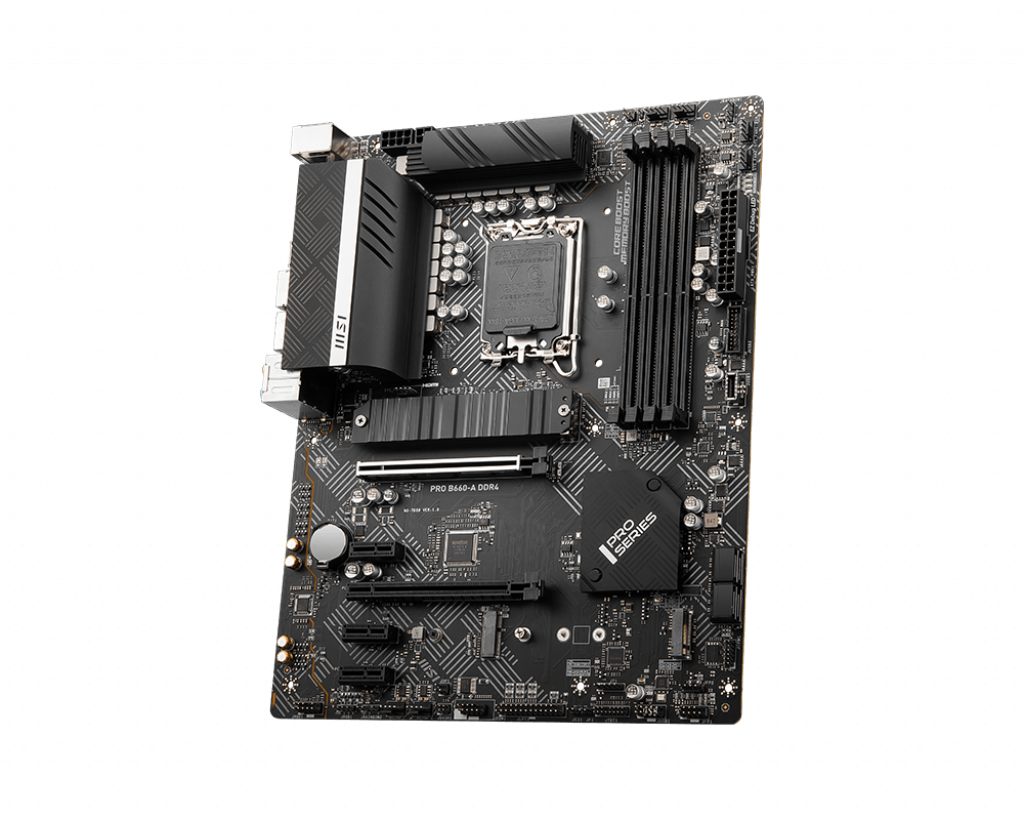

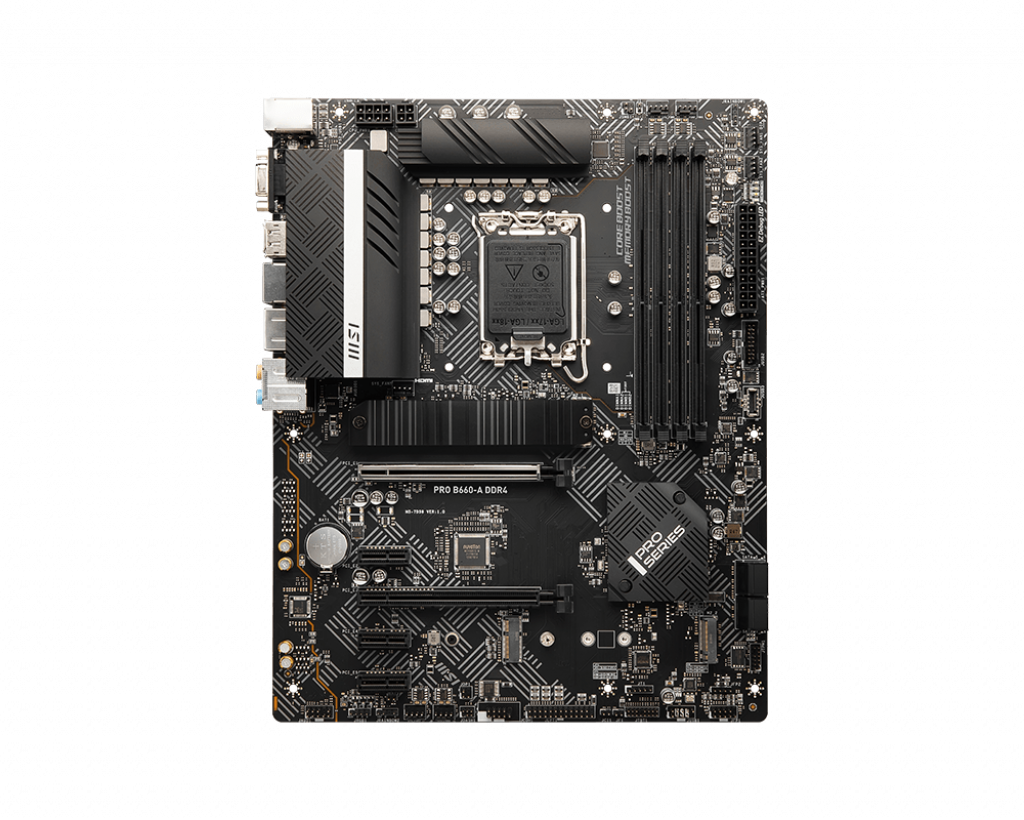

MSI PRO B660-A DDR4 motherboard Intel B660 LGA 1700 ATX
