Description

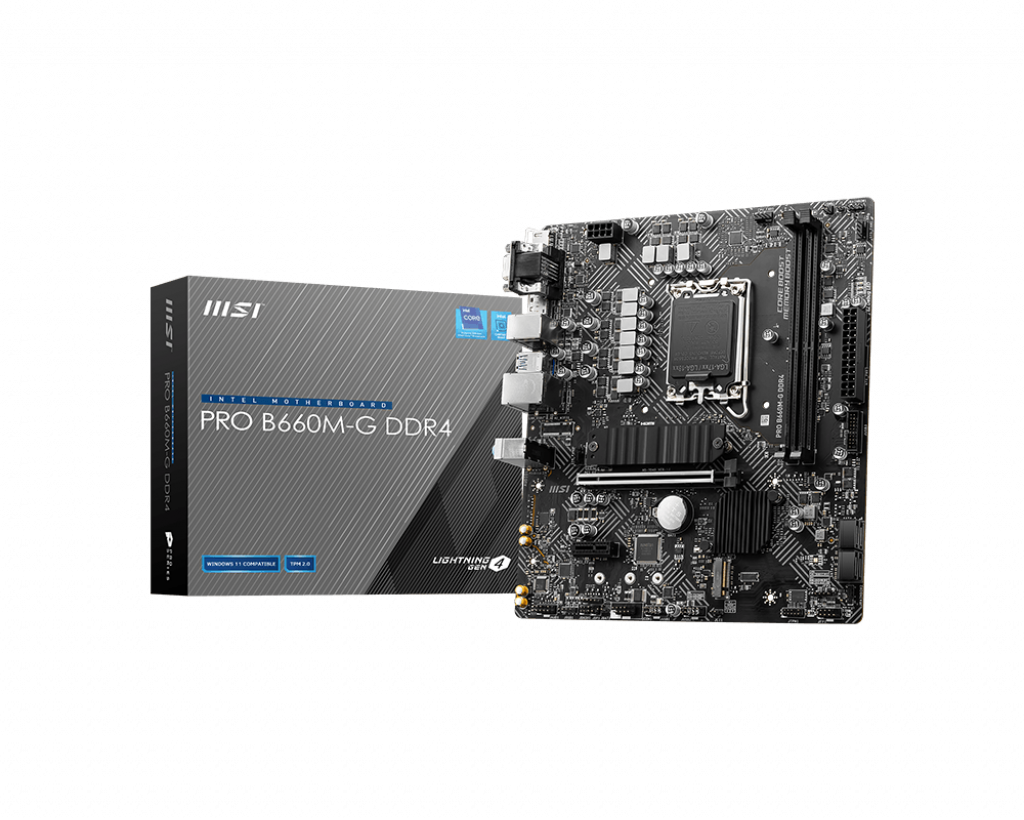

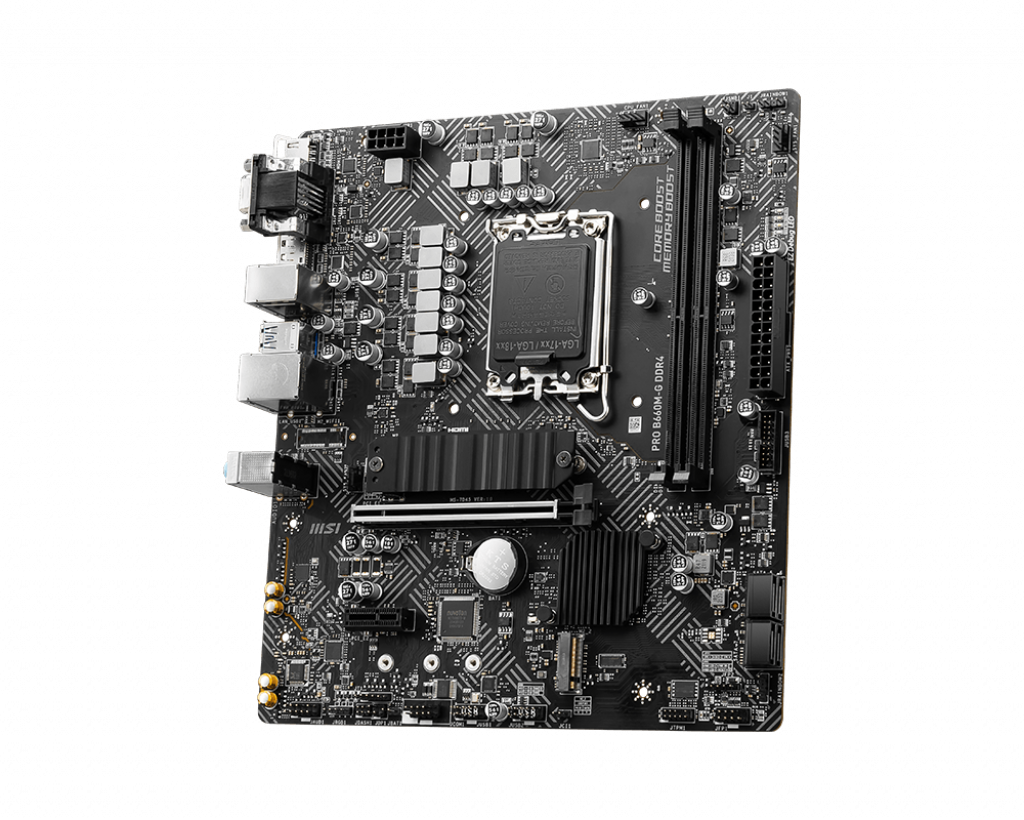

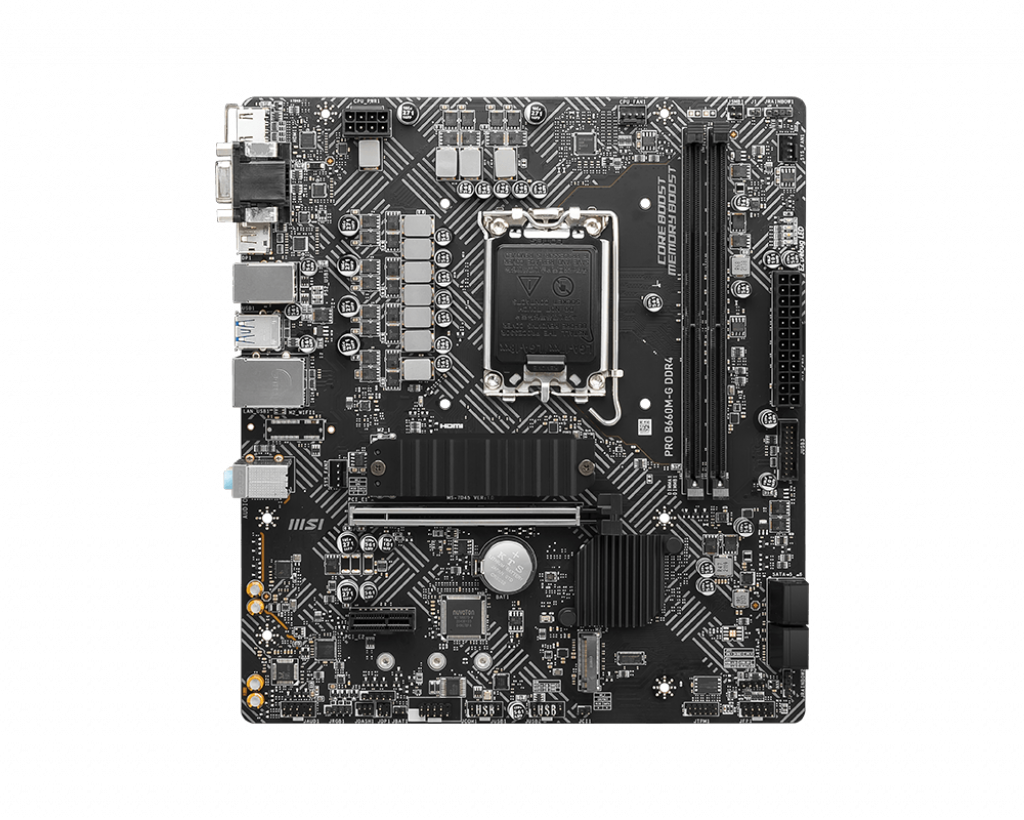

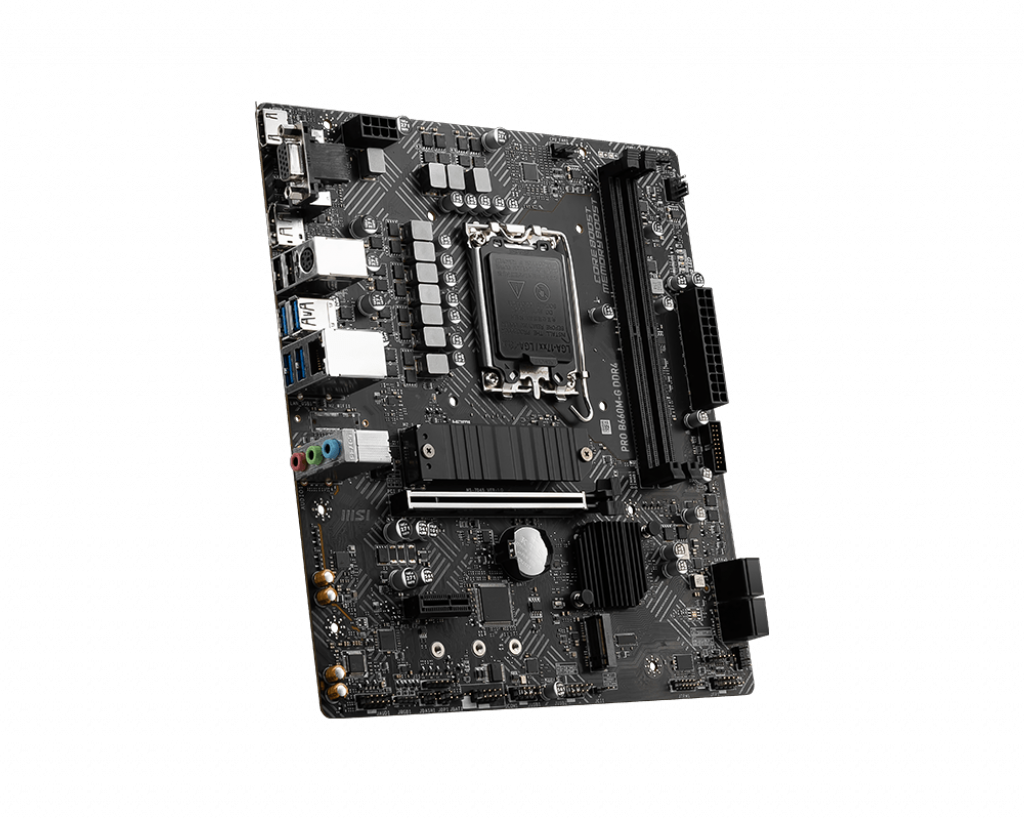

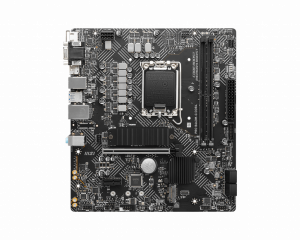

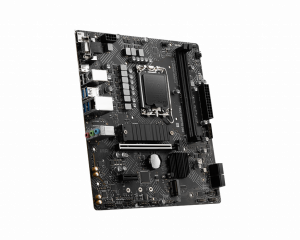

MSI PRO B660M-G DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, PCI Express 4.0, Supported storage drive types: SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4600+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

4K & Legacy Video Support

Featuring HDMI, DisplayPort and VGA port, supports both digital and legacy display.

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager delivers better network experience.

M.2 Shield Frozr

Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Product Properties

Manufacturer
MSI

Model
PRO B660M-G DDR4

EAN
4719072912475

BIOS

BIOS memory size
256 Mbit

BIOS type
UEFI AMI

Clear CMOS jumper
Yes

System Management BIOS (SMBIOS) version
3.4

Bullet points

Point
2.5G LAN

Audio Boost: Reward your ears with studio grade sound quality

Core Boost

Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

Memory Boost

Steel Armor

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket

Supports DDR4 Memory, up to 4600+(OC) MHz

Features

Audio chip
Realtek ALC897

Audio output channels
7.1 channels

Chip Set
Intel

Component for
PC

Motherboard chipset
Intel B660

Motherboard form factor
micro ATX

Graphics

Parallel processing technology support
Not supported

Internal I/O

ATX Power connector (24-pin)
Yes

Audio connector
Yes

CPU fan connector
Yes

Front panel audio connector
Yes

Front panel connector
Yes

Number of chassis fan connectors
1

Number of SATA III connectors
4

Serial port headers
1

TPM connector
Yes

USB 2.0 connectors
2

USB 3.2 Gen 1 (3.1 Gen 1) connectors
1

Logistics data

Harmonized System (HS) code
84733020

Memory

Memory channels
Dual-channel

Memory Slot Support
64 GB

Memory slots type
DIMM

Non-ECC
Yes

Number of memory slots
2

Supported memory clock speeds
2133,2666,2933,3200,4000,4600 MHz

Supported memory types
DDR4-SDRAM

Network

Ethernet interface type
2.5 Gigabit Ethernet

Ethernet LAN
Yes

Wi-Fi
No

Other features

Weight
764 g

Packaging content

Cables included
SATA

Drivers included
Yes

Processor

Compatible processor series
Intel® Core™ i9

Maximum number of SMP processors
1

Processor manufacturer
Intel

Processor socket
LGA 1700

Supported processor sockets
LGA 1700

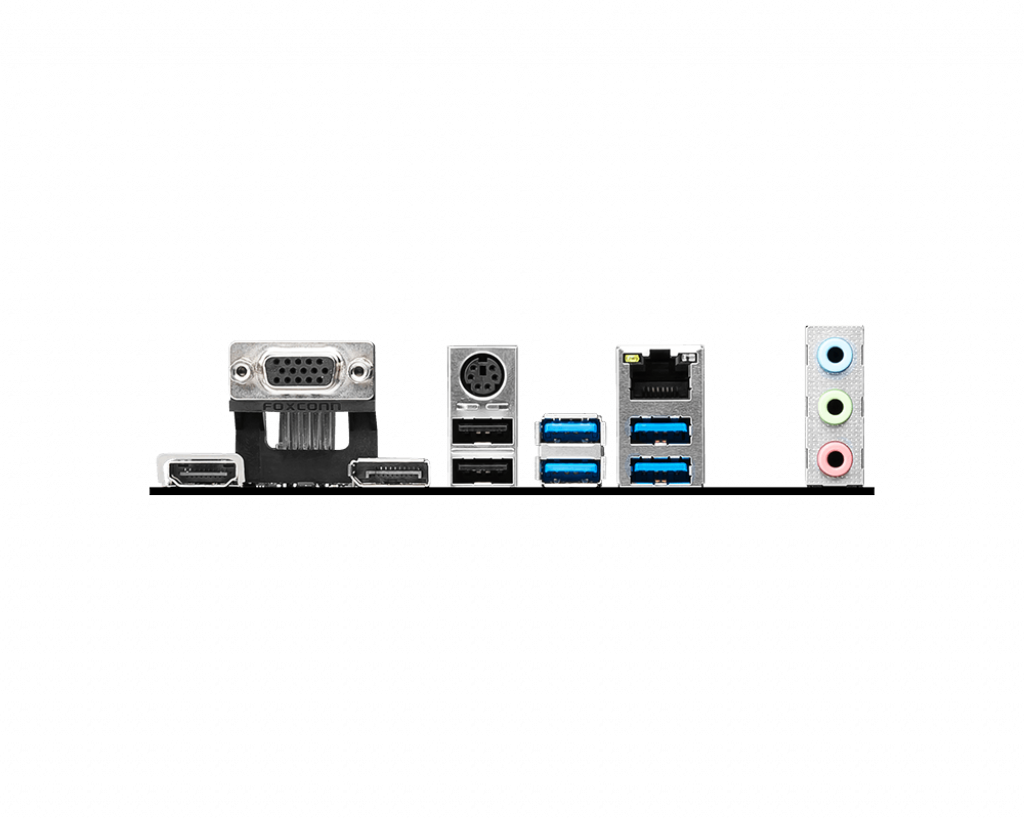

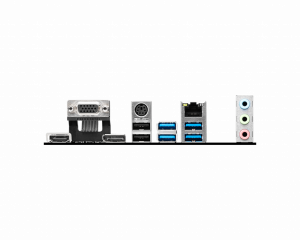

Rear panel I/O ports

DisplayPort version
1.4

DisplayPorts quantity
1

Ethernet LAN (RJ-45) ports
1

HDMI ports quantity
1

HDMI version
2.1

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

VGA (D-Sub) ports quantity
1

Storage controllers

Supported storage drive interfaces
PCI Express 3.0, PCI Express 4.0

Supported storage drive types
SSD

Weight & dimensions

Depth
220 mm

Height
65 mm

Width
244 mm

MSI PRO B660M-G DDR4 motherboard Intel B660 LGA 1700 micro ATX
