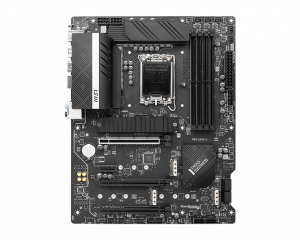

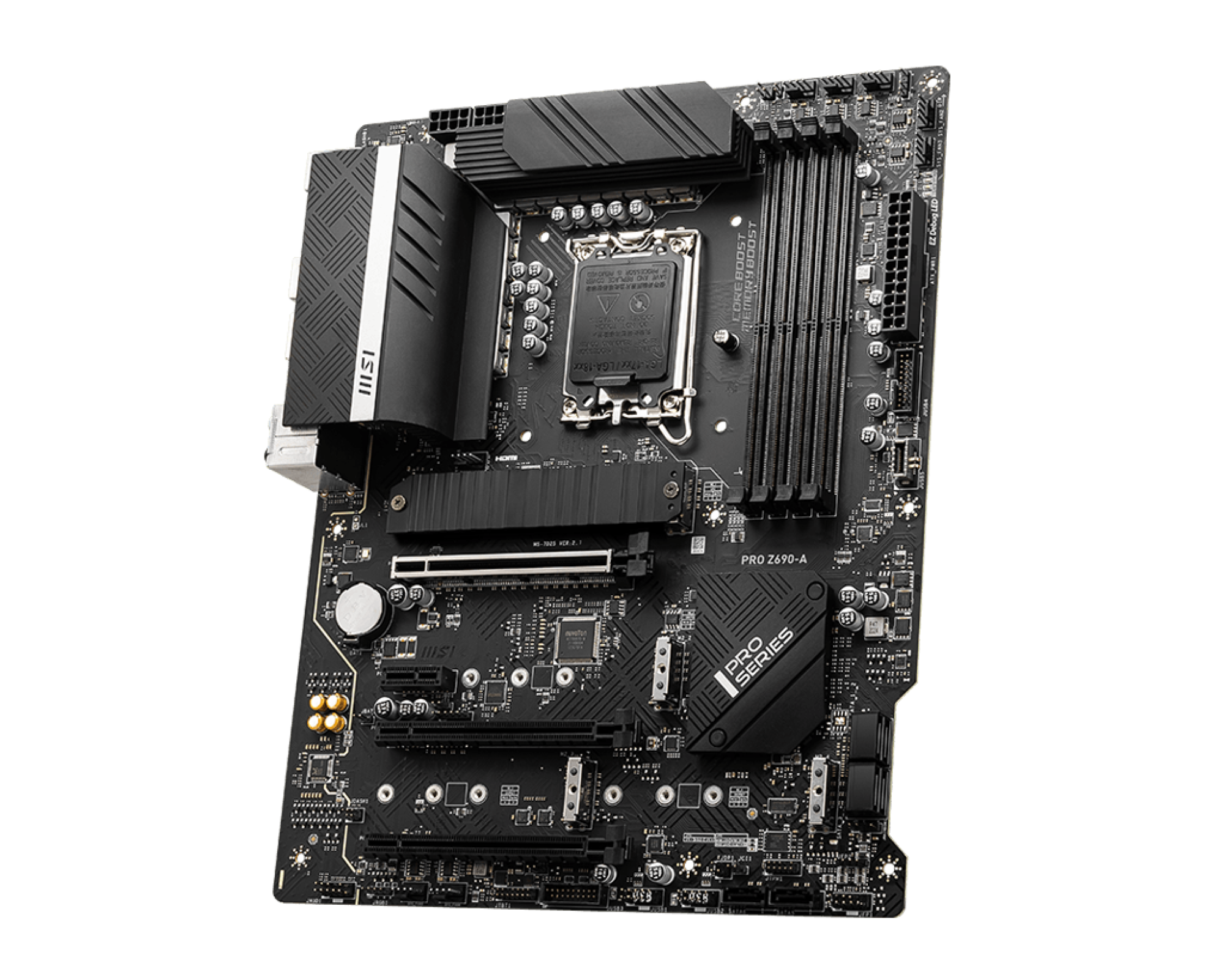

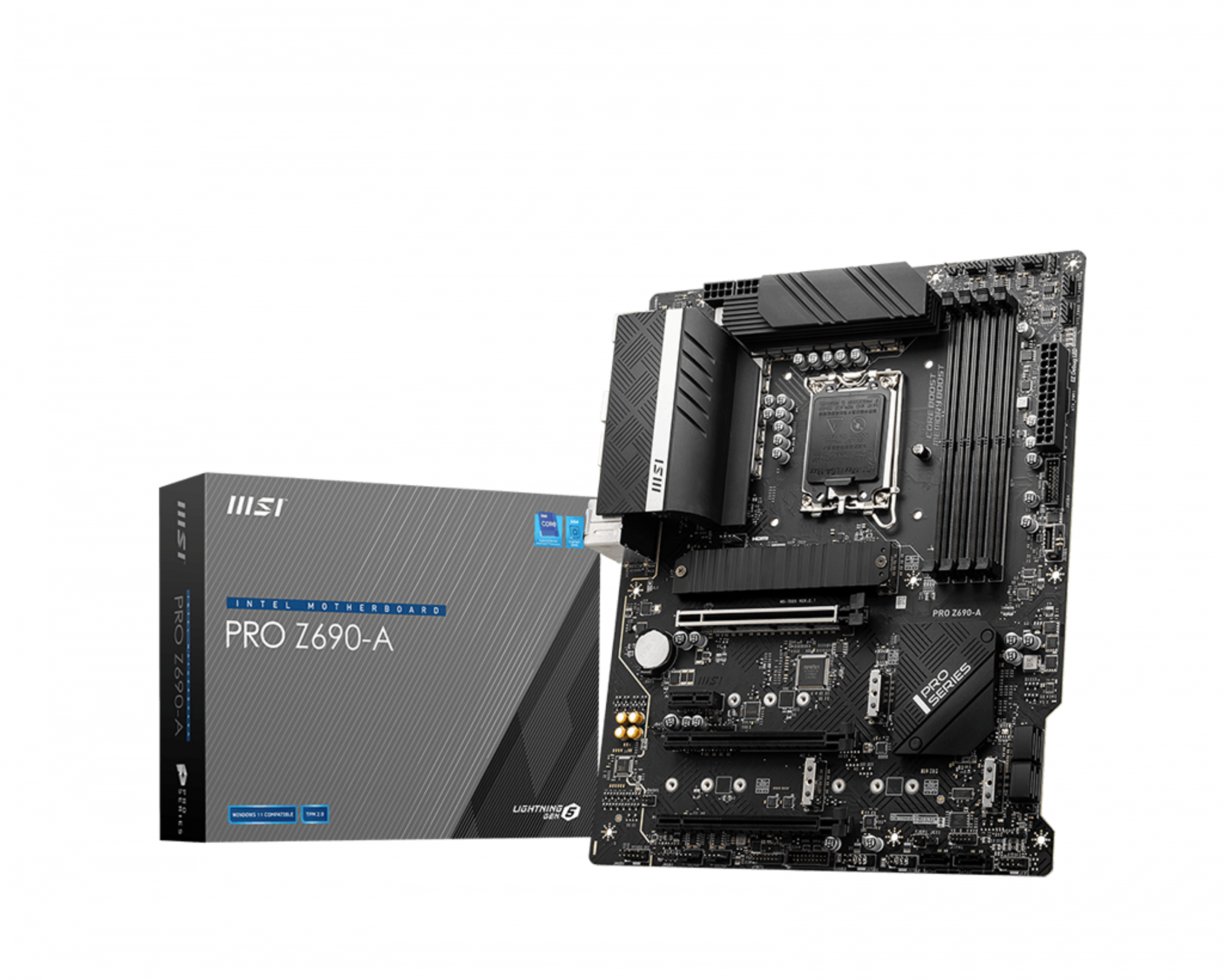

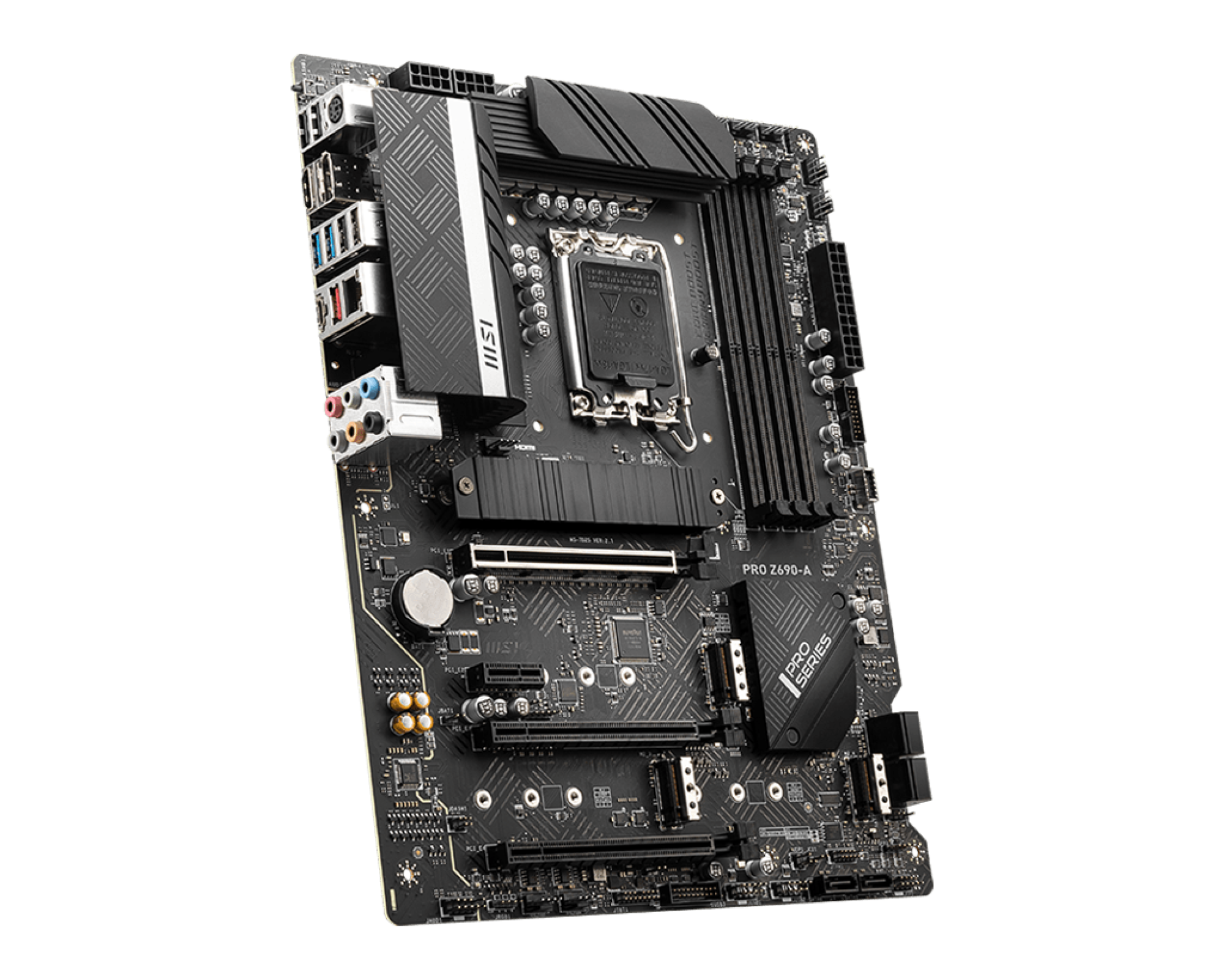

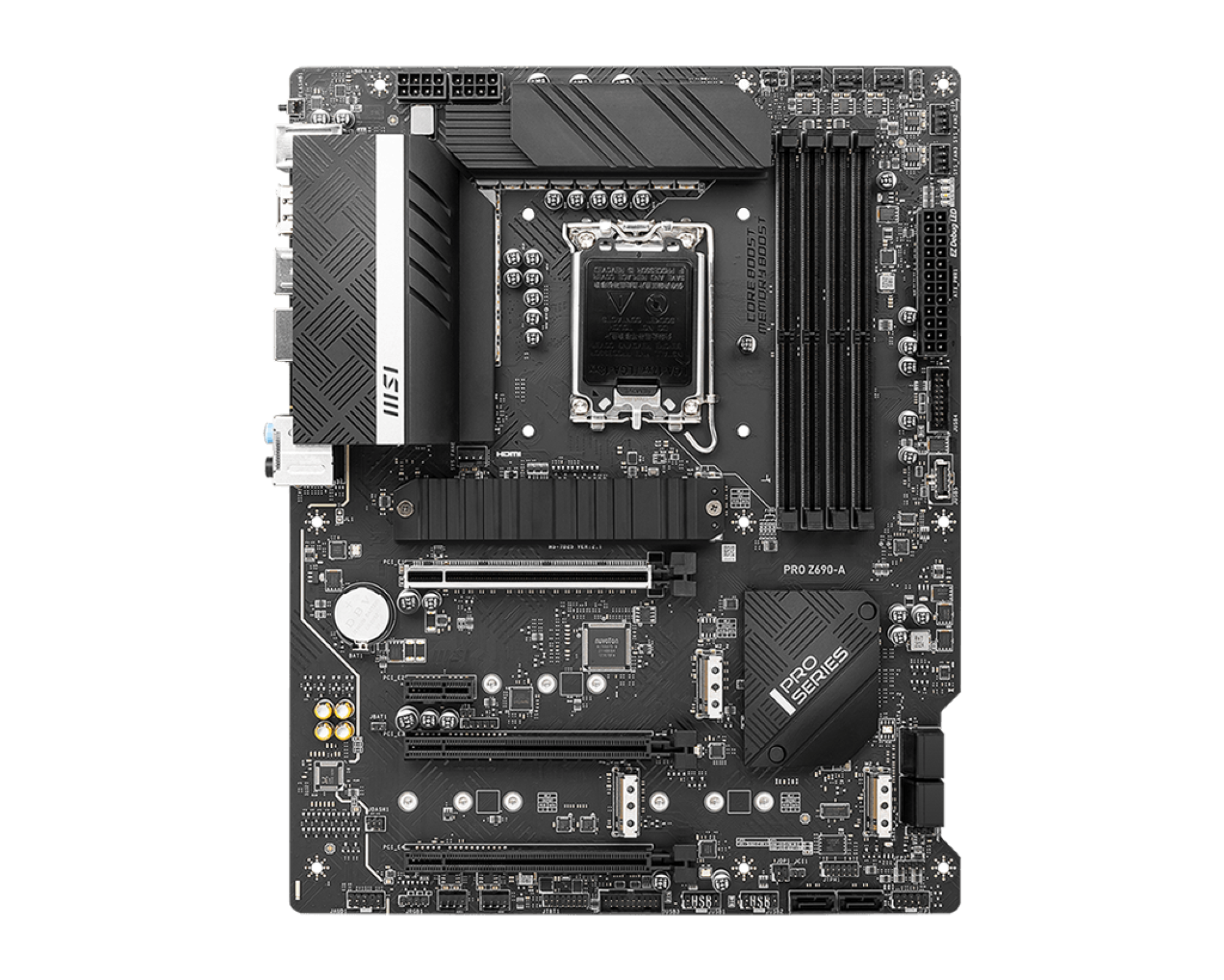

MSI PRO Z690-A motherboard Intel Z690 LGA 1700 ATX
Roll over image to zoom inClick to Open expanded view
MSI PRO Z690-A motherboard Intel Z690 LGA 1700 ATX
MSI PRO Z690-A motherboard Intel Z690 LGA 1700 ATX
MSI PRO Z690-A motherboard Intel Z690 LGA 1700 ATX
MSI PRO Z690-A motherboard Intel Z690 LGA 1700 ATX
MSI PRO Z690-A motherboard Intel Z690 LGA 1700 ATX
Print
Model: PRO Z690-A
EAN: 4719072886608

MSI PRO Z690-A motherboard Intel Z690 LGA 1700 ATX

Manufacturer:
MSI
MSI PRO Z690-A, Intel, LGA 1700, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, DDR5-SDRAM, 128 GB, DIMM
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

MSI PRO Z690-A. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Crossfire. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-V
  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • Audio Boost: Reward your ears with studio grade sound quality
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
Core Boost Technology
Combining 2x 8 pin power connectors and premium layout design, that is ready for unleashing the maximum performance.

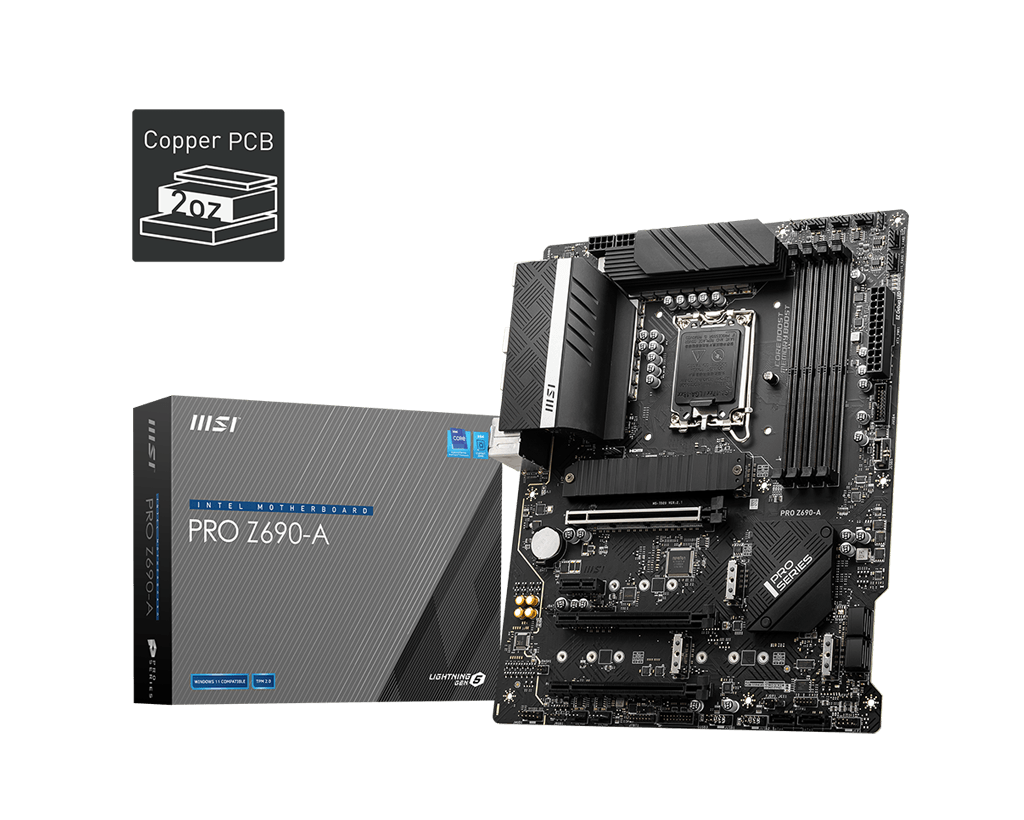

6 layer PCB with 2oz Thickened Copper
6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
Digital PWM
Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.

Product Properties

  • Manufacturer
  • MSI
  • Model
  • PRO Z690-A
  • EAN
  • 4719072886608
  • BIOS
  • BIOS type
  • UEFI AMI
  • Bullet points
  • Point
  • 2.5G LAN
    Audio Boost: Reward your ears with studio grade sound quality
    High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
    Intel Turbo USB 3.2 Gen 2
    Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
    Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
    Premium Thermal Solution
    Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
    Supports DDR5 Memory, up to 6400+(OC) MHz
  • Expansion slots
  • Number of M.2 (M) slots
  • 4
  • PCI Express x1 slots
  • 1
  • PCI Express x16 slots
  • 3
  • Features
  • Audio output channels
  • 5.1 channels
  • Chip Set
  • Intel
  • Component for
  • PC
  • Harmonized System (HS) code
  • 84733020
  • Motherboard chipset
  • Intel Z690
  • Motherboard form factor
  • ATX
  • Windows operating systems supported
  • Windows 10, Windows 11
  • Graphics
  • Parallel processing technology support
  • Crossfire
  • Internal I/O
  • Number of SATA III connectors
  • 6
  • TPM connector
  • Y
  • USB 2.0 connectors
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 4
  • Memory
  • Memory channels
  • Dual-channel
  • Memory Slot Support
  • 128 GB
  • Memory slots type
  • DIMM
  • Number of memory slots
  • 4
  • Supported memory clock speeds
  • 2133,2400,2666,2933,3300,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200 MHz
  • Supported memory types
  • DDR5-SDRAM
  • Network
  • Ethernet interface type
  • 2.5 Gigabit Ethernet
  • Ethernet LAN
  • Y
  • LAN controller
  • Intel I225-V
  • Wi-Fi
  • N
  • Other features
  • Weight
  • 1 kg
  • Processor
  • Compatible processor series
  • Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
  • Processor manufacturer
  • Intel
  • Processor socket
  • LGA 1700

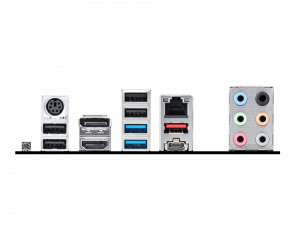

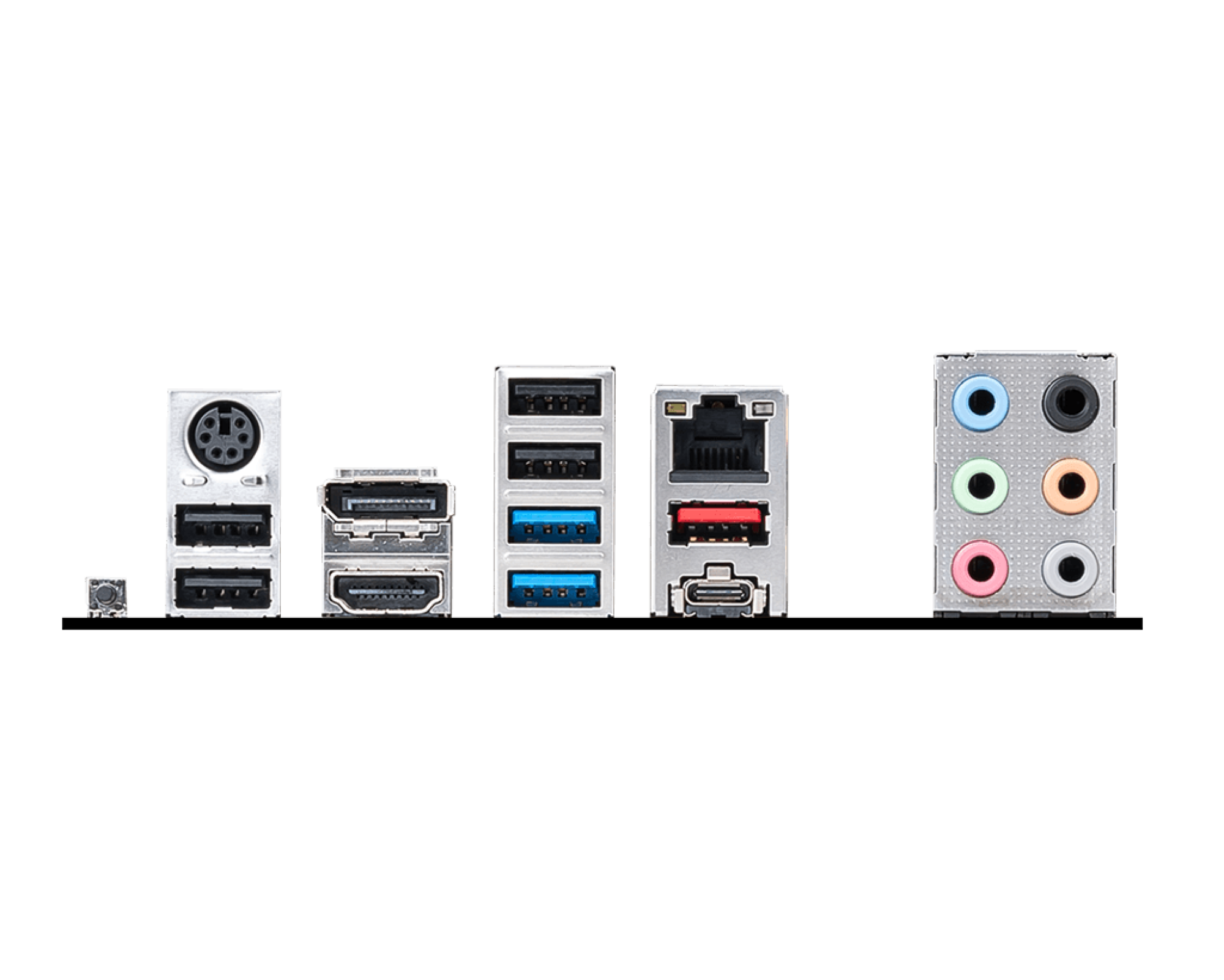

  • Rear panel I/O ports
  • DisplayPorts quantity
  • 1
  • Ethernet LAN (RJ-45) ports
  • 1
  • HDMI ports quantity
  • 1
  • USB 2.0 ports quantity
  • 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
  • USB 3.2 Gen 2x2 Type-C ports quantity
  • 1
  • Storage controllers
  • RAID levels
  • 0, 1, 5, 10
  • Supported storage drive interfaces
  • M.2, SATA
  • Weight & dimensions
  • Depth
  • 244 mm
  • Height
  • 65 mm
  • Width
  • 305 mm
