Description

MSI VENTUS RTX 3060 TI 2X 8G OC V1 LHR. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)

This GeForce RTX 3060 Ti graphics card with LHR (lite hash rate) delivers 25 MH/s ETH hash rate (est.)
1695 MHz / 14 Gbps
8GB GDDR6

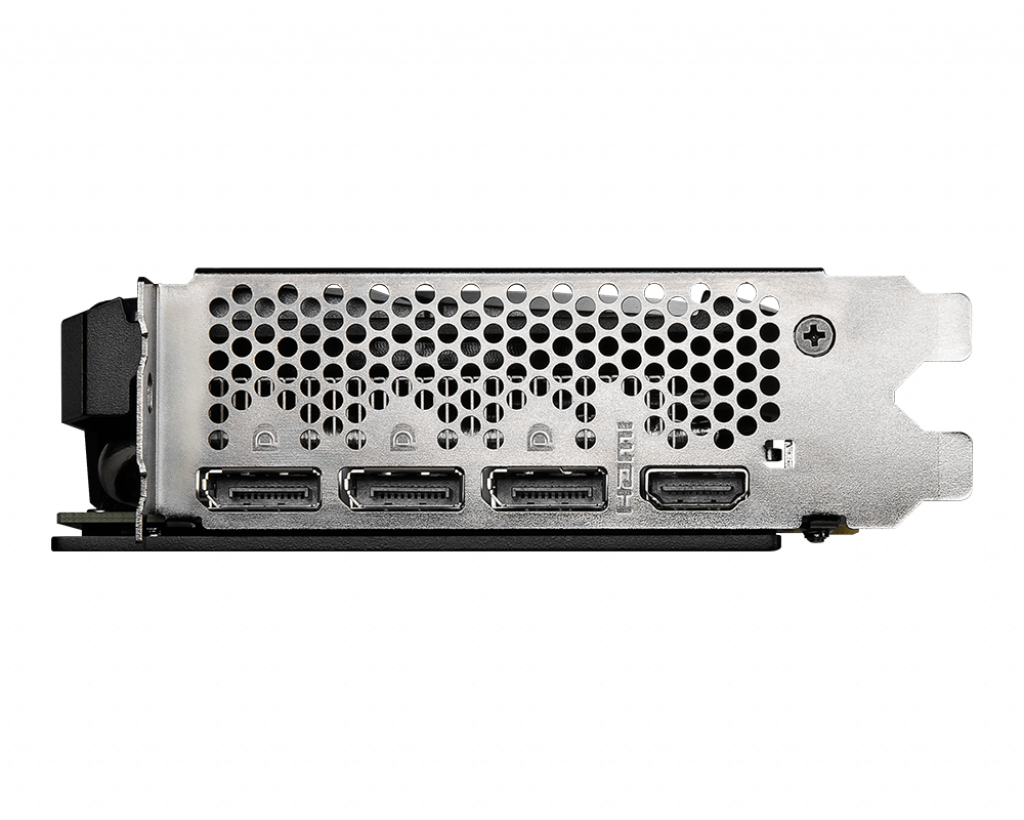

DisplayPort x 3
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance
Supports multi-GPU setups
OC Scanner: An automated function finds the highest stable overclock settings
On Screen Display: Provides real-time information of your system's performance
Predator: In-game video recording
The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time

Product Properties

Manufacturer
MSI

Model
RTX 3060TIVENT2X8G

EAN
4719072852061

Bullet points

Point
1695 MHz / 14 Gbps

8GB GDDR6

DisplayPort x 3

HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

OC Scanner: An automated function finds the highest stable overclock settings

On Screen Display: Provides real-time information of your system's performance

Predator: In-game video recording

Supports multi-GPU setups

The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time

TORX Fan 3.0

Design

Bracket height
Full-Height (FH)

Cooling technology
MSI TORX Fan 3.0

Cooling type
Active

Form factor
Full-Height/Full-Length (FH/FL)

Number of fans
2 fan(s)

Number of slots
2

Product colour
Grey

Logistics data

Harmonized System (HS) code
84733020

Memory

Data transfer rate
14 Gbit/s

Discrete graphics card memory
8 GB

Graphics card memory type
GDDR6

Memory bus
256 bit

Packaging data

Package type
Box

Performance

DirectX version
12.0

Dual Link DVI
No

HDCP
Yes

OpenGL version
4.6

TV tuner integrated
No

Virtual Reality (VR) ready
Yes

Ports & interfaces

DisplayPort version
1.4a

DisplayPorts quantity
3

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Power

Minimum system power supply
650 W

Power consumption (typical)
200 W

Supplementary power connectors
1x 8-pin

Processor

CUDA
Yes

CUDA cores
4864

Graphics processor
GeForce RTX 3060 Ti

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
1695 MHz

Weight & dimensions

Depth
235 mm

Height
124 mm

Weight
685 g

Width
42 mm

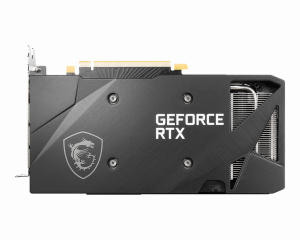

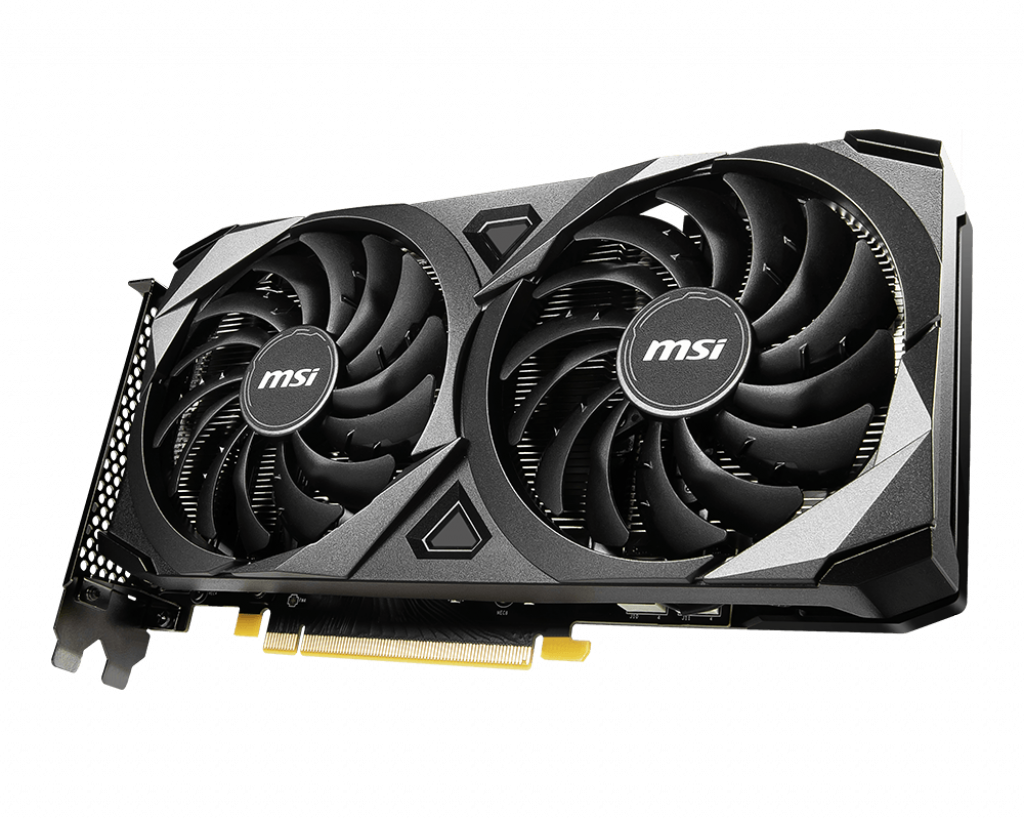

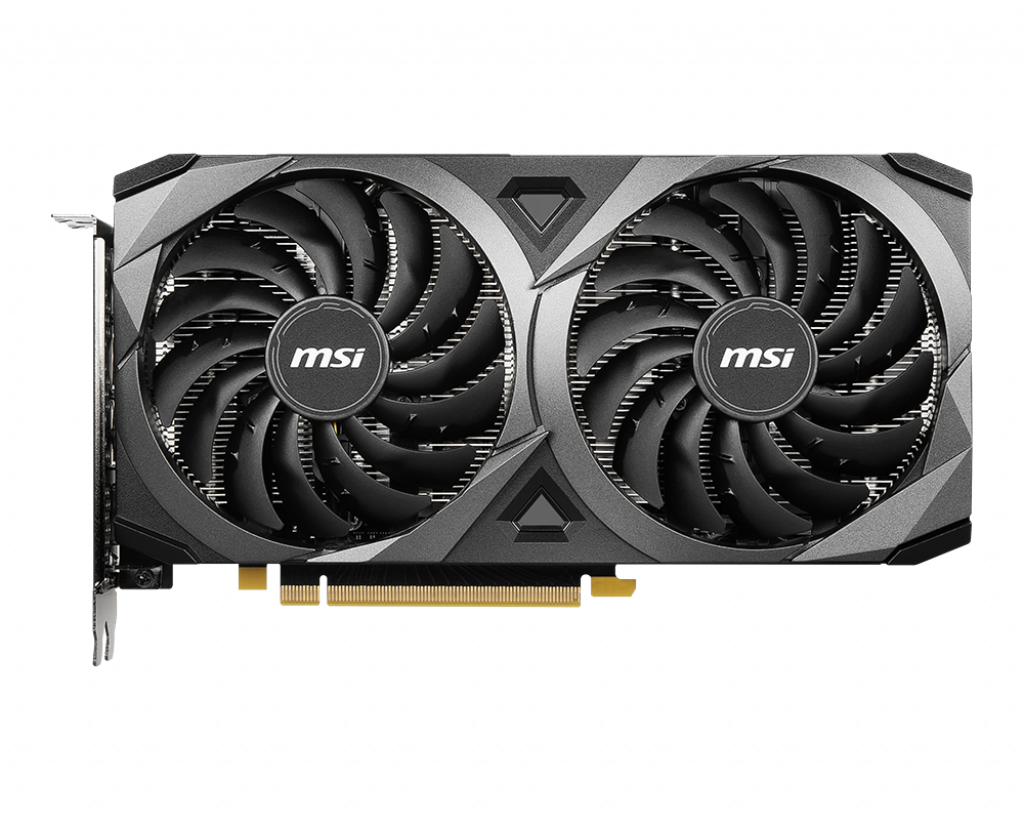

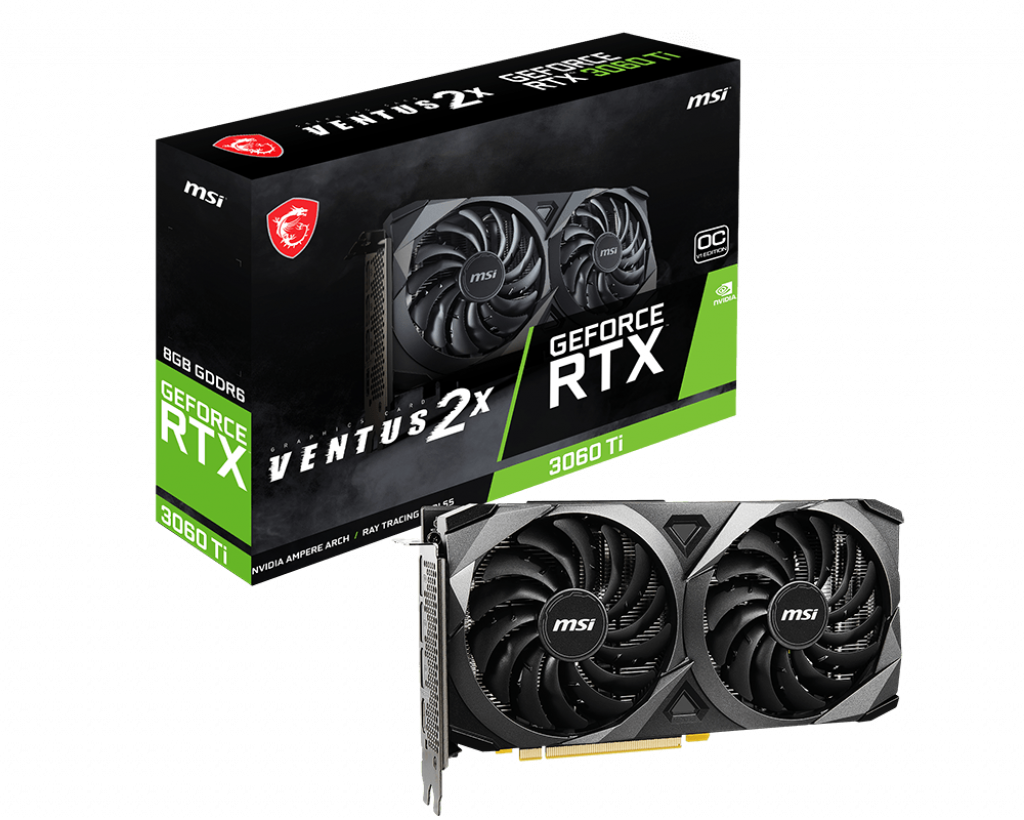

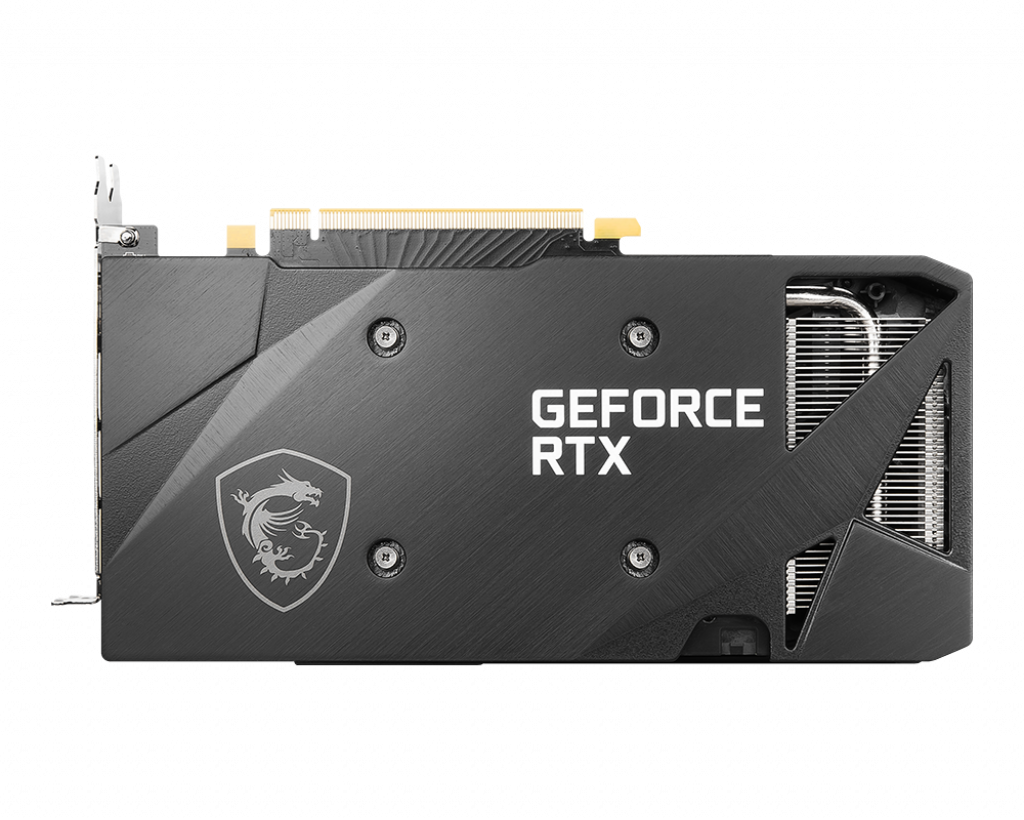

MSI VENTUS RTX 3060 TI 2X 8G OC V1 LHR graphics card NVIDIA GeForce RTX 3060 Ti 8 GB GDDR6
