Description

MSI VENTUS RTX 3080 3X PLUS 12G OC LHR. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3080. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 384 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)

Boost Clock / Memory Speed
1740MHz / 19 Gbps
12GB GDDR6X

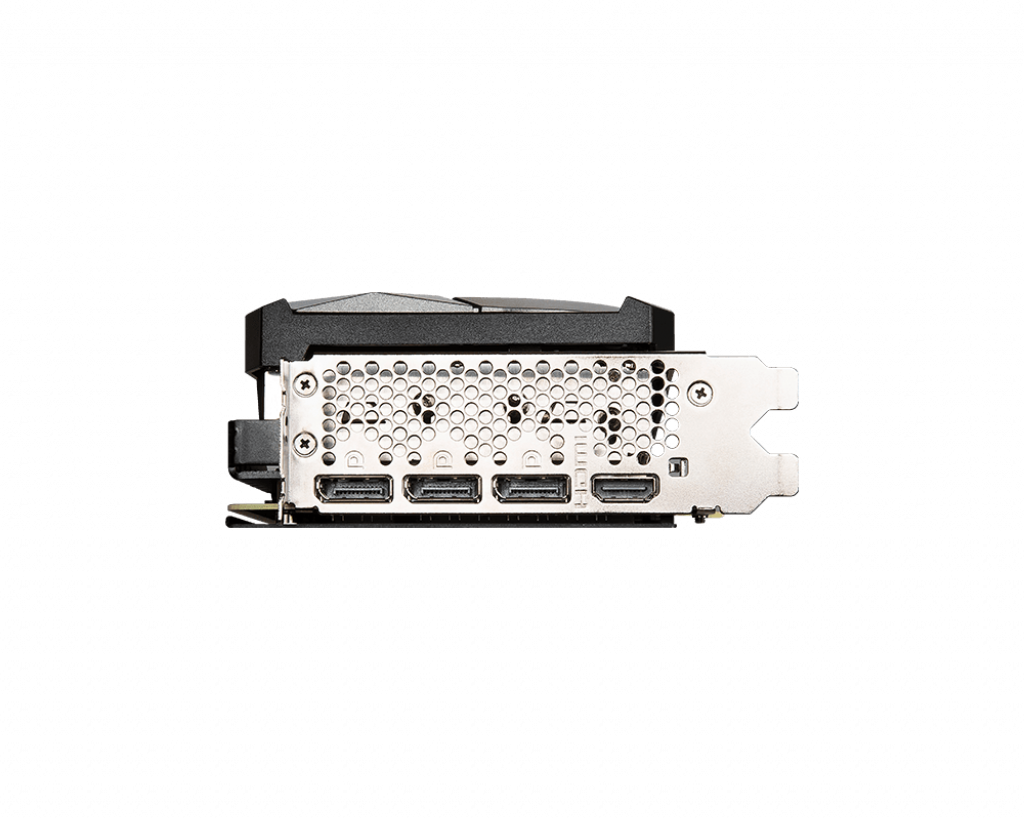

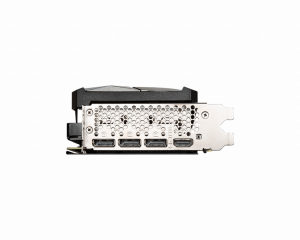

DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

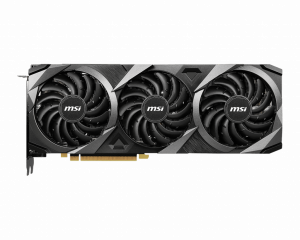

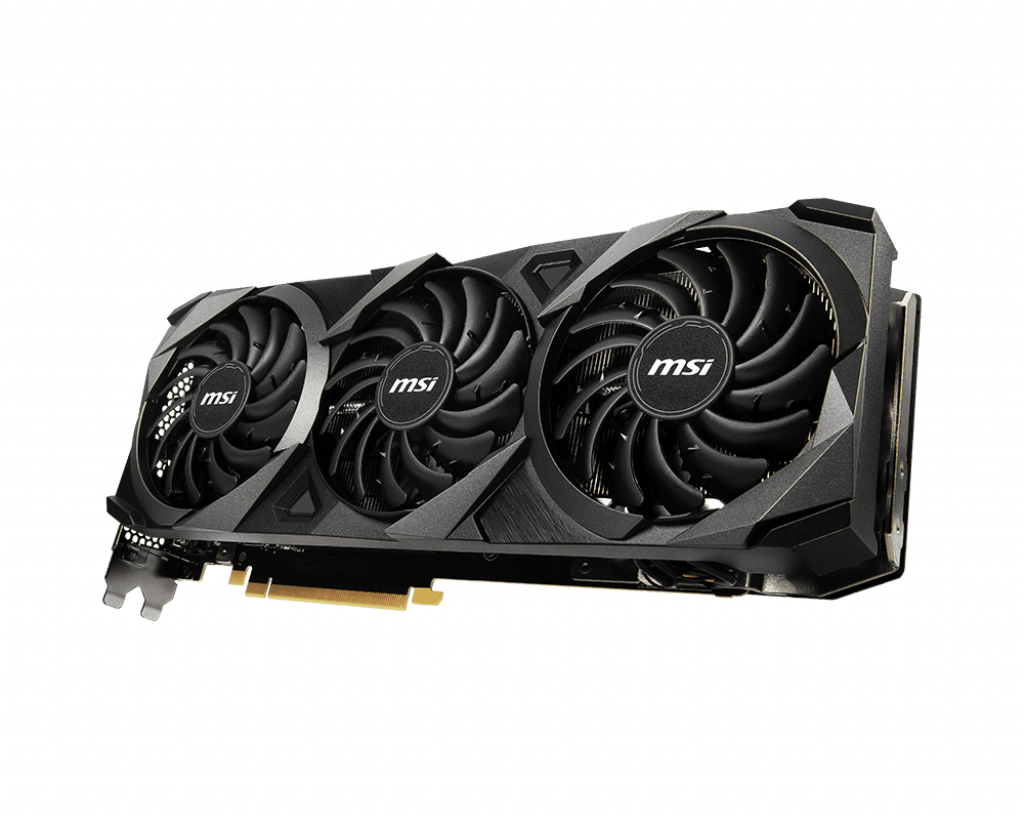

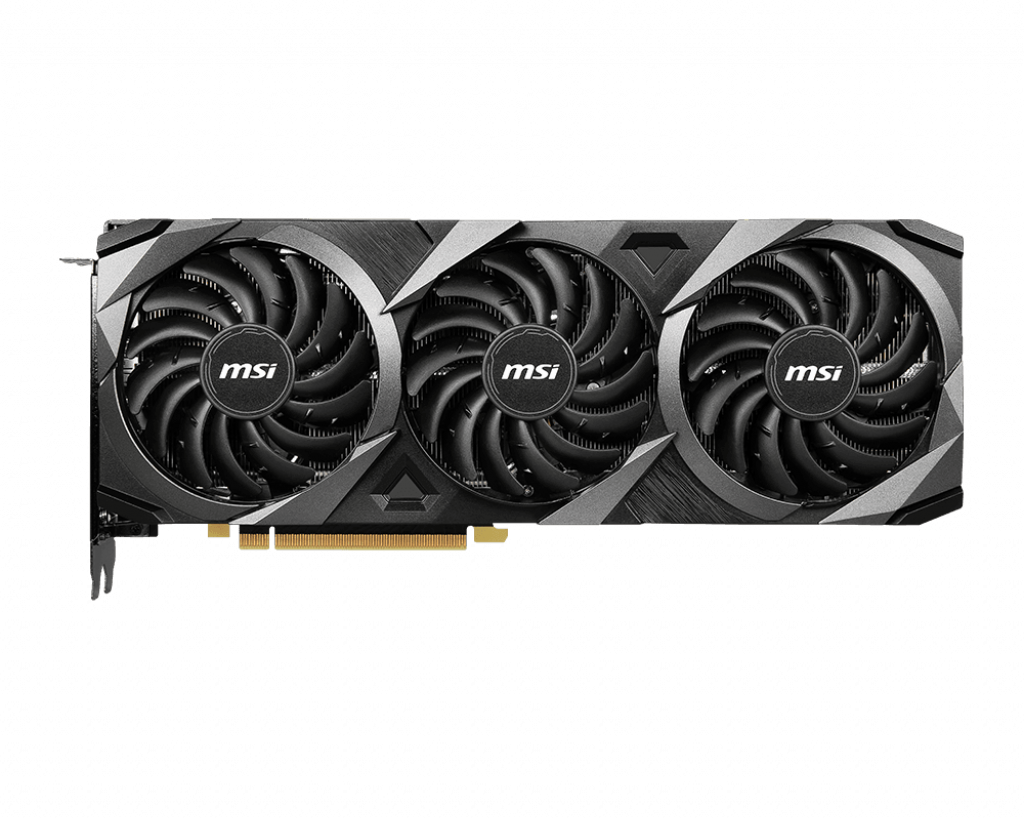

TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance
Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed
Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components

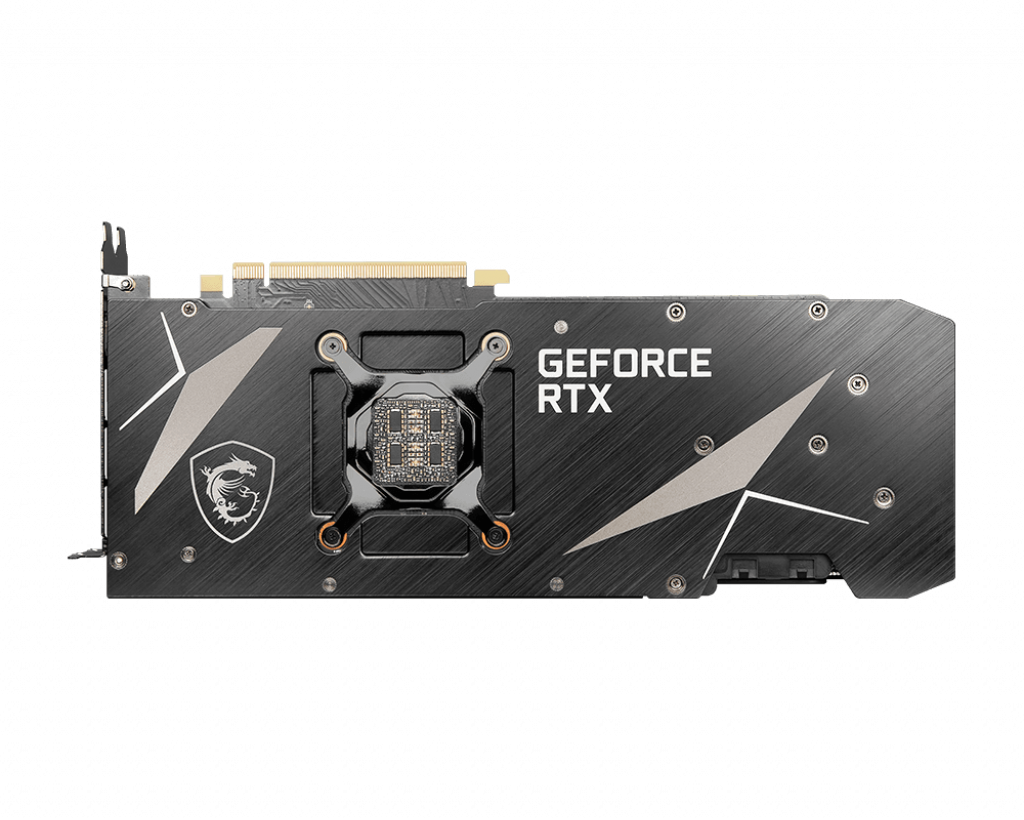

A sturdy brushed aluminum backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads
Core Pipe
Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
LHR 52 MH/s ETH hash rate (est.)

Product Properties

Manufacturer
MSI

Model
RTX 3080 V 3XPLUS1

EAN
4719072926229

Bullet points

Point
12GB GDDR6X

1740MHz / 19 Gbps

Boost Clock / Memory Speed

Core Pipe

DisplayPort x 3 (v1.4a)

HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)

LHR 52 MH/s ETH hash rate (est.)

MSI Center

The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time

Thermal Padding

TORX Fan 3.0

Zero Frozr

Design

Cooling technology
MSI TORX Fan 3.0

Cooling type
Active

Number of fans
3 fan(s)

Product colour
Black

Logistics data

Harmonized System (HS) code
84733020

Memory

Data transfer rate
19 Gbit/s

Discrete graphics card memory
12 GB

Graphics card memory type
GDDR6X

Memory bus
384 bit

Packaging data

Package type
Box

Performance

DirectX version
12.0

Dual Link DVI
No

HDCP
Yes

NVIDIA G-SYNC
Yes

OpenGL version
4.6

TV tuner integrated
No

Virtual Reality (VR) ready
Yes

Ports & interfaces

DisplayPort version
1.4a

DisplayPorts quantity
3

HDMI ports
1

HDMI version
2.1

Interface type
PCI Express 4.0

Power

Power consumption (typical)
350 W

Power supply
750 W

Supplementary power connectors
2x 8-pin

Processor

CUDA
Yes

CUDA cores
8960

Graphics processor
GeForce RTX 3080

Graphics processor family
NVIDIA

Maximum displays per videocard
4

Maximum resolution
7680 x 4320 pixels

Parallel processing technology support
Not supported

Processor boost clock speed
1740 MHz

Weight & dimensions

Depth
305 mm

Height
120 mm

Weight
1.36 kg

Width
57 mm

MSI VENTUS RTX 3080 3X PLUS 12G OC LHR NVIDIA GeForce RTX 3080 12 GB GDDR6X
