Description

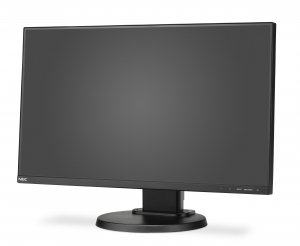

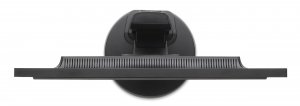

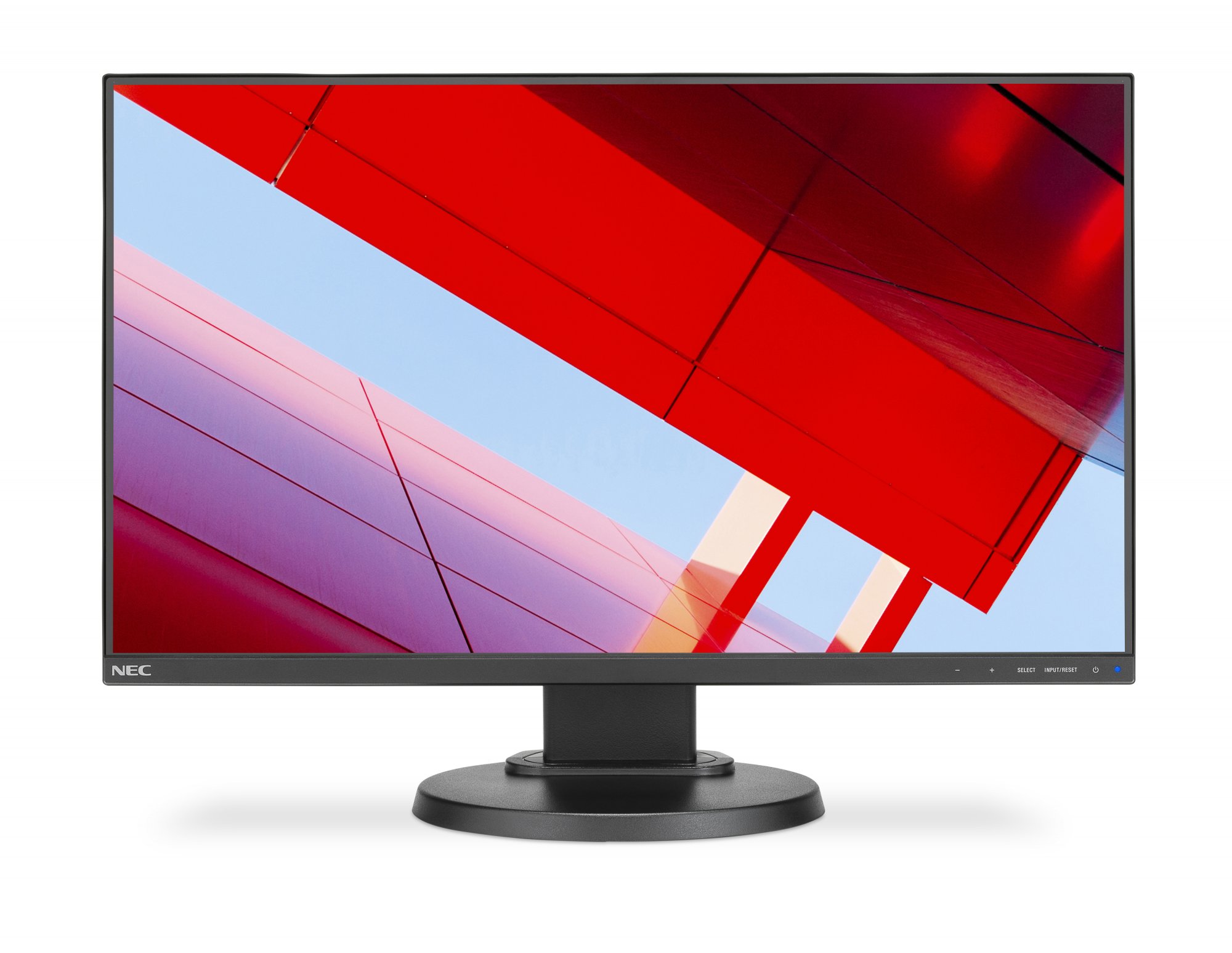

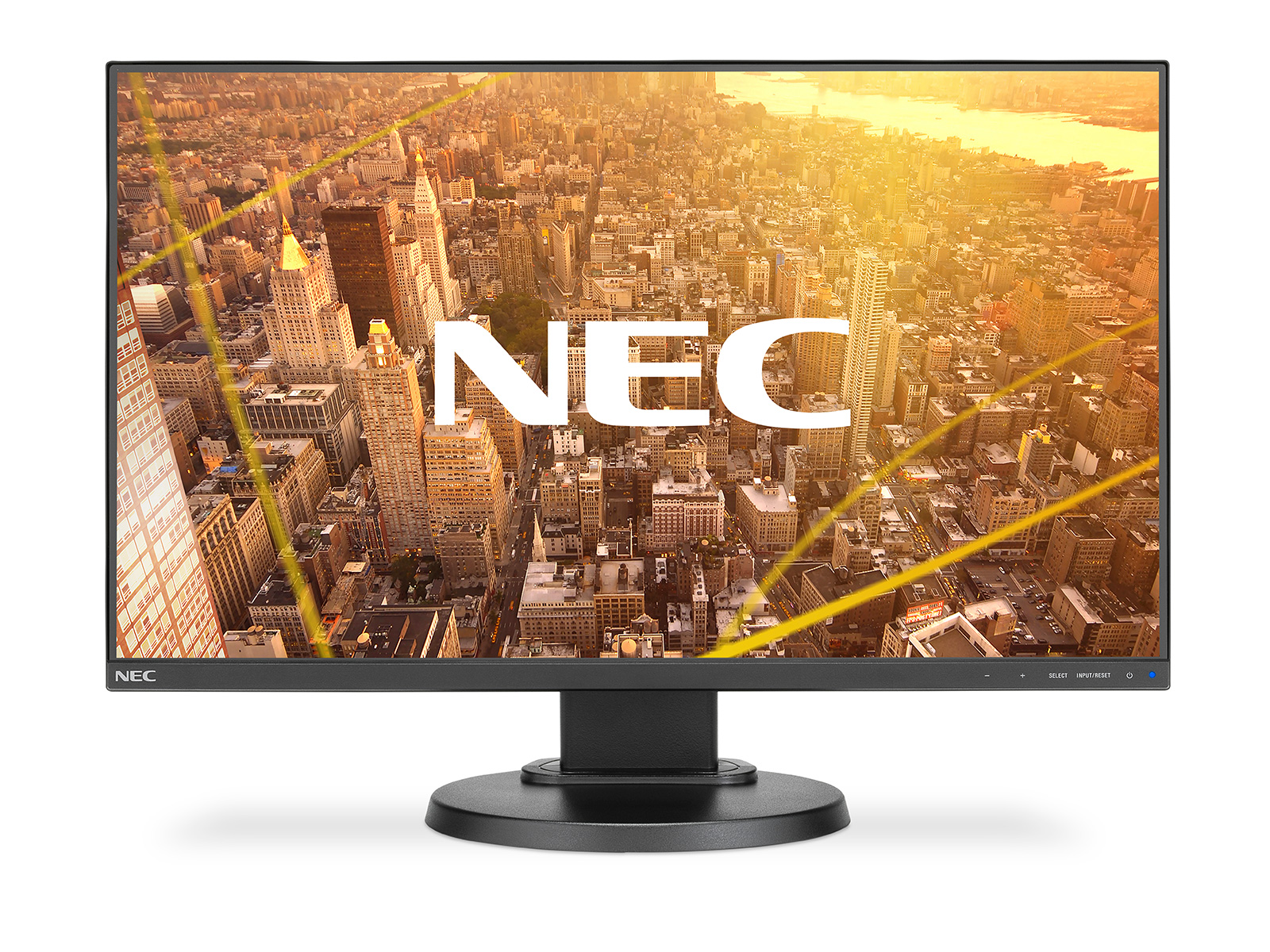

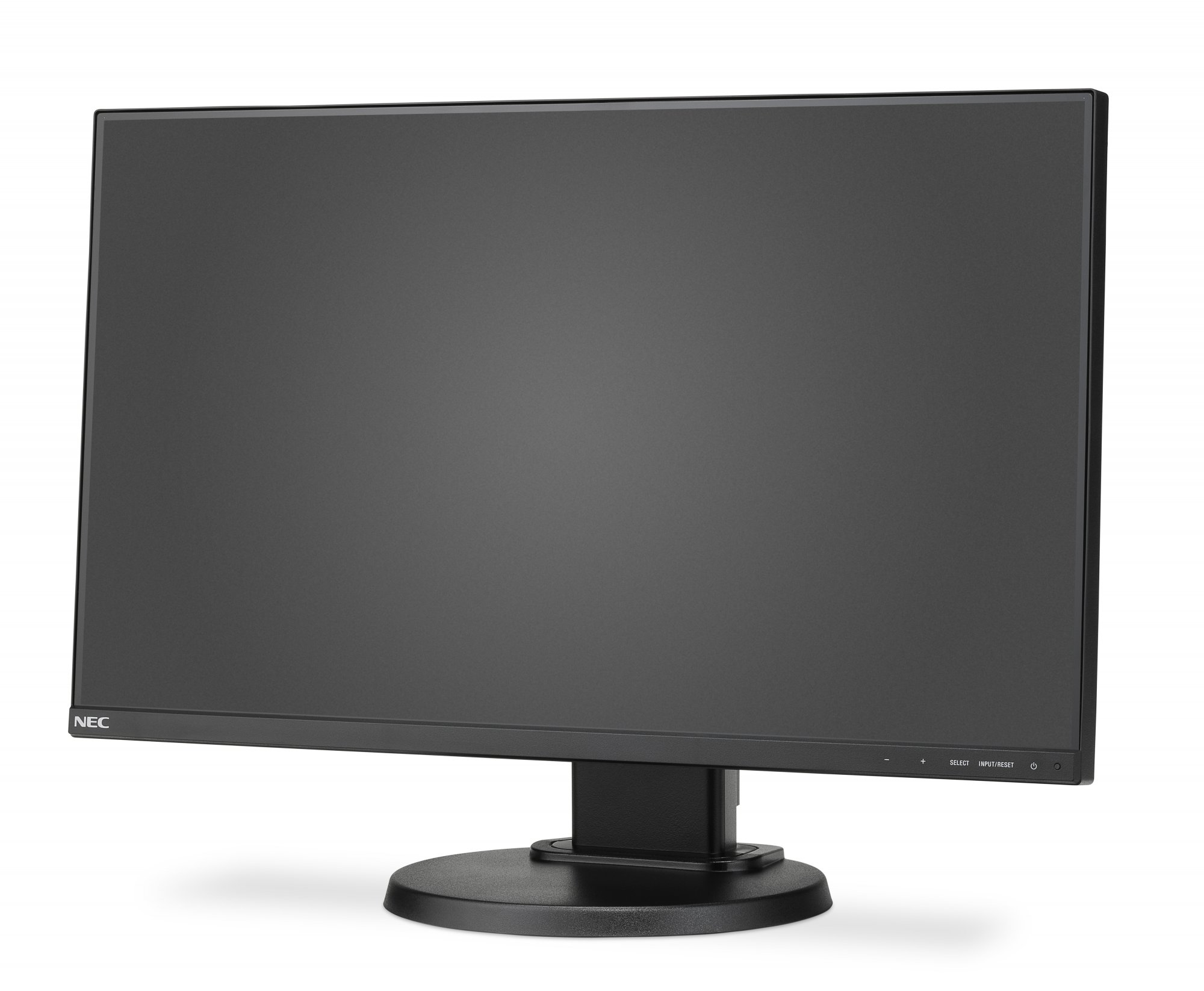

NEC MultiSync E242N. Display diagonal: 61 cm (24"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance

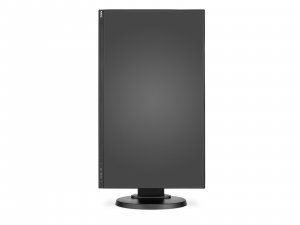

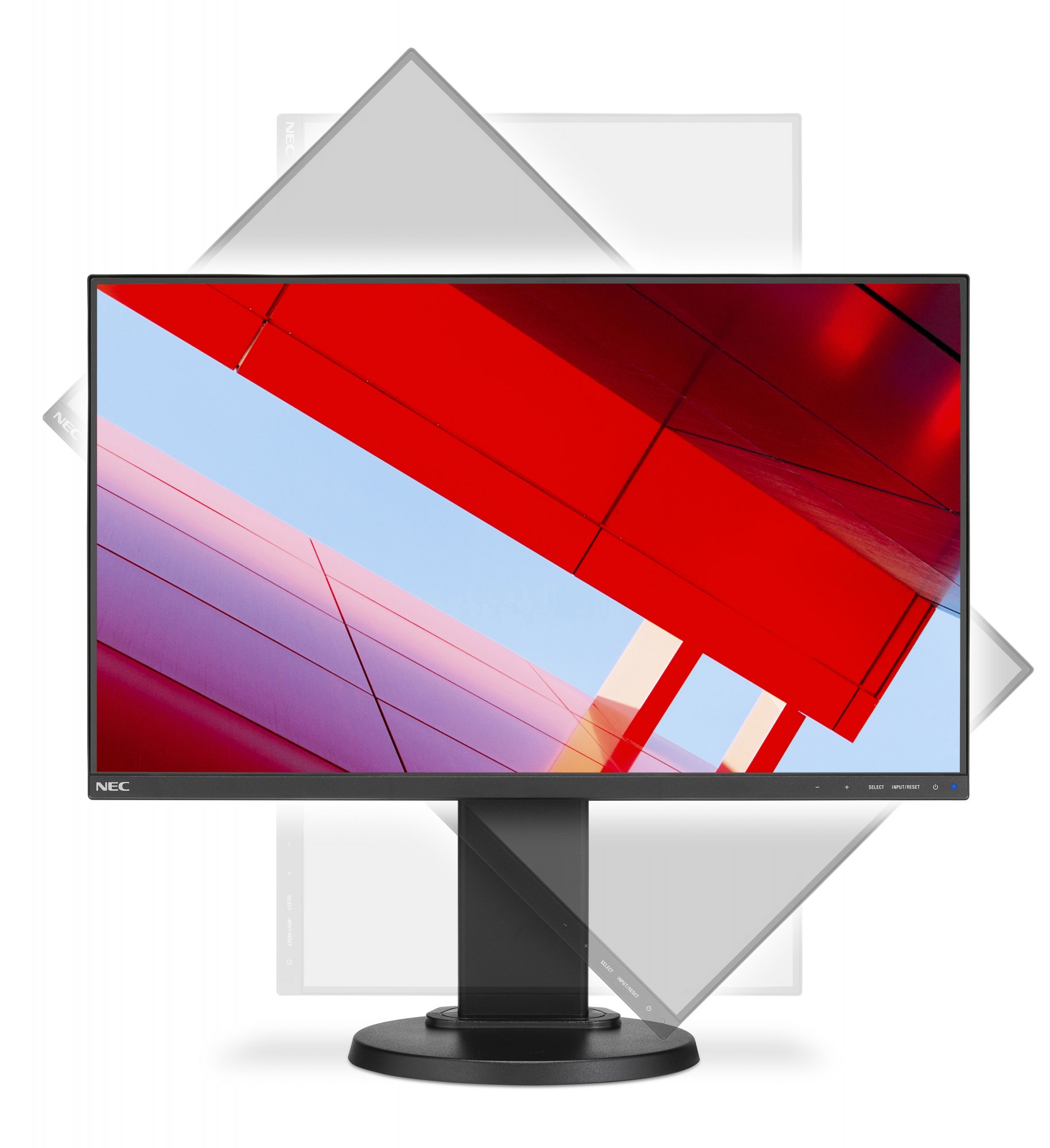

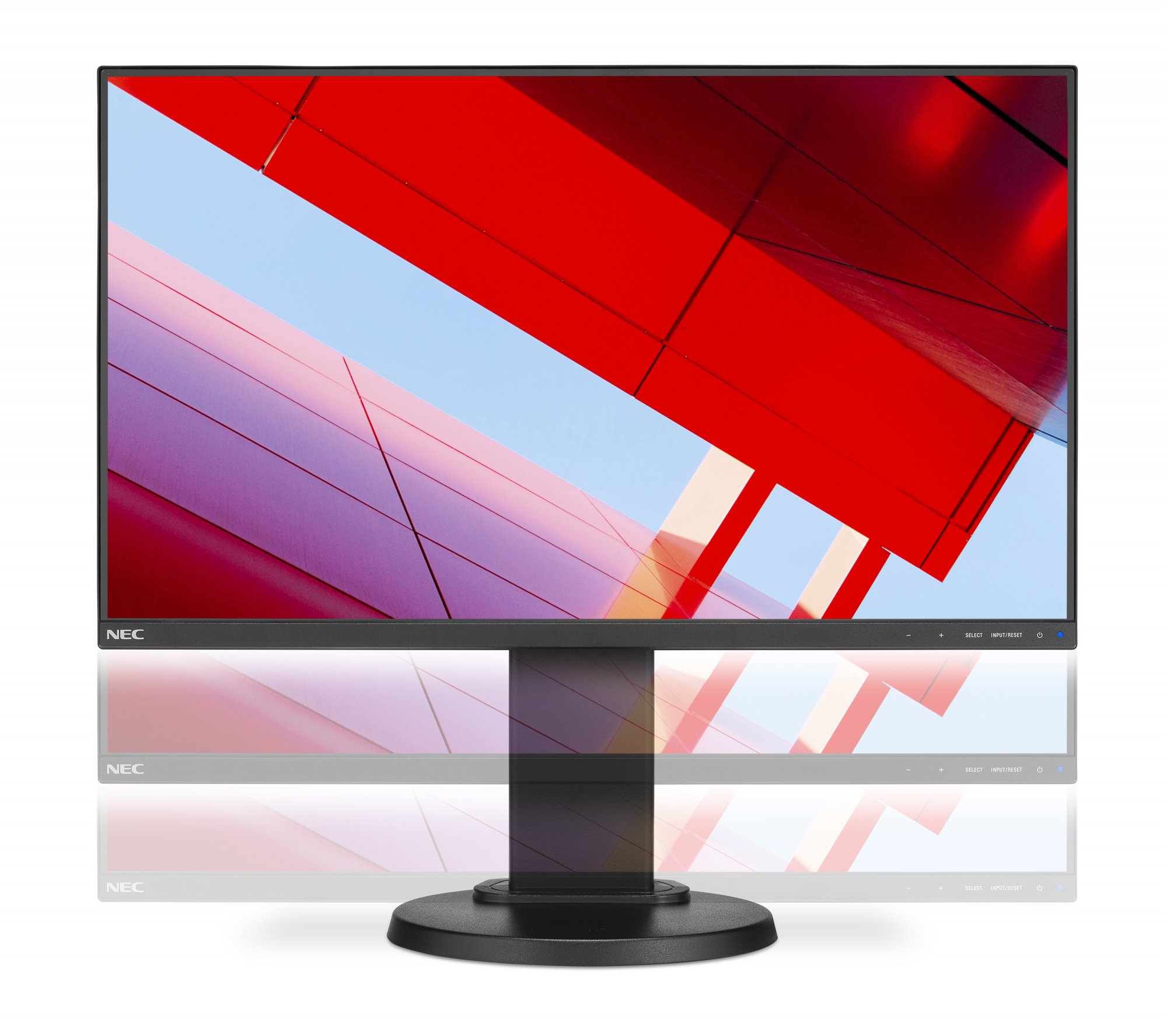

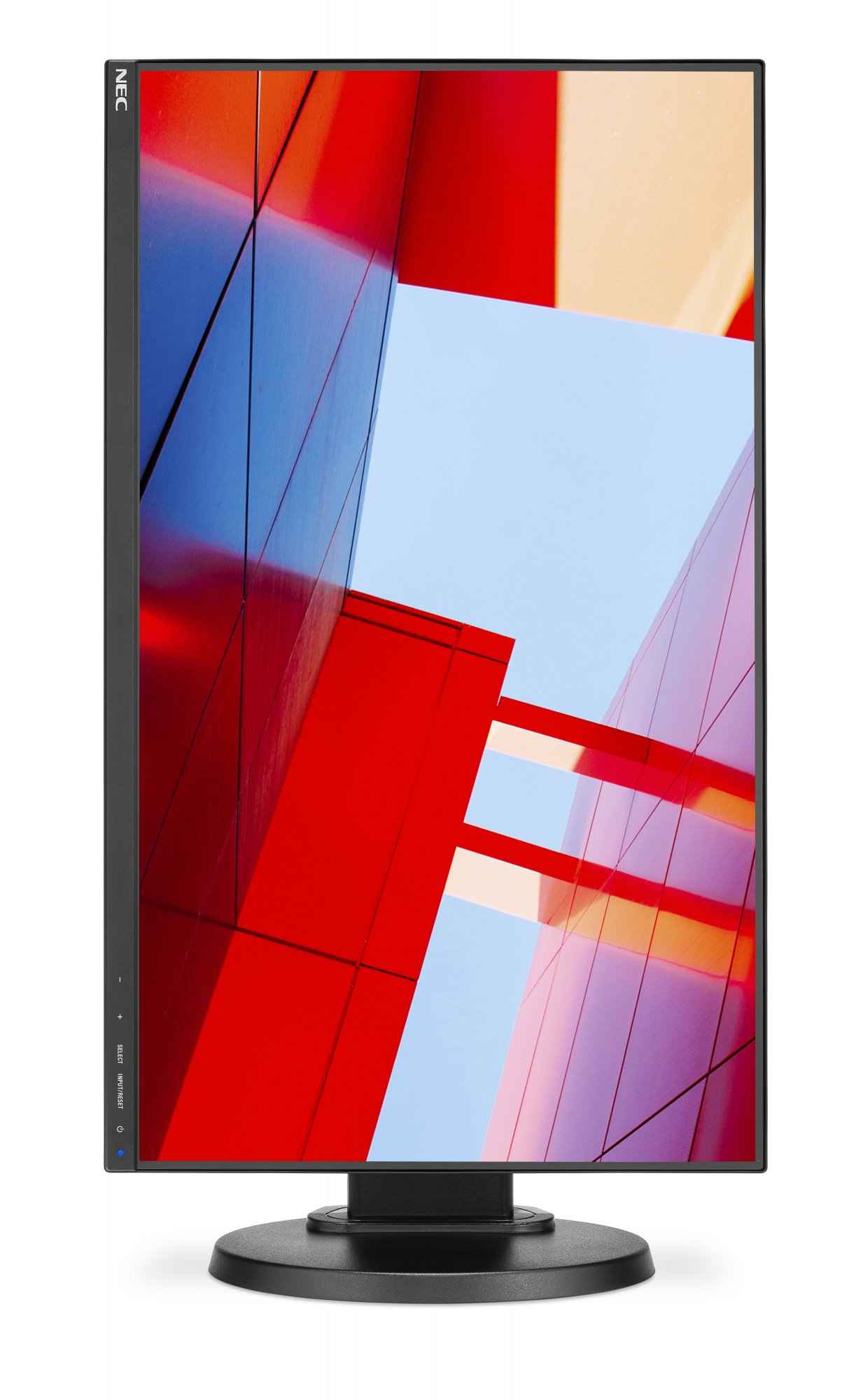

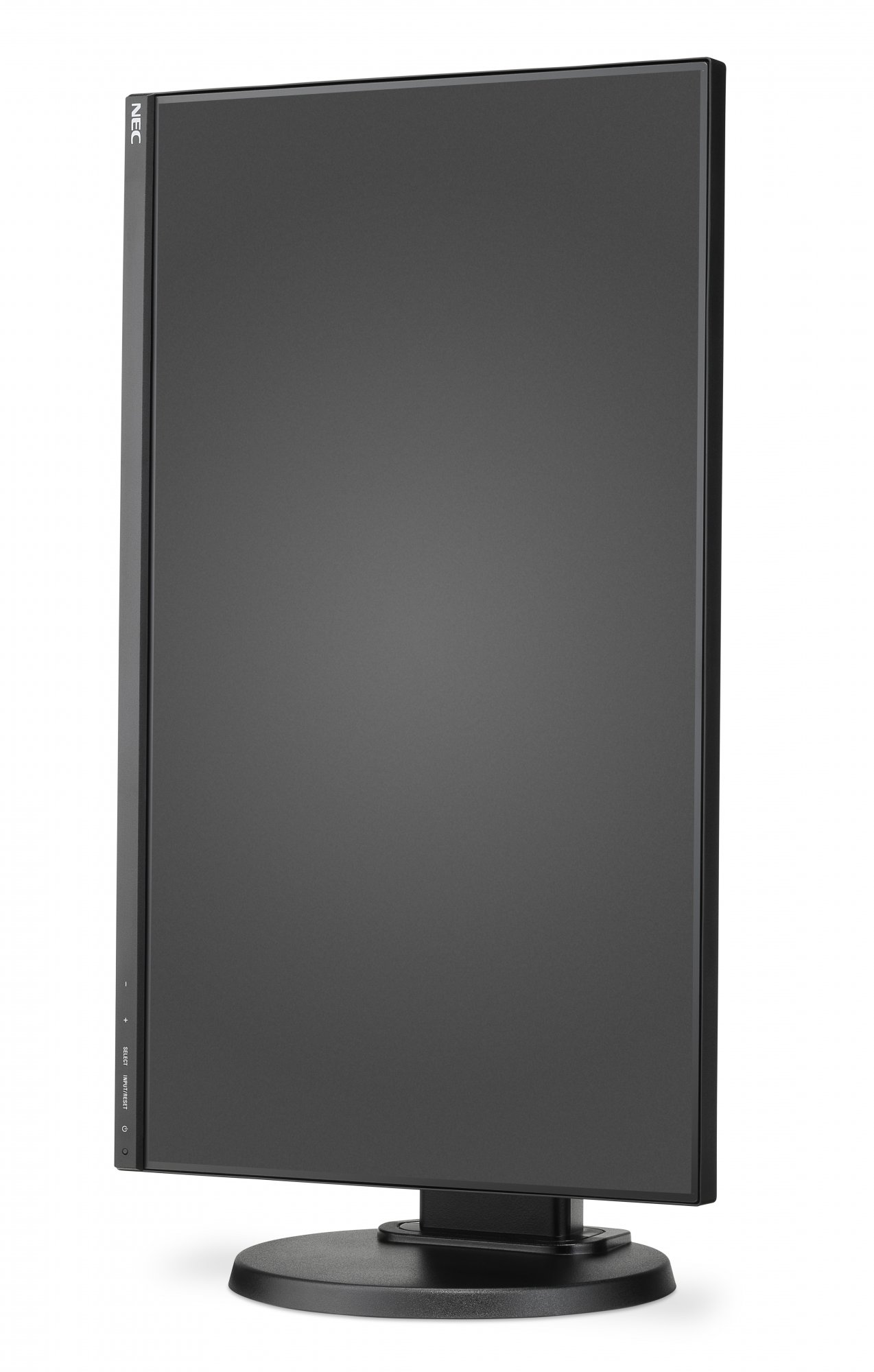

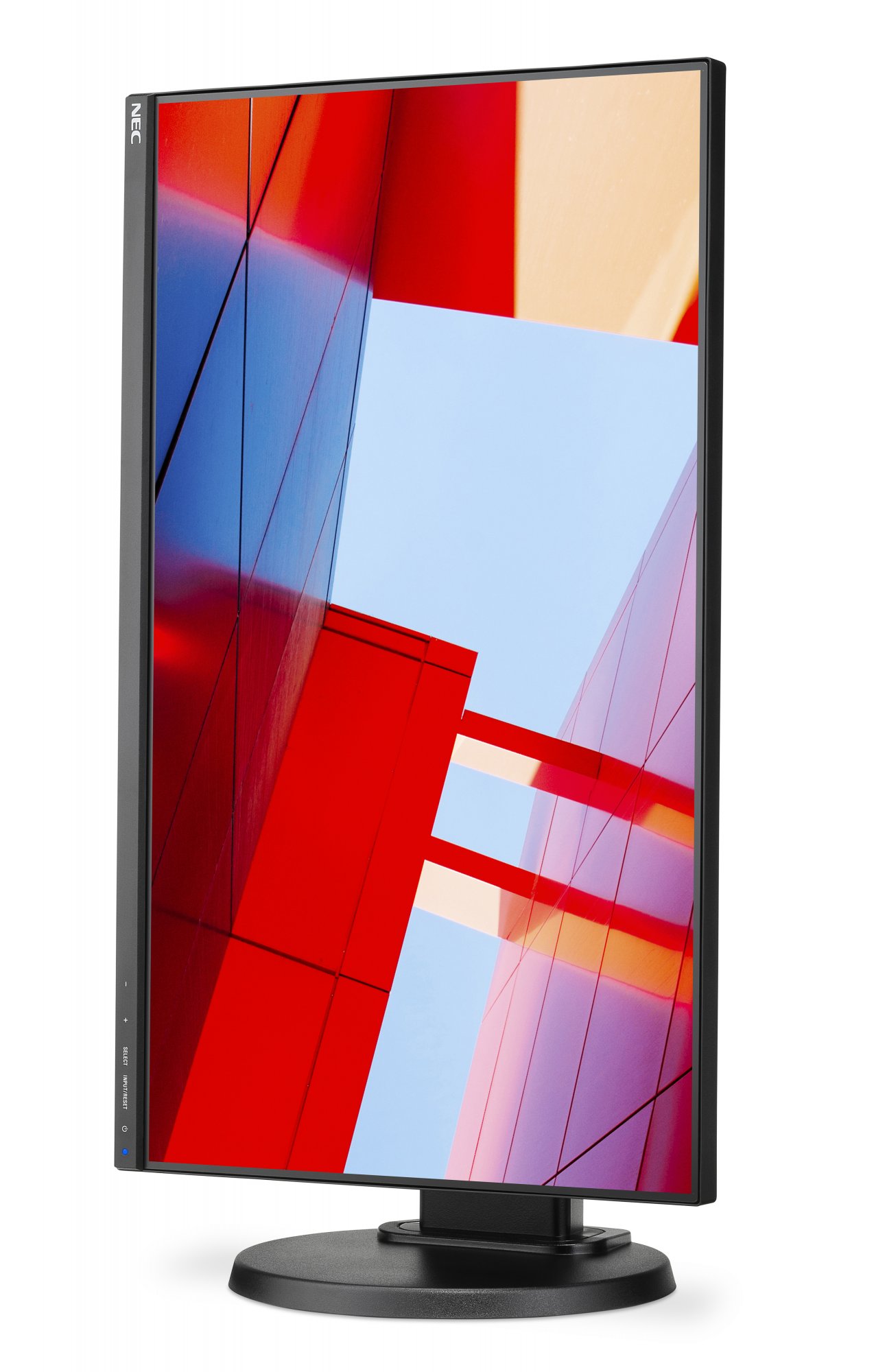

Ergonomic Office – full height adjustability (110 mm), swivel, tilt and pivot functionality ensures perfect individual ergonomic set-up
Business Class Image Quality – Advanced High-Performance IPS (AH-IPS) panel provides the very best viewing angles as well as noticeably better colour reproduction

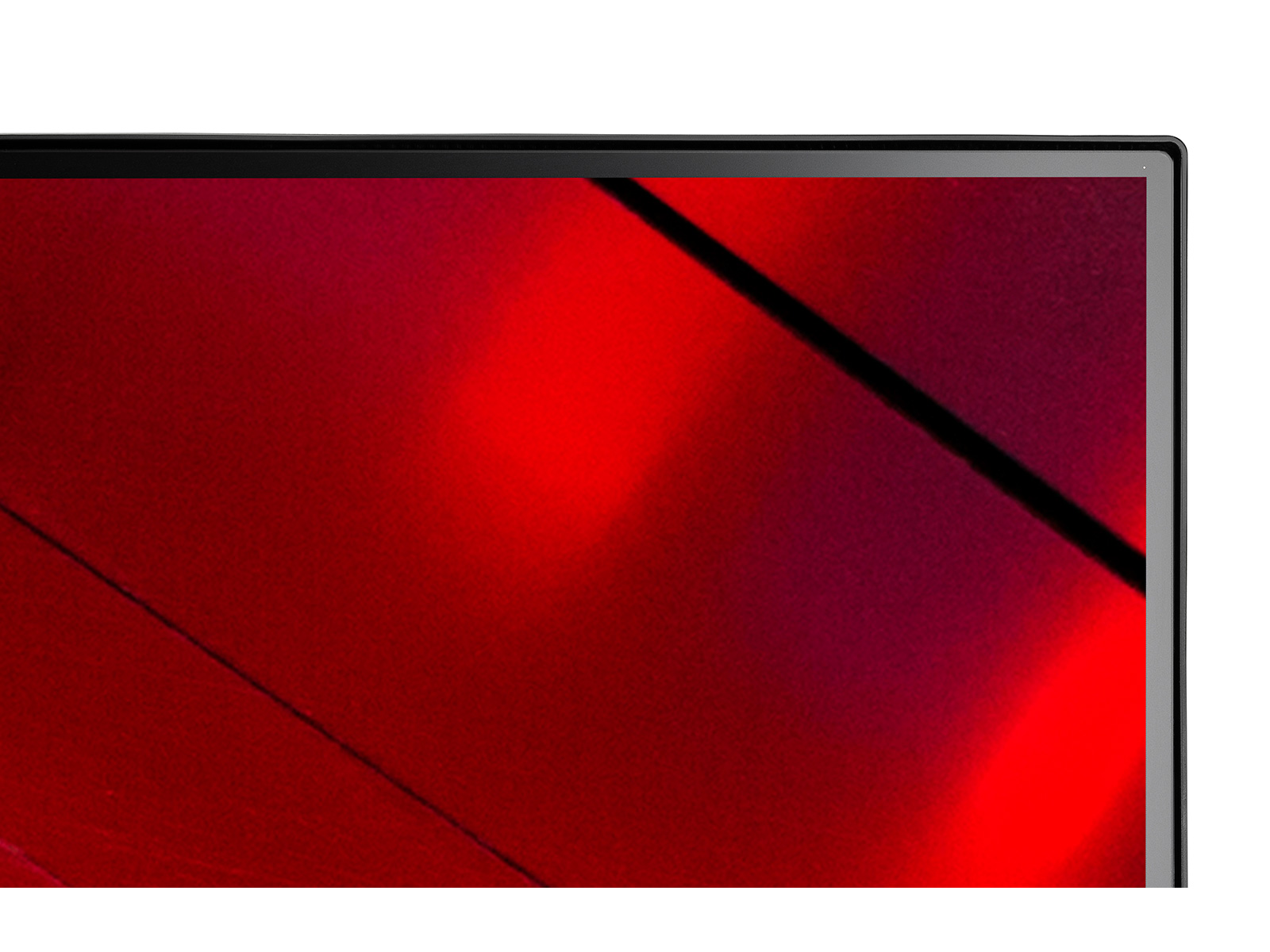

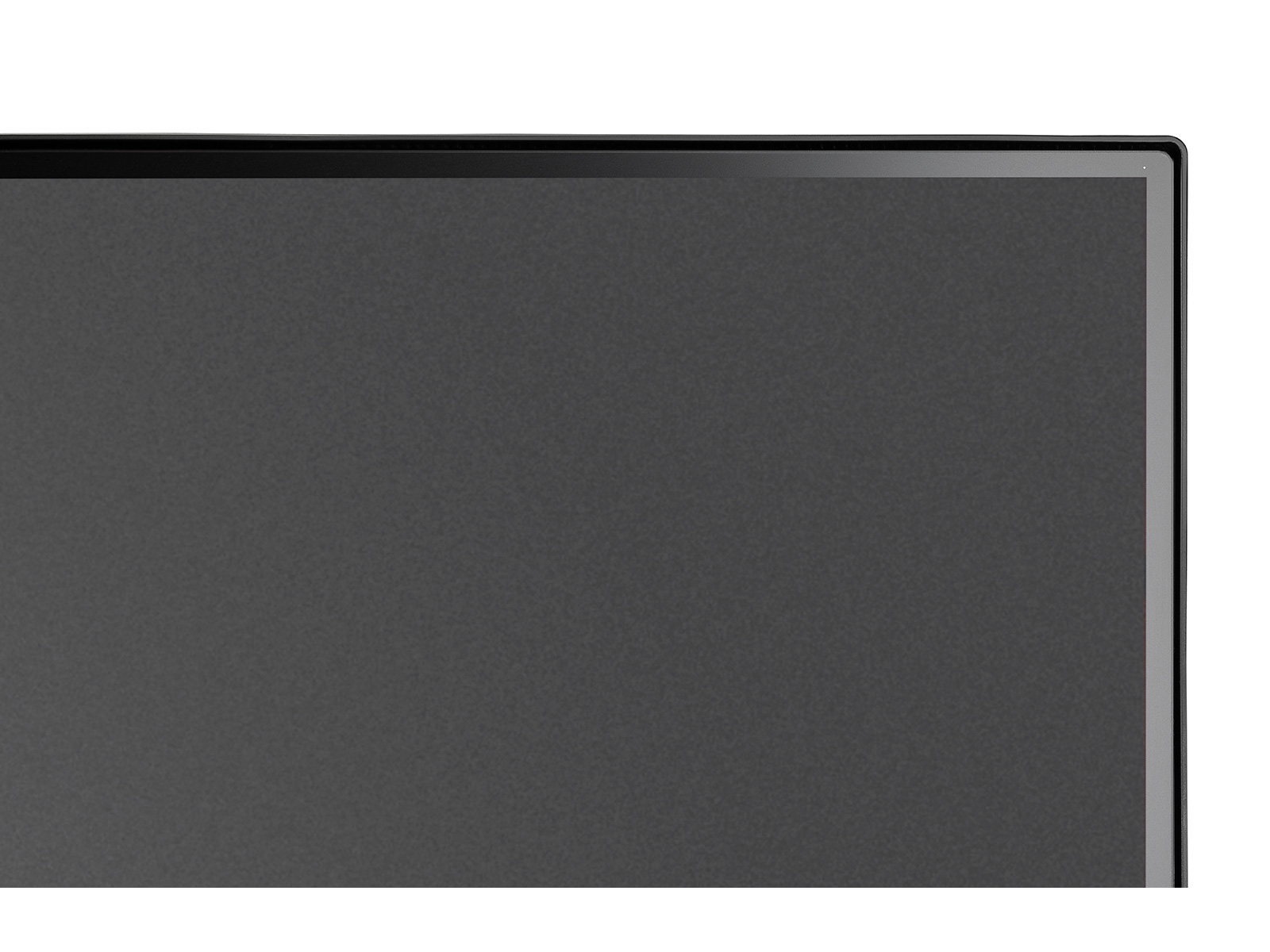

Future-Ready Design – best in form and function design with 3-sided ultra-narrow bezel gives an office a fresh professional interior

Product Properties

Manufacturer
NEC

Model
60004990

EAN
5028695118379

Design

Certification
TCO 7.0; TÜV; TÜV GS; WEEE

Feet colour
Black

Market positioning
Business

Product colour
Black

Display

Backlight type
W-LED

Contrast ratio (typical)
1000:1

Display brightness (typical)
250 cd/m²

Display number of colours
16.78 million colours

HD type
Full HD

Horizontal scan range
31.5 - 81.1 kHz

Max Refresh Rate
60 Hz

Native aspect ratio
16:9

Panel type
TFT/IPS

Pixel pitch
0.275 x 0.275 mm

Response time
6 ms

Screen Resolution
1920 x 1080 pixels

Screen shape
Flat

Screen Size
61 cm (24")

Screen Type
LED

Separate H/V sync
Y

Supported graphics resolutions
640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 960, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)

Touchscreen
N

Vertical scan range
56 - 76 Hz

Viewable size, horizontal
52.7 cm

Viewable size, vertical
29.6 cm

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Cable lock slot
Y

Cable lock slot type
Kensington

Height adjustment
11 cm

Y

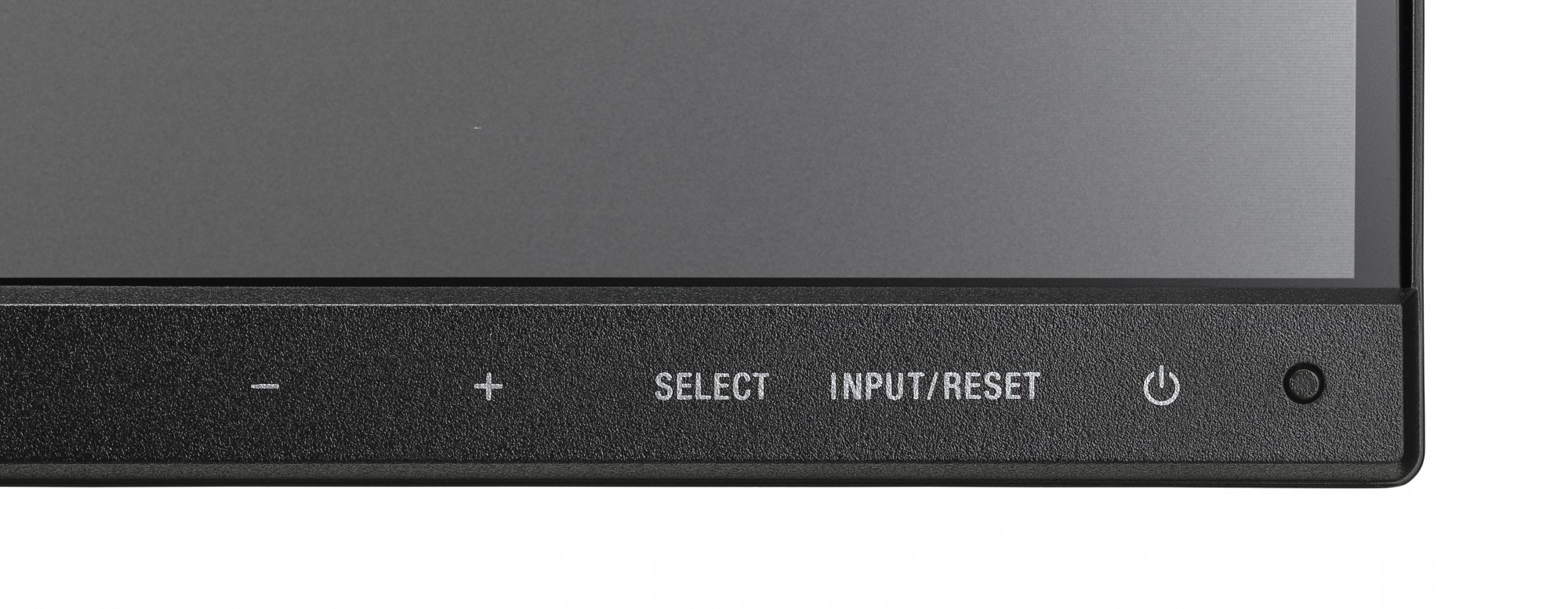

LED indicators
Y

Panel mounting interface
100 x 100 mm

Pivot
Y

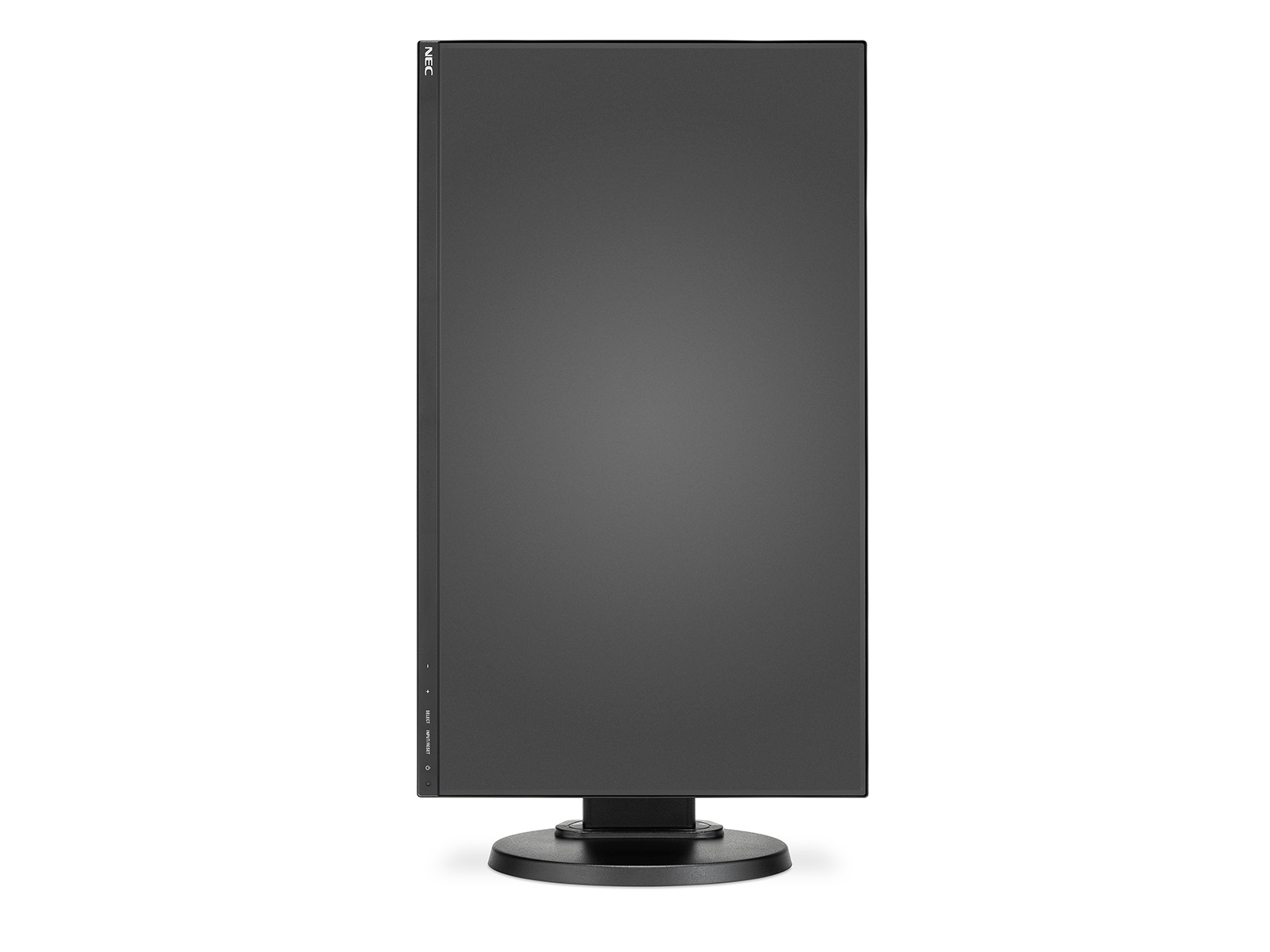

Pivot angle
-90 - 90°

Plug and Play
Y

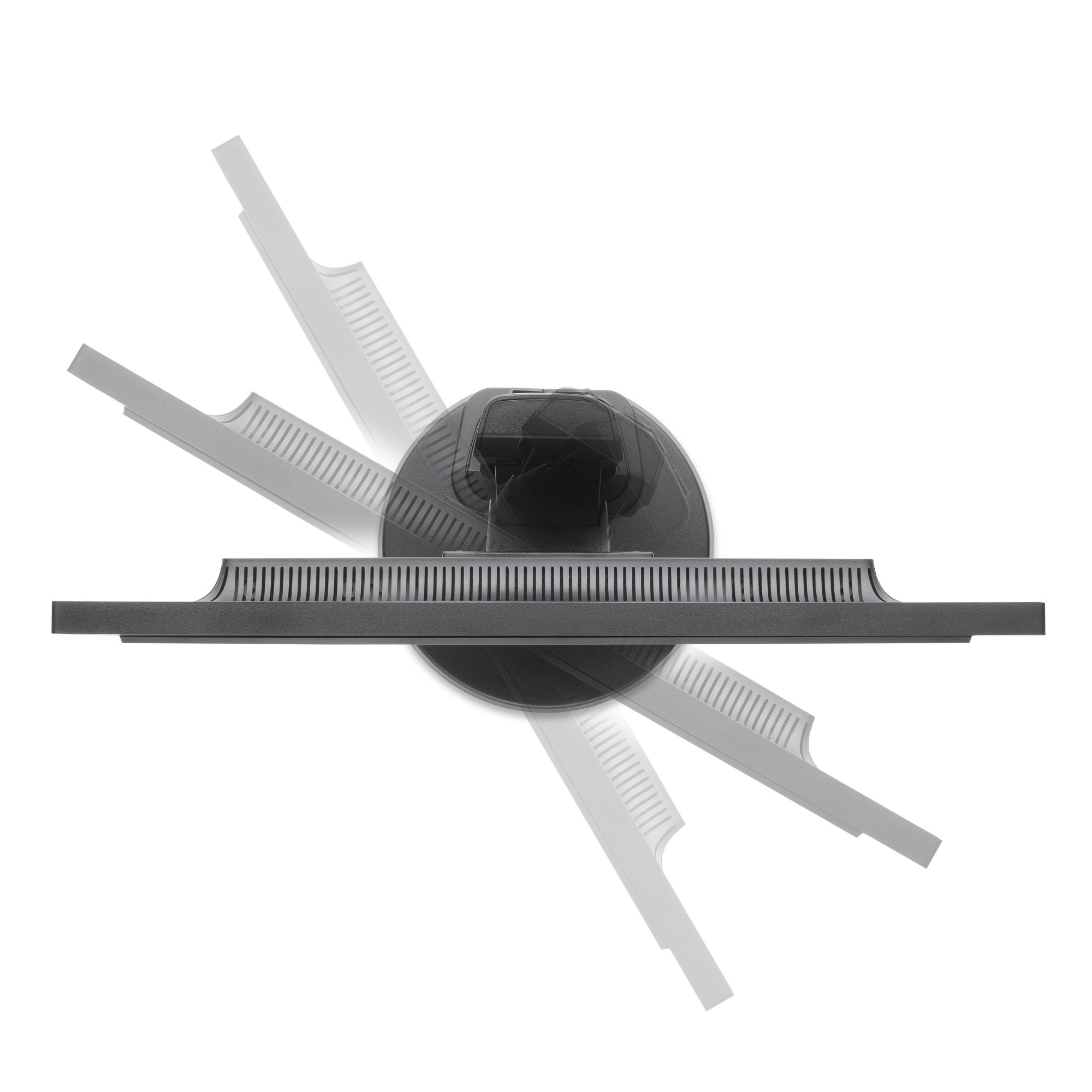

Swivel angle range
-45 - 45°

Swivelling
Y

Tilt angle range
-5 - 25°

Tiltable
Y

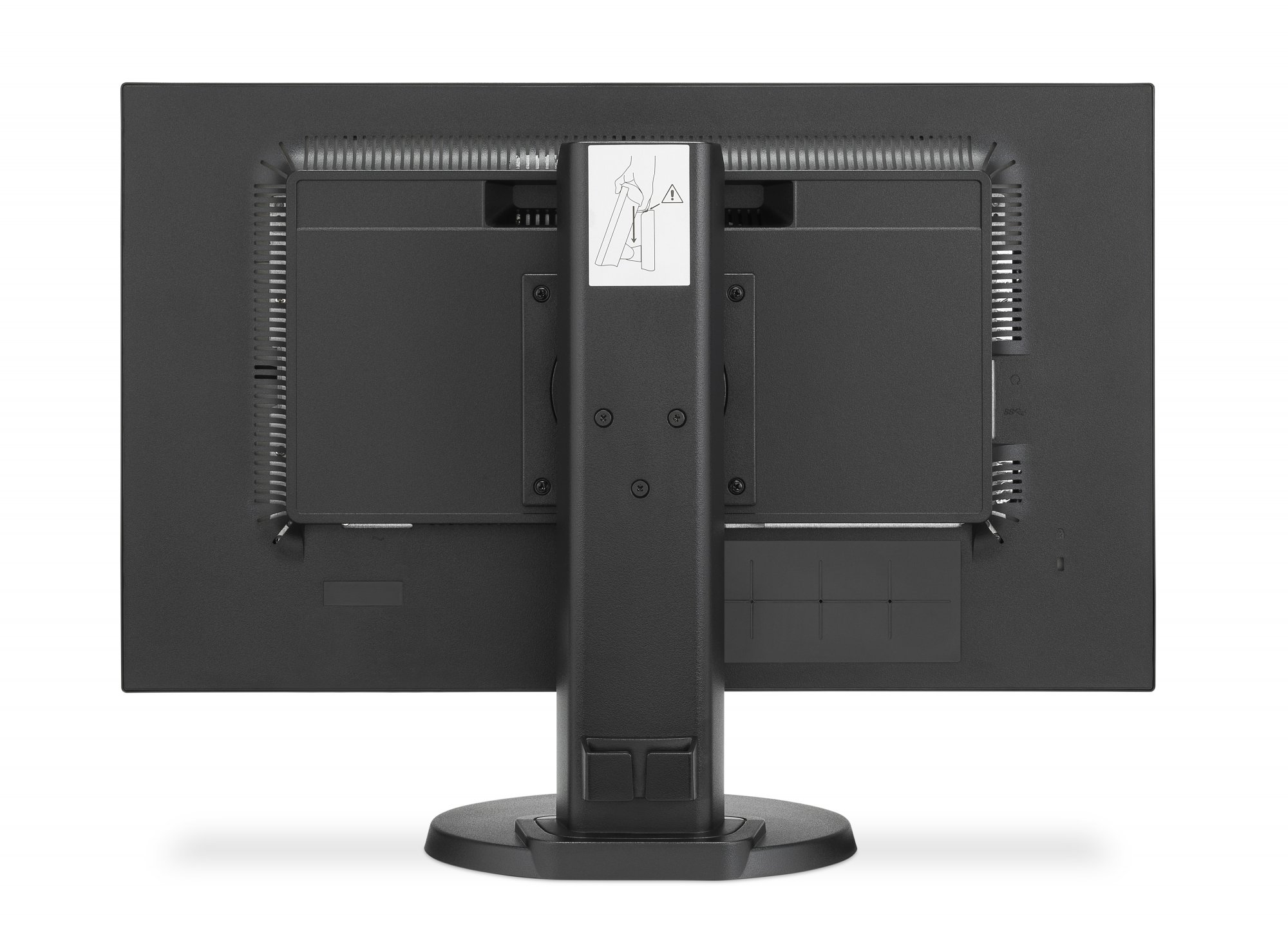

VESA mounting
Y

Logistics data

Harmonized System (HS) code
85285210

Multimedia

Built-in camera
N

Built-in speaker(s)
Y

Number of speakers
2

RMS rated power
2 W

Operational conditions

Non-operating altitude
0 - 12192 m

Operating altitude
0 - 2000 m

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
10 - 85%

Storage temperature (T-T)
-10 - 60 °C

Other features

On/off switch
Y

TV tuner integrated
N

Packaging content

Cables included
AC, DisplayPort, USB, VGA

Performance

AMD FreeSync
N

Flicker-free technology
Y

Low Blue Light technology
Y

NVIDIA G-SYNC
N

Ports & interfaces

AC (power) in
Y

Audio input
N

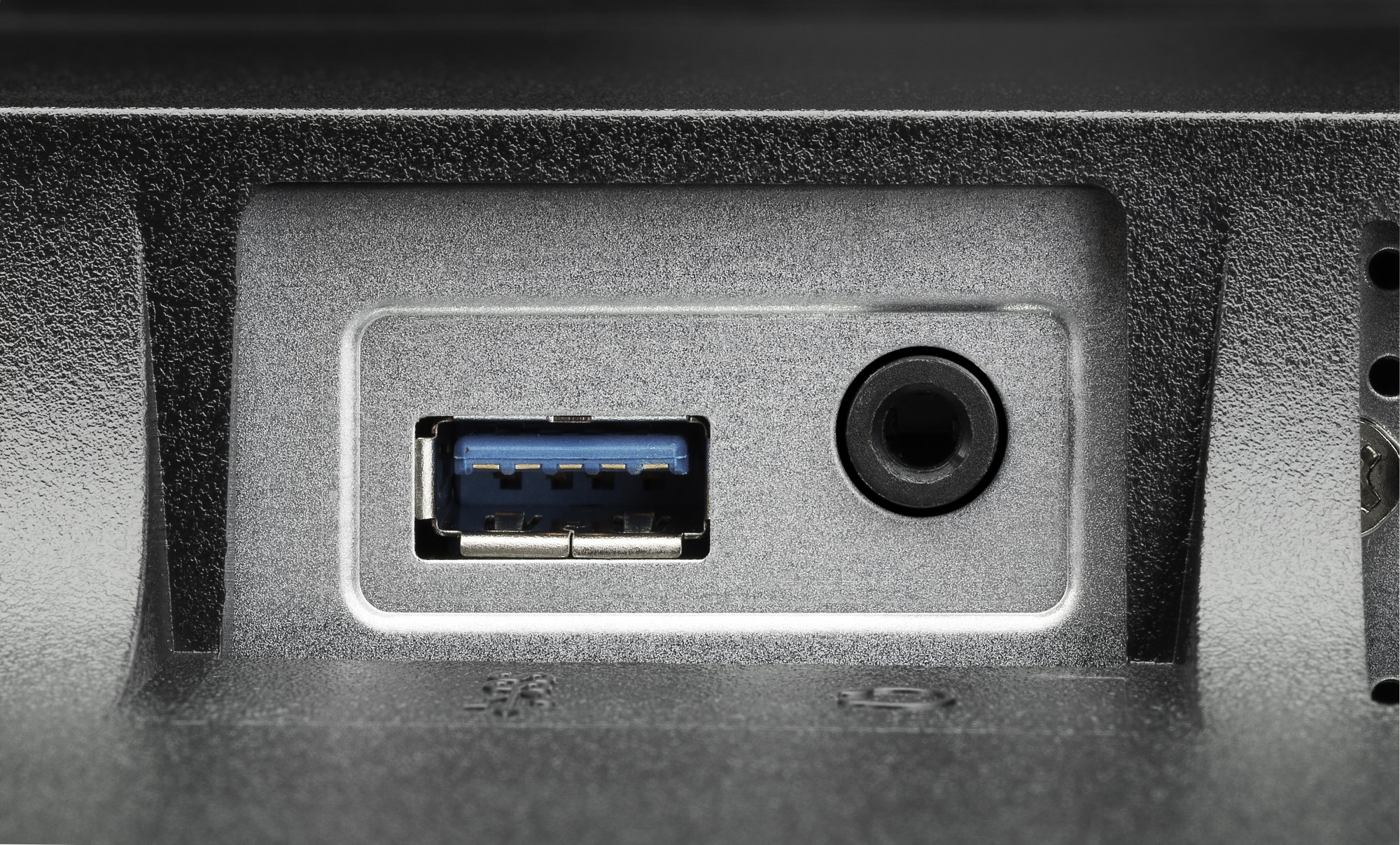

Built-in USB hub
Y

DisplayPorts quantity
1

DVI port
N

HDCP
Y

HDMI
Y

HDMI ports
1

Headphone out
Y

Headphone outputs
1

Number of upstream ports
1

USB hub version
3.2 Gen 1 (3.1 Gen 1)

USB Type-A downstream ports quantity
3

USB upstream port type
USB Type-B

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Energy consumption (SDR) per 1000 hours
10 kWh

Energy efficiency class (SDR)
C

Energy efficiency scale
A to G

Input current
0.8 - 0.45 A

Power consumption (max)
28 W

Power consumption (off)
0.27 W

Power consumption (PowerSave)
0.29 W

Power consumption (typical)
18 W

Sustainability

Sustainability certificates
RoHS, ENERGY STAR

Weight & dimensions

Bezel width (side)
1 mm

Bezel width (top)
1 mm

Depth (with stand)
213.9 mm

Height (with stand)
373.9 mm

Weight (with stand)
5.5 kg

Weight (without stand)
3.6 kg

Width (with stand)
538.6 mm

NEC MultiSync E242N 61 cm (24") 1920 x 1080 pixels Full HD LED Black
