Description

NEC MultiSync EA242WU. Display diagonal: 61 cm (24"), Display resolution: 1920 x 1200 pixels, Display technology: LCD, Response time: 6 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

Improve your Productivity – with embedded LAN and USB-C, this display serves as a docking hub in your Personal Workspace
Future-proof flexibility – wide connectivity provides high-level flexibility with LAN, DP, HDMI, USB Type C, USB A and audio output
Clutter-free workspace – Powerful 65W USB Type-C connectivity manages video, audio, power and USB via a single cable
Easy multi-screen set-up – Daisy-chain multiple display configurations through DisplayPort-out, no additional cables needed
Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity

Product Properties

Manufacturer
NEC

Model
60004855

EAN
5028695124622

Design

Front bezel colour
Black

Product colour
Black

Display

Backlight type
W-LED

Contrast ratio (dynamic)
5000:1

Contrast ratio (typical)
1000:1

Digital horizontal frequency
31.5 - 77 kHz

Digital vertical frequency
50 - 60 Hz

Display brightness (typical)
300 cd/m²

Display number of colours
16.7 million colours

Max Refresh Rate
60 Hz

Native aspect ratio
16:10

Panel type
TFT/IPS

Pixel pitch
0.27 x 0.27 mm

Response time
6 ms

Screen Resolution
1920 x 1200 pixels

Screen shape
Flat

Screen Size
61 cm (24")

Screen Type
61 cm

Screen Type
LCD

Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

Touchscreen
N

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Cable lock slot
Y

Cable lock slot type
Kensington

Cable management
Y

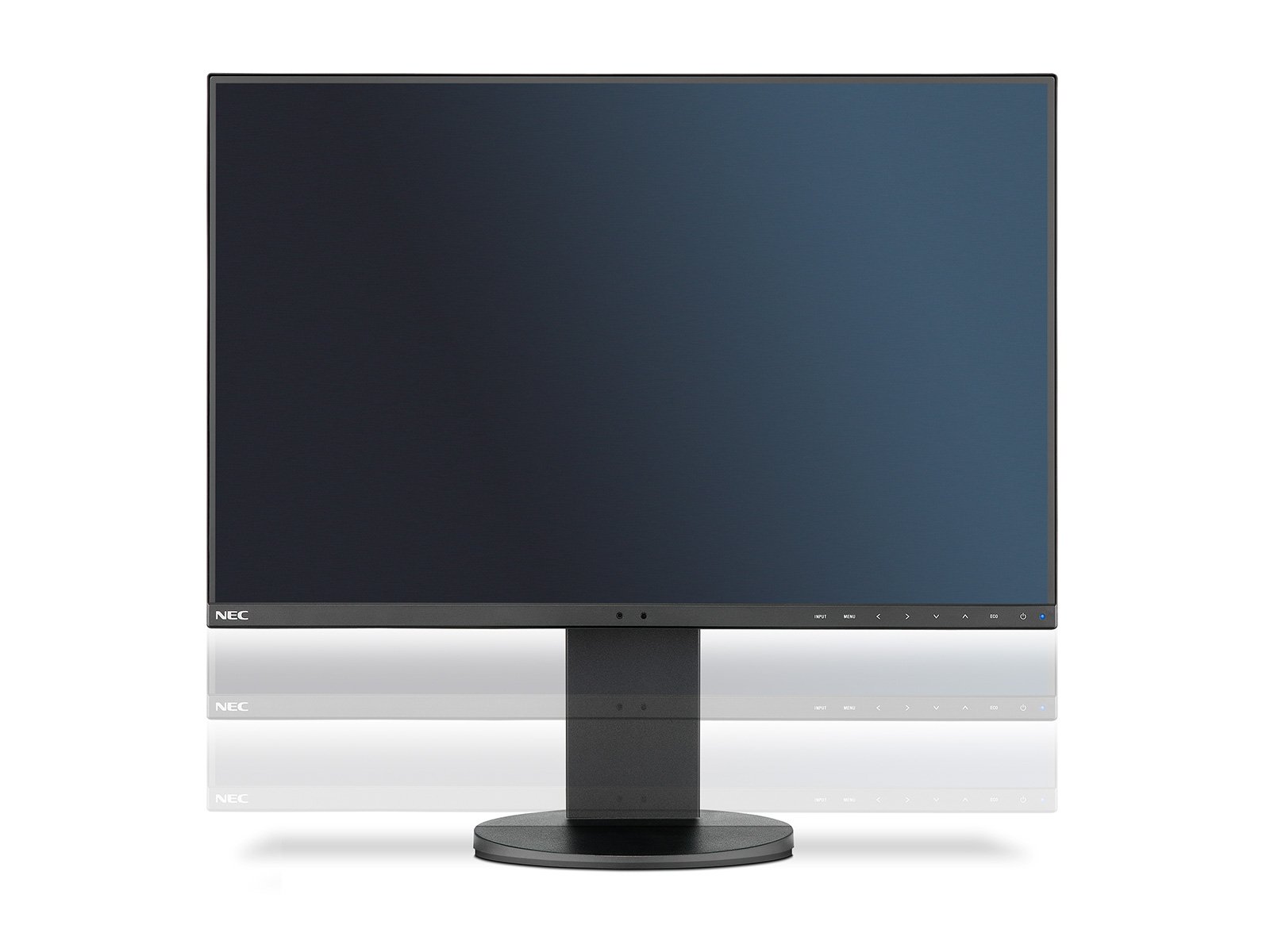

Height adjustment
15 cm

Y

LED indicators
Y

On Screen Display (OSD)
Y

Panel mounting interface
100 x 100 mm

Pivot
Y

Pivot angle
-90 - 90°

Plug and Play
Y

Swivel angle range
-170 - 170°

Swivelling
Y

Tilt adjustment
Y

Tilt angle range
-5 - 35°

VESA mounting
Y

Multimedia

Built-in camera
N

Built-in speaker(s)
Y

Number of speakers
2

RMS rated power
2 W

Network

Bluetooth
N

Ethernet LAN
Y

Wi-Fi
N

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
-5 - 35 °C

Packaging content

Cables included
AC, USB Type-C

Quick start guide
Y

Stand included
Y

Performance

Flicker-free technology
Y

Low Blue Light technology
Y

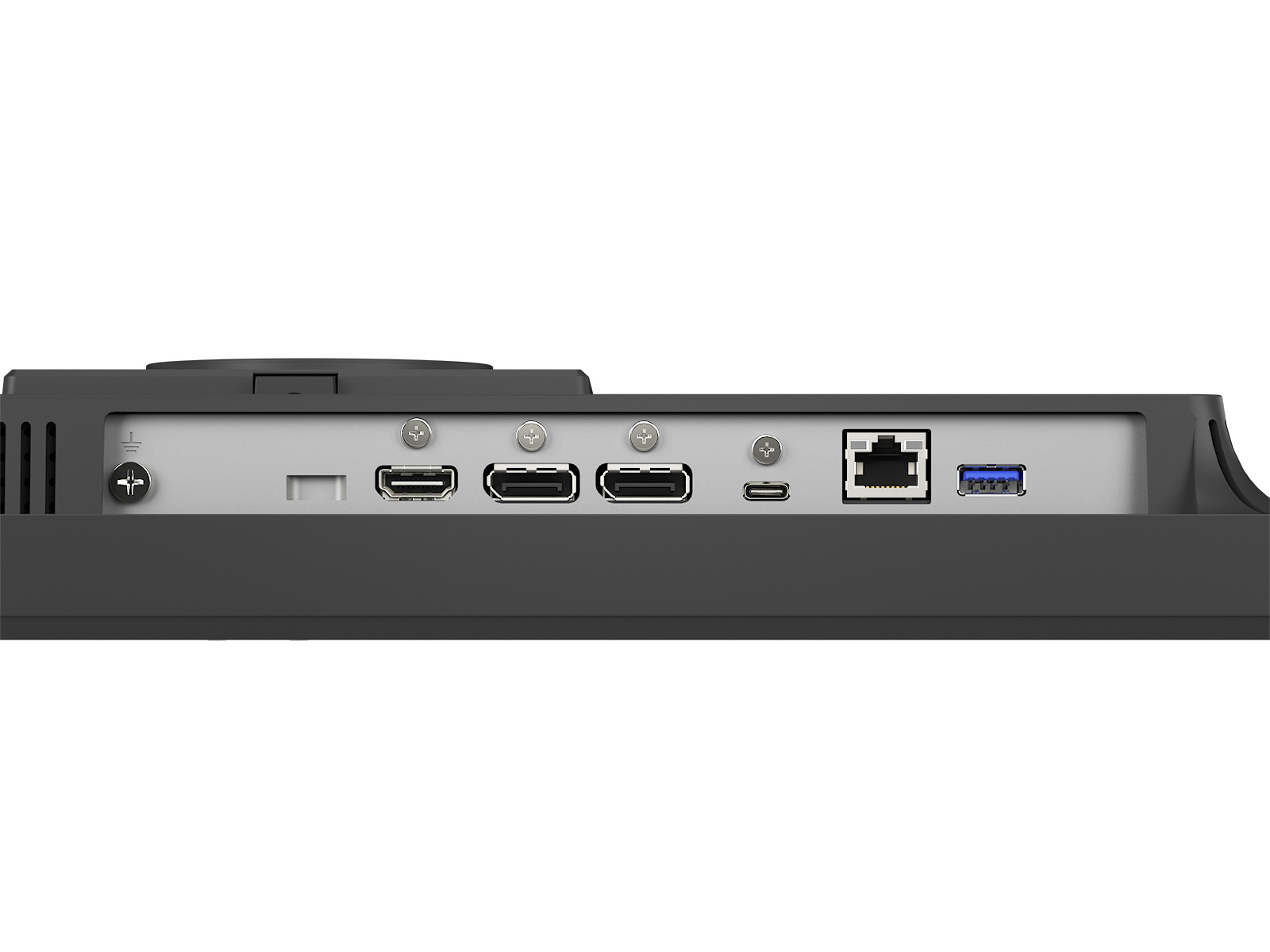

Ports & interfaces

Built-in USB hub
Y

DisplayPorts quantity
1

DVI port
N

HDMI
Y

HDMI ports
1

Headphone out
Y

Number of upstream ports
1

USB hub version
3.2 Gen 1 (3.1 Gen 1)

USB Power Delivery
Y

USB Power Delivery up to
65 W

USB Type-A downstream ports quantity
2

Power

Energy consumption (SDR) per 1000 hours
13 kWh

Energy efficiency class (SDR)
D

Energy efficiency scale
A to G

Power consumption (PowerSave)
0.3 W

Power consumption (typical)
21 W

Power supply type
Internal

Sustainability

Sustainability certificates
CE, ENERGY STAR, TCO

Weight & dimensions

Bezel width (top)
0.8 mm

Depth (with stand)
250 mm

Height (with stand)
365 mm

Weight (with stand)
6.7 kg

Width (with stand)
531 mm

NEC MultiSync EA242WU 61 cm (24") 1920 x 1200 pixels LCD Black
