Description

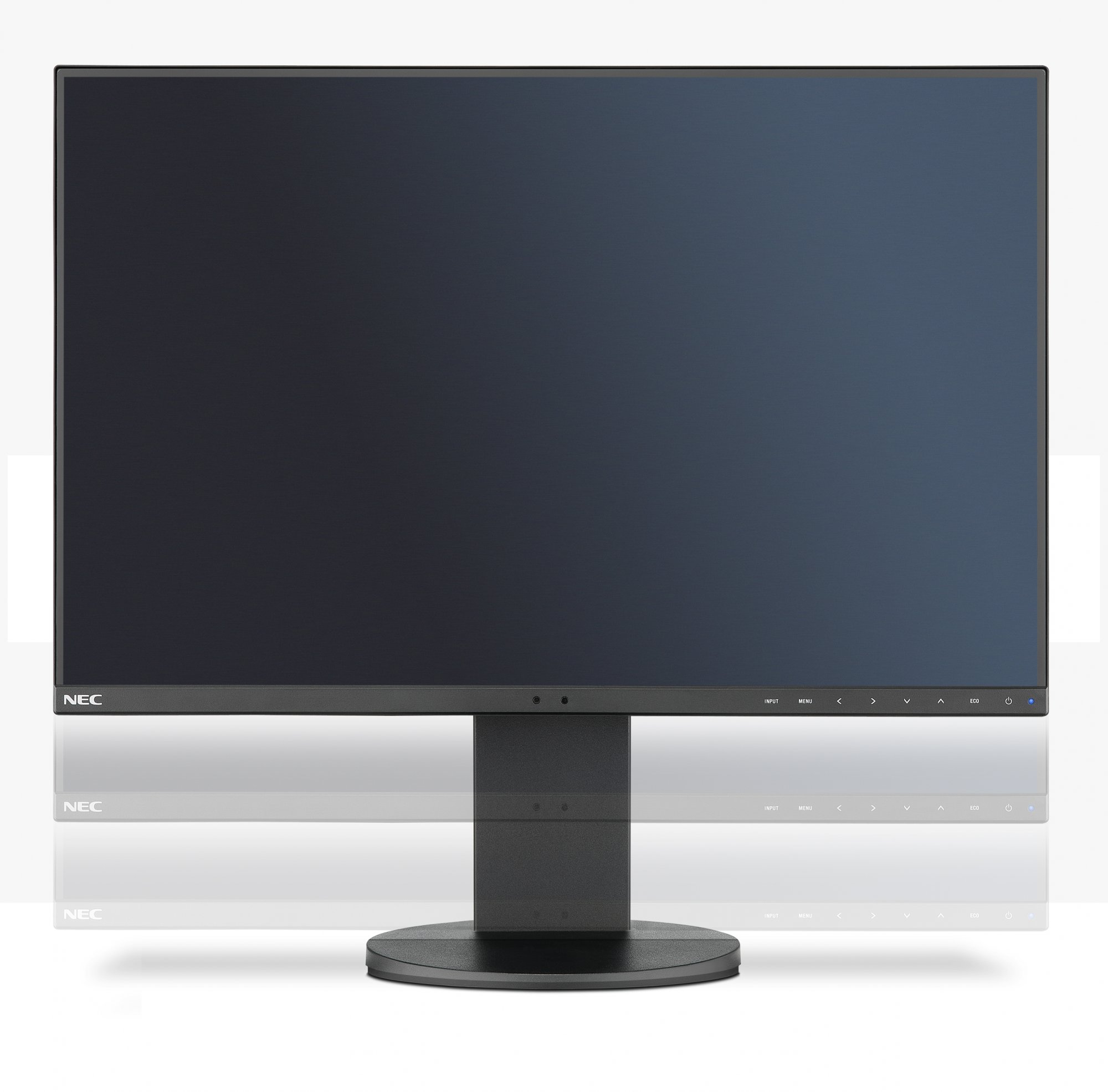

NEC MultiSync EA245WMi-2. Display diagonal: 61 cm (24"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LED. Display: LED. Response time: 6 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black

Ergonomic Office – full height adjustability (150 mm), swivel, tilt and pivot functionality ensures perfect individual ergonomic set-up
Future-Ready Design – best in form and function design with 3-sided 0.8 mm ultra-thin bezel gives an office a fresh professional interior
Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance
Highest Productivity and efficient Multi-Tasking – reduce the number of PCs and Daisy-Chain multiple displays using DisplayPort (out) and benefit from Uniformity Control for a consistent visualisation in a trading floor setup
Auto-Adjust Power Consumption – to minimize unnecessary power, Human and Ambient Light Sensor adjusts the display brightness when a user leaves his desk
Business Class Image Quality – Advanced High-Performance IPS (AH-IPS) panel provides the very best viewing angles as well as noticeably better colour reproduction

Product Properties

Manufacturer
NEC

Model
60004486

EAN
5028695115330

Design

Certification
TCO 7.0

Product colour
Black

Display

Backlight type
W-LED

Composite sync
Y

Contrast ratio (dynamic)
5000:1

Contrast ratio (typical)
1000:1

Digital horizontal frequency
31.5 - 95 kHz

Digital vertical frequency
56 - 75 Hz

Display brightness (typical)
300 cd/m²

Display number of colours
16.78 million colours

HD type
WUXGA

Max Refresh Rate
60 Hz

Native aspect ratio
16:10

Panel type
IPS

Pixel pitch
0.27 x 0.27 mm

Response time
6 ms

Screen Resolution
1920 x 1200 pixels

Screen shape
Flat

Screen Size
61 cm (24")

Screen Type
LED

Separate H/V sync
Y

Supported graphics resolutions
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 х 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)

Sync-on-green (SOG)
Y

Touchscreen
N

Viewable size, horizontal
51.8 cm

Viewable size, vertical
32.4 cm

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Ergonomics

Cable lock slot
Y

Cable lock slot type
Kensington

Height adjustment
15 cm

Y

On Screen Display (OSD)
Y

Panel mounting interface
100 x 100 mm

Pivot
Y

Pivot angle
-90 - 90°

Plug and Play
Y

Swivel angle range
-170 - 170°

Swivelling
Y

Tilt angle range
-5 - 35°

Tiltable
Y

VESA mounting
Y

Logistics data

Harmonized System (HS) code
85285210

Multimedia

Built-in camera
N

Built-in speaker(s)
Y

Number of speakers
2

RMS rated power
2 W

Operational conditions

Non-operating altitude
5000 - 12192 m

Operating altitude
0 - 5000 m

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
5 - 35 °C

Storage relative humidity (H-H)
10 - 85%

Storage temperature (T-T)
-10 - 60 °C

Other features

Display
LED

Light sensor
Y

On/off switch
Y

Power consumption (economy mode)
22 W

Rotating
Y

TV tuner integrated
N

Packaging content

Cables included
AC, DisplayPort, USB

Quick start guide
Y

Performance

AMD FreeSync
N

NVIDIA G-SYNC
N

Ports & interfaces

Built-in USB hub
Y

DisplayPorts quantity
2

DVI port
Y

DVI-D ports quantity
1

HDCP
Y

HDMI ports
1

Headphone outputs
1

Number of upstream ports
1

USB hub version
3.2 Gen 1 (3.1 Gen 1)

USB Type-A downstream ports quantity
3

VGA (D-Sub) ports quantity
1

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Energy consumption (SDR) per 1000 hours
16 kWh

Energy efficiency class (SDR)
E

Energy efficiency scale
A to G

Power consumption (max)
28 W

Power consumption (PowerSave)
0.3 W

Power consumption (typical)
18 W

Sustainability

Sustainability certificates
ENERGY STAR

Thin Client

Processor family
AMD Ontario

Weight & dimensions

Depth (with stand)
250 mm

Height (with stand)
515.4 mm

Weight (with stand)
6.7 kg

Weight (without stand)
4.2 kg

Width (with stand)
531.5 mm

NEC MultiSync EA245WMi-2 61 cm (24") 1920 x 1200 pixels WUXGA LED Black
