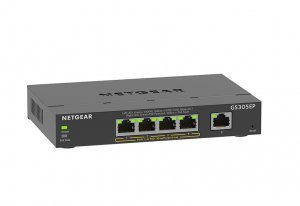

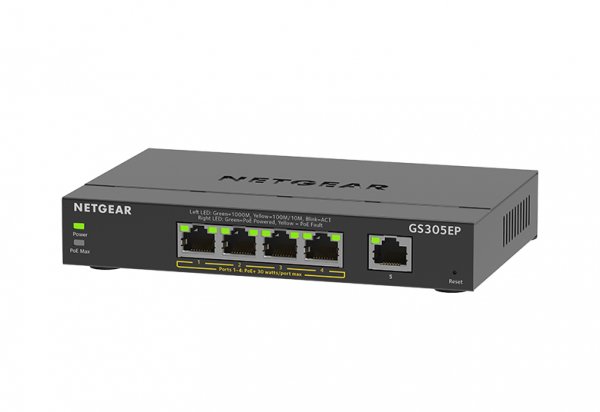

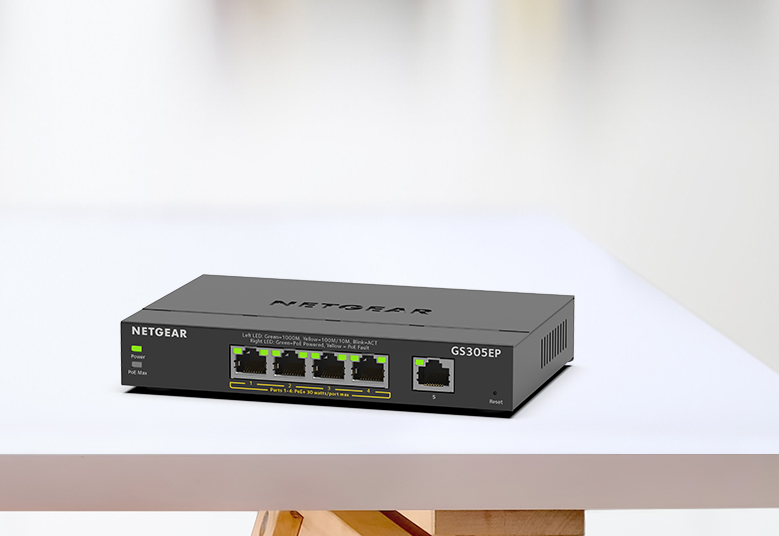

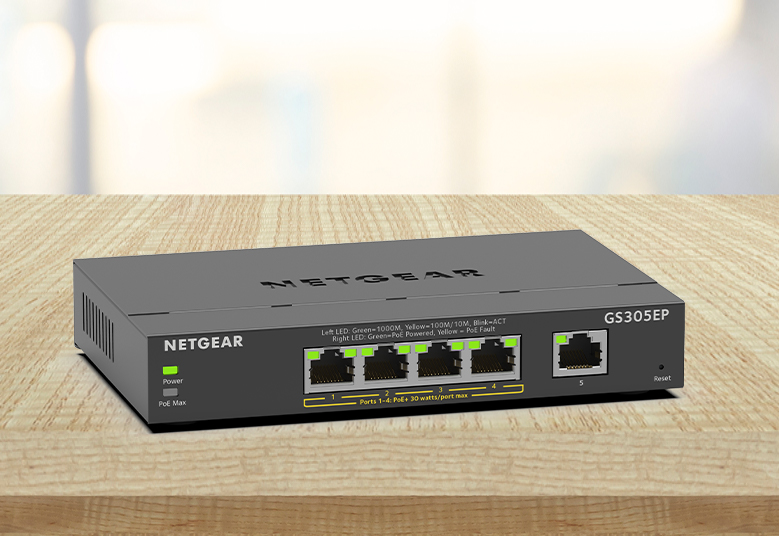

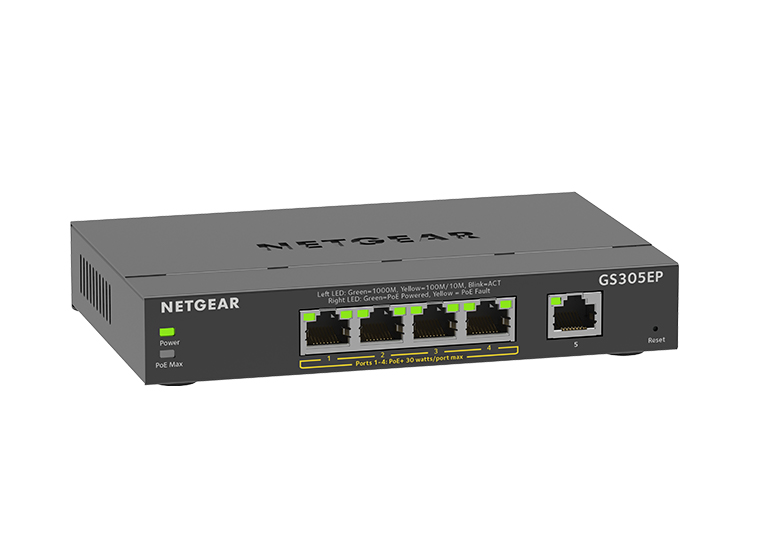

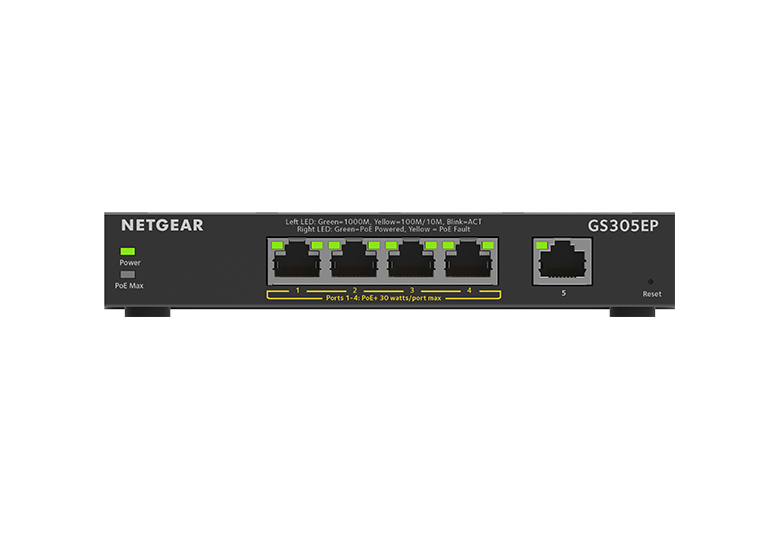

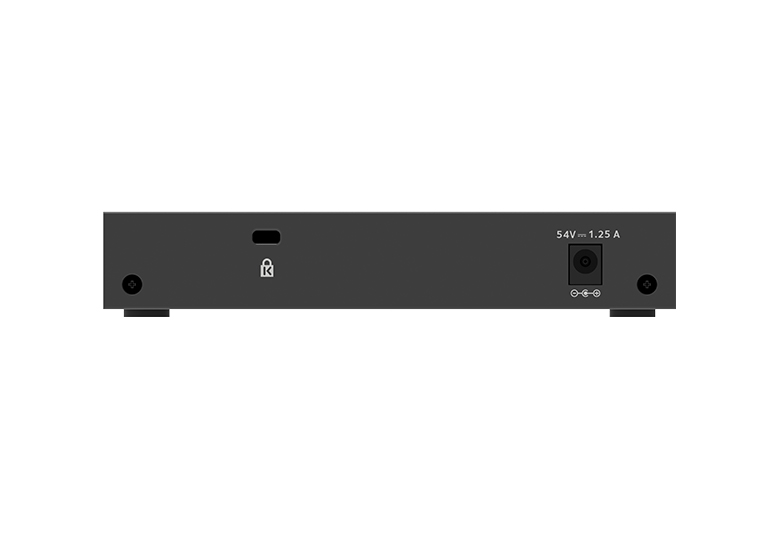

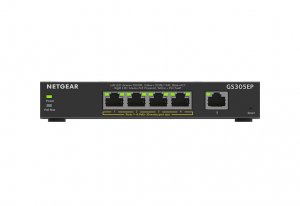

NETGEAR GS305EP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
NETGEAR GS305EP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS305EP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Print
Model: GS305EP-100UKS
EAN: 606449153156

NETGEAR GS305EP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Manufacturer:
Netgear
NETGEAR GS305EP, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

NETGEAR GS305EP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 4000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE.... Power over Ethernet (PoE). Wall mountable

Product Properties

  • Model
  • GS305EP-100UKS
  • EAN
  • 606449153156
  • Data transmission
  • Jumbo frames
  • 9216
  • MAC address table
  • 4000 entries
  • Packet buffer memory
  • 0.192 MB
  • Store-and-forward
  • Yes
  • Switching capacity
  • 10 Gbit/s
  • Design
  • Certification
  • CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
  • Housing material
  • Metal
  • LED indicators
  • Activity, Link, PoE, Power, Speed, System
  • Product colour
  • Black
  • Rack mounting
  • No
  • Wall mountable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L3
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • Number of VLANs
  • 64
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Non-operating altitude
  • 0 - 3000 m
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Packaging data
  • Quick start guide
  • Yes
  • Performance
  • Fanless
  • Yes
  • Mean time between failures (MTBF)
  • 1164104 h
  • Ports & interfaces
  • Switch Number of Ports
  • 5
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • Input current
  • 1.25 A
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) ports quantity
  • 4
  • Power over Ethernet plus (PoE+) ports quantity
  • 4
  • Total Power over Ethernet (PoE) budget
  • 63 W
  • Security
  • DHCP features
  • DHCP client
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • Password protection
  • Yes
  • Queue scheduling algorithms
  • Weighted Round Robin (WRR)
  • Weight & dimensions
  • Depth
  • 101 mm
  • Height
  • 27 mm
  • Weight
  • 390 g
  • Width
  • 158 mm
