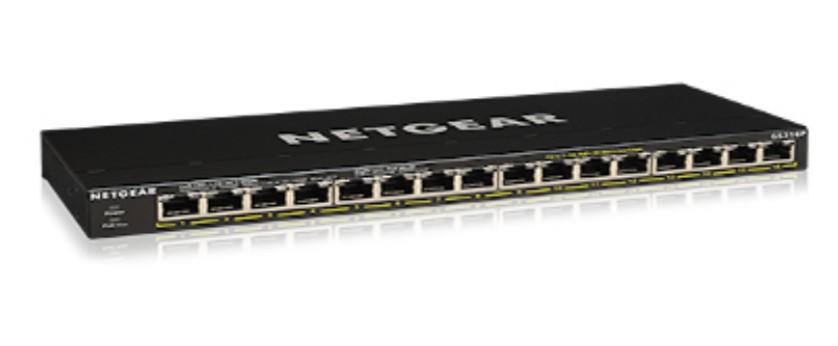

NETGEAR GS316P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
Print
Model: GS316P-100EUS
EAN: 606449146882

NETGEAR GS316P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Manufacturer:
Netgear
NETGEAR GS316P, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

NETGEAR GS316P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 4000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
  • Choice of Fast Ethernet and Gigabit Ethernet connectivity
  • Energy-efficient technology for power savings
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
  • Fanless design for silent operation
  • Desktop, wall-mountable or rack-mountable (GS324, GS348)

Product Properties

  • Model
  • GS316P-100EUS
  • EAN
  • 606449146882
  • Bullet points
  • Point
  • Auto-MDI/MDIX eliminates the need for crossover cables
    Choice of Fast Ethernet and Gigabit Ethernet connectivity
    Desktop, wall-mountable or rack-mountable (GS324, GS348)
    Energy-efficient technology for power savings
    Fanless design for silent operation
    Non-blocking switching architecture for maximum throughput at wire speed
  • Data transmission
  • Jumbo frames
  • 9216
  • Jumbo frames support
  • Yes
  • Latency (1 Gbps)
  • 3.7 µs
  • MAC address table
  • 4000 entries
  • Packet buffer memory
  • 1 MB
  • Packet forwarding rate (1 Gbps)
  • 1448000 pps
  • Switching capacity
  • 32 Gbit/s
  • Design
  • Housing material
  • Metal
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • No
  • Wall mountable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • Networking standards
  • IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • Operational conditions
  • Heat dissipation
  • 437.42 BTU/h
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Performance
  • Mean time between failures (MTBF)
  • 2362192 h
  • Ports & interfaces
  • Power connector
  • DC-in jack
  • Switch Number of Ports
  • 16
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • DC input voltage
  • 54 V
  • Input current
  • 2.4 A
  • Power consumption (max)
  • 127.9 W
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 16
  • Weight & dimensions
  • Depth
  • 102 mm
  • Height
  • 27 mm
  • Weight
  • 880 g
  • Width
  • 286 mm
