Description

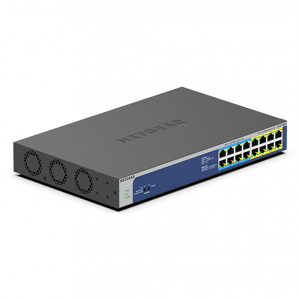

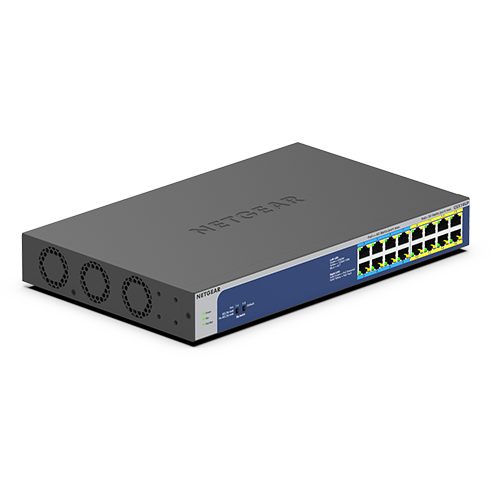

NETGEAR GS516UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE.... Power over Ethernet (PoE). Rack mounting

PLUG AND PLAY: Simple setup with no software or configuration needed
POWER-OVER-ETHERNET: large 380W total PoE budget with 8 Ultra60 PoE++ ports and 8 PoE+ ports to power wireless AP, 4K/8K IP Cameras, LED lights, IoT devices, and much more
COMPACT, FLEXIBLE FORM FACTOR – Small case with internal power supply and whisper-quiet fans, perfect for desktop, wall-mount, or rackmount deployment
EASY-MONITORING - Per port LEDs for port activity and speed
GIGABIT ETHERNET – 16 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 32Gb non-blocking switching
PoE AUTO-BALANCE - unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected

Product Properties

Manufacturer
Netgear

Model
GS516UP-100EUS

EAN
606449149746

Bullet points

Point
EASY-MONITORING - Per port LEDs for port activity and speed

PLUG AND PLAY: Simple setup with no software or configuration needed

POWER-OVER-ETHERNET

Data transmission

Jumbo frames support
Yes

Latency (1 Gbps)
12 µs

MAC address table
8000 entries

Packet buffer memory
0.192 MB

Packet forwarding rate (1 Gbps)
1448000 pps

Switching capacity
32 Gbit/s

Design

Housing material
Metal

LED indicators
Activity, Link, PoE, Power, Speed

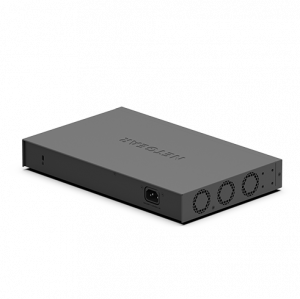

Number of fans
3 fan(s)

Product colour
Grey

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Full duplex
Yes

Half duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3p, IEEE 802.3u

Operational conditions

Heat dissipation
1559.5152 BTU/h

Operating altitude
0 - 3000 m

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-20 - 70 °C

Performance

Mean time between failures (MTBF)
1213791 h

Ports & interfaces

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
8 - 4 A

Power consumption (max)
456.8 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
60 W

Power over Ethernet plus (PoE+) ports quantity
16

Total Power over Ethernet (PoE) budget
380 W

Weight & dimensions

Depth
220 mm

Height
43 mm

Weight
2.6 kg

Width
390 mm

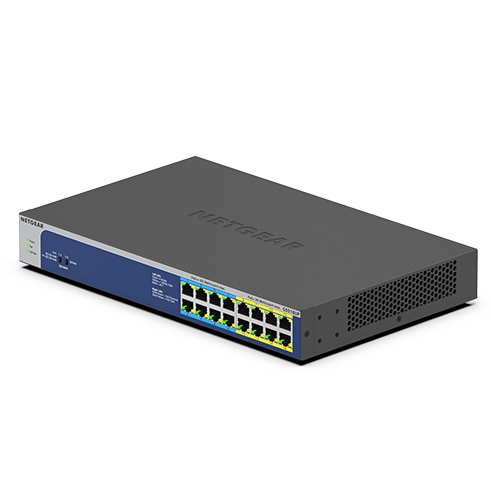

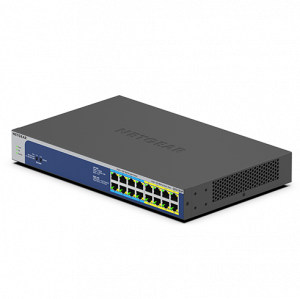

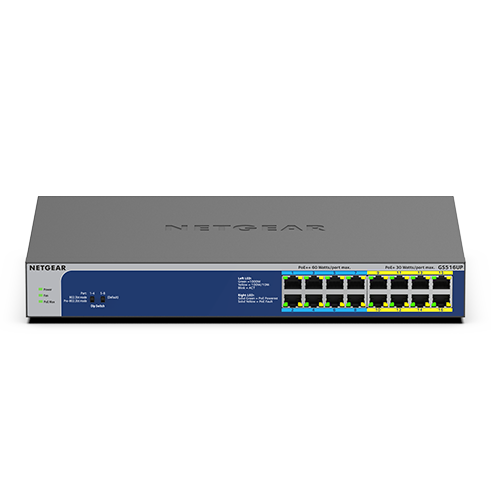

NETGEAR GS516UP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
