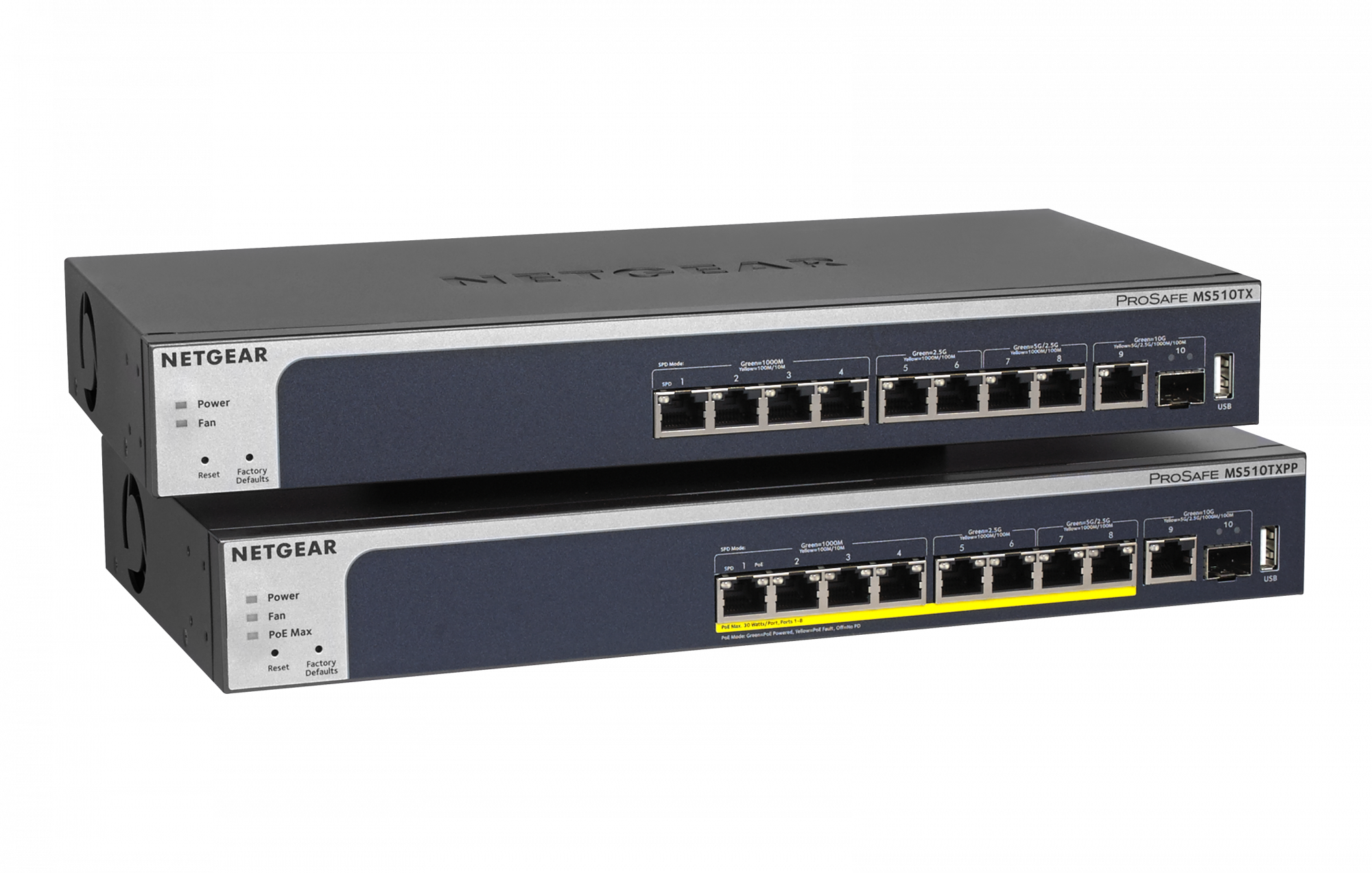

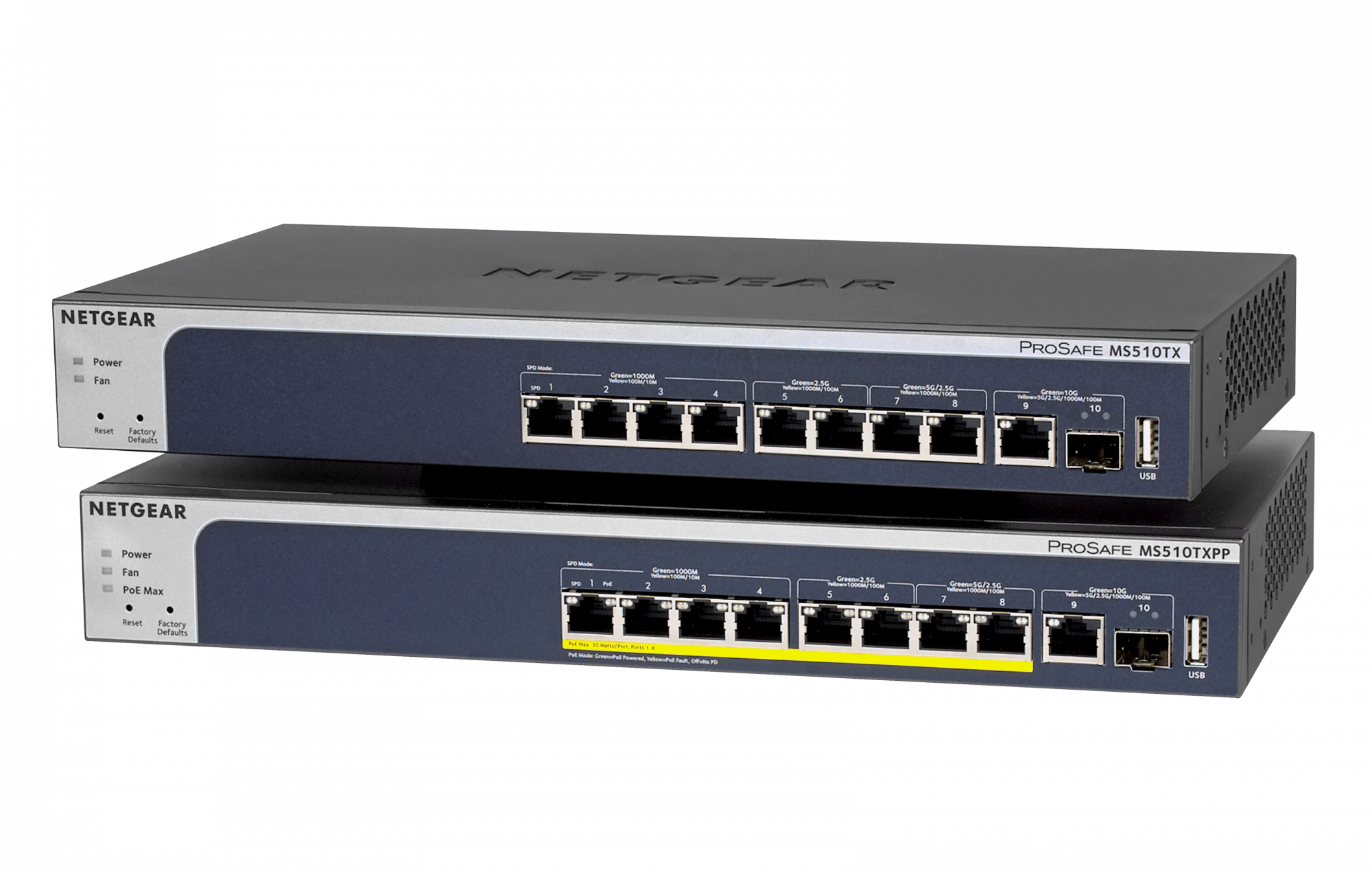

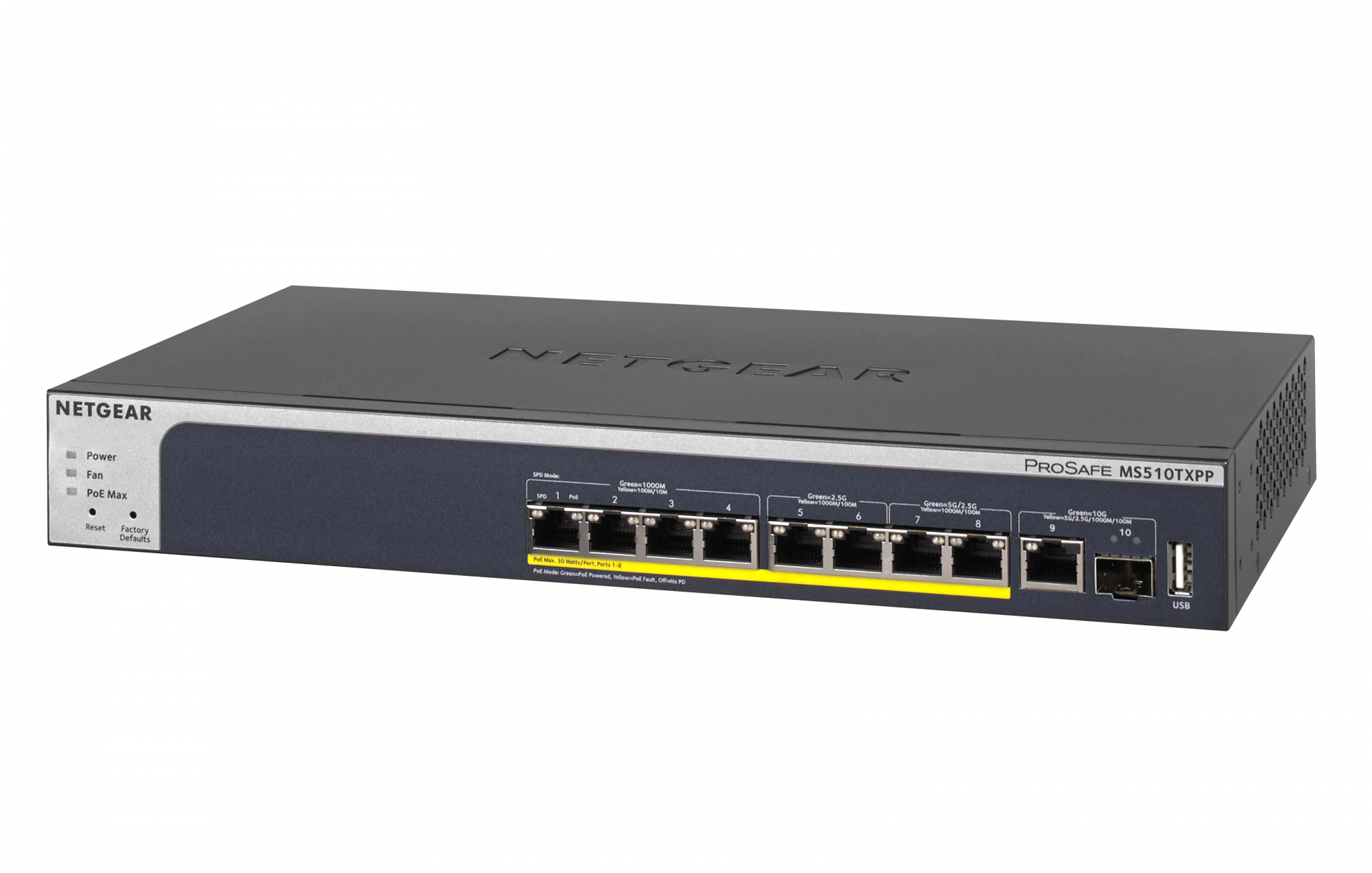

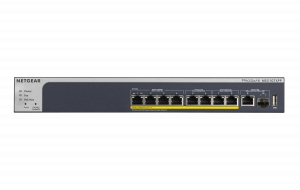

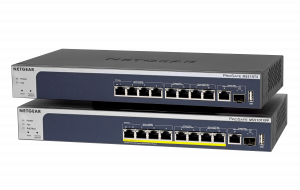

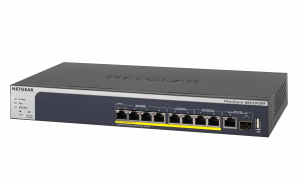

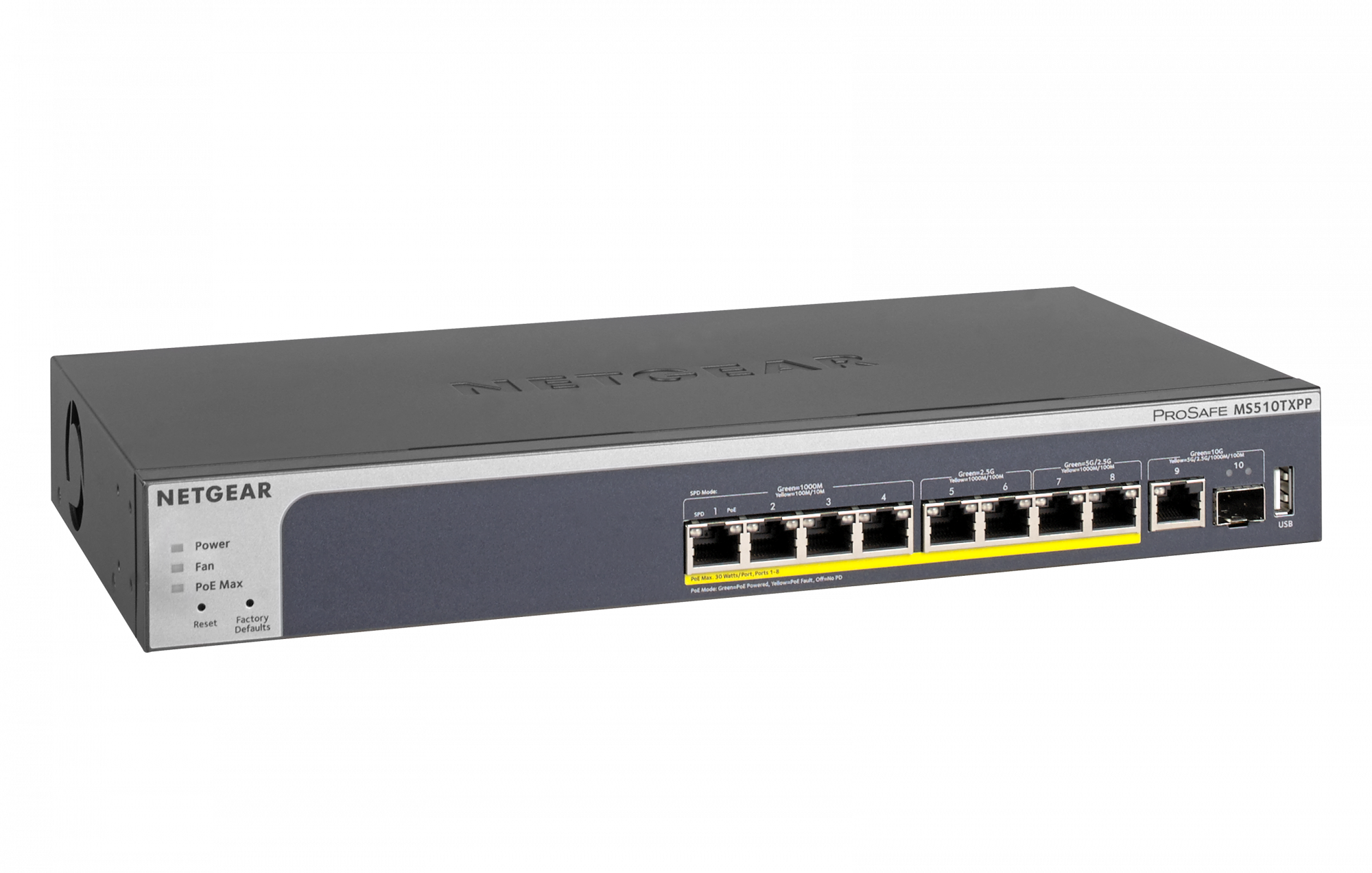

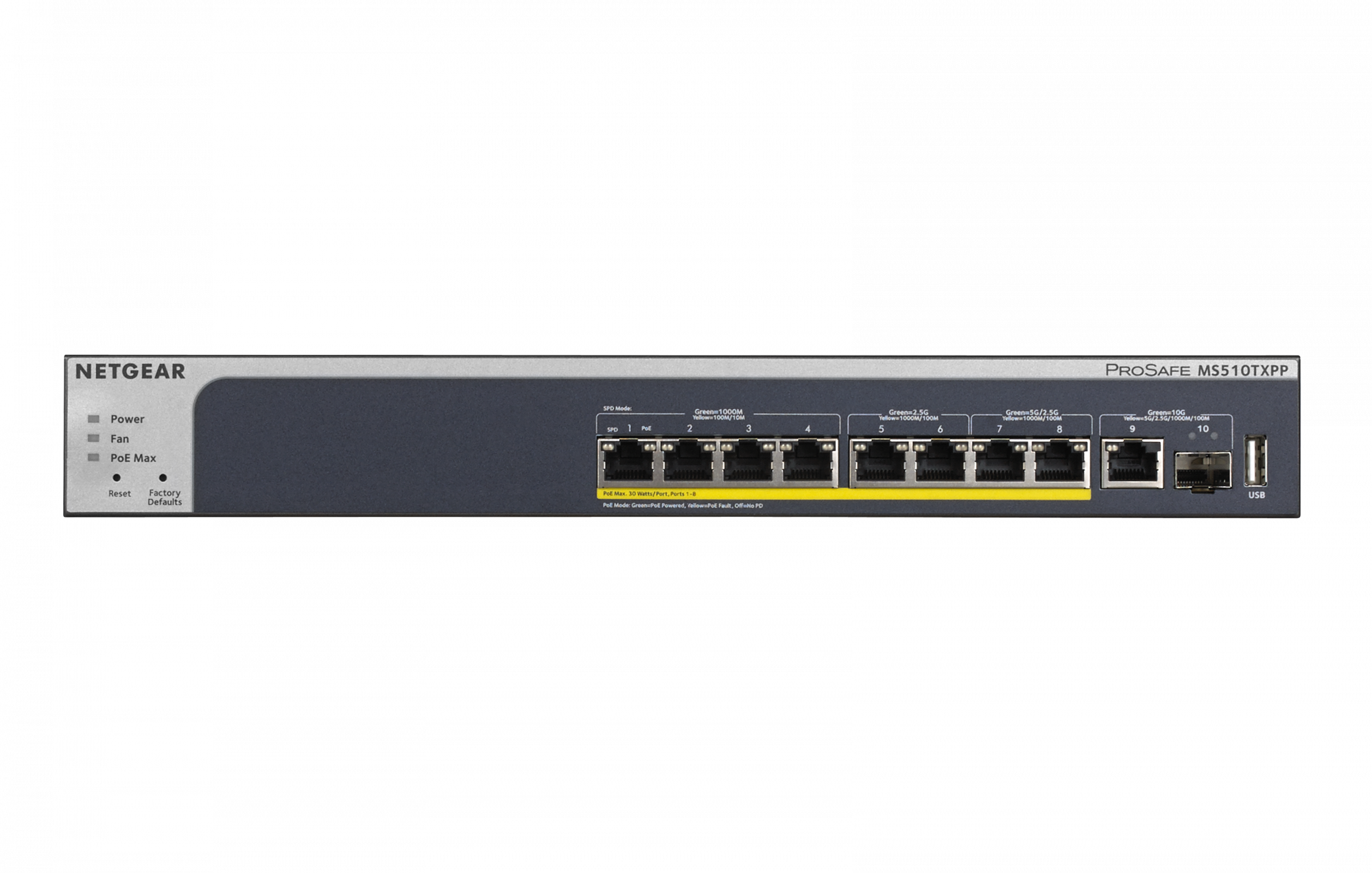

NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Roll over image to zoom inClick to Open expanded view
NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Print
Model: MS510TXPP-100EUS
EAN: 606449120967

NETGEAR MS510TXPP Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey

Manufacturer:
Netgear
NETGEAR MS510TXPP, Managed, L2/L3/L4, 10G Ethernet (100/1000/10000), Full duplex, Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

NETGEAR MS510TXPP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, USB 2.0 ports quantity: 1, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 78 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting

Product Properties

  • Model
  • MS510TXPP-100EUS
  • EAN
  • 606449120967
  • Data transmission
  • Jumbo frames
  • 10000
  • Jumbo frames support
  • Yes
  • Latency (10 Gbps)
  • 2.36 µs
  • MAC address table
  • 16000 entries
  • Number of static routes
  • 32
  • Packet buffer memory
  • 3 MB
  • Static route
  • Yes
  • Switching capacity
  • 78 Gbit/s
  • Design
  • Certification
  • EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, VCCI-CISPR 32:2016, AS/NZS CISPR 32:2013, GB4943.1-2011; YD/T993-1998; GB/T9254-2008, 47 CFR FCC, ANSI C63.4:2014, ICES-003:2016, ANSI C63.4:2014, CNS 13438
  • LED indicators
  • Yes
  • Number of fans
  • 1 fan(s)
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Safety
  • IEC 60950-1:2005, A1:2009+A2:2013, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, 60950.1:2015, GB4943.1-2011, YD/T993-1998; GB/T9254-2008, CNS 14336-1
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L3/L4
  • Switch type
  • Managed
  • Web-based management
  • Yes
  • Multicast features
  • Multicast MAC address table
  • 512 entries
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Auto-negotiation
  • Yes
  • Broadcast storm control
  • Yes
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • Half duplex
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Number of VLANs
  • 256
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 799.5 BTU/h
  • Operating altitude
  • 0 - 3000 m
  • Operating relative humidity (H-H)
  • 0 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 0 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Performance
  • Built-in processor
  • Yes
  • Mean time between failures (MTBF)
  • 376434 h
  • Noise level
  • 28.8 dB
  • Processor frequency
  • 800 MHz
  • Ports & interfaces
  • 10G Ethernet (copper) ports quantity
  • 1
  • 2.5G Ethernet (copper) ports quantity
  • 2
  • Console port
  • RJ-45
  • Gigabit Ethernet (copper) ports quantity
  • 4
  • Power connector
  • DC-in jack
  • SFP+ module slots quantity
  • 1
  • Switch Number of Ports
  • 8
  • Switch Port Speed
  • 10G Ethernet (100/1000/10000)
  • USB 2.0 ports quantity
  • 1
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 234.31 W
  • Power consumption (typical)
  • 19.39 W
  • Power source
  • AC
  • Power supply included
  • No
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 8
  • Total Power over Ethernet (PoE) budget
  • 180 W
  • Security
  • Access Control List (ACL)
  • Yes
  • Access Control List (ACL) rules
  • 164
  • DHCP features
  • DHCP server, DHCP client
  • IGMP snooping
  • Yes
  • Weight & dimensions
  • Depth
  • 204 mm
  • Height
  • 43 mm
  • Weight
  • 2.61 kg
  • Width
  • 440 mm
