Description

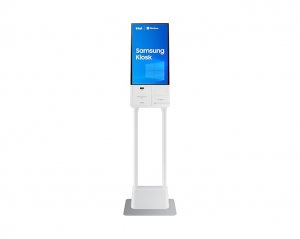

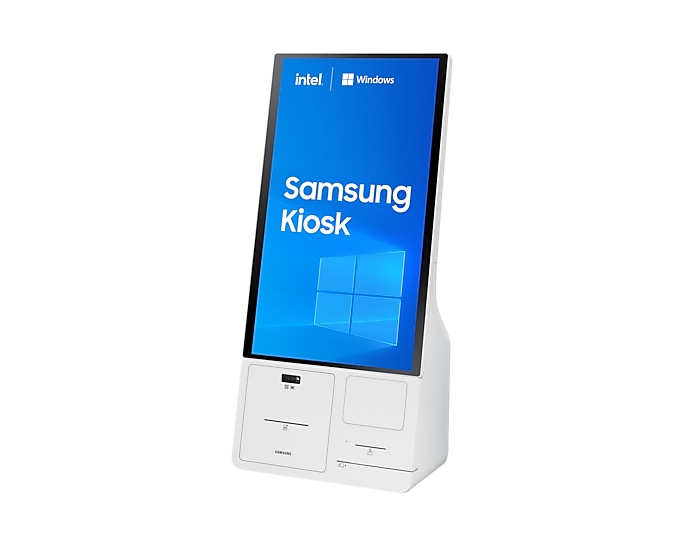

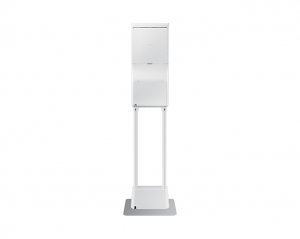

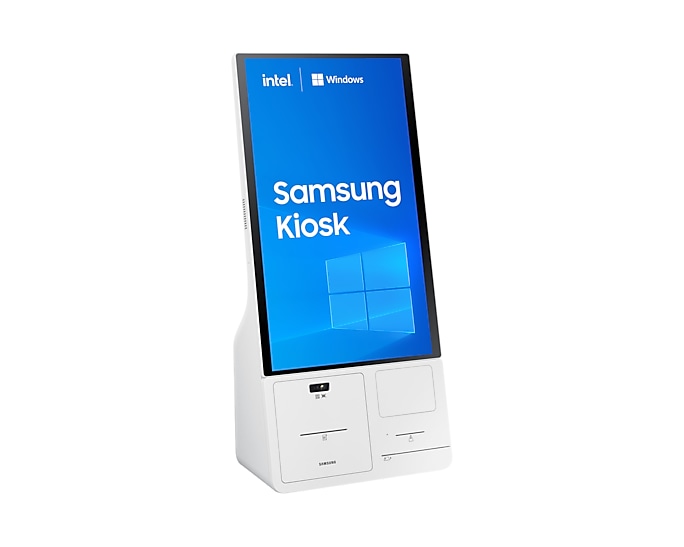

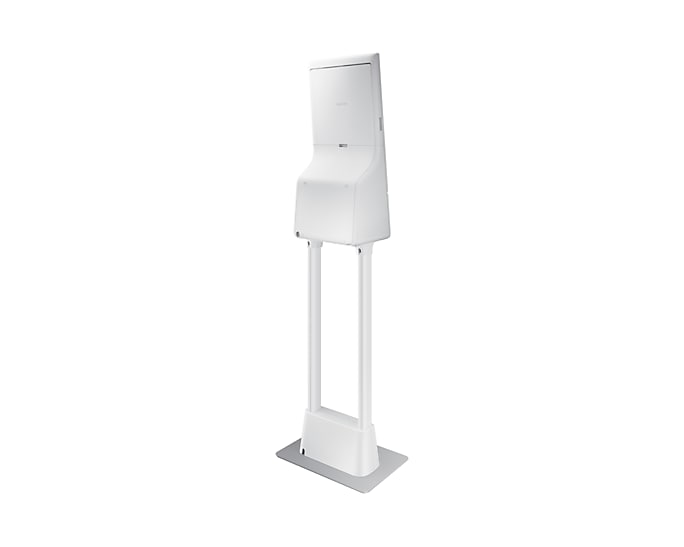

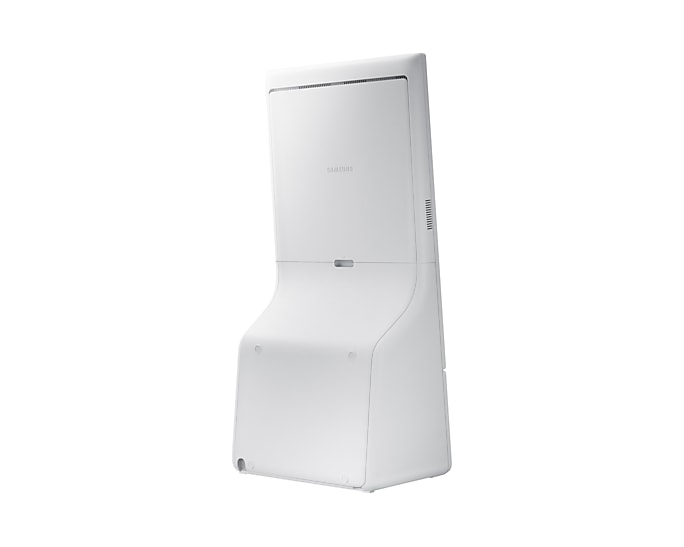

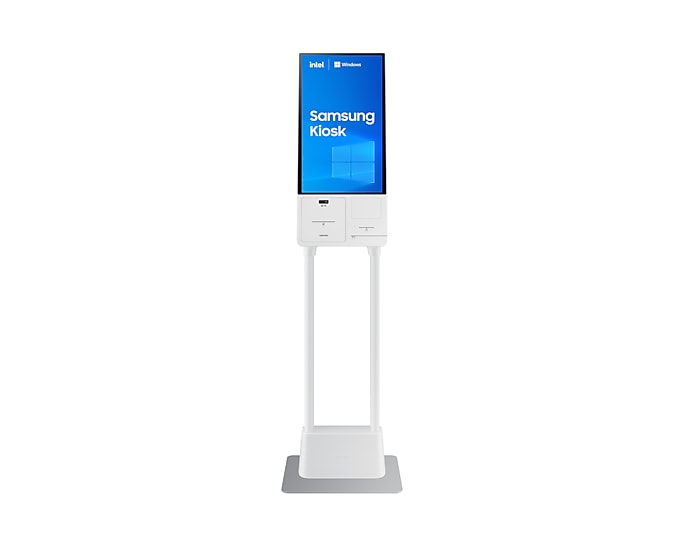

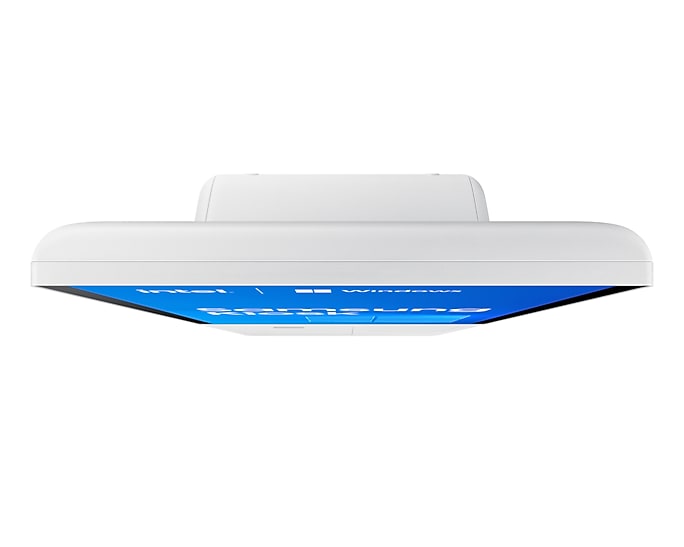

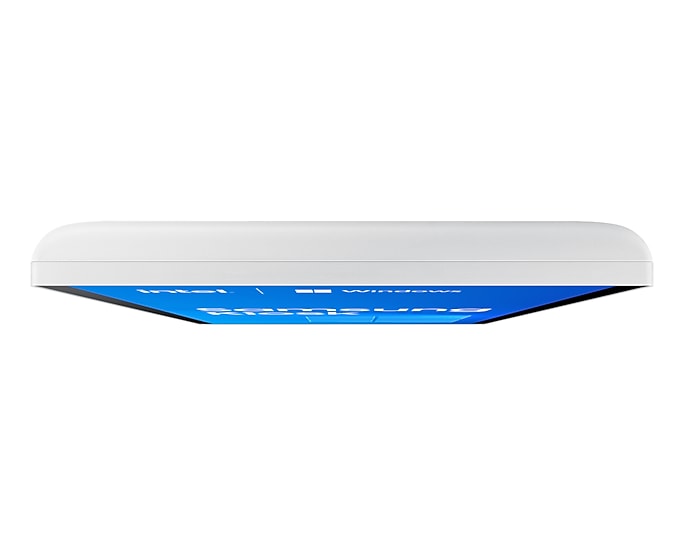

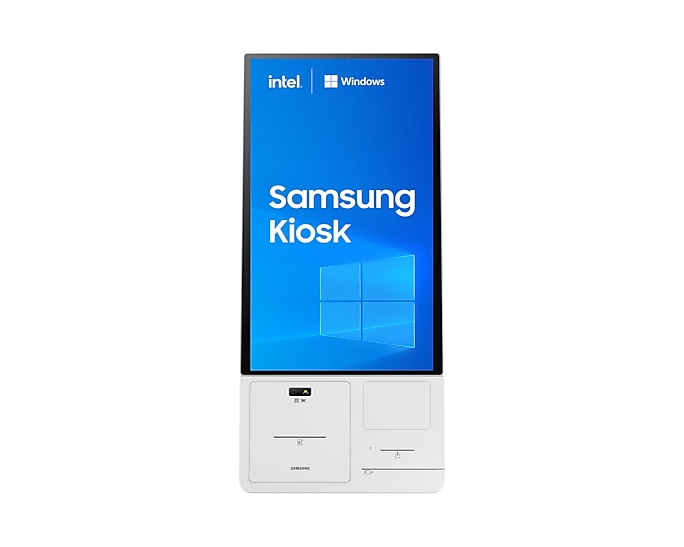

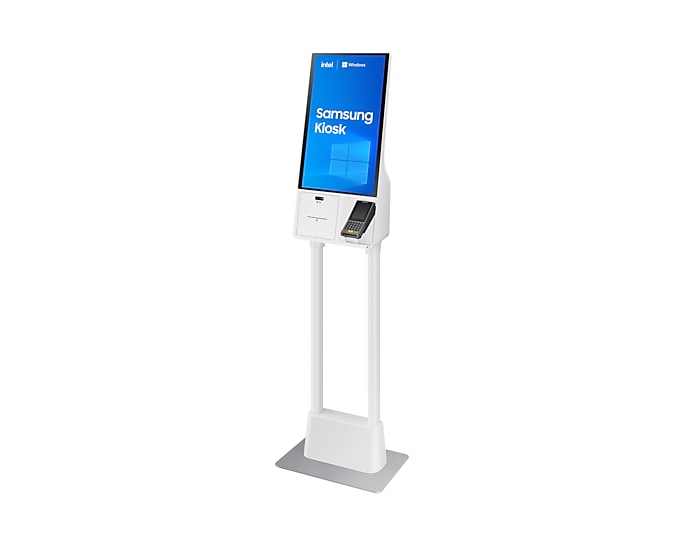

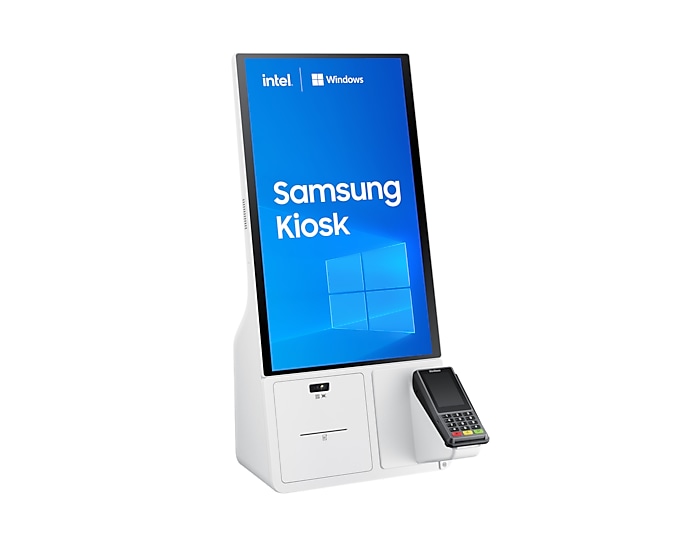

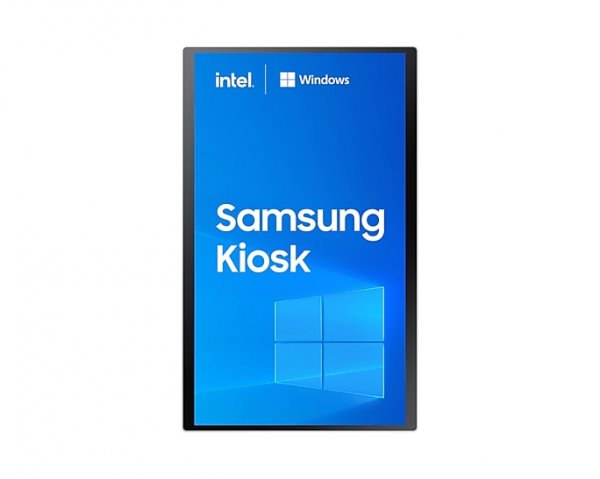

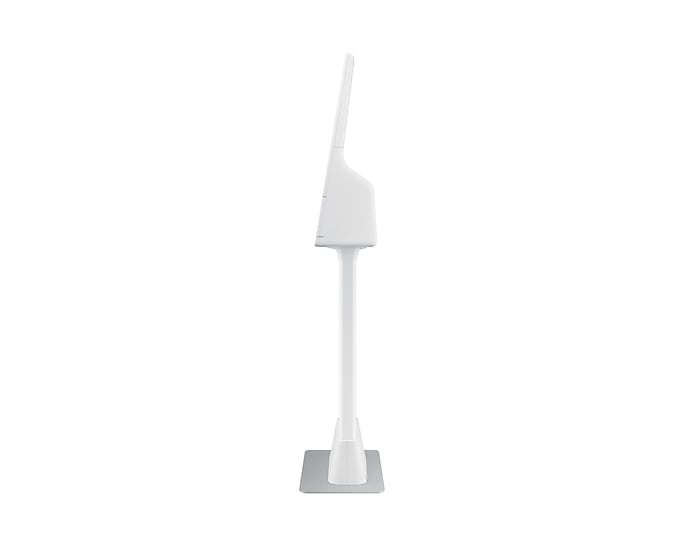

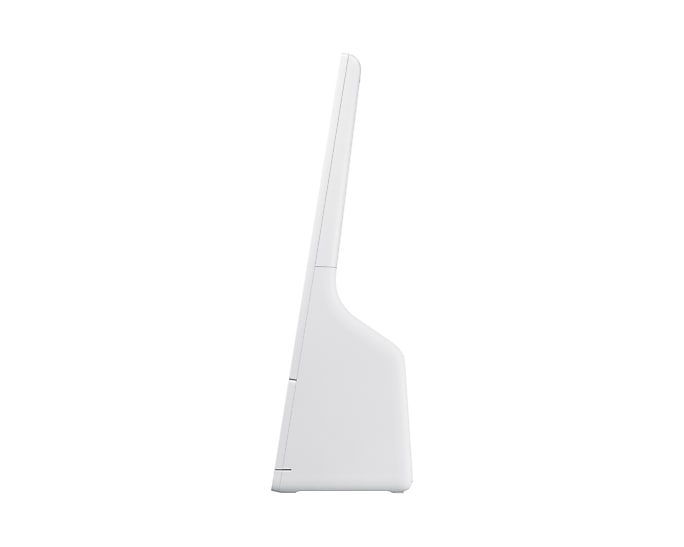

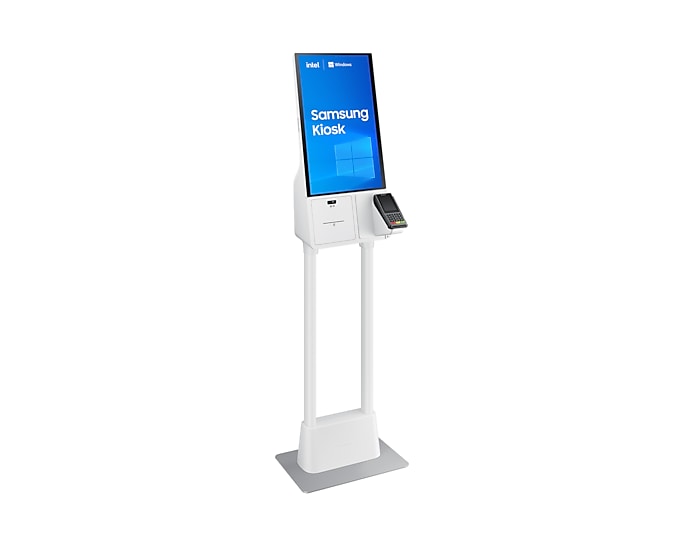

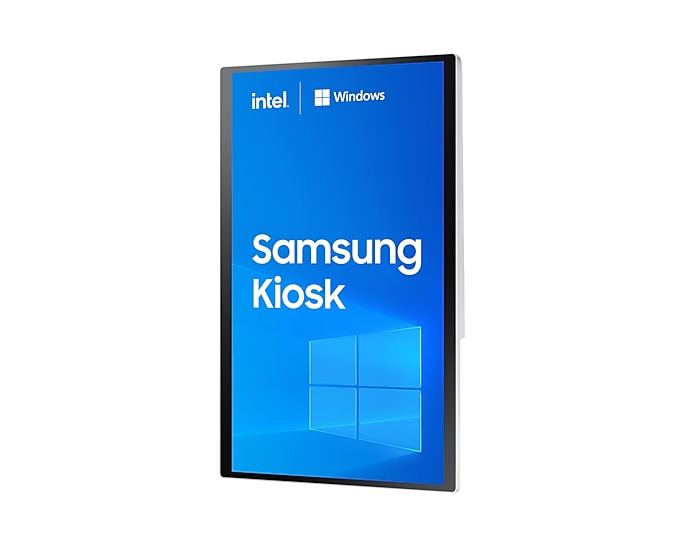

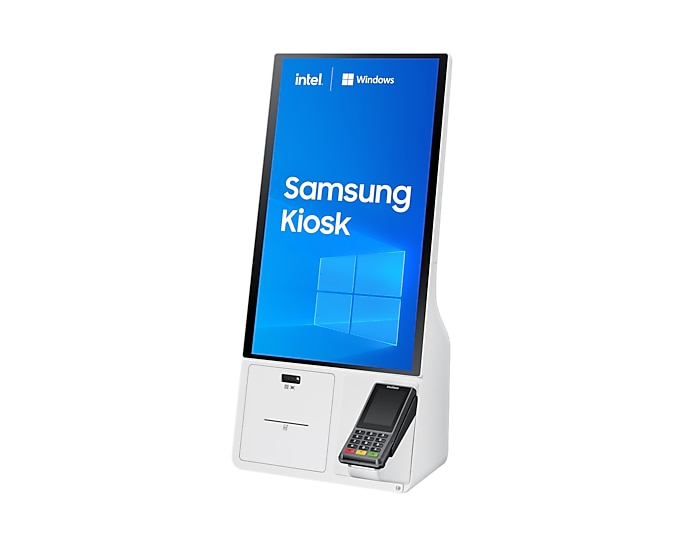

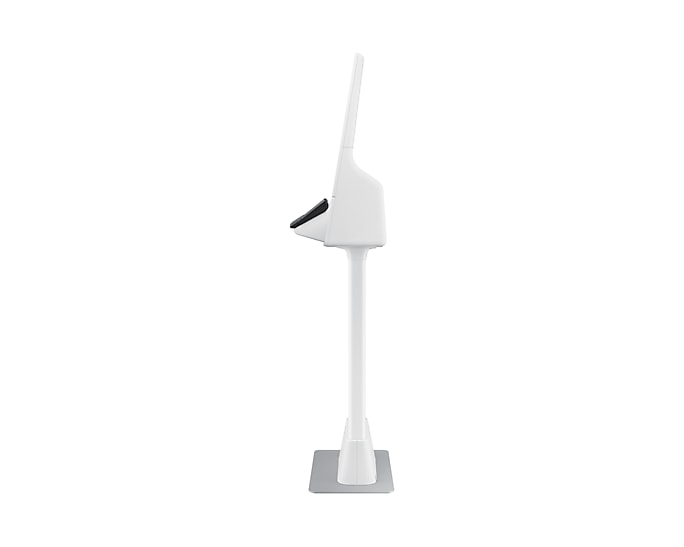

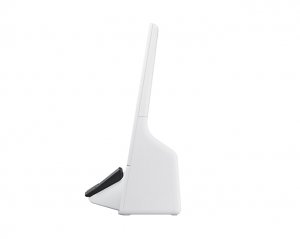

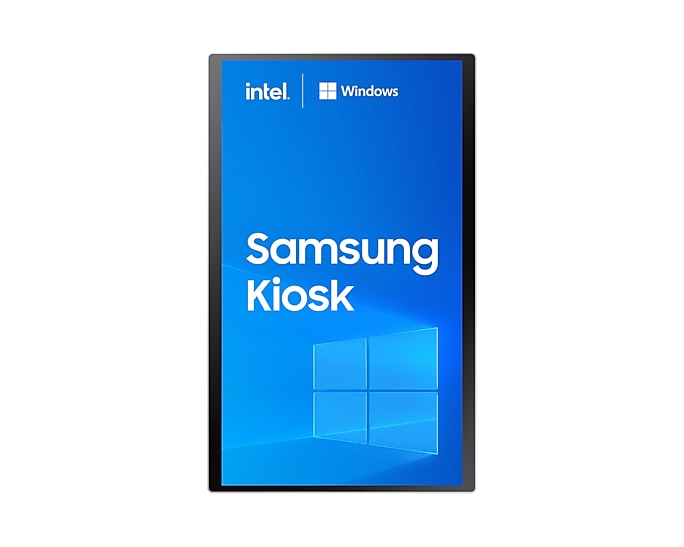

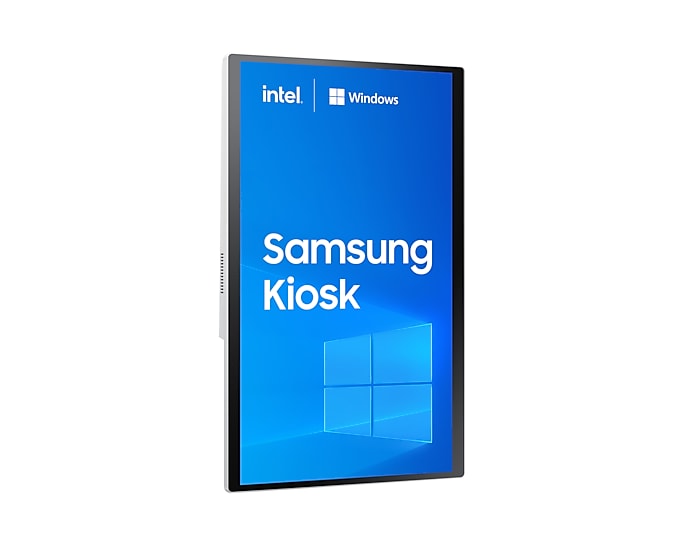

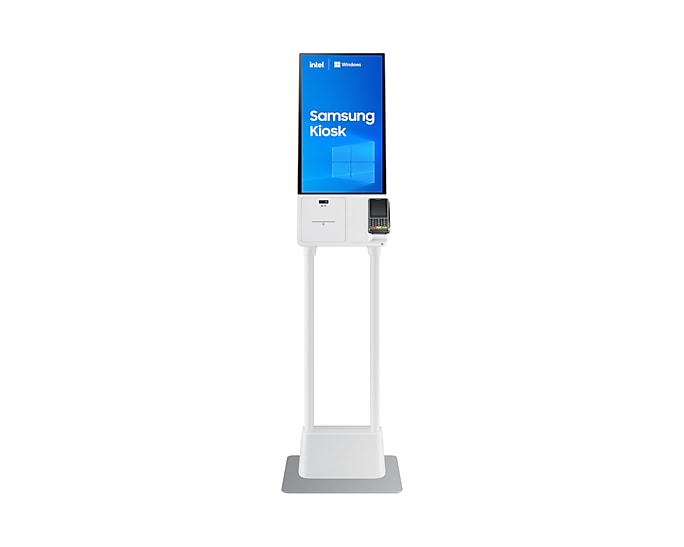

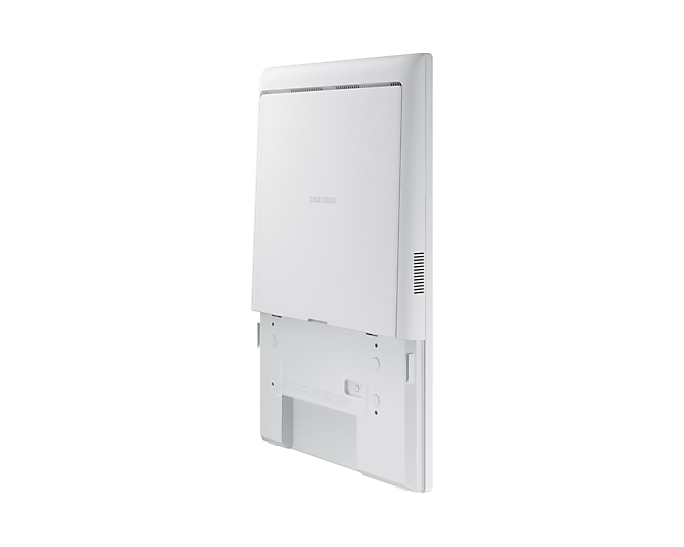

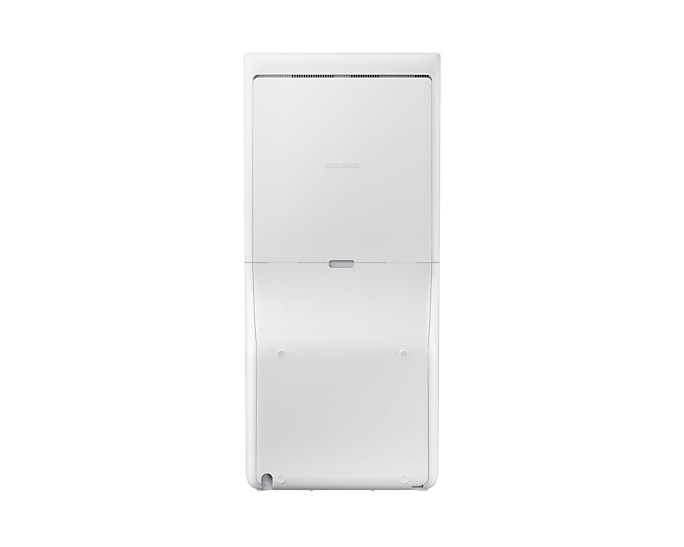

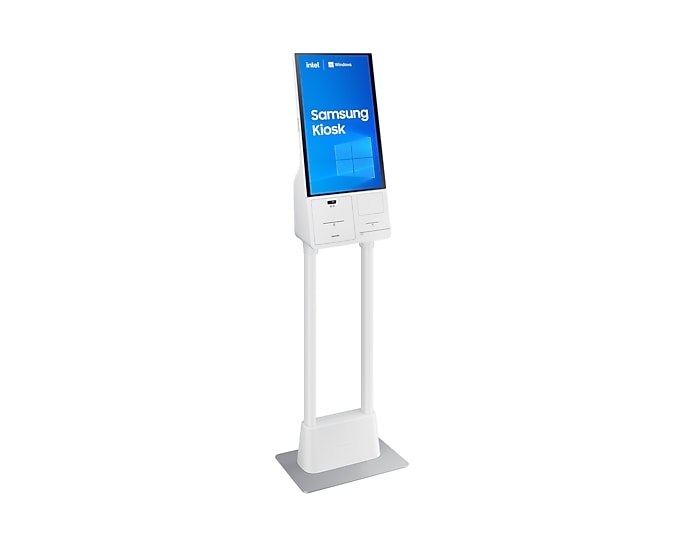

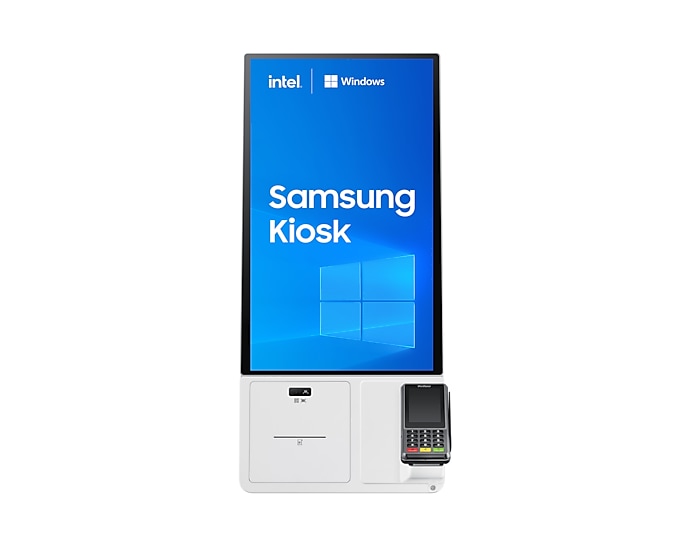

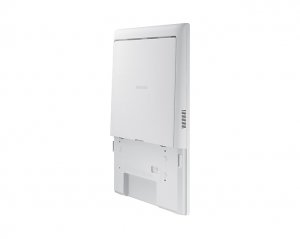

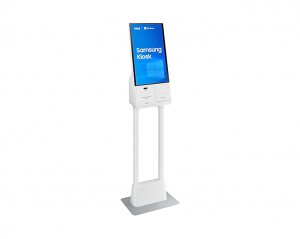

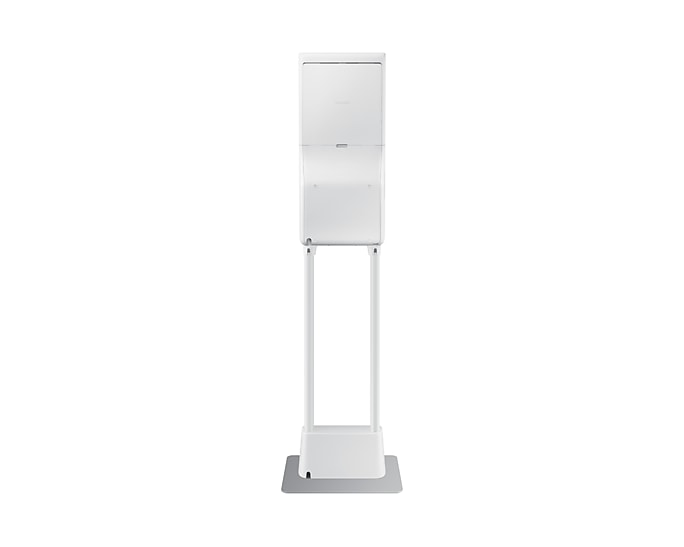

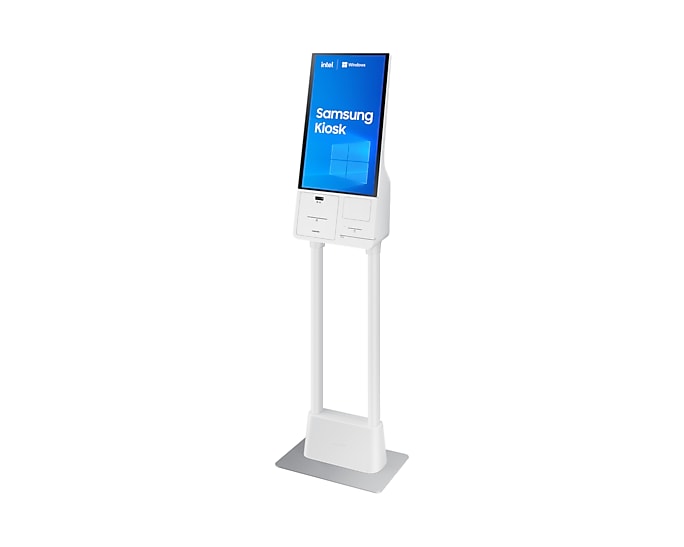

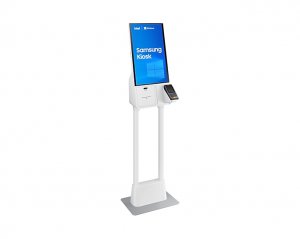

Samsung LH24KMCCBGCXEN. Product design: Kiosk design. Display diagonal: 61 cm (24"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Operating system installed: Windows 10 IoT Enterprise. Product colour: White

Self-service out of the box with Windows OS
Enhanced compatibility with built-in Windows 10 IoT Enterprise OS
Helpful, safe interactions that enhances customer safety
Powerful solution with no PC needed, while delivering reliable technology

Product Properties

Manufacturer
Samsung

Model
LH24KMCCBGCXEN

EAN
8806095038667

Bullet points

Point
Enhanced compatibility with built-in Windows 10 IoT Enterprise OS

Helpful, safe interactions that enhances customer safety

Powerful solution with no PC needed, while delivering reliable technology

Self-service out of the box with Windows OS

Computer system

Built-in processor
Yes

Computer system
Yes

Computer system type
System on Chip (SoC)

Internal memory
256 GB

Operating System
Windows 10 IoT Enterprise

Processor manufacturer
Intel

Design

Anti-glare screen
Yes

Bezel width (bottom)
9.4 mm

Bezel width (top)
1.79 cm

Orientation
Vertical

Placement supported
Indoor

Product colour
White

Product design
Kiosk design

Screen shape
Flat

VESA mounting
No

Display

Colour gamut
72%

Contrast ratio (typical)
1000:1

Display brightness
250 cd/m²

HD type
Full HD

Horizontal scan range
56 - 84.5 kHz

Panel type
ADS

Pixel pitch
0.2745 x 0.2745 mm

Response time
14 ms

Screen Resolution
1920 x 1080 pixels

Screen Size
61 cm (24")

Screen Type
60.4 cm

Screen Type
LED

Touchscreen
Yes

Touchscreen technology
Capacitive

Vertical scan range
48 - 75 Hz

Viewing angle, horizontal
178°

Viewing angle, vertical
178°

Operational conditions

Operating relative humidity (H-H)
10 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
10 - 90%

Storage temperature (T-T)
-20 - 45 °C

Packaging data

Package depth
122 mm

Package height
419 mm

Package weight
5.7 kg

Package width
620 mm

Performance

Purpose
Commercial

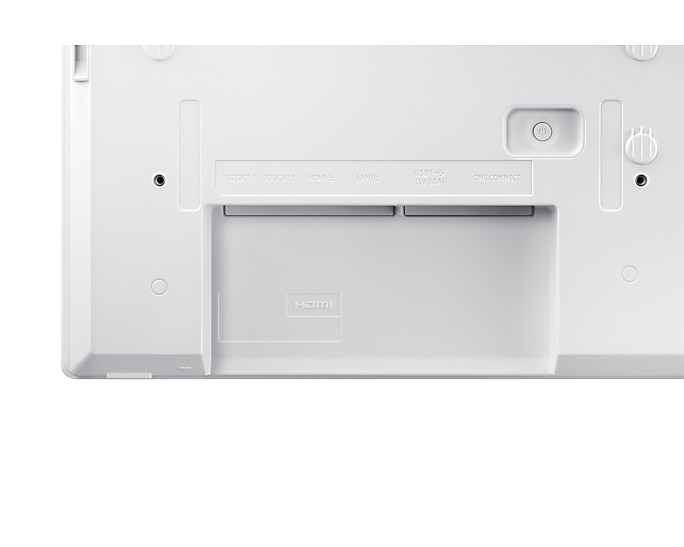

Ports & interfaces

DC-in jack
Yes

USB port
Yes

USB ports quantity
1

Power

Power consumption (sleep)
0.5 W

Power consumption (typical)
88 W

Weight & dimensions

Display depth
48.8 mm

Display height
334.4 mm

Display weight
4.3 kg

Display width
547.9 mm

Samsung LH24KMCCBGCXEN Signage Display Kiosk design 61 cm (24") LED 250 cd/m² Full HD White Touchscreen Built-in processor Windows 10 IoT Enterprise
