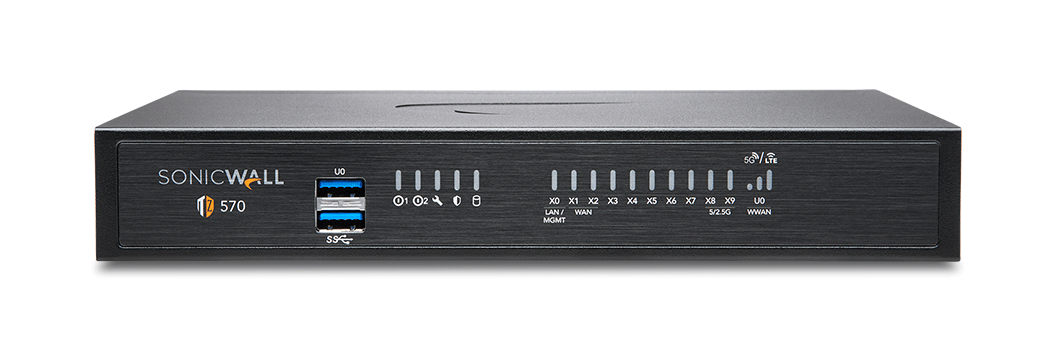

SonicWall TZ570 hardware firewall Desktop 4000 Mbit/s
Roll over image to zoom inClick to Open expanded view
Print
Model: 02-SSC-5694
EAN: 758479256946

SonicWall TZ570 hardware firewall Desktop 4000 Mbit/s

Manufacturer:
Sonicwall
SonicWall TZ570, 4000 Mbit/s, 1.8 Gbit/s, 2500 Mbit/s, 750 Mbit/s, 44.7 BTU/h, BGP, OSPF, RIP-1, RIP-2
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

SonicWall TZ570. Firewall throughput: 4000 Mbit/s, IPSec VPN throughput: 1.8 Gbit/s, IPS/IDS throughput: 2500 Mbit/s. Heat dissipation: 44.7 BTU/h. Routing protocols: BGP, OSPF, RIP-1, RIP-2. Connectivity technology: Wired, Ethernet LAN data rates: 1000,5000 Mbit/s, Console port: RJ-45. Total storage capacity: 32 GB

Product Properties

  • Model
  • 02-SSC-5694
  • EAN
  • 758479256946
  • Data transmission
  • Firewall throughput
  • 4000 Mbit/s
  • IPS/IDS throughput
  • 2500 Mbit/s
  • IPSec VPN throughput
  • 1.8 Gbit/s
  • Maximum connections (DPI)
  • 400000
  • Maximum connections (SPI)
  • 1250000
  • Maximum firewall connections per second
  • 16000
  • SSL inspection throughput
  • 750 Mbit/s
  • Design
  • Built-in display
  • N
  • Form factor
  • Desktop
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • LED indicators
  • Y
  • Network
  • DHCP server
  • Y
  • Local user database
  • 250
  • Number of LAN Access Points (max)
  • 32
  • Number of VLANs
  • 256
  • Point-to-point protocol over Ethernet (PPPoE)
  • Y
  • Quality of Service (QoS) support
  • Y
  • VPN tunnels quantity
  • 200
  • Wi-Fi
  • N
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Performance
  • Heat dissipation
  • 44.7 BTU/h
  • Ports & interfaces
  • Connectivity technology
  • Wired
  • Console port
  • RJ-45
  • Ethernet LAN (RJ-45) ports
  • 8
  • Ethernet LAN data rates
  • 1000,5000 Mbit/s
  • Gigabit Ethernet (copper) ports quantity
  • 8
  • Installed SFP+ modules quantity
  • 2
  • Number of console ports
  • 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 2
  • WAN connection
  • Mobile network (USB)
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100-240 V
  • Power consumption (max)
  • 13.4 W
  • Power supply
  • 60 W
  • Redundant power supply (RPS) support
  • Y
  • Protocols
  • Routing protocols
  • BGP, OSPF, RIP-1, RIP-2
  • Storage
  • Storage Capacity
  • 32 GB
  • Weight & dimensions
  • Depth
  • 150 mm
  • Height
  • 35 mm
  • Weight
  • 970 g
  • Width
  • 225 mm
