StarTech.com 15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL,
Roll over image to zoom inClick to Open expanded view
StarTech.com 15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL,
StarTech.com 15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL,
StarTech.com 15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL,
StarTech.com 15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL,
Print
Model: A50FBLCLC15
EAN: 65030881852

StarTech.com 15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL,

Manufacturer:
StarTech.com
StarTech.com 15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL, <0.3dB Low Insertion Loss, LSZH Fiber Patch Cord, 15 m, OM3, LC, LC
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

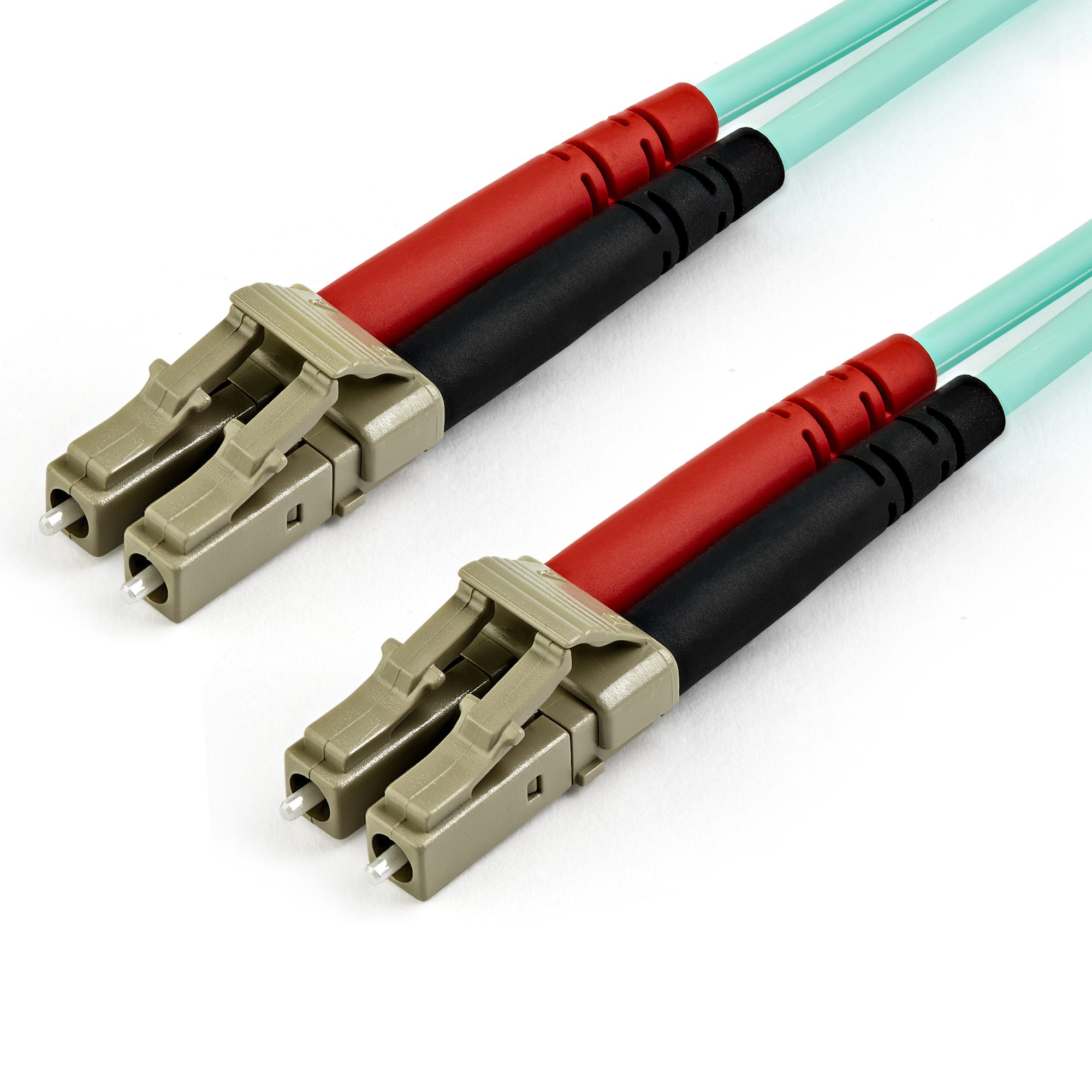

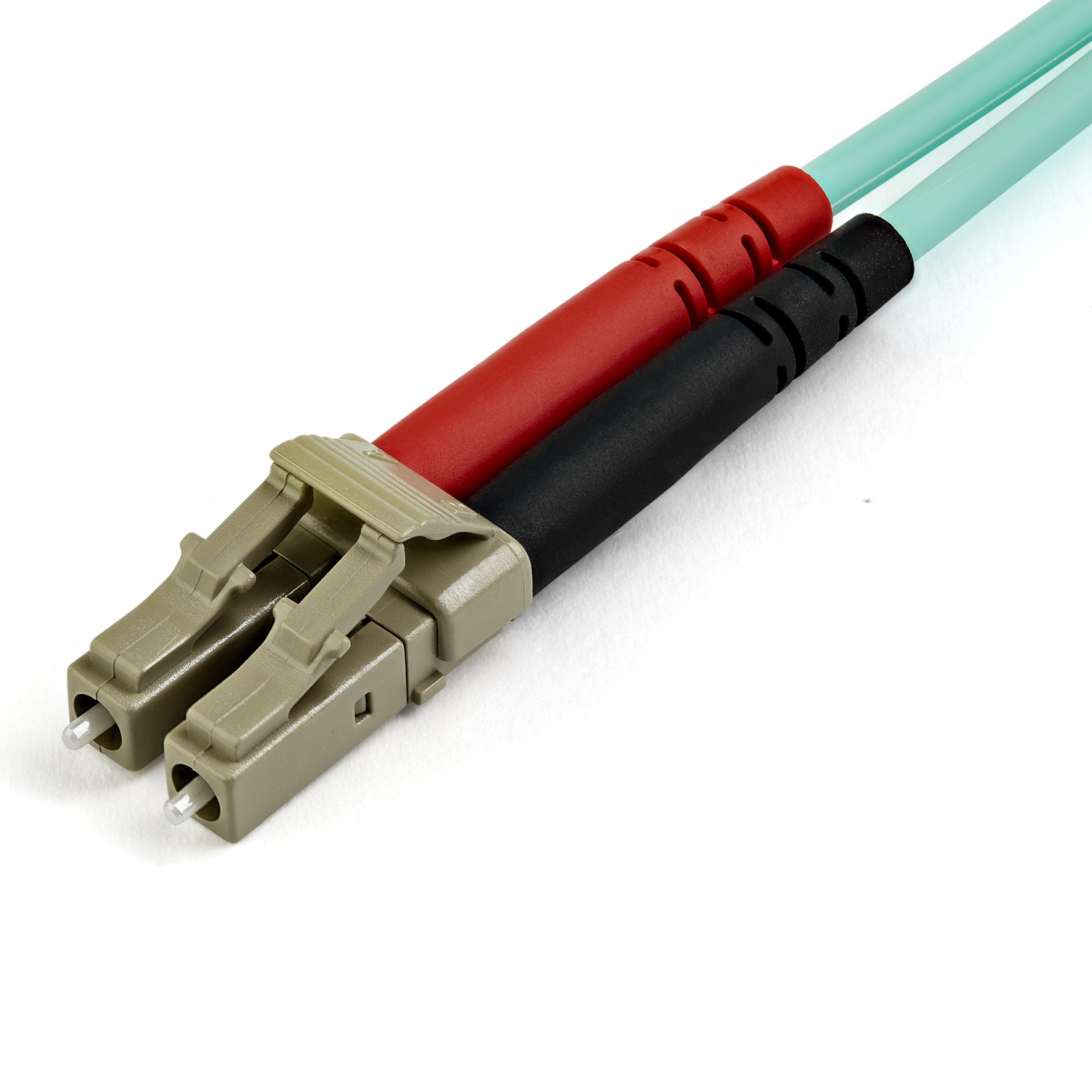

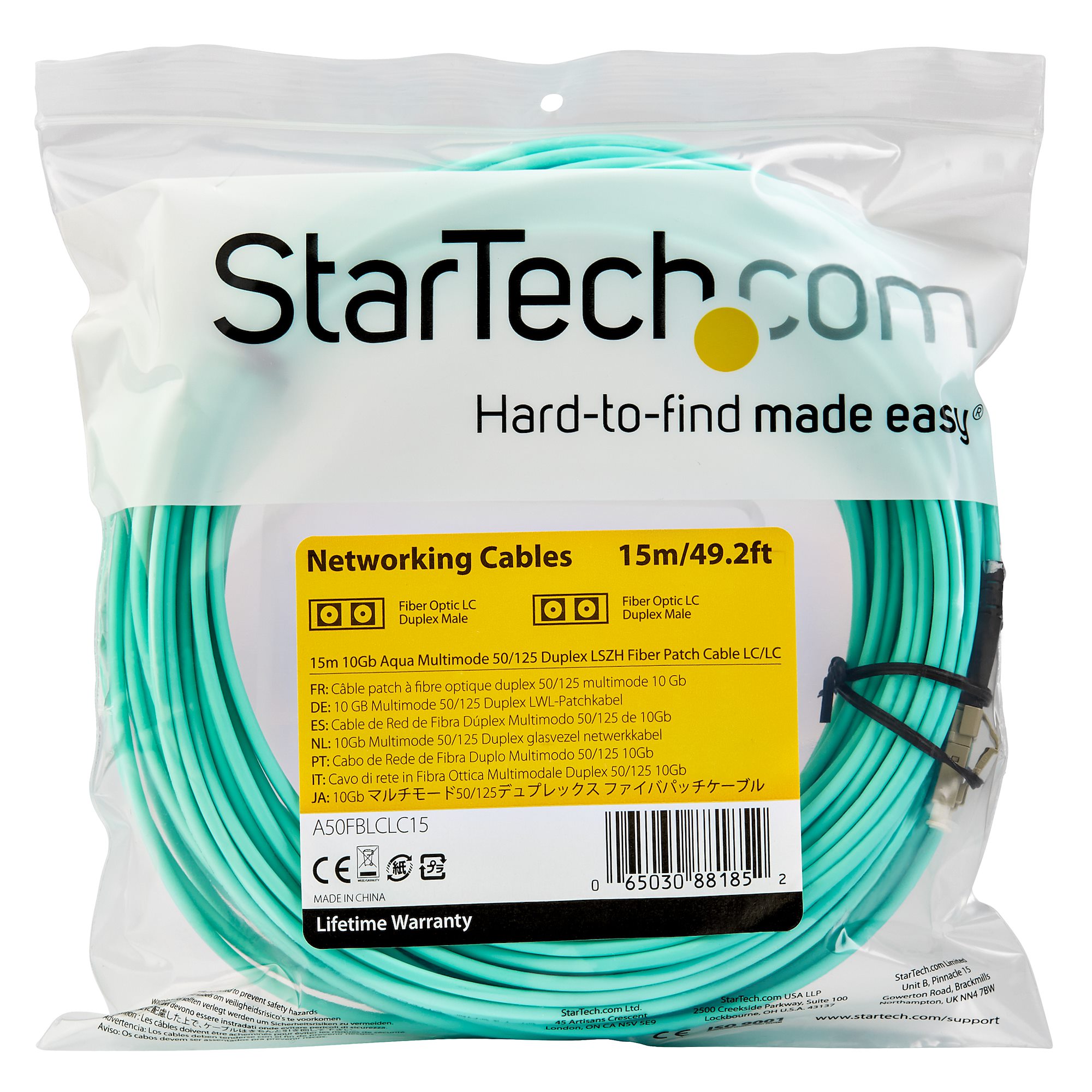

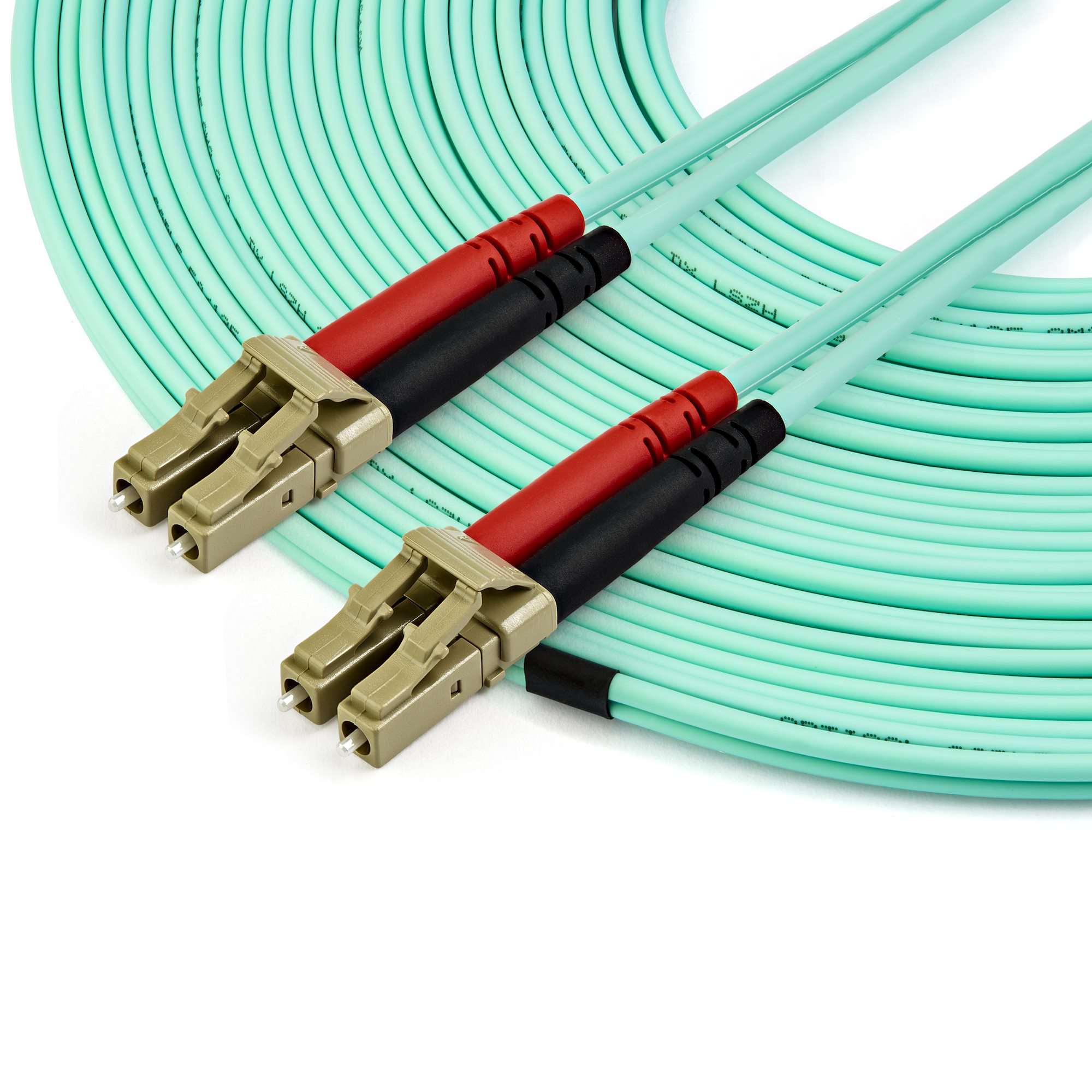

StarTech.com 15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber, 100G Networks, LOMMF/VCSEL, <0.3dB Low Insertion Loss, LSZH Fiber Patch Cord. Cable length: 15 m, Fibre optic type: OM3, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex
  • OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
  • QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2
  • SPECS: 15m (49ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life

Product Properties

  • Model
  • A50FBLCLC15
  • EAN
  • 65030881852
  • Bullet points
  • Point
  • COMPATIBILITY
    OM3 FIBER CABLE
    QUALITY CONSTRUCTION
    RATINGS AND RELIABILITY
    SPECS
  • Features
  • Cable length
  • 15 m
  • Cladding diameter
  • 125 µm
  • Connector 1
  • LC
  • Connector 1 gender
  • Male
  • Connector 2
  • LC
  • Connector 2 gender
  • Male
  • Core diameter
  • 50 µm
  • Data transfer rate
  • 100 Gbit/s
  • Fiber mode structure
  • Multi-mode
  • Fibre optic type
  • OM3
  • Full duplex
  • Y
  • Jacket material
  • Low smoke zero halogen (LSZH)
  • Product colour
  • Aqua colour
  • Wavelengths supported
  • 850 nm
  • Logistics data
  • Harmonized System (HS) code
  • 85447000
  • Master (outer) case height
  • 430 mm
  • Master (outer) case length
  • 400 mm
  • Master (outer) case width
  • 400 mm
  • Products per master (outer) case
  • 56 pc(s)
  • Operational conditions
  • Operating temperature (T-T)
  • -20 - 60 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging data
  • Package depth
  • 220 mm
  • Package height
  • 32 mm
  • Package weight
  • 206 g
  • Package width
  • 200 mm
  • Technical details
  • Doesn't contain
  • Halogen
  • Sustainability certificates
  • RoHS, CE
  • Weight & dimensions
  • Weight
  • 195 g
