Description

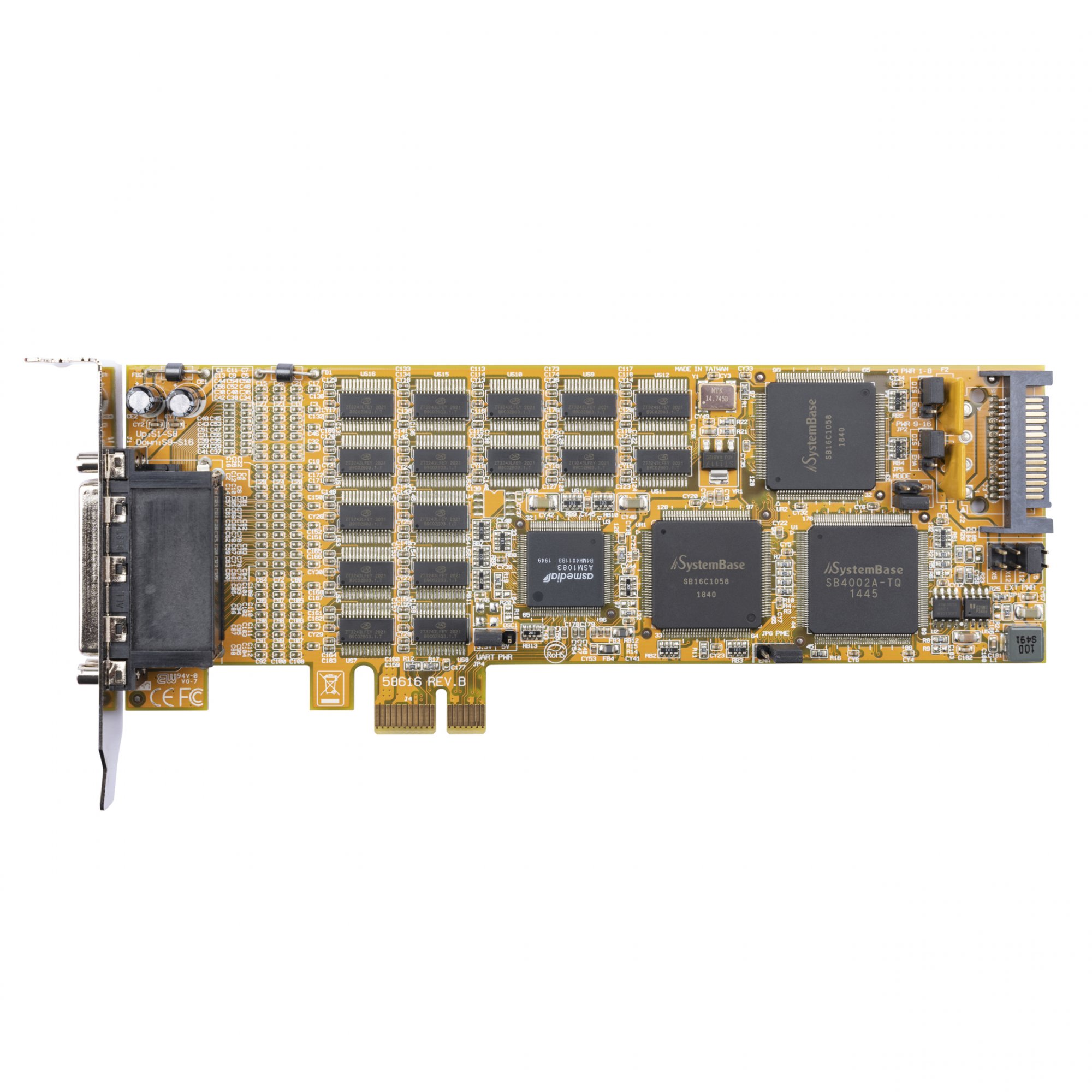

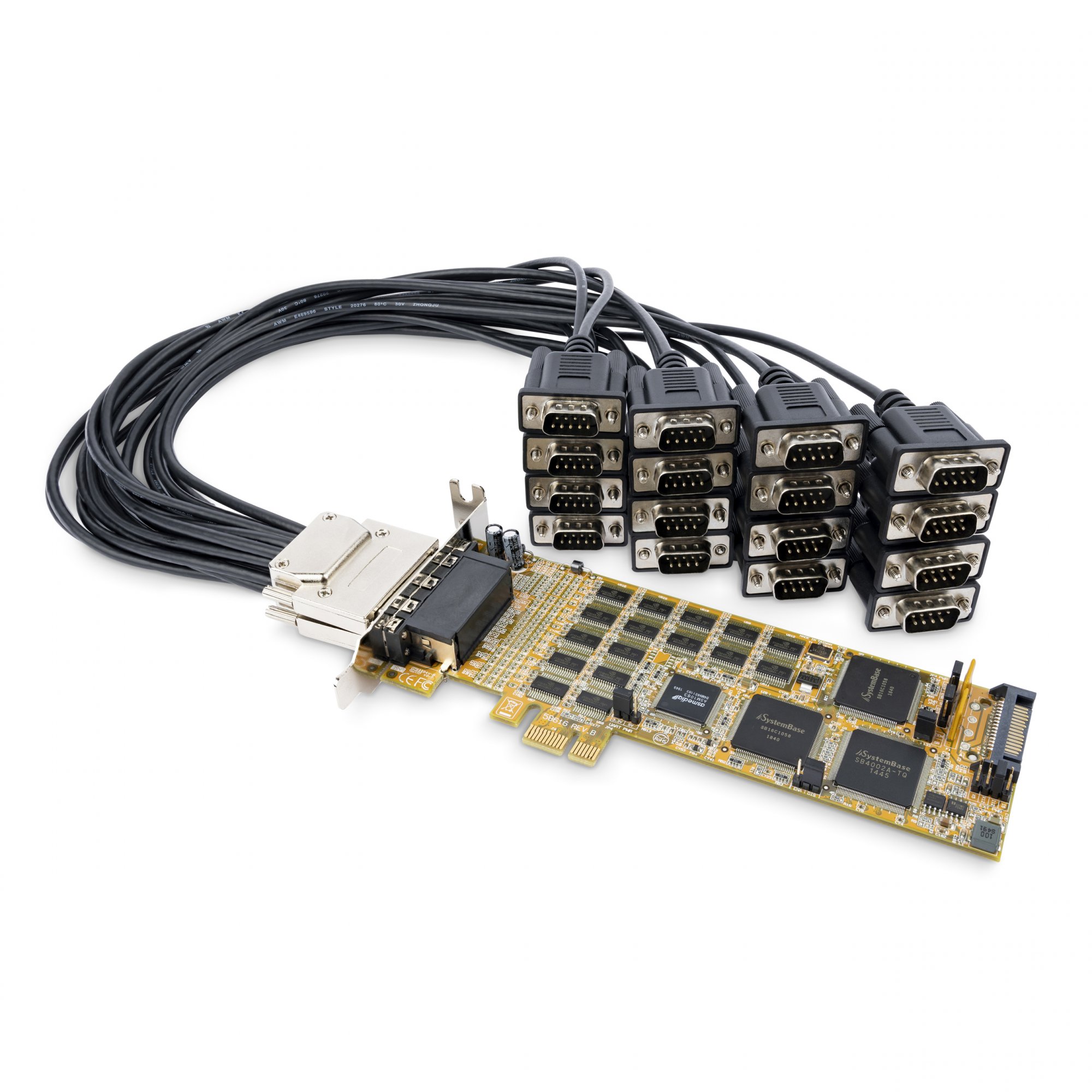

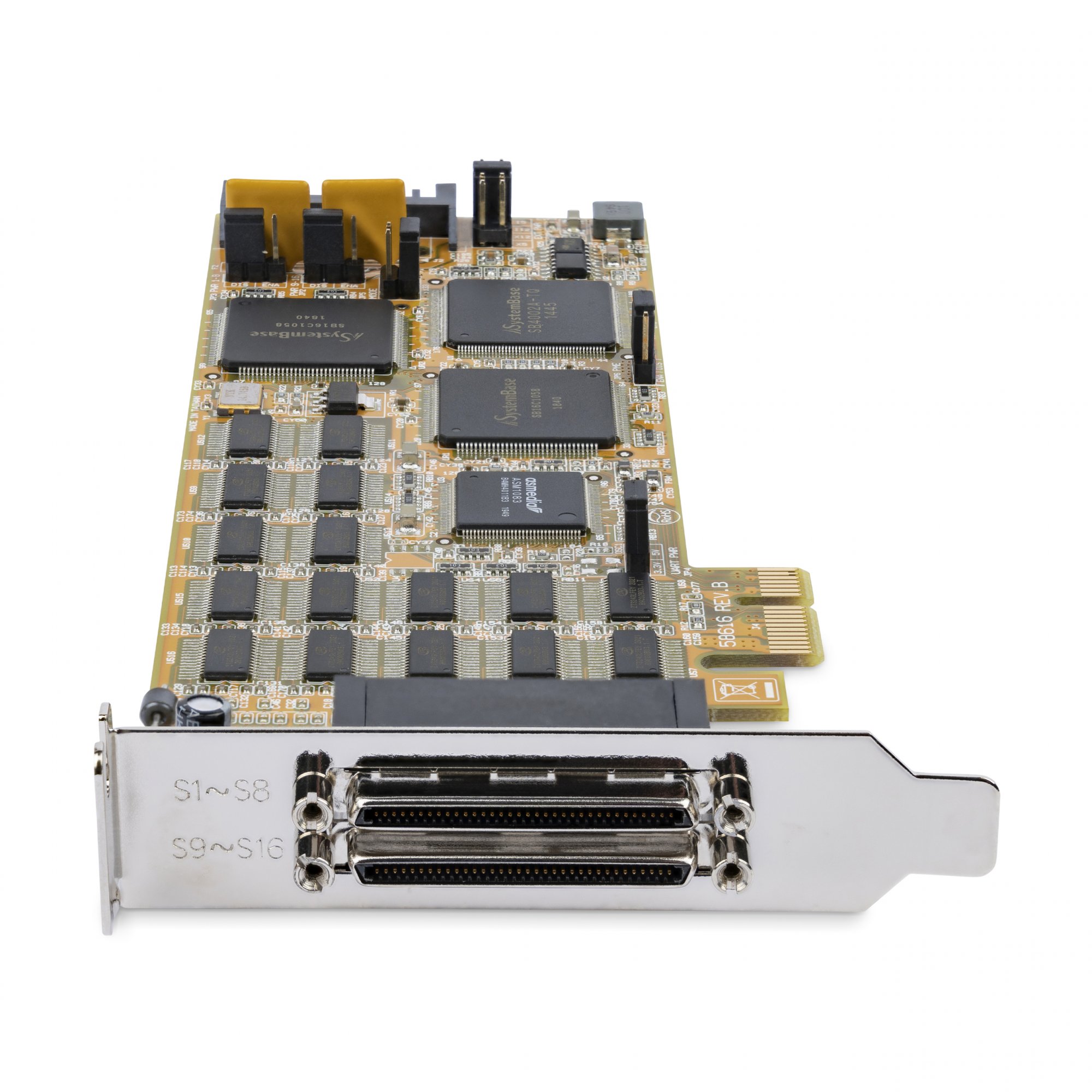

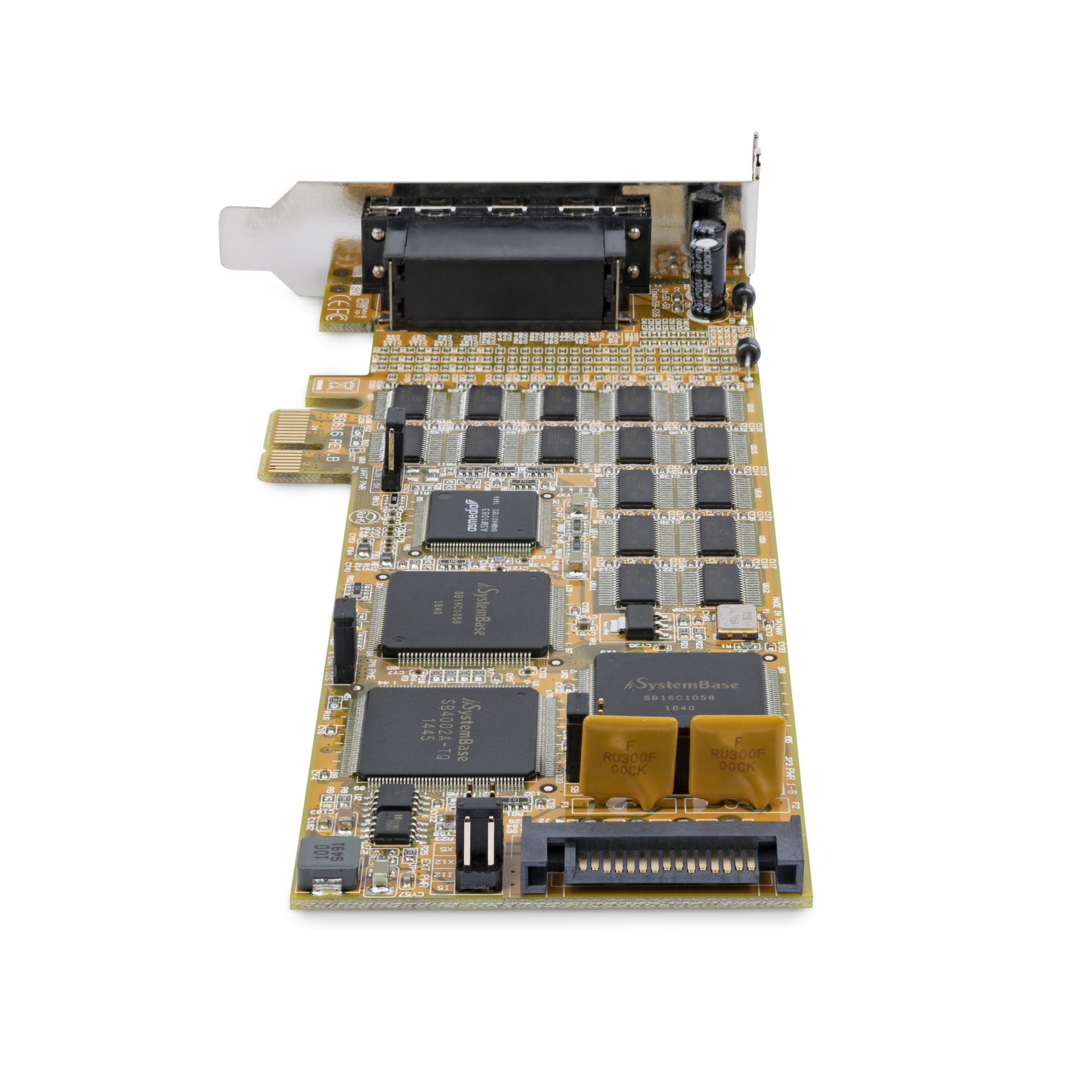

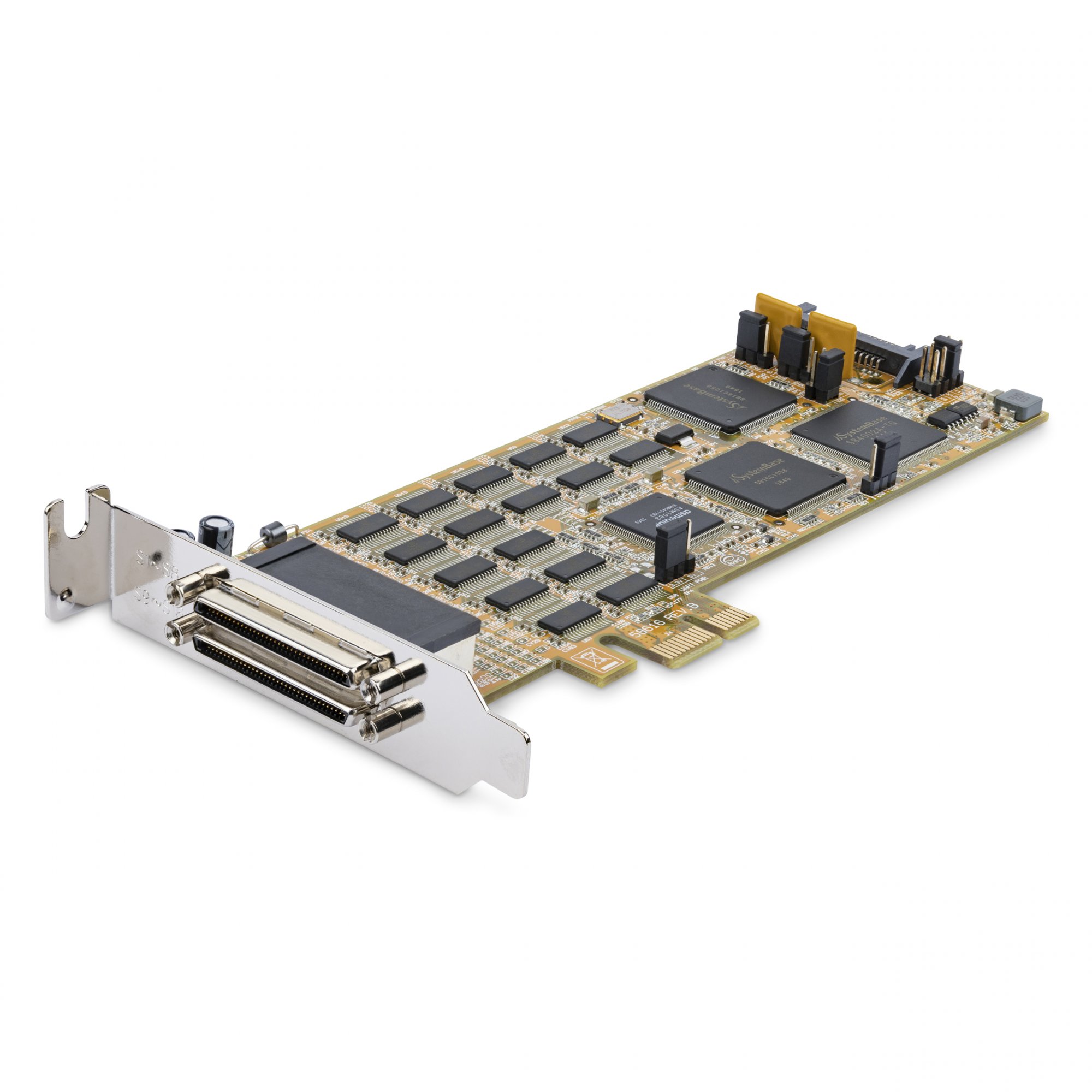

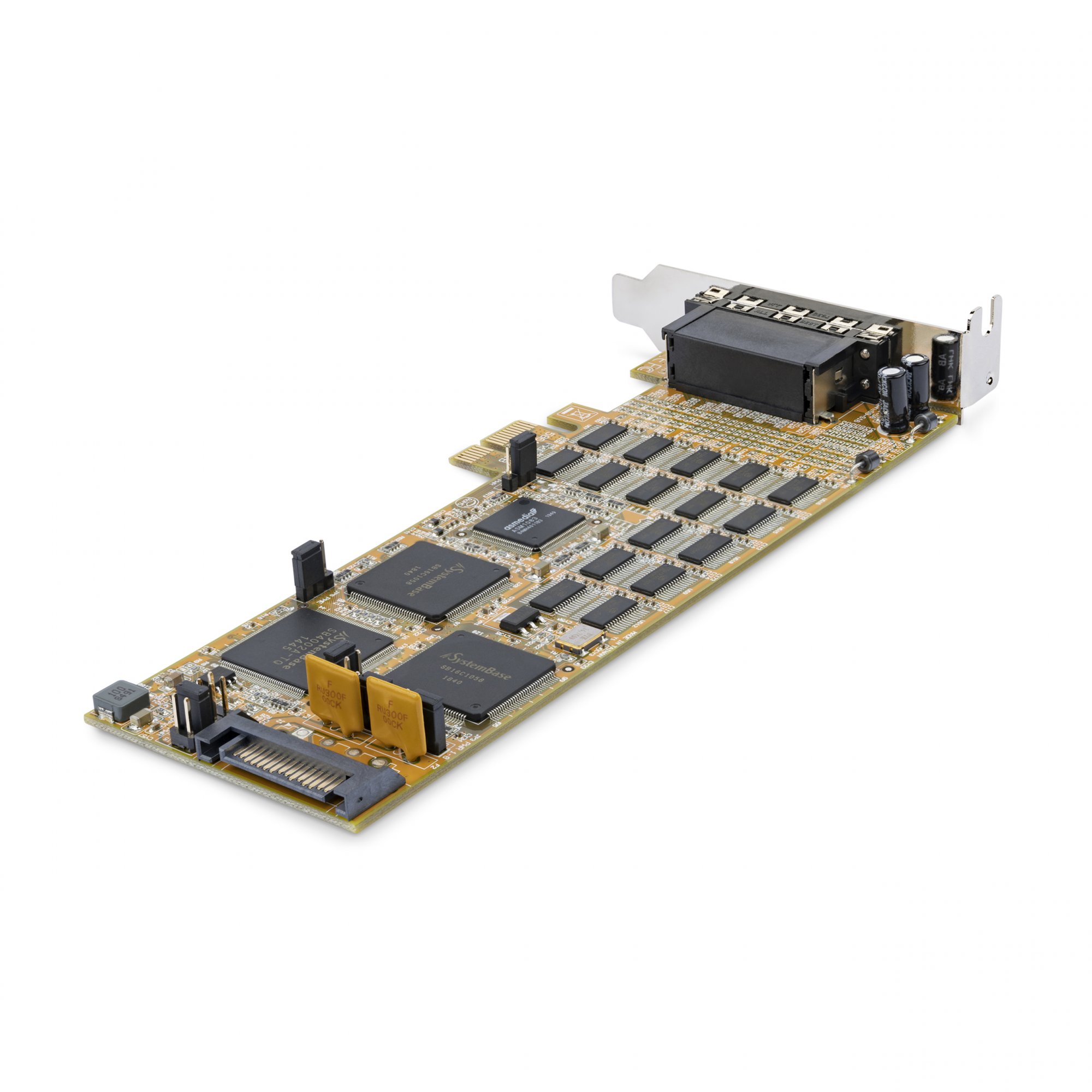

StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Low-profile. Product colour: Yellow. Chipset: ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058, Baud rate: 921.6 Kbit/s, Data bits: 5, 6, 7, 8. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 68 mm, Depth: 168 mm, Height: 22 mm

Product Properties

Manufacturer
StarTech.com

Model
PEX16S550LP

EAN
65030868228

Design

Internal
Yes

Product colour
Yellow

Features

Baud rate
921.6 Kbit/s

Chipset
ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058

Data bits
5, 6, 7, 8

Stop bits
1, 1.5, 2

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
329 mm

Master (outer) case length
520 mm

Master (outer) case width
397 mm

Products per master (outer) case
14 pc(s)

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 55 °C

Storage temperature (T-T)
-20 - 75 °C

Other features

Electrostatic Discharge (ESD) protection
15 kV

Packaging data

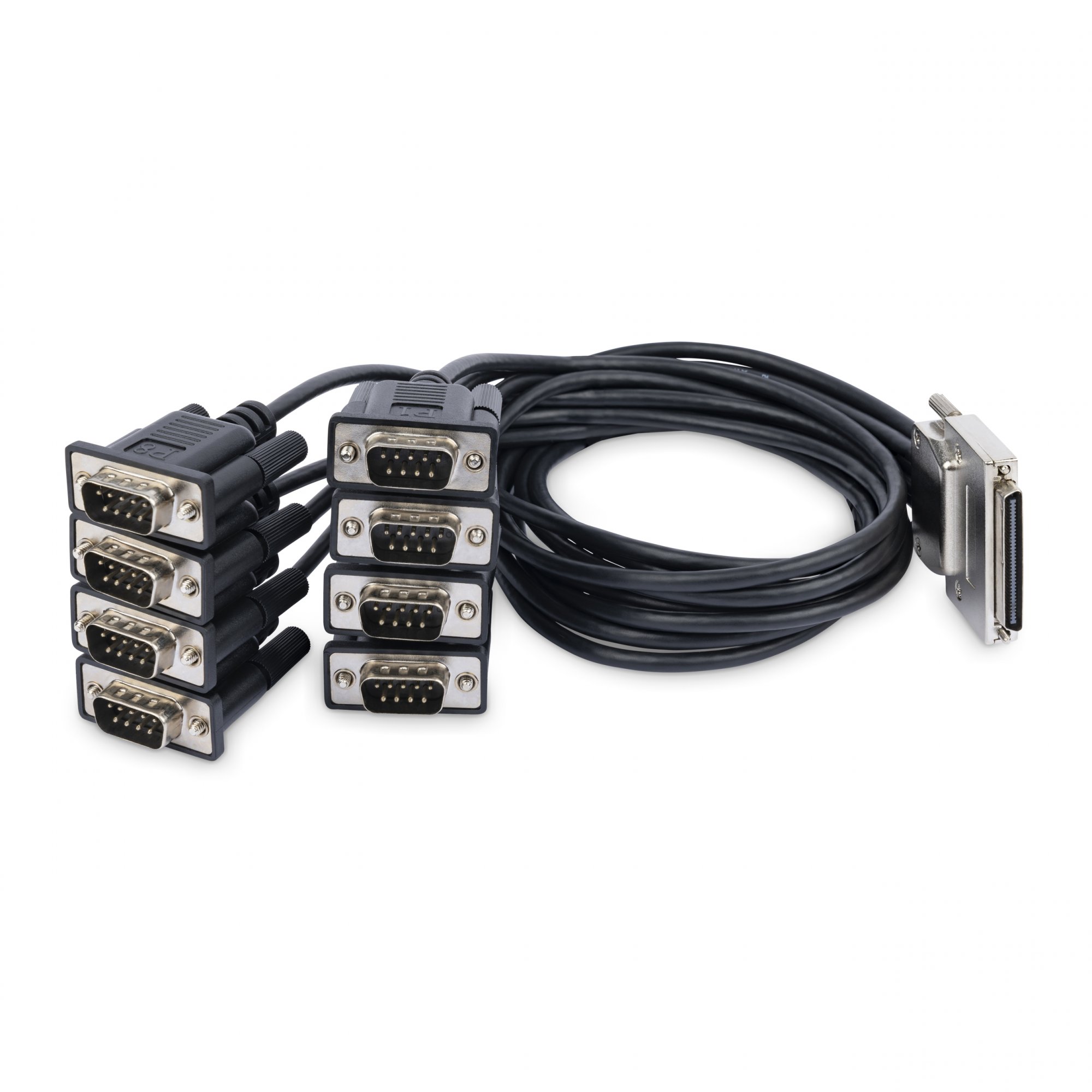

Cables included
RS-232

Drivers included
Yes

Mounting brackets included
Yes

Package depth
293 mm

Package height
70 mm

Package weight
1.2 kg

Package width
192 mm

Quick installation guide
Yes

Ports & interfaces

Expansion card form factor
Low-profile

Expansion card standard
PCIe 1.1

Host interface
PCIe

Internal SATA ports quantity
1

Output interface
Serial

Serial interface type
RS-232

Serial ports quantity
16

System requirements

Linux operating systems supported
Yes

Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Sustainability certificates
CE, RoHS

Weight & dimensions

Depth
168 mm

Height
22 mm

Weight
70 g

Width
68 mm
