Description

StarTech.com ~3 Port USB C 3.2 Gen 2 Hub with Ethernet Adapter - 10Gbps USB Type C to 2x USB-A & 1x USB-C Ports - USB Hub w/ BC 1.2 Phone Fast Charging - Superspeed 10Gbps USB C Hub. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Product colour: Black, Grey, Housing material: Aluminium, Plastic. Ethernet interface type: Fast Ethernet, Gigabit Ethernet. Power supply type: AC, Power consumption (typical): 24 W, Input voltage: 110 - 240 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64

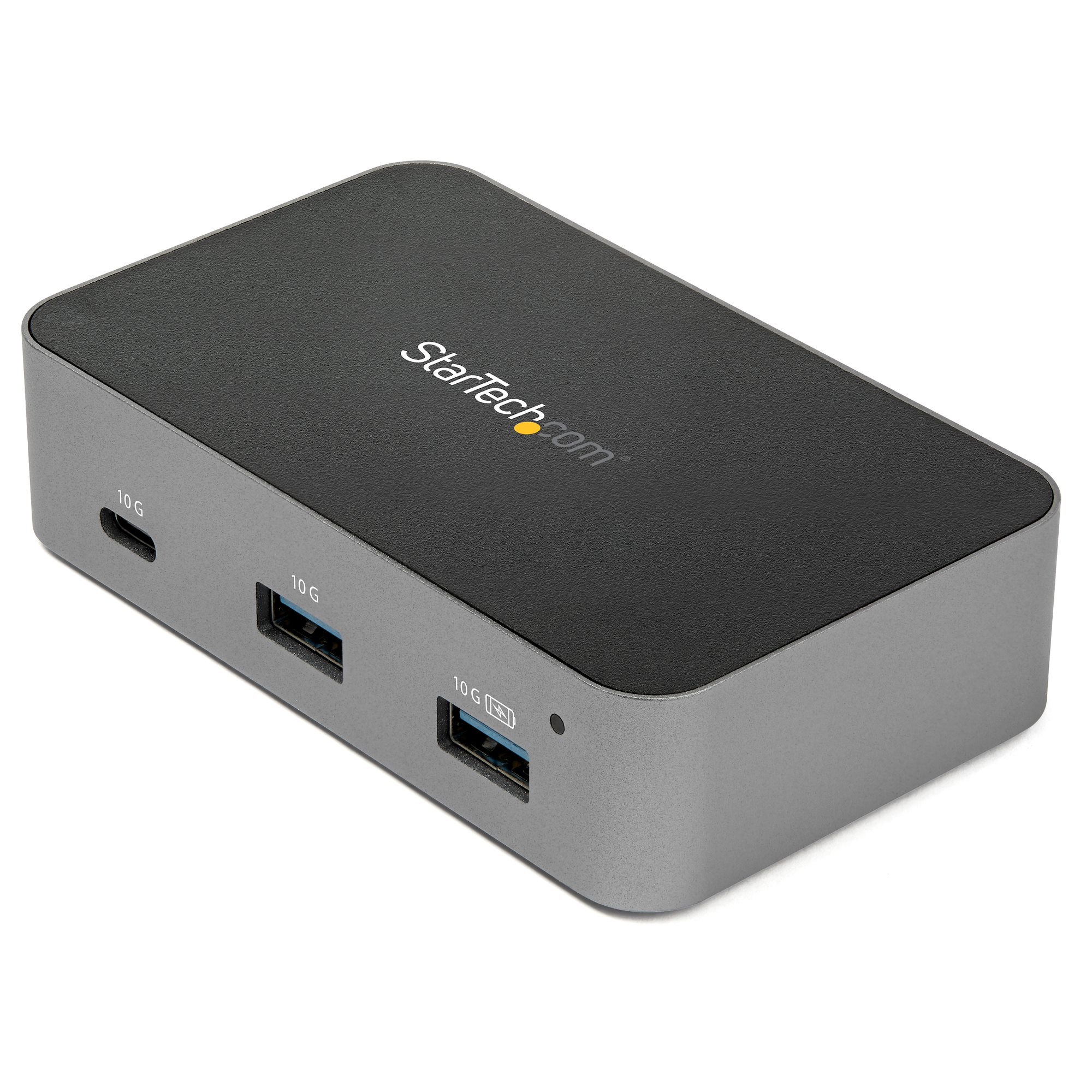

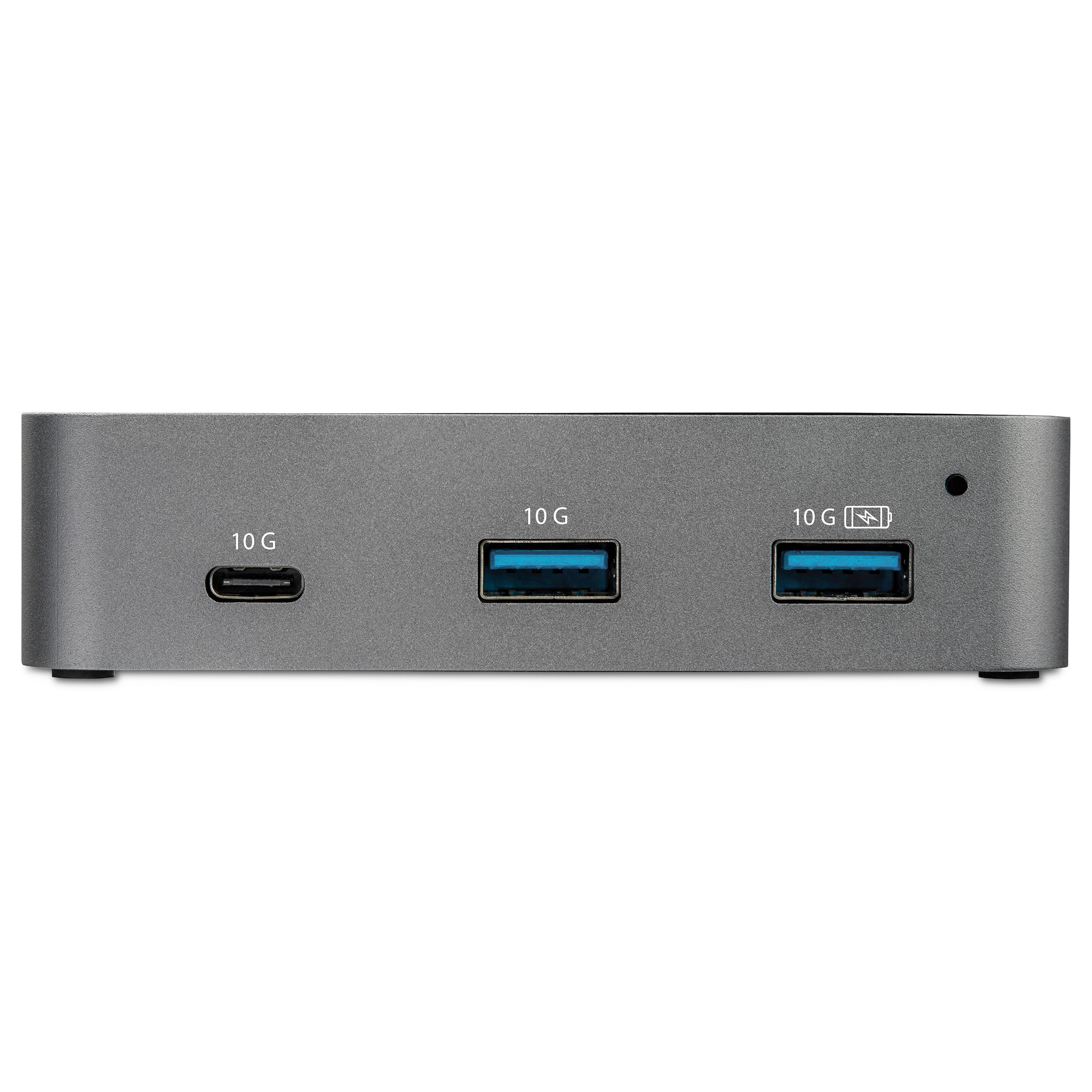

USB HUB WITH ETHERNET: 2x USB-A & 1x USB-C ports support USB 3.2 Gen 2 (10Gbps) transfer speeds with USB-A supporting BC 1.2 for fast device charging; Built-in GbE port LAN connectivity

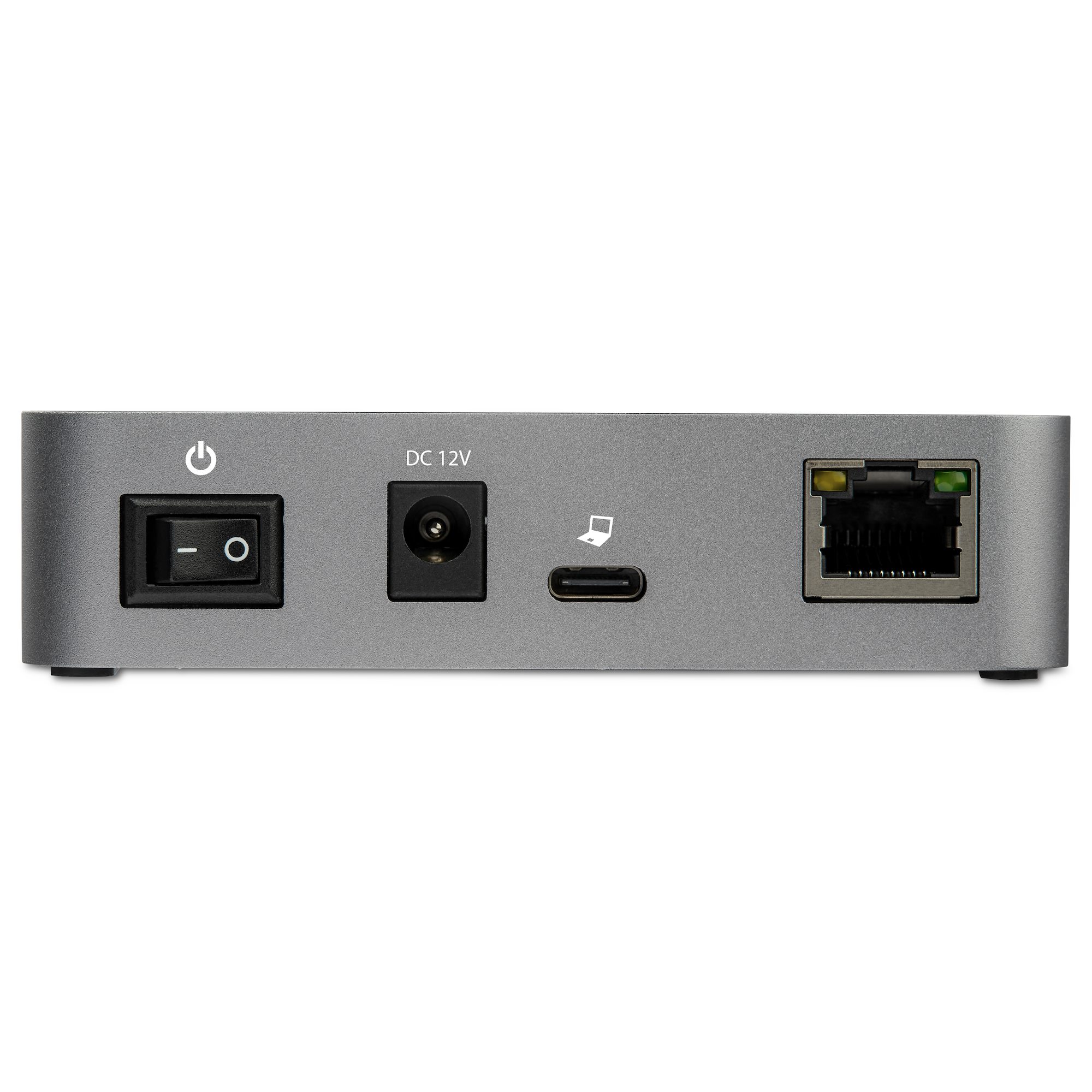

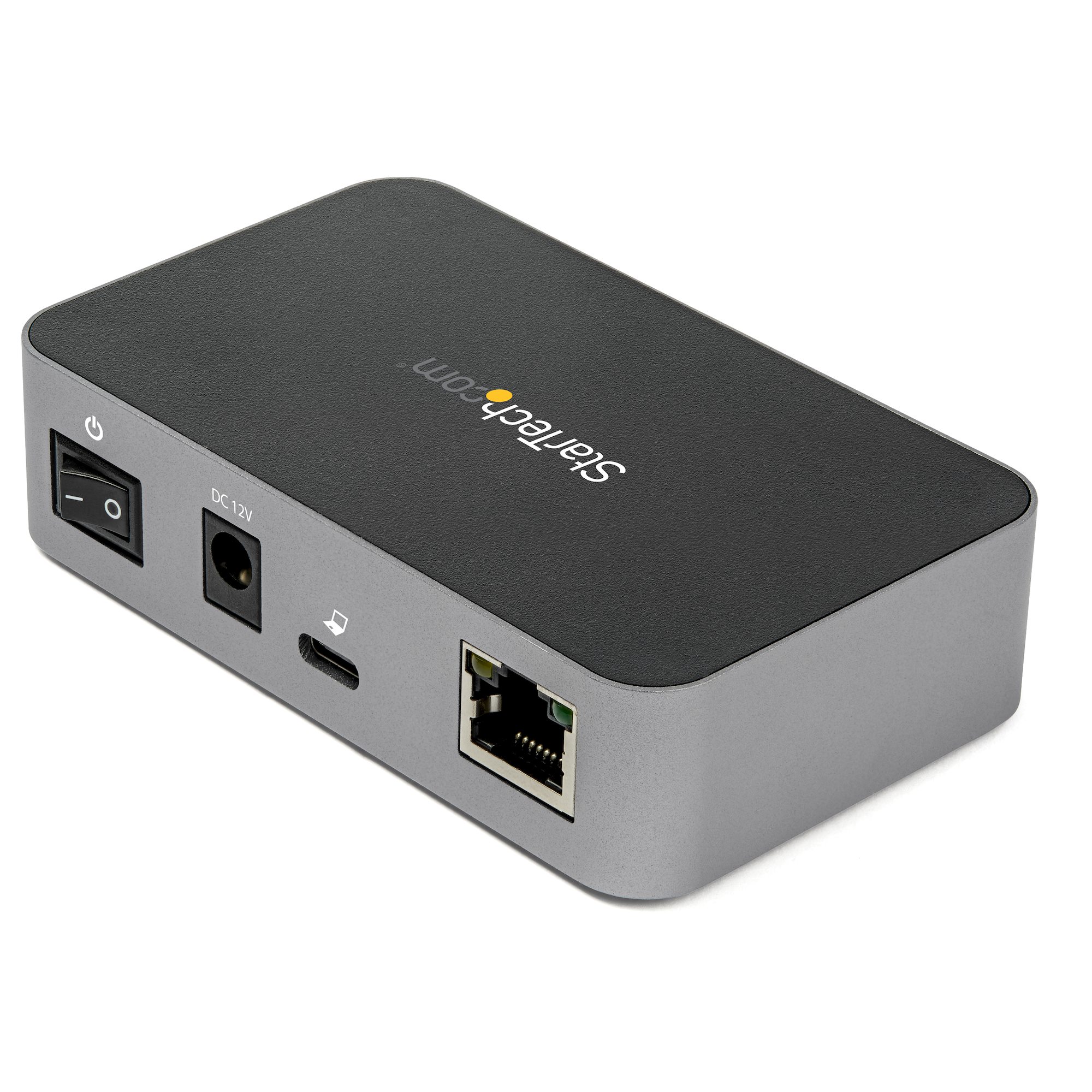

HARD WIRED LAN: Desktop USB C Hub with built-in Gigabit Ethernet port (RJ45), Wake-on-LAN, V-LAN tagging & 9K jumbo frames for secure Ethernet connectivity, ideal for laptops/tablets without LAN ports
CHARGE & SYNC: 24W power supply adapter enables the USB-A port to provide 1.5A of power to data synced devices; The powered USB hub even charges devices when a host PC isn't connected w/ 2.4A of power
COMPATIBILITY: Supports Windows, macOS, Linux, iPadOS & Android w/ automatic driver installation in most versions, this USB hub adds ports to any USB-C/Thunderbolt 3 laptop, Ultrabook or smartphone

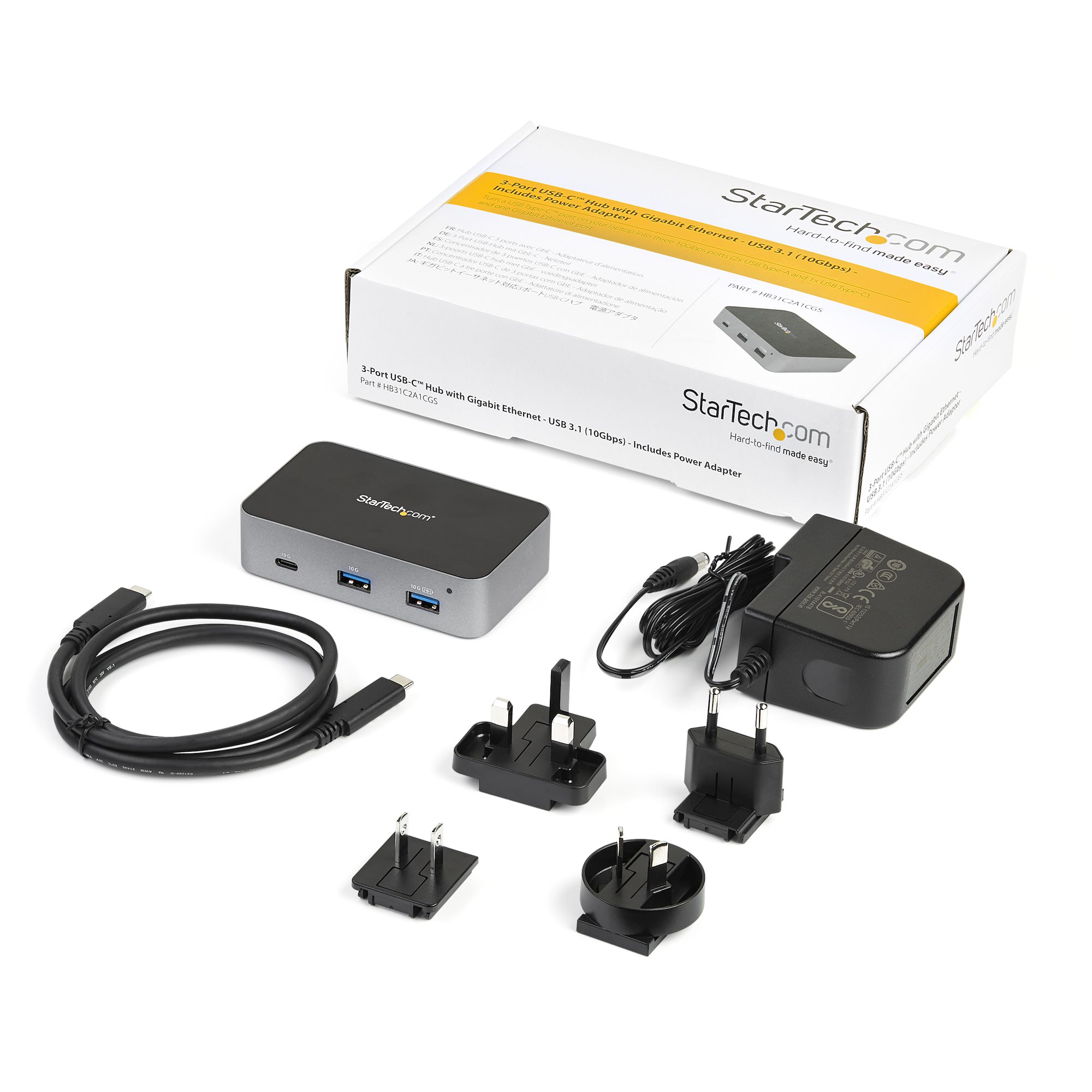

EASY & SECURE INSTALLATION: 3.3ft/1m USB Type-C cable included; Small, compact footprint; Securely mountable to a desk, wall or monitor with StarTech.com mounts (SSPMSUDWM/SSPMSVESA) sold separately
CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities

Product Properties

Manufacturer
StarTech.com

Model
HB31C2A1CGS

EAN
65030877916

Bullet points

Point
CHARGE & SYNC

COMPATIBILITY

CONNECTIVITY TOOLS

EASY & SECURE INSTALLATION

HARD WIRED LAN

USB HUB WITH ETHERNET

Features

Cable length
1 m

Certification
CE, FCC, RoHS, REACH

Data transfer rate
10000 Mbit/s

Housing material
Aluminium, Plastic

LED indicators
Link, Power

Plug and Play
Yes

Product colour
Black, Grey

Logistics data

Harmonized System (HS) code
84719000

Master (outer) case height
570 mm

Master (outer) case length
320 mm

Master (outer) case width
450 mm

Products per master (outer) case
40 pc(s)

Network

Auto MDI/MDI-X
Yes

Ethernet interface type
Fast Ethernet, Gigabit Ethernet

Full duplex
Yes

UASP support
Yes

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Chipset
Realtek - RTL5428, Realtek - RTL8153B

Packaging content

AC adapter included
Yes

Cables included
USB Type-C

Included power plug types
ANZ, EU, JP, NA, UK

Packaging data

Package depth
210 mm

Package height
51 mm

Package weight
500 g

Package width
150 mm

Quantity per pack
1 pc(s)

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Hub interfaces
RJ-45, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Ports quantity
4

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

Power

Input current
0.8 A

Input voltage
110 - 240 V

Output current
2 A

Output voltage
12 V

Power consumption (typical)
24 W

Power plug type
Type M

Power supply type
AC

System requirements

Linux operating systems supported
Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Other operating systems supported
Android

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64

Weight & dimensions

Depth
100 mm

Height
25 mm

Weight
87 g

Width
60 mm
