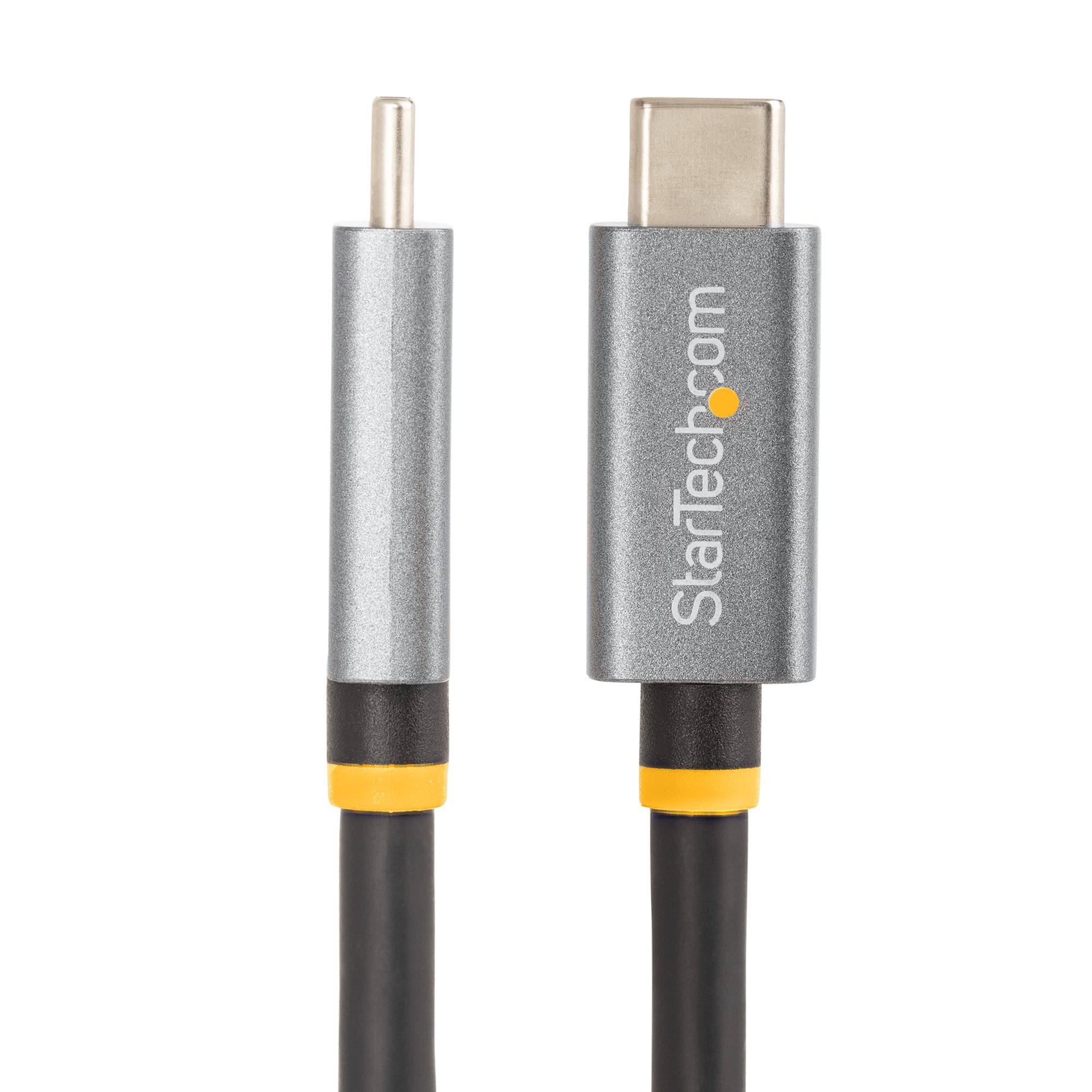

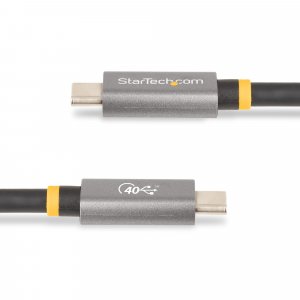

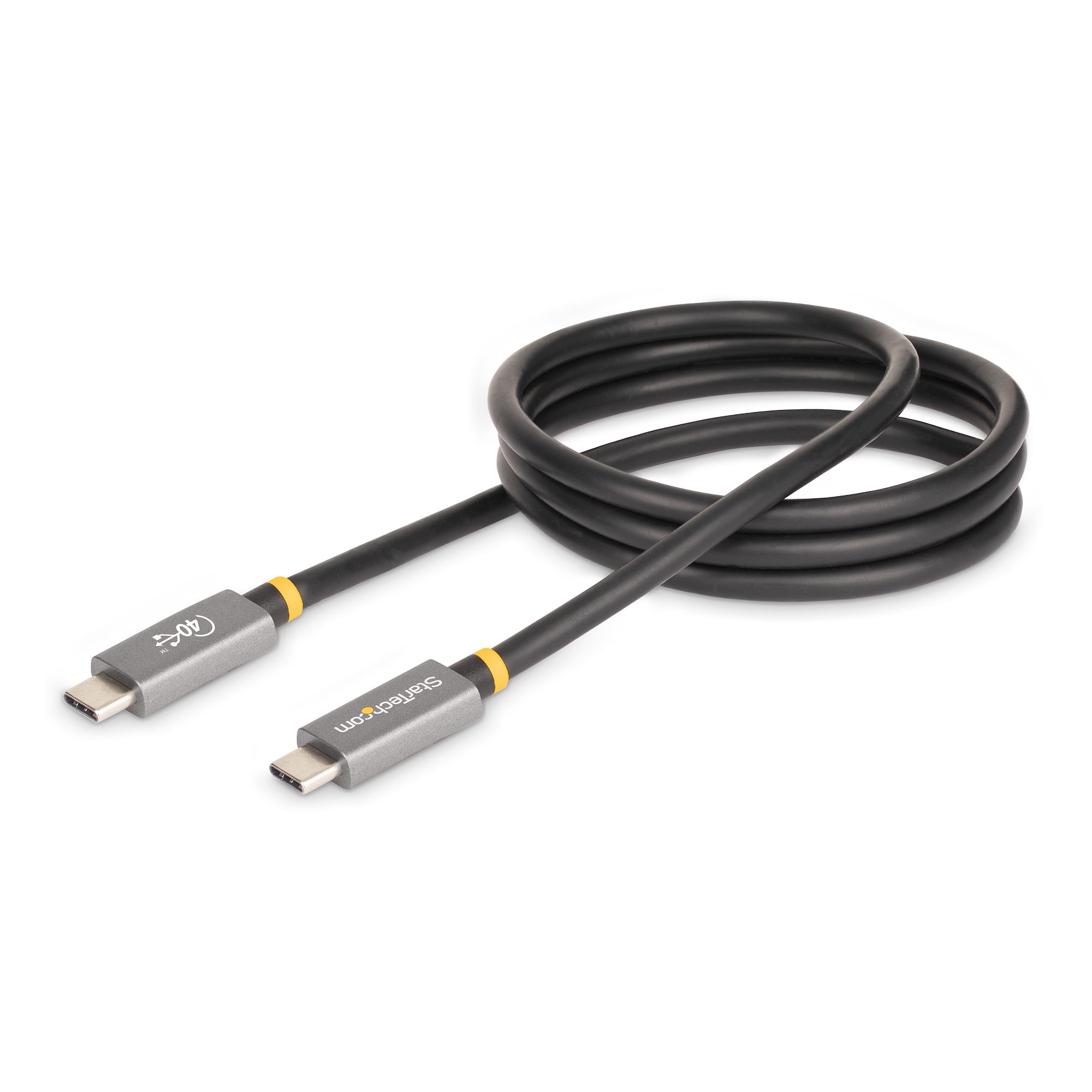

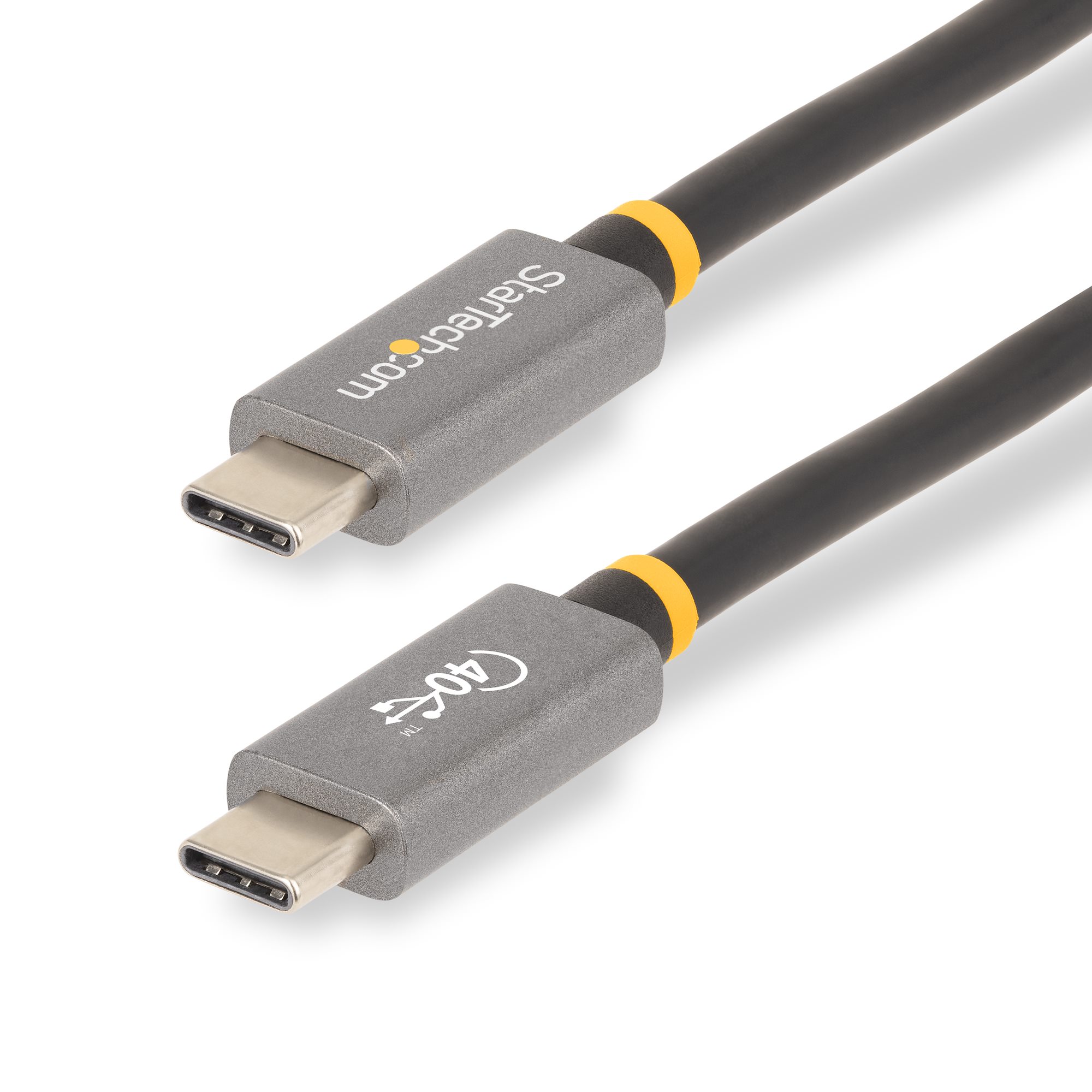

StarTech.com 3ft (1m) USB4 Cable, USB-IF Certified USB-C Cable, 40 Gbps, USB Type-C Data Transfer Cable, 100W Power Delivery, 8K 60Hz, Compatible w/Thunderbolt 4/3/USB 3.2
Roll over image to zoom inClick to Open expanded view
Model: CC1M-40G-USB-CABLE
EAN: 65030897068

StarTech.com 3ft (1m) USB4 Cable, USB-IF Certified USB-C Cable, 40 Gbps, USB Type-C Data Transfer Cable, 100W Power Delivery, 8K 60Hz, Compatible w/Thunderbolt 4/3/USB 3.2

Manufacturer:
StarTech.com
StarTech.com 3ft (1m) USB4 Cable, USB-IF Certified USB-C Cable, 40 Gbps, USB Type-C Data Transfer Cable, 100W Power Delivery, 8K 60Hz, Compatible w/Thunderbolt 4/3/USB 3.2, 1 m, USB C, USB C, USB4 Gen 2x2, 40000 Mbit/s
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com 3ft (1m) USB4 Cable, USB-IF Certified USB-C Cable, 40 Gbps, USB Type-C Data Transfer Cable, 100W Power Delivery, 8K 60Hz, Compatible w/Thunderbolt 4/3/USB 3.2. Cable length: 1 m, Connector 1: USB C, Connector 2: USB C, USB version: USB4 Gen 2x2, Maximum data transfer rate: 40000 Mbit/s, Connector contacts plating: Nickel

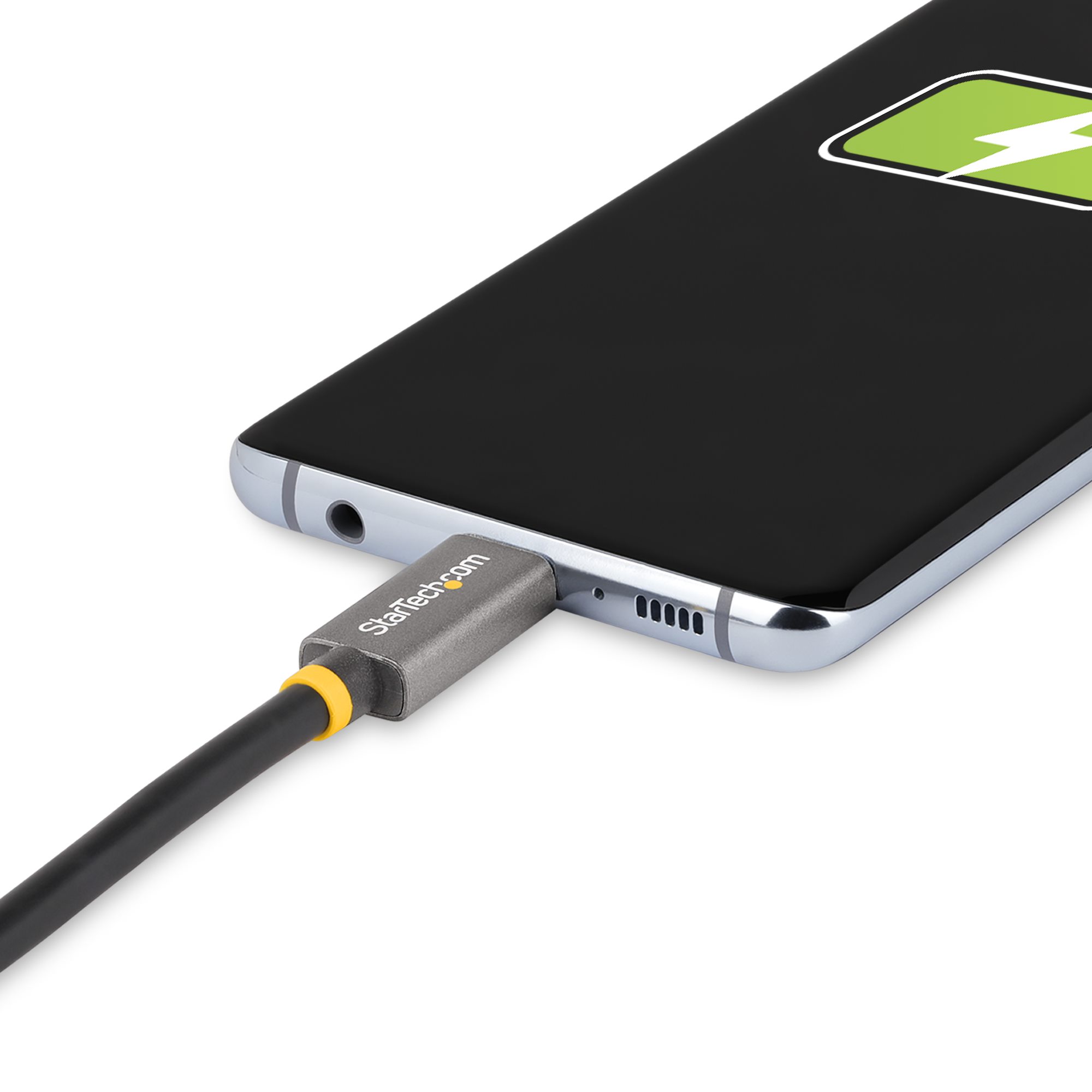

  • HIGH PERFORMANCE: 3.3ft/1m USB4 cable supports 40 Gbps, 4K/8K video, and 100W power; USB Type-C connectors offer universal compatibility with USB-C and Thunderbolt 4/3 laptops, docking stations, UHD monitors, and portable USB-C devices
  • USB-IF CERTIFIED: USB4 cable is USB-IF certified with E-Marker chip, for reliable and consistent Power Delivery output to USB-C hosts and devices; Supports DisplayPort 1.4 with DSC; Compliant with PCIe 3.0 for external PCIe chassis/storage

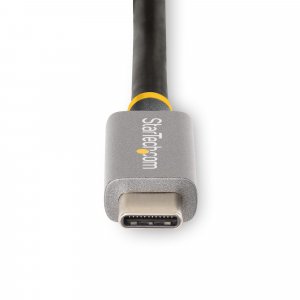

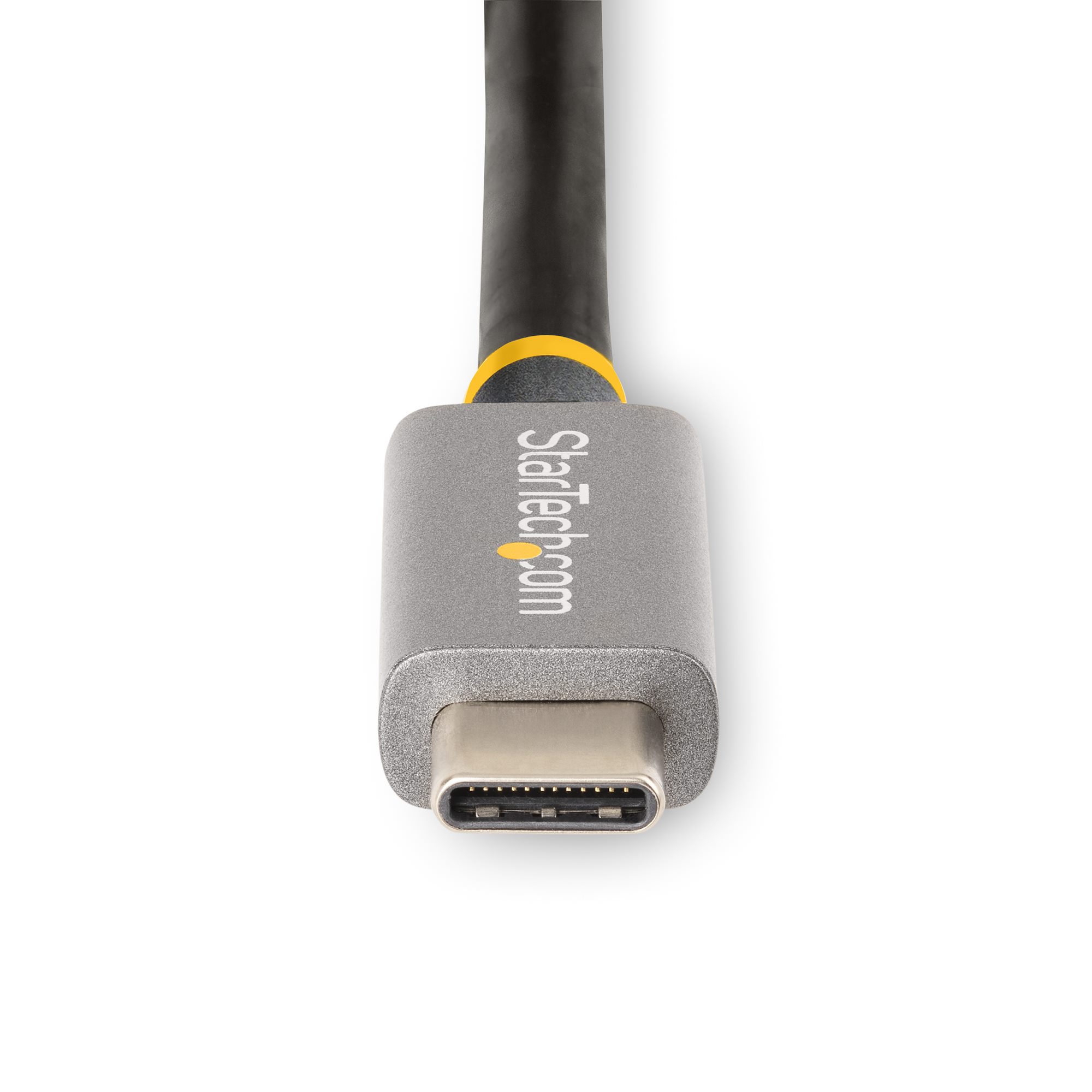

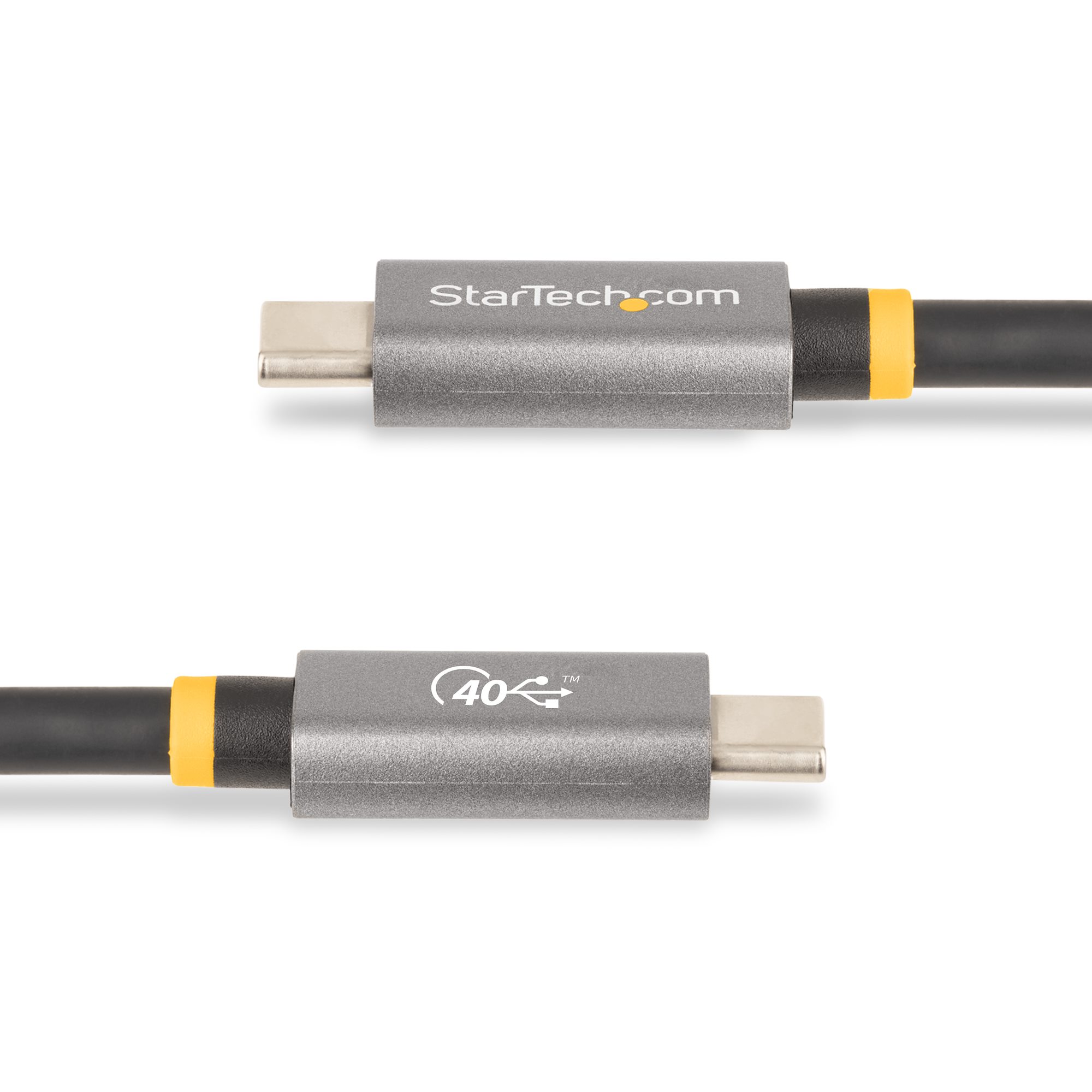

  • QUALITY CONSTRUCTION: Nickel-plated connectors with robust strain reliefs for durability; Coaxial wire with Mylar shield for enhanced EMI protection; TPE cable jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant

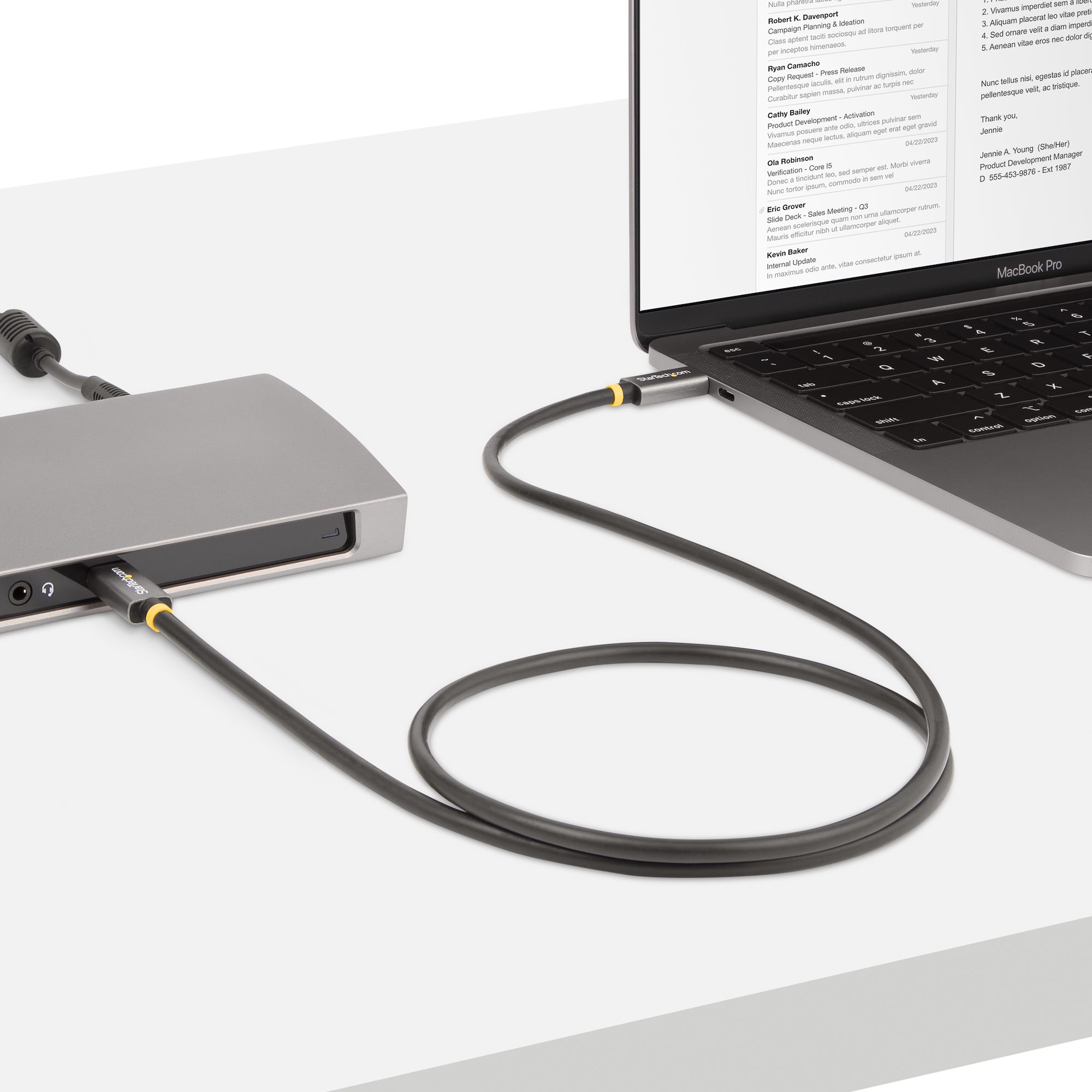

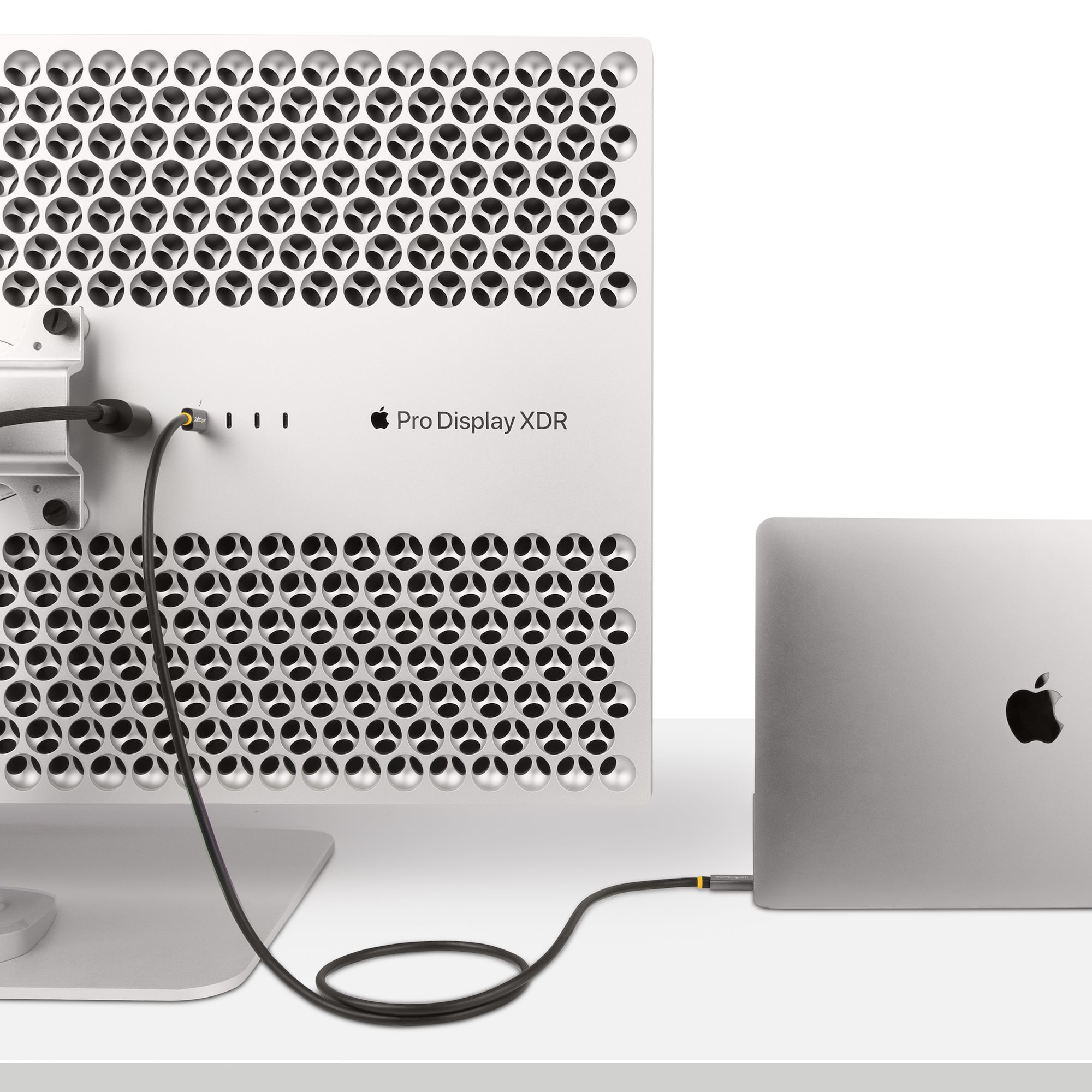

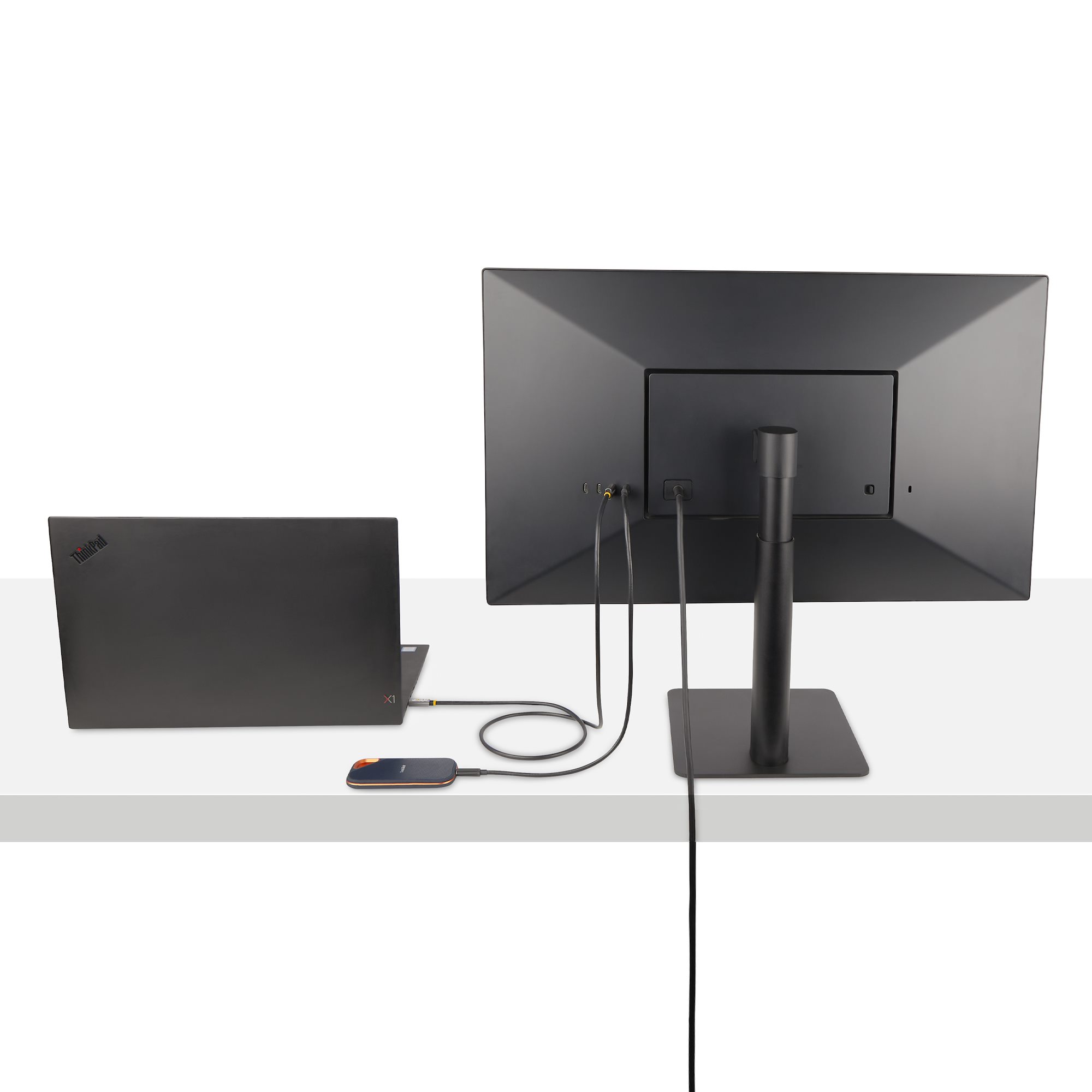

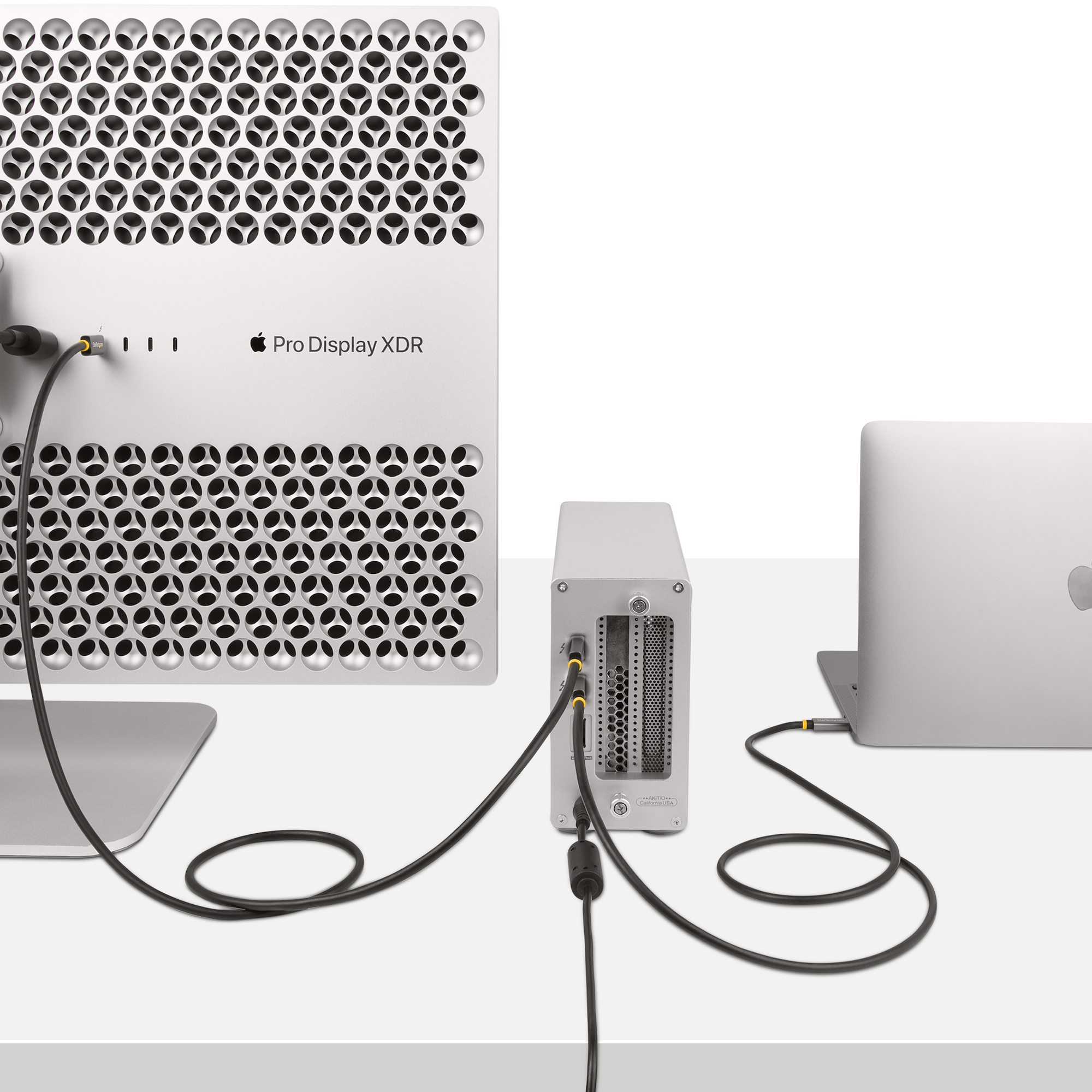

  • APPLICATIONS: This versatile USB-C cable enables connectivity and charging across compatible USB, Thunderbolt 4/3, and DP Alt Mode devices; Ideal for high speed data transfer or docking stations; Dock and charge a USB-C laptop over a single connection

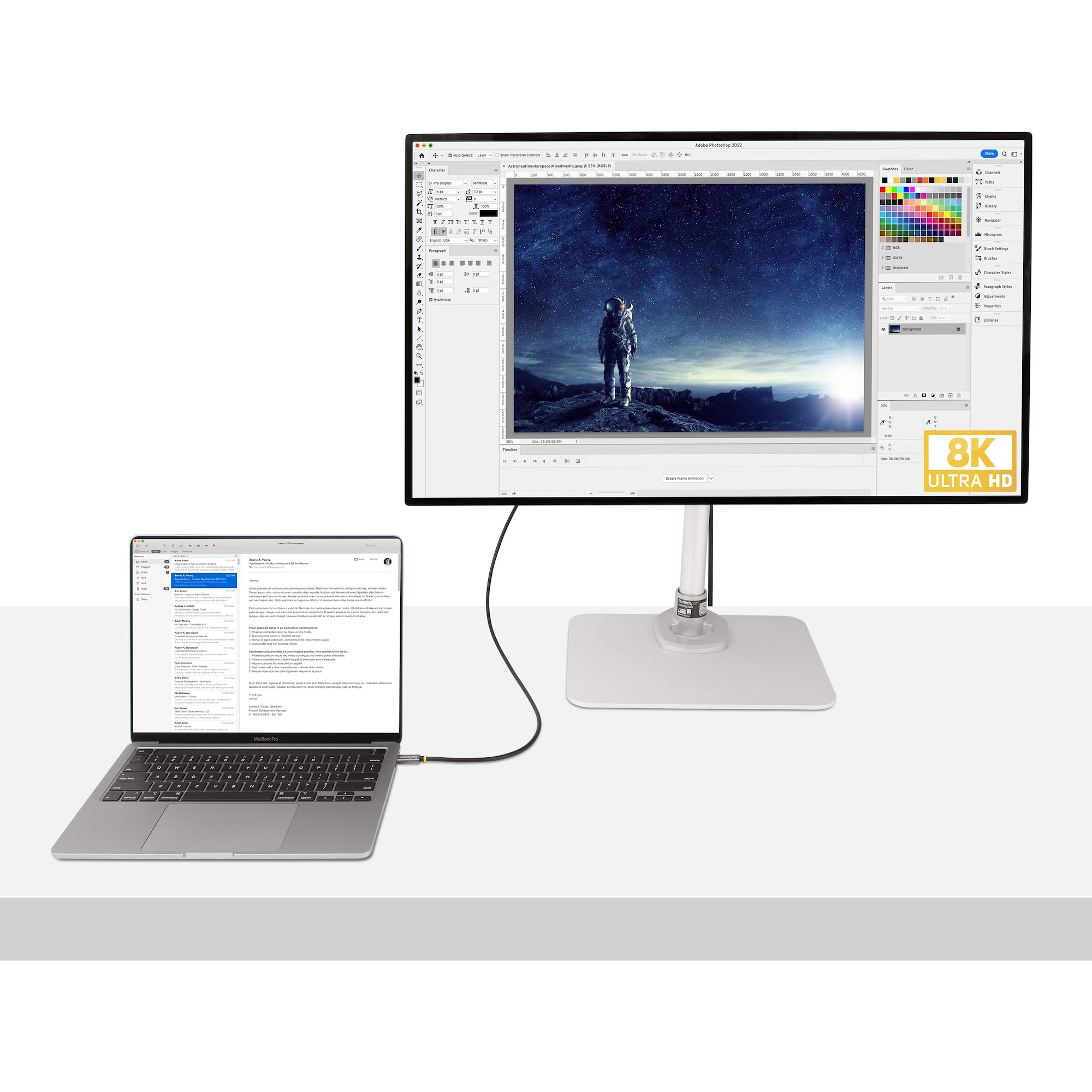

  • SPECS: 3.3ft (1m); USB4 (40 Gbps); Backward Compatible with USB 3.2/3.0/2.0; DisplayPort 1.4 DP Alt Mode w/DSC/HDR/HBR3; Up to 8K 60Hz, 4K 120Hz; PCIe 3.0 (32 Gbps); 100W PD; 30/34 AWG; Cable Outer Diam.: 0.19in (4.95mm)

Product Properties

  • Model
  • CC1M-40G-USB-CABLE
  • EAN
  • 65030897068
  • Bullet points
  • Point
  • APPLICATIONS
    HIGH PERFORMANCE
    QUALITY CONSTRUCTION
    SPECS
    USB-IF certified
  • Features
  • AWG wire size
  • 34
  • Cable jacket material
  • Thermoplastic elastomer (TPE)
  • Cable length
  • 1 m
  • Cable type
  • Round cable
  • Connector 1
  • USB C
  • Connector 1 form factor
  • Straight
  • Connector 1 gender
  • Male
  • Connector 2
  • USB C
  • Connector 2 form factor
  • Straight
  • Connector 2 gender
  • Male
  • Connector contacts plating
  • Nickel
  • Display Stream Compression (DSC)
  • Yes
  • High Dynamic Range (HDR) supported
  • Yes
  • Maximum data transfer rate
  • 40000 Mbit/s
  • Maximum refresh rate
  • 120 Hz
  • Maximum resolution
  • 7680 x 4320 pixels
  • USB Power Delivery
  • Yes
  • USB Power Delivery up to
  • 100 W
  • USB Type-C DisplayPort Alternate Mode
  • Yes
  • USB version
  • USB4 Gen 2x2
  • Logistics data
  • Master (outer) case height
  • 210 mm
  • Master (outer) case length
  • 320 mm
  • Master (outer) case width
  • 500 mm
  • Products per master (outer) case
  • 150 pc(s)
  • Operational conditions
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Storage temperature (T-T)
  • -10 - 70 °C
  • Packaging data
  • Package depth
  • 225 mm
  • Package height
  • 15 mm
  • Package weight
  • 30 g
  • Package width
  • 125 mm
  • Quantity per pack
  • 1 pc(s)
  • Sustainability
  • Doesn't contain
  • Halogen
  • Sustainability certificates
  • RoHS
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Cable diameter
  • 5 mm
  • Weight
  • 53 g
