Description

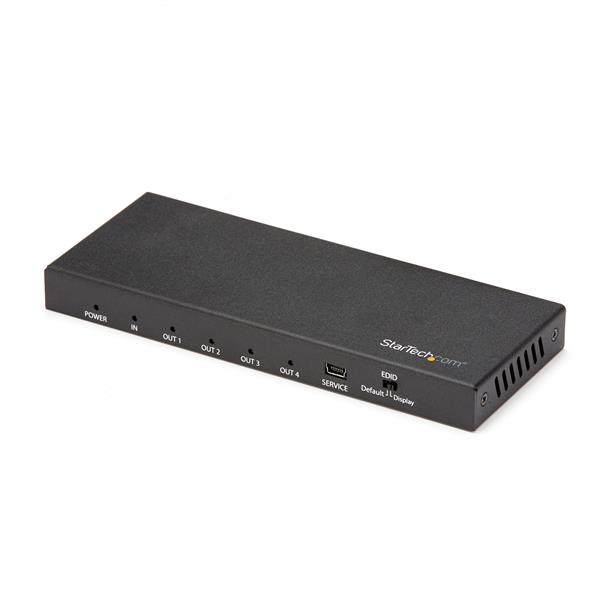

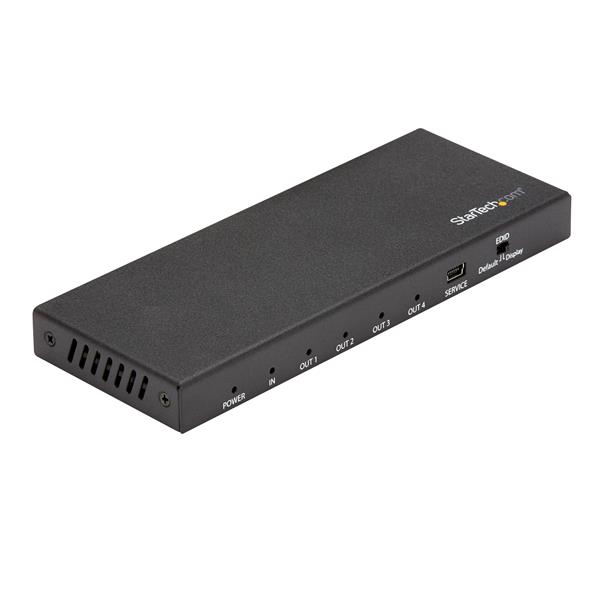

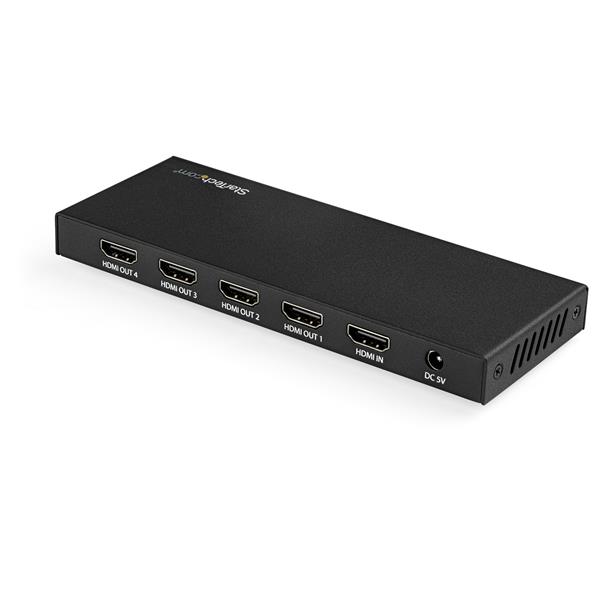

StarTech.com 4-Port HDMI Splitter - 4K 60Hz. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 5 V. Width: 64 mm, Depth: 165 mm, Height: 65 mm. Package width: 148 mm, Package depth: 212 mm, Package height: 55 mm

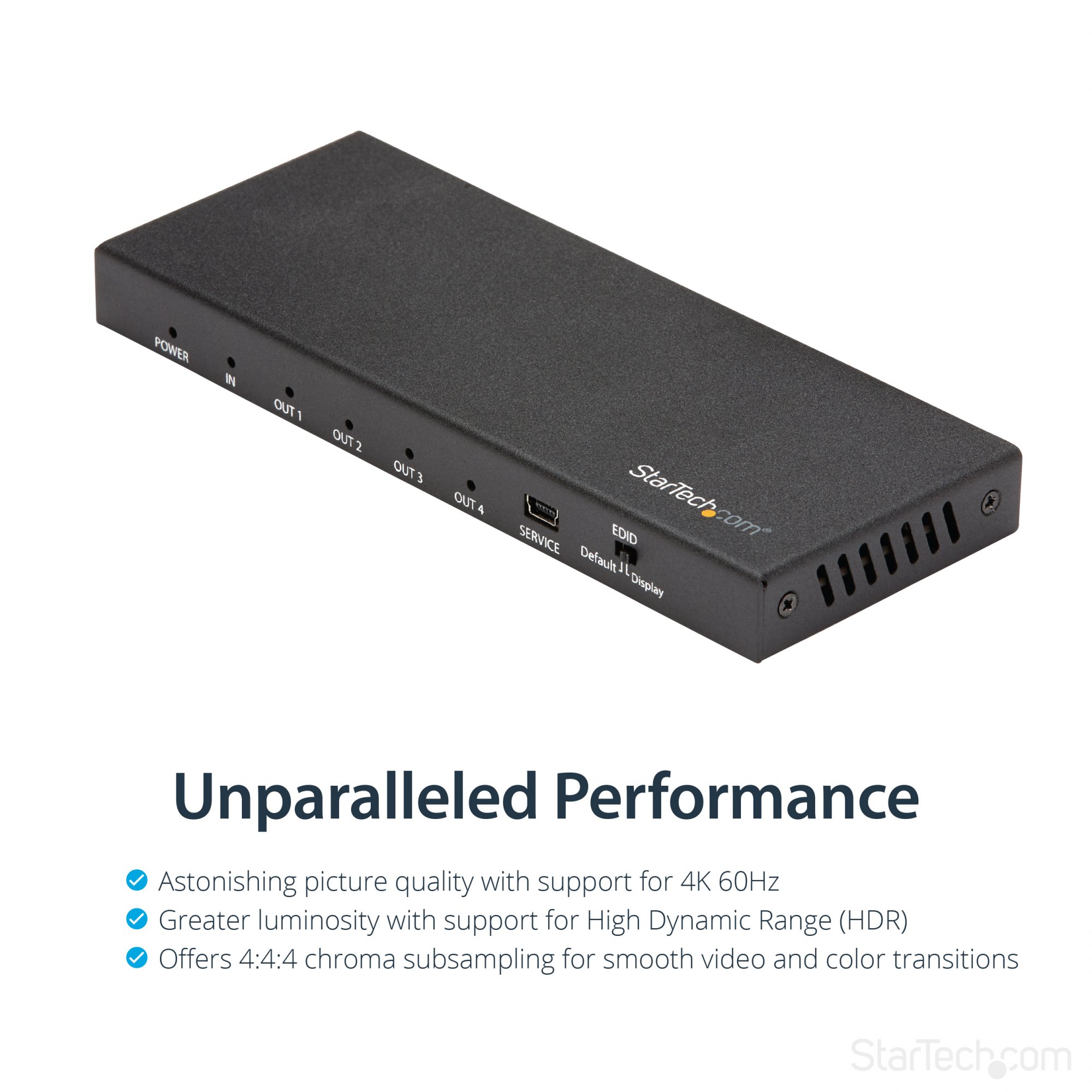

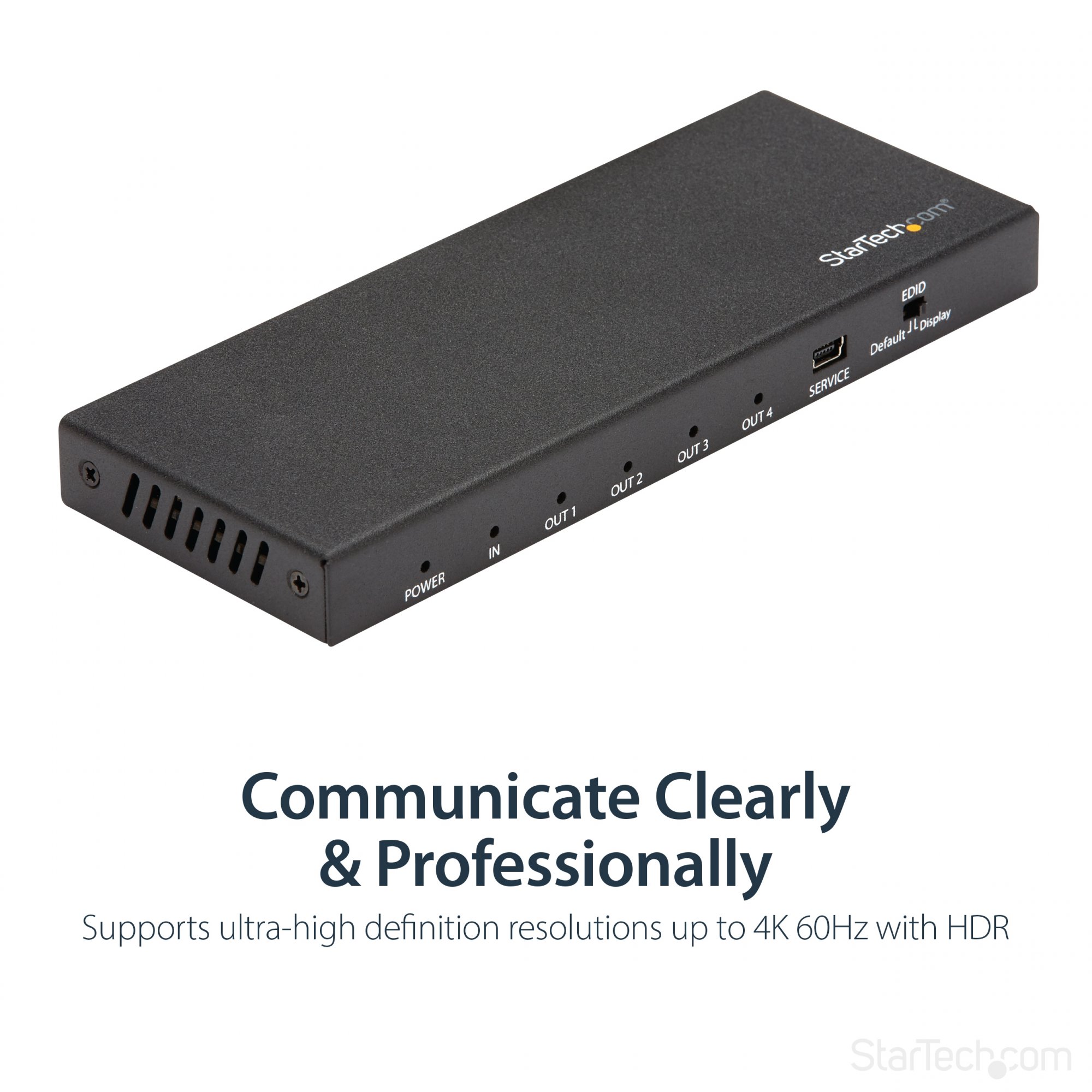

4-PORT HDMI SPLITTER: Displays the same image with sound on 4 screens; Splits an HDMI video signal up to Ultra HD 4K 60Hz & 7.1 CH audio; 4:4:4 chroma subsampling support w/ bandwidth up to 18Gbps (HDMI 2.0b); HDR; HDCP 2.2 to HDCP 1.4 conversion
EDID EMULATION: 1x4 HDMI splitter 4K automatically passes EDID between your video source and the display attached to port 1 ensuring native settings (such as resolution and refresh rate) are configured
AUDIO SUPPORT: Audio output is supported on all ports simultaneously; Support for 7.1 surround sound audio including Dolby® True HD and DTS HD Master Audio
LONG REACH: Reach up to 16.4ft (5m) with a passive HDMI cable; For longer distances, active HDMI cables or HDMI extenders are available (sold separately) to use with this HDMI splitter for 4x TVs/projectors/monitors/displays

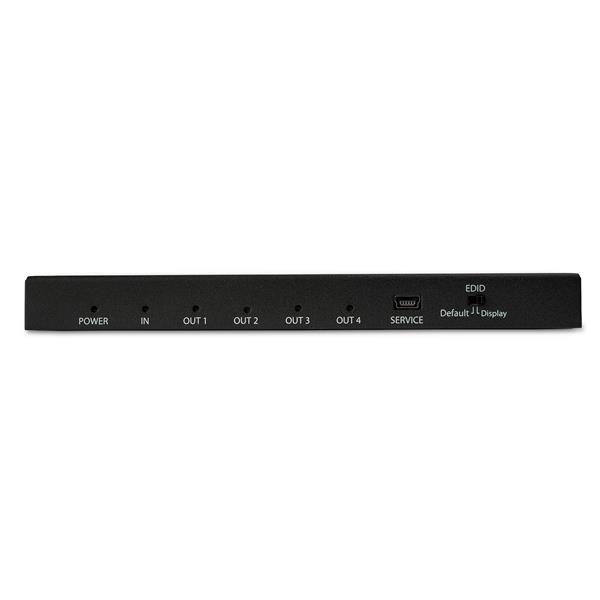

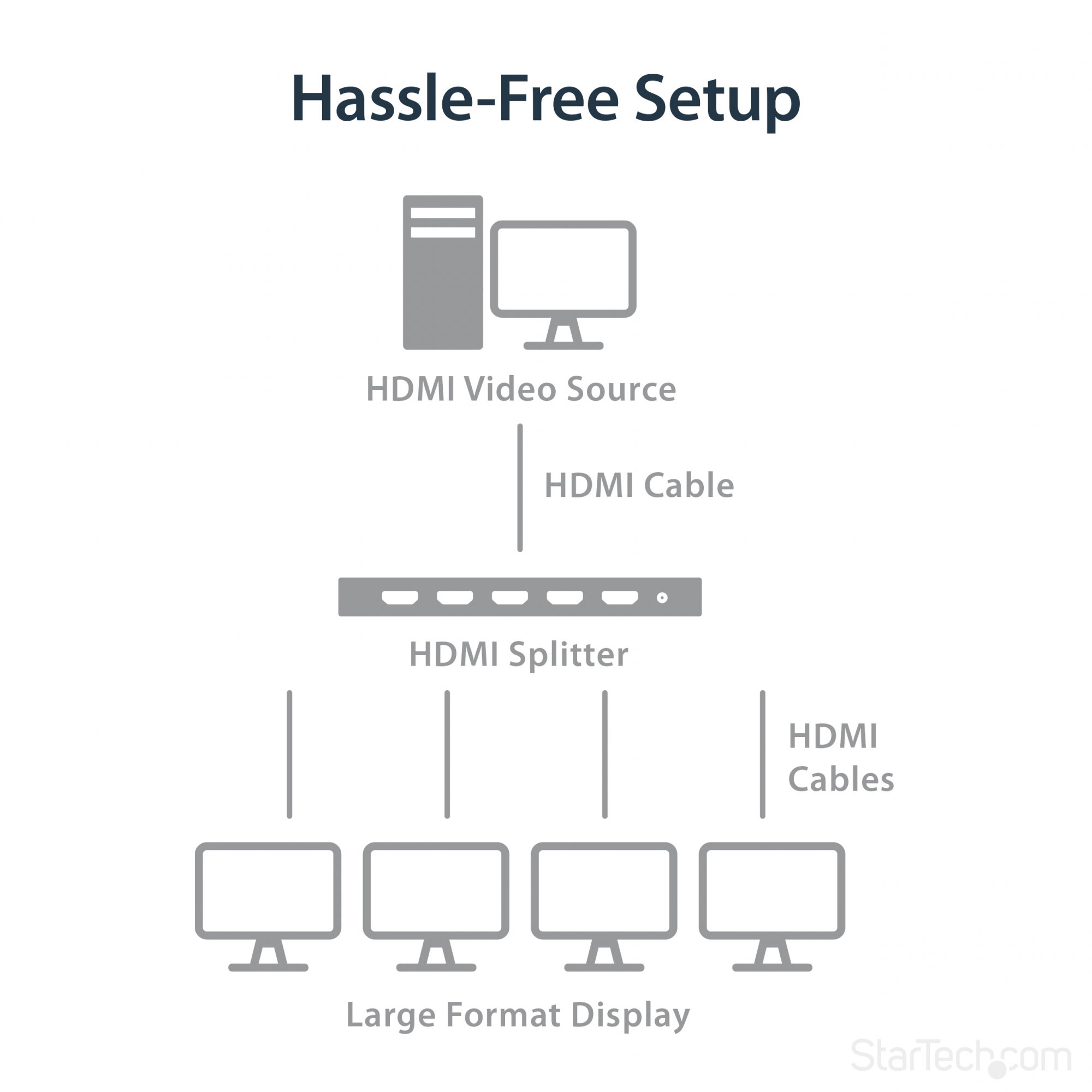

EASY SETUP: No drivers required for this 1-input 4-output UHD HDMI 2.0 splitter box; Simply connect cables and power with the EDID switch set to Auto to get started; Wide screen monitor formats supported; HDMI/DVI compatible

Product Properties

Manufacturer
StarTech.com

Model
ST124HD202

EAN
65030880398

Bullet points

Point
4-PORT HDMI SPLITTER

Audio support

EASY SETUP

EDID EMULATION

LONG REACH

Features

Certification
CE, FCC, REACH

Full HD
Yes

HD type
4K Ultra HD

HDCP
Yes

LED indicators
Yes

Maximum refresh rate
60 Hz

Maximum resolution
3840 x 2160 pixels

Plug and Play
Yes

Power LED
Yes

Product colour
Black

Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

Supported video modes
720p, 1080p

Logistics data

Harmonized System (HS) code
85176990

Operational conditions

Operating relative humidity (H-H)
20 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 60 °C

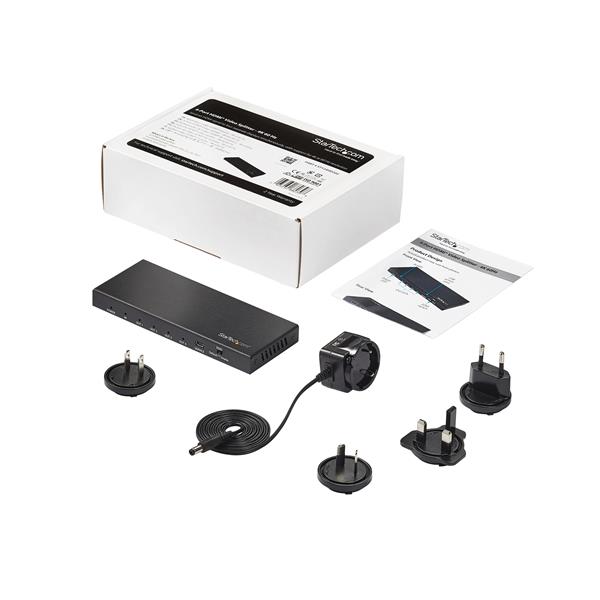

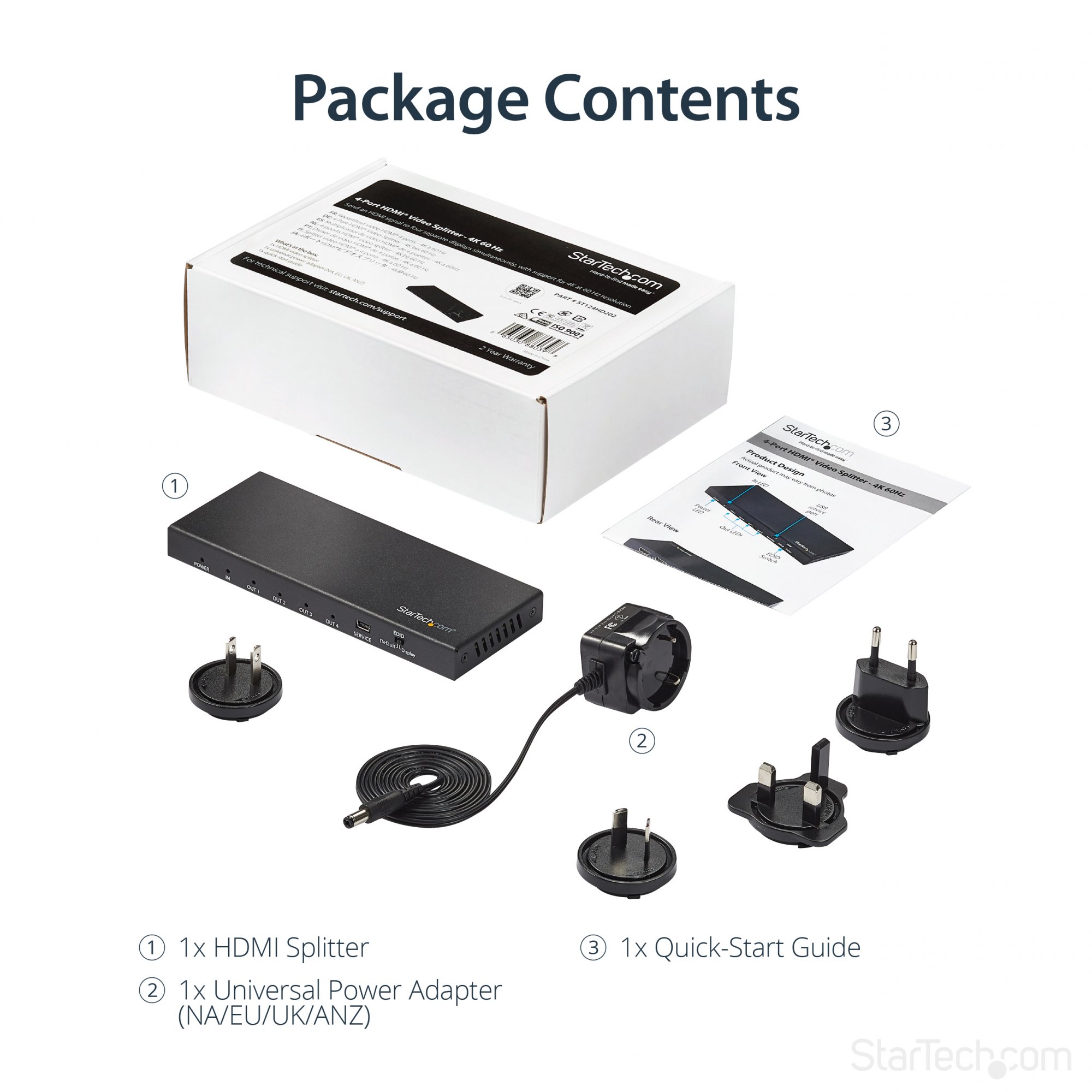

Packaging content

Included power plug types
AU, EU, NA, UK

User guide
Yes

Packaging data

Package depth
212 mm

Package height
55 mm

Package width
148 mm

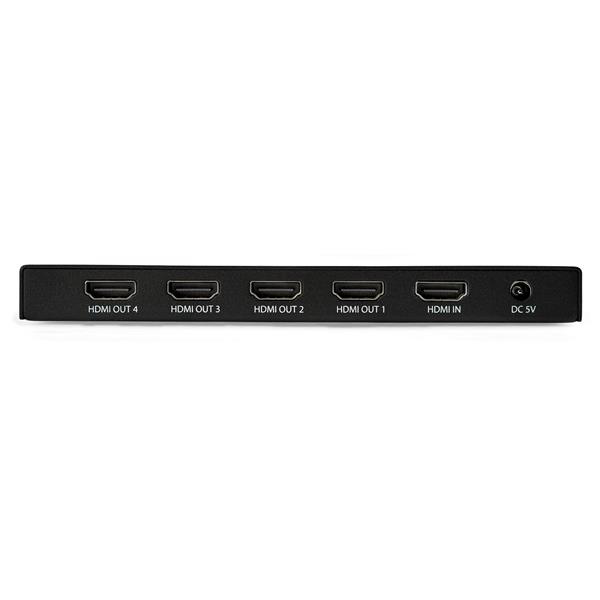

Ports & interfaces

HDMI version
2.0

Video out
4x HDMI

Video port type
HDMI

Video ports quantity
4

Power

AC input voltage
100 - 240 V

Input current
1 A

Output current
0.2 A

Output voltage
5 V

Power consumption (typical)
5 W

Sustainability

Sustainability certificates
RoHS

Technical details

Maximum cable length
5 m

Supported audio channels
7.1

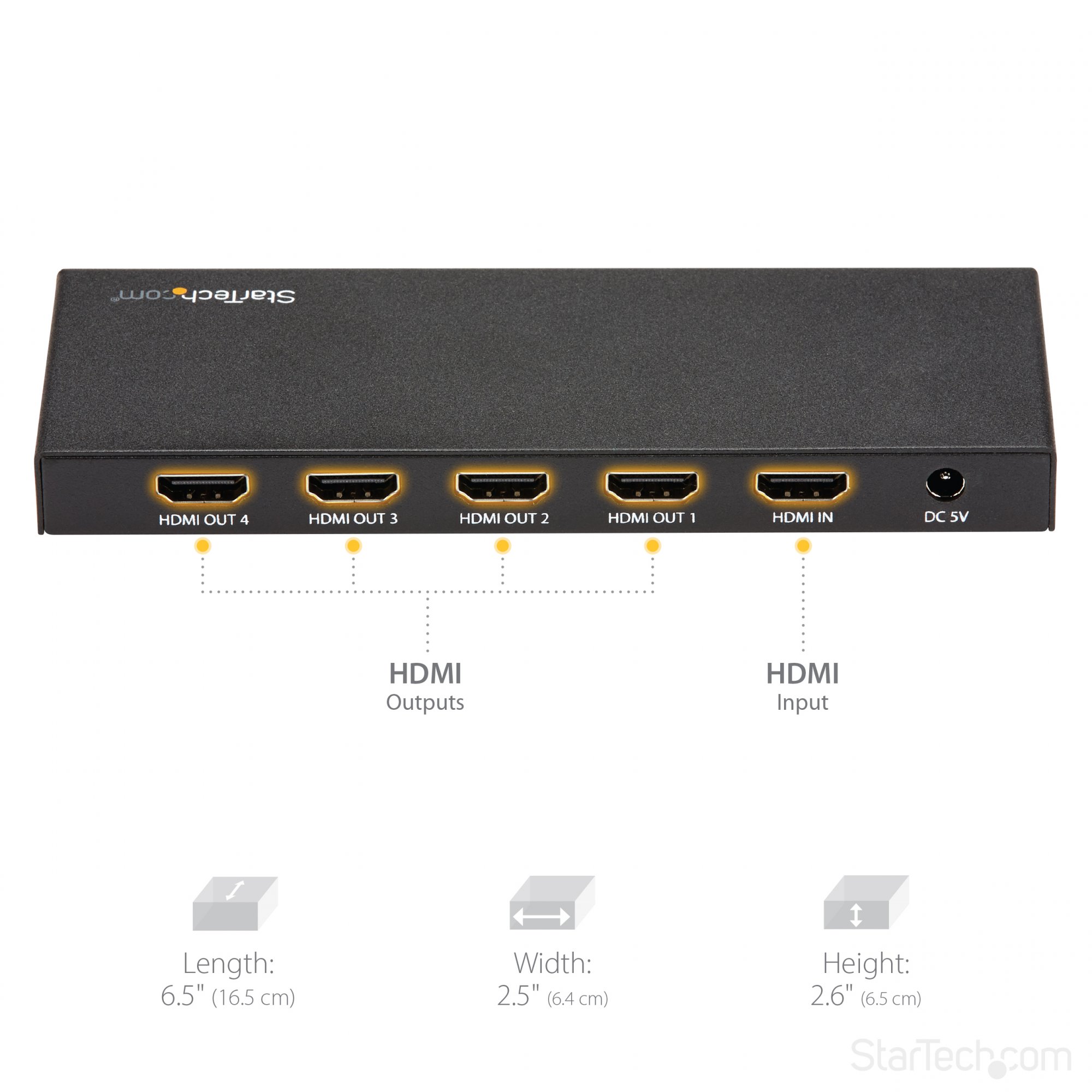

Weight & dimensions

Depth
165 mm

Height
65 mm

Weight
506 g

Width
64 mm
