Description

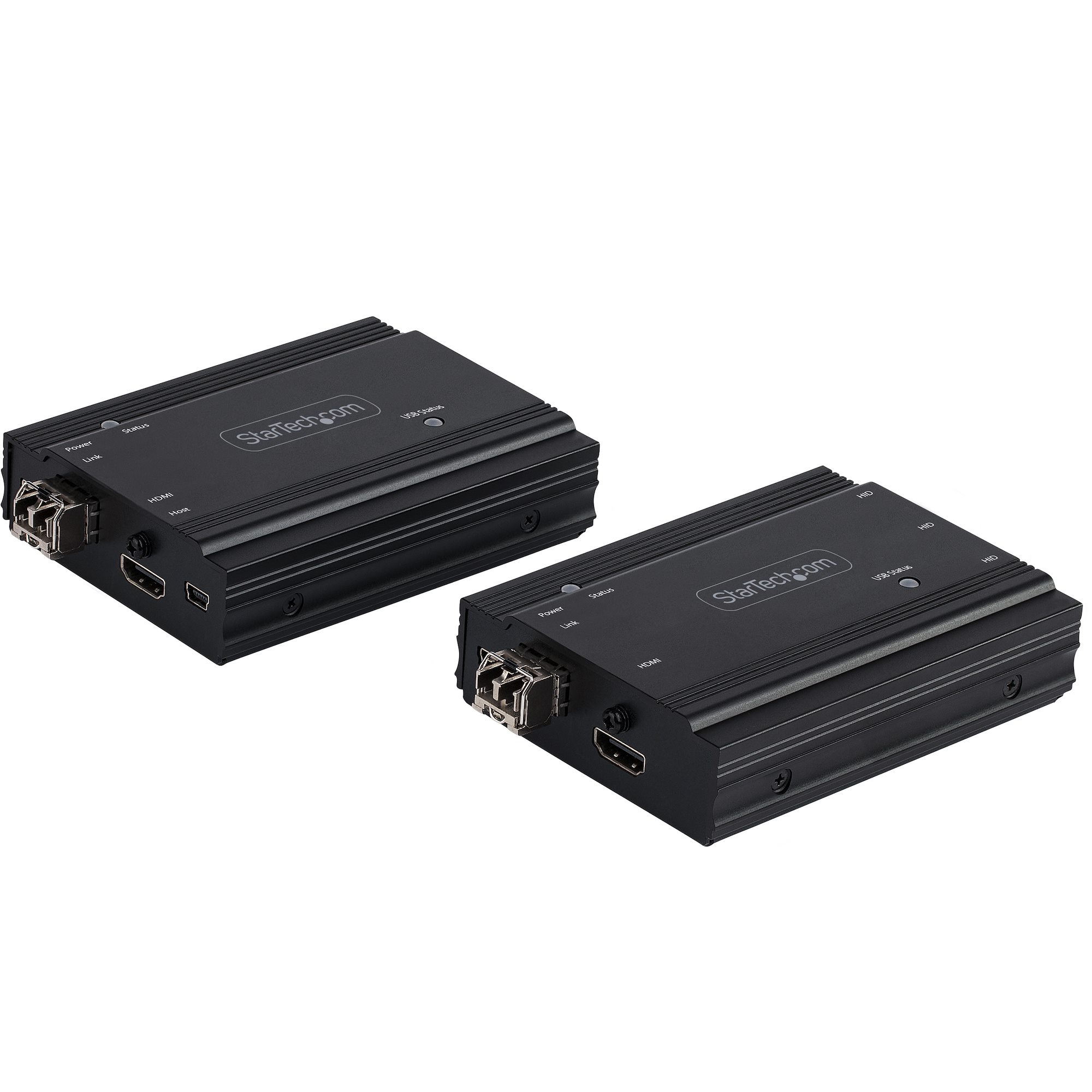

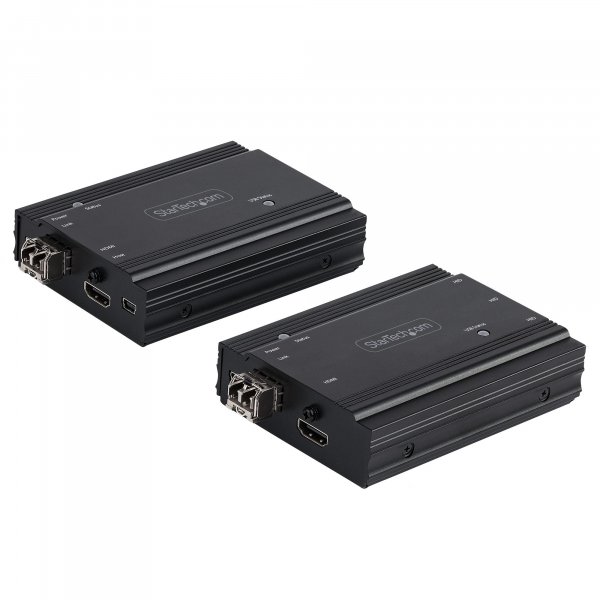

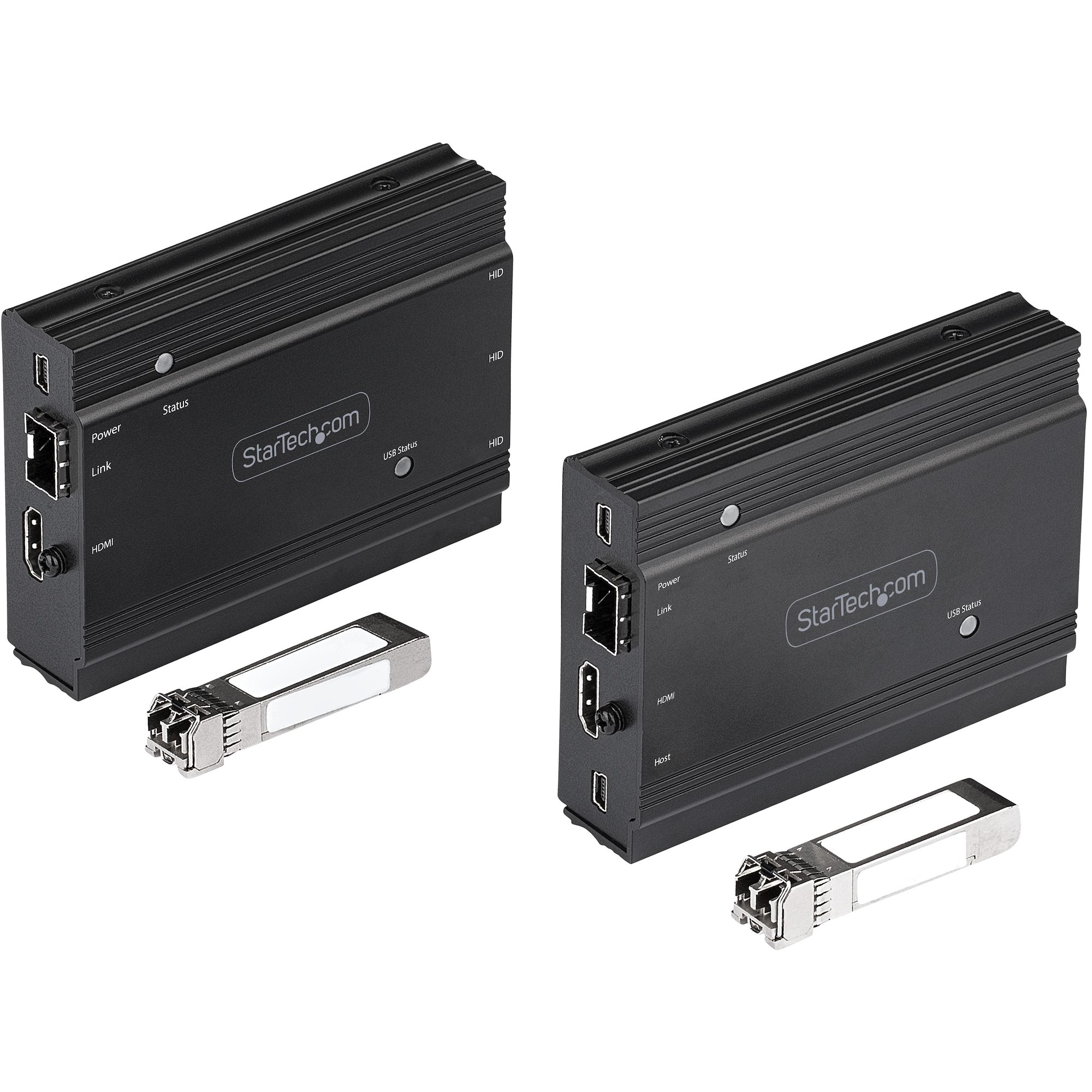

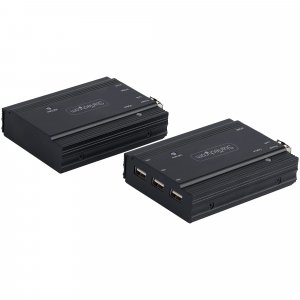

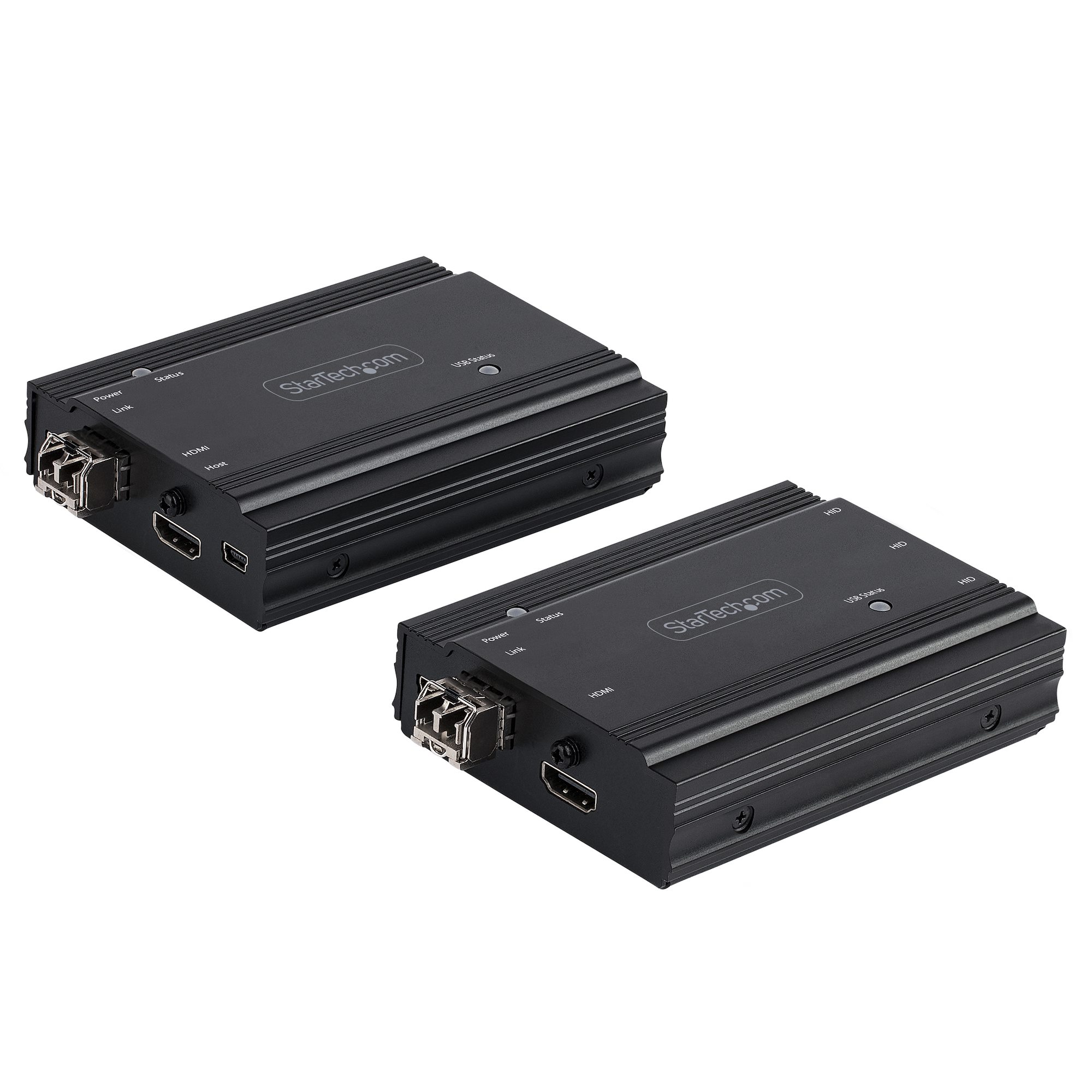

StarTech.com 4K HDMI KVM Extender over Fiber - HDMI Video & USB Remote KVM Switch/Console Extender - up to 984ft/300m (MultiMode) - 2x 10G MMF SFP+ modules - KVM Extension Kit (TX/RX). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 500 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI. AC input voltage: 100 - 240 V, Input current: 0.3 A, AC adapter output voltage: 5 V. Transmitter width: 7.5 cm, Transmitter depth: 10 cm, Transmitter height: 2.8 cm

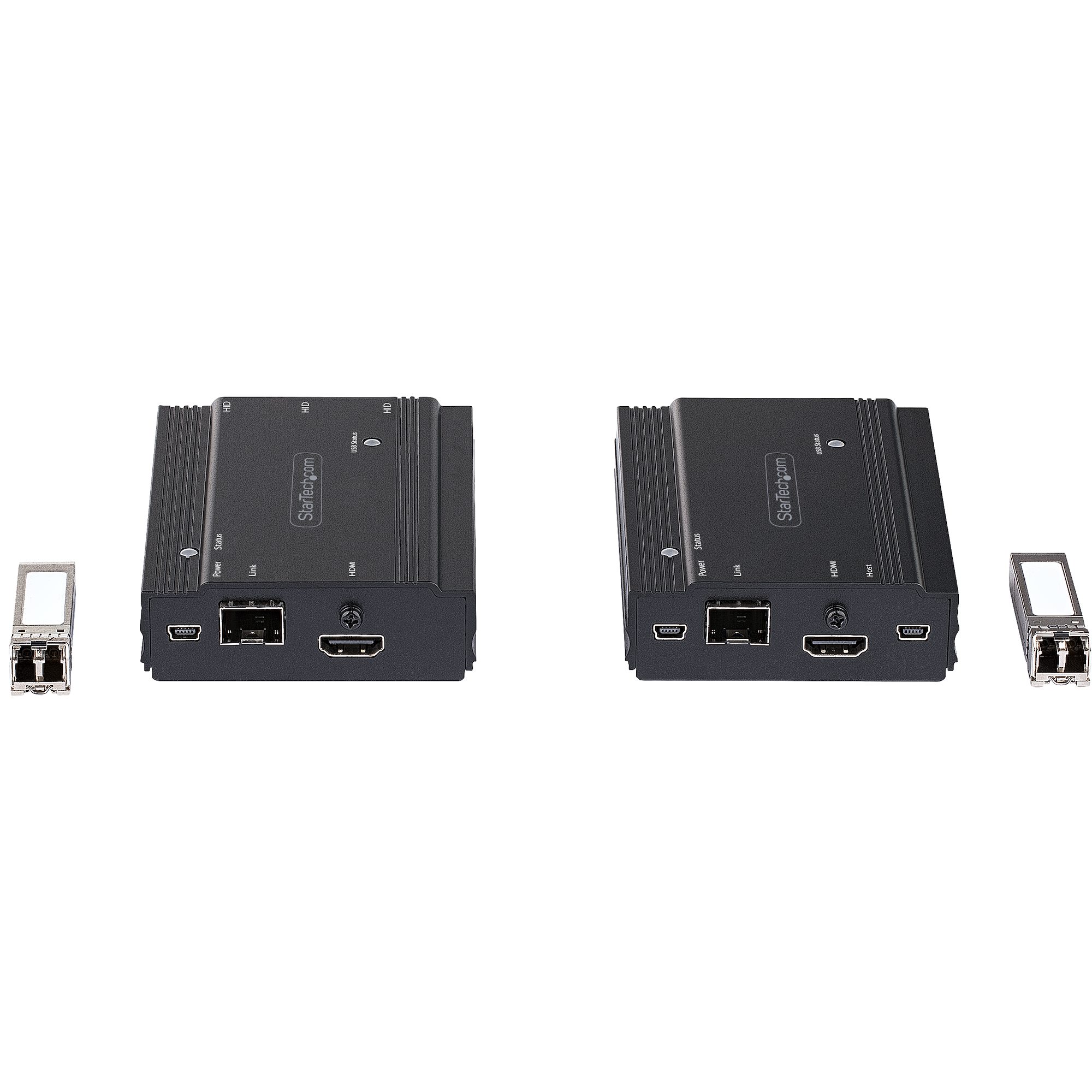

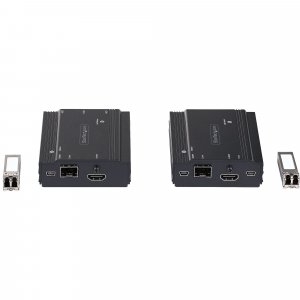

REMOTE ACCESS: USB & 4K HDMI KVM extender over fiber controls a KVM switch/console or PC using a fiber optic cable at distances up to 984'/300m (multimode cable) or 1,640'/500m (single mode cable); open SFP+ slots for use w/ MSA compliant 10G SFP+ modules
4K 60Hz VIDEO: HDMI transmitter and receiver extender kit achieves UHD resolutions up to 3840 x 2160 @ 60Hz, supporting 4:4:4 image sampling for accurate color & image for applications requiring high resolution video like digital signage & security
DIGITAL AUDIO & HDMI 2.0 VIDEO: Keyboard Video Mouse Extender with EDID passthrough transfers display capabilities to the video source, maximizing compatibility between devices; Digital 7.1 surround audio over HDMI for high quality sound; HDCP 2.2 support

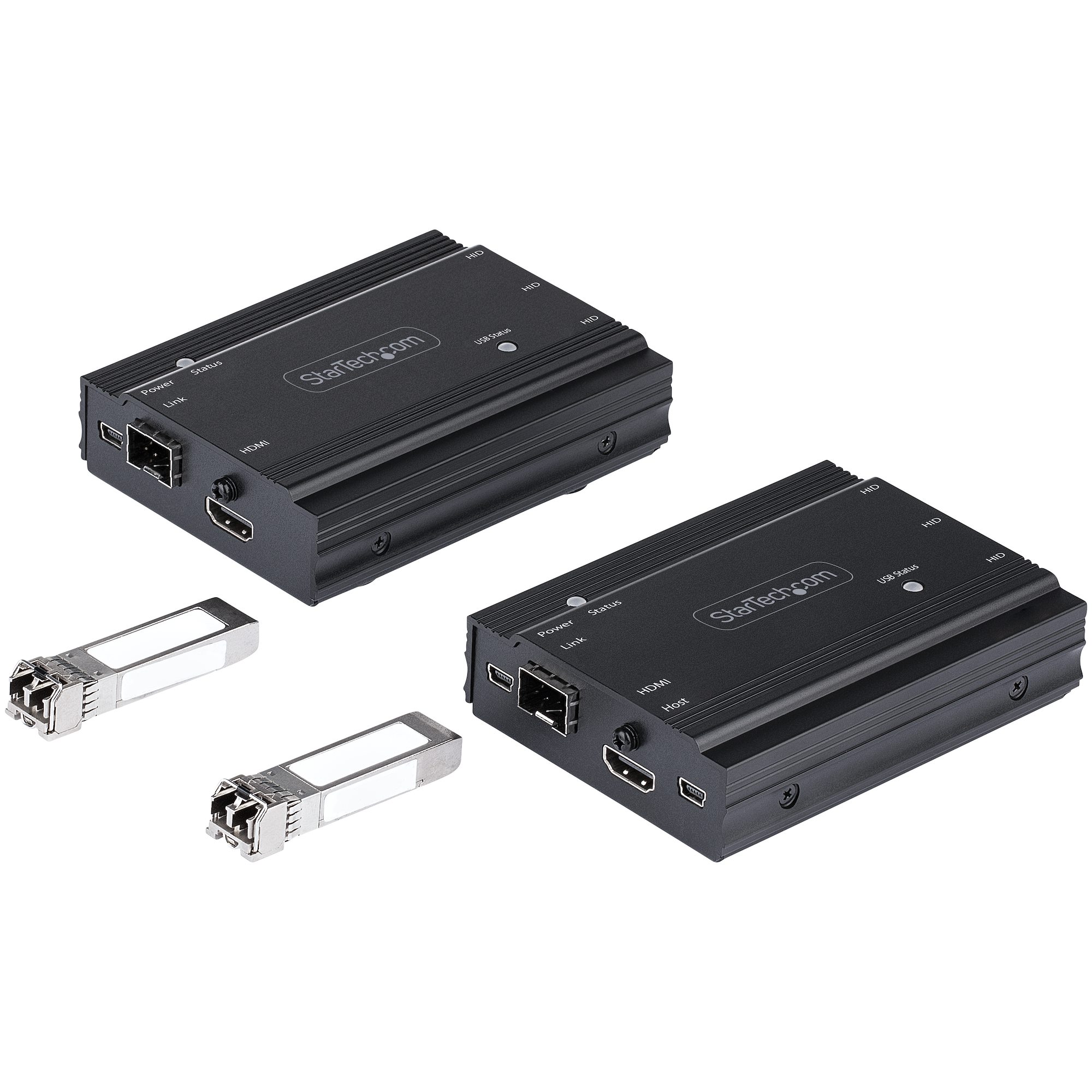

SPECS: HDMI 2.0 Fiber Optic KVM Extender / 3x USB 1.1 HID / OS Independent / EDID Passthrough / Supports MM or SM SFP+ / 2x 10G Multimode SFP+ modules inc. / LC Connectors / 300m/984 ft (MM) or 500m/1,640 ft (SM) max extension range / 2 year Warranty
EASY TO DEPLOY: Straightforward point-to-point setup using standard fiber optic cable makes configuration easy using the incl. SFP+ modules; there's no proprietary software and network settings to configure; StarTech.com's tech advisors are available 24/5

Product Properties

Manufacturer
StarTech.com

Model
SV565FXHD4KU

EAN
65030887694

Bullet points

Point
4K 60Hz VIDEO

DIGITAL AUDIO & HDMI 2.0 VIDEO

EASY TO DEPLOY

Remote Access

SPECS

Features

Connectivity technology
Wired

LED indicators
Power, Status

Material
Metal

Maximum digital resolution
3840 x 2160 pixels

Maximum refresh rate
60 Hz

Maximum transfer distance
500 m

On Screen Display (OSD)
No

Product colour
Black

Rack mounting
No

Type
Transmitter & receiver

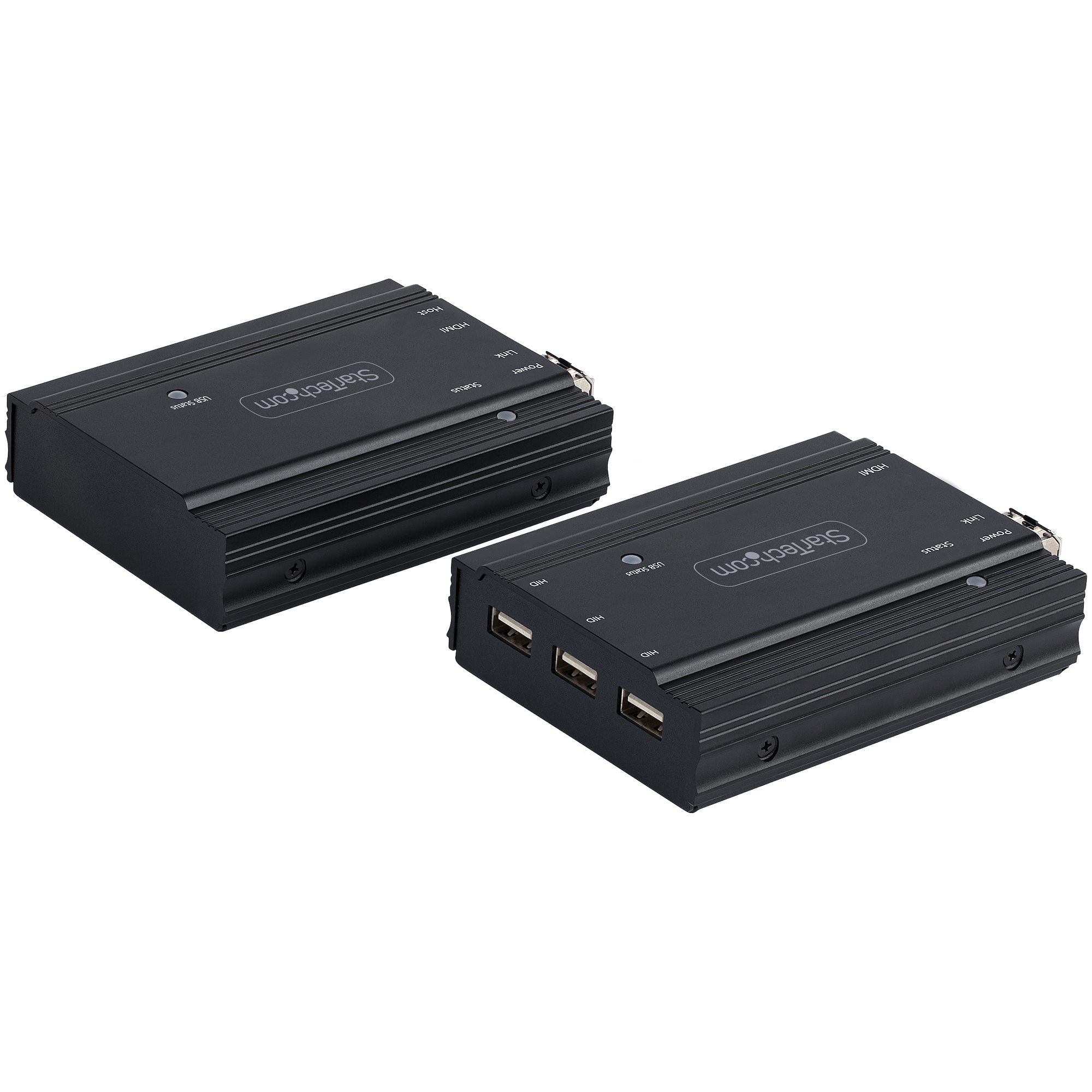

USB 1.1 ports quantity
3

Logistics data

Harmonized System (HS) code
84733080

Master (outer) case height
265 mm

Master (outer) case length
330 mm

Master (outer) case width
405 mm

Products per master (outer) case
6 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 80%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-10 - 60 °C

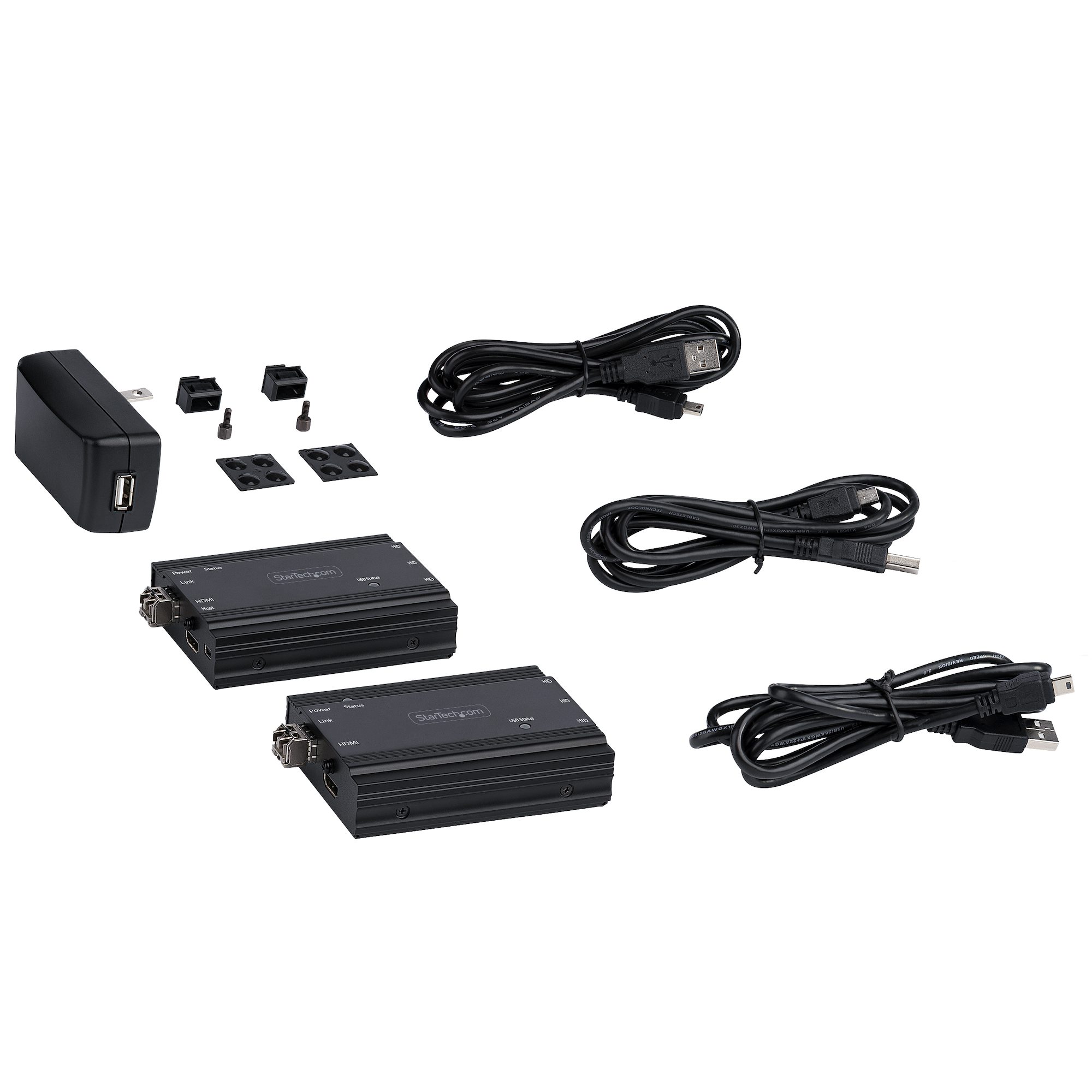

Packaging content

AC adapter included
Yes

Cables included
Mini-USB

Quick installation guide
Yes

Packaging data

Package depth
310 mm

Package height
75 mm

Package weight
140 g

Package width
180 mm

Power

AC adapter output current
2 A

AC adapter output voltage
5 V

AC input voltage
100 - 240 V

Input current
0.3 A

Power consumption (receiver) (max)
10 W

Power consumption (transmitter) (max)
10 W

Receiver

Receiver local video port type
HDMI

Technical details

Sustainability certificates
CE, RoHS

Weight
500 g

Transmitter

Number of displays supported
1

Transmitter video port type
HDMI

Weight & dimensions

Receiver depth
10 cm

Receiver height
2.8 cm

Receiver weight
450 g

Receiver width
7.5 cm

Transmitter depth
10 cm

Transmitter height
2.8 cm

Transmitter weight
450 g

Transmitter width
7.5 cm
