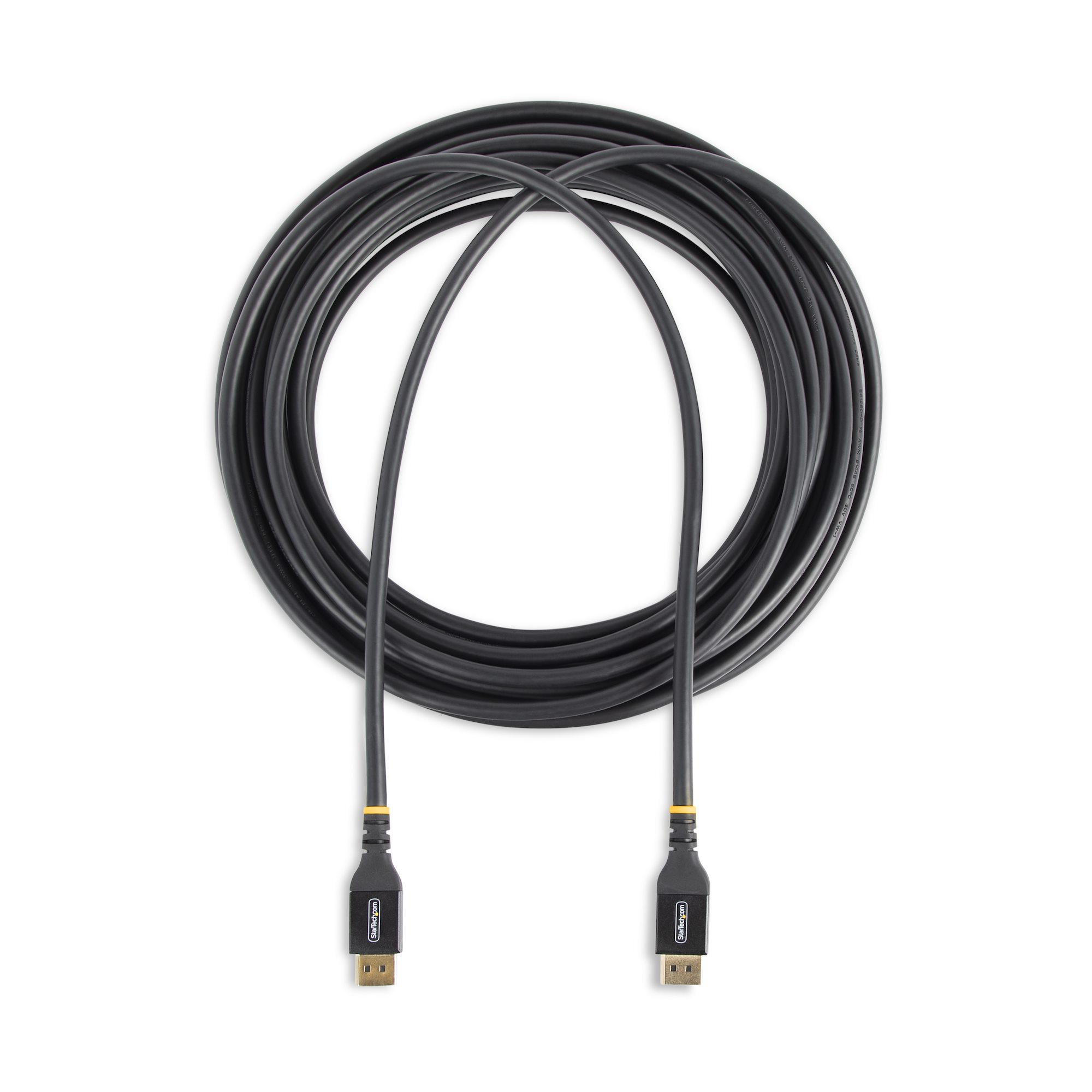

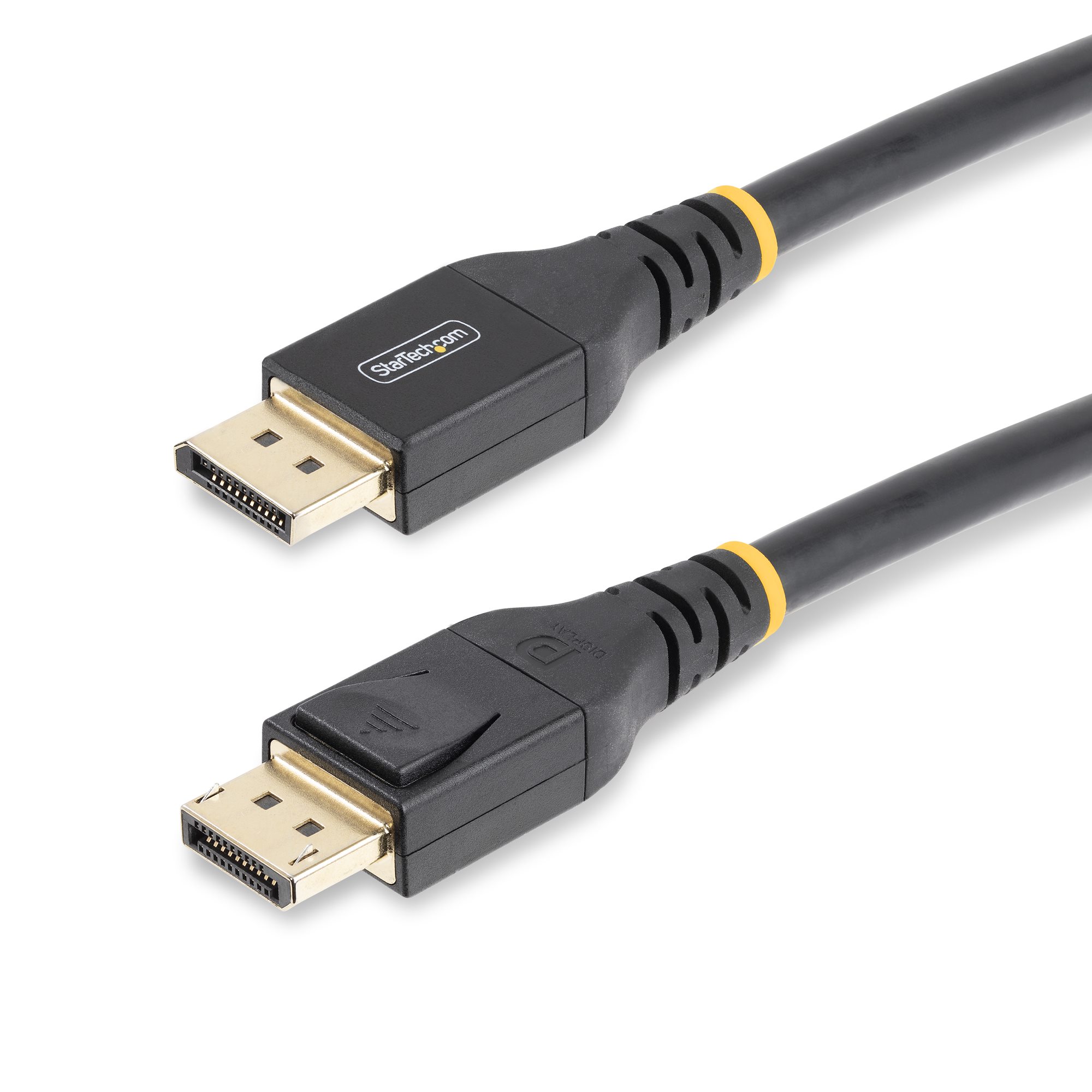

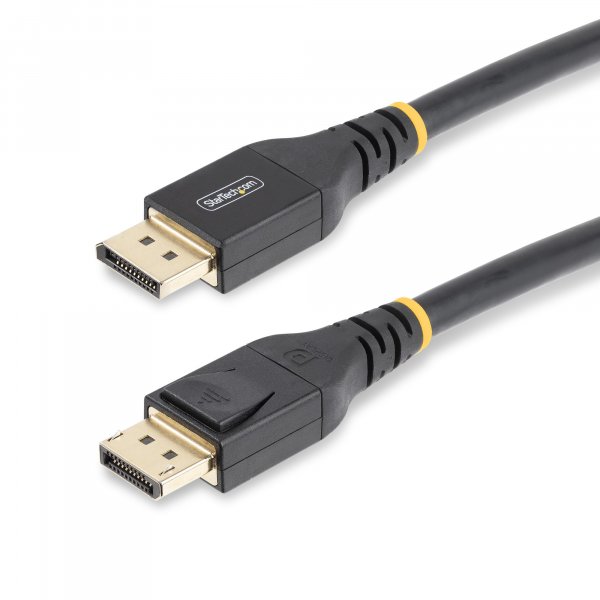

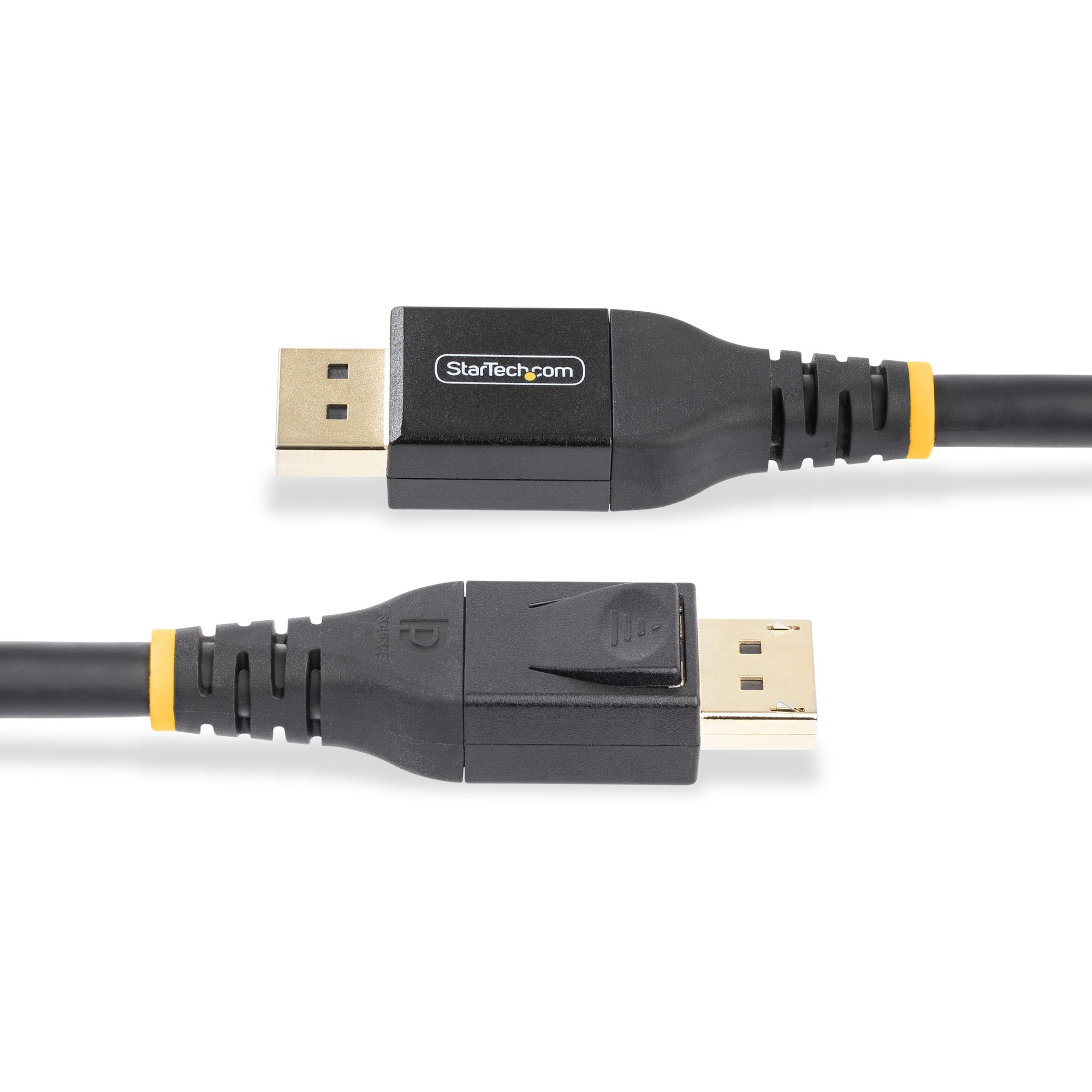

StarTech.com 50ft (15m) VESA-Certified Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M
Roll over image to zoom inClick to Open expanded view
Model: DP14A-15M-DP-CABLE
EAN: 65030899970

StarTech.com 50ft (15m) VESA-Certified Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M

Manufacturer:
StarTech.com
StarTech.com 50ft (15m) VESA-Certified Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M, 15.3 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com 50ft (15m) VESA-Certified Active DisplayPort 1.4 Cable, DP8K DisplayPort Cable w/HBR3, HDR10, MST, DSC 1.2, HDCP 2.2, 8K 60Hz, 4K 120Hz - DP 1.4 Cable M/M. Cable length: 15.3 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Sustainability certificates: RoHS. Cable diameter: 7.5 mm, Package width: 460 mm, Package depth: 350 mm. Master (outer) case width: 400 mm, Master (outer) case length: 330 mm, Master (outer) case height: 270 mm

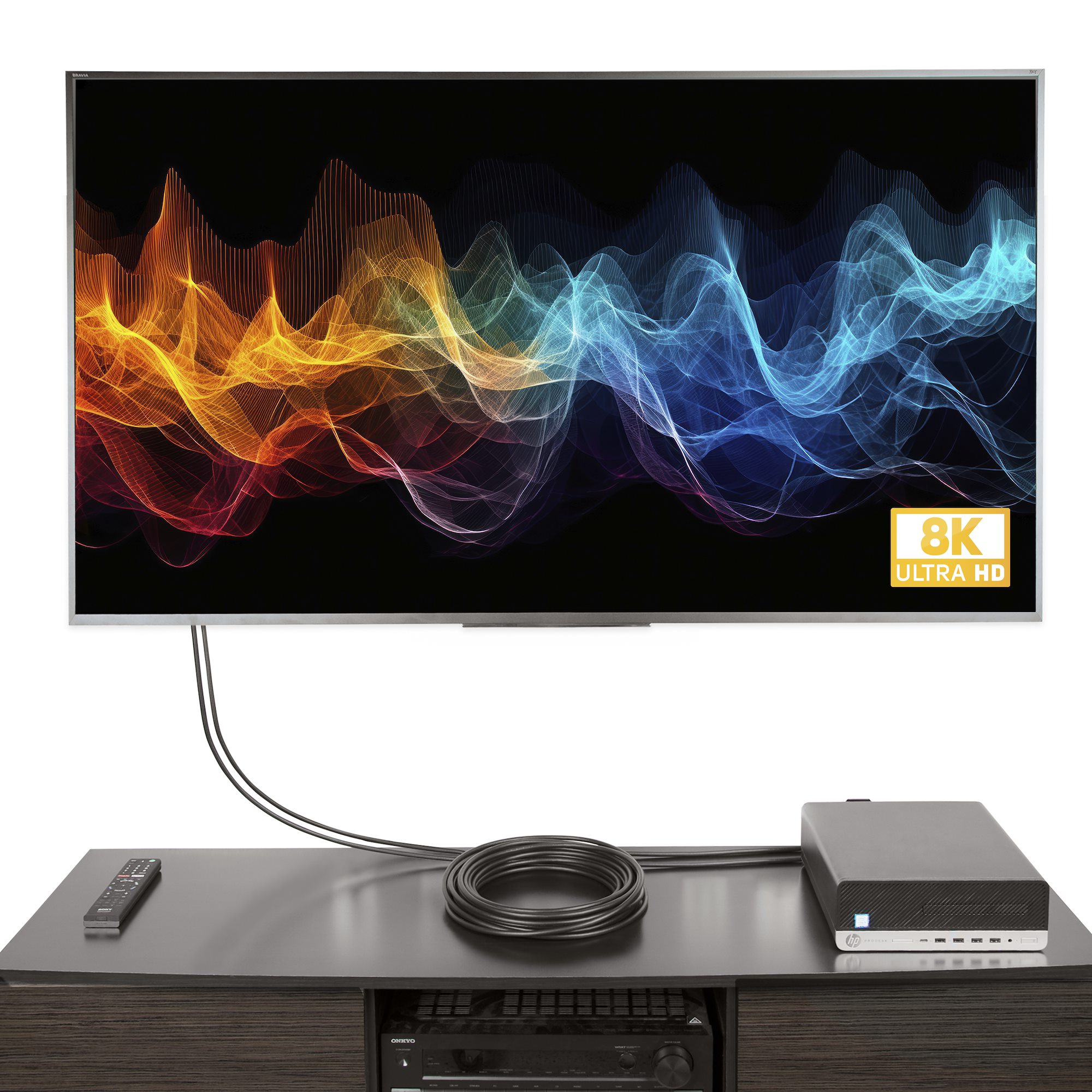

  • DESIGNED FOR LONG RANGE: 50ft (15.2m) Active DisplayPort 1.4 Cable delivers 8K video beyond the length of passive cables; Integrated self-powered signal booster enables consistent performance without the need for a DP booster or external power source
  • THIRD PARTY CERTIFIED: The Active DP 1.4 Cable is VESA certified for seamless compatibility with DisplayPort devices and reliable performance over longer lengths; When using certified cables, full-feature DisplayPort compatibility is guaranteed

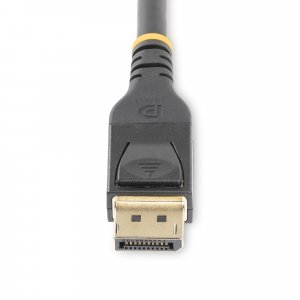

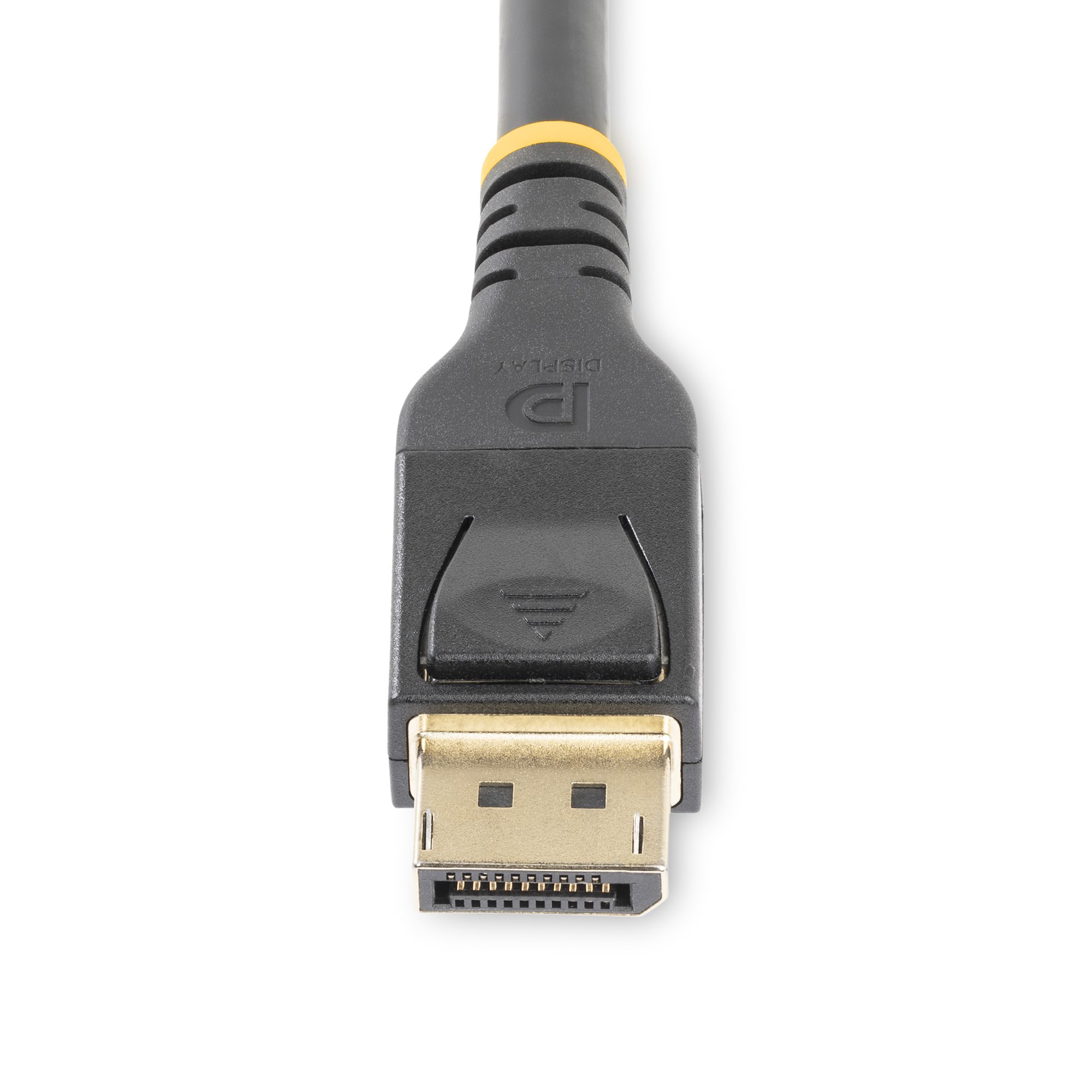

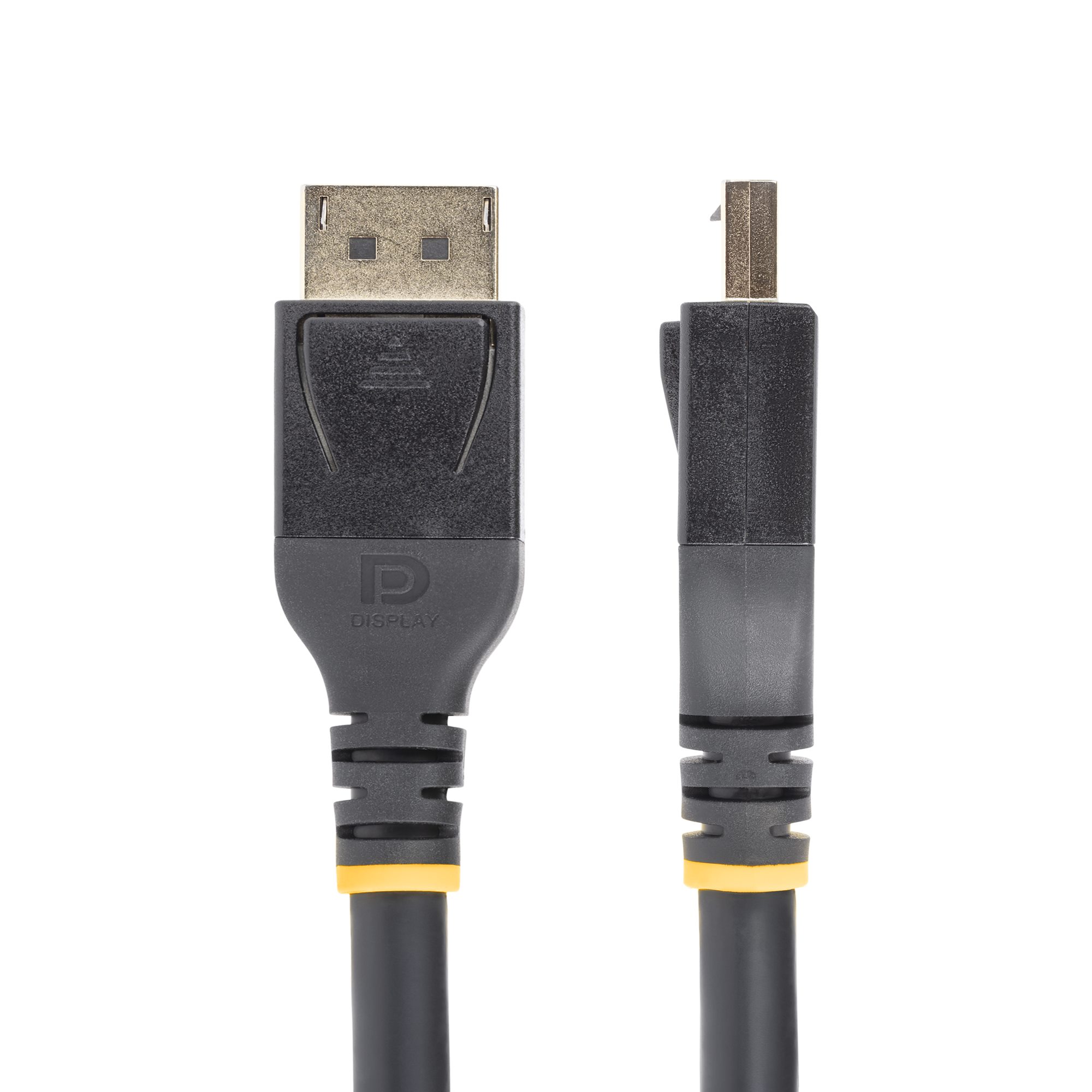

  • DURABLE CONSTRUCTION: Latching gold-plated connectors with robust strain reliefs to prevent accidental disconnects; TPE outer cable jacket is flexible, non-toxic, halogen-free, and RoHS compliant; Shielded cable and connector for enhanced EMI protection

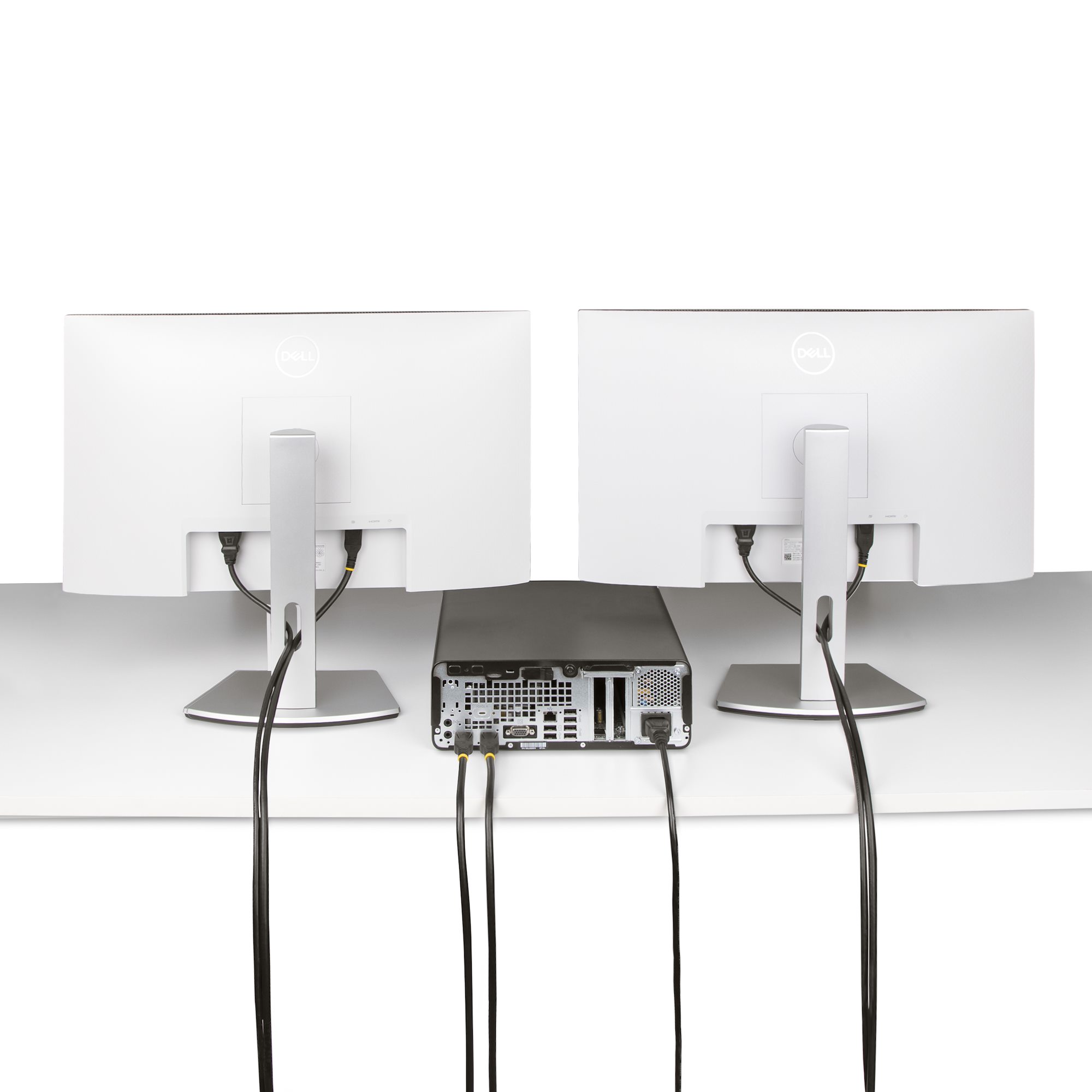

  • VERSATILE INSTALLATION: This active DP 1.4 cable is unidirectional, with conveniently labeled connectors for source and display; 7.5mm Cable O.D. is identical to passive cables and improves flexibility; VW-1 Fire rated jacket enhances flame resistance
  • SPECS: Black; 15.2m (50ft); Unidirectional cable; DP8K supports HBR3/HDR10/MST/DSC 1.2/HDCP 2.2; 8K 60Hz, 4K 120Hz, 1440p 240Hz w/DSC; Backward Compatible w/ DP 1.3/1.2; Cable O.D.: 7.5mm; Gold-Plated Connectors; Rugged TPE Jacket w/Aluminum Mylar Shield

Product Properties

  • Model
  • DP14A-15M-DP-CABLE
  • EAN
  • 65030899970
  • Bullet points
  • Point
  • DESIGNED FOR LONG RANGE
    Durable construction
    SPECS
    THIRD PARTY CERTIFIED
    VERSATILE INSTALLATION
  • Features
  • AWG wire size
  • 24/28
  • Bandwidth
  • 32400 MB/s
  • Cable length
  • 15.3 m
  • Cable material
  • Copper
  • Cable shielding
  • Aluminum mylar foil
  • Connector 1
  • DisplayPort
  • Connector 1 form factor
  • Straight
  • Connector 1 gender
  • Male
  • Connector 2
  • DisplayPort
  • Connector 2 form factor
  • Straight
  • Connector 2 gender
  • Male
  • Connector contacts plating
  • Gold
  • Data transfer rate
  • 25.92 Gbit/s
  • Display Stream Compression (DSC)
  • Yes
  • Display Stream Compression (DSC) version
  • 1.2
  • DisplayPort version
  • 1.4
  • Fire-resistance rating
  • VW-1
  • HBR3 support
  • Yes
  • HDCP
  • Yes
  • HDCP version
  • 2.2
  • Jacket material
  • Thermoplastic elastomer (TPE)
  • Maximum refresh rate
  • 144 Hz
  • Maximum resolution
  • 7680 x 4320 pixels
  • Multi-Stream Transport (MST)
  • Yes
  • Product colour
  • Black
  • Supported graphics resolutions
  • 3840 x 2160, 7680 x 4320
  • Logistics data
  • Master (outer) case height
  • 270 mm
  • Master (outer) case length
  • 330 mm
  • Master (outer) case width
  • 400 mm
  • Products per master (outer) case
  • 8 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 85%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging data
  • Cable diameter
  • 7.5 mm
  • Package depth
  • 350 mm
  • Package height
  • 150 mm
  • Package weight
  • 1 kg
  • Package width
  • 460 mm
  • Sustainability
  • Sustainability certificates
  • RoHS
  • Sustainability compliance
  • Yes
