Description

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Low Profile Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows/Linux. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Yellow, Certification: CE, FCC, TAA. Chipset: ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI, Baud rate: 926.1 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows.... Width: 22 mm, Depth: 145 mm, Height: 60 mm

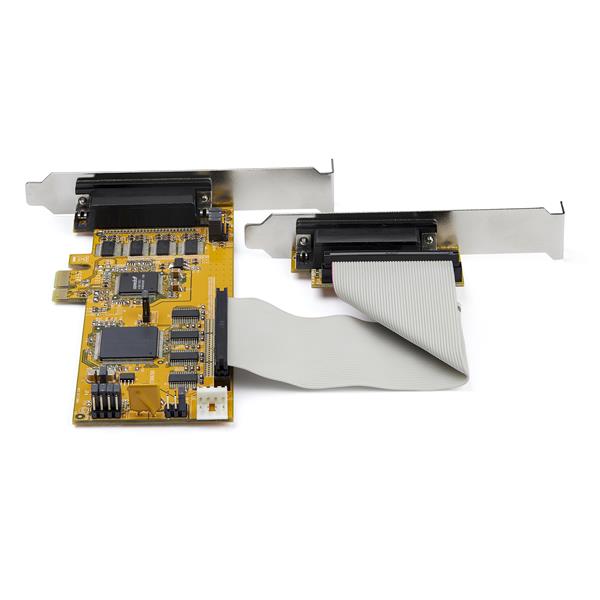

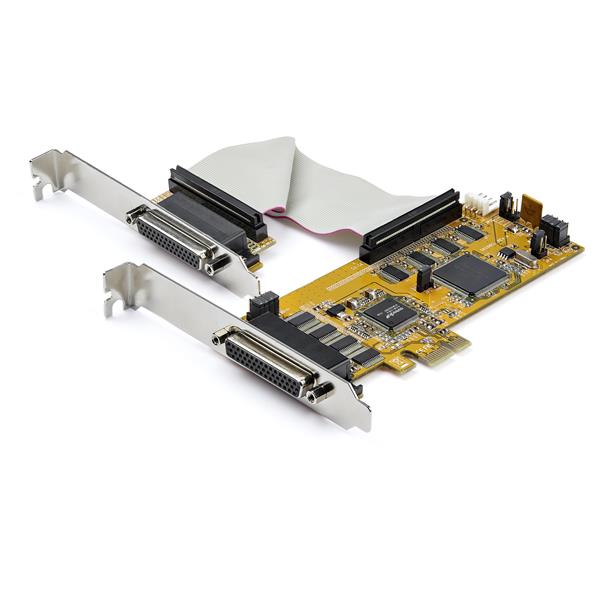

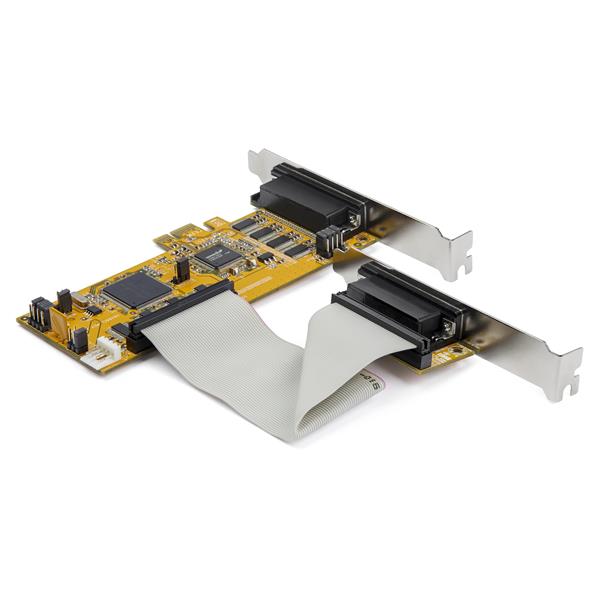

8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer_x000D_

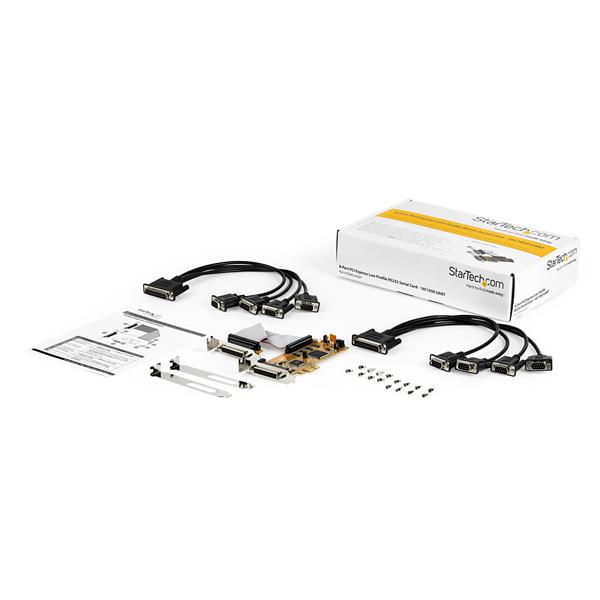

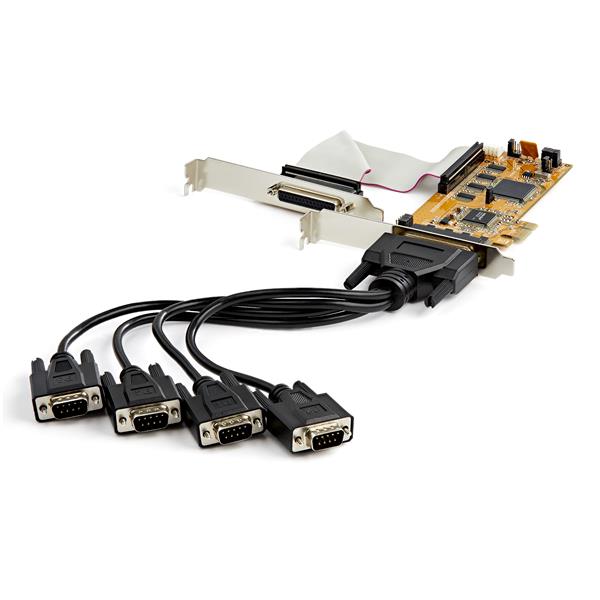

OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface_x000D_

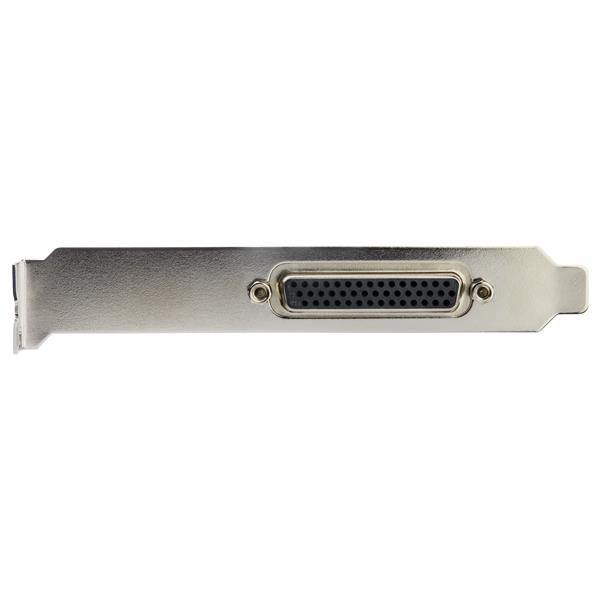

COMPATABILITY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Spec, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For low profile desktop/servers_x000D_
VERSATILE APPLICATIONS: PCI Express RS232 serial adapter card for within point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanners, oscilloscope_x000D_
STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support_x000D_
_x000D_

Product Properties

Manufacturer
StarTech.com

Model
PEX8S1050LP

EAN
65030886574

Bullet points

Point
8 PORT SERIAL CARD

COMPATABILITY

OPTIONAL CONFIGURABLE POWER

STARTECH.COM ADVANTAGE

VERSATILE APPLICATIONS

_x000D_

Design

Certification
CE, FCC, TAA

Internal
Yes

Product colour
Yellow

Features

Baud rate
926.1 Kbit/s

Chipset

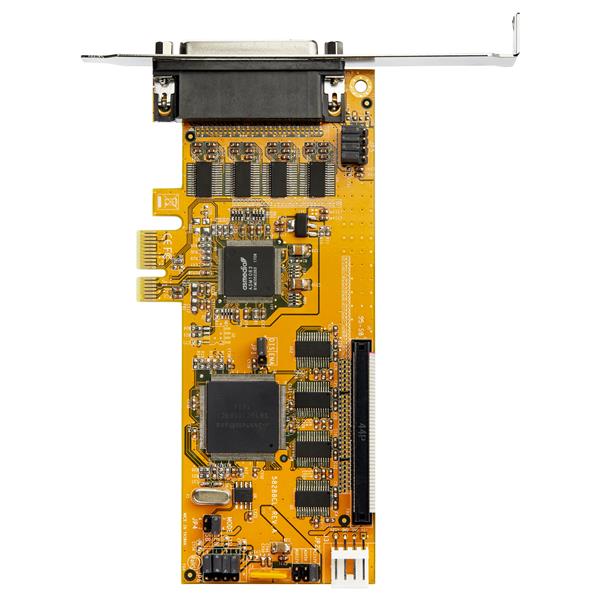

ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI

Data bits
5, 6, 7, 8

FIFO (First In, First Out)
256 B

Flow control support
Yes

Flow Control type
RTS/CTS, XON/XOFF

Parity bit
Even, No, Odd

Stop bits
1, 1.5, 2

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
315 mm

Master (outer) case length
510 mm

Master (outer) case width
400 mm

Products per master (outer) case
14 pc(s)

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
0 - 55 °C

Storage temperature (T-T)
-20 - 85 °C

Packaging data

Cables included
Serial

Mounting brackets included
Yes

Package depth
290 mm

Package height
70 mm

Package weight
750 g

Package width
190 mm

Quantity
1

User guide
Yes

Ports & interfaces

Expansion card form factor
Full-height / Low-profile

Host interface
PCIe

Output interface
Serial

Serial interface type
RS-232

Serial ports quantity
8

System requirements

Linux operating systems supported
Yes

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vi

Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Technical details

Sustainability certificates
RoHS

Weight & dimensions

Depth
145 mm

Height
60 mm

Weight
116 g

Width
22 mm
