Description

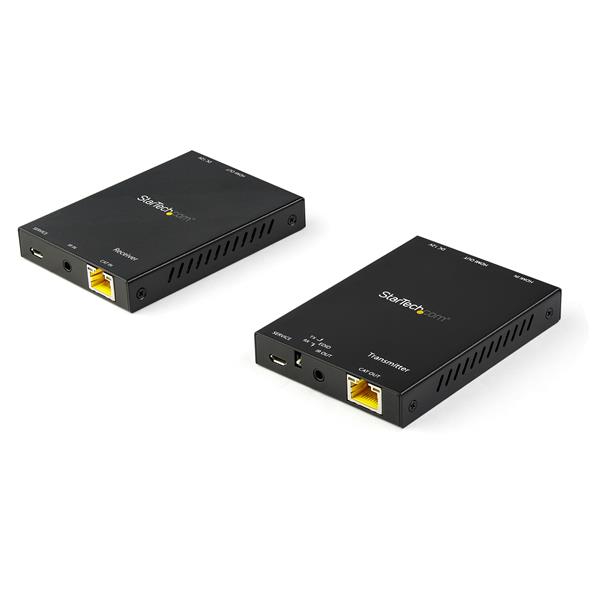

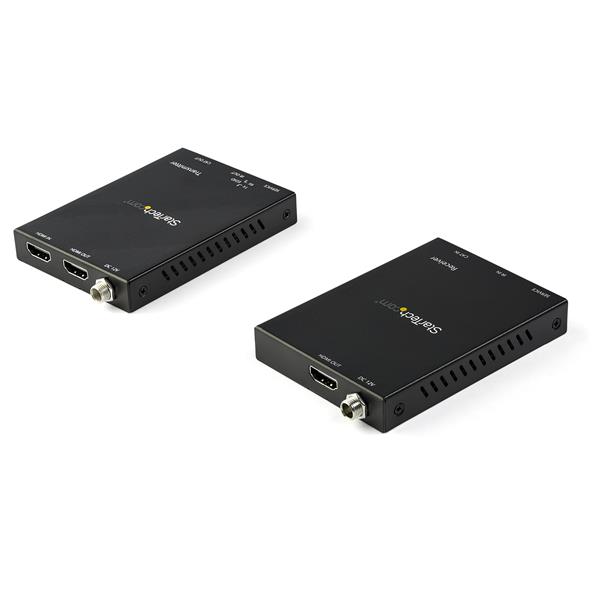

StarTech.com HDMI over CAT6 Extender Kit - 4K 60Hz. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. AC input voltage: 100 - 240 V, Input current: 0.3 A, Operating voltage (transmitter): 12 V. Width: 70 mm, Depth: 97 mm, Height: 13 mm. Package width: 130 mm, Package depth: 220 mm, Package height: 70 mm

Crystal-clear picture quality with support for resolutions up to 4K 60Hz_x000D_
Compatible with HDR and 4:4:4 chroma subsampling for lifelike images_x000D_
Hassle-free setup with long-distance transmission over a reliable connection_x000D_
Ensured compatibility with HDCP 2.2 devices and displays_x000D_
_x000D_

Product Properties

Manufacturer
StarTech.com

Model
ST121HD20V

EAN
65030880084

Bullet points

Point
Compatible with HDR and 4:4:4 chroma subsampling for lifelike images_x000D_

Crystal-clear picture quality with support for resolutions up to 4K 60Hz_x000D_

Ensured compatibility with HDCP 2.2 devices and displays_x000D_

Hassle-free setup with long-distance transmission over a reliable connection_x000D_

_x000D_

Features

Audio output channels
7.1 channels

Cable types supported
Cat6

Certification
CE, FCC, REACH

HDCP
Yes

HDCP version
2.2

Maximum refresh rate
60 Hz

Maximum resolution
3840 x 2160 pixels

Maximum transfer distance
50 m

Product colour
Black

Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160

Type
AV transmitter & receiver

Logistics data

Harmonized System (HS) code
85176200

Master (outer) case height
282 mm

Master (outer) case length
457 mm

Master (outer) case width
375 mm

Products per master (outer) case
20 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 60 °C

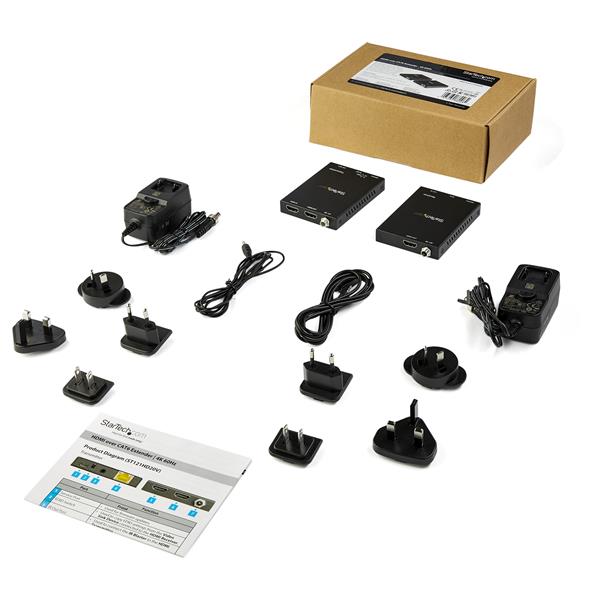

Packaging content

Included power plug types
ANZ, EU, JP, NA, UK

IR blaster included
Yes

IR receiver included
Yes

Quick start guide
Yes

Packaging data

Package depth
220 mm

Package height
70 mm

Package weight
777 g

Package width
130 mm

Ports & interfaces

Connectivity technology
Wired

HDMI in
1

HDMI version
2.0

Number of HDMI outputs
2

RJ-45 input ports
1

RJ-45 output ports
1

Power

AC input voltage
100 - 240 V

Input current
0.3 A

Operating voltage (receiver)
12 V

Operating voltage (transmitter)
12 V

Output current
1 A

Power plug type
Type M

Technical details

Sustainability certificates
RoHS

Weight & dimensions

Depth
97 mm

Height
13 mm

Weight
156 g

Width
70 mm
