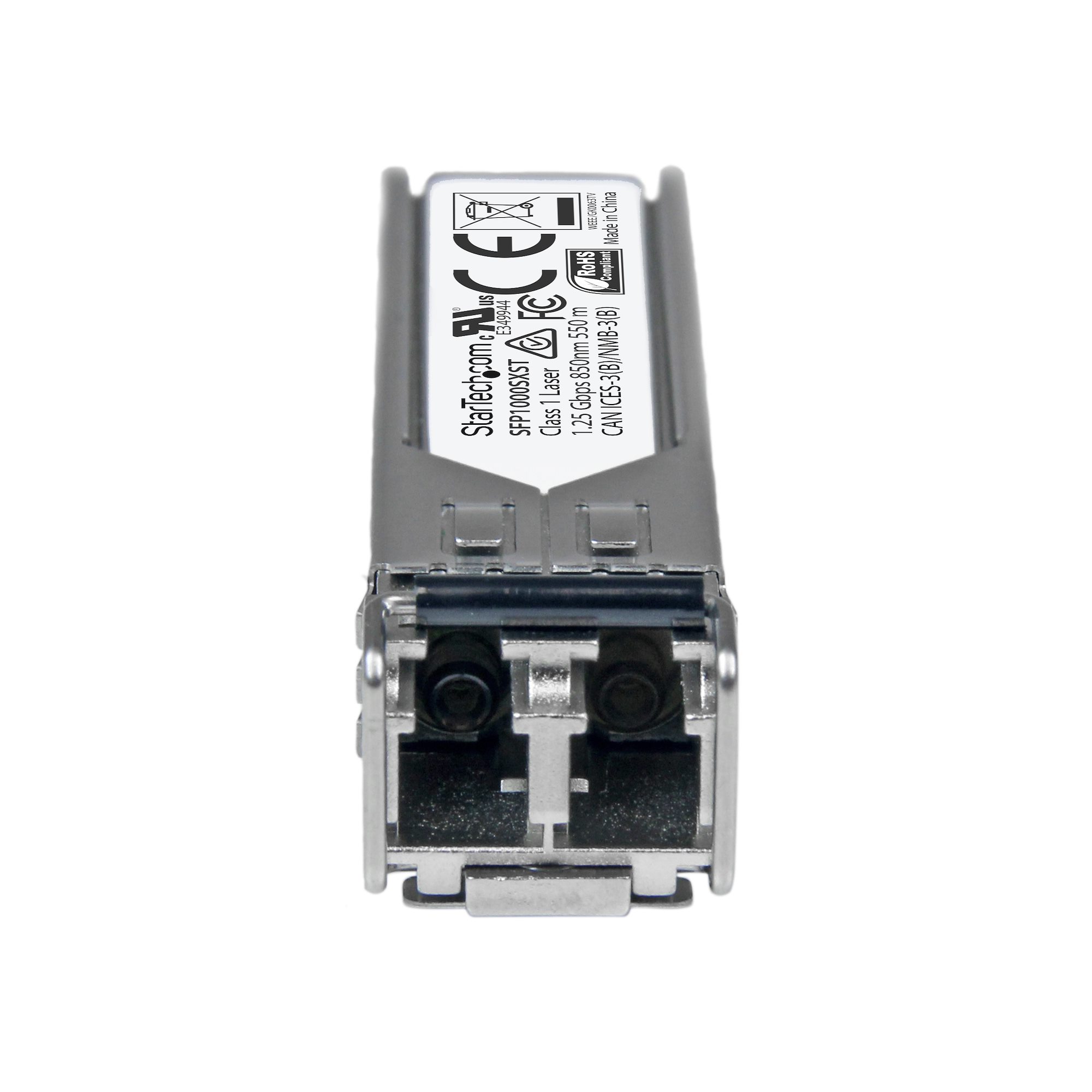

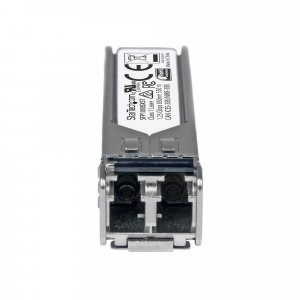

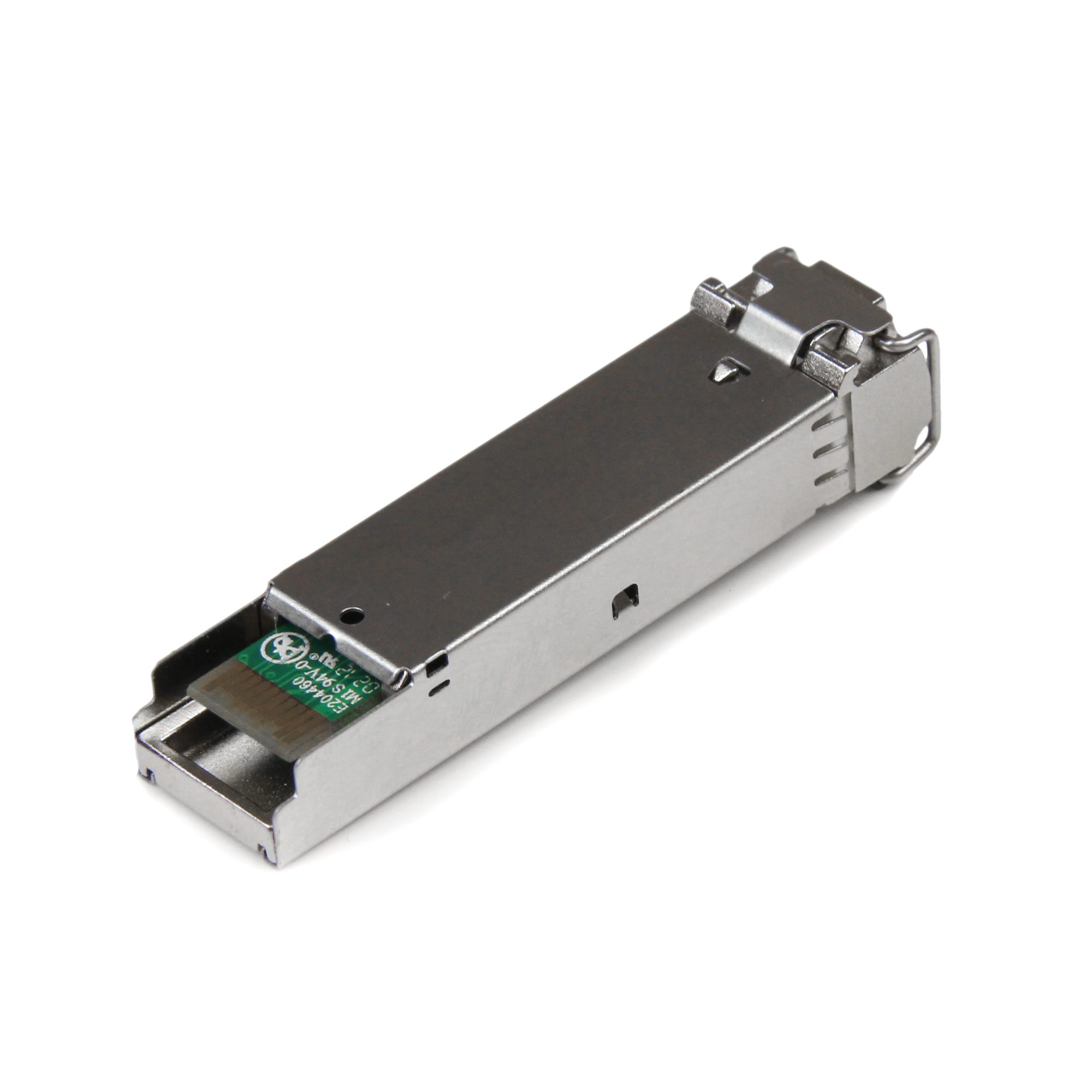

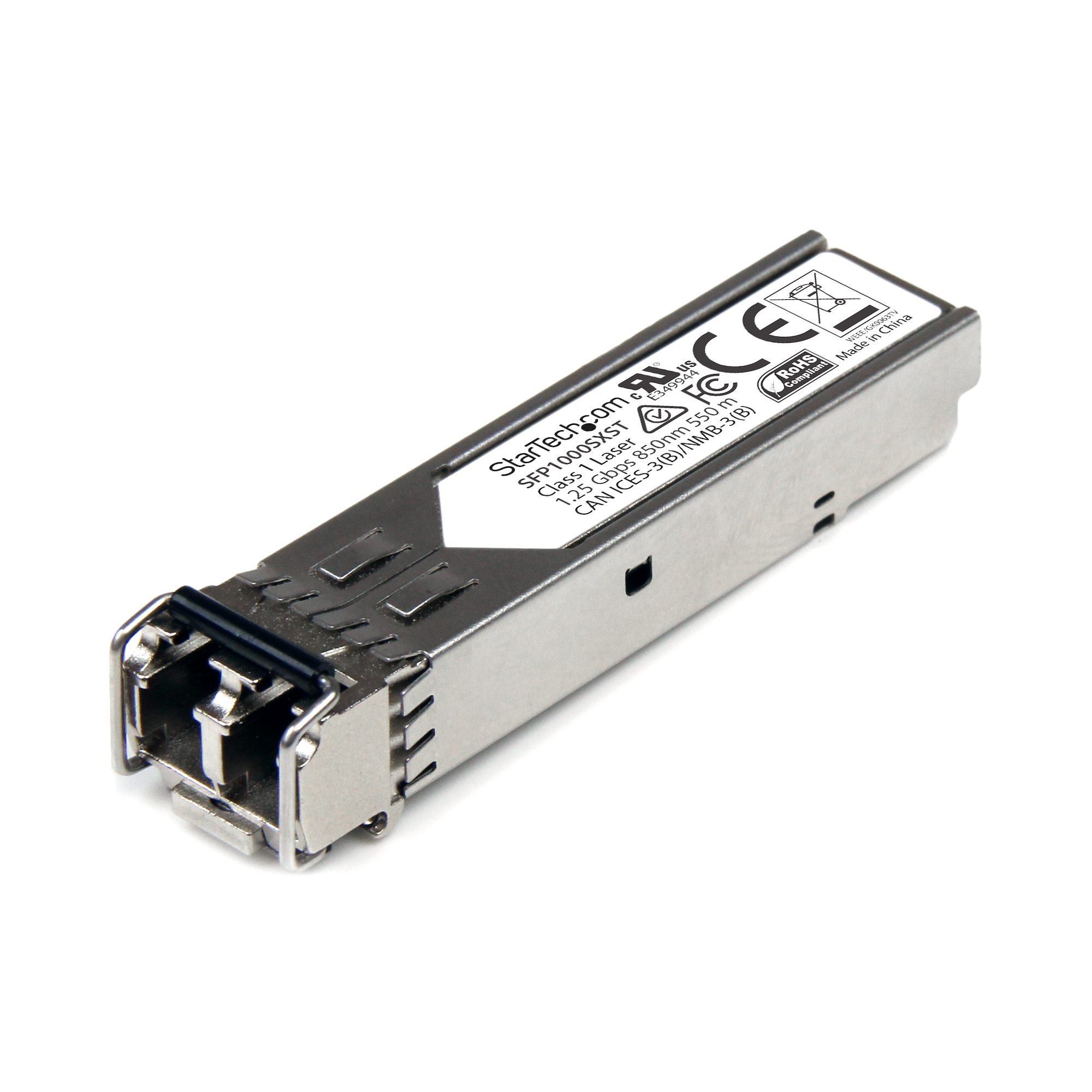

StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-SX~MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM
Roll over image to zoom inClick to Open expanded view
Model: SFP1000SXST
EAN: 65030873352

StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-SX~MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM

Manufacturer:
StarTech.com
StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-SX~MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM, Fiber optic, 1250 Mbit/s, SFP, LC, SX, 550 m
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com MSA Compliant SFP Transceiver Module - 1000BASE-SX~MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Certification: CE, FCC, UR. Power consumption (typical): 1 W. Width: 13.9 mm, Depth: 58.4 mm, Height: 12.6 mm. Number of products included: 1 pc(s), Package width: 90 mm, Package depth: 120 mm
  • 100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 1GbE connectivity
  • TECHNICAL SPECS: 1000BASE-SX / 1Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 550m (1804ft)
  • TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches; DDM support reports the transceiver's status to most SNMP network management tools.
  • WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
  • THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

Product Properties

  • Model
  • SFP1000SXST
  • EAN
  • 65030873352
  • Bullet points
  • Point
  • 100% MSA UNCODED SFP TRANSCEIVER
    TECHNICAL SPECS
    TESTED FOR COMPATIBILITY
    THE IT PRO’S CHOICE
    WORKS WITH MSA COMPLIANT SWITCHES
  • Features
  • Certification
  • CE, FCC, UR
  • Hot-Plug support
  • Yes
  • Housing material
  • Aluminium
  • Product colour
  • Silver
  • Logistics data
  • Harmonized System (HS) code
  • 85369010
  • Master (outer) case height
  • 200 mm
  • Master (outer) case length
  • 300 mm
  • Master (outer) case width
  • 250 mm
  • Products per master (outer) case
  • 36 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 70 °C
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging data
  • Number of products included
  • 1 pc(s)
  • Package depth
  • 120 mm
  • Package height
  • 30 mm
  • Package weight
  • 53 g
  • Package width
  • 90 mm
  • Performance
  • Digital Diagnostics Monitoring (DDM)
  • Yes
  • Duplex system
  • Full
  • Fiber optic connector
  • LC
  • Interface type
  • SFP
  • Maximum data transfer rate
  • 1250 Mbit/s
  • Maximum transfer distance
  • 550 m
  • Multi-mode fiber (MMF) supported
  • Yes
  • Networking standards
  • IEEE 802.3z
  • SFP transceiver standard
  • SX
  • SFP transceiver type
  • Fiber optic
  • Wavelength
  • 850 nm
  • Wavelength-division multiplexing (WDM)
  • No
  • Power
  • Power consumption (typical)
  • 1 W
  • Technical details
  • Sustainability certificates
  • RoHS
  • Weight & dimensions
  • Depth
  • 58.4 mm
  • Height
  • 12.6 mm
  • Weight
  • 23 g
  • Width
  • 13.9 mm
