Description

StarTech.com Triple Monitor 4K USB-C Dock with 5x USB 3.0 Ports. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. AC input voltage: 100 - 240 V, Input current: 2 A, Power supply: 60 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura, Other operating systems supported: ChromeOS

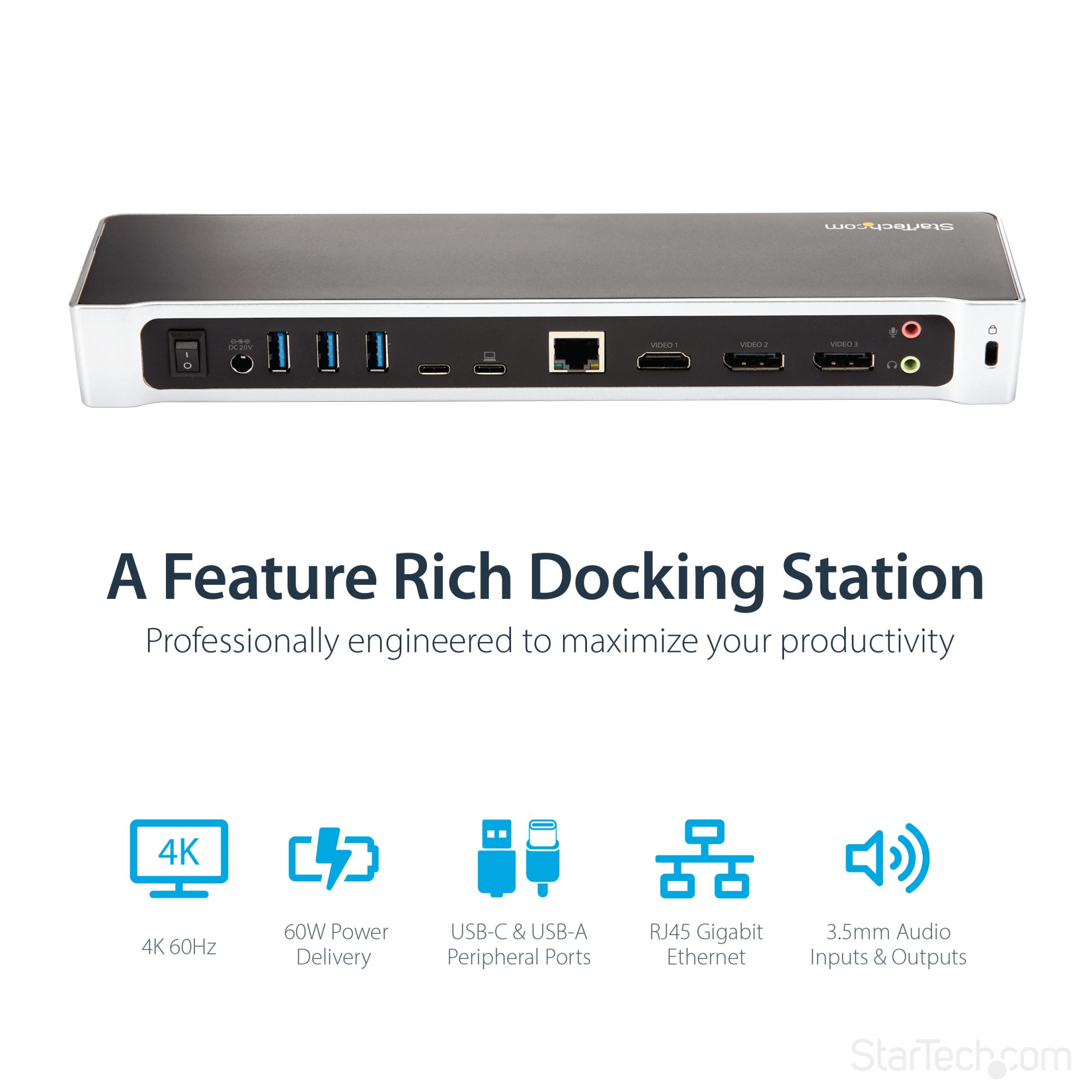

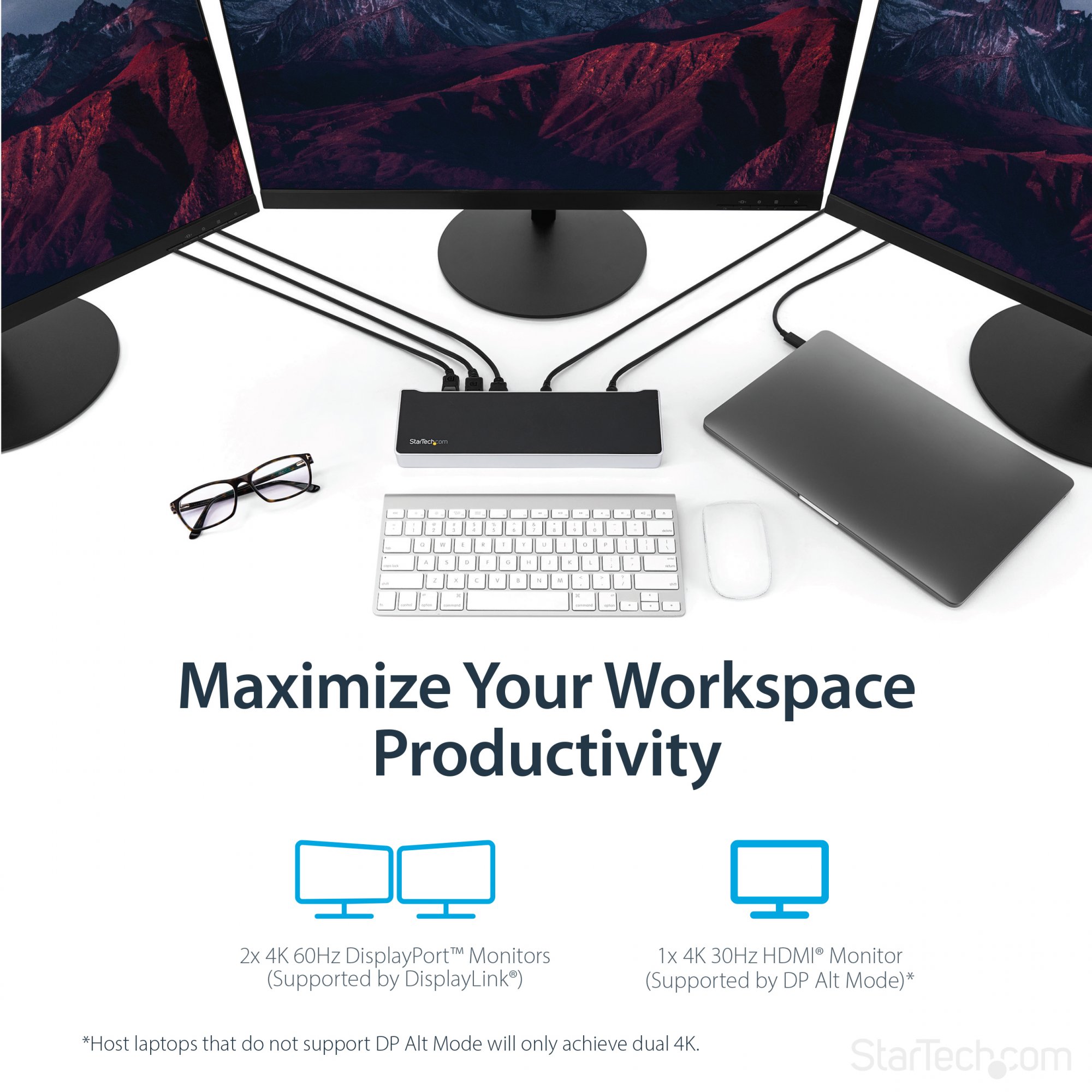

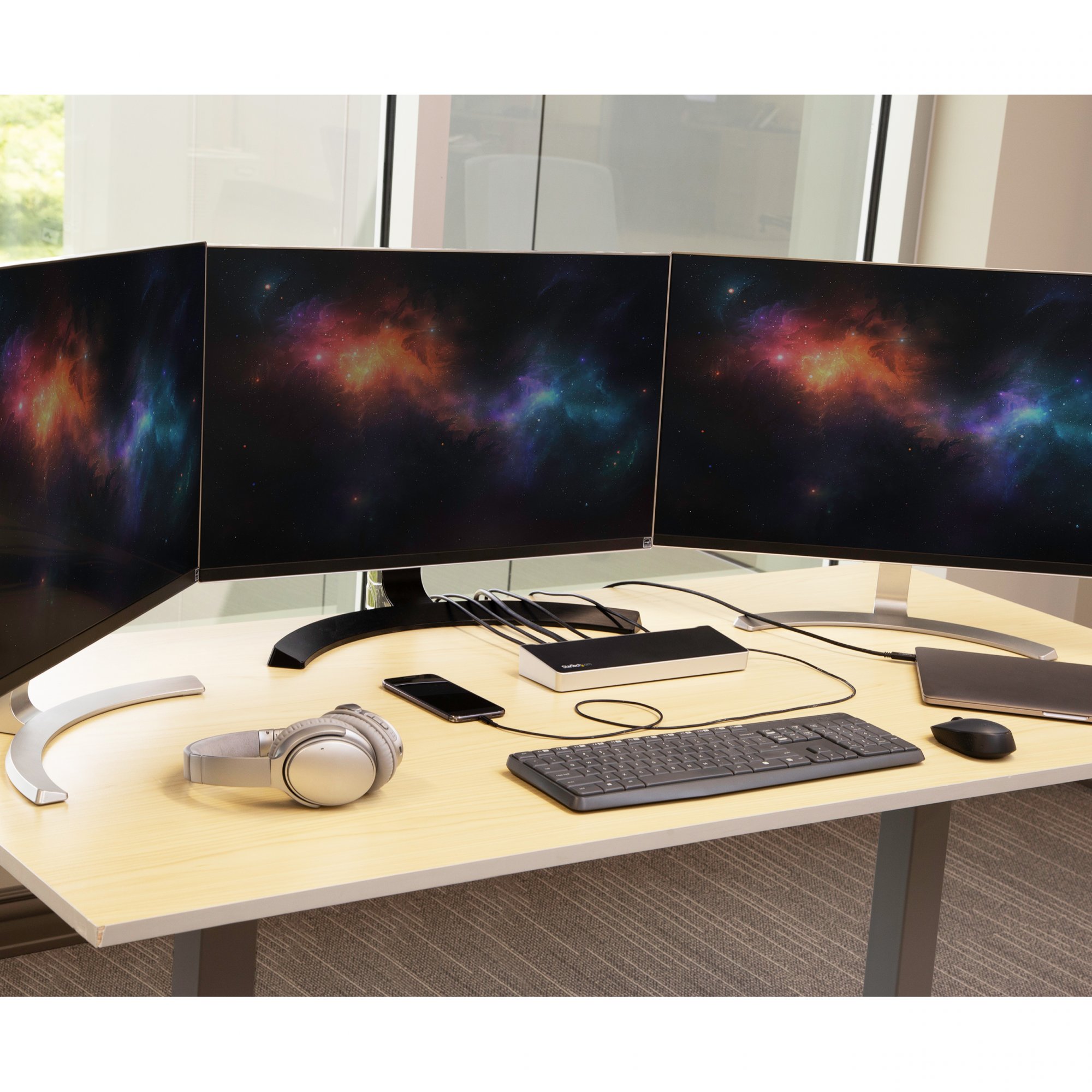

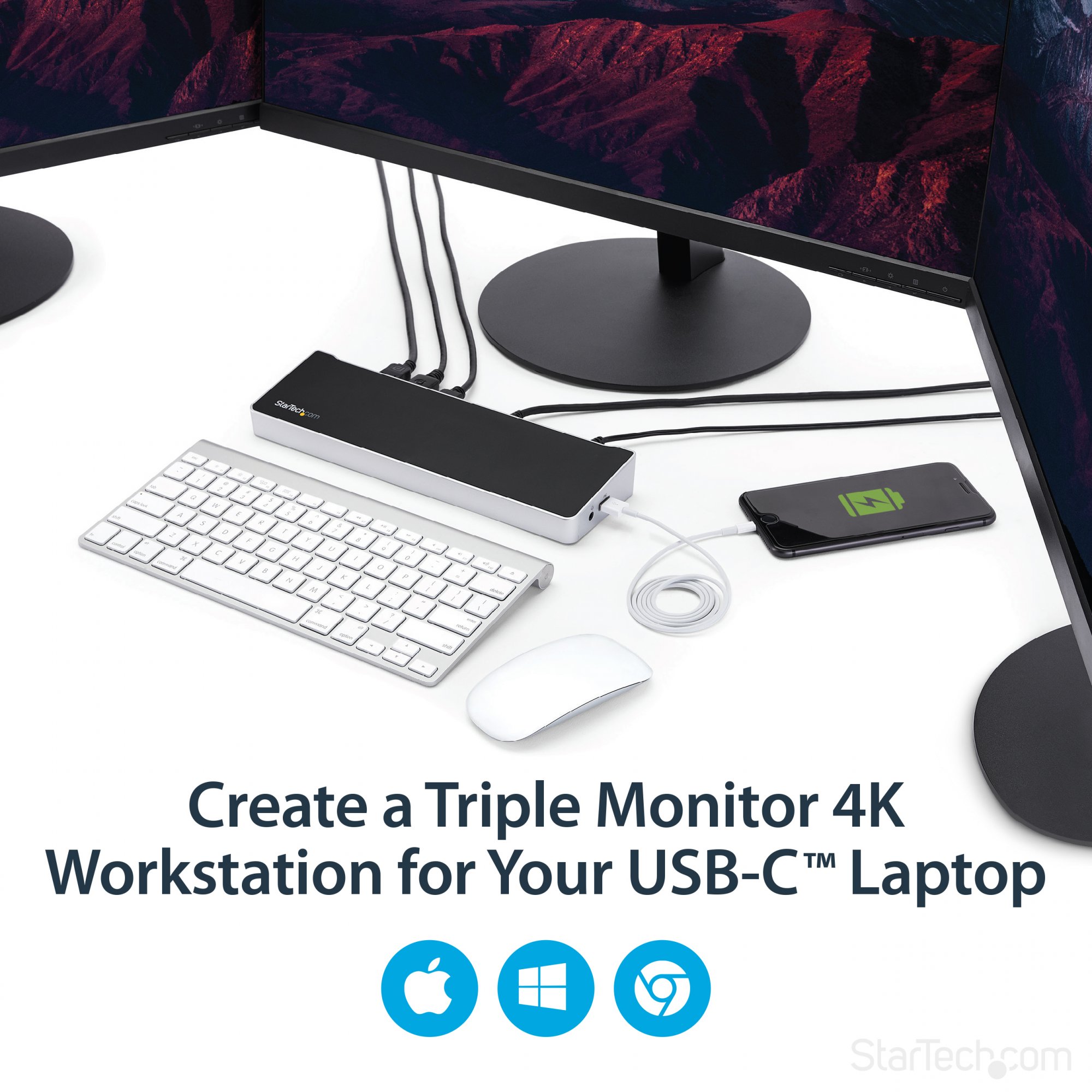

TRIPLE MONITOR OUTPUT: The 4K triple display dock connects your USB C laptop to three 4K monitors, 2x DisplayPort and 1x HDMI (DP Alt Mode); 3 extended displays on Macbook Pro/Air w/ Intel or Apple M1/M2 chip, or one 5K monitor using 2 DisplayPort ports
UNIVERSAL USB-C & USB-A FUNCTIONALITY: Supports your latest & legacy USB devices w/ 5x USB 3.0 (4A 1C) ports and connects to USB-A (3.0) laptops (only dual display supported) with a USB-C to A cable adapter (USB315AC1M sold separately)
60W POWER DELIVERY: Power and charge high-performance USB Type-C laptops w/ 60W Power Delivery (PD) and add wired network connectivity with the Gigabit Ethernet RJ45 port

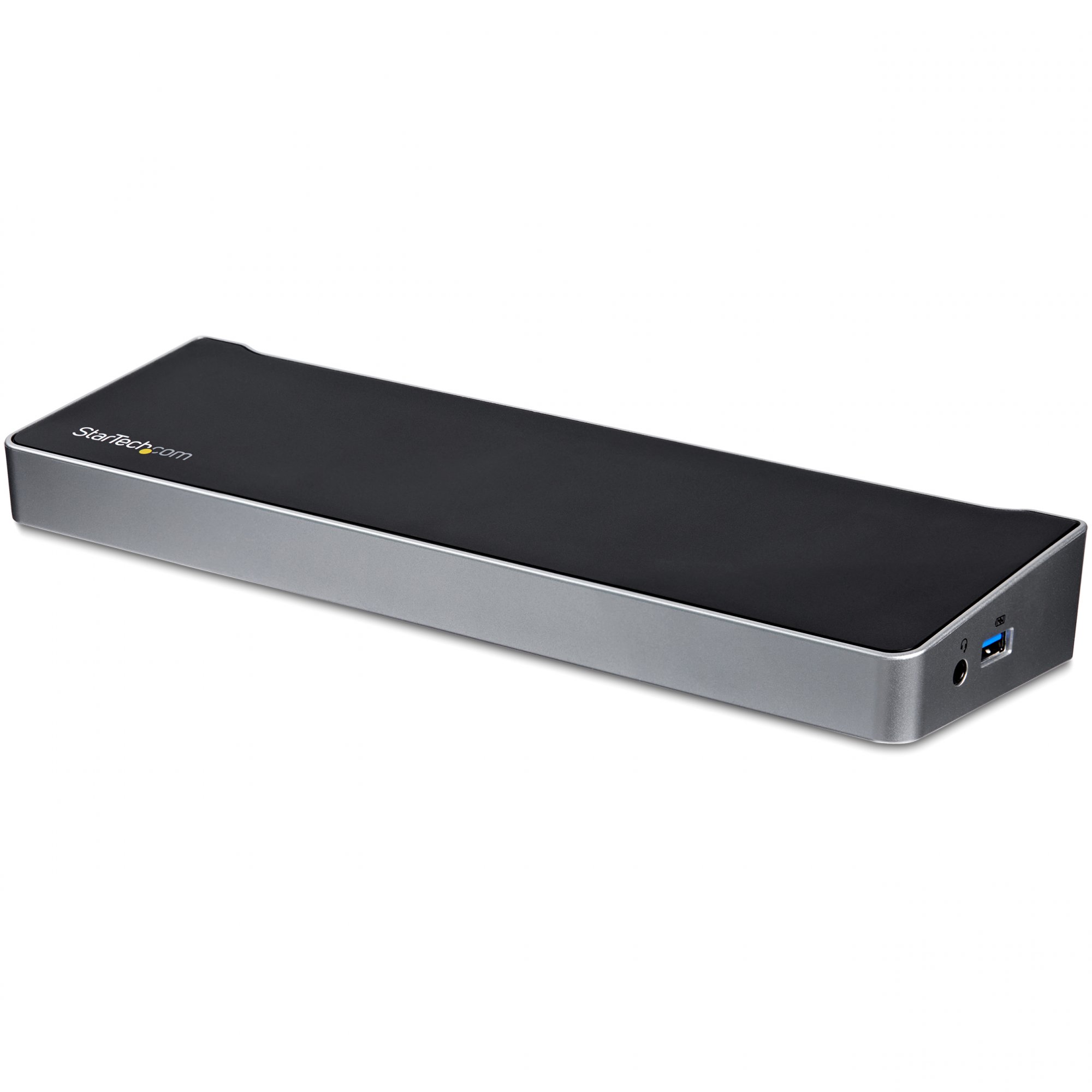

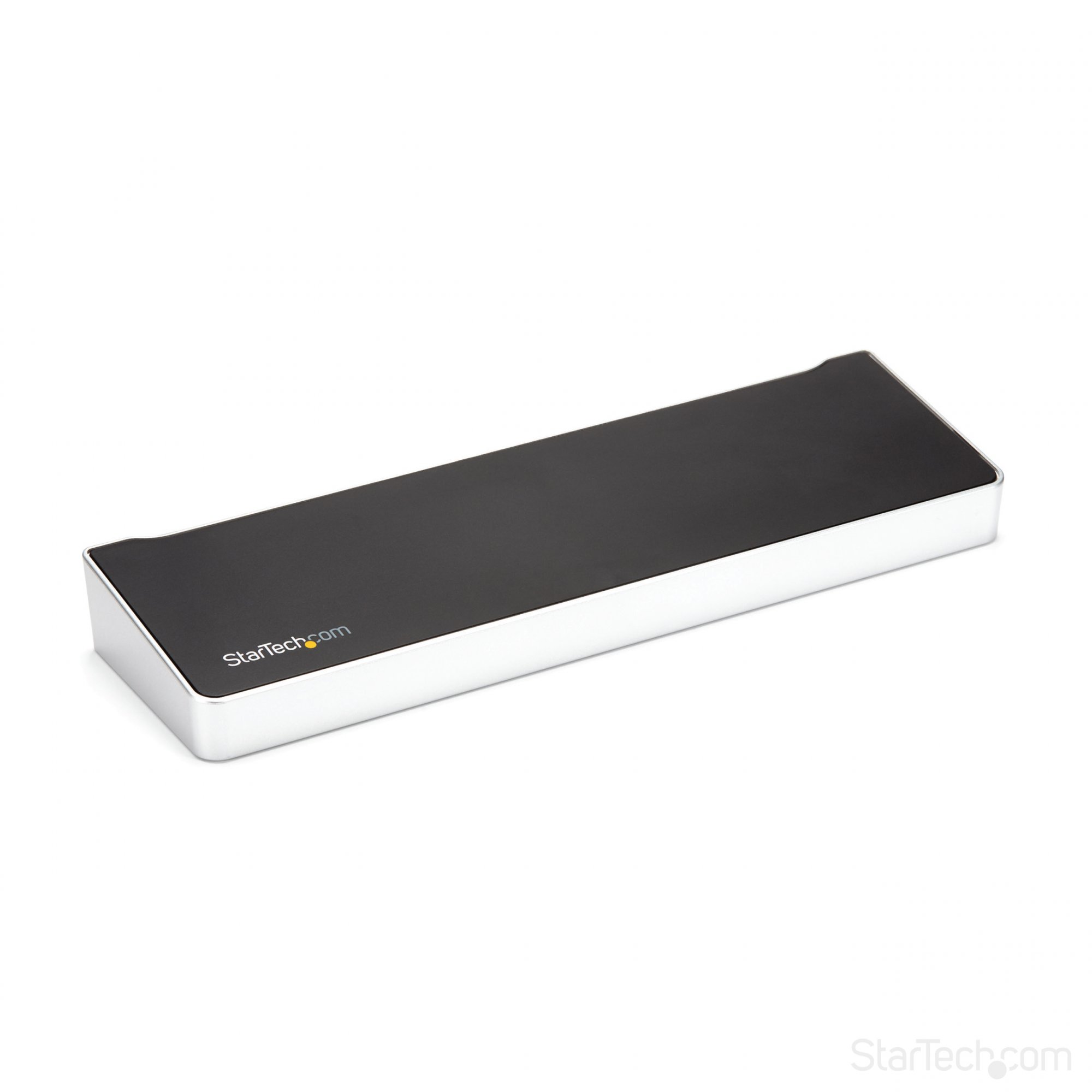

SAVES SPACE: Sloped top faceplate gives users the option of resting your laptop on the surface of the USB-C docking station to save desktop space
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this triple monitor docking station is backed for 3 years, including free lifetime 24/5 multi-lingual technical assistance

Product Properties

Manufacturer
StarTech.com

Model
DK30CH2DPPD

EAN
65030871143

Bullet points

Point
60W POWER DELIVERY

SAVES SPACE

THE IT PRO'S CHOICE

TRIPLE MONITOR OUTPUT

UNIVERSAL USB-C & USB-A FUNCTIONALITY

Logistics data

Master (outer) case height
382 mm

Master (outer) case length
370 mm

Master (outer) case width
318 mm

Products per master (outer) case
10 pc(s)

Network

Auto MDI/MDI-X
Y

Ethernet LAN
Y

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Full duplex
Y

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 60 °C

Storage temperature (T-T)
-20 - 60 °C

Other features

Chipset
DisplayLink - DL-6950, Genesys Logic - GL3523, Texas Instruments - TPS65982, Parade Technologies - PS176

Number of microphone inputs
1

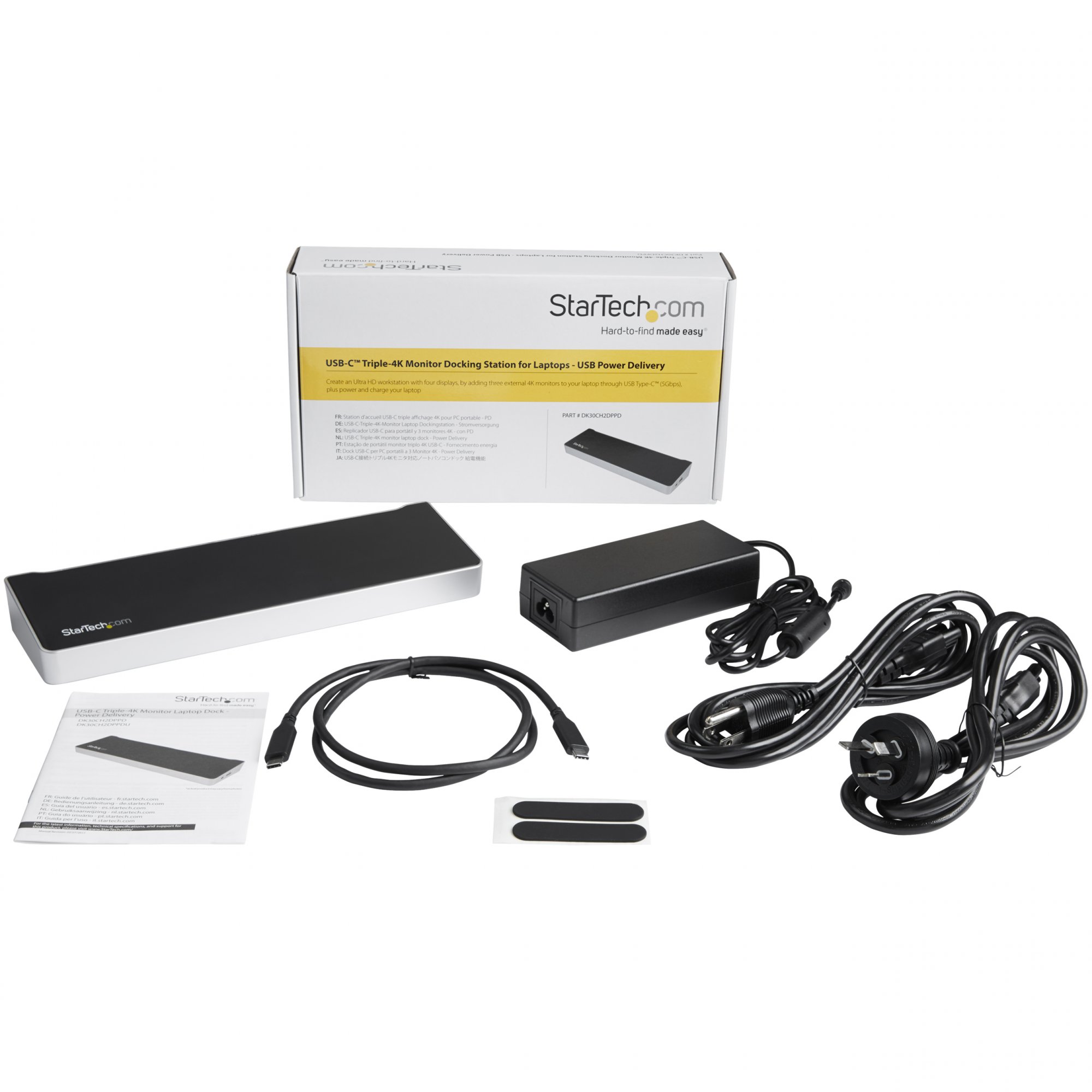

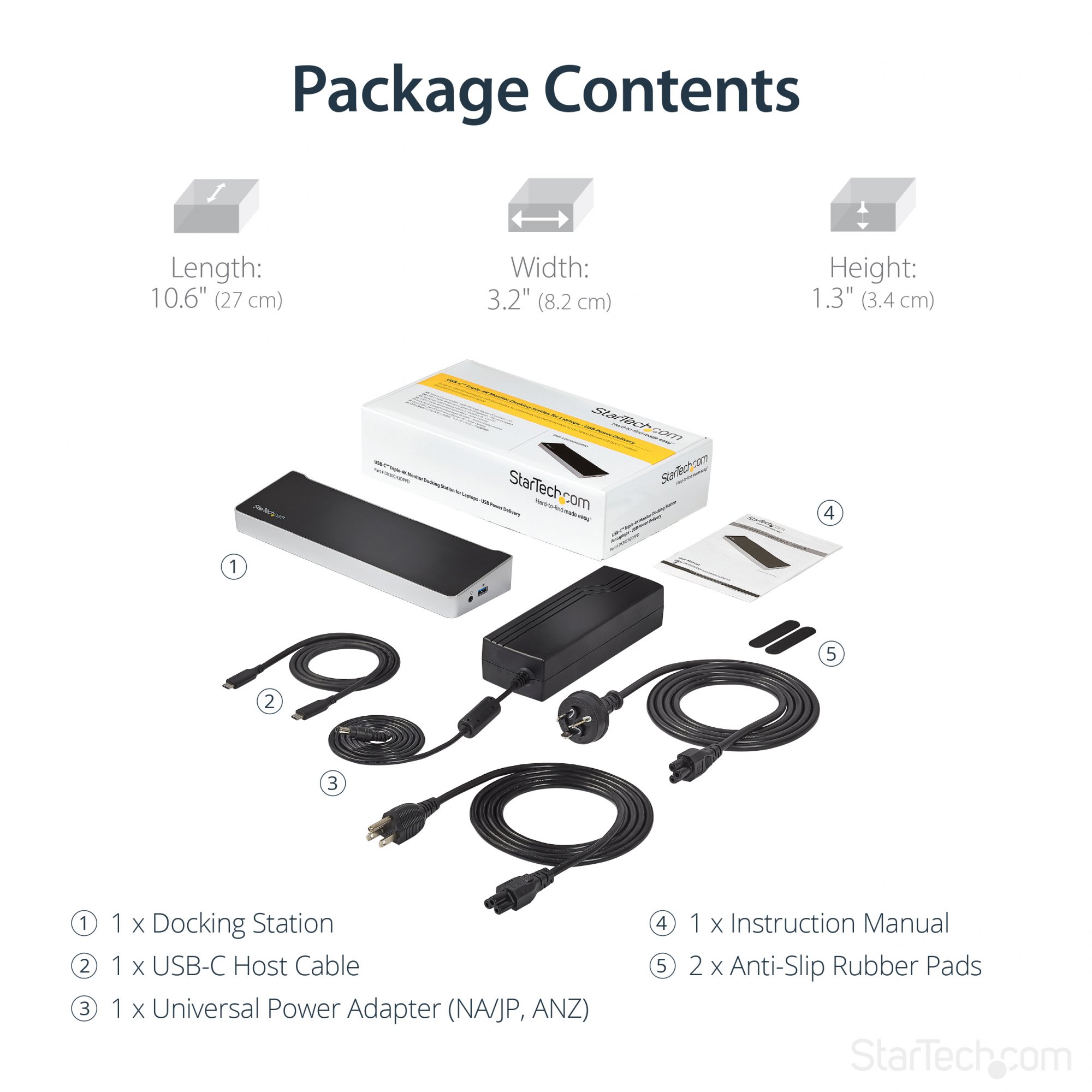

Packaging content

AC adapter included
Y

Cables included
USB Type-C

Manual
Y

Packaging data

Package depth
296 mm

Package height
71 mm

Package weight
1.4 kg

Package width
161 mm

Performance

Brand compatibility
Any brand

Cable lock slot
Y

Card reader integrated
N

Certification
CE, FCC, TAA, REACH

Data transfer rate
5 Gbit/s

Housing material
Plastic

Maximum digital resolution
4096 x 2160 pixels

On/off switch
Y

Product colour
Black, Silver

UASP support
Y

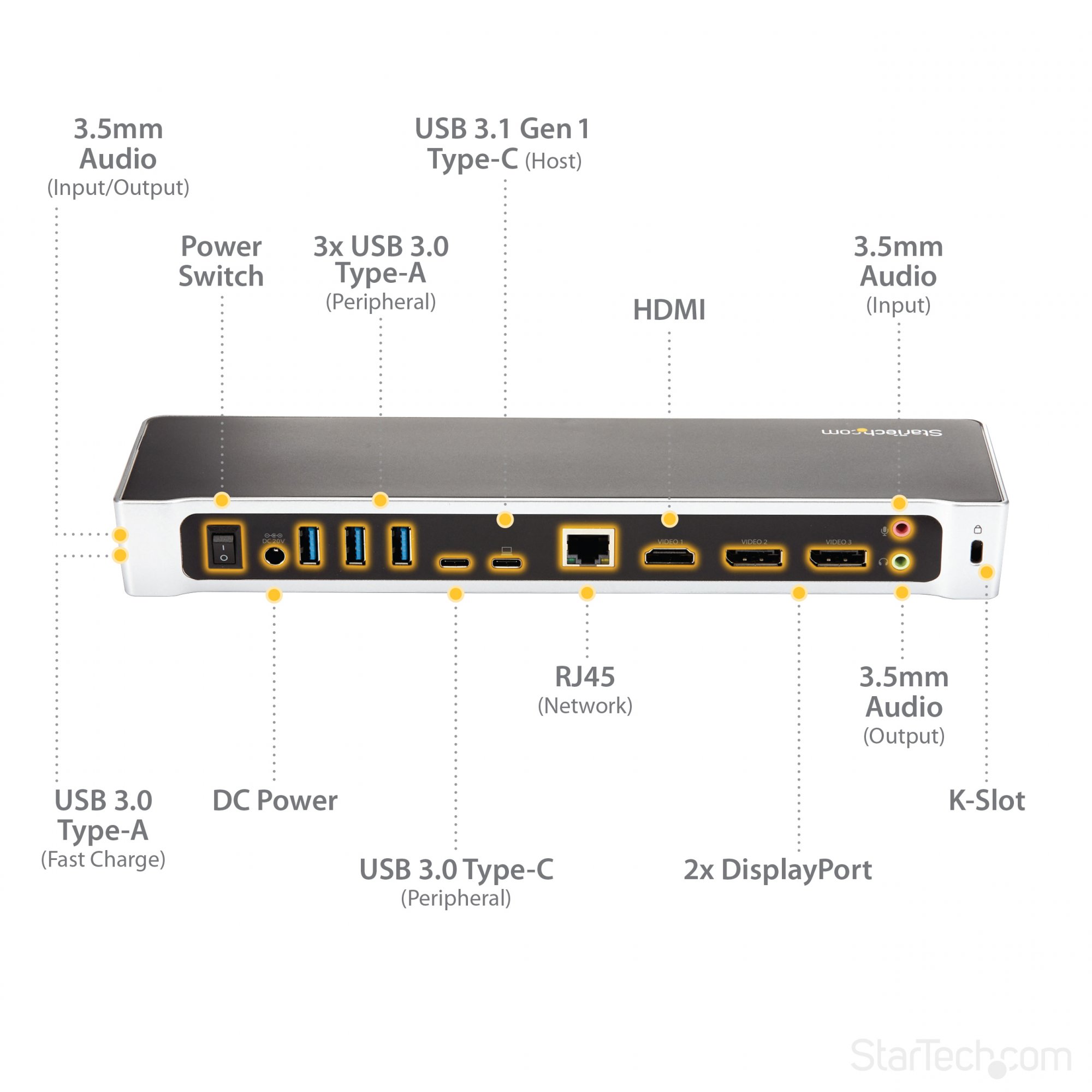

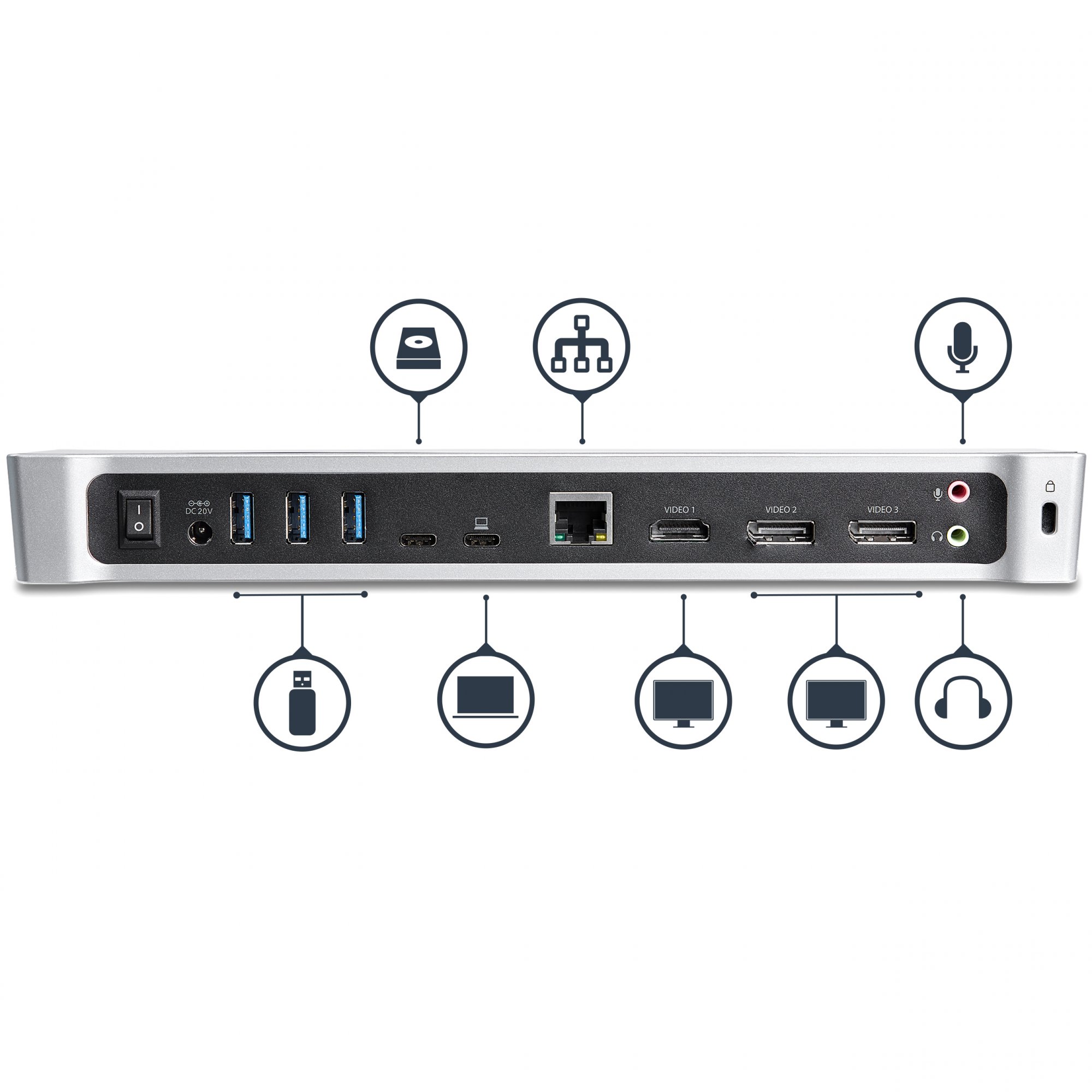

Ports & interfaces

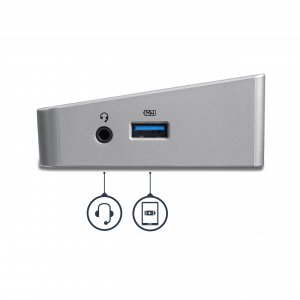

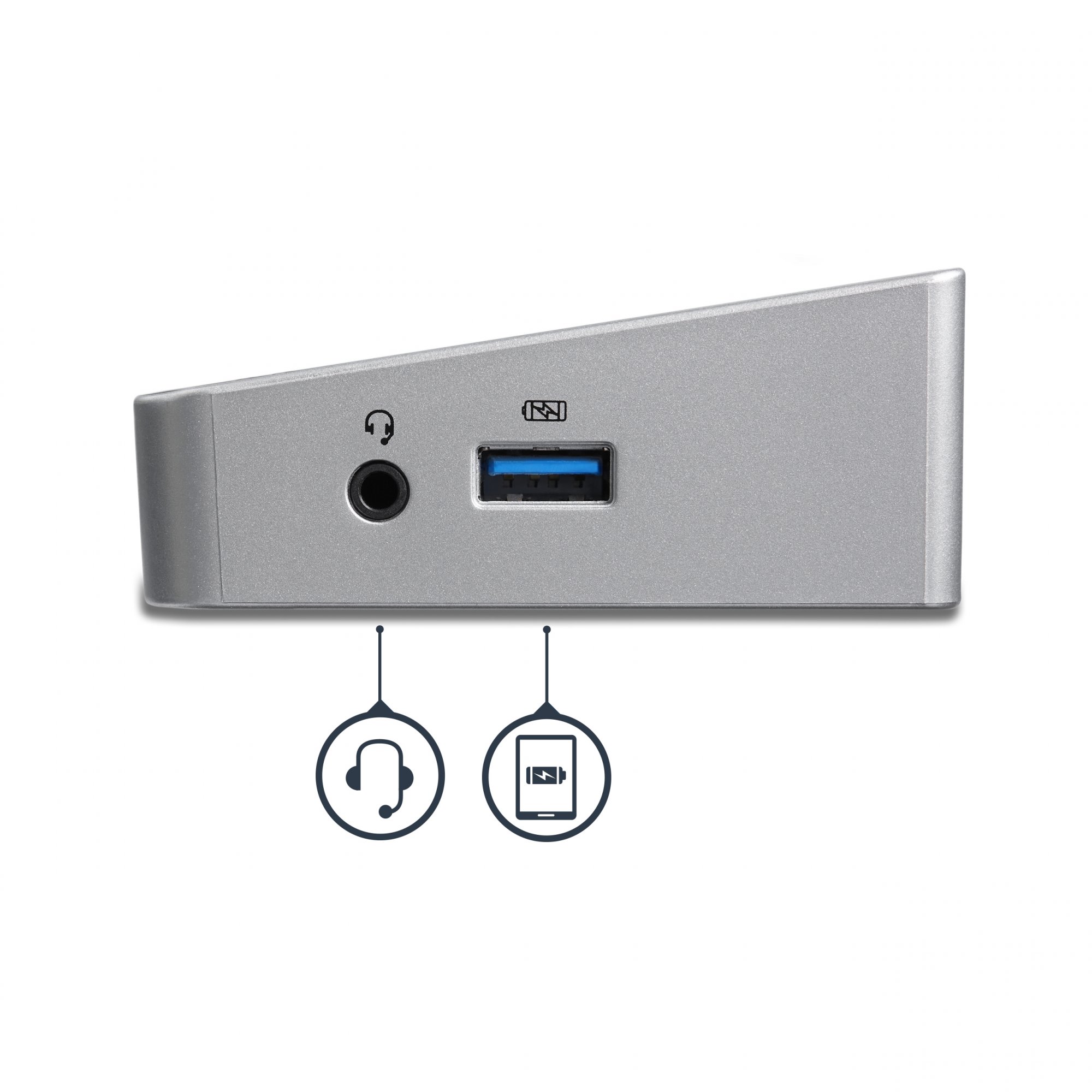

Combo headphone/mic port
Y

Connectivity technology
Wired

DC-in jack
Y

DisplayPorts quantity
2

HDMI ports
1

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Microphone in
Y

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2

Power

AC input voltage
100 - 240 V

Compatible power plug types
AU, JP

Input current
2 A

Output current
6 A

Output voltage
20 V

Power plug type
Type N

Power supply
60 W

Software

Mac compatibility
Y

Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Sustainability

Sustainability certificates
RoHS

Weight & dimensions

Depth
270 mm

Height
34 mm

Weight
385 g

Width
82 mm
