Description

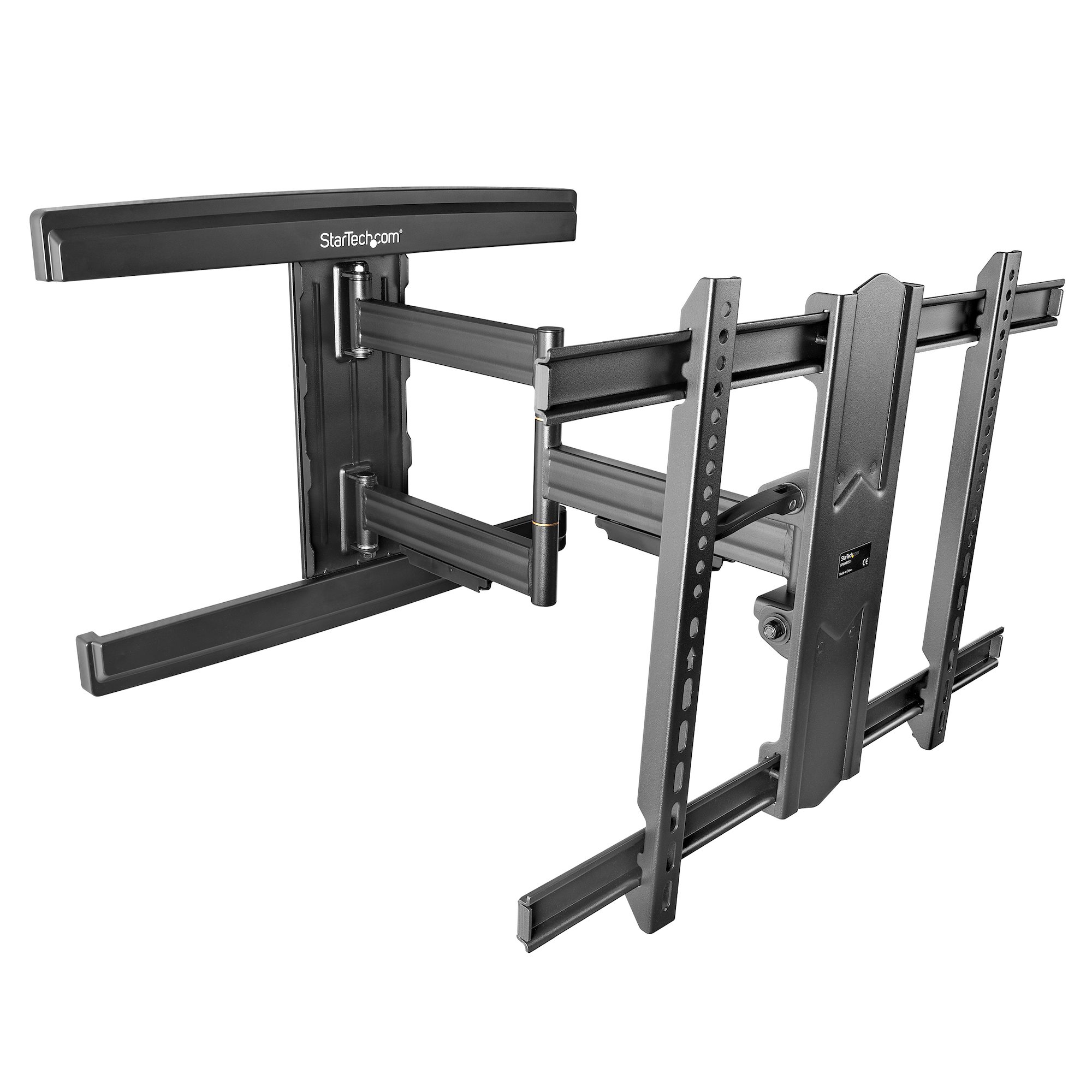

StarTech.com TV Wall Mount for up to 80 inch (110lb) VESA Mount Displays - Low Profile Full Motion Universal TV Wall Mount Bracket - Heavy Duty Adjustable Tilt/Swivel Articulating Arm. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -15 - 2°, Swivel angle range: -90 - 90°, Distance to the wall (min): 7 cm, Distance to the wall (max): 65 cm. Product colour: Black

LARGE 80" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 80 inch (110 lb/50 kg) w/ a durable full-motion steel frame and a powder-coated finish

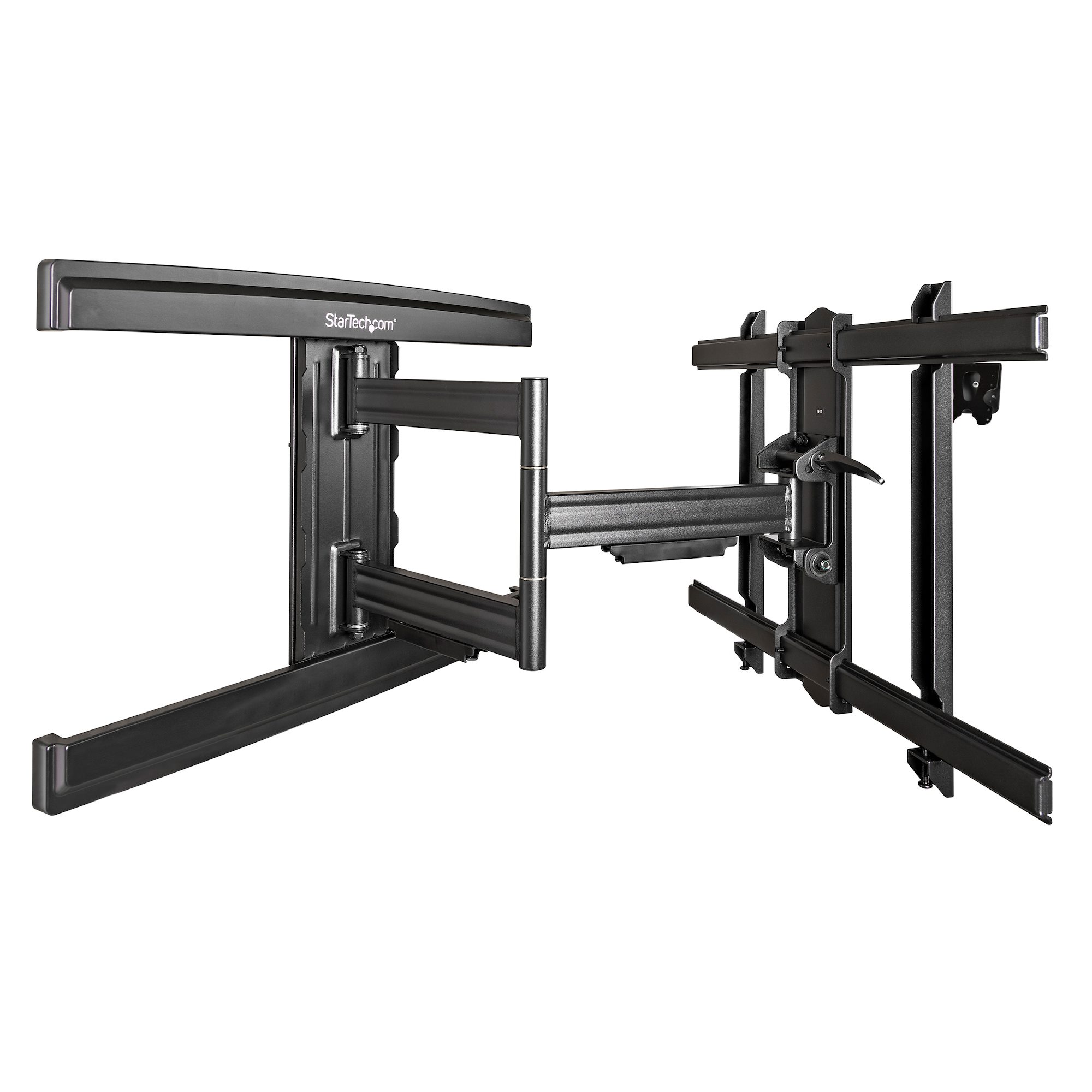

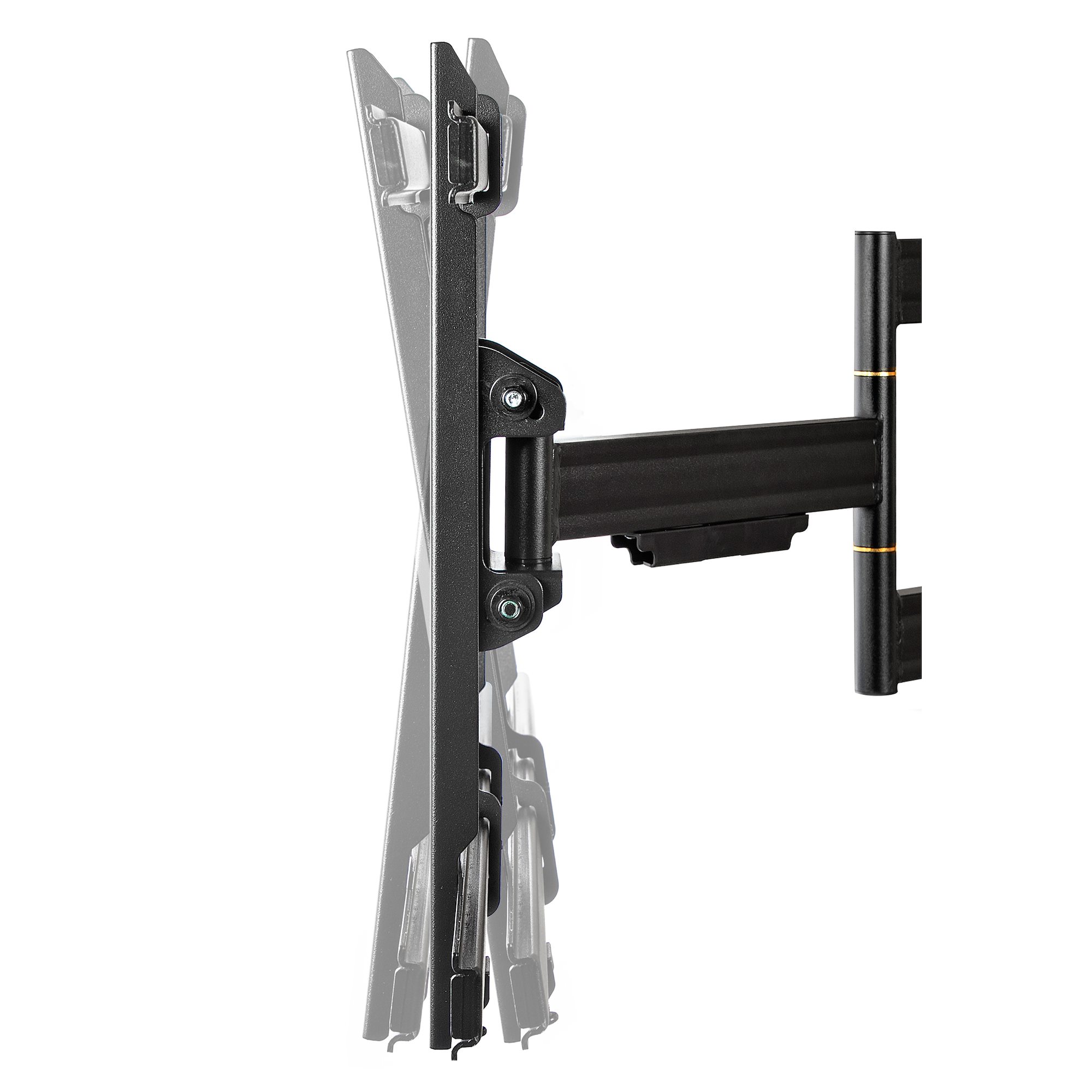

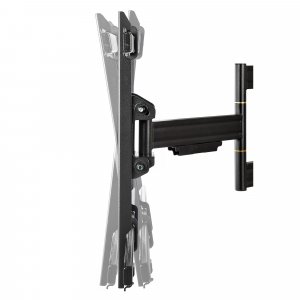

WIDE RANGE OF MOTION: Articulating TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-3° LCD screen level adjustment & arms allow low-profile at 2.8" (70 mm) from wall or extend to 25.5" (650 mm)
LATERAL ADJUSTMENT: Full motion TV wall mount w/ post-install lateral shifting lets you center the display on a wall or corner, w/ 16"/24" off-centered studs w/ range of 45.8"/1.1m from left to right
COMPATIBILITY: Universal TV wall mount supports LG, Samsung, Sony, Sharp, among others (screws/spacers incl) & VESA hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400

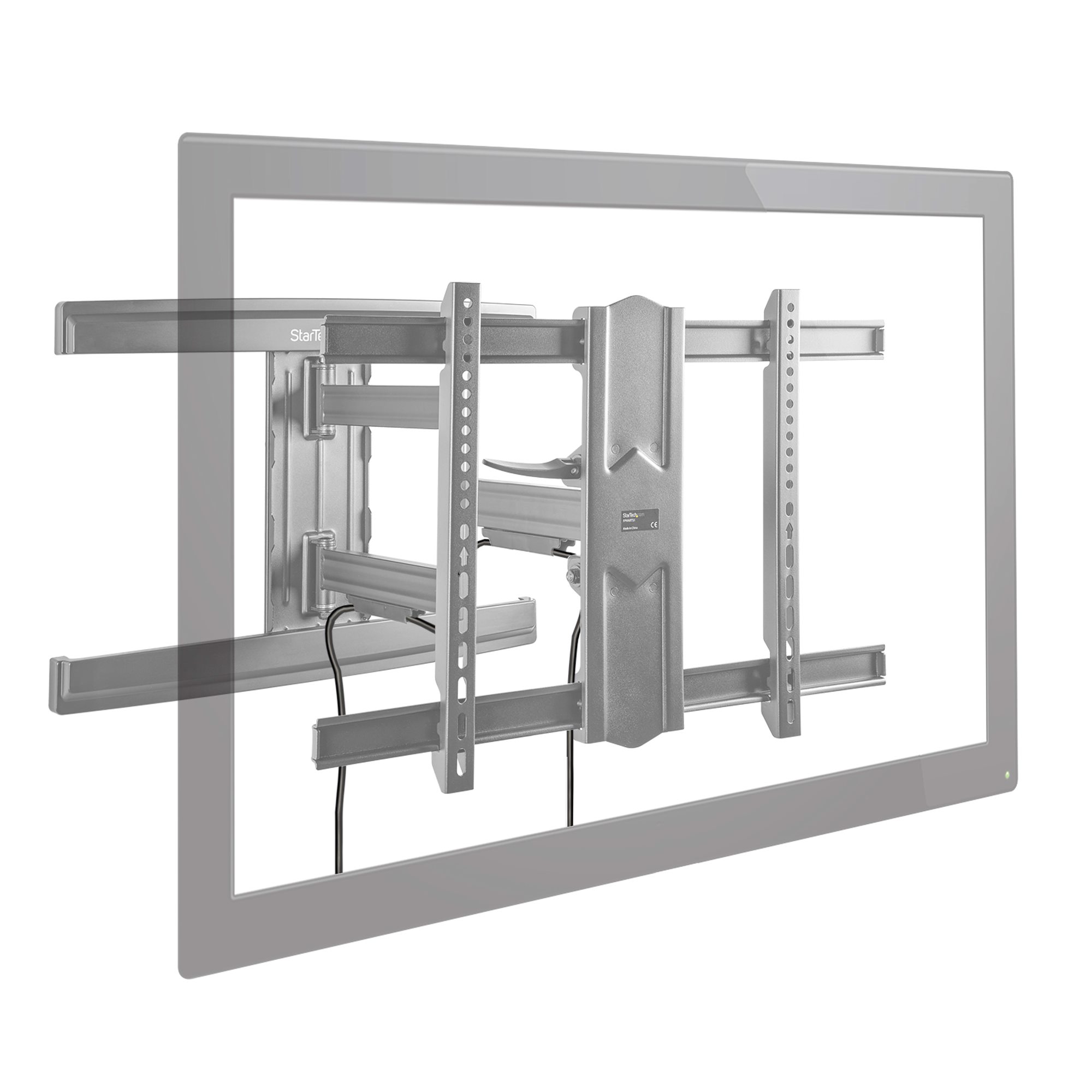

TIDY AESTHETIC: The adjustable tv wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps flat screen cables organized; ideal for customer-facing digital signage

Product Properties

Manufacturer
StarTech.com

Model
FPWARTS1

EAN
65030870337

Bullet points

Point
COMPATIBILITY

LARGE 80" TV WALL MOUNT

LATERAL ADJUSTMENT

TIDY AESTHETIC

WIDE RANGE OF MOTION

Design

Certification
CE, REACH

Housing material
Steel

Product colour
Black

Ergonomics

Cable management
Yes

Distance to the wall (max)
65 cm

Distance to the wall (min)
7 cm

Pivot angle
-90 - 90°

Swivel angle range
-90 - 90°

Tilt angle range
-15 - 2°

Logistics data

Harmonized System (HS) code
85299097

Master (outer) case height
210 mm

Master (outer) case length
745 mm

Master (outer) case width
560 mm

Products per master (outer) case
2 pc(s)

Mounting

Maximum screen size
2.03 m (80")

Maximum VESA mount
600 x 400 mm

Maximum weight capacity
50 kg

Minimum screen size
94 cm (37")

Minimum VESA mount
200 x 100 mm

Mounting type
Wall

Number of displays supported
1

Panel mounting interface
200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,600 x 400

Other features

Screw type
M5, M6, M8

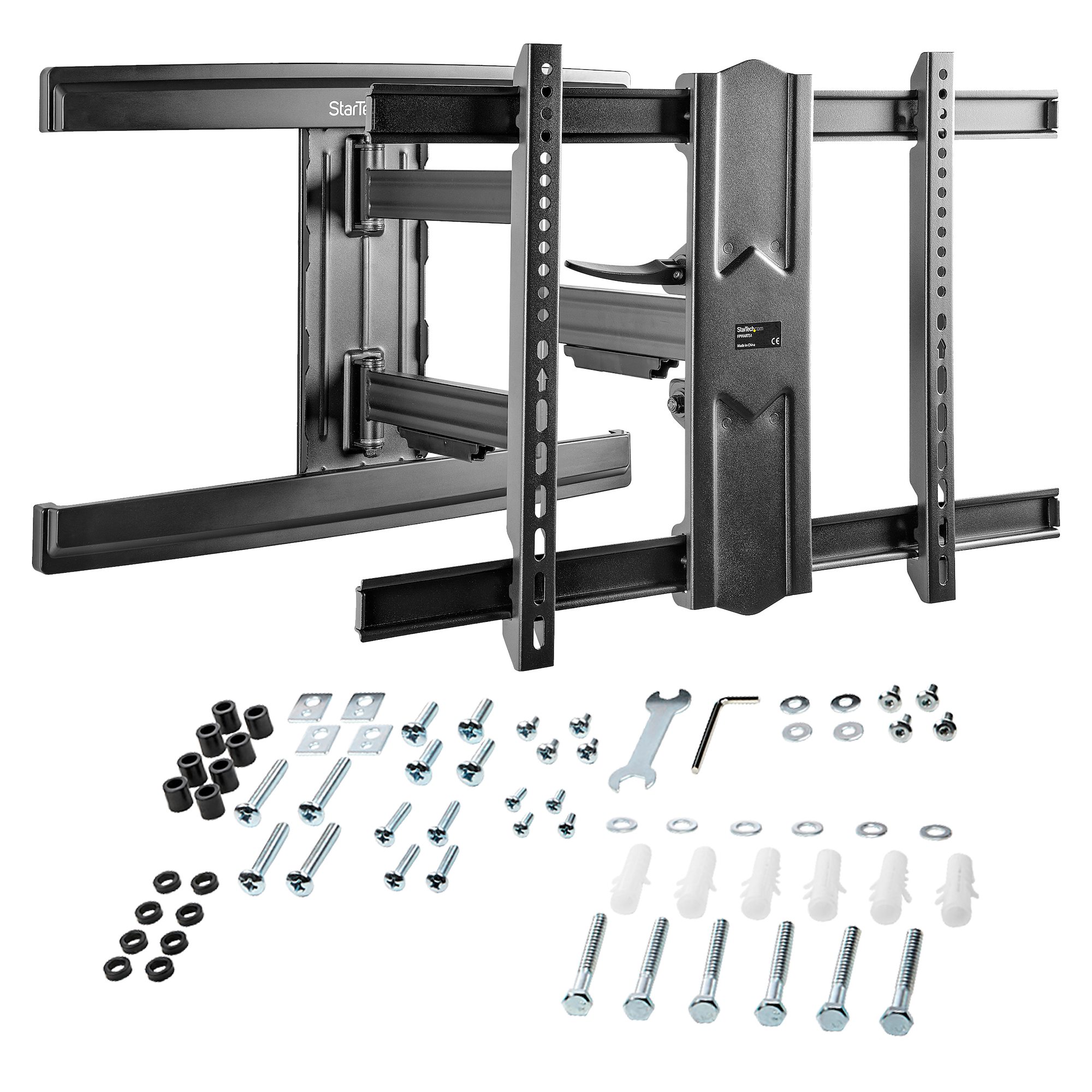

Packaging content

Anchors included
Yes

Decorative cover included
Yes

Manual
Yes

Number of anchors included
6

Number of decorative covers included
2 pc(s)

Number of screws
30

Number of spacers included
16

Number of washers included
14

Screws included
Yes

Spacer included
Yes

Washers included
Yes

Wrench type
Hexagonal wrench

Packaging data

Package depth
740 mm

Package height
95 mm

Package weight
14.2 kg

Package width
546 mm

Technical details

Sustainability certificates
RoHS

Weight & dimensions

Depth (max)
65 cm

Height
935 mm

Weight
13 kg

Width
465 mm
