Description

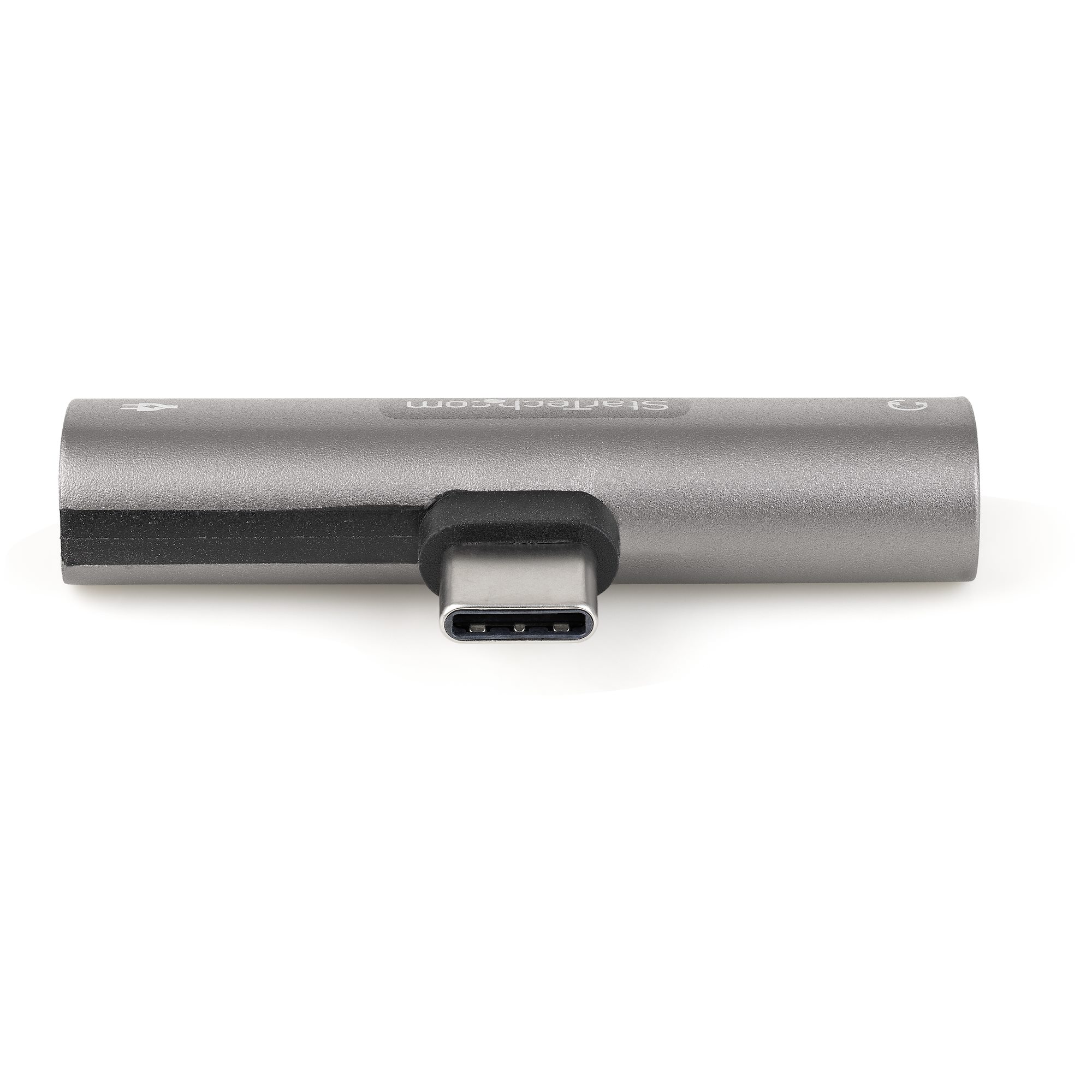

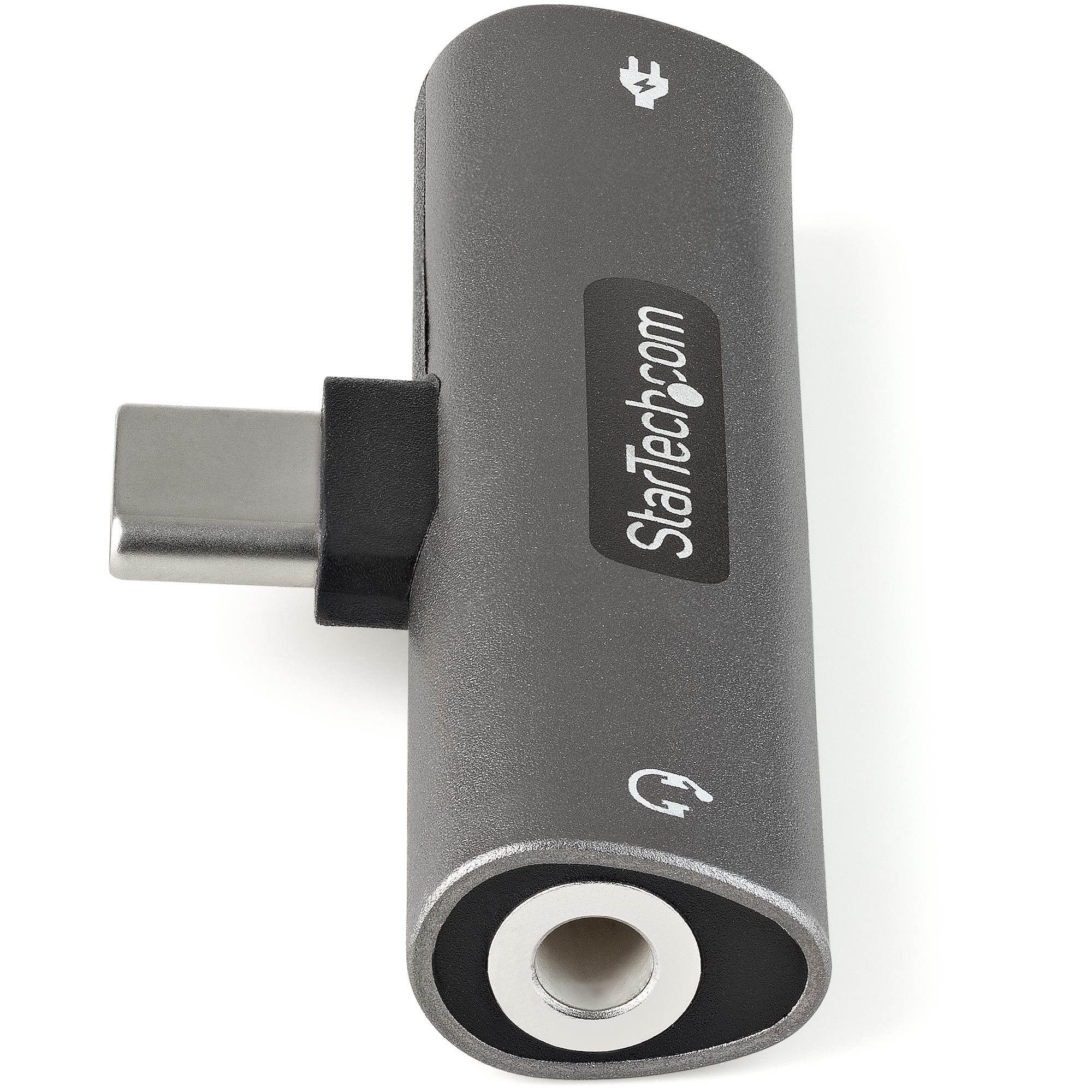

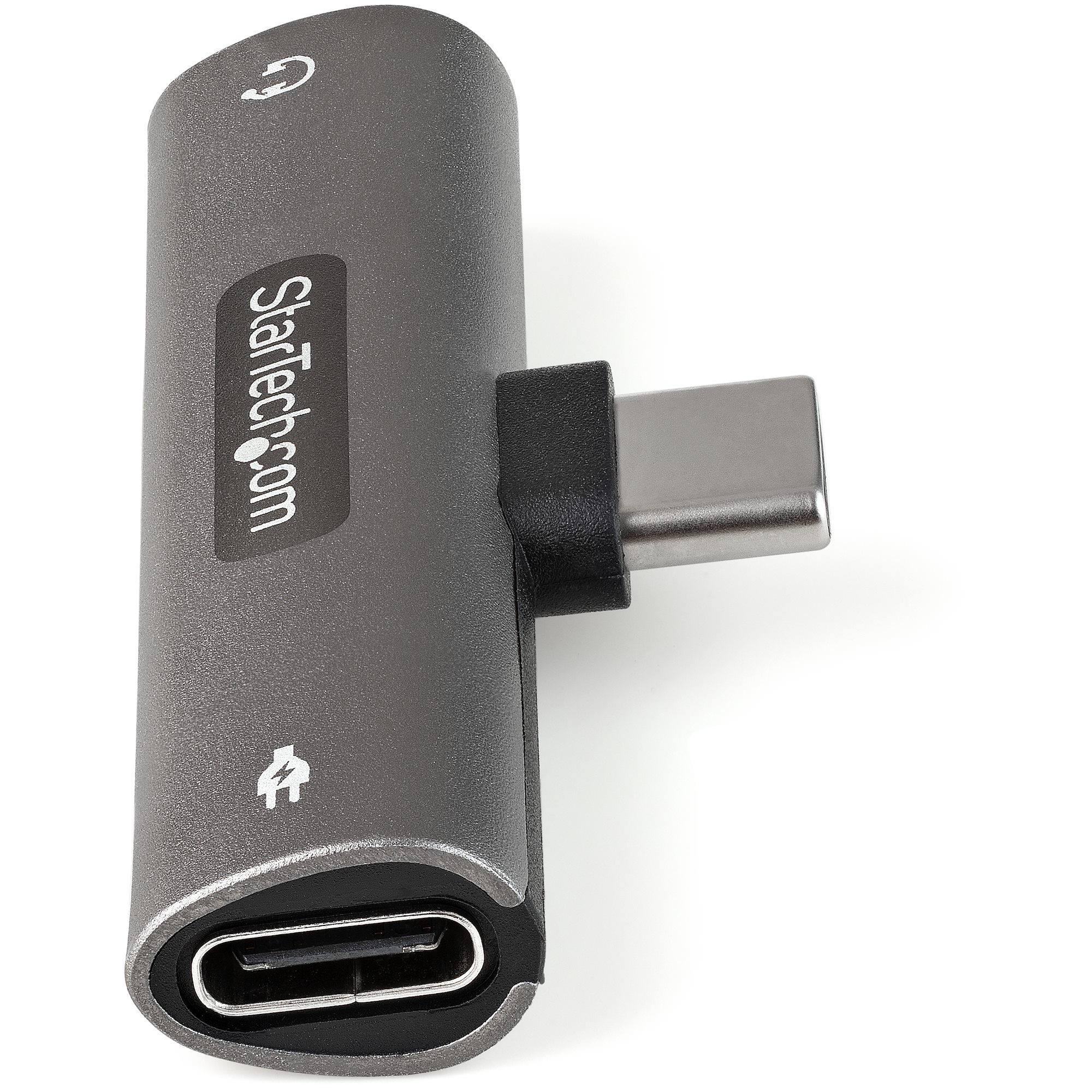

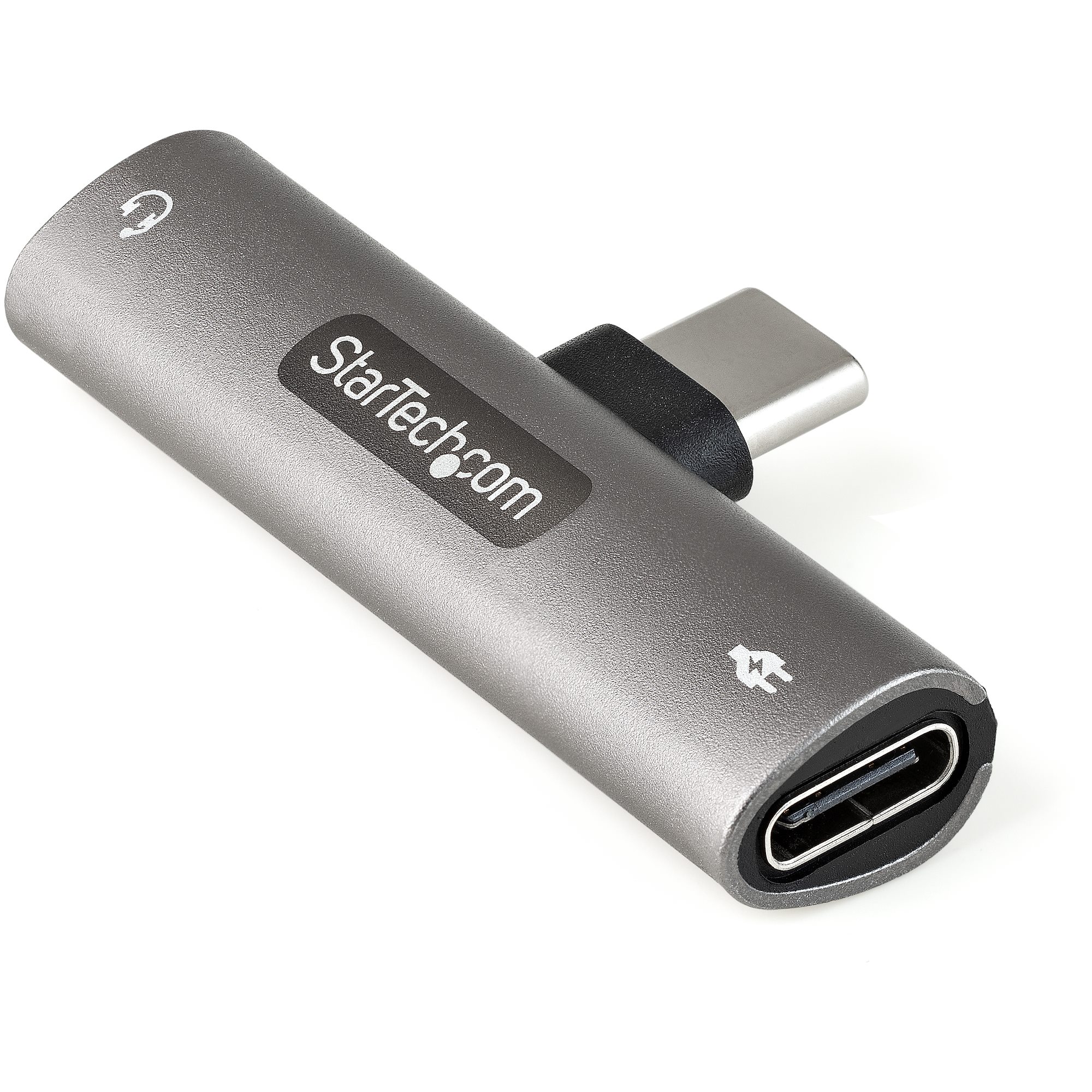

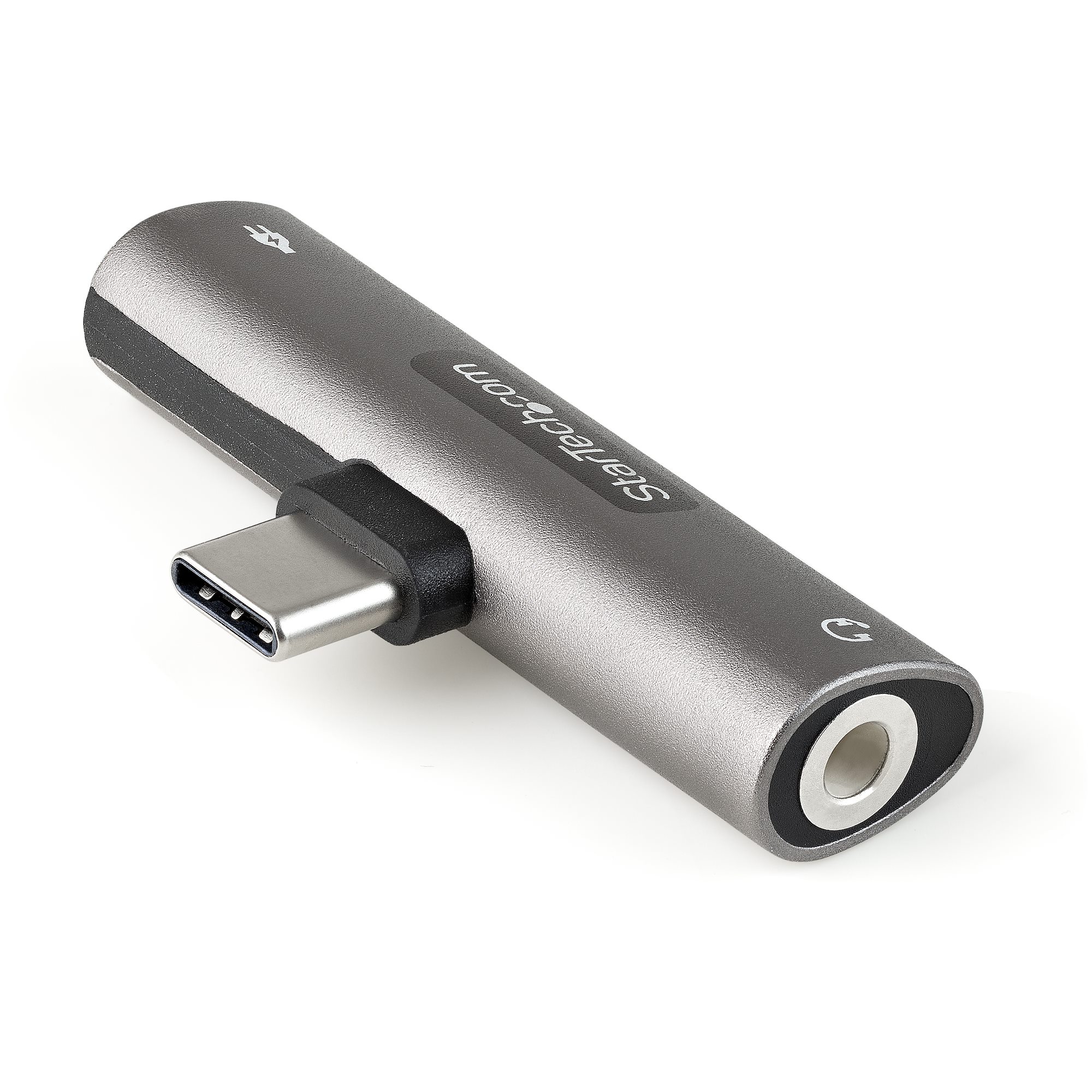

StarTech.com USB C Audio & Charge Adapter - USB-C Audio Adapter w/ 3.5mm TRRS Headphone/Headset Jack and 60W USB Type-C Power Delivery Pass-through Charger - For USB-C Phone/Tablet/Laptop. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Product colour: Silver, Hub interfaces: 3.5mm, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Housing material: Metal. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 13.0 Ventura, Other operating systems supported: Android. Sustainability certificates: CE, RoHS. Width: 22.5 mm, Depth: 49.9 mm, Height: 9 mm

ADD 3.5MM TRRS AUDIO JACK: USB-C audio and charge adapter with power delivery (PD) pass-through adds support for legacy headsets with built-in mic while charging your USB-C host using a single USB-C port; High-res audio port supports DAC audio output
MULTIPLE CHARGING MODES: USB C headphone & charger adapter is bus-powered or use external USB-C power adapter for up to 60W Power Delivery 3.0 pass-through to charge USB-C laptops and tablets; Fast Charge (BC 1.2) to charge USB Type-C smartphones

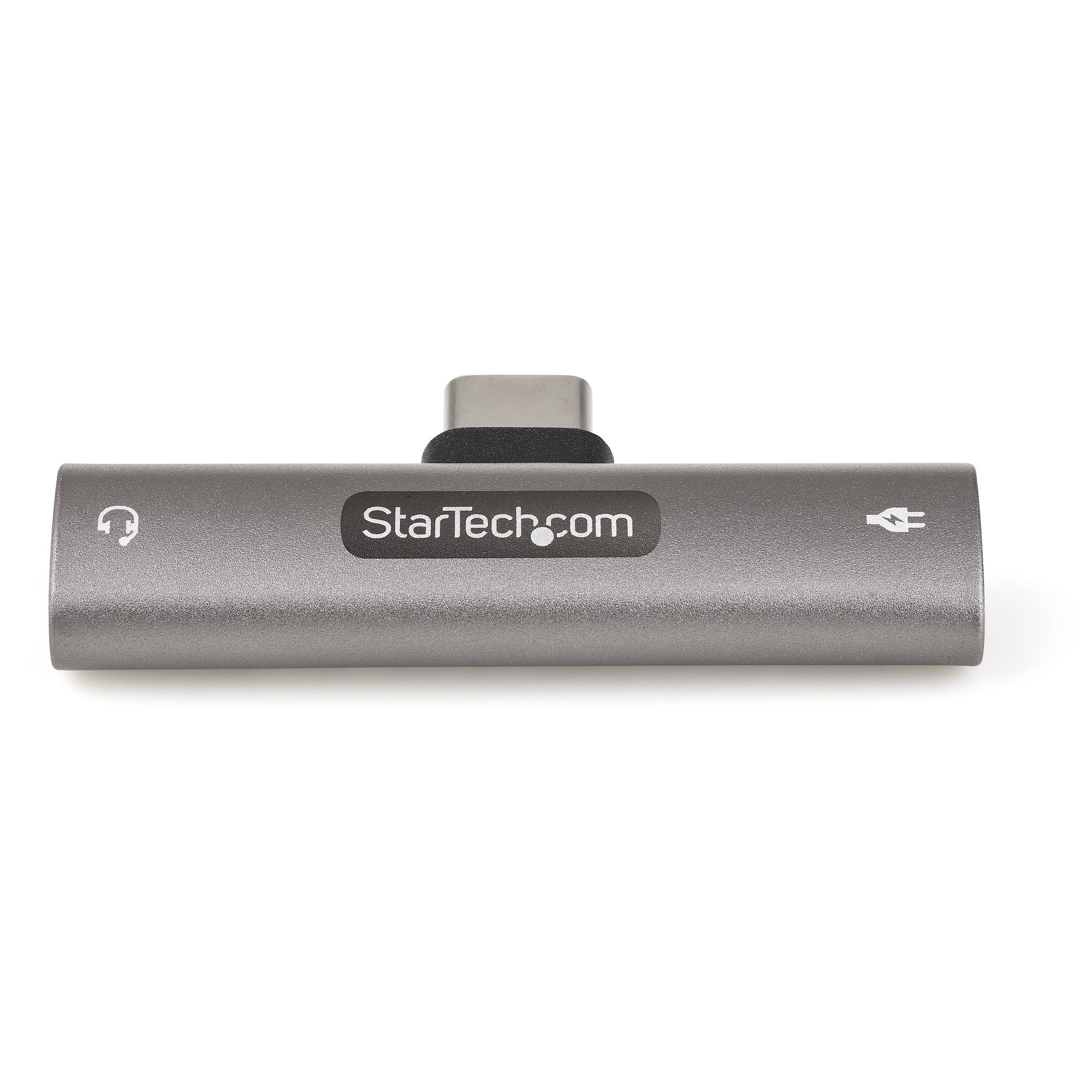

CONVENIENT SIDE PORT LAYOUT: Compact, horizontal-style adapter w/ cable-less, dongle-like design and discreet side port locations for audio & power connections at opposite ends of the adapter to avoid snags/tangles and to allow for a flexible device setup
COMPATIBILITY: Works w/ USB Type-C laptops, tablets & smartphones,; Ideal for iPad Pro, Google Pixel, Samsung Galaxy S8 & up, iPhone 15 (Plus/Pro/Max) & up; Windows, macOS, iPadOS, iOS & Android; AUX / Charger adapter is Thunderbolt 3/4 Host Compatible
PORTABLE DESIGN: 2-in-1 USB C audio adapter with a compact/sleek design can be transported, even when connected to your USB C device between office, home office or for business travel; Ideal for conference calls, customer support or at your workstation

Product Properties

Manufacturer
StarTech.com

Model
CDP235APDM

EAN
65030888806

Bullet points

Point
ADD 3.5MM TRRS AUDIO JACK

COMPATIBILITY

CONVENIENT SIDE PORT LAYOUT

MULTIPLE CHARGING MODES

PORTABLE DESIGN

Logistics data

Harmonized System (HS) code
84719000

Master (outer) case height
190 mm

Master (outer) case length
324 mm

Master (outer) case width
216 mm

Products per master (outer) case
250 pc(s)

Operational conditions

Operating relative humidity (H-H)
10 - 85%

Operating temperature (T-T)
0 - 45 °C

Storage temperature (T-T)
-10 - 70 °C

Other features

Chipset
BCC2102, SB09-214082-CD011-A1.05

Packaging data

Package depth
125 mm

Package height
1 mm

Package width
90 mm

Quantity per pack
1 pc(s)

Performance

Housing material
Metal

Hub interfaces
3.5mm, USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Product colour
Silver

Ports & interfaces

Combo headphone/mic port
Yes

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB Power Delivery
Yes

USB Power Delivery revision
3.0

USB Power Delivery up to
60 W

Software

Mac operating systems supported
Mac OS X 13.0 Ventura

Other operating systems supported
Android

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64

Sustainability

Sustainability certificates
CE, RoHS

Weight & dimensions

Depth
49.9 mm

Height
9 mm

Weight
8 g

Width
22.5 mm
